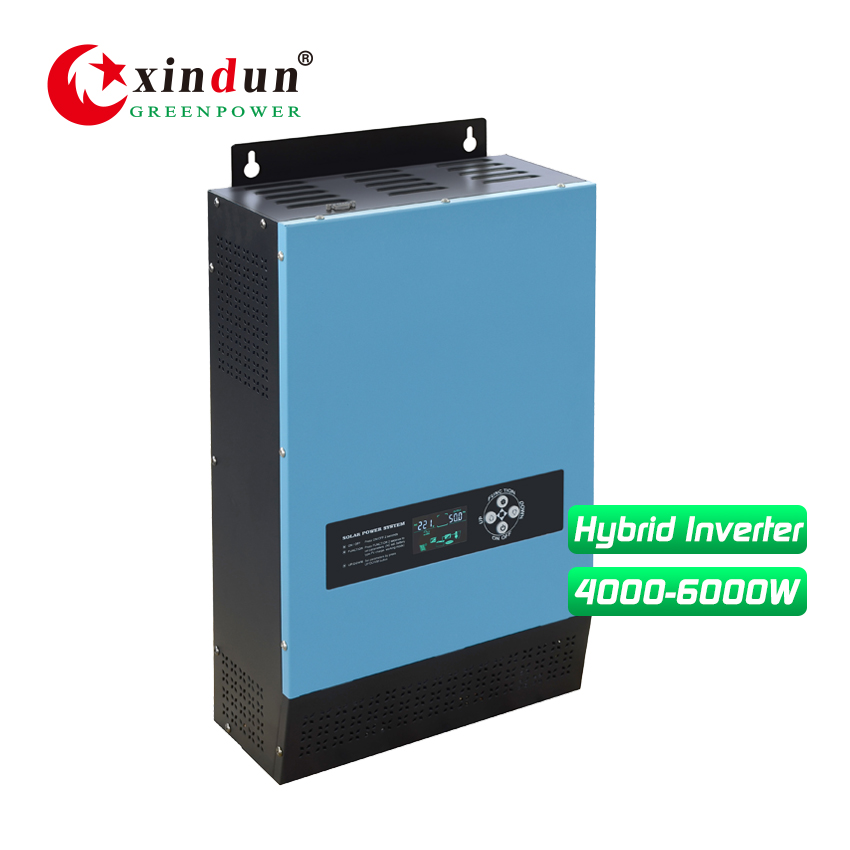

4KW/5KW/6KW, DC24V/48V to AC110V/120V/220V/230V/240V | Inverter with MPPT/PWM Charge Controller | Hybrid Solar Inverter at Low Price
Product
Xindun has provided hybrid solar inverter customized services for thousands of distributors. We have rich experience in serving below customers:
Solar Installation Companies
Electricity Companies
Energy Companies
Building Materials Companies
Commercial and Industrial Companies
Farm
Shipping Companies
RV Companies
Project Contractors
In the future, we look forward to establishing long-term cooperative relations with more new friends.
■ Hybrid Solar Inverter Feature
1 Pure sine wave output;
2 Low frequency toroidal transformer lower loss;
3 Intelligent LCD integration display;
4 Hybrid solar inverter with built-in PWM or MPPT controller optional;
5 AC charge current 0~30A adjustable, three working modes selectable;
6 Peak power more than 3 times, full-automatic and perfect protection function;
7 Added fault code query function, easy to monitor the operation in real time;
8 Supports diesel or gasoline generator, adapt any tough electricity situation;
9 Inverter combine industrial and home usage, wall-mounted design, convenient installation.
■ Hybrid Solar Inverter Specification
| Specification | ||||
| Model LS |
40224/48
(402)
|
50248
(502)
|
60248
(602)
|
|
| Rated Power | 4KW | 5KW | 6KW | |
| Peak Power（20ms) | 12KVA | 15KVA | 18KVA | |
| Start Motor | 3HP | 4HP | 4HP | |
| Battery Voltage | 24/48VDC | 48VDC | ||
| Size(L*W*Hmm) | 530*335*150 | |||

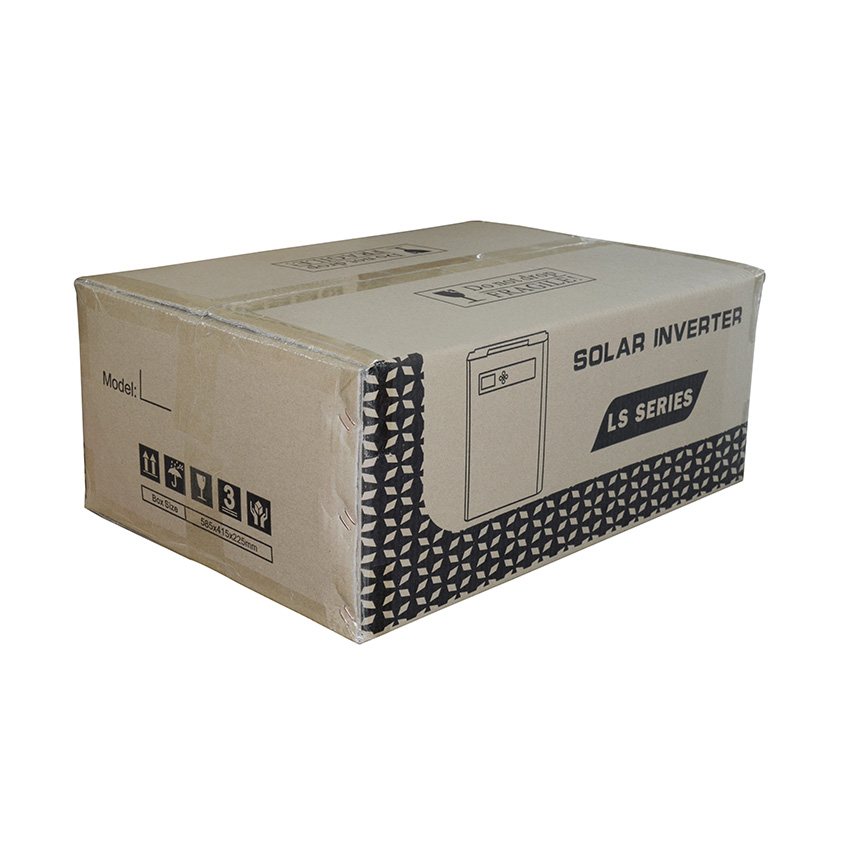

| Packing Size(L*W*Hmm) | 605*430*235 | |||
| N.W.(kg) | 22 | 24 | 26 | |
| G.W.(kg)（Carton Packing） | 24 | 26 | 28 | |
| Installation Method | Wall-Mounted | |||
| Parameter | ||||
| Input | DC Input Voltage Range | 10.5-15VDC（Single battery voltage） | ||
| AC Input Voltage Range |
85VAC~138VAC（110VAC）
/ 95VAC~148VAC（120VAC） / 170VAC~275VAC（220VAC） /
180VAC~285VAC（230VAC） / 190VAC~295VAC（240VAC）
|
|||
| AC Input Frequency Range | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | |||
| Max AC charging current | 0~30A(Depends on model) | |||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | |||
| Output | Efficiency(Battery Mode) | ≥85% | ||
| Output Voltage(Battery Mode) | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% | |||
| Output Frequency(Battery Mode) | 50/60Hz±1% | |||
| Output Wave(Battery Mode) | Pure Sine Wave | |||
| Efficiency(AC Mode) | >99% | |||
| Output Voltage(AC Mode) | 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10% | |||
| Output Frequency(AC Mode) | Tracking Automatically | |||
|
Output waveform distortion
(Battery Mode)
|
≤3%（Linear load） | |||
| No load loss(Battery Mode) | ≤0.8% rated power | |||
| No load loss(AC Mode) | ≤2% rated power（ charger does not work in AC mode） | |||
|
No load loss
(Energy saving Mode)
|
≤10W | |||
| Battery Type | VRLA Battery | Charge Voltage :14.2V; Float Voltage:13.8V（Single battery voltage） | ||
| Customize battery |
Charging
and discharging parameters of different types of batteries can be customized
according to user requirements
(charging and discharging parameters
of different types of batteries can be set through the operation panel)
|
|||
| Protection | Battery undervoltage alarm | Factory default: 11V（Single battery voltage） | ||
| Battery undervoltage protection | Factory default: 10.5V（Single battery voltage） | |||
| Battery overvoltage alarm | Factory default: 15V（Single battery voltage） | |||
| Battery overvoltage protection | Factory default: 17V（Single battery voltage） | |||
| Battery overvoltage recovery voltage | Factory default: 14.5V（Single battery voltage） | |||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||
| Temperature protection | >90°C（Shut down output） | |||
| Alarm | A | Normal working condition, buzzer has no alarm sound | ||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | |||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | |||
|
Inside Solar controller
(Optional)
|
Charging Mode | MPPT or PWM | ||
| Charging current | 10A~60A(PWM ) / 10A~100A(MPPT) | |||
| PV Input Voltage Range | PWM: 30V-44V(24V System); 60V-88V(48V System) / MPPT: 30V-120V(24V System); 60V-120V(48V System) | |||
|
Max PV Input Voltage(Voc)
(At the lowest temperature)
|
PWM: 50V(24V System ); 100V(48V System) / MPPT: 150V | |||
| PV Array Maximum Power |
24V System:
280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A);
48V System:
560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A)
|
|||
| Standby loss | ≤3W | |||
| Maximum conversion efficiency | >95% | |||
| Working Mode | Battery First/AC First/Saving Energy Mode | |||
| Transfer Time | ≤4ms | |||
| Display | LCD | |||
| Thermal method | Cooling fan in intelligent control | |||
| Communication | RS485/APP（WIFI monitoring or GPRS monitoring） | |||
| Environment | Operating temperature | ≤55dB | ||
| Storage temperature | -10℃~40℃ | |||
| Noise | -15℃~60℃ | |||
| Elevation | 2000m（More than derating） | |||
| Humidity | 0%~95% ,No condensation | |||
| Note: All specifications are subject to charge without prior notice | ||||

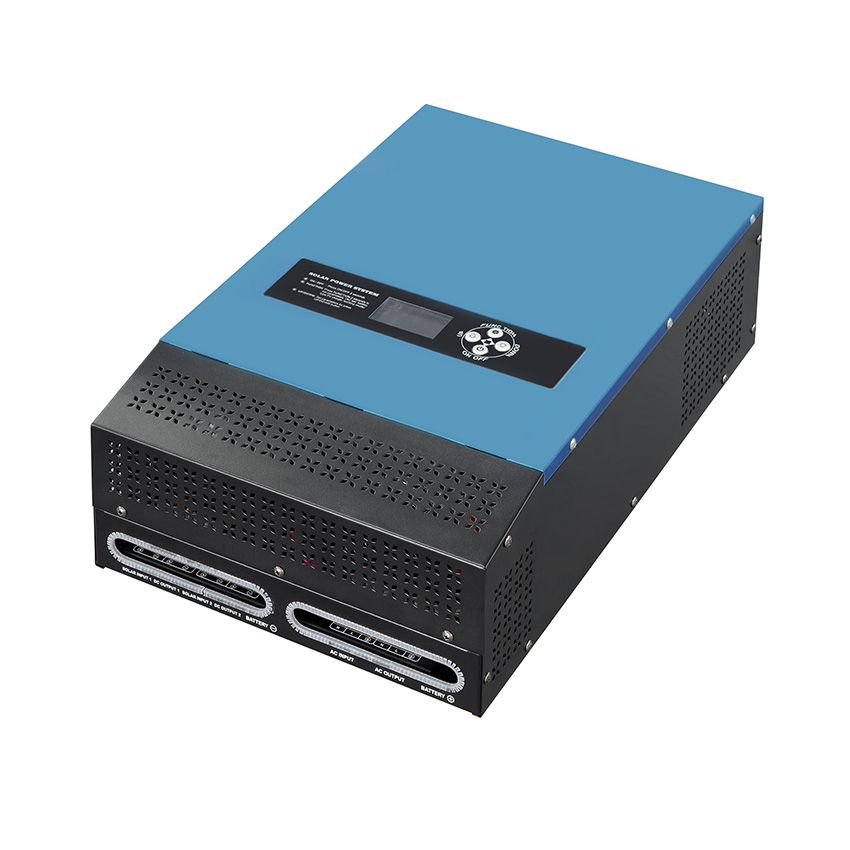

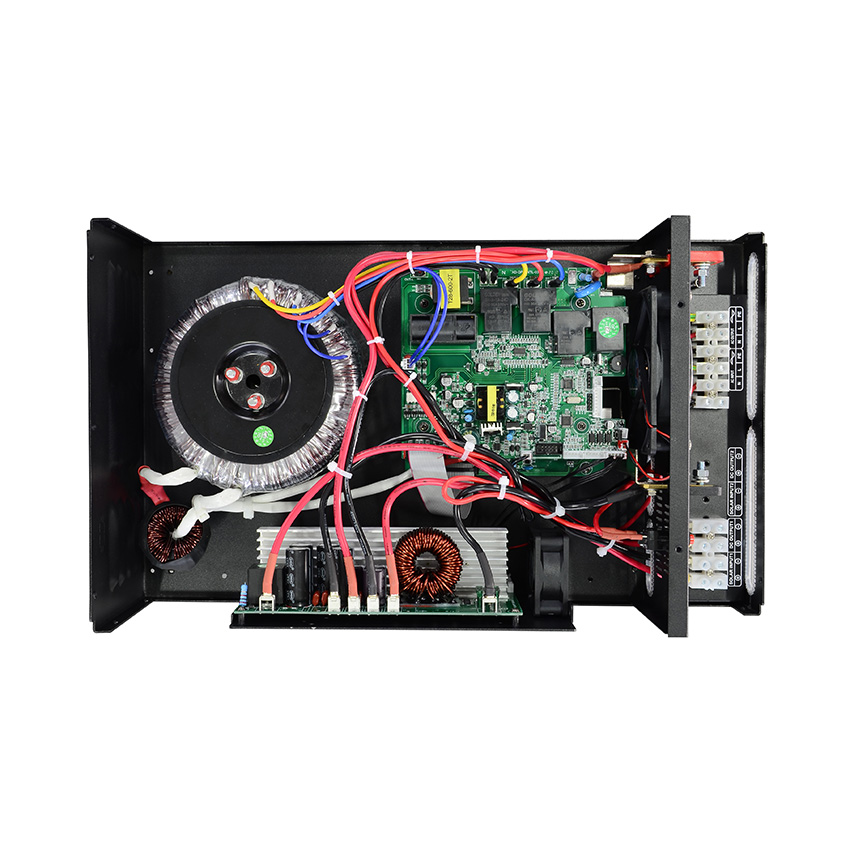

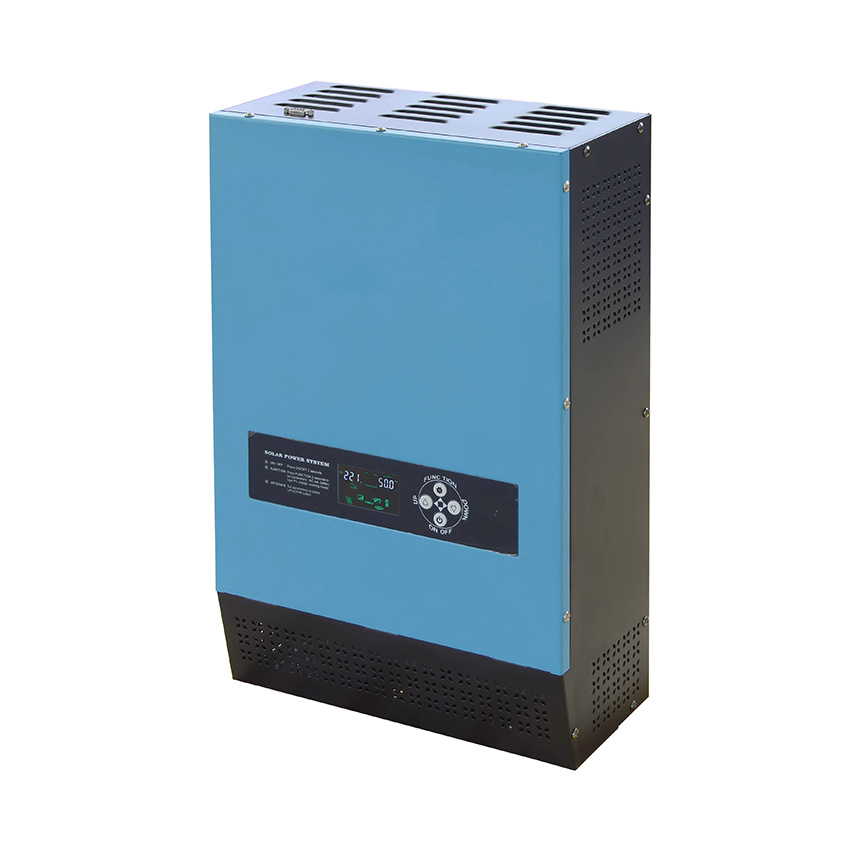

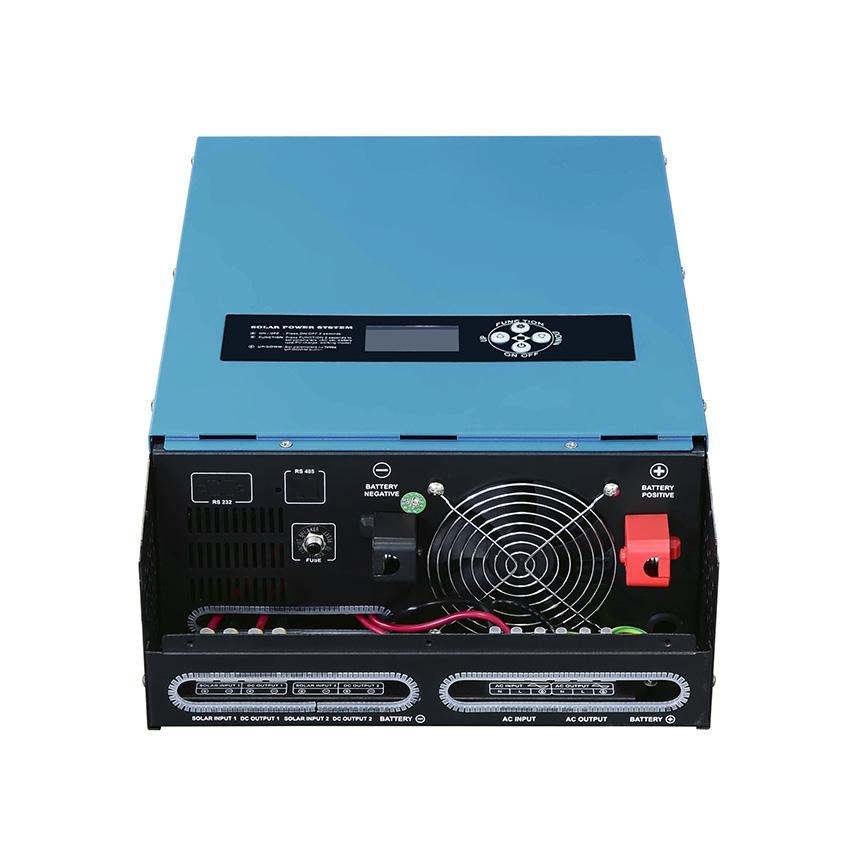

■ Hybrid Solar Inverter Details
■ Hybrid Solar Inverter Wiring Diagram
■ Hybrid Solar Inverter Application
Xindun hybrid solar inverter usually has two application methods:
1. Home backup system:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to home appliances, such as light, refrigerator, television, air-conditioner. When AC grid power is off, inverter will automatic transfer switch to battery power and convert DC to AC power.
2. Wind or Solar Energy system:
The electricity generated by solar or wind energy is DC (direct current), then inverter will convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.
■ Why Choose Us？
1. We are a professional manufacturer of power inverter and controller with over 10 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 14 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
5. 200,000pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.
■ About Xindun Power
■ Hybrid Solar Inverter Factory
■ Qualifications and Certificates
■ Global Solar Exhibitions
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: What is the price of hybrid solar inverter?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Hybrid solar inverter factory direct sales, no middlemen earn price difference.
Q3: What type of inverters do you produce?
A: We produce various types of inverters: pure sine wave inverters, off-grid inverters, on/off grid inverters, solar hybrid inverters, single phase inverters, 3 phase inverters, low frequency inverters, high frequency inverters, etc. Don’t know which type of inverter to choose? Contact XINDUN now!
Q4: What\'s the difference between solar inverter and hybrid inverter?
A: Inverter is design to convert DC (Direct Current) into AC (Alternating Current). Both solar inverter and hybrid inverter are widely used in PV solar energy into electric energy. Hybrid inverter contains the function of a solar inverter, also adds a built-in solar charge controller. Also it can be a combination of off grid and grid tie inverter in one machine with same description as you called hybrid inverter.
Q5: How to solve the hybrid solar inverter technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
