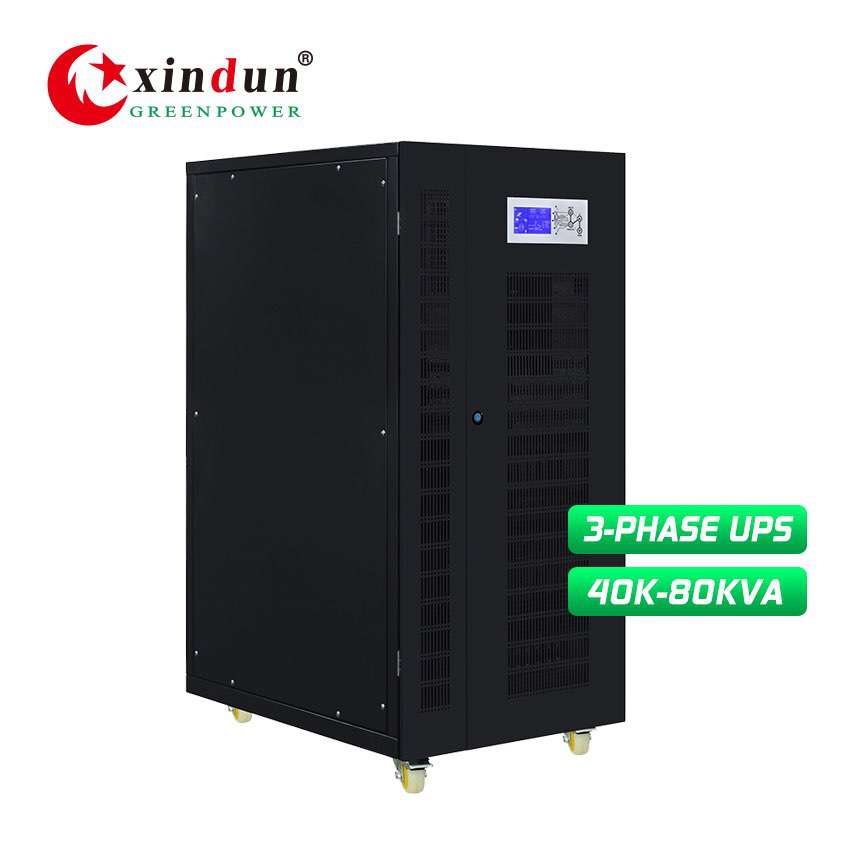

40KVA/50KVA/60KVA/80KVA UPS 192V/384VDC to 380VAC. Multiple Applications: UPS Power Backup for Computer, PC, Home, Office, etc.
Product
■ UPS Power Backup Feature
1. Three-phase interactive ups power backup, support three-phase unbalanced load, can output single-phase 220V or three-phase 380V.
2. High Performance DSP based full digital controlled, low frequency pure sine wave output.
3. AC charge current 0-45A adjustable.
4. Compatible with diesel or gasoline generators.
5. Good loading adaptability, work well with laser printer, Ultrasonic cleaner.
6. Accept deep customer-oriented, perfect match customer application requirement.
■ UPS Power Backup Specification
| Specification | |||||
| Model: HDSX | 40KVA | 50KVA | 60KVA | 80KVA | |
| Rated Power | 32KW | 40KW | 48KW | 64KW | |
| Peak Power（20ms) | 96KVA | 120KVA | 144KVA | 192KVA | |
| Start Motor | 15HP | 20HP | 25HP | 30HP | |
| Battery Voltage | 192VDC | 384VDC | |||
| Size(L*W*Hmm) | 720*575*1275 | ||||
| Packing Size(L*W*Hmm) | 785*640*1400 | ||||
| N.W.(kg) | 287 | 307 | 337 | 355 | |
| G.W.(kg)（Wooden Packing） | 320 | 340 | 370 | 388 | |
| Installation Method | Tower | ||||
| Parameter | |||||
| Input | DC Input Voltage Range | 10.5VDC-15VDC（Single battery voltage） | |||
| AC Input Voltage Range | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||||
| AC Input Frequency Range | 45Hz-55Hz（50Hz）/ 55Hz-65Hz（60Hz） | ||||
| Max AC charging current | 0-45A(Depending on the model） | ||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||
| Phase | 3/N/PE | ||||
| Output | Efficiency(Battery Mode) | ≥85% | |||
| Output Voltage(Battery Mode) | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||||
| Output Frequency(Battery Mode) | 50/60Hz ±1% | ||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||
| Output waveform distortion | Linear load≤3% | ||||
| Efficiency(AC Mode) | >99% | ||||
| Output Voltage(AC Mode) | Conforming to AC input | ||||
| Output Frequency(AC Mode) | Conforming to AC input | ||||
| No load loss(Battery Mode) | ≤1% rated power | ||||
| No load loss(AC Mode) | ≤2%rated power（ charger does not work in AC mode） | ||||
| No load loss(Energy saving Mode) | ≤10W | ||||
| Phase | 3/N/PE | ||||
| Battery Type | VRLA Battery | Charge Voltage :13.8V; Float Voltage:13.7V（Single battery voltage） | |||
| Customize battery |
Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
|
||||
| Protection | Battery undervoltage alarm | 11V（Single battery voltage） | |||
| Battery undervoltage protection | 10.5V（Single battery voltage） | ||||
| Battery overvoltage alarm | 15V（Single battery voltage） | ||||
| Battery overvoltage protection | 17V（Single battery voltage） | ||||
| Battery overvoltage recovery voltage | 14.5V（Single battery voltage） | ||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||
| Temperature protection | >90°C（Shut down output） | ||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||
| Transfer Time | ≤4ms | ||||
| Display | LCD | ||||
| Thermal method | Forced air cooling | ||||
| Communication(Optional) | RS485/APP（WIFI monitoring or GPRS monitoring） | ||||
| Environment | Operating temperature | -10℃~40℃ | |||
| Storage temperature | -15℃~60℃ | ||||
| Noise | 2000m（More than derating） | ||||
| Elevation | ≤65dB | ||||
| Humidity | 0%~95% ,No condensation | ||||
| Note: All specifications are subject to charge without prior notice | |||||

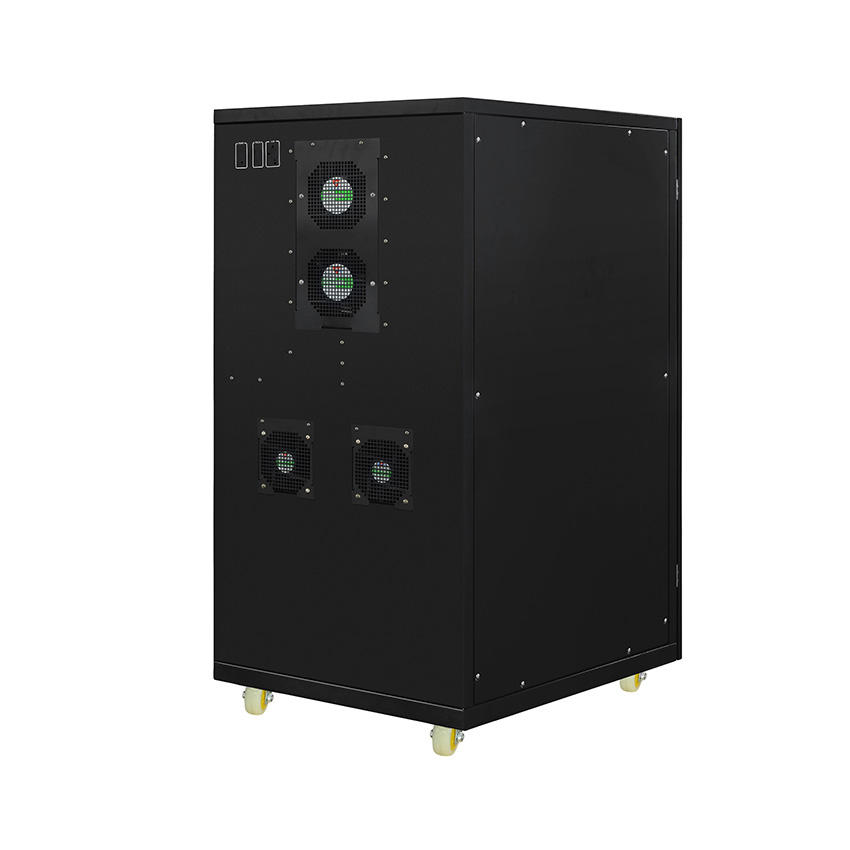

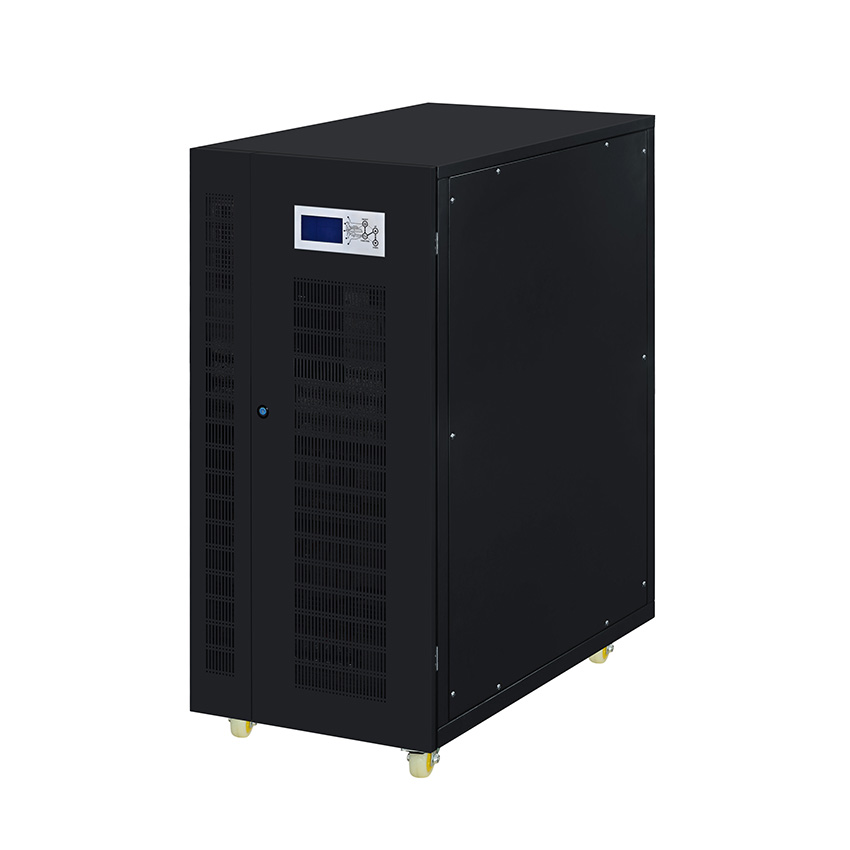

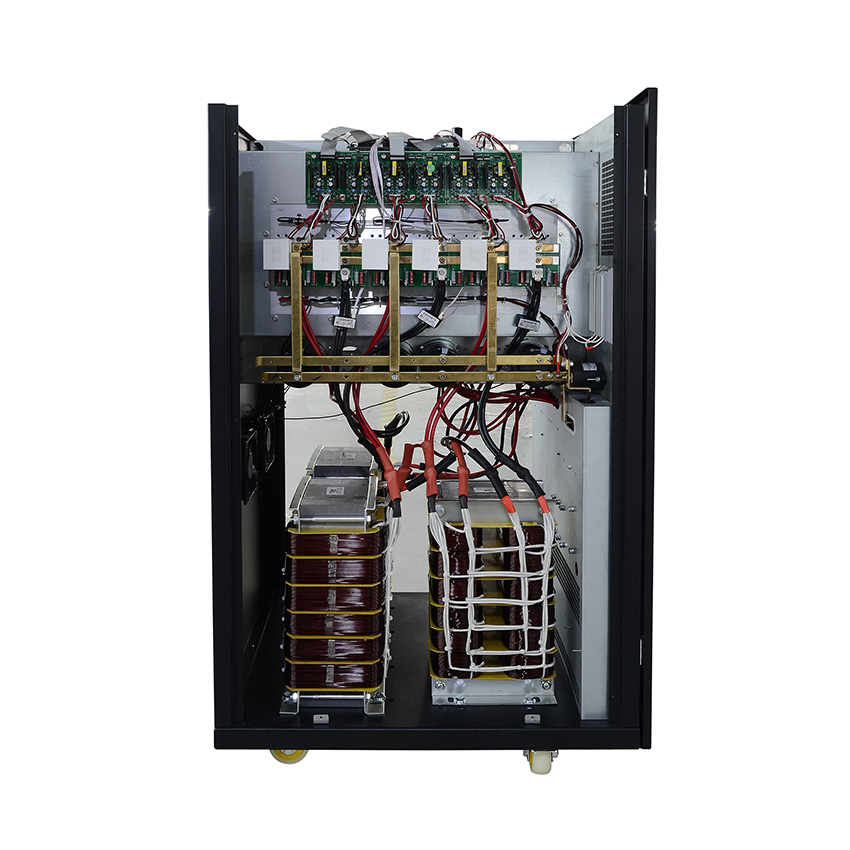

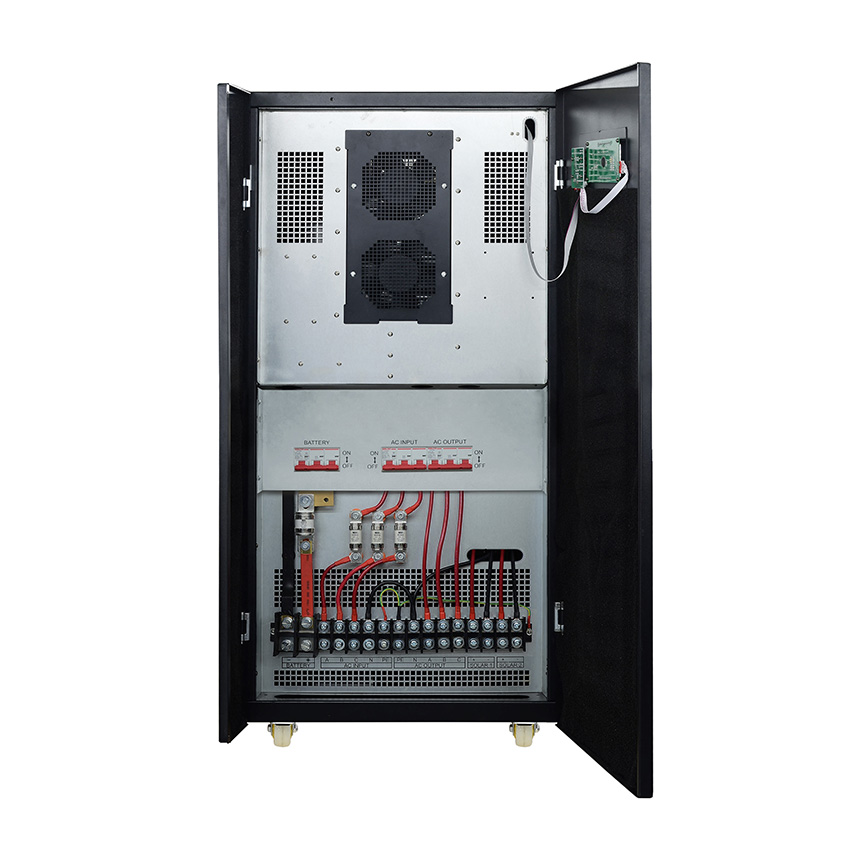

■ UPS Power Backup Details

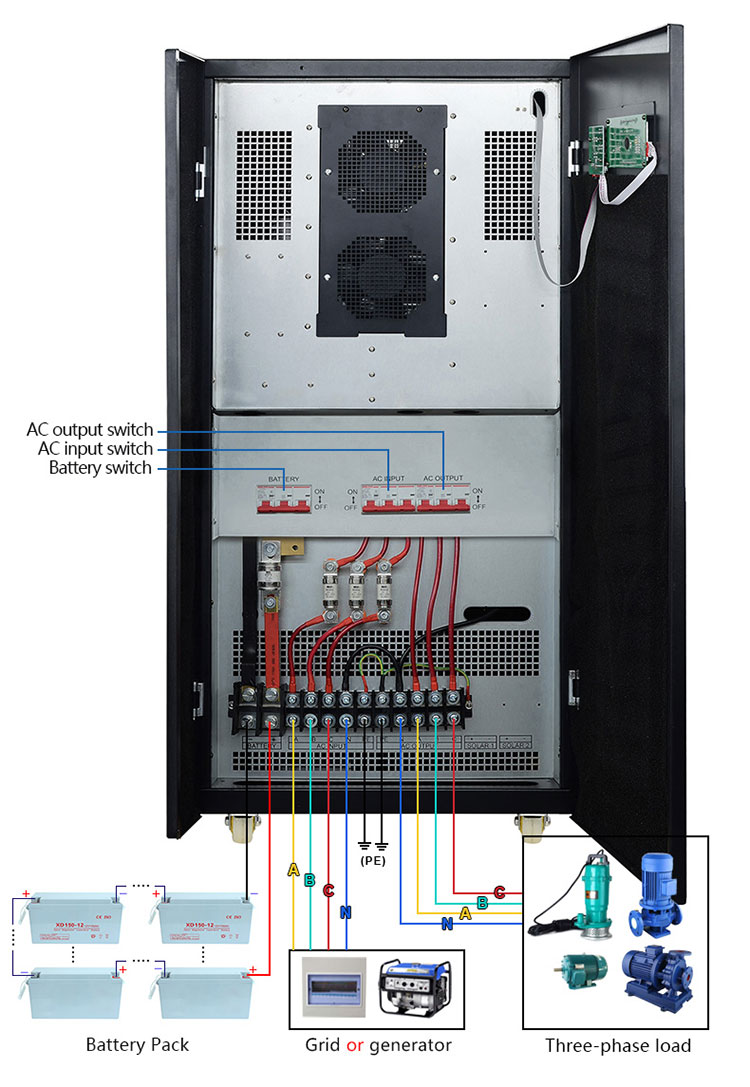

■ How Does UPS Power Backup Work?
UPS Power backup for home or office:
When AC grid power is available, ups charges battery, at the same time, AC grid power bypass through ups to home appliances, such as computer, refrigerator or water pump. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.
■ UPS Power Backup Package and Shipping
■ Why Choose Us？
1. 7,000 square meters manufacturing factory.
2. 100% QC inspection and testing before shipment.
3. OEM&ODM services acceptable.
4. Lots of cooperated agent for shipping by sea or by air.
5. 1year warranty , if it is quality problem , we will provide the parts for free .
■ About Xindun Power
■ UPS Power Backup Factory in China
■ Qualifications and Certificates
■ Global Power Exhibitions
■ FAQ
Of course you can. UPS power backup can be said to be born for computer emergency power supply. This series of power backup for pc can be switched to battery power supply within 4ms when the mains power is interrupted. During this process, the computer will not be powered off.
If the electricity in your home is unstable, you can use ups power backup with batteries. When the mains power is normal, you can charge the batteries. When the mains power is cut off, the power sources changes to battery power supply.
The office is the place where most of our adults spend the longest time every day. We deal with business documents in the office. Computer office has become a daily business. The stability of power supply in the office, especially in computers, is particularly important. So Xindun suggested that should be equipped with UPS power backup for offcie to ensure that all office electricity is normal.
Yes. Xindun have 16 years UPS power backup manufacturing experiences. The factory is in China, and there are overseas warehouses in 6 places around the world.
