Inverter With Charge Controller
Xindun WF series have wide voltage for 1 kilowatt 2 kilowatt 3 kilowatt 5 kilowatt 10 kilowatt 15 kilowatt to 40 kilowatt solar inverter suitable for home, commercial, industrial and other applications.
1 kilowatt solar inverter 3 kilowatt solar inverter  10 kilowatt solar inverter
1 kilowatt solar inverter 3 kilowatt solar inverter  10 kilowatt solar inverter
2 kilowatt solar inverter  5 kilowatt solar inverter  15 kilowatt solar inverter
1 kilowatt solar inverter 2 kilowatt solar inverter 3 kilowatt solar inverter 5 kilowatt solar inverter 10 kilowatt solar inverter 15 kilowatt solar inverter
2 kilowatt solar inverter 5 kilowatt solar inverter 15 kilowatt solar inverter

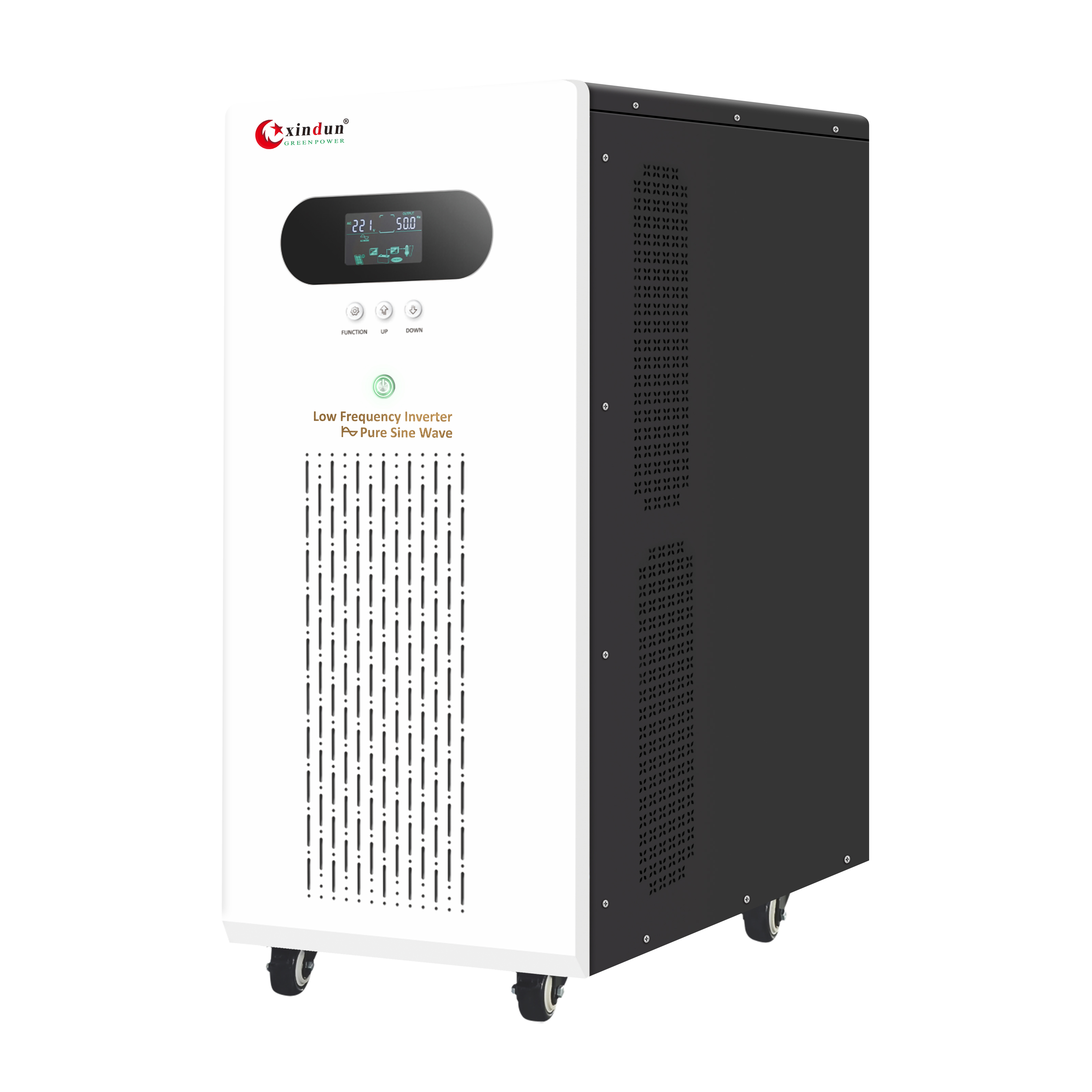

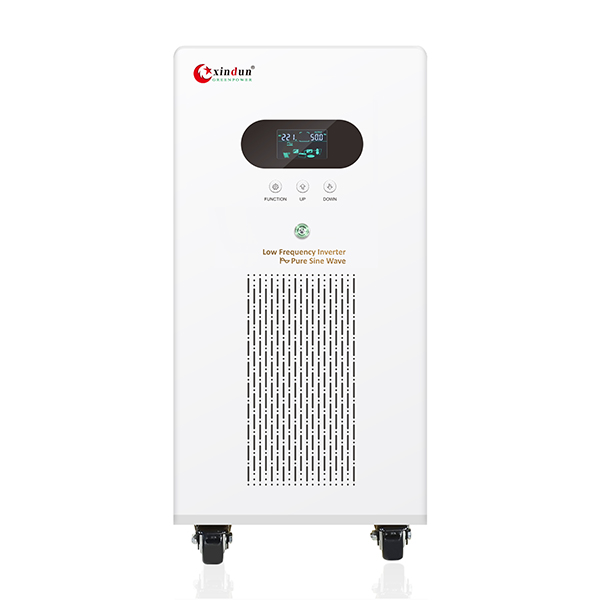

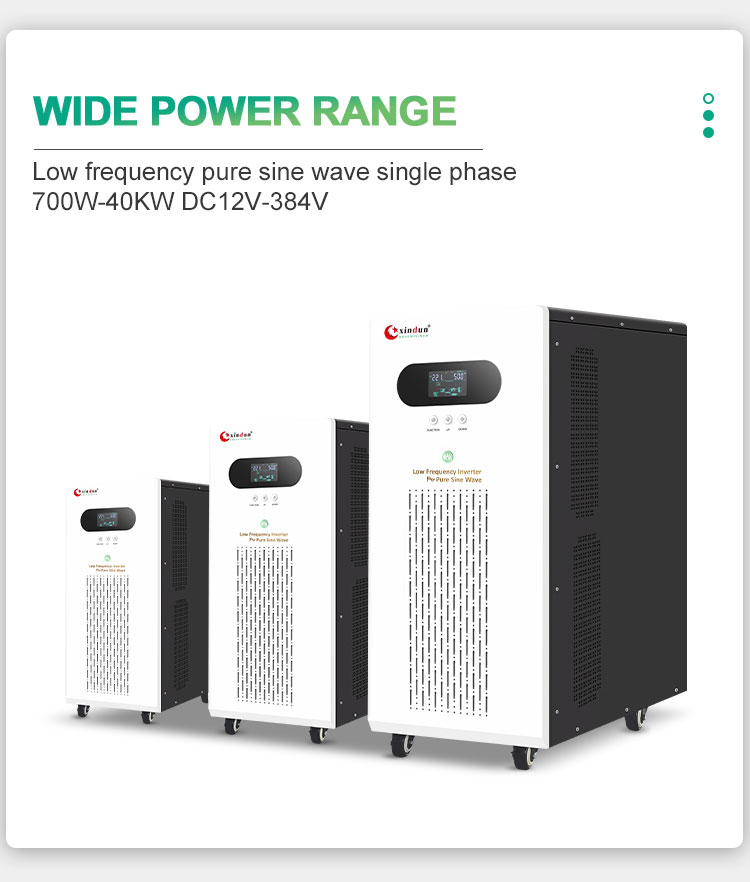

WF Solar Inverter 700 Watt - 40 Kilowatt 12 Volt - 384 Volt

1 Kilowatt to 40 kilowatt solar inverter, single phase output AC110V/120V/220V/230V/240V, or more than 8 kilowatt can be customized split phase output AC110V&220V or AC120V&240V. Pure sine wave. Xindun have wholesale price to trader.

  • Place of Origin : Foshan, Guangdong, China
  • Type : Low Frequency Off Grid Solar Inverter
  • Brand : XINDUN POWER
  • MOQ : 6 pcs
  • OEM : Yes

1 kilowatt solar inverter 2 kilowatt solar inverter 3 kilowatt solar inverter 5 kilowatt solar inverter 10 kilowatt solar inverter 15 kilowatt solar inverter





Solar Inverter Feature




1.Support single-phase output, more than 8kw can be customized divided phase output 110V/240V or 110V/220V, if you have other customization requirements can contact us.

2.Wide power range from 700 watts to 40 kilowatts, caters to a wide range of applications.

3.Mains power and generators can charge the battery, inverter can be used as an uninterruptible power supply.

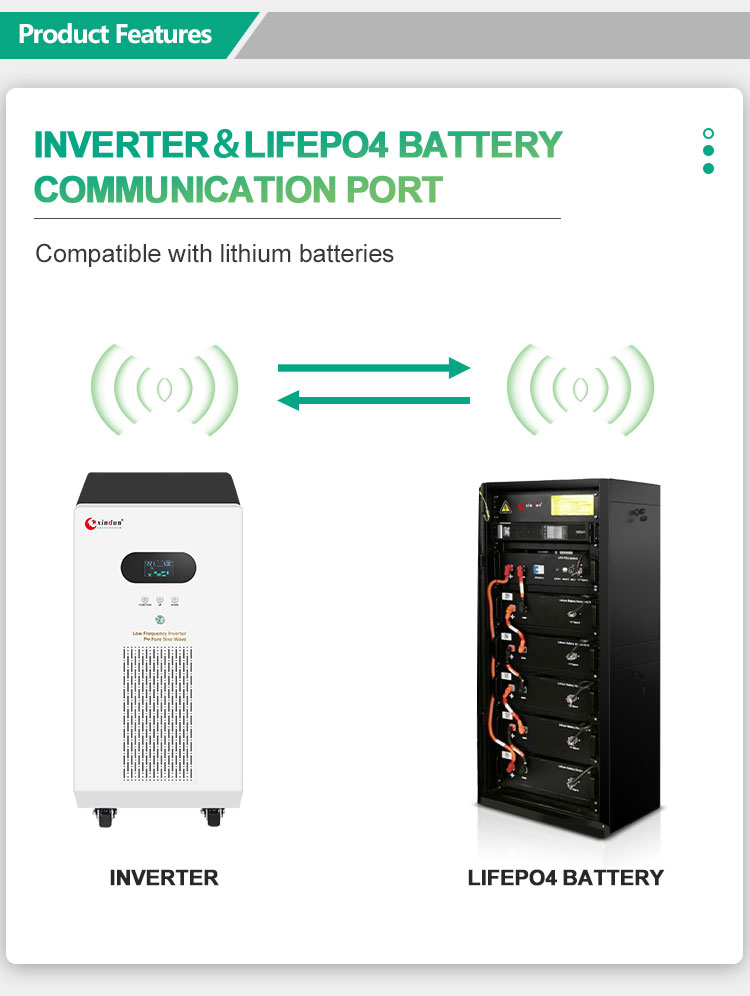

4.Compatible with lead-acid and lithium batteries,smart battery charger design for optimized battery life.

5.Built-in 30A/50A/60A/100A MPPT solar charge controller.

6.Setting priority supply level for PV, energy storage or grid.

7.Output power factor 1.0,sufficient power to ensure stable operation of the equipment.





Solar Inverter Specification




Specifiption
Model:WF 70112/24 10212/24 15224/48 20224/48 30224/48 35248/96 40248/96 50248/96 60248/96 70248/96/192
Power
Rated Power 700W 1000W 1500W 2000W 3000W 3500W 4000W 5000W 6000W 7000W
Phase Type  Single phase L-N ;  Above 8kw Split phase can be customized L1-L2, L1-N, L2-N
Battery
Standard Battery Voltage 12/24VDC 12/24VDC 24/48VDC 24/48VDC 24/48VDC 48/96VDC 48/96VDC 48/96VDC 48/96VDC 48/96/192VDC
Battery Type Lead-acid battery / Lithium battery / Custom battery
Built-in Controller MPPT(optional)
Rated Current 30A 60A 48V:100A,96V:60A
Maximum PV Input Power 12V(420W)/24V(840W)/48V(1680W) 24V(1680W)/48V(3360W)/96V(6720W) 48V(5600W)/96V(6720W)
Max PV Input Voltage(Voc)
(At The Lowest Temperature)
12V/24V system:120VDC;48V system:180VDC;96V system:280VDC
MPPT Tracking Voltage Range 12V system(15V-80V);24V system(30V-100V);48V system(60V-140V);96V system(120V-220V)
Dimensions and Weight
Product Size(L*W*Hmm) 340x165x283 410x200x350 491x260x490
Packing Size(L*W*Hmm) 405x230x340(1PC) / 475x415x350(2PC) 475x265x410 545x315x550
N.W.(kg) 9.5(1PC) 10.5(1PC) 11.5(1PC) 17 20.5 21.5 29 30 31.5 36
G.W.(kg) 11(1PC) 12(1PC) 13(1PC) 19 22.5 23.5 32 33 34.5 39
型号:WF 80248/96/192 10348/96/192 12396/192 153192 203192 253240 303240 403384
Power
Rated Power 8KW 10KW 12KW 15KW 20KW 25KW 30KW 40KW
Battery
Standard Battery Voltage 48/96/192VDC 48/96/192VDC 96/192VDC 192VDC 192VDC 240VDC 240VDC 384VDC
Battery Type Lead-acid  battery / Lithium battery / Custom battery
Built-in Controller MPPT(optional)
Rated Current 48V:100A, 96V:100A,192V:50A 100A 100A
Maximum PV Input Power 48V(5600W)/96V(11.2KW)/192V(11.2KW) 192V(11.2KW*2)/240V(14KW*2) 240V(14KW*2)/384V(22.4KW*2)
Max PV Input Voltage(Voc)
(At The Lowest Temperature)
48V system:180VDC;96V system:280VDC;192V system:450VDC;240V system:500VDC;384V system:800VDC
MPPT Tracking Voltage Range 48V system(60V-140V);96Vsystem(120V-220V);192Vsystem(240V-360V);240Vsystem(300V-400V);384Vsystem(480V-640V)
AC Input
Rated Input Voltage 110VAC/120VAC/220VAC /230VAC/ 240VAC
AC Input Voltage Range 73VAC~138VAC(110VAC) /  83VAC~148VAC(120VAC) / 145VAC~275VAC(220VAC) /  155VAC~285VAC(230VAC) /  165VAC~295VAC( 240VAC) (700W~7000W)
92VAC~128VAC(110VAC) / 102VAC~138VAC(120VAC) /  185VAC~255VAC(220VAC) /  195VAC~265VAC(230VAC) /  205VAC~275VAC( 240VAC) (8KW~40KW)
AC Input Frequency 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz)
AC Output
Output Wave Pure Sine Wave
Conversion Efficiency >85%
AC Output Voltage / Frequency Range (INV Mode) 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%,50/60Hz±1%
Other
Protection Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection
Protection Degree IP20
Display LCD
Cooling Method Cooling Fan in Intelligent Control
Communication RS485/APP(WIFI monitoring or GPRS monitoring)
Working Mode(settable) Battery Priority/Mains Priority
Operating Temperature -15℃~40℃
Relative Humidity 0%~95% ,(No Condensation)
Dimensions and Weight
Product Size(L*W*Hmm) 540x350x695 593x370x820 721x400x1002
Packing Size(L*W*Hmm) 600*410*810 656*420*937 775x465x1120
N.W.(kg) 66 70 77 110 116 123 167 192
G.W.(kg) 77 81 88 124 130 137 190 215





Solar Inverter Details

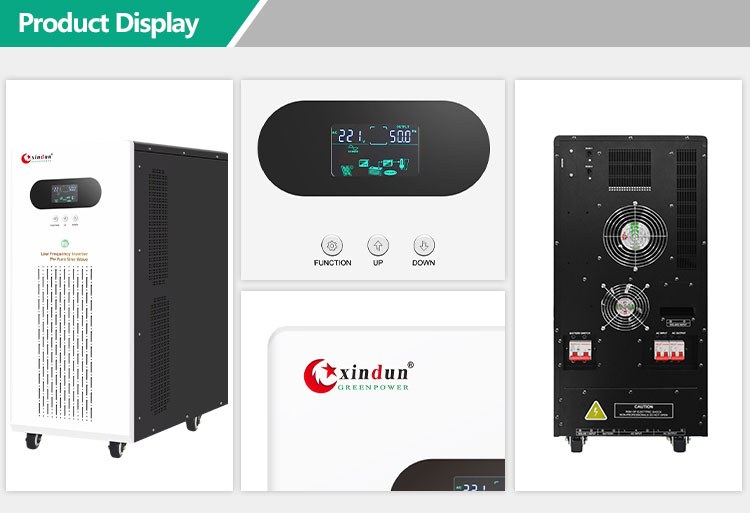

1 kilowatt solar inverter 2 kilowatt solar inverter 3 kilowatt solar inverter 5 kilowatt solar inverter 10 kilowatt solar inverter 15 kilowatt solar inverter display



1 kilowatt solar inverter 2 kilowatt solar inverter 3 kilowatt solar inverter 5 kilowatt solar inverter 10 kilowatt solar inverter 15 kilowatt solar inverter battery

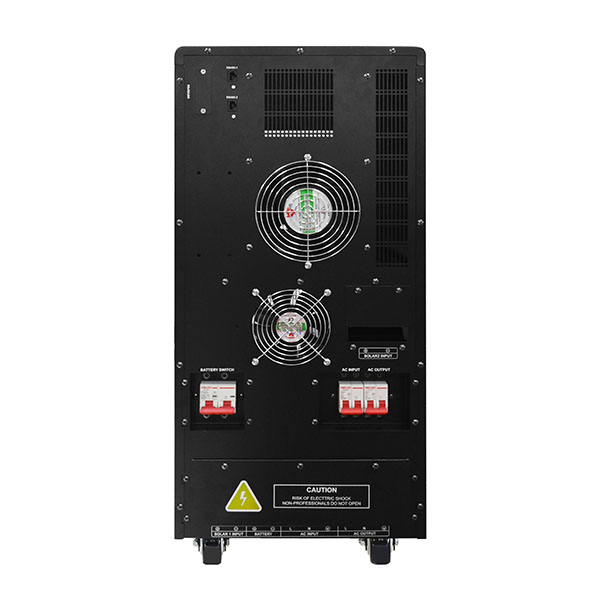

1 kilowatt solar inverter 2 kilowatt solar inverter 3 kilowatt solar inverter 5 kilowatt solar inverter 10 kilowatt solar inverter 15 kilowatt solar inverter

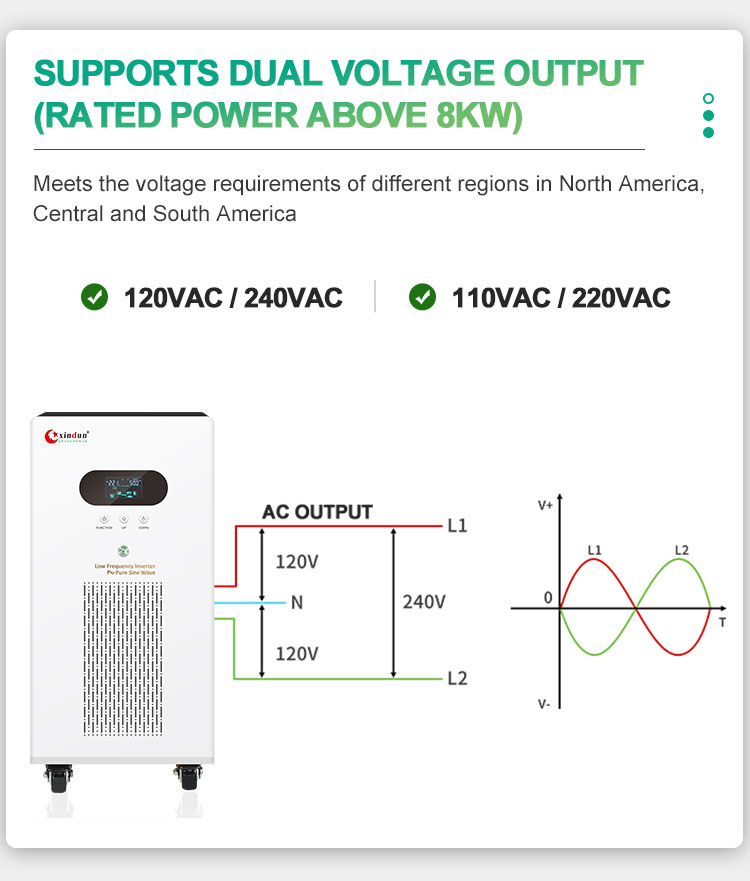

1 kilowatt solar inverter 2 kilowatt solar inverter 3 kilowatt solar inverter 5 kilowatt solar inverter 10 kilowatt solar inverter 15 kilowatt solar inverter support dual voltage output







Solar Inverter Wiring Diagram






Highlighted in our wiring diagram showcase is a visual representation of the grid, generator, battery, solar panel input, and AC output connections, offering an ideal solution for various uses, such as homes, offices, and industry. Our team of experts is standing by to assist with any installation concerns.





Why Choose Us?




Free sample offer: Understanding Xindun Power's products is made easier with our complimentary sample service. When you make bulk orders for our products, the costs of the samples will be deducted from your total expenses, meaning you get the samples for free.



Solar inverter product wholesale: Xindun is dedicated to enhancing your business's cost-effectiveness through ample stock and competitive wholesale pricing. Our experienced team, each with over a decade of inverter manufacturing expertise, guarantees high productivity across four efficient production lines. Timely order fulfillment is made possible through our global network of overseas warehouses. As the original inverter manufacturer, Xindun Power offers highly competitive pricing, setting the stage for a long-term partnership.



Solar inverter accppt OEM/ODM: At Xindun, we take pride in offering OEM/ODM services, encompassing personalized logos, exterior designs, special voltage, and power configurations. Our flexibility extends to RFQ minimum orders. With 15 utility model patents, 10 computer software patents, and 5 design patents, our extensive research and design capabilities are at your disposal. Moreover, we hold various national professional inspection certifications, including CE, IEC, TUV, TLC, ISO, MCS, and more. Our goal is to empower importers and traders to manufacture their own branded products, enabling them to create distinctive items and gain a competitive edge in the market.



Solar inverter solutions customization: At Xindun, our commitment is to offer personalized solar solutions for engineering projects. Our all service includes project design, configuration, and product manufacturing to installation, debugging, post-support, and investment return analysis. We empower you to shape your solar future while preserving your valuable time and resources.





About Xindun Power


1 kilowatt solar inverter 2 kilowatt solar inverter 3 kilowatt solar inverter 5 kilowatt solar inverter 10 kilowatt solar inverter 15 kilowatt solar inverter production process

1 kilowatt solar inverter 2 kilowatt solar inverter 3 kilowatt solar inverter 5 kilowatt solar inverter 10 kilowatt solar inverter 15 kilowatt solar inverter factory

Xindun 1 Kilowatt 3 Kilowatt 10 Kilowatt Solar Inverter expo

1 kilowatt solar inverter 2 kilowatt solar inverter 3 kilowatt solar inverter  5 kilowatt solar inverter 10 kilowatt solar inverter 15 kilowatt solar inverter factory

1 kilowatt solar inverter 2 kilowatt solar inverter 3 kilowatt solar inverter 5 kilowatt solar inverter 10 kilowatt solar inverter 15 kilowatt solar inverter certification





FAQ




Q1: Are you a factory?

Yes, we're a Chinese factory specializing in solar inverters with a 18 year history. We work with global brands, offering customized production and logo additions. Few solar power companies have 20 year production history, and our annual scale is expanding.



Q2: What is the cost of a solar  inverter?

Share your requirements—power, voltage, functionality, quantity, delivery address, etc. This helps us recommend a suitable solar inverter, provide pricing, and calculate shipping costs. We offer competitive ex-factory prices, with bulk purchases at lower rates.



Q3: What's the meaning of wide voltage range  of solar inverter combo?

Wide range voltage solar inverter can suitable for various occasions,including hnousehold,island,environmental pollution discharge,agricultural irrigation,reduce maintenance costs.In addition,it work efficiently under different lighting conditions and variations in solar array output,if you select a wide voltage range of solar inverter,WF series is your best choice.



Q4: What type of inverters do you produce?

We produce various types: pure sine wave, off-grid, on/off-grid, solar hybrid, single-phase, 3-phase, low-frequency, high-frequency, etc. The WF series solar charge inverter mentioned is a popular low frequency inverter all over the world.



Q5: What is the failure rate of Xindun solar inverter?

Less than 3%, lower than the industry average of about 10%, indicating high reliability, making it a preferred choice.
