Hybrid solar inverter with mppt charge controller
Best sell hybrid solar inverter with mppt charge controller. A mppt inverter integrates dc to ac inverter, solar controller, battery charging and voltage stabilization functions.

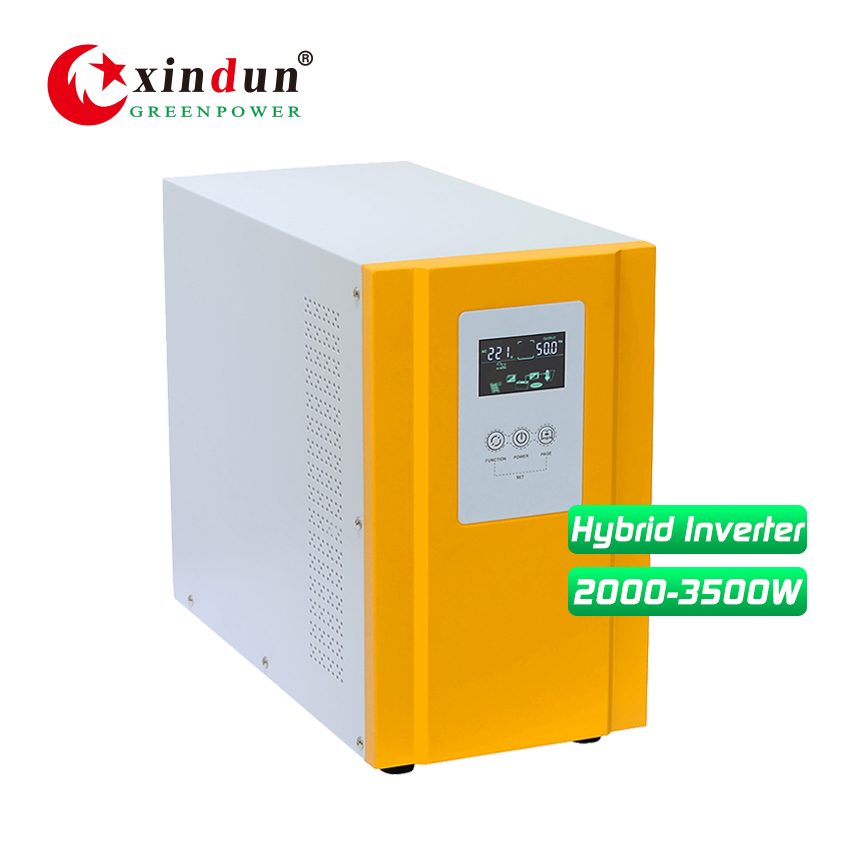

WDT Solar Inverter with MPPT Charge Controller 2000W-3500W 24V/48V/96V

2000W/3000W/3500W, DC24V/48V/96V to AC110V/120V/220V/230V/240V | Hybrid Solar Inverter with MPPT Charge Controller 10A-100A

  • Type : DC to AC Off-Grid Inverter
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 6 pcs
  • OEM : Yes
WD Hybrid solar inverter with mppt charge controller



■ Solar Inverter with MPPT Charge Controller Feature



1  Hybrid solar inverter with built-in PWM or MPPT controller optional;

2  Pure sine wave output;

3  High efficiency toroidal transformer lower loss ;

Intelligent LCD integration display;

5  AC charge current 0-20A adjustable; battery capacity configuration more flexible;

6  Three types working modes adjustable:AC first, DC first, energy-saving mode;

7  Frequency adaptive function, adapt to different grid environments;

8  Added fault code query function,facilitate user to monitor the operation state in real time;

9  Supports diesel or gasoline generator, adapt any tough electricity situation;

10  RS485 communication port/APP optional.



■ Solar Inverter with MPPT Charge Controller Specification



Specification
Model WD-T 20224/48
(202)
30224/48
(302)
35248/96
(352)
Rated Power 2000W 3000W 3500W
Peak Power(20ms) 6000VA 9000VA 10500VA
Start Motor 2HP 3HP 3HP
Battery Voltage 24/48VDC 24/48VDC 48/96VDC
Size(L*W*Hmm) 410x200x350
Packing Size(L*W*Hmm) 475x265x410
N.W.(kg) 17 20.5 21.5
G.W.(kg) 19 22.5 23.5
Installation Method Tower
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 73VAC~138VAC(110VAC) /  83VAC~148VAC(120VAC) / 145VAC~275VAC(220VAC) /
 155VAC~285VAC(230VAC) /  165VAC~295VAC( 240VAC)
AC Input Frequency Range 45Hz~55Hz(50Hz)/ 55Hz~65Hz(60Hz)
Max AC charging current 0A~20A(Depending on the model,The maximum charging power is 1/4 of the rated power)
AC charging method Three-stage (constant current, constant voltage, floating charge)
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 110VAC±2%  / 120VAC±2%  / 220VAC±2%  / 230VAC±2%  / 240VAC±2%
Output Frequency(Battery Mode) 50Hz±0.5 or 60Hz±0.5
Output Wave(Battery Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) Follow input
Output Frequency(AC Mode) Tracking Automatically
Output waveform distortion
(Battery Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤1% rated power
No load loss(AC Mode)  ≤2% rated power( charger does not work in AC mode)
No load loss
(Energy saving Mode)
≤10W
Battery Type
(selectable)
VRLA Battery Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize battery Charging and discharging parameters of different types of batteries can be customized according to user requirements
 (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection Battery undervoltage alarm Factory default: 11V(Single battery voltage)
Battery undervoltage protection Factory default: 10.5V(Single battery voltage)
Battery overvoltage alarm Factory default: 15V(Single battery voltage)
Battery overvoltage protection Factory default: 17V(Single battery voltage)
Battery overvoltage recovery voltage Factory default: 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
C When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller
(Optional)
Charging Mode PWM or MPPT
charging current 24/48V(PWM:10A~60A/MPPT:10A~100A)
PV Input Voltage Range PWM: 30V-44V(24V system); 60V-88V(48V system) / MPPT:  30V-120V(24V system); 60V-120V(48V system)
Max PV Input Voltage(Voc)
(At the lowest temperature)
PWM:  50V(24V system); 100V(48V system) / MPPT: 150V(24V/48V system)
PV Array Maximum Power 24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A);
48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A)
Standby loss ≤3W
Maximum conversion efficiency >95%
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Communication(Optional) RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature -10℃~40℃
Storage temperature -15℃~60℃
Noise ≤55dB
Elevation 2000m(More than derating)
Humidity 0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice



■ Solar Inverter with MPPT Charge Controller Details

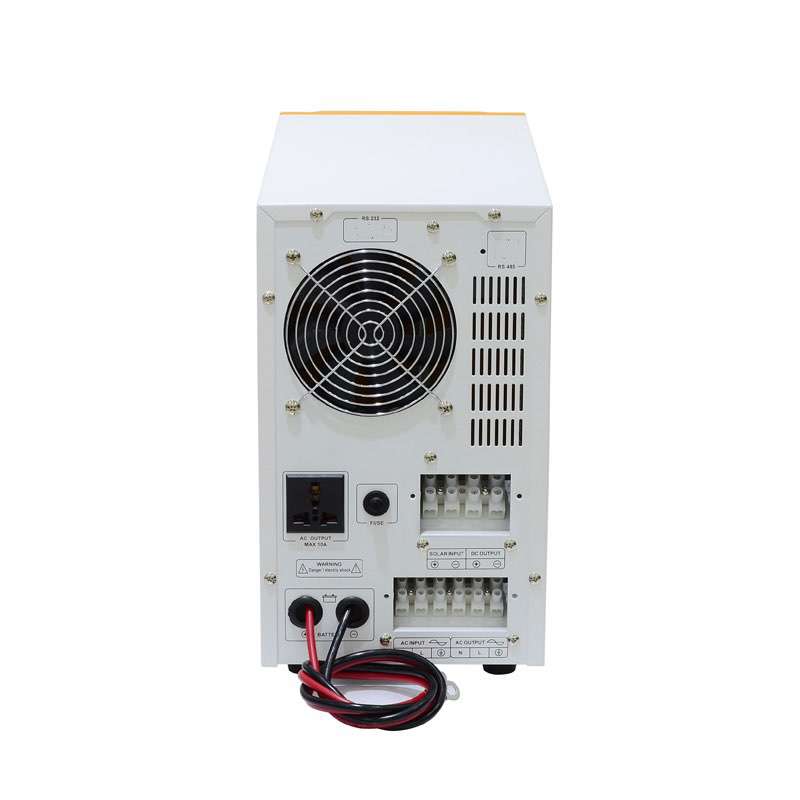

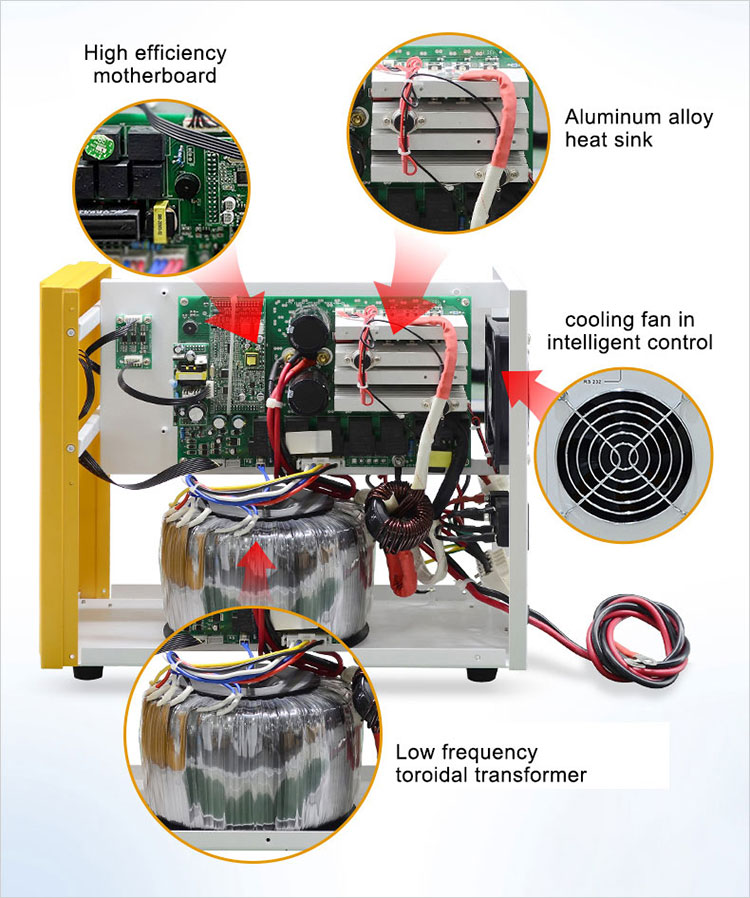

hybrid solar inverter with mppt charge controller details_01

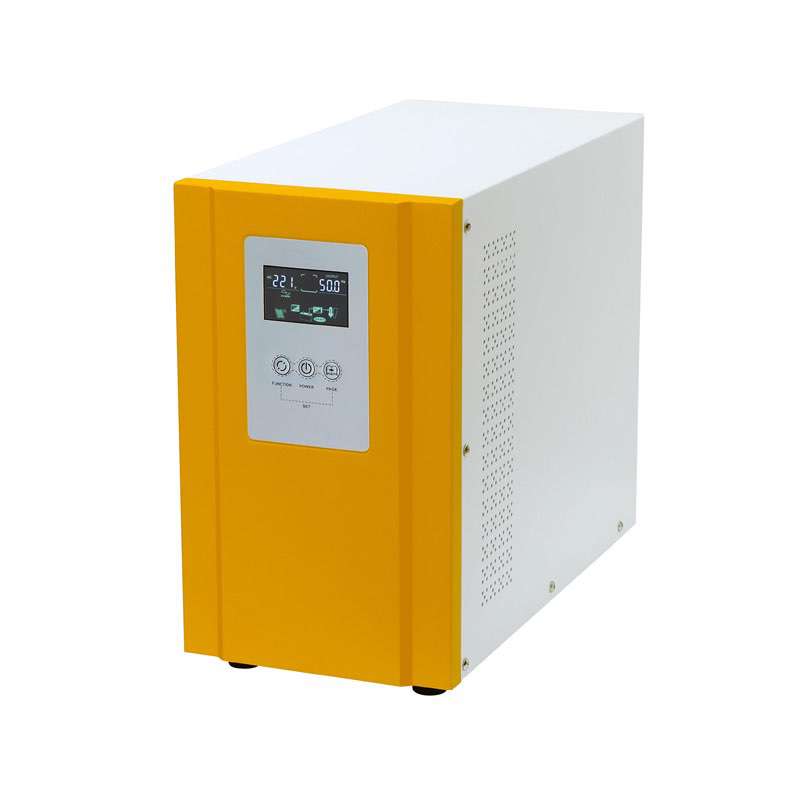

hybrid solar inverter with mppt charge controller details_02

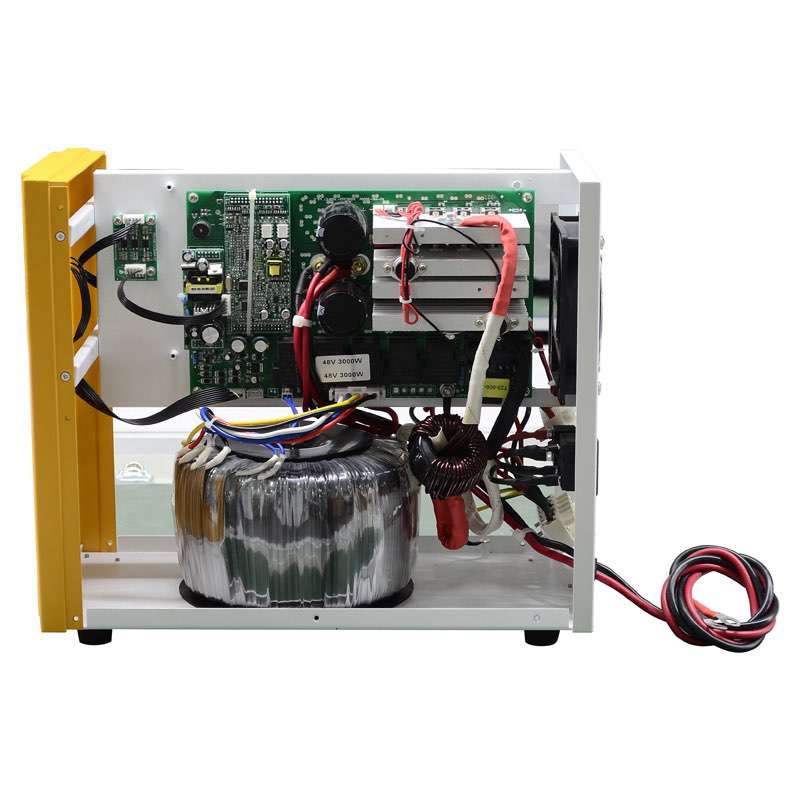

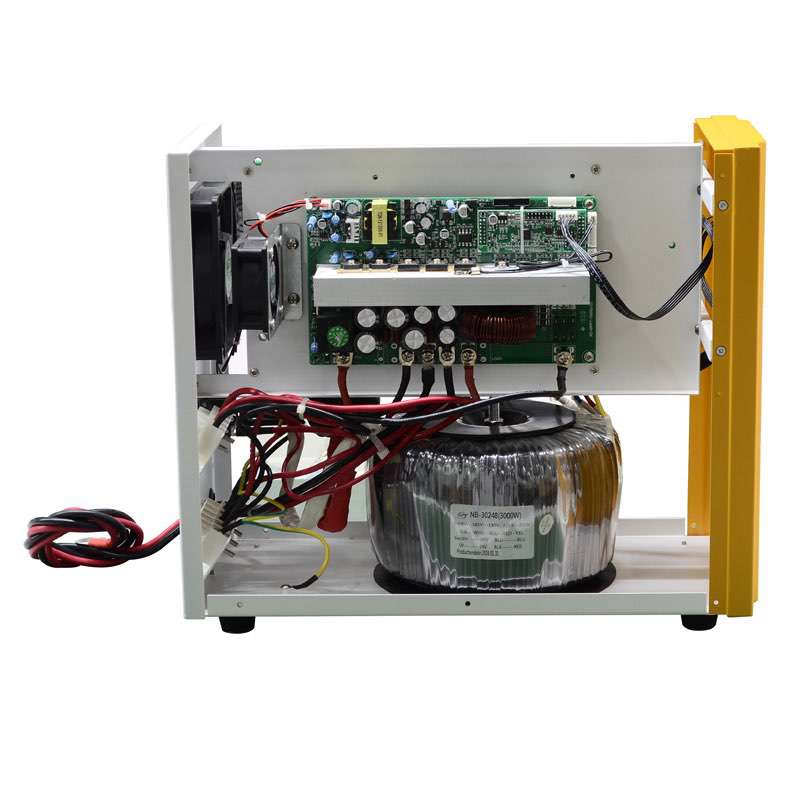

hybrid solar inverter with mppt charge controller circuit board details_03

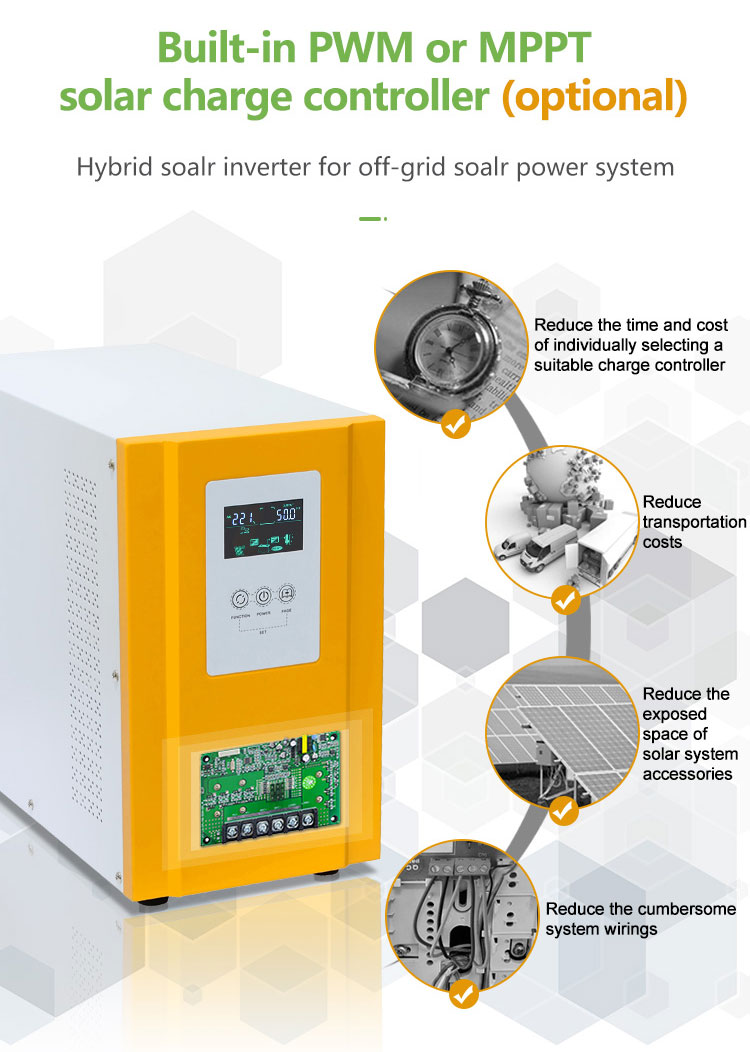

hybrid solar inverter with mppt charge controller details_04


hybrid solar inverter with mppt charge controller remote details_05



■ Solar Inverter with MPPT Charge Controller Wiring Diagram

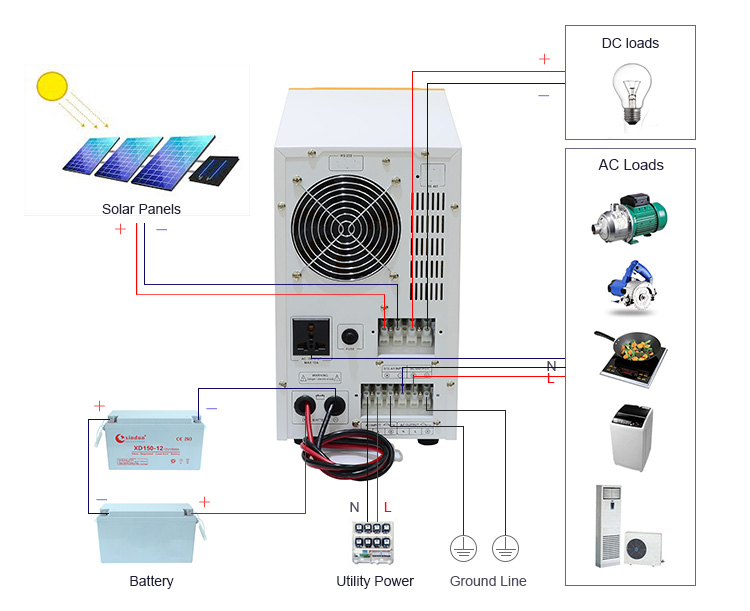

hybrid solar inverter with mppt charge controller wiring diagram


We offer 3 optional working modes for hybrid solar inverter (transfer time≤4ms):

01 Grid priority mode: When the power grid and battery are connected to the inverter, power grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the power grid is cut off, the battery will automatically continue to supply power via inverter.

02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.

03 Battery priority mode: When the power grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the power  grid will continue to supply power automatically.


■ Solar Inverter with MPPT Charge Controller Application



hybrid solar inverter with mppt charge controller application



■ Inverter Package and Delivery

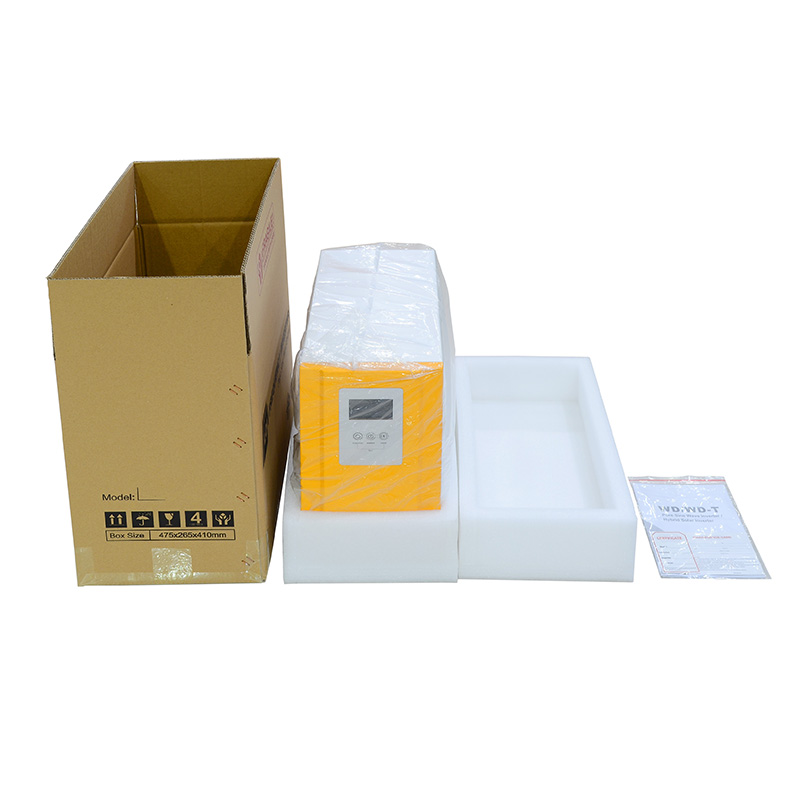

hybrid solar inverter with mppt charge controller package



■ Why Choose Us?



why choose xindun - hybrid solar inverter with mppt charge controller manufacturer



■ About Xindun Power



about xindun - hybrid solar inverter with mppt charge controller manufacturer image

about xindun - hybrid solar inverter with mppt charge controller manufacturer introduction



■ Solar Inverter with MPPT Charge Controller Factory



Xindun hybrid solar inverter with mppt charge controller factory



■ Qualifications and Certificates



Xindun qualifications and certificates



■ Global Solar Exhibitions



Xindun global solar exhibitons
