Hybrid pv and mains complementary battery storage inverter
Xindun hybrid pv and mains complementary battery storage inverter can be used in home and other ac loads with total power not exceeding 3kw, 5kw, 8kw or 10kw.

Hybrid PV and Mains Complementary Battery Storage Inverter

Chinese inverter supplier Xindun Power wholesales hybrid 3kw 5kw 8kw 10kw pv inverter at low prices. Hybrid pv inverter with battery storage ups function.

  • Rated Power : 3KW 5KW 8KW 10KW
  • DC Input Voltage : 10.5-15VDC(Single battery voltage)
  • AC Input Voltage : 85VAC~138VAC / 170VAC~275VAC
  • Output Voltage : 110VAC±2% / 220VAC±2%
  • Output Frequency : 50/60Hz±1%
  • Output Wave : Pure sine wave

Hybrid PV Battery Storage Inverter Feature

◆ Integrated intelligent energy management system, a variety of modes could be set;

◇ High transfer efficiency;

◆ Ease city grid pressure, reduce electricity bills;

◇ Dual MPPT input, precise algorithm, efficient use of PV energy;

◆ Support multiple parallel operations for user expansion;

◇ Solar system could be either with or without storage battery configuration, to reduce the cost of system;

◆ Either diesel generator input or gasoline generator input is compatible with the system;

◇ Isolated output of low frequency transformer, with strong impact  resistance;

◆ Large LCD screen, operating parameter could be displayed in real time;

◇ Support multiple remote monitoring of communication software(RS232RS485Mobile APPSNMPGSM).


Hybrid PV Battery Storage Inverter Specification

Parameters

Model:ZRS

3KW

5KW

8KW

10KW

PV Input

Max input voltage(At 25)

150V

350V

MPPT tracking range

60V~120V(Recommend: The open circuit voltage should be less than 120V)

120V-240V(Recommend: The open circuit voltage should be less than 240V)

MPPT route number

2

Max input power

1960W/1960W

3360W/3360W

5600W/5600W

6700W/6700W

Battery
(Flexible configuration)

Type of battery

Lead-acid battery / Lithium-ion battery

Rated voltage

48V

96V

Max charging current
(Can be set,Recommended 0.1C)

70A(PV)/35AMains

120A(PV)/60AMains

100A(PV)/10AMains

120A(PV)/20AMains

Float voltage(Can be set)

55.2V

110.4V

Charge voltage(Can be set)

56.8V

113.6V

AC Input

Rated voltage

220V/230V

Input voltage range

187V~264V

Rated input frequency

50Hz/60Hz±5Hz

Loss protection time

2S

Reconnection time

30S

AC Output
PV/Battery mode

Rated output power

3KW

5KW

8KW

10KW

Rated output voltage

220V/230V

Output voltage accuracy

2%

Rated output frequency

50Hz/60Hz

Output frequency accuracy

1%

AC Output
 (Mains mode)

Rated output power

3KW

5KW

8KW

10KW

Output voltage

187V~264V

Output frequency

47~52Hz/57~62Hz

Regular Parameter

Topology

Transformer isolation

Protection level

IP20

Display

LCD+LED

Communication

RS485(Optional)

Operating temperature

-20~60℃(Derating above 45°C

Storage temperature

-20~60

Noise

60dB

Relative humidity

20%~95%(No condensation)

Highest altitude

2000mMore than derating

Machine dimension(L*W*Hmm)

467*280*508

548*300*675

Package dimension(L*W*Hmm)

530*340*635

610*440*800

N.W(kg)

40

49

70

75

G.W(kg)

47

56

80

85

Installation Method

Tower

Warranty

3 year

Note: All specifications are subject to charge without prior notice

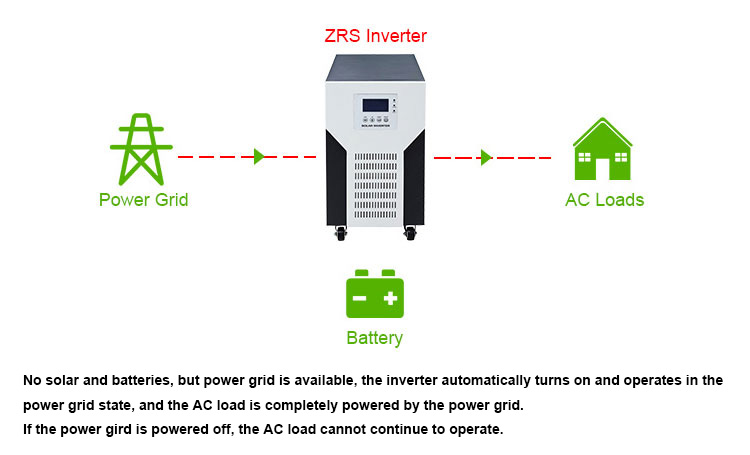

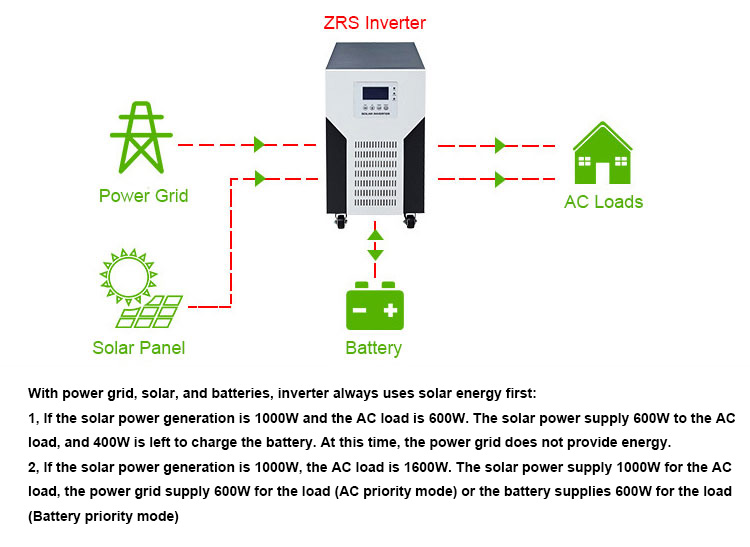

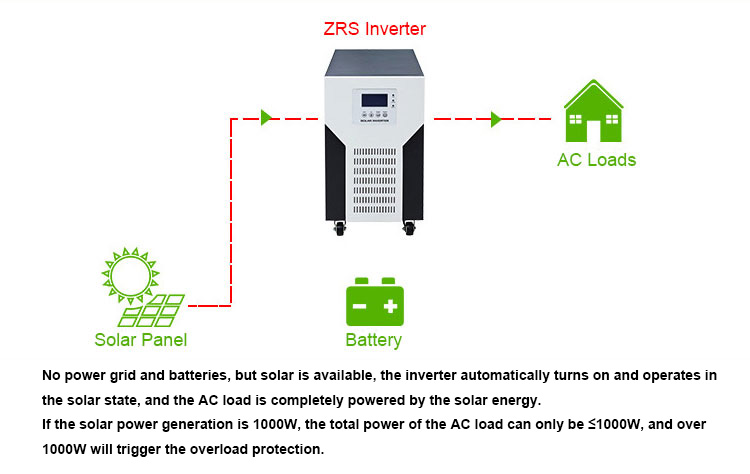

How Does Hybrid PV Battery Storage Inverter Work?

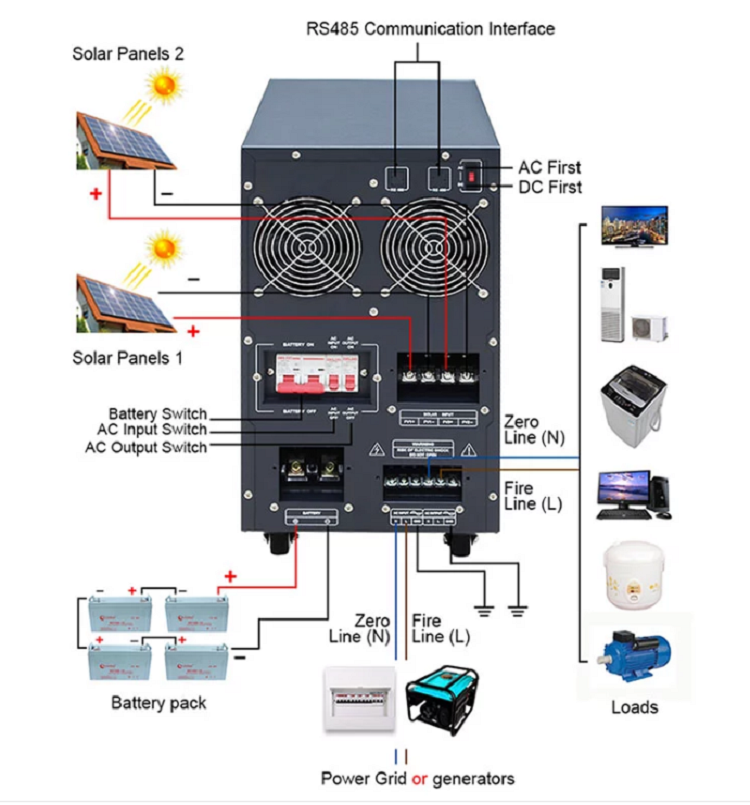

how does hybrid 3kw pv inverter work?how does hybrid 5kw pv inverter work?how does hybrid 8kw pv inverter work?how does hybrid 10kw pv inverter work?Hybrid pv and mains complementary battery storage inverter wiring diagram

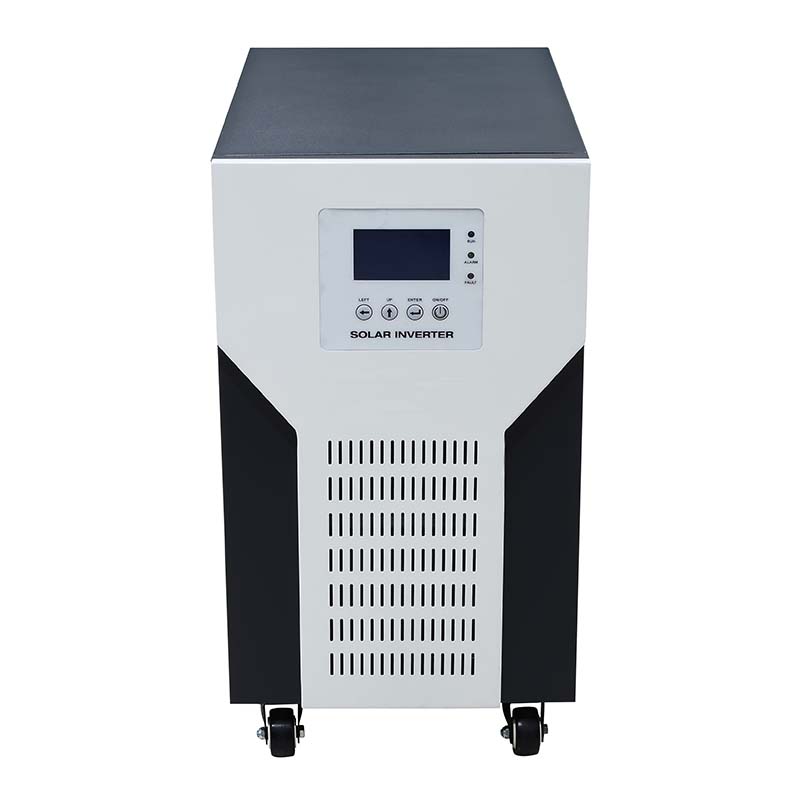

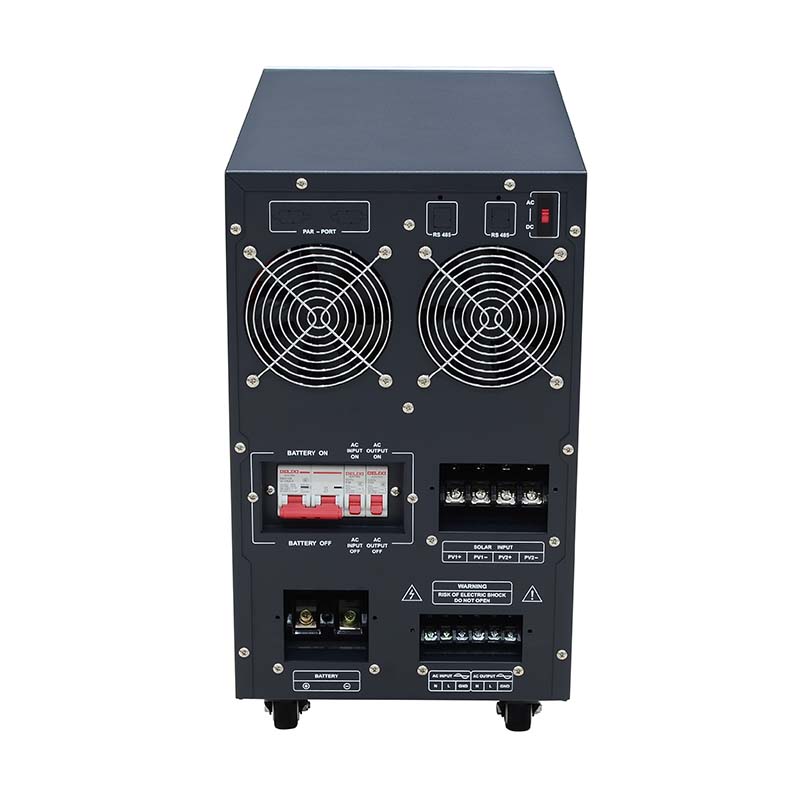

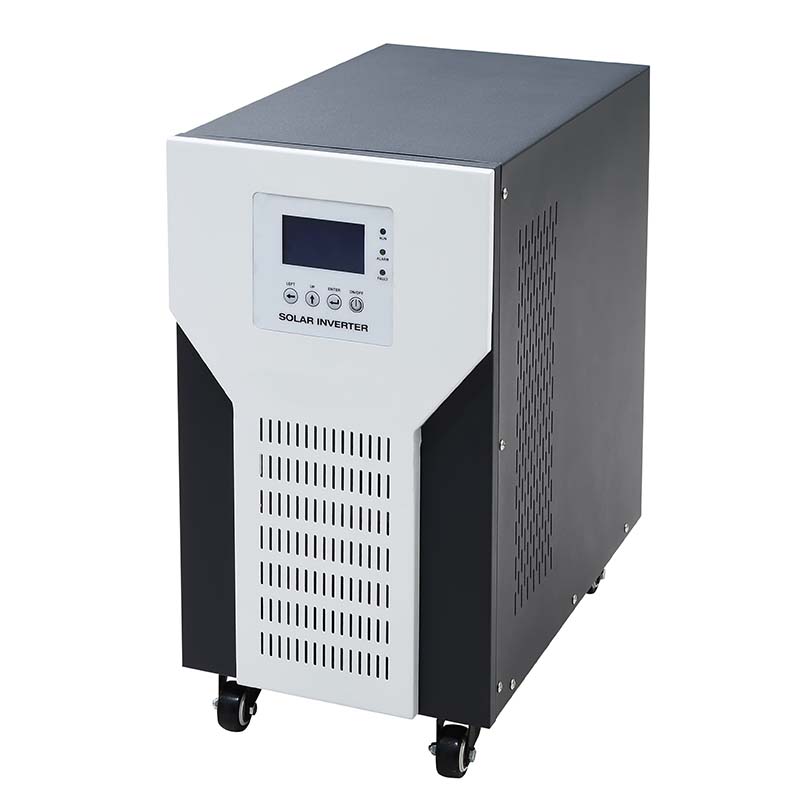

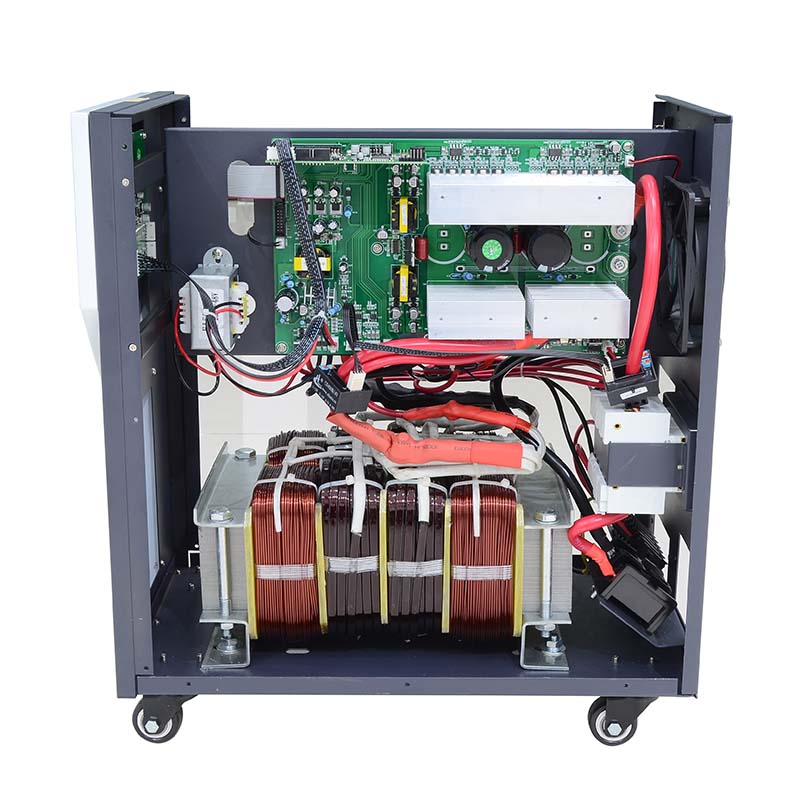

Hybrid PV Battery Storage Inverter Detailshybrid pv inverter pictures

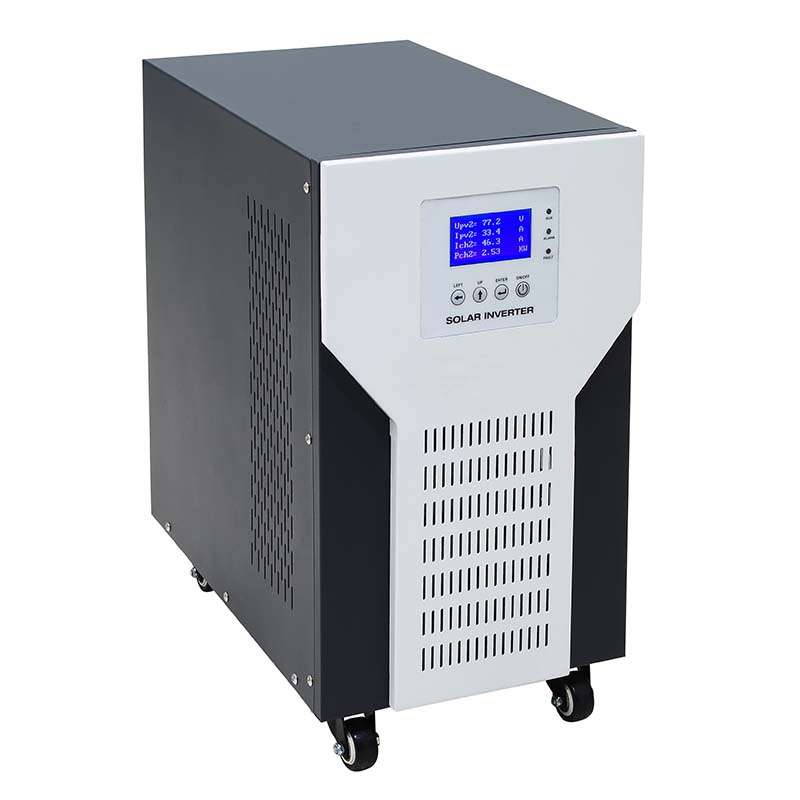

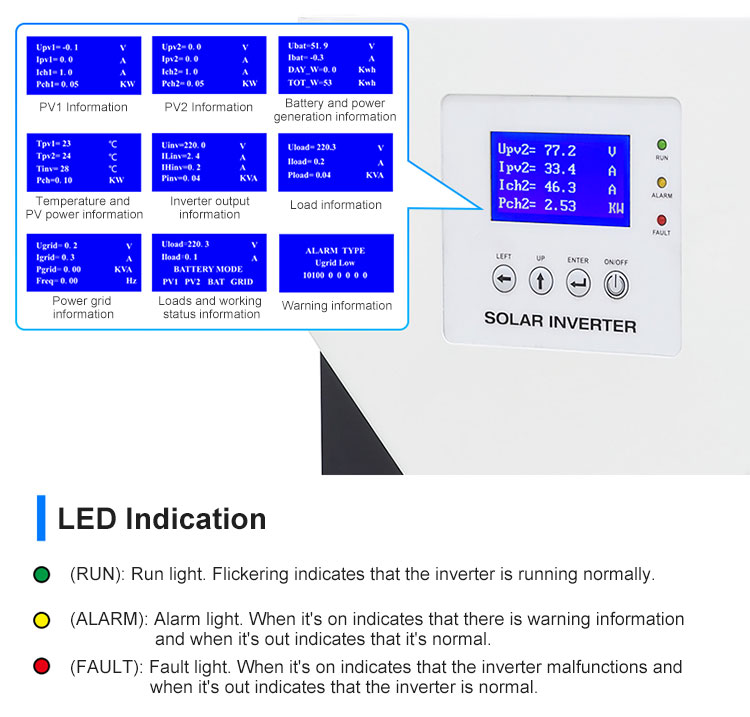

hybrid pv inverter lcd display details

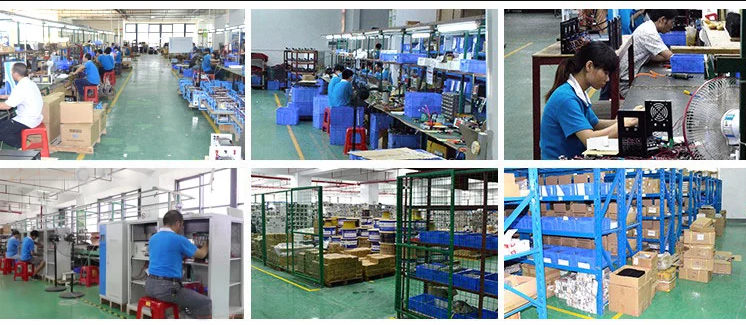

Hybrid PV Battery Storage Inverter Factory

Hybrid PV Battery Storage Inverter Factory

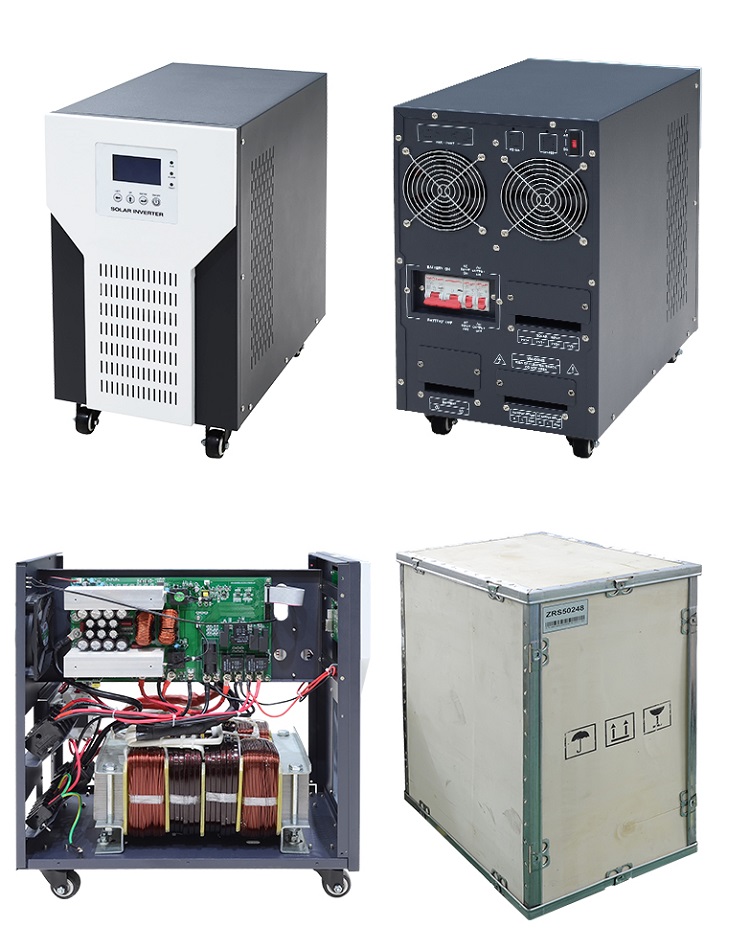

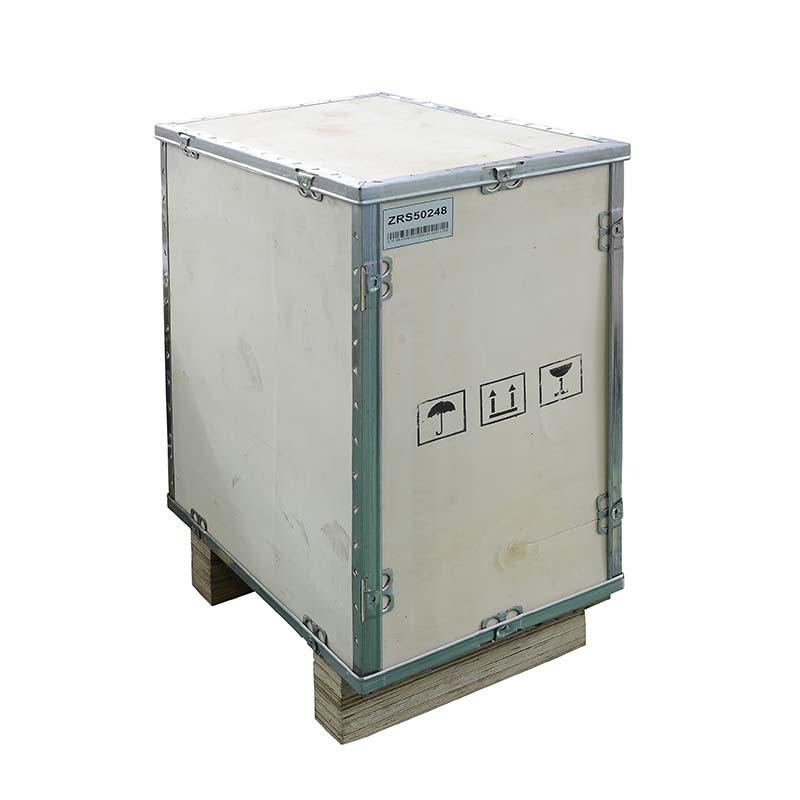

Hybrid PV Battery Storage Inverter Package

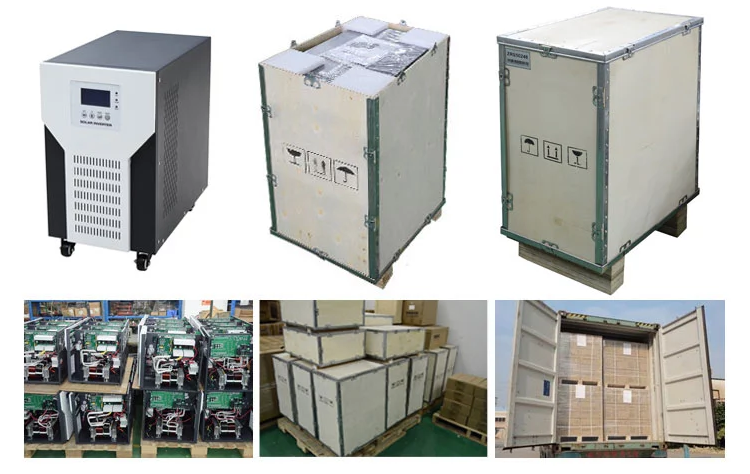

Hybrid PV Battery Storage Inverter Package and shipping


Why Choose US?

1. We are a professional manufacturer of hybrid pv storage inverter and charge controller with over 10 years experience. Best productioncapability, best quality control, best service.

2. 100% QC inspection and testing before shipment.

3. CE listed, competitive price.

4. 11 years of high-level OEM experience

5. 16,000 square meters factory size (Sq.meters)

6. 200,000pcs monthly capacity
