pv mppt module, high voltage mttp solar charge controller
Xindun hot-sale high voltage mppt solar charge controller, pv mppt module increase generating efficiency, suitable for large-scale solar power station.

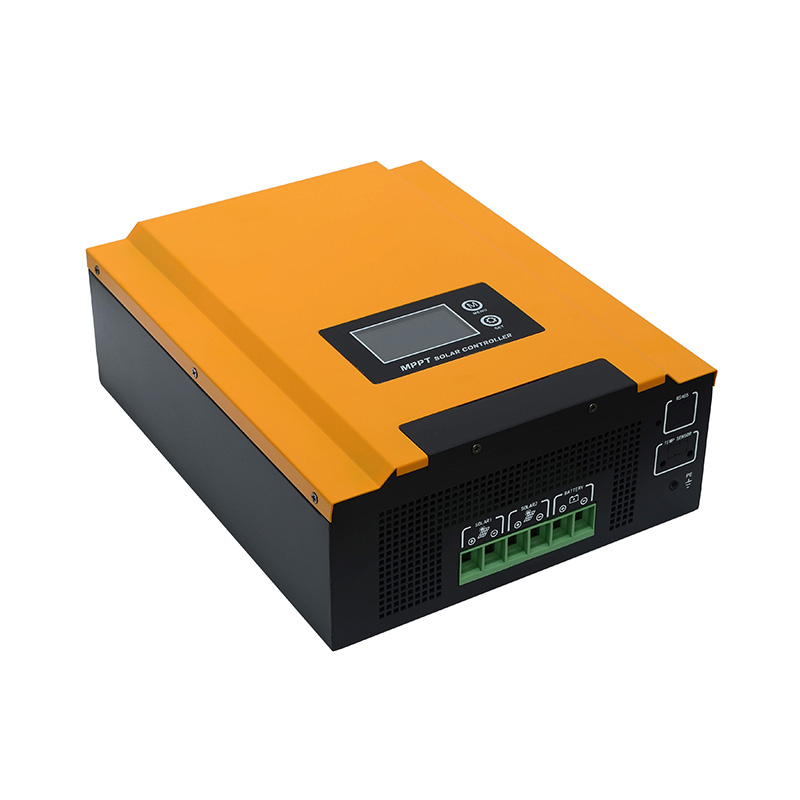

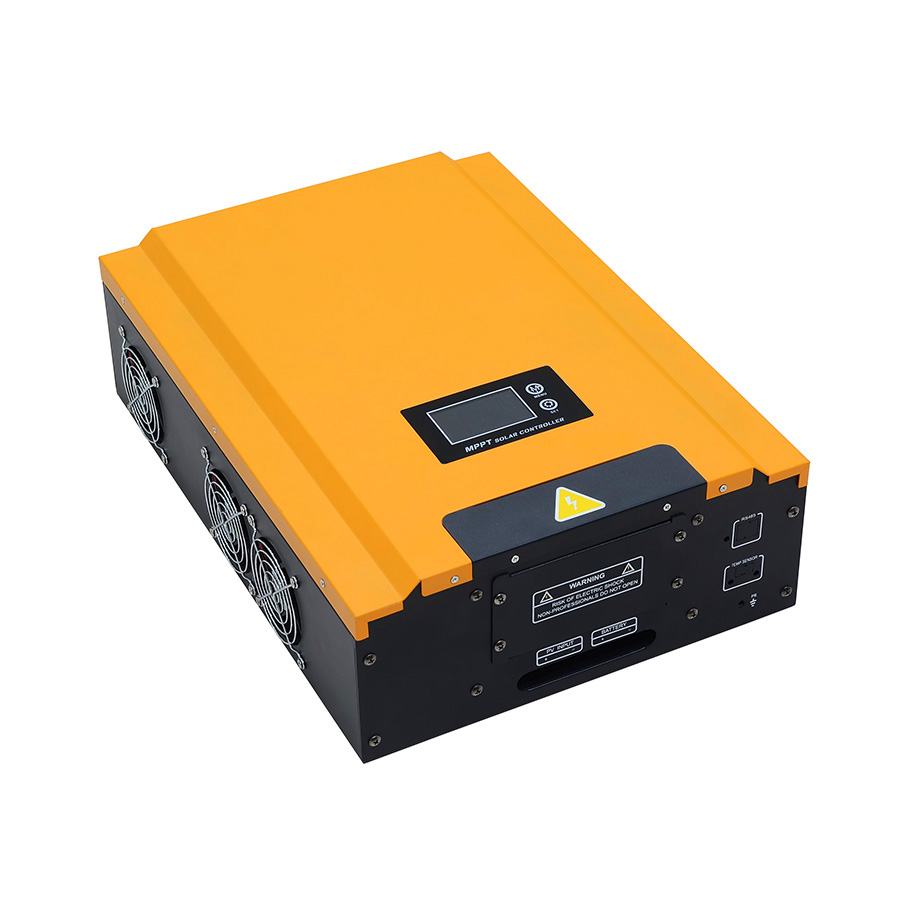

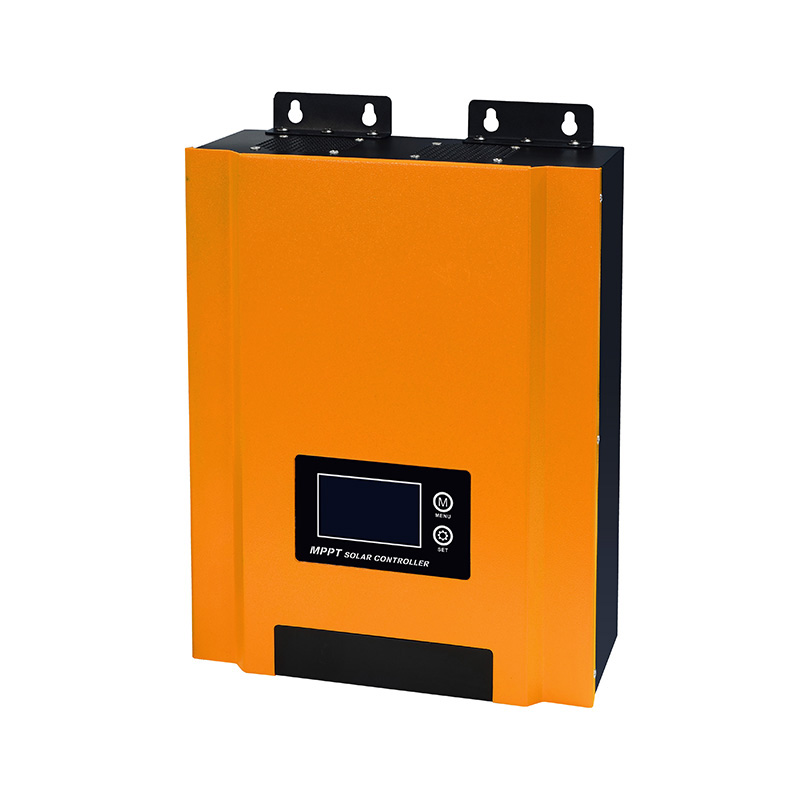

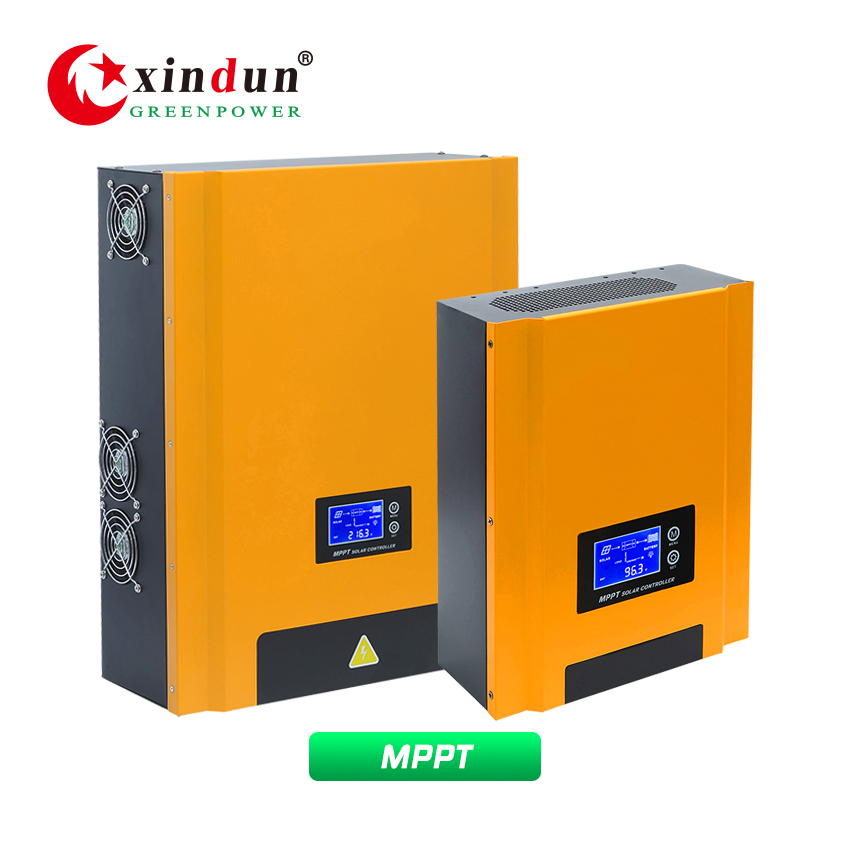

MTTP Solar Charge Controller 50A/100A 96V-384V

MTTP Solar Charge Controller | High Voltage Solar Charge Controller | PV MPPT Module

  • Type : MPPT
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
  • OEM : Accepted

■ Feature



1 Advanced MPPT tracking, 99% tracking efficiency.  Compared  with PWM,  the  generating  efficiency increase near 20%;
2 LCD display PV data and chart simulates power generation process;
3 Wide PV input voltage range, convenient for system configuration;
4 Intelligent battery management function, extend battery life;
5 RS485 communication port optional.



■ Parameters



Model: Wonder 96/50 96/100 192/50, 216/50, 240/50, 384/50 192/100, 216/100, 240/100, 384/100
Rated Current 50A 100A 50A 100A
Rated System Voltage 96V 96V 192V/216V/240V 384V 192V/216V/240V 384V
Max PV Input Voltage
(At the lowest ambient temperature)
300V(96V system) / 450V(192V/216V system)/500V(240V system) / 800V(384V system)
PV array Max power 5.6KW 5.6KW*2 11.2KW/12.6KW/14KW/22.4KW 11.2KW*2/12.6KW*2/14KW*2/22.4KW*2
MPPT Tracking Voltage Range 120V~240V(96V system) / 240V/270V~360V(192V/216V system)/ 300V~400V(240V system) /480V~640V(384V system)
MPPT route number 1 2 1 2
Recommended operating voltage range 120V-160V(96V system); 240V-320V(192V system); 270V-320V(216V system); 300V-350V(240V system); 480V-560V(384V system)
Battery Type Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification)
Floating Voltage 110.4V/220.8V/248.4V/276V/441.6V
Charge Voltage 113.6V/227.2V/255.6V/284V/454.4V
Charging Protection Voltage 120V/240V/270V/300V/480V
Promote recovery voltage 105.6V/211.2V/237.6V/264V/422.4V
Temperature Compensation -3mV / ℃ / 2V (25℃ is base line) (Optional)
Charging Mode MPPT maximum power point tracking
Charging Method Three stages: constant current(MPPT); constant voltage; floating charge
Protection Over-voltage/under-voltage/over-temperature/PV&Battery anti-reverse protection
Conversion Efficiency >98%
MPPT Tracking Efficiency >99%
Machine Size(L*W*Hmm) 315*250*108 460*330*140 530*410*162

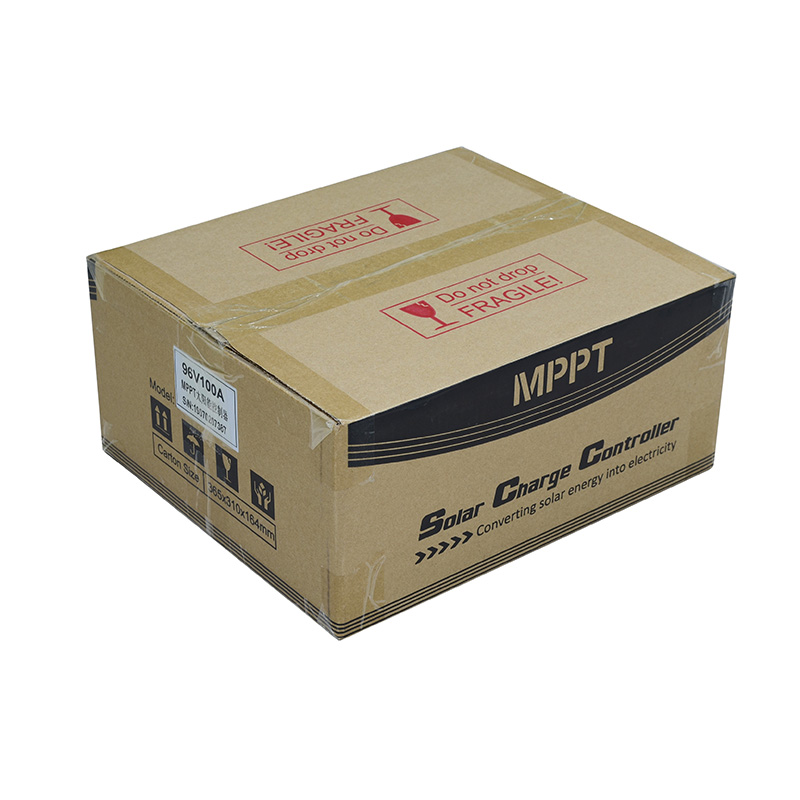

Package Size(L*W*Hmm) 365*310*164(1PC) / 376*321*343(2PCS) 509*405*215 598*487*239
N.W(kg) 4.5(1PC) 5.6(1PC) 13.5 15 22.6 26.5
G.W.(kg) 5.2(1PC) 6.3(1PC) 15 16.5 24.6 28.5
System Parameter
Display LCD

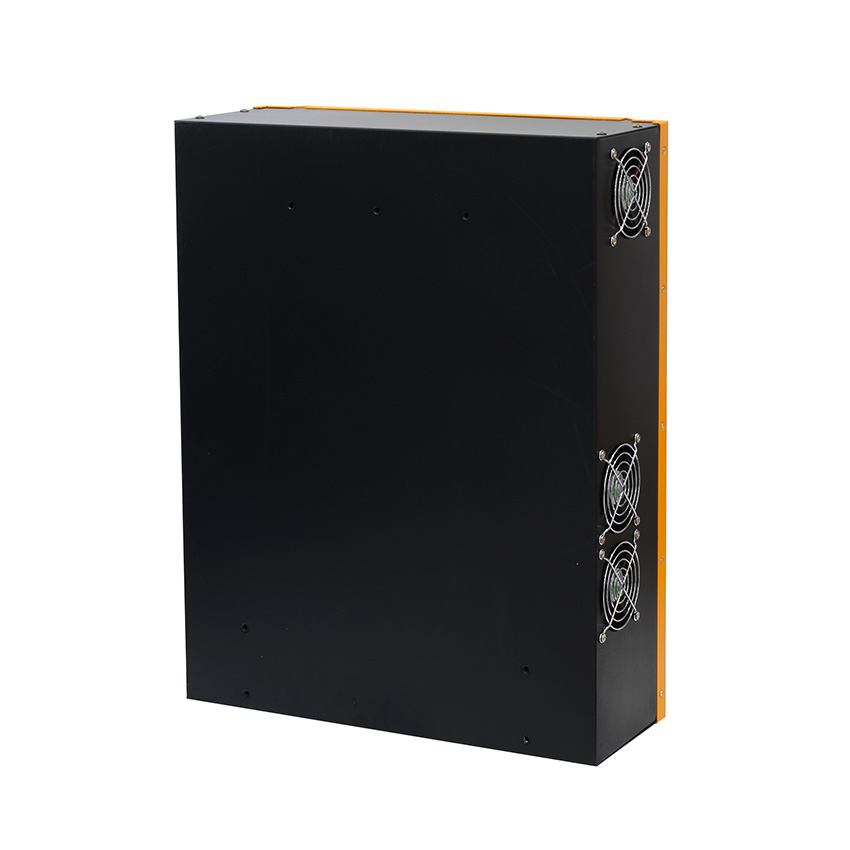

Thermal Method Cooling fan in intelligent control
Type Of Mechanical Protection IP20
Operating Temperature -15℃~+50℃
Storage  Temperature -20℃~+60℃
Elevation <5000m(Dreating above 2000m)
Humidity 5%~95%(No condensation)
Communication  RS232/RS485(Optional)
Note: All specifications are subject to change without prior notice
