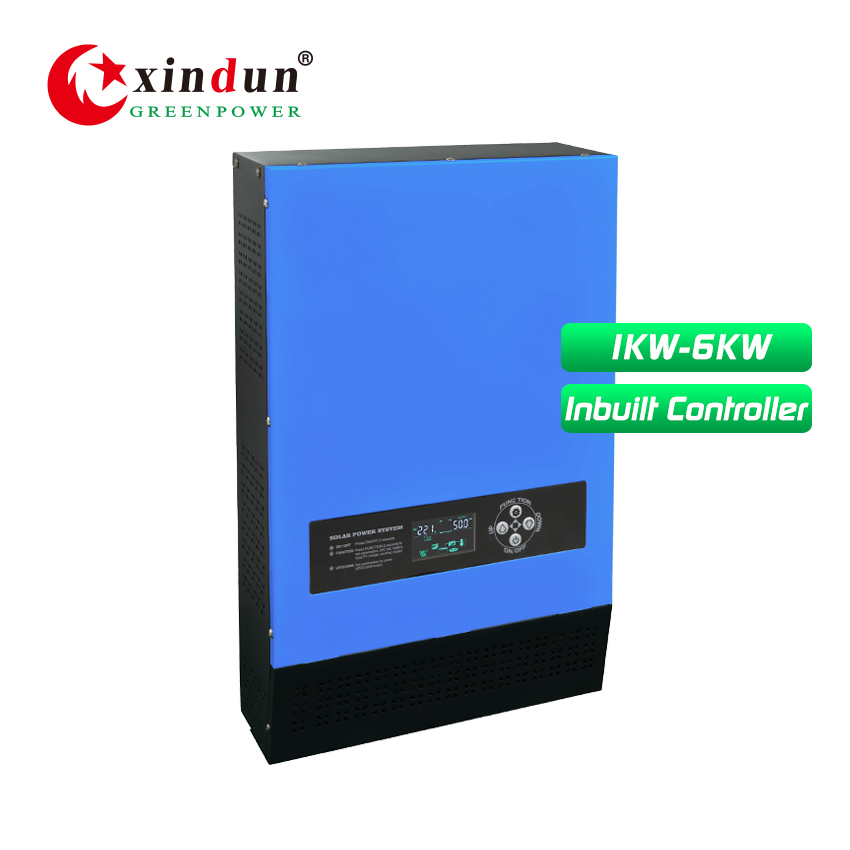

LS Hybrid Inverter for Solar System 1KW-6KW 12V-48V

1kw/2kw/3kw/4kw/5kw/6kw, 12v/24v/48vdc to 110v/220vac | hybrid inverter for solar system | hybrid solar inverter supplier in China

  • Types : DC to AC Inverters
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 50 pcs
  • OEM : Accepted

Hybrid Inverter For Solar System Feature

◆ Pure sine wave output;
◇ Low frequency toroidal transformer lower loss;
◆ Intelligent LCD integration display;
◇ Built-in PWM or MPPT controller optional;
◆ AC charge current 0~30A adjustable, three working modes selectable;
◇ Peak power more than 3 times, full-automatic and perfect protection function;
◆ Added fault code query function, easy to monitor the operation in real time;
◇ Supports diesel or gasoline generator, adapt any tough electricity situation;
◆ Combine industrial and home usage, wall-mounted design, convenient installation.

Hybrid Inverter For Solar System Specification

Model LS
Rated Power 1KW 1.5KW 2KW 3KW 4KW 5KW 6KW
Peak Power(20ms) 3KVA 4.5KVA 6KVA 9KVA 12KVA 15KVA 18KVA
Start Motor 1HP 1.5HP 2HP 3HP 3HP 4HP 4HP
Battery Voltage 12/24/48VDC 24/48VDC 24/48VDC 48VDC
Size(L*W*Hmm) 500*300*140 530*335*150
Packing Size(L*W*Hmm) 565*395*225 605*430*235
N.W.(kg) 12 13.5 18 20 22 24 26
G.W.(kg)(Carton Packing) 13.5 15 19.5 21.5 24 26 28
Installation Method Wall-Mounted
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 85VAC~138VAC(110VAC) / 95VAC~148VAC(120VAC) / 170VAC~275VAC(220VAC) / 180VAC~285VAC(230VAC) / 190VAC~295VAC(240VAC)
AC Input Frequency Range 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
Max AC charging current 0~30A(Depends on model)
AC charging method Three-stage (constant current, constant voltage, floating charge)
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery Mode) 50/60Hz±1%
Output Wave(Battery Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
Output Frequency(AC Mode) Tracking Automatically
Output waveform distortion
(Battery Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤0.8% rated power
No load loss(AC Mode) ≤2% rated power( charger does not work in AC mode)
No load loss
(Energy saving Mode)
Battery Type VRLA Battery Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize battery
Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection Battery undervoltage alarm Factory default: 11V(Single battery voltage)
Battery undervoltage protection Factory default: 10.5V(Single battery voltage)
Battery overvoltage alarm Factory default: 15V(Single battery voltage)
Battery overvoltage protection Factory default: 17V(Single battery voltage)
Battery overvoltage recovery voltage Factory default: 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
C When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller
Charging Mode MPPT or PWM
Charging current 10A~60A(PWM or MPPT) 10A~60A(PWM ) / 10A~100A(MPPT)
PV Input Voltage Range
PWM: 15V-44V(12V System); 30V-44V(24V System); 60V-88V(48V System)
MPPT: 15V-120V(12V System); 30V-120V(24V System); 60V-120V(48V System)
Max PV Input Voltage(Voc)
(At the lowest temperature)
PWM: 50V(12V/24V System ); 100V(48V System) / MPPT: 150V
PV Array Maximum Power
12V System: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A);
24V System: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A;
48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A)
Standby loss ≤3W
Maximum conversion efficiency >95%
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Communication RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature ≤55dB
Storage temperature -10℃~40℃
Noise -15℃~60℃
Elevation 2000m(More than derating)
Humidity 0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice

How does hybrid inverter for solar system work?

How does 1kw hybrid inverter for solar system work?

1. Home backup system:

When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to household appliances, such as refrigerator, TV. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Power system:
Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.

Hybrid Inverter For Solar System\'s Details

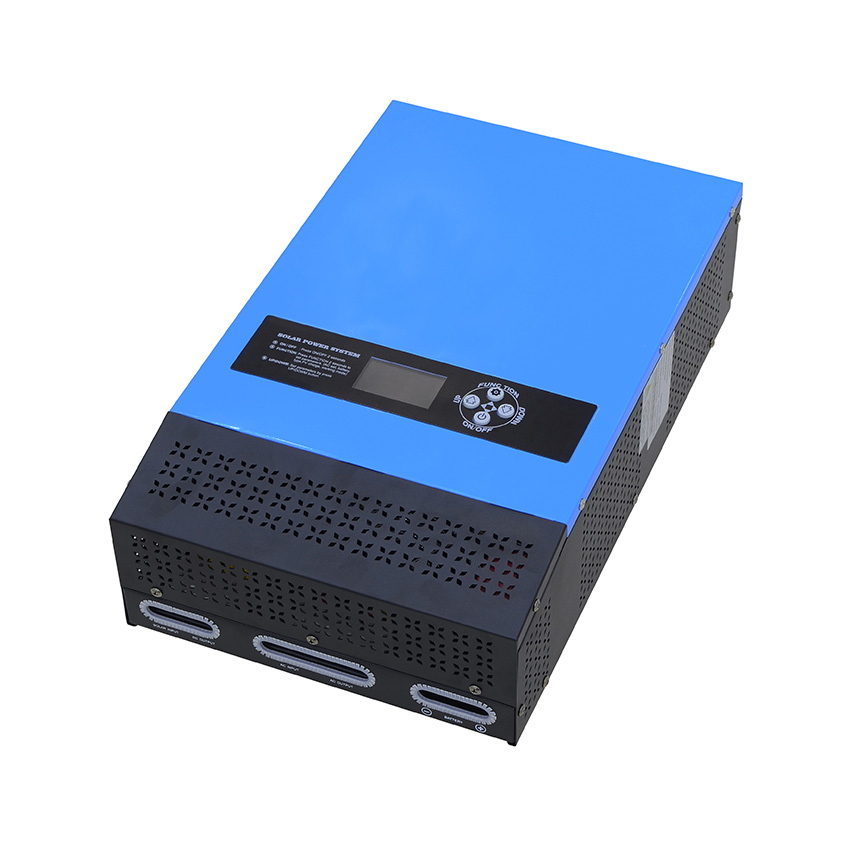

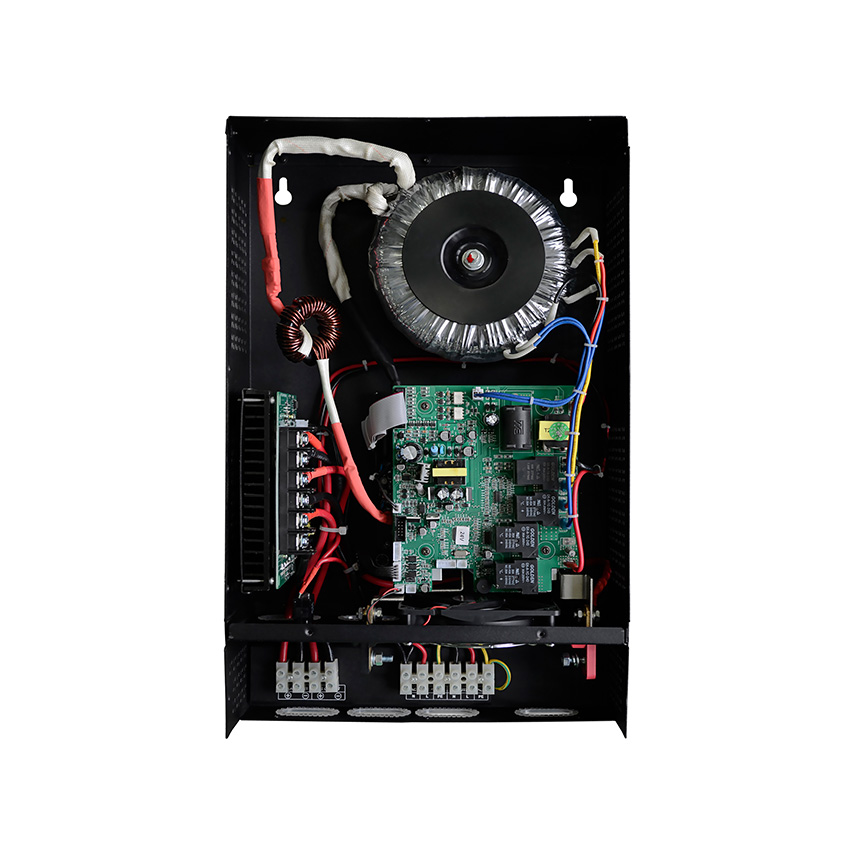

2kw hybrid inverter for solar system appearance details-012kw hybrid inverter for solar system circuit board details-02

Hybrid Inverter For Solar System Application

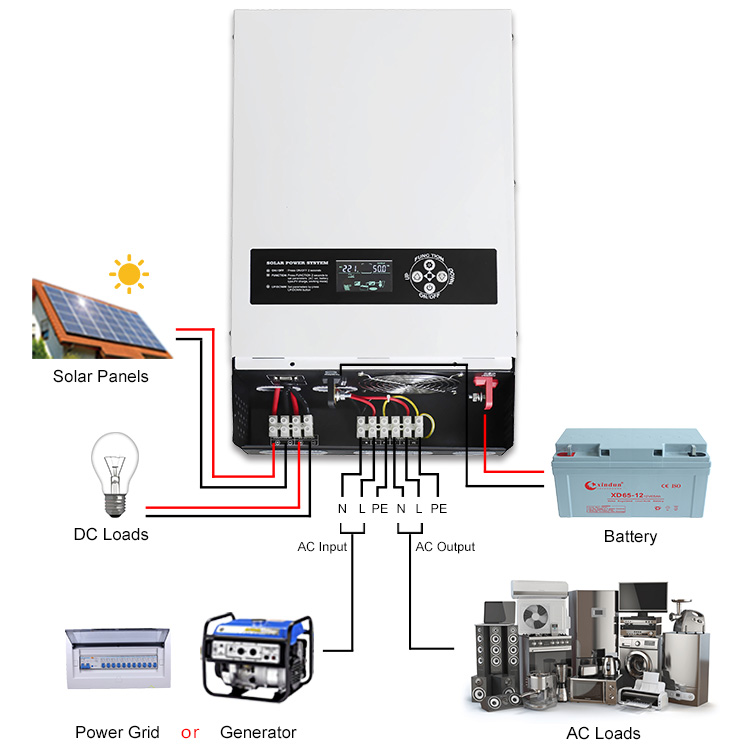

3KW Hybrid Inverter For Solar System Application

Hybrid Inverter For Solar System Factory

LS Hybrid Inverter For Solar System Factories

Why Choose US?

1. We are a professional manufacturer of hybrid inverter and solar controller with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 12 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
5. 200,000pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.
