Car charger power inverter near me - dc 12v to 110v ac converter
Looking for a supplier of car power inverter near me? XINDUN Car charger power inverter dc 12v to 110v 220v ac converter made in China, inbuilt charge controller.

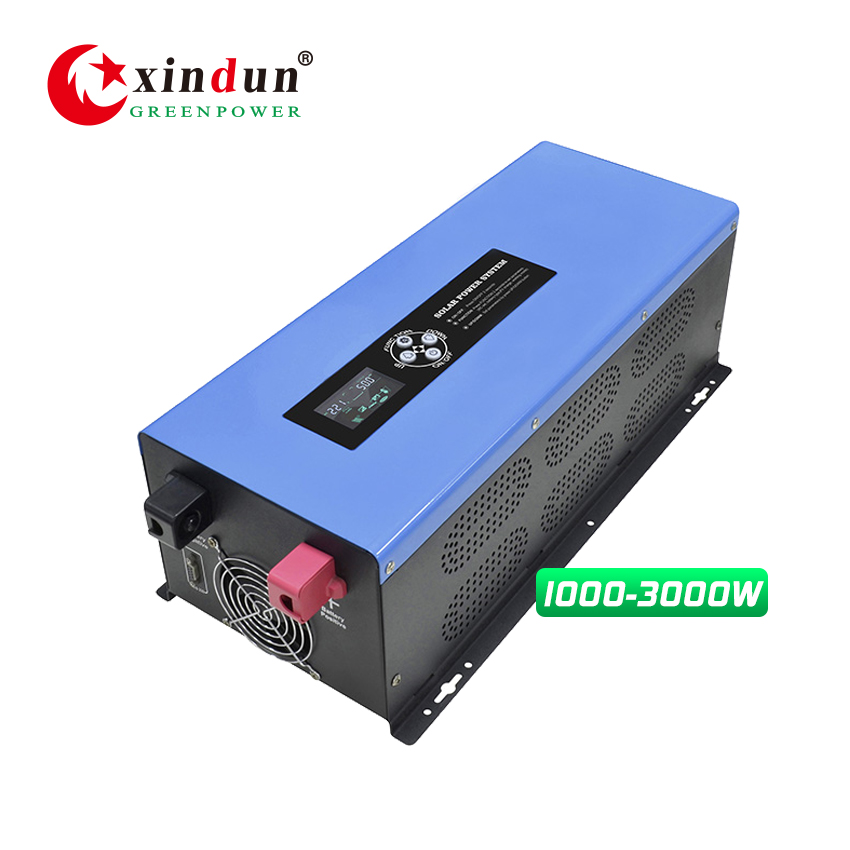

LW Car Chrger Power Inverter 1000W-3000W 12V-48V

China inverter supplier XINDUN POWER wholesales 1000w,1500w,2000w,3000w car power inverter dc 12v/24v/48v to 110v/220v ac converter at a low price.

  • Type : DC to AC Off-Grid Inverter
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 50 pcs
  • OEM : Accepted

Car Charger Power Inverters Feature



◆  Pure sine wave output;
◇  AC charge current 0-30A adjustable; AVR output;
◆  Low frequency toroidal transformer increase efficiency;
◇  Dedicated DCP chip design; stable and high-speed operation;
◆  Added fault code query function, easy to monitor the operation in real time;
◇  Supports diesel or gasoline generator, adapt any tough electricity situation;
◆  RS232 or RS485 communication port optional.


Car Charger Power Inverters Parameters


Specification

Model LW

10212/24

15212/24/48

20212/24/48

30224/48

Rated Power

1000W

1500W

2000W

3000W

Peak Power20ms)

3000W

4500W

6000W

9000W

Start Motor

1HP

1.5HP

2HP

3HP

Battery Voltage

12/24VDC

12/24/48VDC

24/48VDC

Size(L*W*Hmm)

550*243*175

Packing Size(L*W*Hmm)

605*305*270

N.W.(kg)

11

12

19

20.5

G.W.(kg)Carton Packing

12.5

13.5

20.5

22

Installation Method

Wall-Mounted

Parameter

Input

DC Input Voltage Range

10.5-15VDCSingle battery voltage

AC Input Voltage Range

85VAC~138VAC / 170VAC~275VAC

AC Input Frequency Range

45Hz~65Hz

Max AC charging current

25A/15A

30A/20A/10A

30A/25A/15A

30A/20A

AC charging method

Three-stage (constant current, constant voltage, floating charge)

Output

Efficiency(Battery Mode)

85%

Output Voltage(Battery Mode)

110VAC±2%  / 220VAC±2%

Output Frequency(Battery Mode)

50/60Hz±1%

Output Wave(Battery Mode)

Pure Sine Wave

Efficiency(AC Mode)

>99%

Output Voltage(AC Mode)

110VAC±10% / 220VAC±10%

Output Frequency(AC Mode)

Tracking Automatically

Output waveform distortion(Battery Mode)

3%Linear load

No load loss(Battery Mode)

0.8% rated power

No load loss(AC Mode)

2% rated power charger does not work in AC mode

No load loss(Energy saving Mode)

10W

Battery Type
selectable

LEAD

Charge Voltage14VFloat Voltage:13.8V12V system; 24V system x2; 48V system x4

OP-LE

Charge Voltage:14.2V; Float Voltage:13.8V12V system; 24V system x2; 48V system x4

LITHIUM

Charge Voltage: 12.6V(NMC battery 3S)  (12V system; 24V system x2; 48V system x4)

Customize battery

Charge and discharge parameters of different types of batteriescan be customized according to user requirements

Protection

Battery undervoltage alarm

11V; LITHIUM 9.5V(NMC battery 3S)12V system; 24V system x2; 48V system x4

Battery undervoltage protection

10.5V;  LITHIUM 9V(NMC battery 3S)12V system; 24V system x2; 48V system x4

Battery overvoltage alarm

Lead acid battery: 15V(12V system; 24V system x2; 48V system x4)

Battery overvoltage protection

Lead acid battery: 17V(12V system; 24V system x2; 48V system x4)

Battery overvoltage recovery voltage

Lead acid battery: 14.5V(12V system; 24V system x2; 48V system x4)

Overload power protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Ooutput short circuit protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Temperature protection

>90°CShut down output

Alarm

A

Normal working condition, buzzer has no alarm sound

B

Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection

C

When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal

Working Mode

Battery First/AC First/Saving Energy Mode

Transfer Time

4ms

Display

LCD

Thermal method

Cooling fan in intelligent control

Communication

RS232/RS485(Optional)

Environment

Operating temperature

-10~40

Storage temperature

-15~60

Noise

55dB

Elevation

2000mMore than derating

Humidity

0%~95% ,No condensation

Warranty

1 year

Note: All specifications are subject to change without prior notice



How Does Car Charger Power Inverters Work?



1. Home backup system:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to household appliances, such as refrigerator, TV. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Power system:
Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.


How Does Car Charger Power Inverters Work?


Car Charger Power Inverters' Details

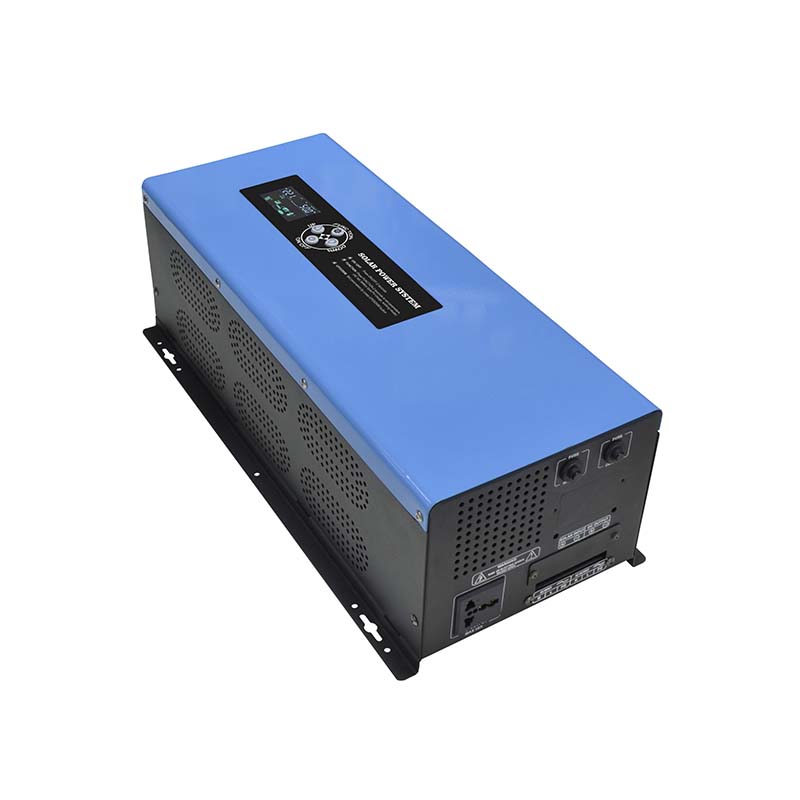

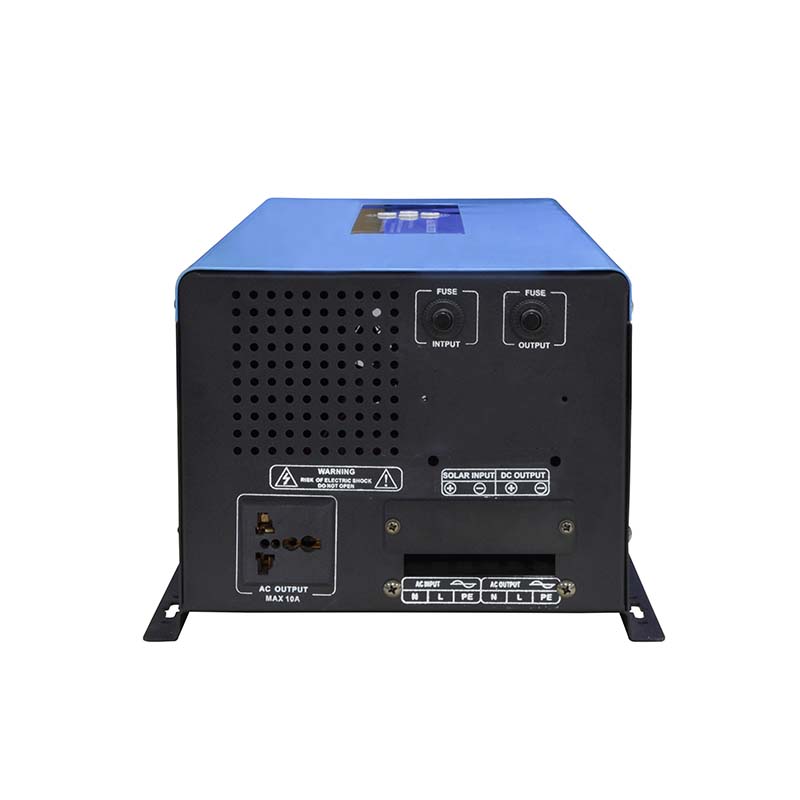

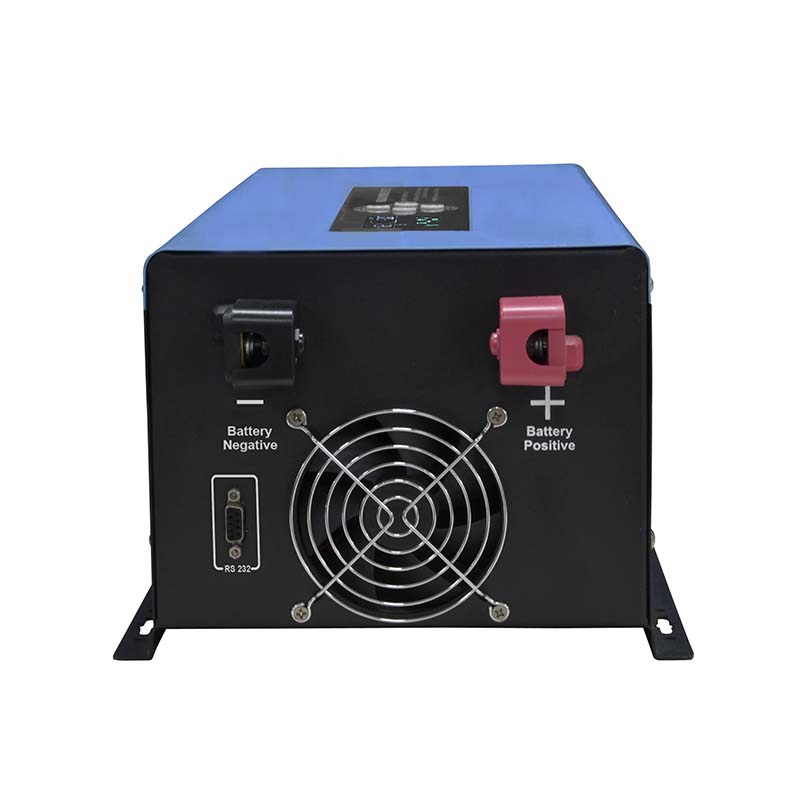

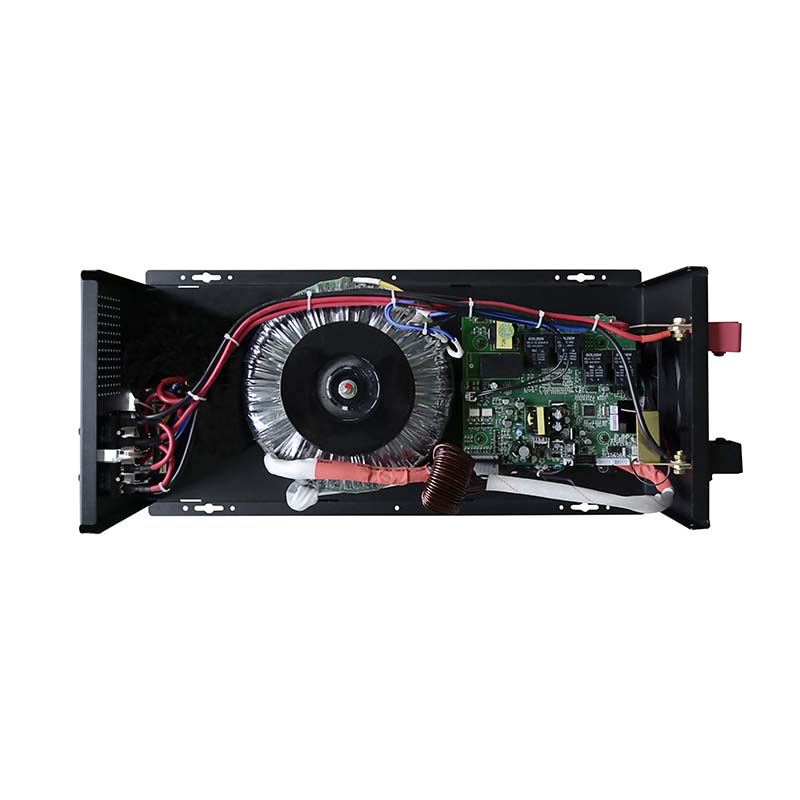

Car Charger Power Inverter Appearance Details_01Car Charger Power Inverter Circuit Board Details_02
