Inverter convert dc to ac power current
What is the use of inverter? Low frequency transformer inverter convert dc to ac power current, popular in RV, boat and truck to run alternating current electronics.

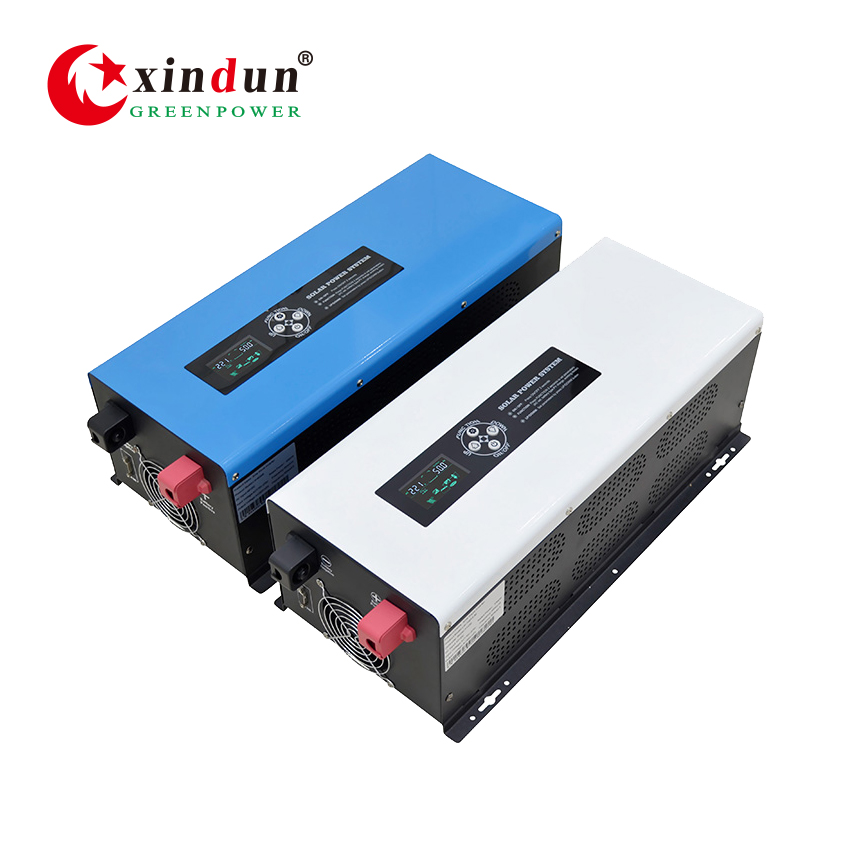

LW Inverter Convert DC To AC 4000W 5000W 6000W

Chinese inverter supplier Xindun Power wholesales 4000w 5000w 6000w 24v 48v inverters convert dc to ac current at a low price.

  • Rated Power : 4000W 5000W 6000W
  • DC Input Voltage : 10.5-15VDC(Single battery voltage)
  • AC Input Voltage : 85VAC~138VAC / 170VAC~275VAC
  • Output Voltage : 110VAC±2% / 220VAC±2%
  • Output Frequency : 50/60Hz±1%
  • Output Wave : Pure sine wave

Inverter Convert DC To AC Feature

◆  Pure sine wave output;

◇  AC charge current 0-30A adjustable; AVR output;

  Low frequency toroidal transformer increase efficiency;

  Dedicated DCP chip design; stable and high-speed operation;

  Added fault code query function, easy to monitor the operation in real time;

  Supports diesel or gasoline generator, adapt any tough electricity situation;

  RS232 or RS485 communication port optional.



Inverter Convert DC To AC Specifications

Specification

Model LW

40224/48

50248

60248

Rated Power

4000W

5000W

6000W

Peak Power20ms)

12000W

15000W

18000W

Start Motor

3HP

4HP

4HP

Battery Voltage

24/48VDC

48VDC

48VDC

Size(L*W*Hmm)

570*261*199

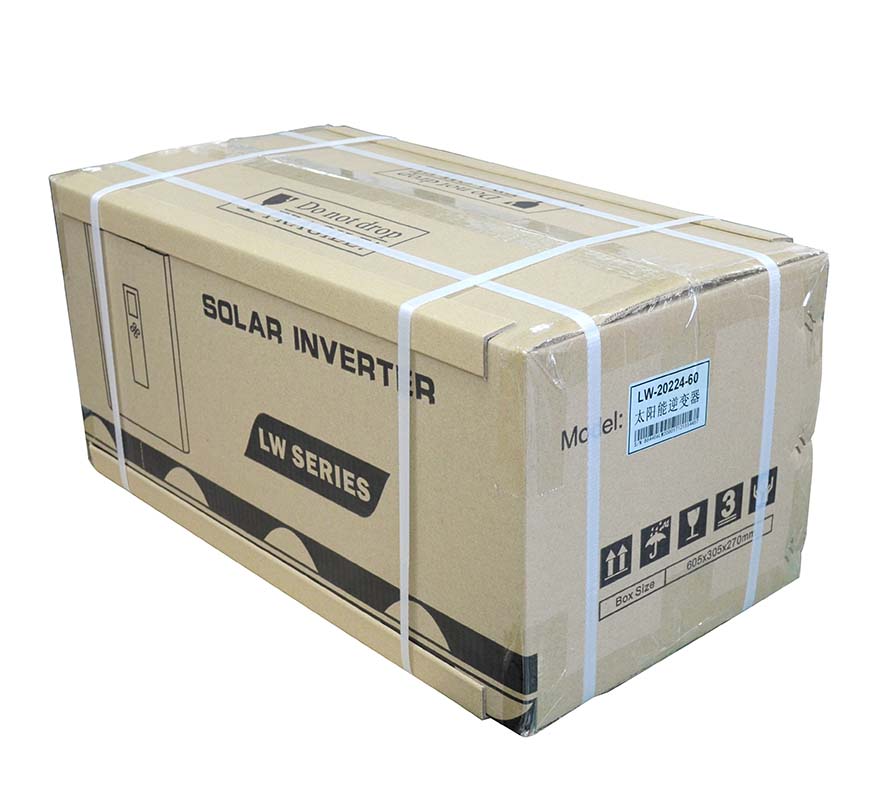

Packing Size(L*W*Hmm)

625*320*295

N.W.(kg)

22.5

24

26

G.W.(kg)Carton Packing

24

26

28

Installation Method

Wall-Mounted

Parameter

Input

DC Input Voltage Range

10.5-15VDCSingle battery voltage

AC Input Voltage Range

85VAC~138VAC / 170VAC~275VAC

AC Input Frequency Range

45Hz~65Hz

Max AC charging current

30A/25A

30A

30A

AC charging method

Three-stage (constant current, constant voltage, floating charge)

Output

Efficiency(Battery Mode)

85%

Output Voltage(Battery Mode)

110VAC±2% / 220VAC±2%

Output Frequency(Battery Mode)

50/60Hz±1%

Output Wave(Battery Mode)

Pure Sine Wave

Efficiency(AC Mode)

>99%

Output Voltage(AC Mode)

110VAC±10% / 220VAC±10%

Output Frequency(AC Mode)

Tracking Automatically

Output waveform distortion(Battery Mode)

3%Linear load

No load loss(Battery Mode)

0.8% rated power

No load loss(AC Mode)

2% rated power charger does not work in AC mode

No load loss(Energy saving Mode)

10W

Battery Type
selectable

LEAD

Charge Voltage14VFloat Voltage:13.8V12V system; 24V system x2; 48V system x4

OP-LE

Charge Voltage:14.2V; Float Voltage:13.8V12V system; 24V system x2; 48V system x4

LITHIUM

Charge Voltage: 12.6V(NMC battery 3S)  (12V system; 24V system x2; 48V system x4)

Customize battery

Charge and discharge parameters of different types of batteriescan be customized according to user requirements

Protection

Battery undervoltage alarm

11V; LITHIUM 9.5V(NMC battery 3S)12V system; 24V system x2; 48V system x4

Battery undervoltage protection

10.5V;  LITHIUM 9V(NMC battery 3S)12V system; 24V system x2; 48V system x4

Battery overvoltage alarm

Lead acid battery: 15V(12V system; 24V system x2; 48V system x4)

Battery overvoltage protection

Lead acid battery: 17V(12V system; 24V system x2; 48V system x4)

Battery overvoltage recovery voltage

Lead acid battery: 14.5V(12V system; 24V system x2; 48V system x4)

Overload power protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Output short circuit protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Temperature protection

>90°CShut down output

Alarm

A

Normal working condition, buzzer has no alarm sound

B

Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection

C

When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal

Inside Solar controller
(Optional)

Charging Mode

PWM

Charging current

10A/20A/30A/40A/50A/60A

PV Input Voltage Range

30V-44V(24V system);  60V-88V(48V system)

Max PV Input Voltage
(At 25
)

50V(24 system); 100V(48V system)

PV Array Maximum Power

24V System280W,560W,840W,1120W,1400W,1680W48V System560W,1120W,1680W,2240W,2800W,3360W

Standby loss

3W

Maximum conversion efficiency

>95%

Working Mode

Battery First/AC First/Saving Energy Mode

Transfer Time

4ms

Display

LCD

Thermal method

Cooling fan in intelligent control

Communication

RS232/RS485(Optional)

Environment

Operating temperature

-10~40

Storage temperature

-15~60

Noise

55dB

Elevation

2000mMore than derating

Humidity

0%~95% ,No condensation

Warranty

1 year

Note: All specifications are subject to change without prior notice


How does Inverter Convert DC To AC work?

1. Home backup system:

When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to household appliances, such as refrigerator, TV. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Power system:
Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.

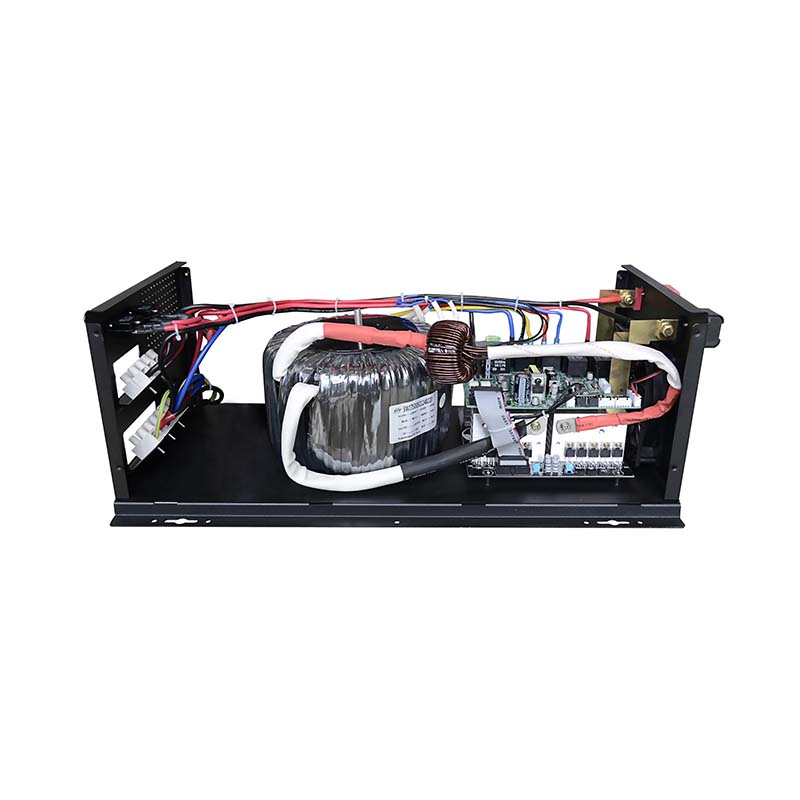

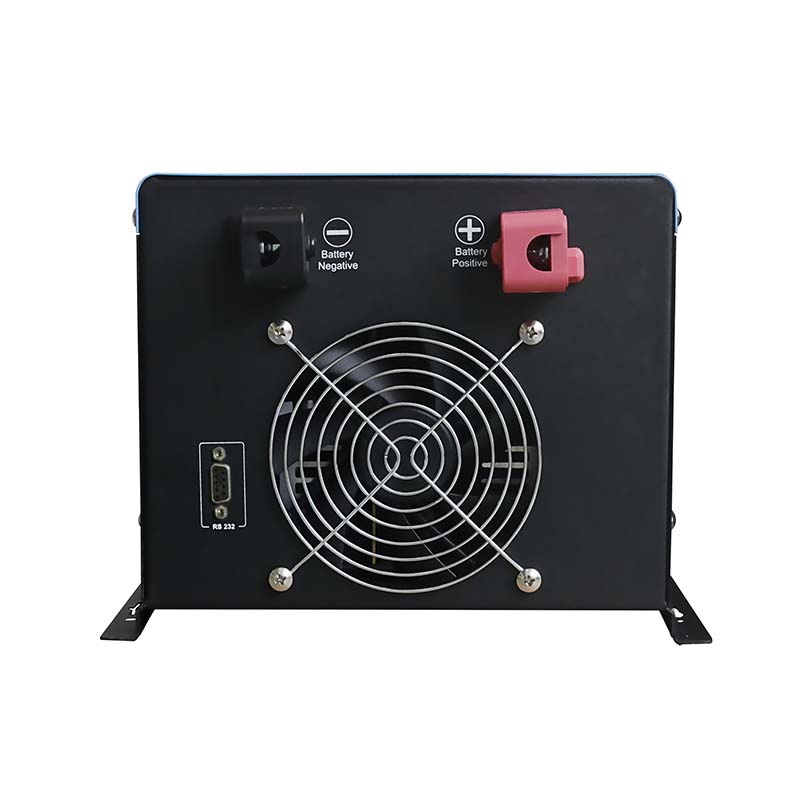

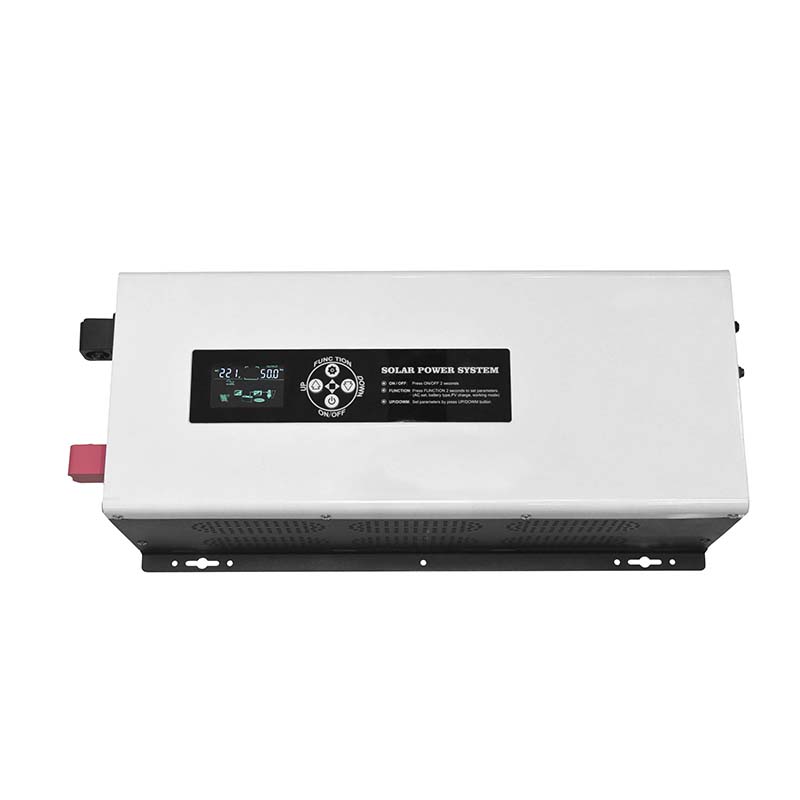

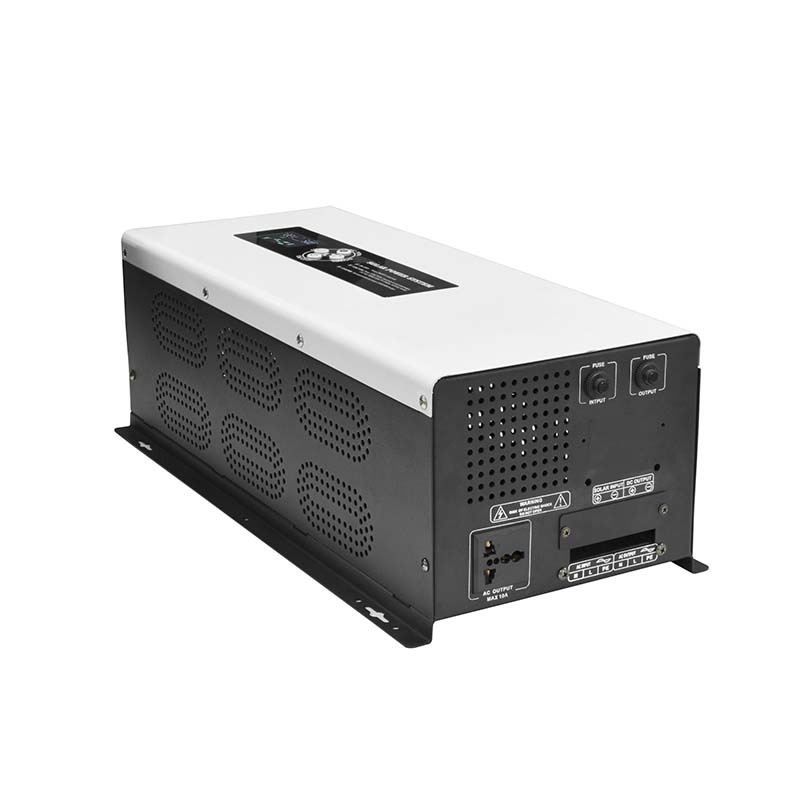

Inverter Convert DC To AC's Details

inverter convert dc to ac powerinverter convert dc to ac current


Why Choose US?

1. We are a professional manufacturer of inverter convert dc to ac and solar charge controller with over 14 years experience. Best production capability, best quality control, best service.

2. 100% QC inspection and testing before shipment.

3. CE listed, competitive price.

4. 12 years of high-level OEM experience

5. 7,000 square meters factory size (Sq.meters)

5. 200,000 pcs monthly capacity

7. Export percentage: 80%

8. Hi-tech advanced R&D team.
