China pure sine wave solar power inverter 1000w 500w 350w
China manufacturer XINDUN wholesales solar power inverter 350w/500w/1000w 24v, hybrid inverter pure sine wave output, has a strong load capacity.

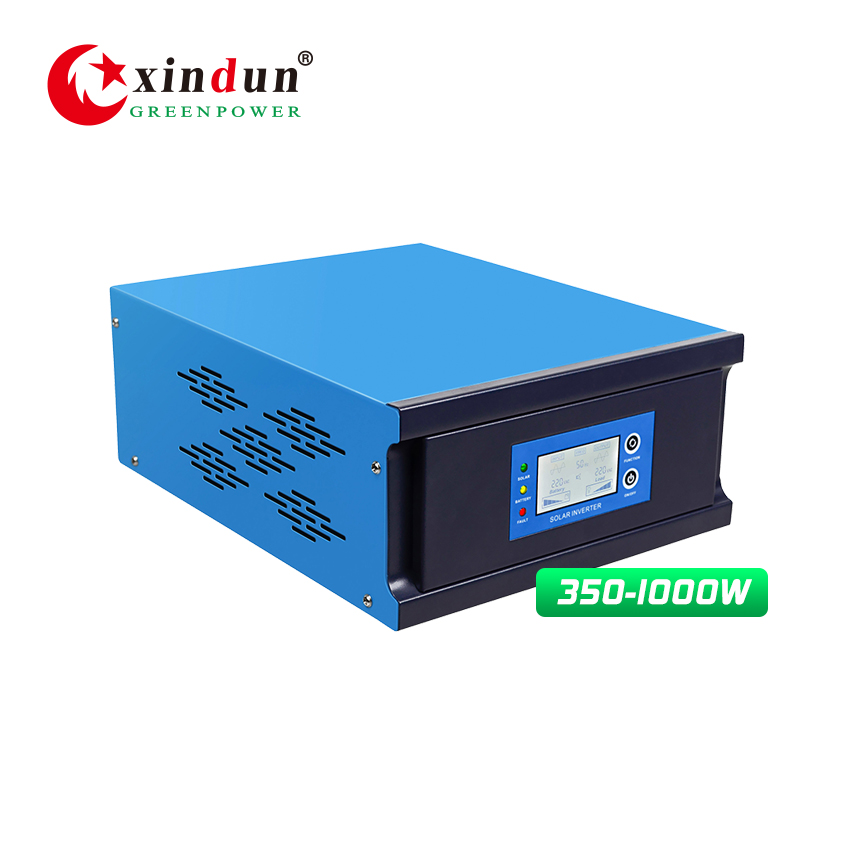

PD Pure Sine Wave Solar Power Inverter 350W-1000W 12V/24V

350w/500w/1000w 12v/24vdc to 110v/220vac | pure sine wave solar power inverter | china inverter supplier

  • Types : DC to AC Inverters
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 50 pcs
  • OEM : Accepted

Pure Sine Wave Solar Power Inverter Feature



◆ Pure sine wave output.
◇ Low frequency toroidal transformer lower loss.
◆ LCD/LED&LCD real-time display working status.
◇ Built-in PWM charge controller optional.
◆ AC charging function, maximum charge current up to 15A, AVR AC output.
◇ Auto select working modes: AC first, battery first and energy-saving mode.
◆ RS232 communication port optional.



Pure Sine Wave Solar Power Inverter Specification


Specification

Model PD

35112

50112

10224

Rated Power

350W

500W

1000W

Peak Power20ms)

1050W

1500W

3000W

Start Motor

0.3HP

0.5HP

1HP

Battery Voltage

12VDC

12VDC

24VDC

Size(L*W*Hmm)

310*240*115

Packing Size(L*W*Hmm)

370*320*200

N.W.(kg)

5

6

8

G.W.(kg)Carton Packing

6

7

9

Installation Method

Desktop

Parameter

Input

DC Input Voltage Range

10.5VDC-15VDCSingle battery voltage

AC Input Voltage Range

73~138VAC/145~275VAC

AC Input Frequency Range

45HZ-65HZ

Max AC charging current

15A MAXDepending on the model

AC charging voltage

LEAD batteryCharge Voltage :14V; Float Voltage:13.8VSingle battery voltage

AC charging method

Three-stage (constant current, constant voltage, floating charge)

Output

Efficiency(Battery Mode)

85%

Output Voltage(Battery Mode)

110VAC±2% / 220VAC±2%

Output Frequency(Battery Mode)

50/60HZ±1%

Output Wave(Battery Mode)

Pure Sine Wave

Efficiency(AC Mode)

>99%

Output Voltage(AC Mode)

110VAC±10% / 220VAC±10%

Output Frequency(AC Mode)

Tracking Automatically

Output waveform distortion(Battery Mode)

3%Linear load

No load loss(Battery Mode)

0.8% rated power

No load loss(AC Mode)

2% rated power charger does not work in AC mode

No load loss(Energy saving Mode)

10W

Battery Type

Customize battery

Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.)
can be customized according to user requirements

Protection

Battery undervoltage alarm

11VSingle battery voltage

Battery undervoltage protection

10.5VSingle battery voltage

Battery overvoltage alarm

15VSingle battery voltage

Battery overvoltage protection

17VSingle battery voltage

Battery overvoltage recovery voltage

14.5VSingle battery voltage

Overload power protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Inverter output short circuit protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Temperature protection

>90°CShut down output

Alarm

A

Normal working condition, buzzer has no alarm sound

B

Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection

C

When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal

Inside Solar controller
(Optional)

Charging Mode

PWM

Charging current

10A/20A/30A

PV Input Voltage Range

15V-44V(12V system); 30V-44V(24V system)

Max PV Input Voltage(At 25)

50V

PV Array Maximum Power

12V System140W/280W/420W;  24V System280W/560W/840W

Standby loss

3W

Maximum conversion efficiency

>95%

Working Mode

Battery First/AC First/Saving Energy Mode

Transfer Time

4ms

Display

LCD

Thermal method

Cooling fan in intelligent control

Communication

RS232(Optional)

Environment

Operating temperature

-10~40

Storage temperature

-15~60

Noise

55dB

Elevation

2000mMore than derating

Humidity

0%~95% ,No condensation

Note: All specifications are subject to change without prior notice

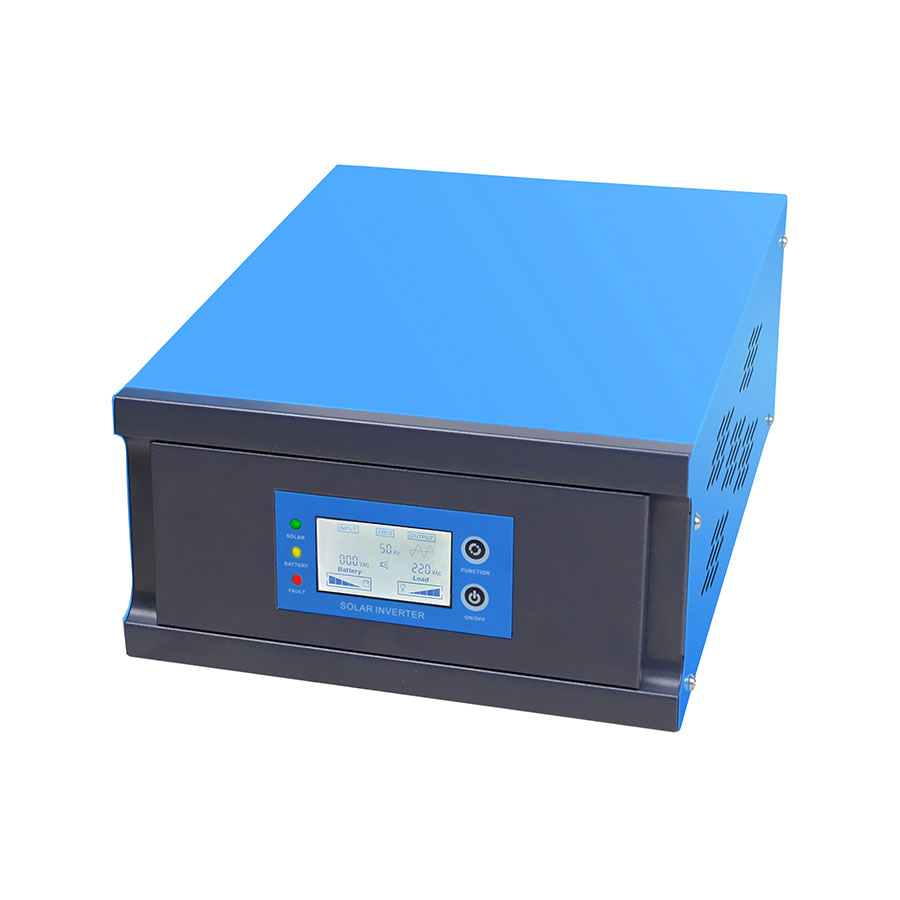

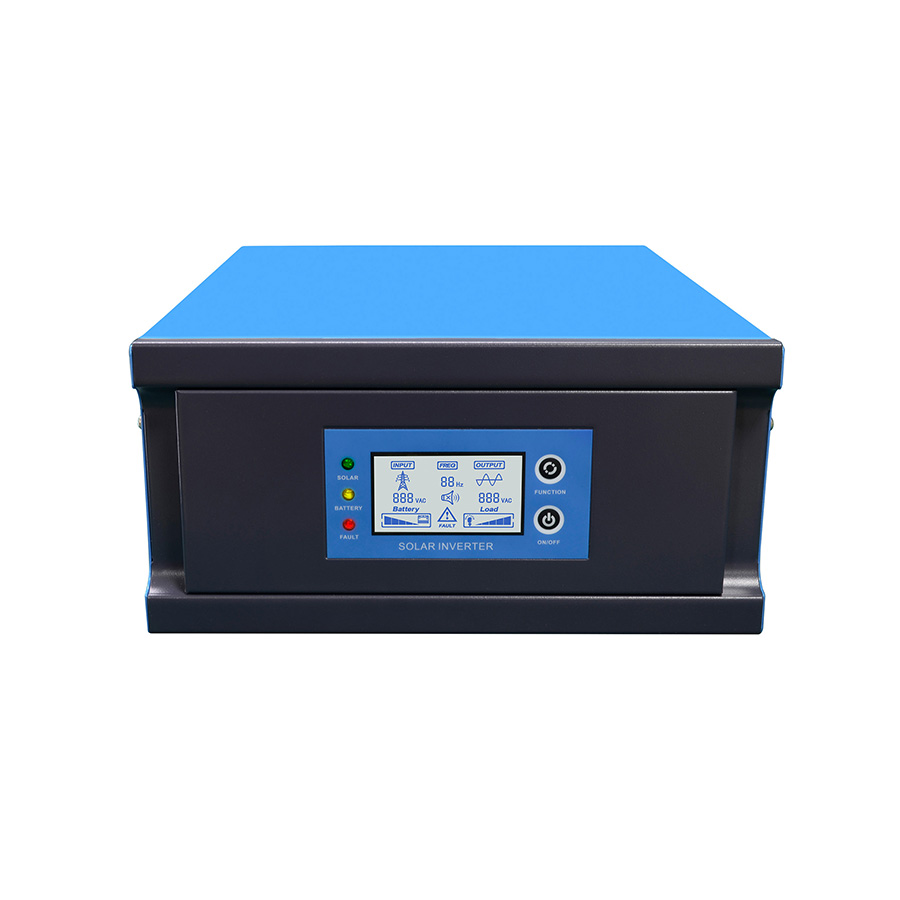

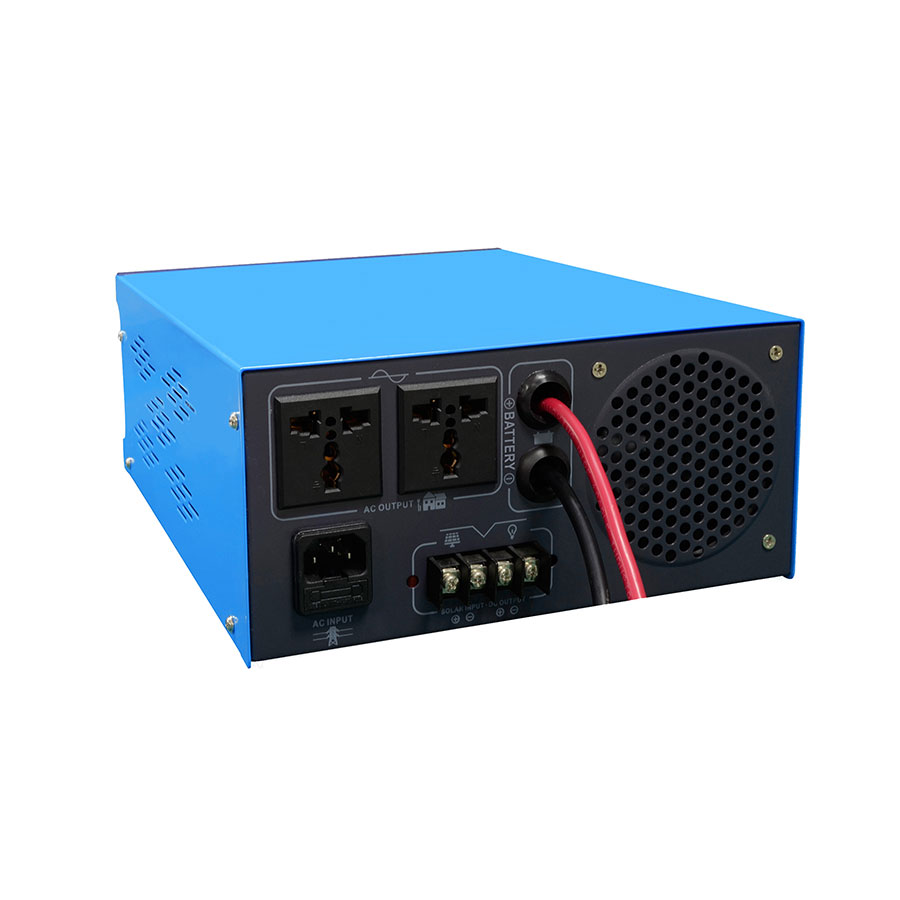

Pure Sine Wave Solar Power Inverter Details

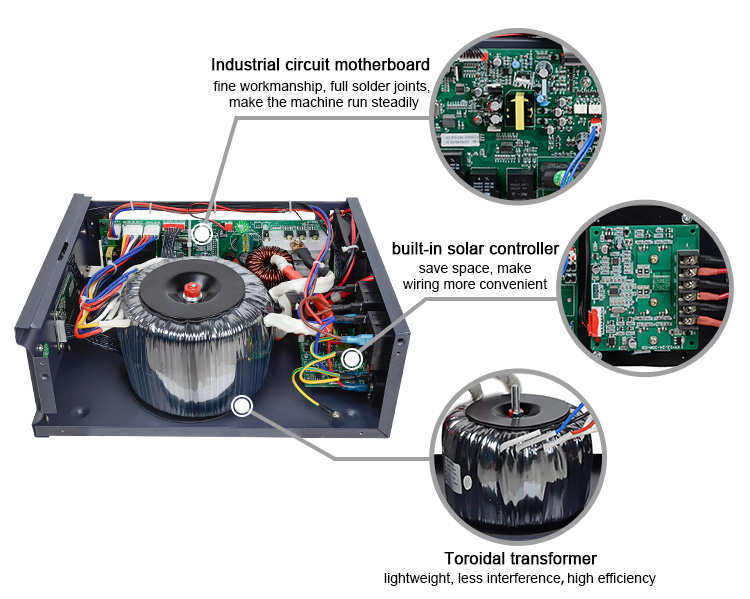

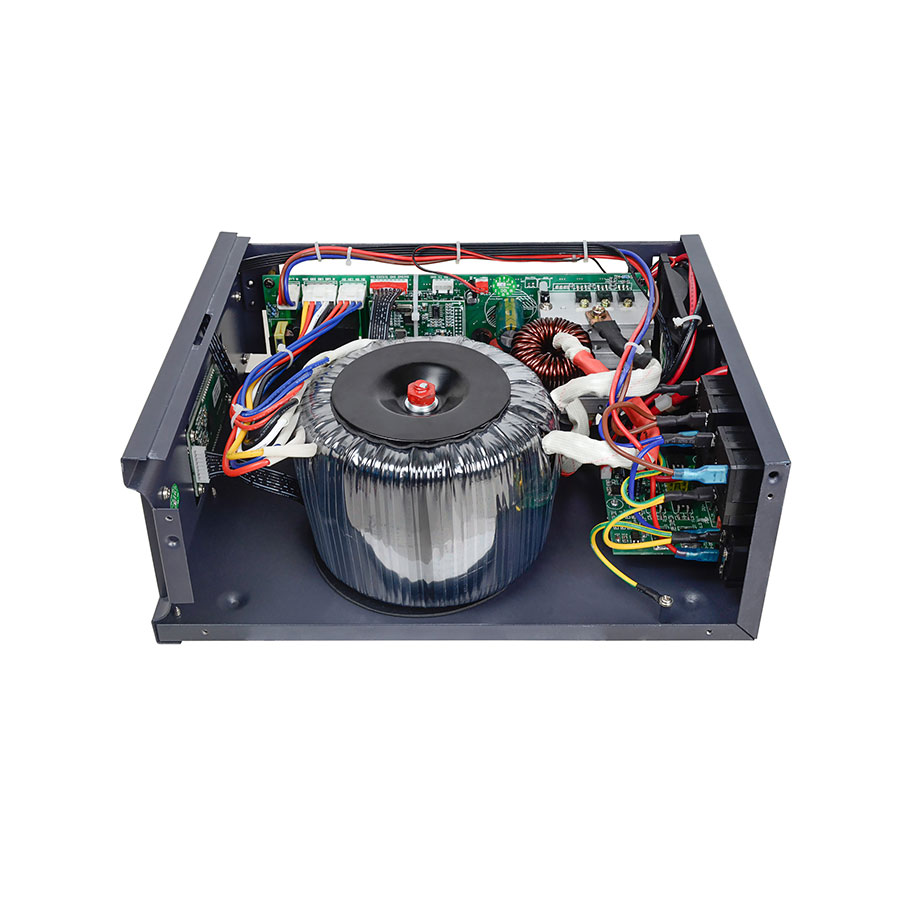

China pure sine wave solar power inverter appearance details-01China pure sine wave solar power inverter circuit board details-02

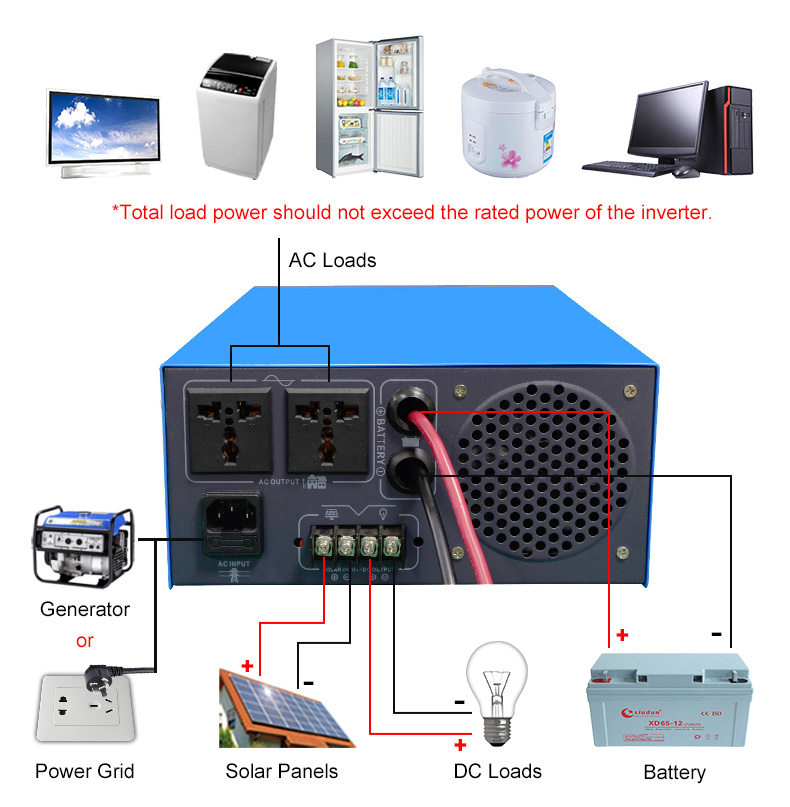

How Does Pure Sine Wave Solar Power Inverter Work?



1. Home backup system:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to household appliances, such as refrigerator, TV. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Power system:
Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.

How Does Pure Sine Wave Solar Power Inverter Work?

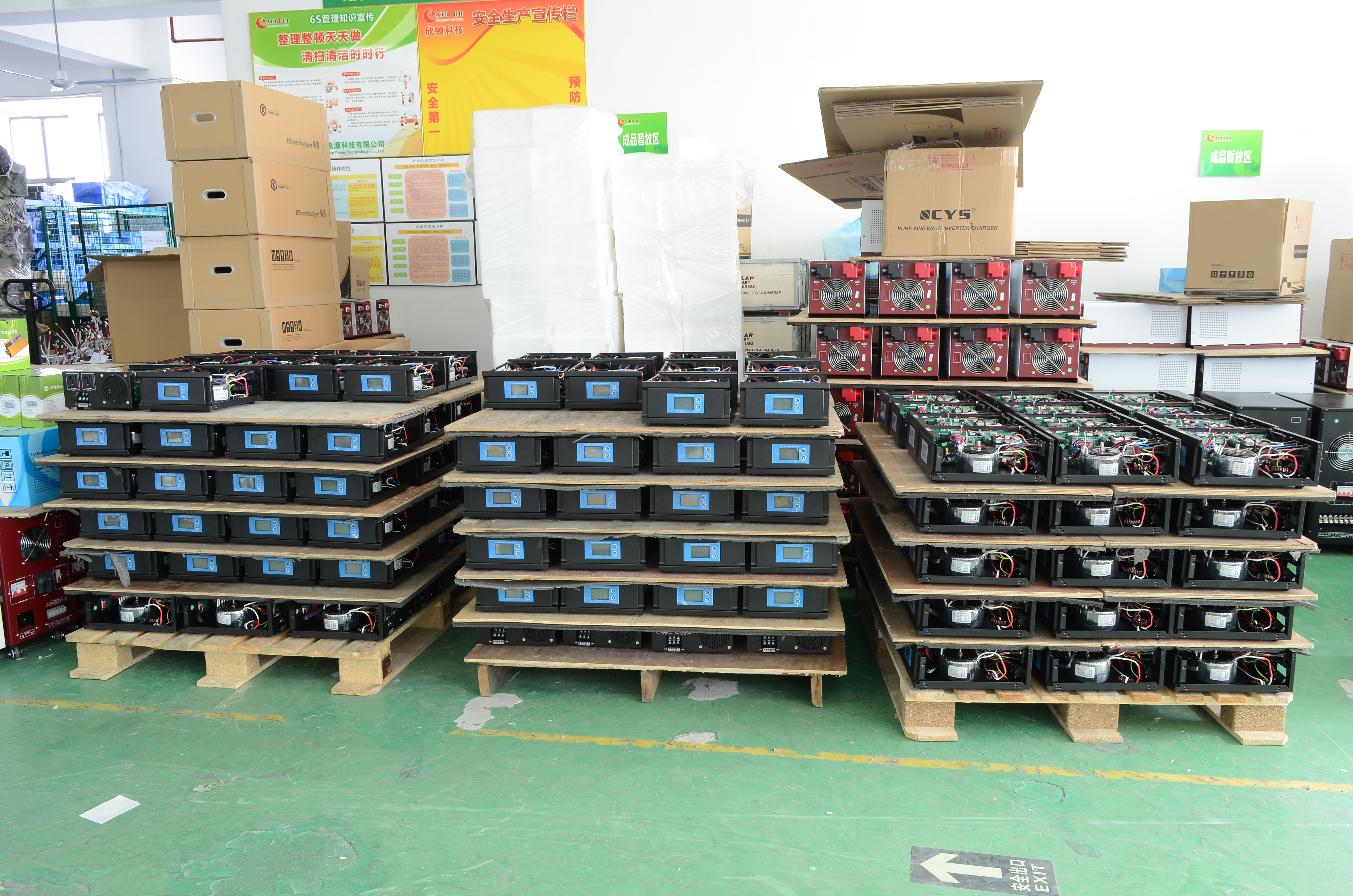

Pure Sine Wave Solar Power Inverter Factory



PD Pure Sine Wave Solar Power Inverter Factory



Why Choose US?



1. We are a professional manufacturer of pure sine wave solar power inverter and charger controller with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 12 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
6. 200,000pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.
