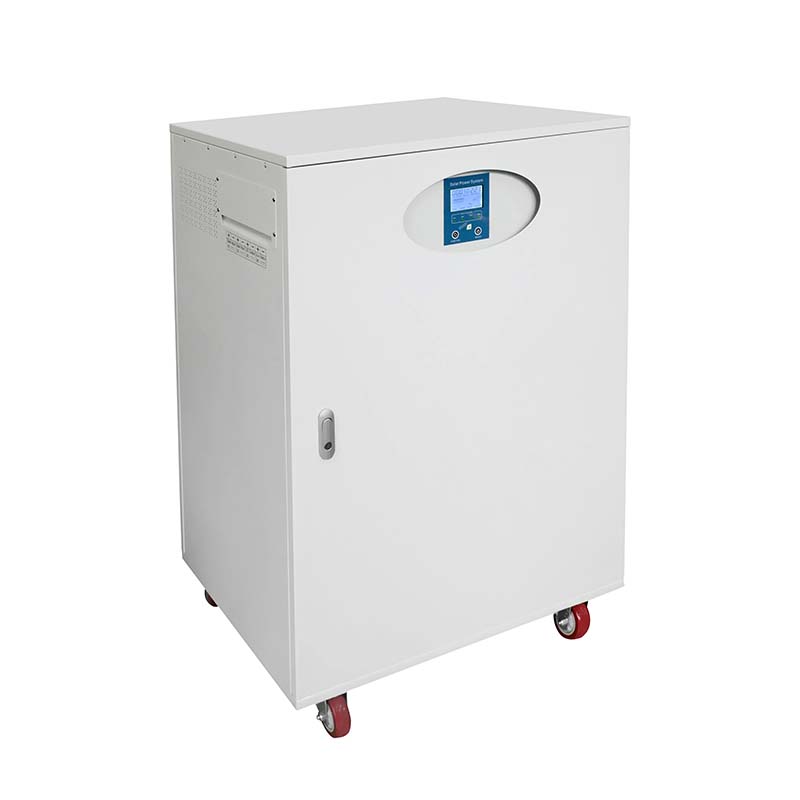

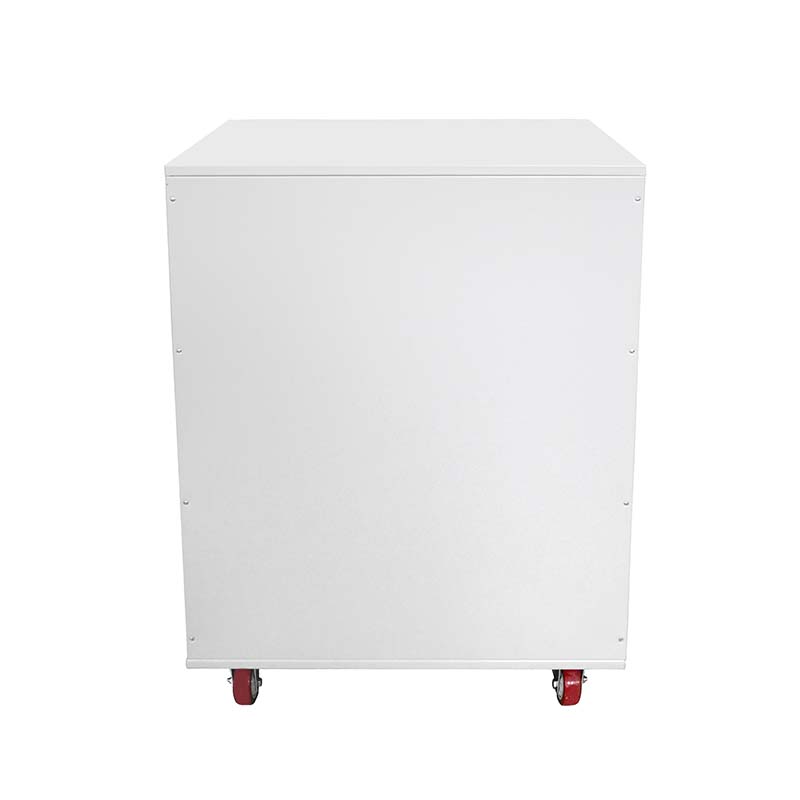

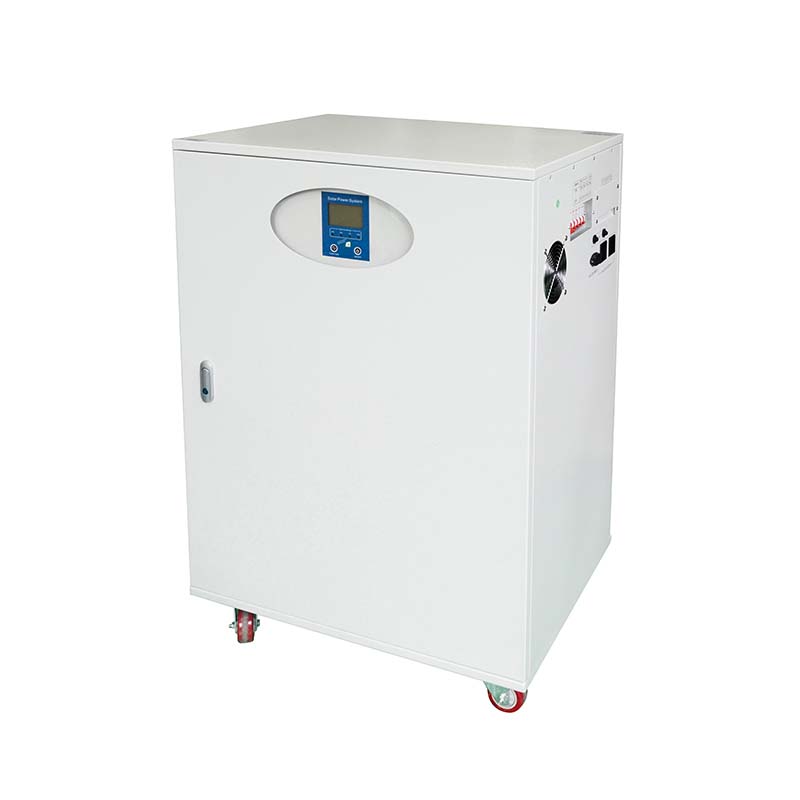

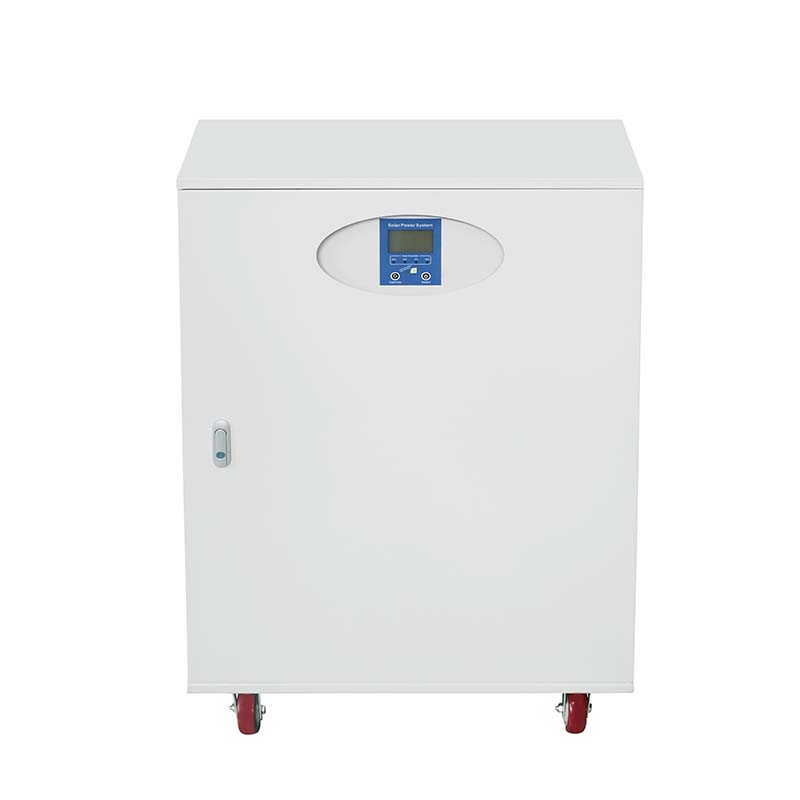

TYN Solar Generator 3KW 5KW 6KW (12V 200Ah*4/12V 100Ah*8)

Specification

Model TYN

30248/96

50248/96

60248/96

Rated Power

3000W

5000W

6000W

Peak Power（20ms)

9000W

15000W

18000W

Start Motor

3HP

4HP

4HP

Battery Voltage

48/96VDC

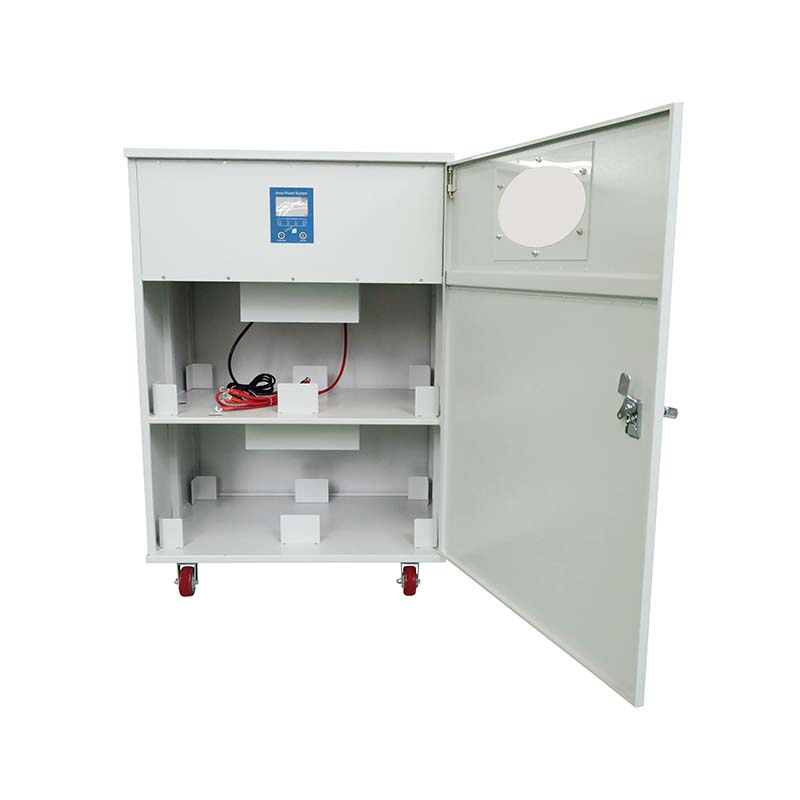

Inside Battery Capacity

200Ah*4/100Ah*8

Size(L*W*Hmm)

742*520*1080

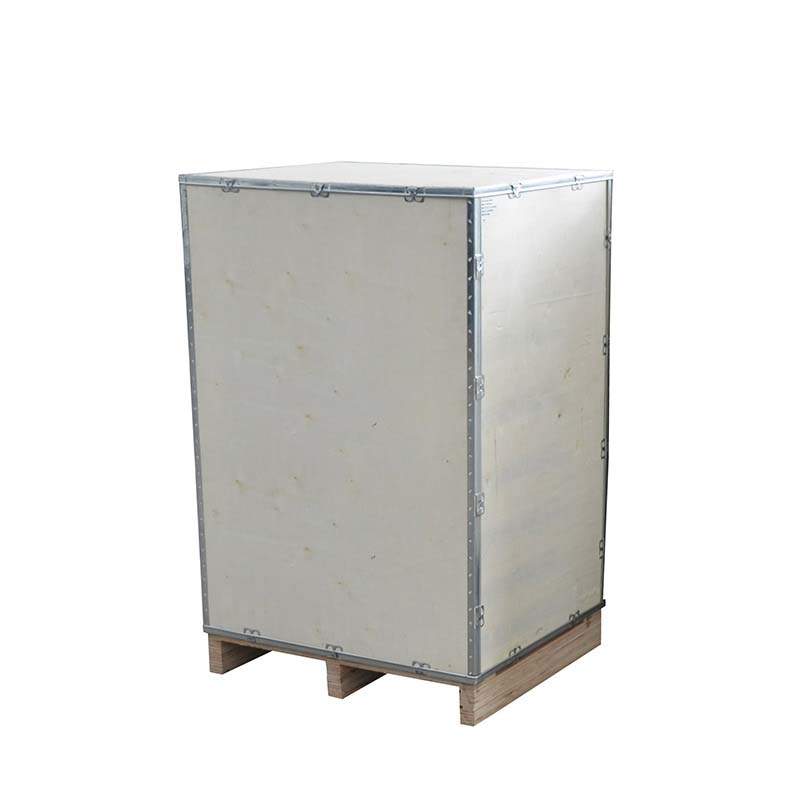

Package Size (L*W*Hmm)

780*620*1400

N.W.(kg) Without Battery

83

95

97

G.W.(kg) Without Battery Carton Packing

101

113

115

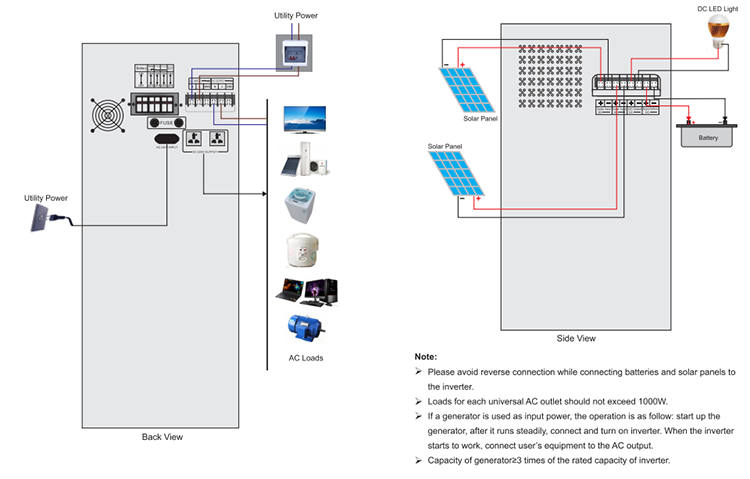

Installation Method

Tower

Parameter

Input

DC Input Voltage Range

10.5-15VDC（Single battery voltage）

AC Input Voltage Range

73VAC~138VAC / 145VAC~275VAC

AC Input Frequency Range

45Hz~65Hz

Max AC charging current

6A~15A (Depending on the model)

AC charging voltage

LEAD battery：Charge Voltage :14V; Float Voltage:13.8V（Single battery voltage）

AC charging method

Three-stage (constant current, constant voltage, floating charge)

Output

Efficiency(Battery Mode)

≥85%

Output Voltage(Battery Mode)

110VAC±2% / 220VAC±2%

Output Frequency(Battery Mode)

50/60Hz±1%

Output Wave(Battery Mode)

Pure Sine Wave

Efficiency(AC Mode)

>99%

Output Voltage(AC Mode)

110VAC±10% / 220VAC±10%

Output Frequency(AC Mode)

Tracking Automatically

Output waveform distortion(Battery Mode)

≤3%（Linear load）

No load loss(Battery Mode)

≤1% rated power

No load loss(AC Mode)

≤2% rated power（ charger does not work in AC mode）

No load loss(Energy saving Mode)

≤10W

Battery Type

Customize battery

Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.)
can be customized according to user requirements

Protection

Battery undervoltage alarm

11V（Single battery voltage）

Battery undervoltage protection

10.5V（Single battery voltage）

Battery overvoltage alarm

15V（Single battery voltage）

Battery overvoltage protection

17V（Single battery voltage）

Battery overvoltage recovery voltage

14.5V（Single battery voltage）

Overload power protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Output short circuit protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Temperature protection

>90°C（Shut down output）

Alarm

A

Normal working condition, buzzer has no alarm sound

B

Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection

C

When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal

Inside Solar controller
(Optional)

Charging Mode

MPPT or PWM

Charging current

48V system: 10A/20A/30A/40A/50A/60A; 96V system: 50A/100A(PWM)

PV Input Voltage Range

PWM: 60V-88V(48V system); 120V-170V(96V system) / MPPT: 60V-120V(48V system)

Max PV Input Voltage(At 25℃)

PWM: 100V(48V system); 200V(96V system) / MPPT: 150V(48V system)

PV Array Maximum Power

48V System: 560W/1120W/1680W/2240W/2800W/3360W; 96V System: 5.6KW/11.2KW

Standby loss

≤3W

Maximum conversion efficiency

>95%

Working Mode

Battery First/AC First/Saving Energy Mode

Transfer Time

≤4ms

Display

LCD

Thermal method

Cooling fan in intelligent control

Communication

RS232(Optional)

Environment

Operating temperature

-10℃~40℃

Storage temperature

-15℃~60℃

Noise

≤55dB

Elevation

2000m（More than derating）

Humidity

0%~95% ,No condensation

Warranty

1 year

Note: All specifications are subject to change without prior notice
