Hybrid Solar Inverter 12V, 24V, 48V to 220V - Xindun Power
XINDUN 12v/24v/48v Hybrid solar inverter with mppt charge controllers 1kw/2kw/3kw used in solar energy systems. One-button start with external LCD display.

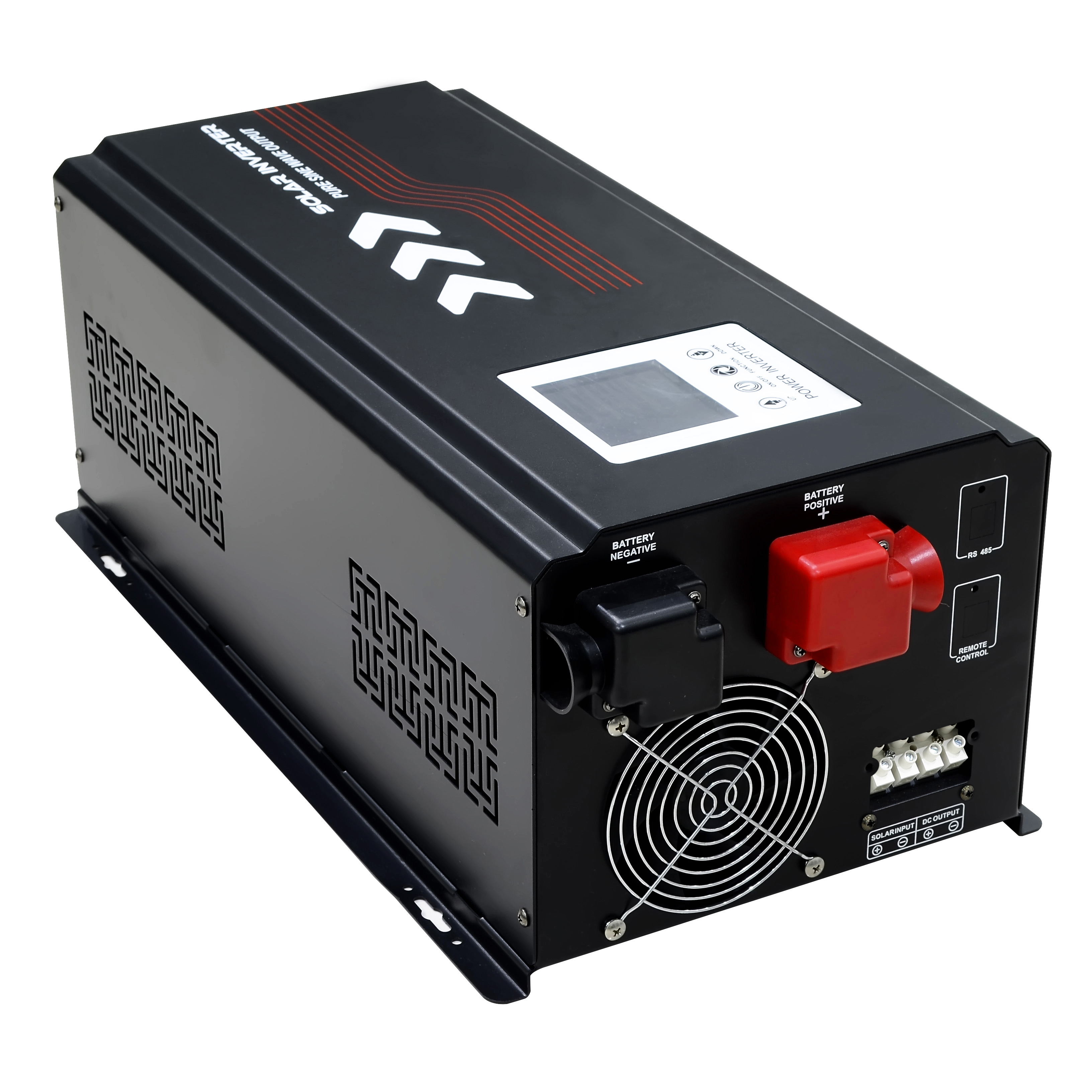

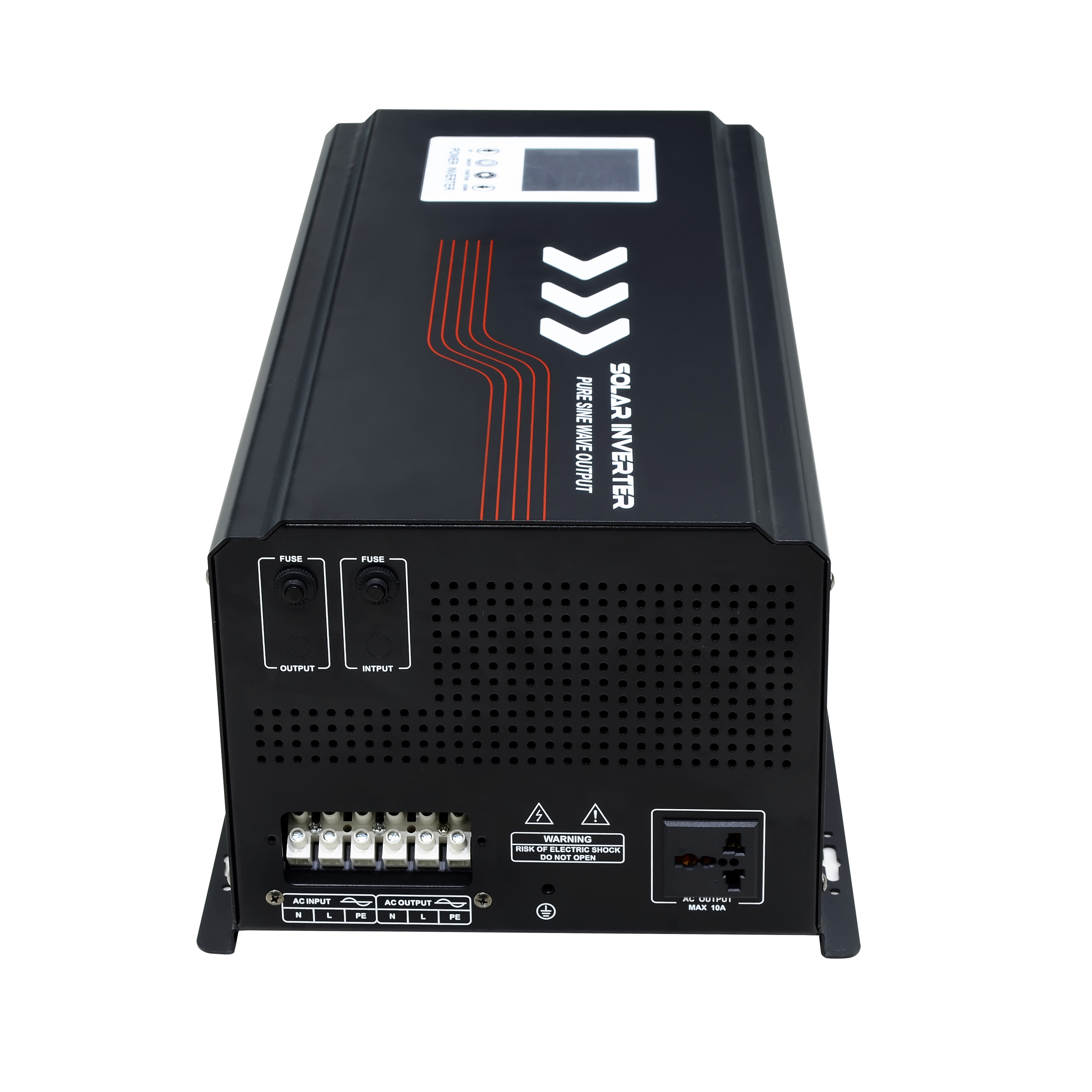

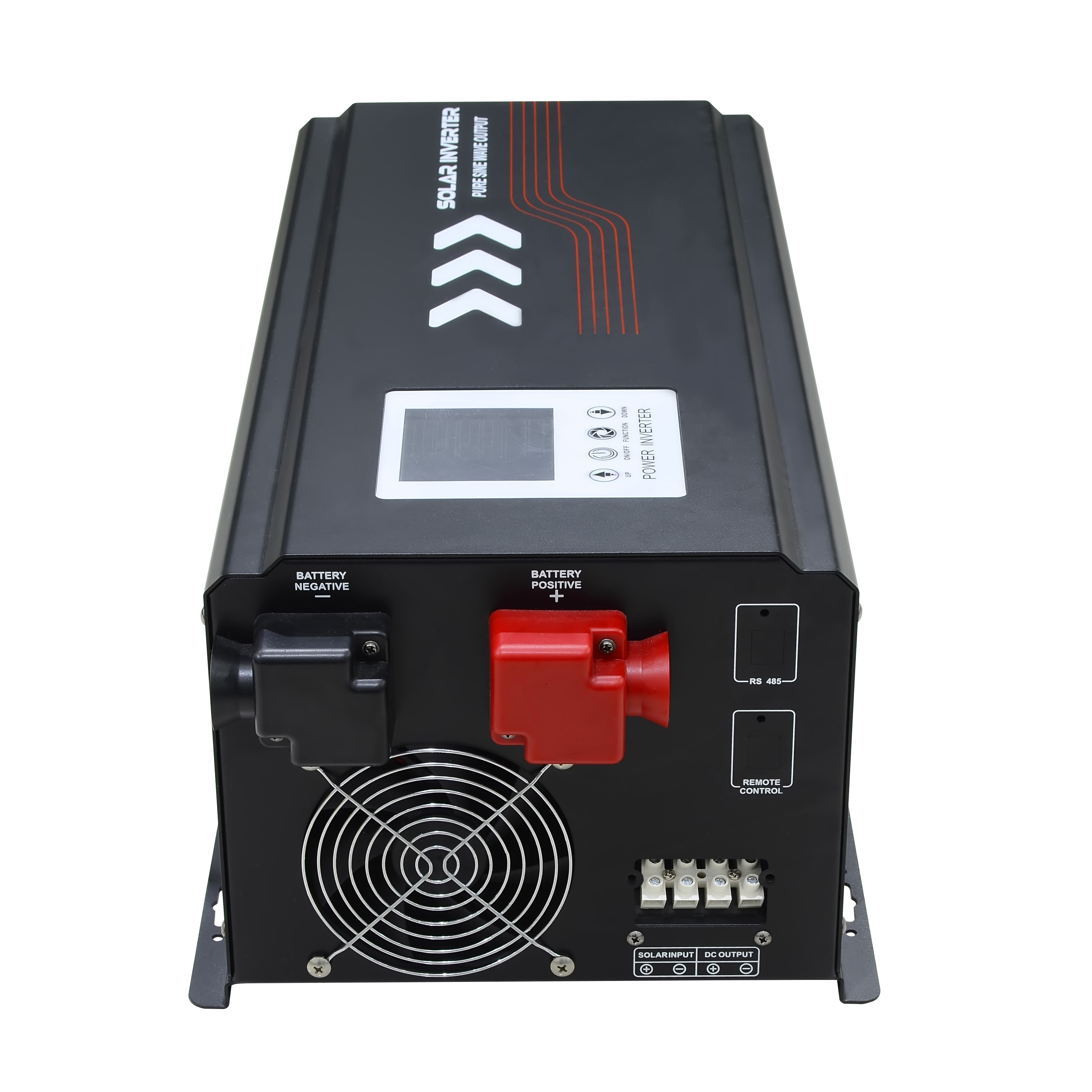

W10 Hybrid Solar Inverter 1KW-3KW 12V-48V

1kw/1500w/2kw/3kw, 12v/24v/48v to 110v/220v | hybrid solar inverter with mppt charge controller

  • Types : DC to AC Off-Grid Inverters
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 50 pcs
  • OEM : Accepted

Hybrid Solar Inverter Feature



◆ Pure sine wave output;

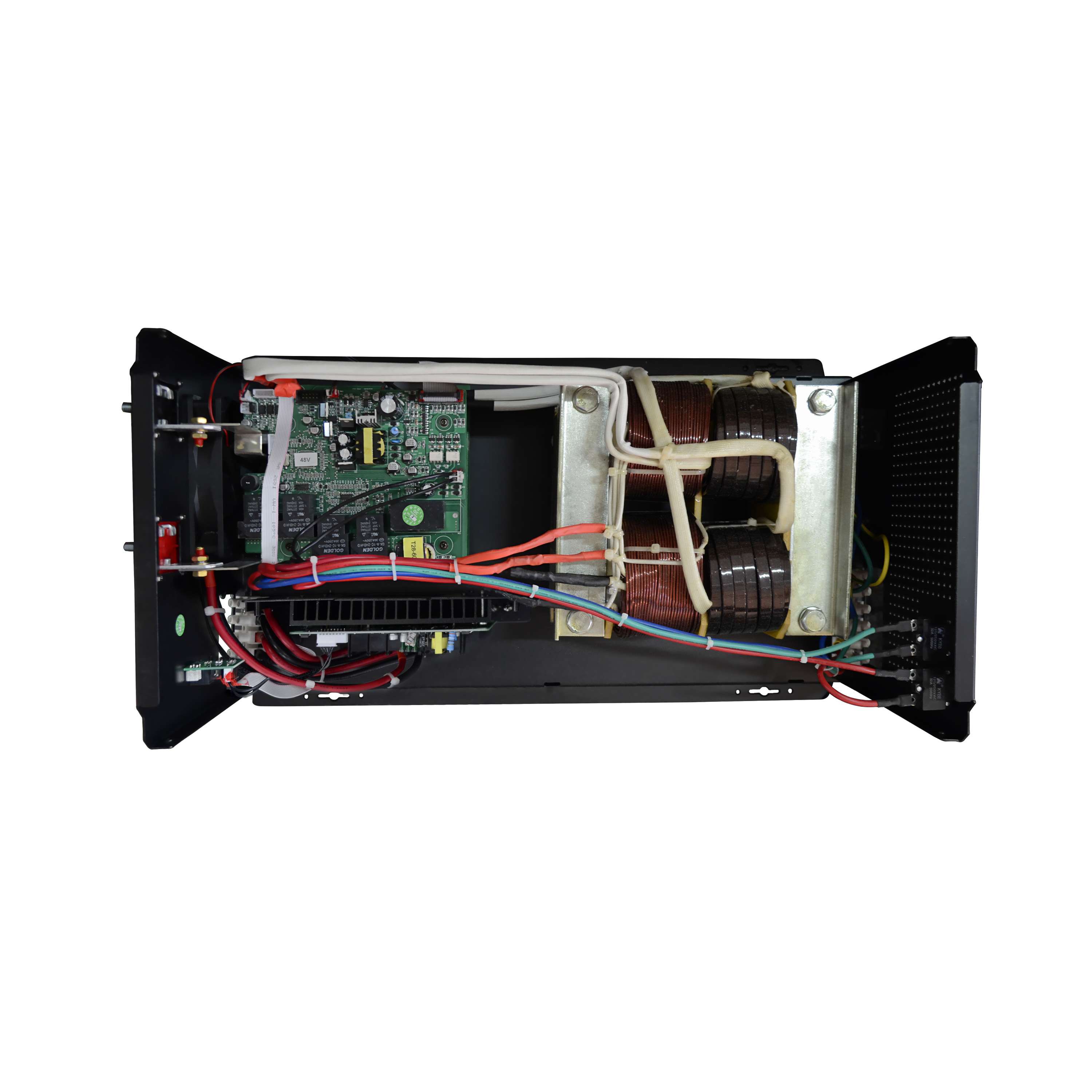

◇  Industrial high efficiency I-shape transformer;
◆  AC charge current 0-30A adjustable; AVR output;
◇  Built-in MPPT or PWM charge controller optional;

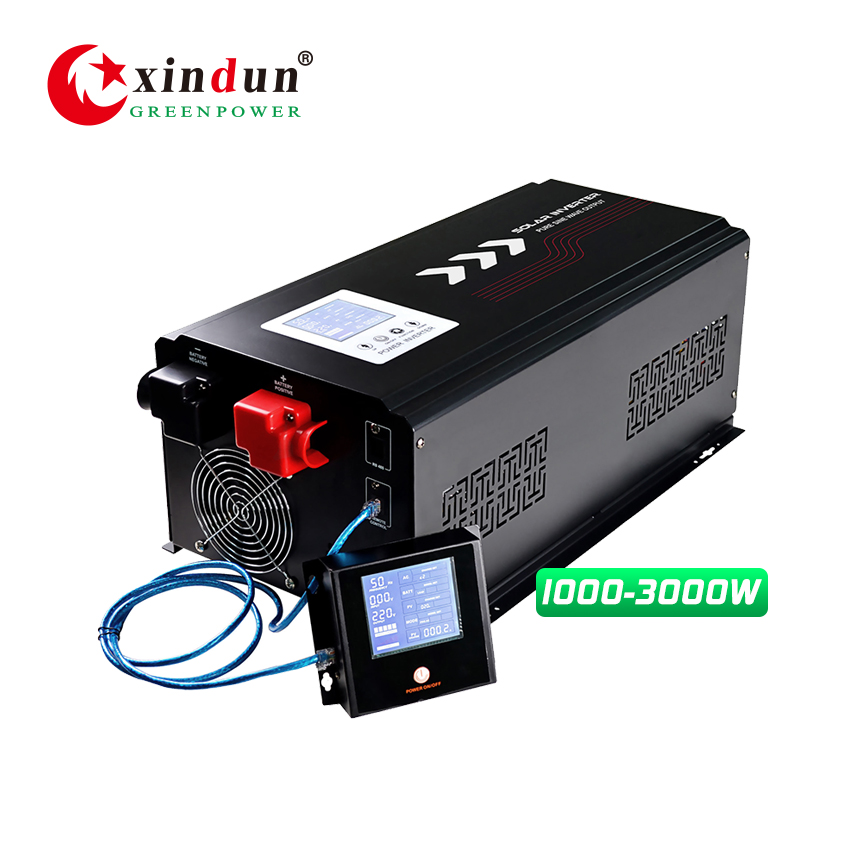

◆  Integrated LCD display; One-button start with an external display screen( optional);
◇  Three types working modes:AC first, DC first, energy-saving mode;
◆  Supports diesel or gasoline generator, adapt anytough electricity situation;
◇  Various communication ports and remote controls (RS232/RS485/APP/SNMP/GSM optional).


Hybrid Solar Inverter Specification


Specification

Model W10

10212/24

15212/24/48

20212/24/48

30224/48

Rated Power

1KW

1500W

2KW

3KW

Peak Power20ms)

3KW

4500W

6KW

9KW

Start Motor

1HP

1.5HP

2HP

3HP

Battery Voltage

12/24VDC

12/24/48VDC

24/48VDC

Size(L*W*Hmm)

595*315*225

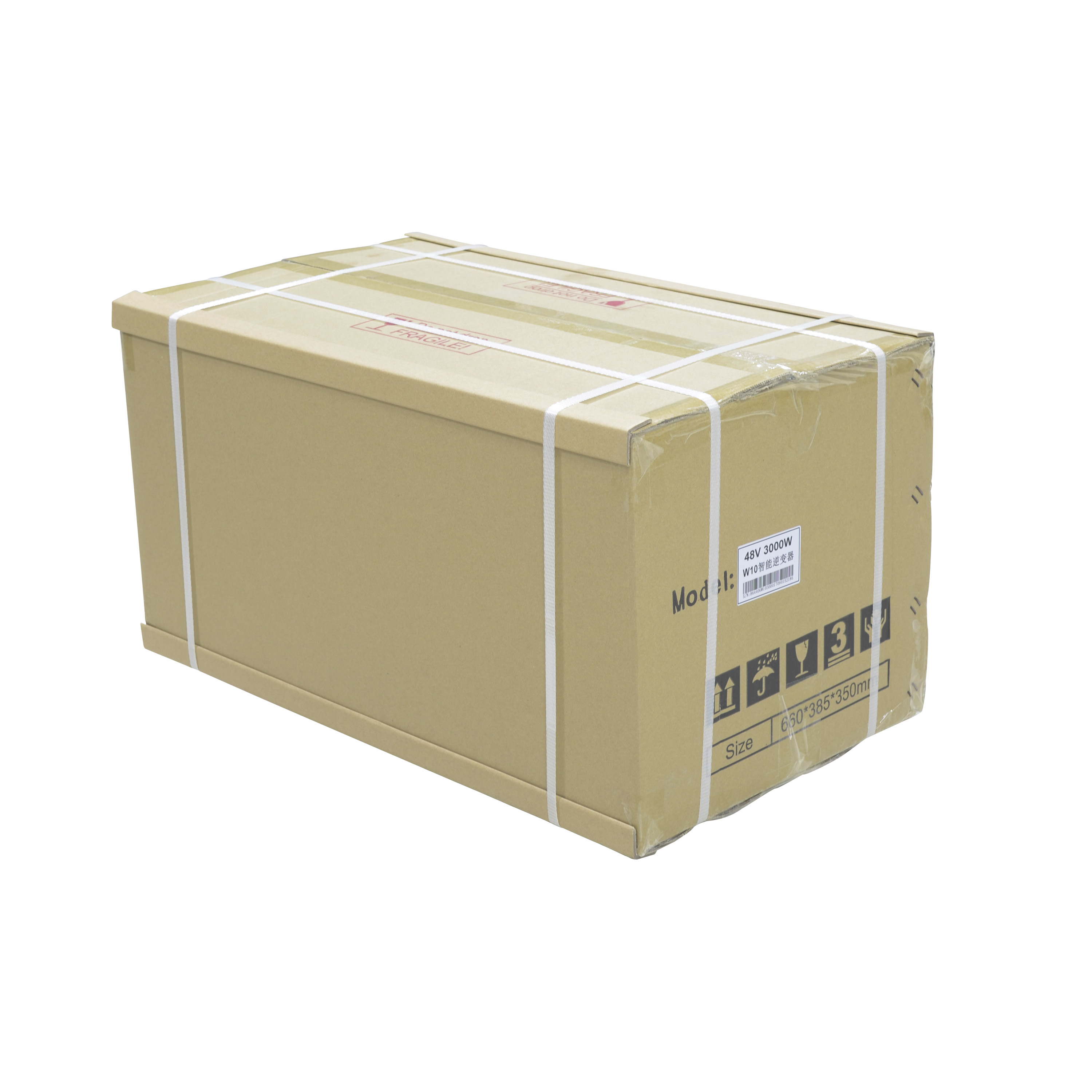

Packing Size(L*W*Hmm)

660*385*350

N.W.(kg)

17

24

26

29

G.W.(kg)Carton Packing

20

27

29

32

Installation Method

Wall-Mounted

Parameter

Input

DC Input Voltage Range

10.5-15VDCSingle battery voltage

AC Input Voltage Range

85VAC~138VAC / 170VAC~275VAC

AC Input Frequency Range

45Hz~65Hz

Max AC charging current

25A/15A

30A/20A/10A

30A/25A/15A

30A/20A

AC charging method

Three-stage (constant current, constant voltage, floating charge)

Output

Efficiency(Battery Mode)

85%

Output Voltage(Battery Mode)

110VAC±2% / 220VAC±2%

Output Frequency(Battery Mode)

50/60Hz±1%

Output Wave(Battery Mode)

Pure Sine Wave

Efficiency(AC Mode)

>99%

Output Voltage(AC Mode)

110VAC±10%  / 220VAC±10%

Output Frequency(AC Mode)

Tracking Automatically

Output waveform distortion(Battery Mode)

3%Linear load

No load loss(Battery Mode)

1% rated power

No load loss(AC Mode)

2% rated power charger does not work in AC mode

No load loss(Energy saving Mode)

10W

Battery Type
selectable

LEAD

Charge Voltage14VFloat Voltage:13.8V12V system; 24V system x2; 48V system x4

OP-LE

Charge Voltage:14.2V; Float Voltage:13.8V12V system; 24V system x2; 48V system x4

LITHIUM

Charge Voltage: 12.6V(NMC battery 3S)  (12V system; 24V system x2; 48V system x4)

Customize battery

Charge and discharge parameters of different types of batteriescan be customized according to user requirements.

Protection

Battery undervoltage alarm

11V; LITHIUM 9.5V(NMC battery 3S)12V system; 24V system x2; 48V system x4

Battery undervoltage protection

10.5V;  LITHIUM 9V(NMC battery 3S)12V system; 24V system x2; 48V system x4

Battery overvoltage alarm

Lead acid battery: 15V(12V system; 24V system x2; 48V system x4)

Battery overvoltage protection

Lead acid battery: 17V(12V system; 24V system x2; 48V system x4)

Battery overvoltage recovery voltage

Lead acid battery: 14.5V(12V system; 24V system x2; 48V system x4)

Overload power protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Output short circuit protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Temperature protection

>90°CShut down output

Alarm

A

Normal working condition, buzzer has no alarm sound

B

Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection

C

When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal.

Inside Solar controller
(Optional)

Charging Mode

MPPT or PWM

Charging current

12V/24V/48V System10A/20A/30A/40A/50A/60A

PV Input Voltage Range

PWM: 15V-44V(12V system); 30V-44V(24V system); 60V-88V(48V system)
MPPT: 15V-120V(12V system); 30V-120V(24V system); 60V-120V(48V system)

Max PV Input Voltage
(At 25
)

PWM: 50V(12V/24V system), 100V(48V system);  MPPT: 150V

PV Array Maximum Power

12V system: 140W/280W/420W/560W/700W/840W; 24V system: 280W/560W/840W/1120W/1400W/1680W;
48V system: 560W/1120W/1680W/2240W/2800W/3360W

Standby loss

3W

Maximum conversion efficiency

>95%

Working Mode

Battery First/AC First/Saving Energy Mode

Transfer Time

4ms

Display

LCDExternal LCD Display(Optional)

Thermal method

Cooling fan in intelligent control

Communication

RS232/RS485/APP/SNMP/GSM(Optional)

Environment

Operating temperature

-10~40

Storage temperature

-15~60

Noise

55dB

Elevation

2000mMore than derating

Humidity

0%~95% ,No condensation

Warranty

1 year

Note: All specifications are subject to change without prior notice

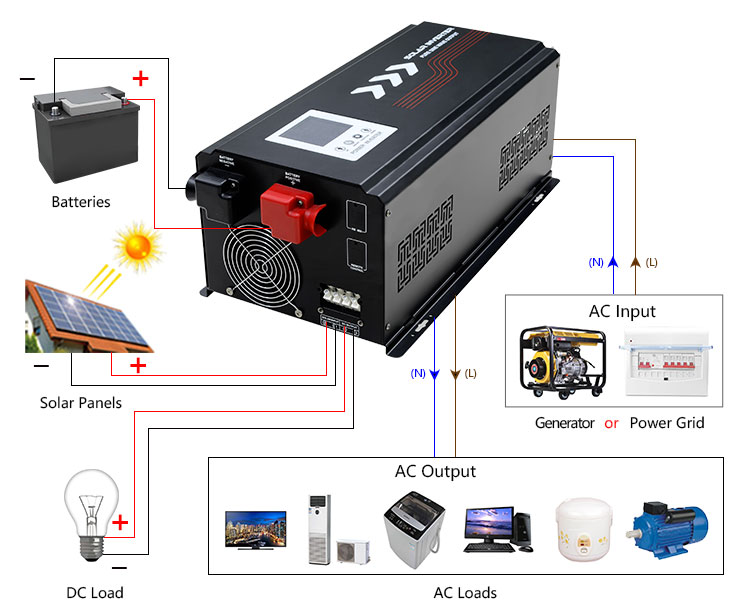

How does hybrid solar inverter work?



1. Home backup system:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to household appliances, such as refrigerator, TV. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Power system:
Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.



How Does Hybrid Solar Inverter 12v to 220v Work?



Hybrid Solar Inverter Factory



W10 12V/24V/48V Hybrid Solar Inverter Factory



Why Choose US?


1. We are a professional manufacturer of hybrid solar inverter and charger controller with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 12 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
6. 200,000pcs monthly capacity
7. Export percentage: 80%

8. Hi-tech advanced R&D team.
