Low frequency pure sine wave power inverter charger
XINDUN low frequency pure sine wave inverter provides you with reliable power safely and efficiently. Low frequency power inverter charger current 0-30a adjustable.

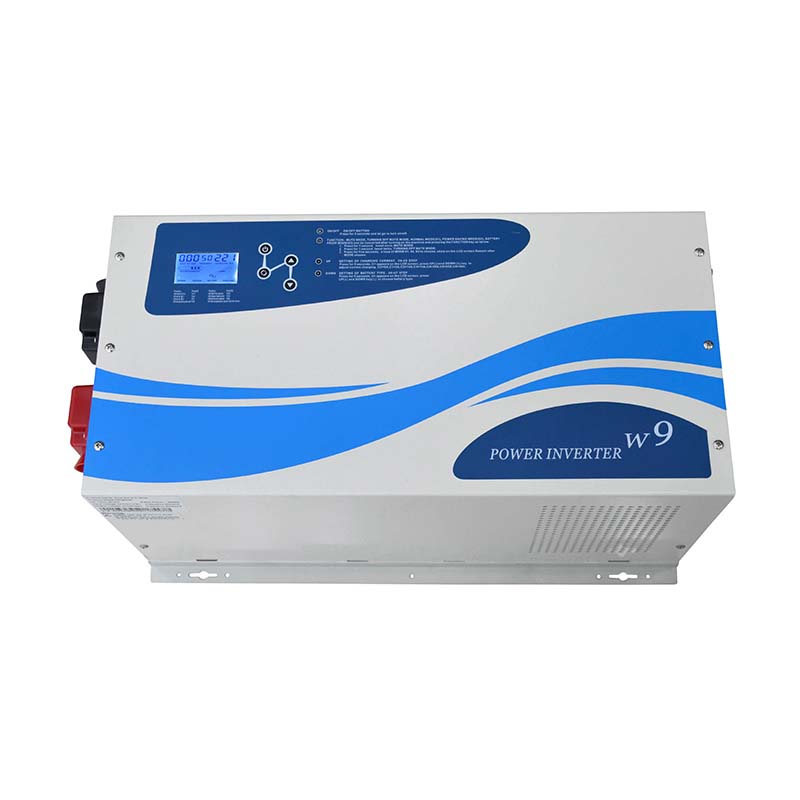

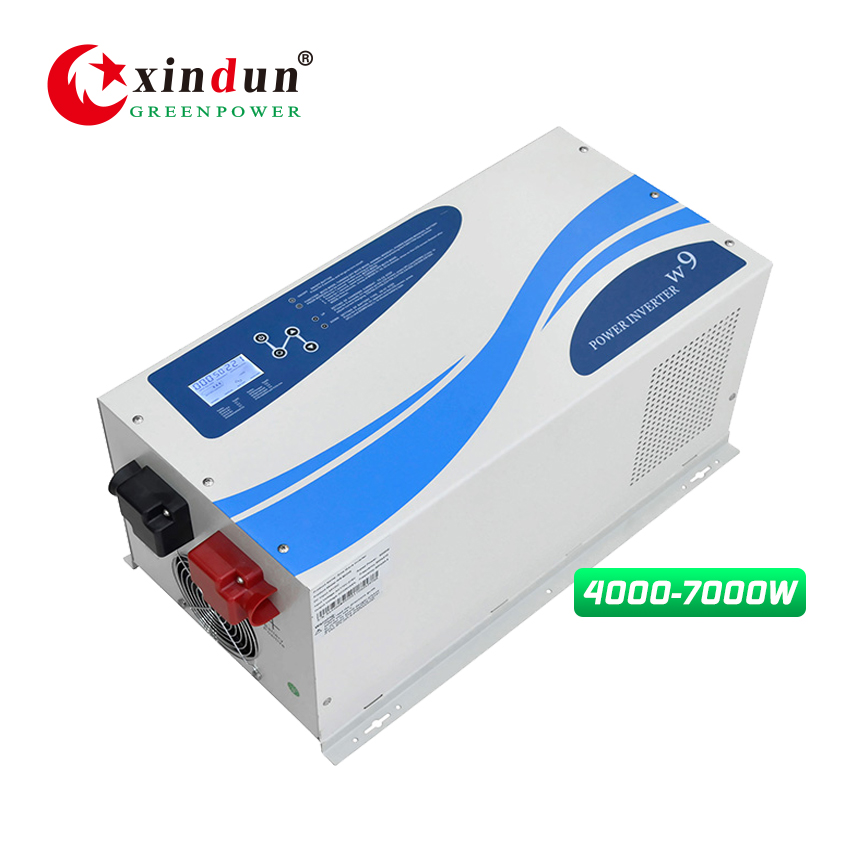

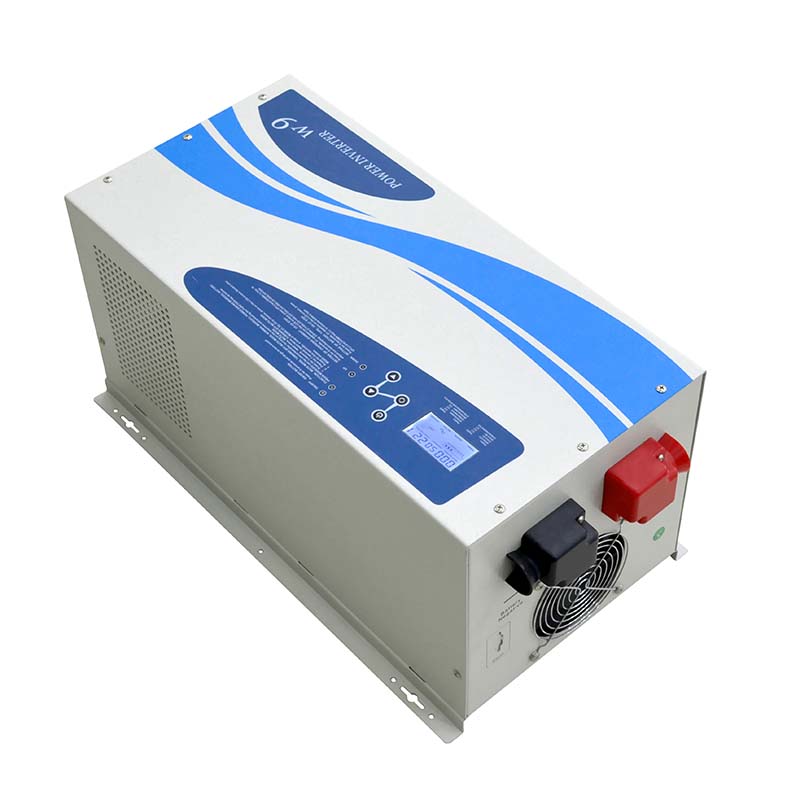

W9 Low Frequency Inverter Charger 4KW-7KW 24V-96V

Chinese supplier Xindun Power wholesales 4kw/5kw/6kw/7kw, 24v/48v/96vdc to 110v/220vac low frequency inverter charger, pure sine wave power inverter.

  • Types : DC to AC Inverters
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 50 pcs
  • OEM : Accepted

Low Frequency Inverter Charger Feature



◆  Pure sine wave output;

◇  AC charge current 0-30A adjustable;

◆  Air-cooled type radiator, great energy-saving effect;

◇  Strong loading capacity; Peak power more than 3 times;

◆  Working modes: AC first, battery first, energy-saving;

◇  RS232 communication port optional.


Low Frequency Inverter Charger Parameters



Specification

Model W9

40224/48

50248

60248

70248/96

Rated Power

4KW

5KW

6KW

7KW

Peak Power20ms)

12KW

15KW

18KW

21KW

Start Motor

3HP

4HP

4HP

5HP

Battery Voltage

24/48VDC

48VDC

48/96VDC

Size(L*W*Hmm)

580*307*265

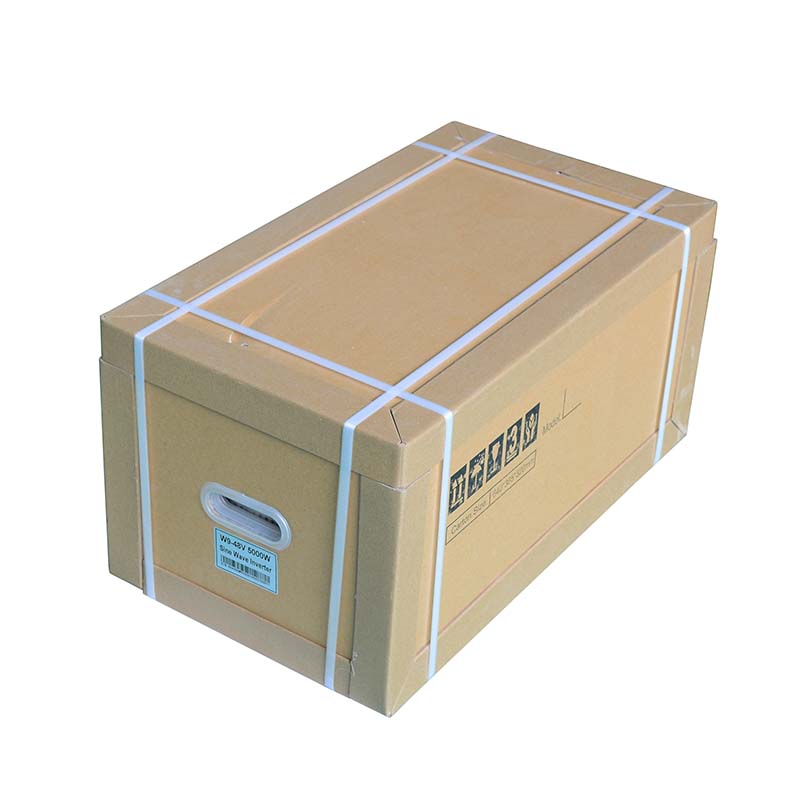

Packing Size(L*W*Hmm)

640*365*320

N.W.(kg)

42

48

48.5

50

G.W.(kg)Carton Packing

45

51

51.5

54

Installation Method

Wall-Mounted

Parameter

Input

DC Input Voltage Range

10.5-15VDCSingle battery voltage

AC Input Voltage Range

85VAC~138VAC/ 170VAC~275VAC

AC Input Frequency Range

45Hz~65Hz

Max AC charging current

30A/25A

30A

30A

30A/20A

AC charging method

Three-stage (constant current, constant voltage, floating charge)

Output

Efficiency(Battery Mode)

85%

Output Voltage(Battery Mode)

110VAC±2%  / 220VAC±2%

Output Frequency(Battery Mode)

50/60Hz±1%

Output Wave(Battery Mode)

Pure Sine Wave

Efficiency(AC Mode)

>99%

Output Voltage(AC Mode)

110VAC±10%  / 220VAC±10%

Output Frequency(AC Mode)

Tracking Automatically

Output waveform distortion
(Battery Mode)

3%Linear load

No load loss(Battery Mode)

2.5% rated power

No load loss(AC Mode)

2% rated power charger does not work in AC mode

No load loss(Energy saving Mode)

10W

Protection

Battery undervoltage alarm

11VSingle battery voltage

Battery undervoltage protection

10.5VSingle battery voltage

Battery overvoltage alarm

15VSingle battery voltage

Battery overvoltage protection

17VSingle battery voltage

Battery overvoltage recovery voltage

14.5VSingle battery voltage

Overload power protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Output short circuit protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Temperature protection

>90°CShut down output

Alarm

A

Normal working condition, buzzer has no alarm sound

B

Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection

C

When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal.

Battery type
(Optional)

U0: Gel U.S.A

Charge Voltage14VFloat Voltage13.7VSingle battery voltage

U1: A.G.M.1

Charge Voltage14.1VFloat Voltage13.4VSingle battery voltage

U2:  A.G.M.2

Charge Voltage14.6VFloat Voltage13.7VSingle battery voltage

U3: Sealed lead Acid

Charge Voltage14.4VFloat Voltage13.6VSingle battery voltage

U4: Gel European

Charge Voltage14.4VFloat Voltage13.8VSingle battery voltage

U5: Open lead Acid

Charge Voltage14.8VFloat Voltage13.5VSingle battery voltage

U6: Calcuim(open)

Charge Voltage15.1VFloat Voltage13.6VSingle battery voltage

U7: Sulphation cycle

15.5V for 4hrs

customize battery

Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.)
can be customized according to user requirements.

Working Mode

Battery First/AC First/Saving Energy Mode

Transfer Time

4ms

Display

LCD

Thermal method

Cooling fan in intelligent control

Communication

RS232Optional

Environment

Operating temperature

-10~40

Storage temperature

-15~60

Noise

55dB

Elevation

2000mMore than derating

Humidity

0%~95% ,No condensation

Warranty

1 year

Note: All specifications are subject to change without prior notice



How does low frequency inverter charger work?



1. Home backup system:

When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to household appliances, such as refrigerator, TV. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Power system:

Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.
how does low frequency power inverter charger work?


Low Frequency Inverter Charger Factory



w9 low frequency power inverter charger factory


Low Frequency Inverter Charger Application



low frequency power inverter charger application


Why Choose US?



1. We are a professional manufacturer of low frequency inverter charger and solar controller with over 14 years experience. Best production capability, best quality control, best service.

2. 100% QC inspection and testing before shipment.

3. CE listed, competitive price.

4. 12 years of high-level OEM experience

5. 7,000 square meters factory size (Sq.meters)

6. 200,000pcs monthly capacity

7. Export percentage: 80%

8. Hi-tech advanced R&D team.
