MPPT Solar Regulator | MPPT Efficiency＞99% | 10-60 Amp, 12V/24V/48V Auto Recognition
Product
■ Feature
1 Advanced MPPT tracking, 99% tracking efficiency. Compared with PWM, the generating efficiency increase near 20%；
2 LCD display PV data and chart simulates power generation process；
3 Multiple working modes to adapt different working occasion；
4 Wide PV input voltage range, convenient for system configuration；
5 Intelligent battery management function, extend battery life；
6 12V/24V/48V automatic recognition, users are more flexible and convenient to use;
7 RS485 communication port optional.
■ Models

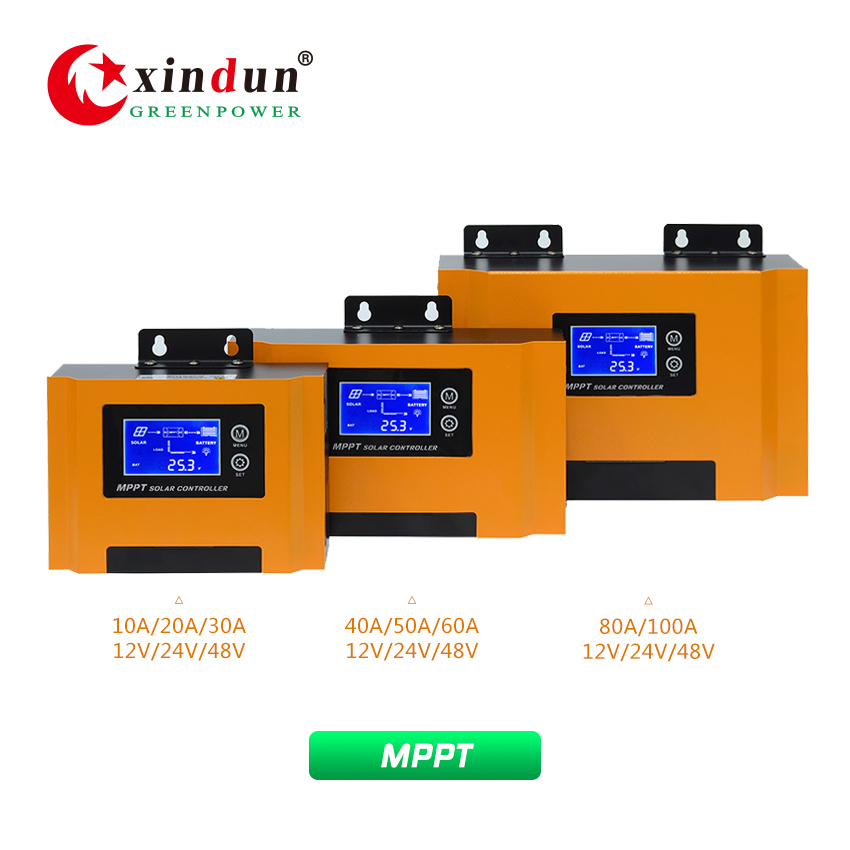

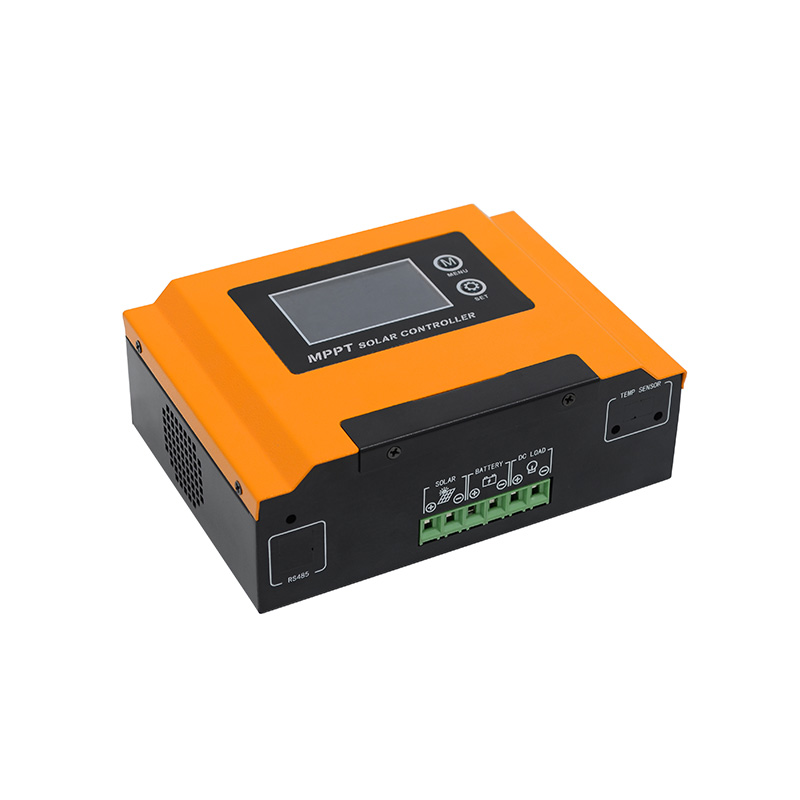

mppt solar regulator 10a/20a/30a, 12v/24v/48v:

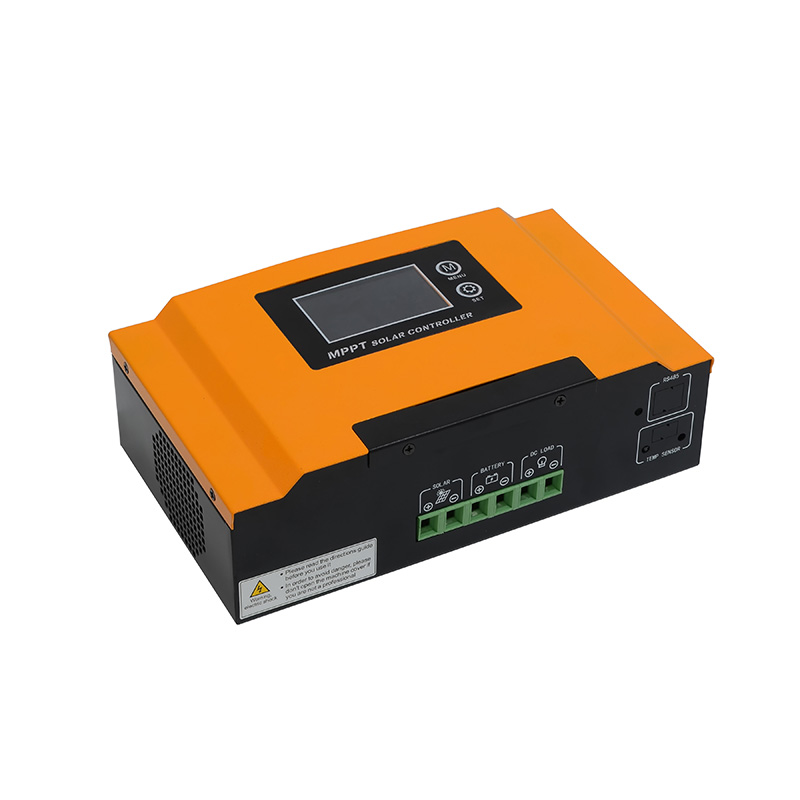

mppt solar regulator 40a/50a/60a, 12v/24v/48v:

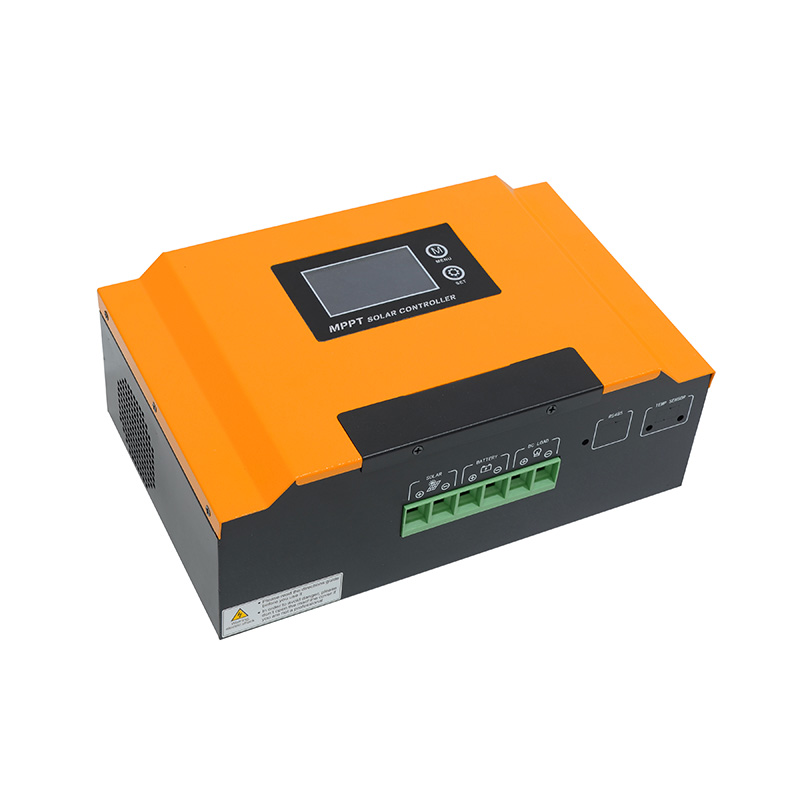

mppt solar regulator 80a/100a, 12v/24v/48v:
■ Parameters
| Model: Wonder1 | 150/10, 150/20, 150/30 | 150/40, 150/50, 150/60 | 150/80, 150/100 |
| Rated Current | 10A/20A/30A | 40A/50A/60A | 80A/100A |
| Rated System Voltage | 12V/24V/48 auto recognition | ||
|
Max PV Input Voltage (At the lowest ambient temperature) |
150V | ||
| MPPT Tracking Voltage Range | 12V system：15V-120V；24V system：30V-120V；48V system：60V-120V | ||
| Recommended operating voltage range | 12V system：15V-20V；24V system：30V-40V；48V system：60V-80V | ||
| PV array Max power |
12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A); 24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A); 48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A) |
||
| Battery Type | Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification) | ||
| Floating Voltage | 13.8V/Single battery | ||
| Charge Voltage | 14.2V/Single battery | ||
| Charging Protection Voltage | 15V/Single battery | ||
| Promote recovery voltage | 13.8V/Single battery | ||
| Recovery voltage after low voltage disconnect | 12.5V/Single battery | ||
| Discharge Limited voltage | 10.5V/Single battery | ||
| Temperature Compensation Coefficient | -3mV / ℃ / 2V (25℃ is base line) (Optional) | ||
| Charging Mode | MPPT maximum power point tracking | ||
| Charging Method | Three stages: constant current(MPPT); constant voltage; floating charge | ||
| Protection | Over-voltage/under-voltage/over-temperature/PV anti-reverse protection | ||
| Conversion Efficiency | >98% | ||
| MPPT Tracking Efficiency | >99% | ||
| Machine Size(L*W*Hmm) | 185*135*65 | 240*143*74 | 280*180*100 |
| Package Size(L*W*Hmm) |
235*185*116（1pc） 383*249*246 (4pcs) |
290*203*126（1pc） 419*304*266 (4pcs) |
330*240*153（1pc） 487*345*166 (2pcs) |
| N.W(kg) | 1.15（1pc） | 1.8（1pc） | 3.7（1pc） |
| G.W.(kg) | 1.35（1pc） | 2（1pc） | 4.0（1pc） |
| Display | LCD | ||
| Thermal Method | Cooling fan in intelligent control | ||
| Type Of Mechanical Protection | IP20 | ||
| Operating Temperature | -15℃~+50℃ | ||
| Storage Temperature | -20℃~+60℃ | ||
| Elevation | 5000m(Dreating above 2000m) | ||
| Humidity | 5%~95%(No condensation) | ||
| Communication | RS232/RS485(Optional) | ||
| Note: All specifications are subject to change without prior notice | |||
