Export solar pure sine wave inverter manufacturers
Chinese manufacturer XINDUN export inverter pure sine wave 1000 watt/2000watt/3000 watt/6000 watt. Solar Inverters can be used in small house systems and commercial systems.

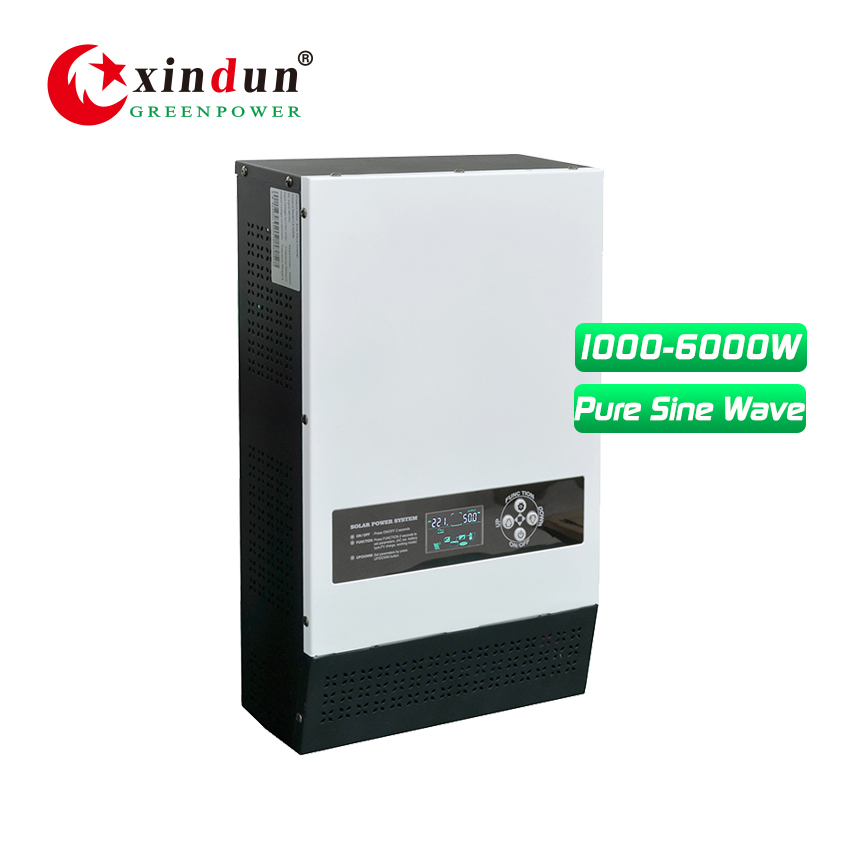

LS Solar Pure Sine Wave Inverter 1000 Watt-6000 Watt 12 Volt-48 Volt

1000W/2000W/3000W/4000W/5000W/6000Watt, 12/24/48Volt to 110/220Volt | Solar inverter for house system | China pure sine wave inverter manufacturers

  • Types : DC to AC Inverters
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 50 pcs
  • OEM : Accepted

Solar Pure Sine Wave Inverter Feature



◆ Pure sine wave output;
◇ Low frequency toroidal transformer lower loss;
◆ Intelligent LCD integration display;
◆ AC charge current 0~30A adjustable, three working modes selectable;
◇ Peak power more than 3 times, full-automatic and perfect protection function;
◆ Added fault code query function, easy to monitor the operation in real time;
◇ Supports diesel or gasoline generator, adapt any tough electricity situation;
◆ Combine industrial and home usage, wall-mounted design, convenient installation.



Solar Pure Sine Wave Inverter Specification


Specification
Model LS
10212/24/48
(102)
15212/24/48
(152)
20212/24/48
(202)
30224/48
(302)
40224/48
(402)
50248
(502)
60248
(602)
Rated Power 1000Watt 1500Watt 2000Watt 3000Watt 4000Watt 5000Watt 6000Watt
Peak Power(20ms) 3000VA 4500VA 6000VA 9000VA 12000VA 15000VA 18000VA
Start Motor 1HP 1.5HP 2HP 3HP 3HP 4HP 4HP
Battery Voltage DC12/24/48Volt DC24/48Volt DC24/48Volt DC48Volt
Size(L*W*Hmm) 500*300*140 530*335*150
Packing Size(L*W*Hmm) 565*395*225 605*430*235
N.W.(kg) 12 13.5 18 20 22 24 26
G.W.(kg)(Carton Packing) 13.5 15 19.5 21.5 24 26 28
Installation Method Wall-Mounted
Parameter
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 85VAC~138VAC(110VAC) / 95VAC~148VAC(120VAC) / 170VAC~275VAC(220VAC) / 180VAC~285VAC(230VAC) / 190VAC~295VAC(240VAC)
AC Input Frequency Range 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
Max AC charging current 0~30A(Depends on model)
AC charging method Three-stage (constant current, constant voltage, floating charge)
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery Mode) 50/60Hz±1%
Output Wave(Battery Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
Output Frequency(AC Mode) Tracking Automatically
Output waveform distortion
(Battery Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤0.8% rated power
No load loss(AC Mode)  ≤2% rated power( charger does not work in AC mode)
No load loss
(Energy saving Mode)
≤10W
Battery Type VRLA Battery Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize battery
Charging and discharging parameters of different types of batteries can be customized according to user requirements
 (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection Battery undervoltage alarm Factory default: 11V(Single battery voltage)
Battery undervoltage protection Factory default: 10.5V(Single battery voltage)
Battery overvoltage alarm Factory default: 15V(Single battery voltage)
Battery overvoltage protection Factory default: 17V(Single battery voltage)
Battery overvoltage recovery voltage Factory default: 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
C When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Communication RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature ≤55dB
Storage temperature -10℃~40℃
Noise -15℃~60℃
Elevation 2000m(More than derating)
Humidity 0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice



How does solar pure sine wave inverter work?


How does solar pure sine wave inverter work?

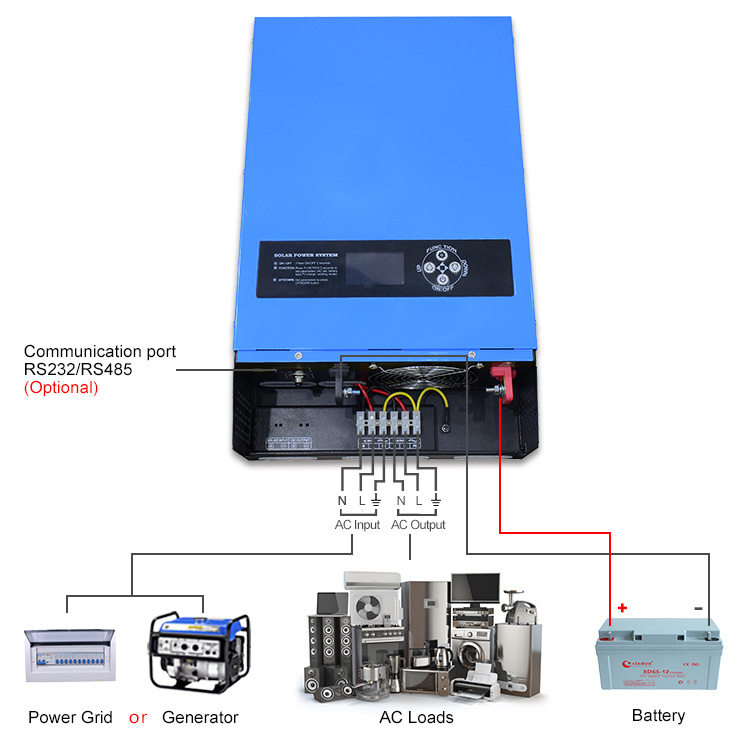

1. Home backup system:

When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to household appliances, such as refrigerator, TV. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Power system:
Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.


Solar Pure Sine Wave Inverter Details

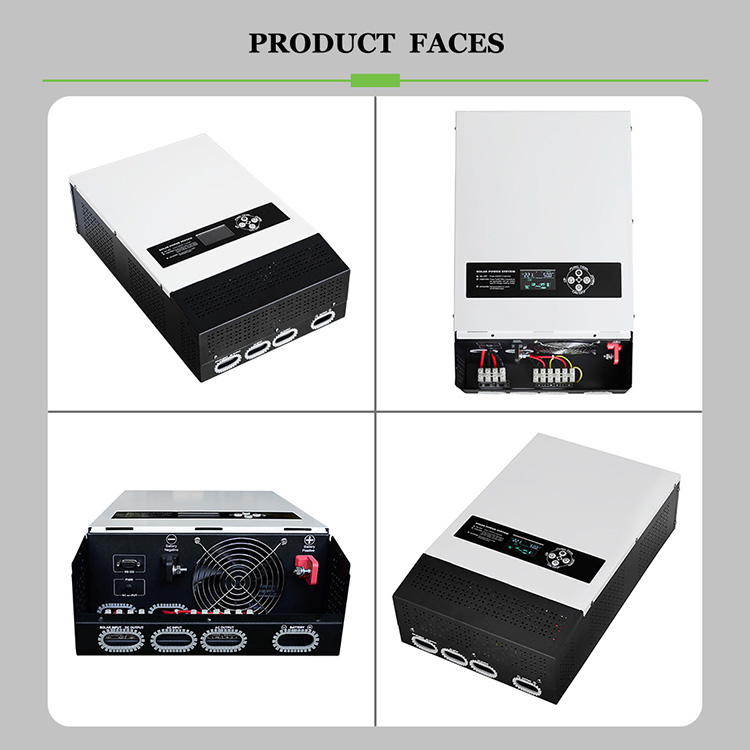

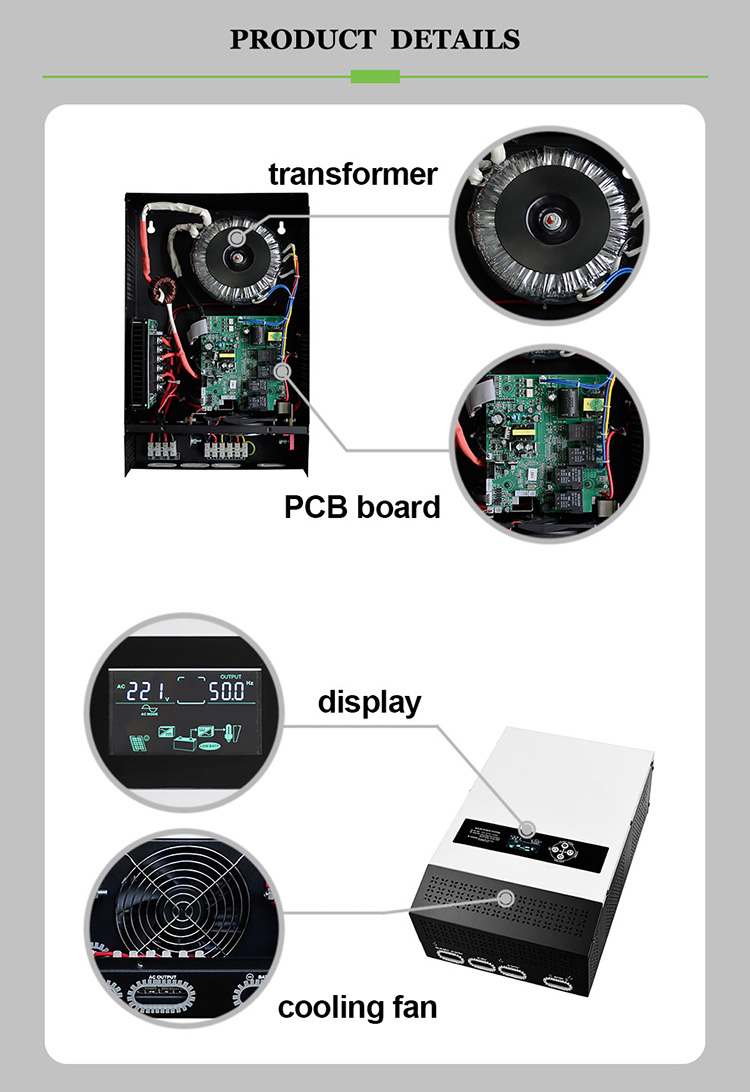

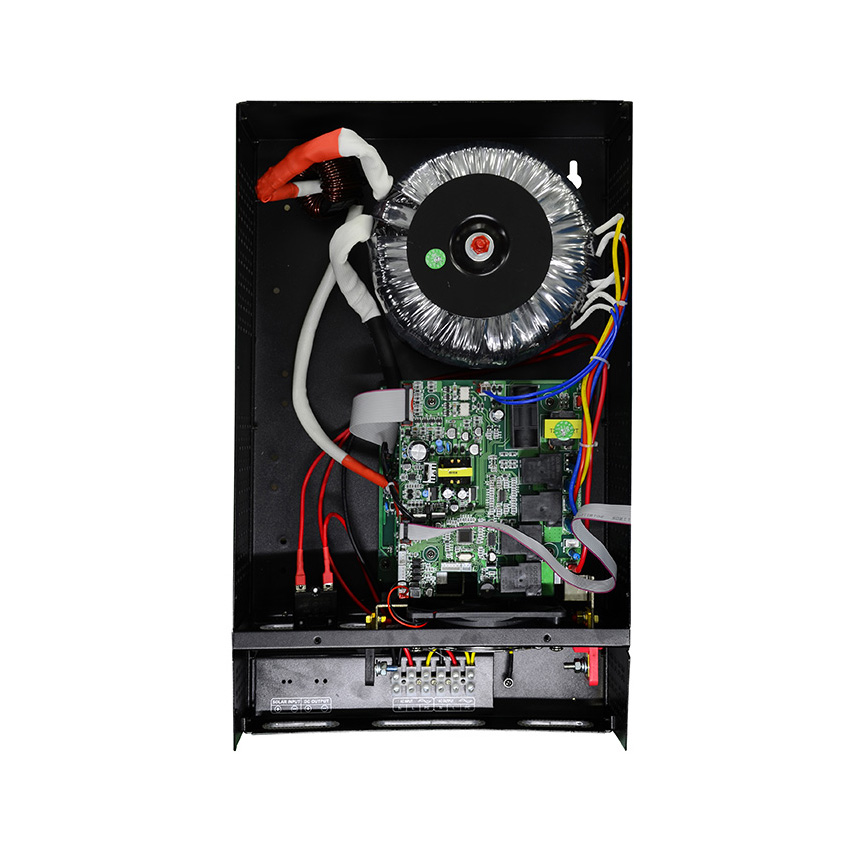

solar pure sine wave inverter appearance details-01solar pure sine wave inverter circuit board details-02



Solar Pure Sine Wave Inverter Application

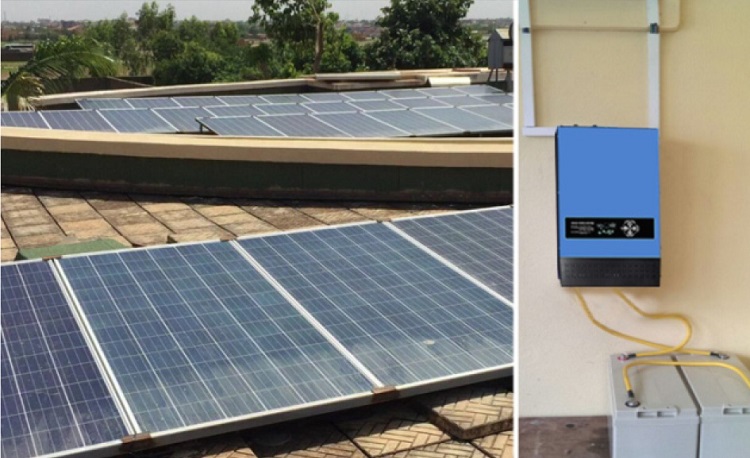

solar pure sine wave inverter application



Solar Pure Sine Wave Inverter Factory



ls solar pure sine wave inverter factory



Why Choose US?



1. We are a professional manufacturer of solar pure sine wave inverter and charge controller with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 12 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
5. 200,000pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.
