Single sinusoidal pwm pulse width modulation motor control
Single pwm pulse width modulation for power converters, controls the solar array to charge battery and the battery to supply power to solar inverter motor load.

PWM Pulse Width Modulation 10A-200A 12V-384V

Pulse width modulation pwm control solar array to charge the battery and the battery to supply power to the solar inverter load.

  • Type : PWM
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
  • OEM : Accepted

■ Feature



1 PWM charging mode, dc mode save cost;
2 LCD display PV charge, battery and dc loading condition;
3 Multiple working modes to adapt different working occasion;
4 Intelligent battery management function, extend battery life;
5 12V/24V automatic recognition, users are more flexible and convenient to use;
6 RS485 communication port optional.



■ Models

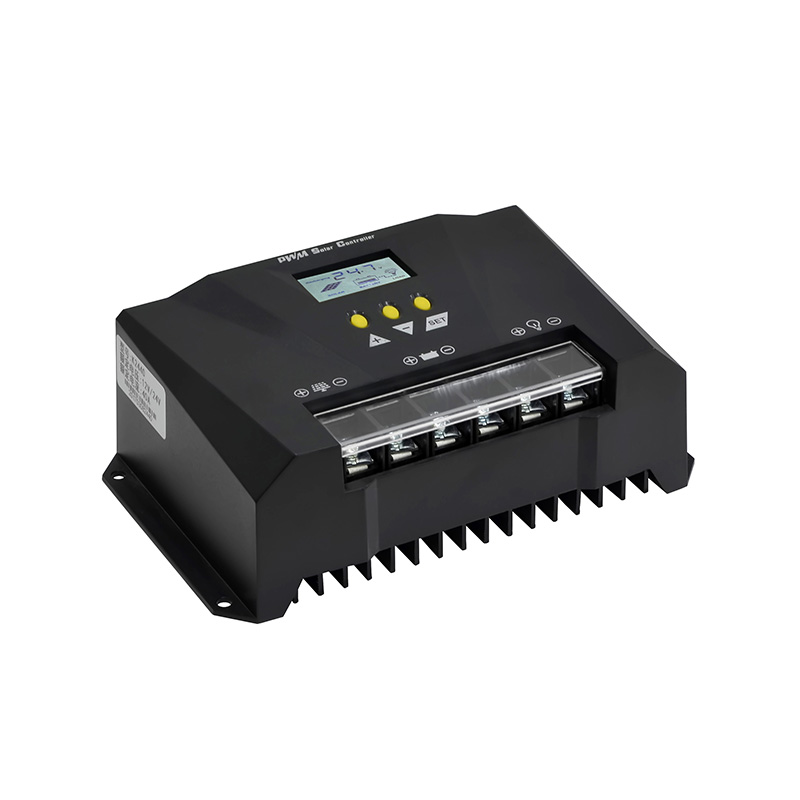

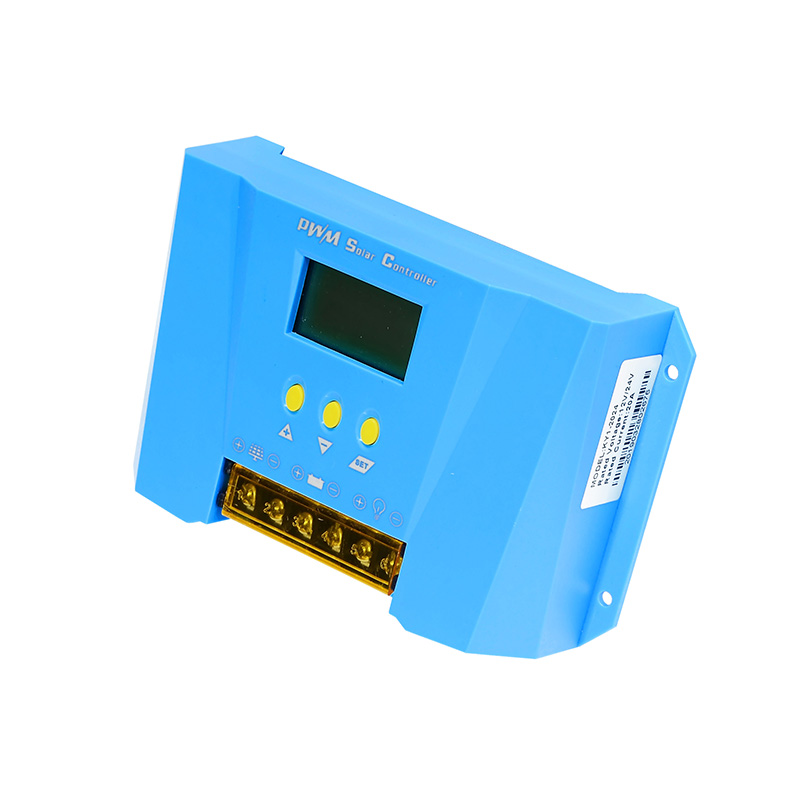

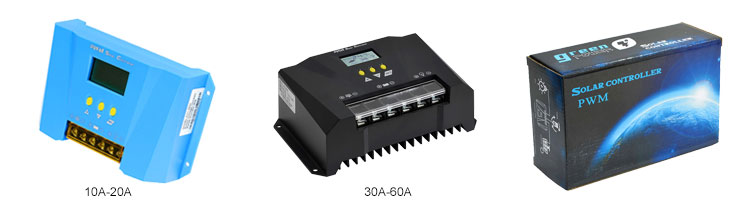

pwm pulse width modulation control 10a-60a 12v/24v/48v:

pwm pulse width modulation control 10a-60a 12v/24v/48v

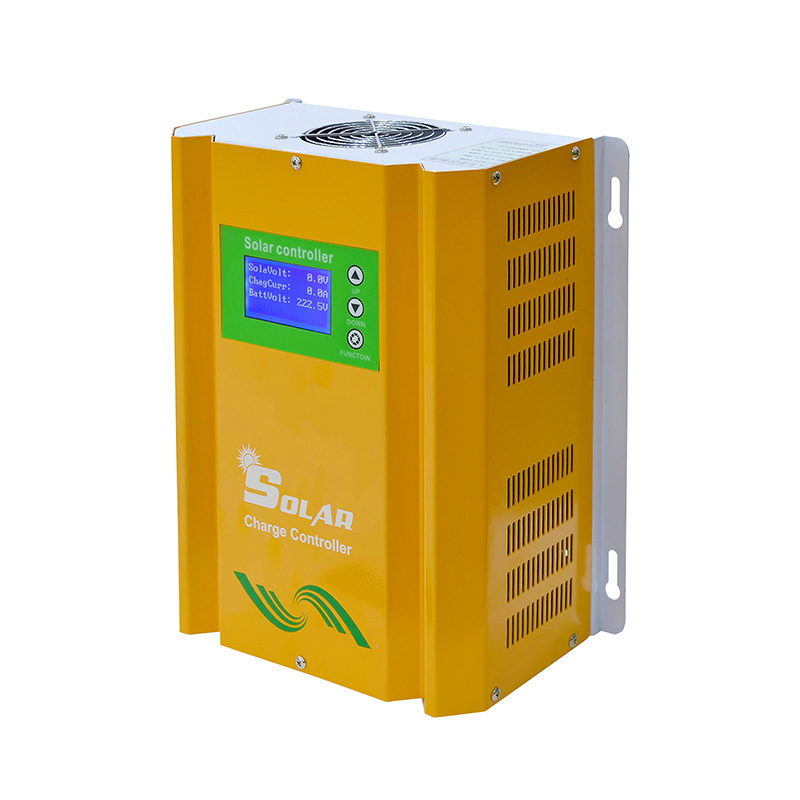

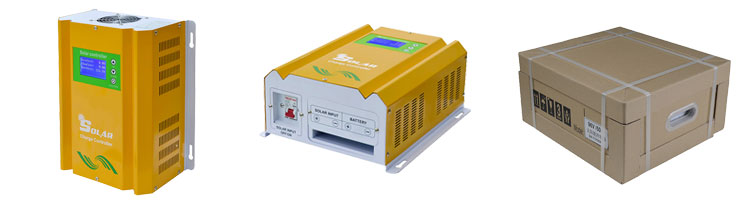

pwm pulse width modulation control 50a/100a 96v-384v:


pwm pulse width modulation control 50a/100a 96v-384v

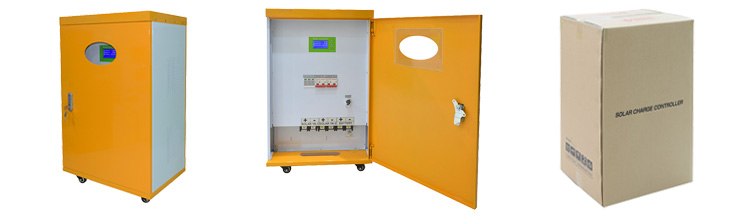

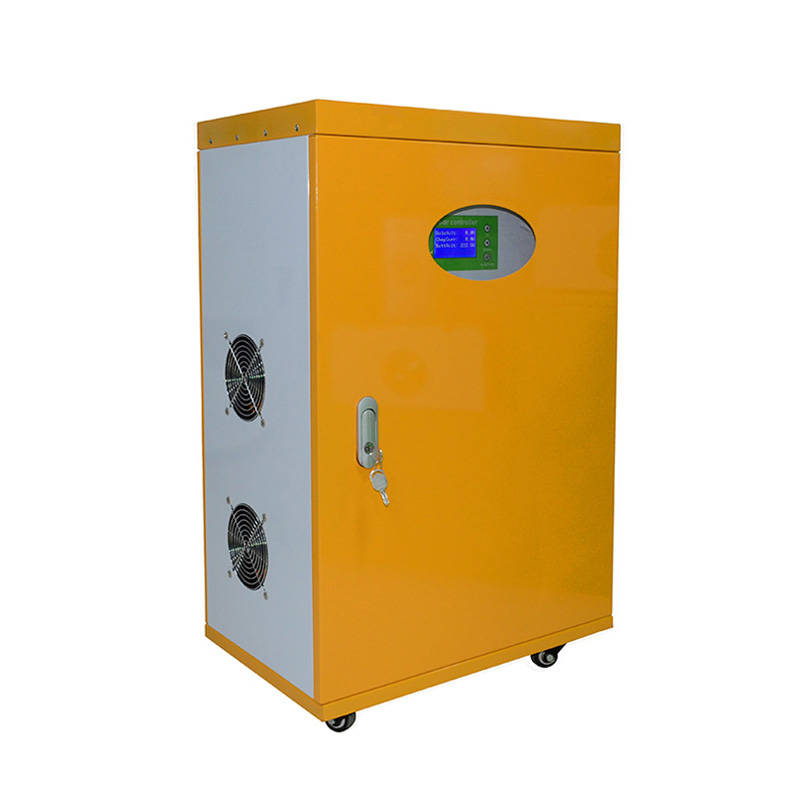

pwm pulse width modulation control 150a/200a 96v-384v:


pwm pulse width modulation control 150a/200a 96v-384v



■ Parameters



Rated Current 10A/20A/30A 40A/50A/60A
 Rated System voltage 12/24V(auto recognition),48V
PV input voltage range 12V System: 15V-44V;24V System: 30V-44V;48V System: 60V-88V
Max PV Input Voltage
(At the lowest temperature)
12V/24V System:50V; 48V System:100V
PV Array Maximum Power 12V System:140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A;
24V System: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A);
48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)
Battery type Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification)
Floating voltage 13.8V/ Single battery
Charge voltage 14.2V/Single battery
Charging protection voltage 17V/Single battery
Battery overdischarge voltage 10.5V/Single battery
Charging mode PWM pulse width control
Charging method Three stages :constant current; constant voltage; floating charge
No low loss <5mA
Charging circuit voltage drop ≤0.20V
Disharge circuit voltage drop ≤0.15V
Display LCD
Thermal method Natural heat dissipation
Type of mechanical protection IP20
Operating temperature -10℃~40℃
Storage  temperature -20℃~60℃
Elevation <5000m,(Less solar panel when exceed 2000m)
Humidity 5~95%(No condense)
Protect the circuit over-charge, over-discharge, short circuit , over-load and photovoltaic reverse connection protection
Machine size (L*W*Hmm) 152*97*42 182*112*64
Package size (L*W*Hmm) 160*106*48(1PC)/ 420*340*340(48PCS) 191*123*70(1PC) / 400*370*390(30PCS)
N.W (Kg) 0.34(1PC) 0.64(1PC)
G.W (Kg) 0.39(1PC) 0.72(1PC)
Note: All specifications are subject to change without prior notice



Rated charging current 50A 100A 50A 100A 150A 200A
Rated system voltage 96V/192V 96V 384V 192V/216V/240V/384V 96V/192V/216V/240V/384V
PV input voltage range 96V System:120V-176V;192V System:240V-352V;216V System:270V-396V;240V System:300V-440V;384V System:480V-704V
Max PV Input Voltage
(At the lowest temperature)
96V System:200V;192V System:400V;216V System:450V;240V System:500V;384V System:750V
Number of PV array input routes 1 1 2
PV Array Maximum Power 5.6KW/11.2KW 11.2KW 22.4KW 22.4KW/25.2KW/
28KW/44.8KW
8.4KW*2/16.8KW*2/
18.9KW*2/21KW*2/
33.6KW*2
11.2KW*2/22.4KW*2/
25.2KW*2/28KW*2/
44.8 KW *2
Battery type Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification)
Floating voltage 13.8V/Single battery
Charge voltage 14.2V/Single battery
Charging protection voltage 15V/Single battery
Temperature compensation coefficient -3mV / ℃ / 2V (25℃  is base line )(Optional)
Charging mode PWM pulse width control
Charging method Three stages :constant current; constant voltage; floating charge
Efficiency >95%
Display LCD
Cooling method Cooling fan in intelligent control
Type of mechanical protection IP20
Operating temperature -20℃~+60℃
Storage  temperature -20℃~+70℃
Elevation <5000m,(Less solar panel when exceed 2000m)
Humidity 5~95%(No condense)
Protect the circuit RS232/RS485(Optional)
Machine size (L*W*Hmm) 340*300*140 460*360*160 500*330*805
Package size (L*W*Hmm) 400*345*195 530*405*225 565*395*870
N.W (Kg) 5 6 9 10 32 33
G.W (Kg) 6 7 11 12 37 38
Note: All specifications are subject to change without prior notice
