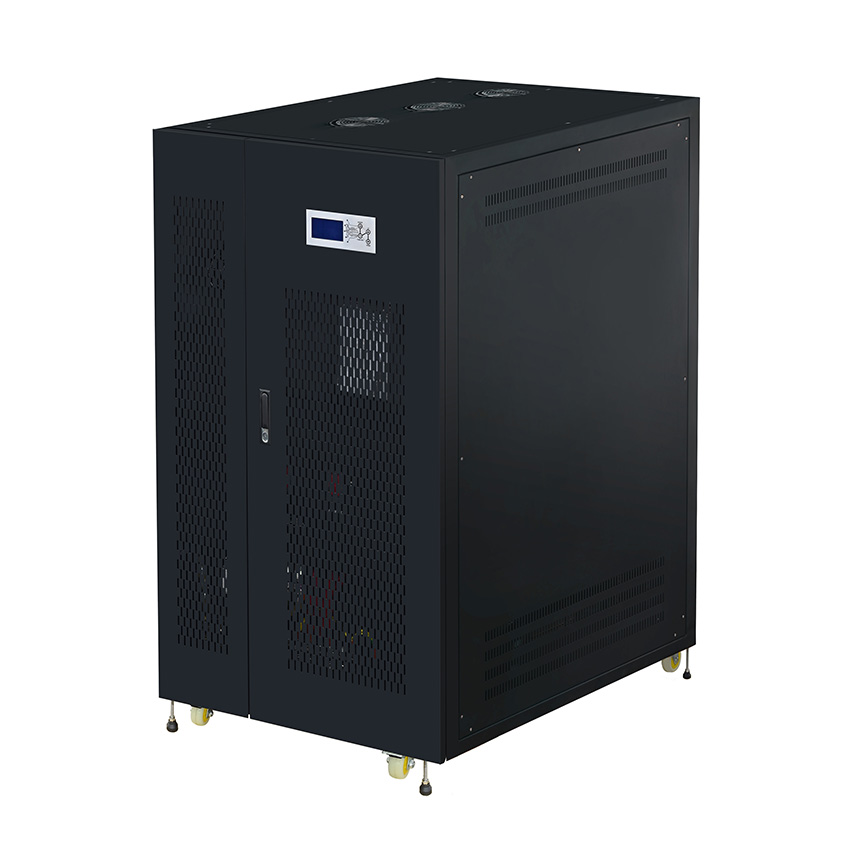

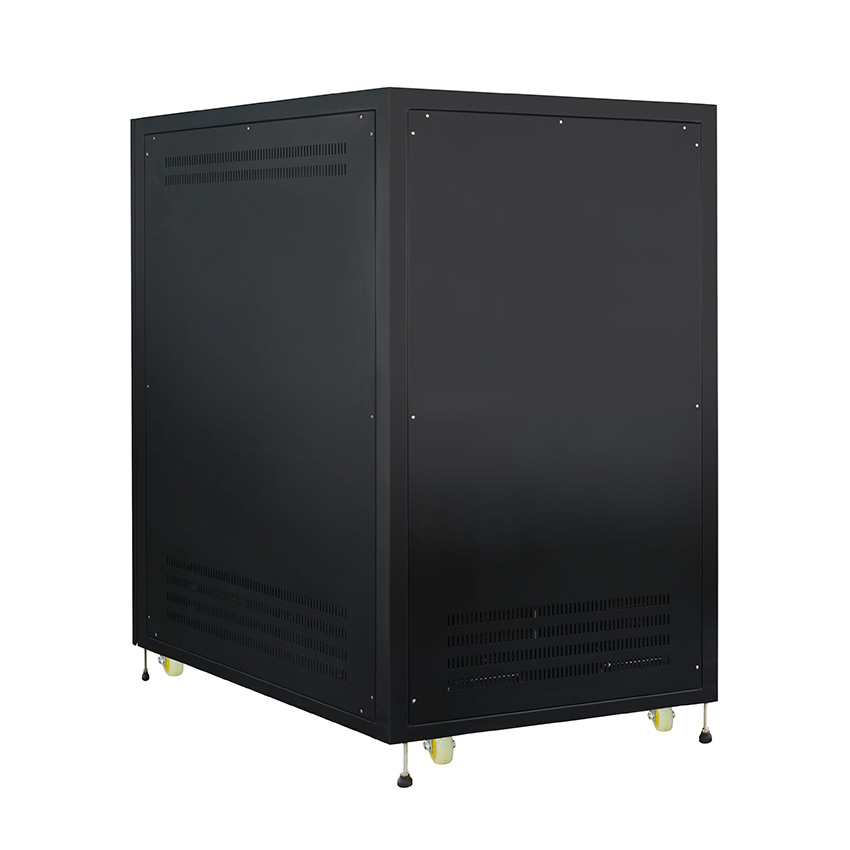

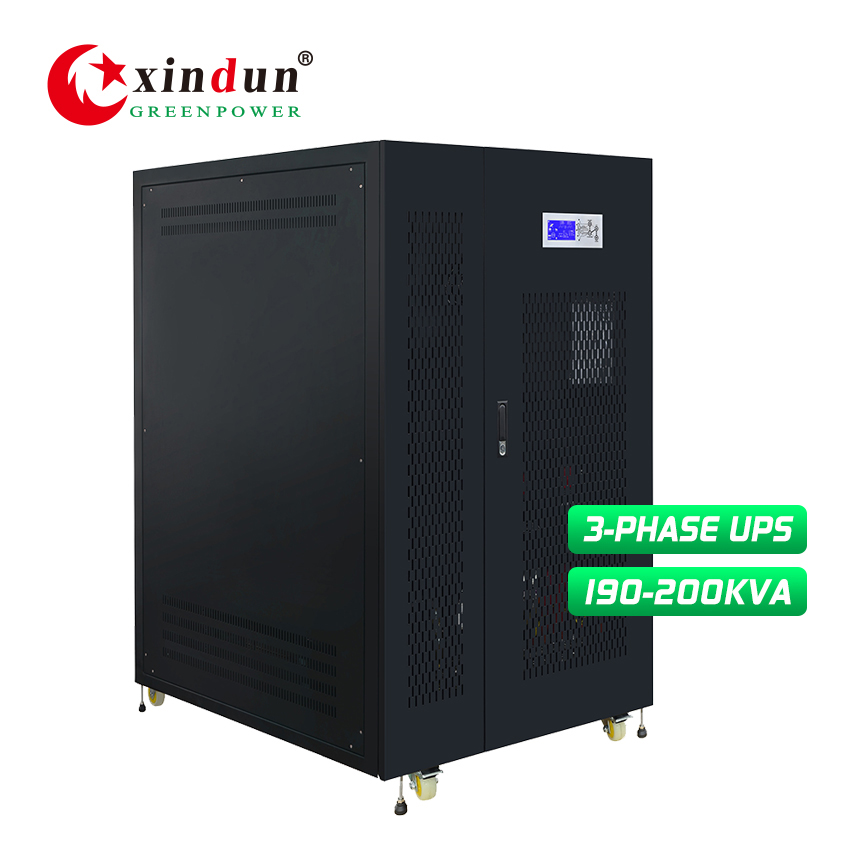

190KVA/200KVA UPS DC384V to AC380V. High Voltage Power Industrial Uninterruptible Power Supply for UPS System at Best Price.
Product
■ Industrial UPS System Feature
1. 3 Phase industrial ups system. 100% imbalance loading design, 3 times peak power.
2. High Performance DSP based full digital controlled, Pure sine wave output.
3. Having frequency converter operating mode.
4. Wide input voltage range, work well with different power quality.
5. Compatible with most generators set.
6. Having ECO mode. Enable best balance between energy saving and power protection.
7. Attractive performance-cost ratio.
■ Industrial UPS System Specification
| Specification | |||
| Model: HDSX | 190KVA | 200KVA | |
| Rated Power | 150KW | 160KW | |
| Peak Power（20ms) | 450KVA | 480KVA | |
| Start Motor | 80HP | 80HP | |
| Battery Voltage | 384VDC | ||
| Size(L*W*Hmm) | 1123*900*1605 | ||
| Packing Size(L*W*Hmm) | 1185*960*1750 | ||
| N.W.(kg) | 705 | 755 | |
| G.W.(kg)（Wooden Packing） | 755 | 805 | |
| Installation Method | Tower | ||
| Parameter | |||
| Input | DC Input Voltage Range | 10.5VDC-15VDC（Single battery voltage） | |
| AC Input Voltage Range | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||
| AC Input Frequency Range | 45Hz-55Hz（50Hz）/ 55Hz-65Hz（60Hz） | ||
| Max AC charging current | 0-45A(Depending on the model） | ||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||
| Phase | 3/N/PE | ||
| Output | Efficiency(Battery Mode) | ≥85% | |
| Output Voltage(Battery Mode) | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||
| Output Frequency(Battery Mode) | 50/60Hz ±1% | ||
| Output Wave(Battery Mode) | Pure Sine Wave | ||
| Output waveform distortion | Linear load≤3% | ||
| Efficiency(AC Mode) | >99% | ||
| Output Voltage(AC Mode) | Conforming to AC input | ||
| Output Frequency(AC Mode) | Conforming to AC input | ||
| No load loss(Battery Mode) | ≤1% rated power | ||
| No load loss(AC Mode) | ≤2%rated power（ charger does not work in AC mode） | ||
| No load loss(Energy saving Mode) | ≤10W | ||
| Phase | 3/N/PE | ||
| Battery Type | VRLA Battery | Charge Voltage :13.8V; Float Voltage:13.7V（Single battery voltage） | |
| Customize battery |
Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
|
||
| Protection | Battery undervoltage alarm | 11V（Single battery voltage） | |
| Battery undervoltage protection | 10.5V（Single battery voltage） | ||
| Battery overvoltage alarm | 15V（Single battery voltage） | ||
| Battery overvoltage protection | 17V（Single battery voltage） | ||
| Battery overvoltage recovery voltage | 14.5V（Single battery voltage） | ||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||
| Temperature protection | >90°C（Shut down output） | ||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||
| Transfer Time | ≤4ms | ||

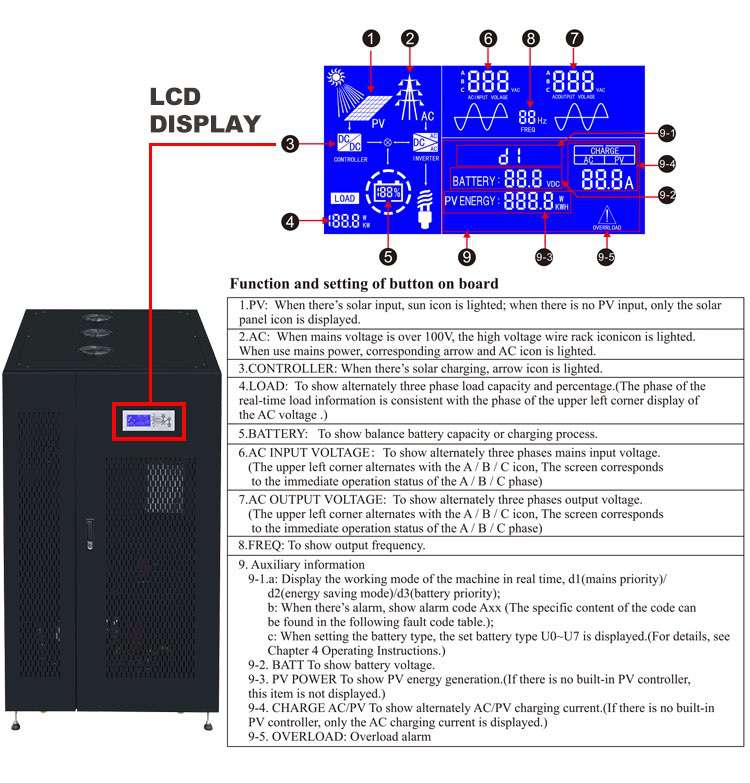

| Display | LCD | ||
| Thermal method | Forced air cooling | ||
| Communication(Optional) | RS485/APP（WIFI monitoring or GPRS monitoring） | ||
| Environment | Operating temperature | -10℃~40℃ | |
| Storage temperature | -15℃~60℃ | ||
| Noise | 2000m（More than derating） | ||
| Elevation | ≤65dB | ||
| Humidity | 0%~95% ,No condensation | ||
| Note: All specifications are subject to charge without prior notice | |||

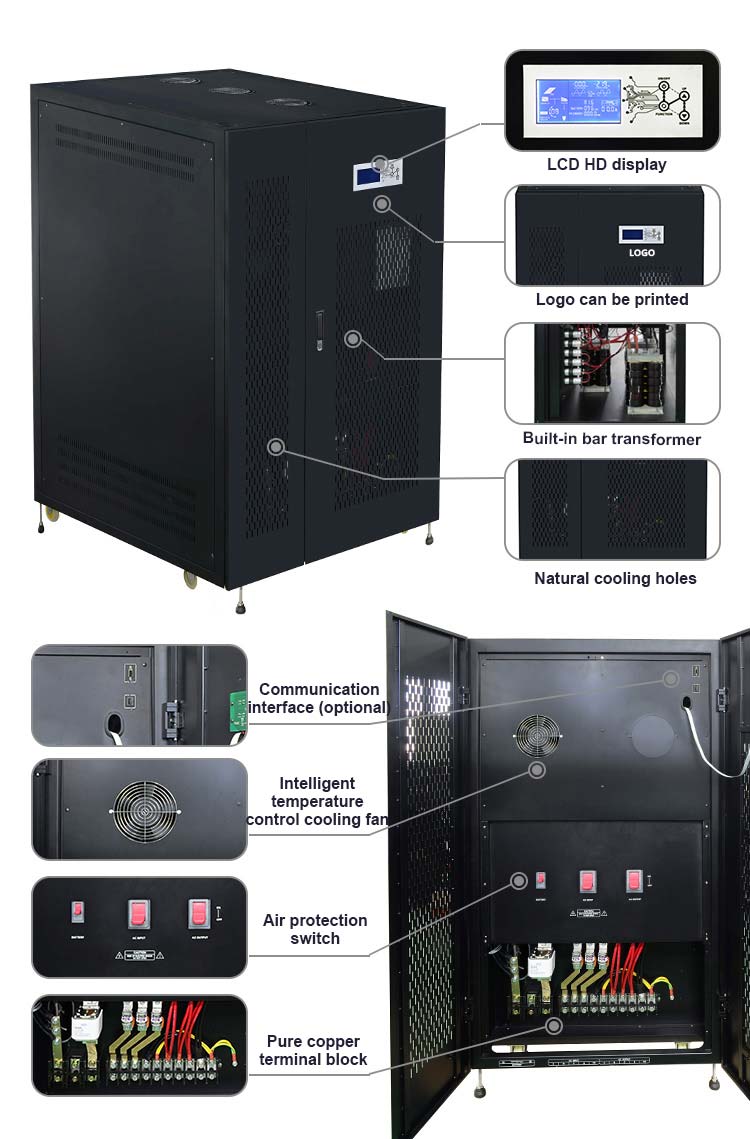

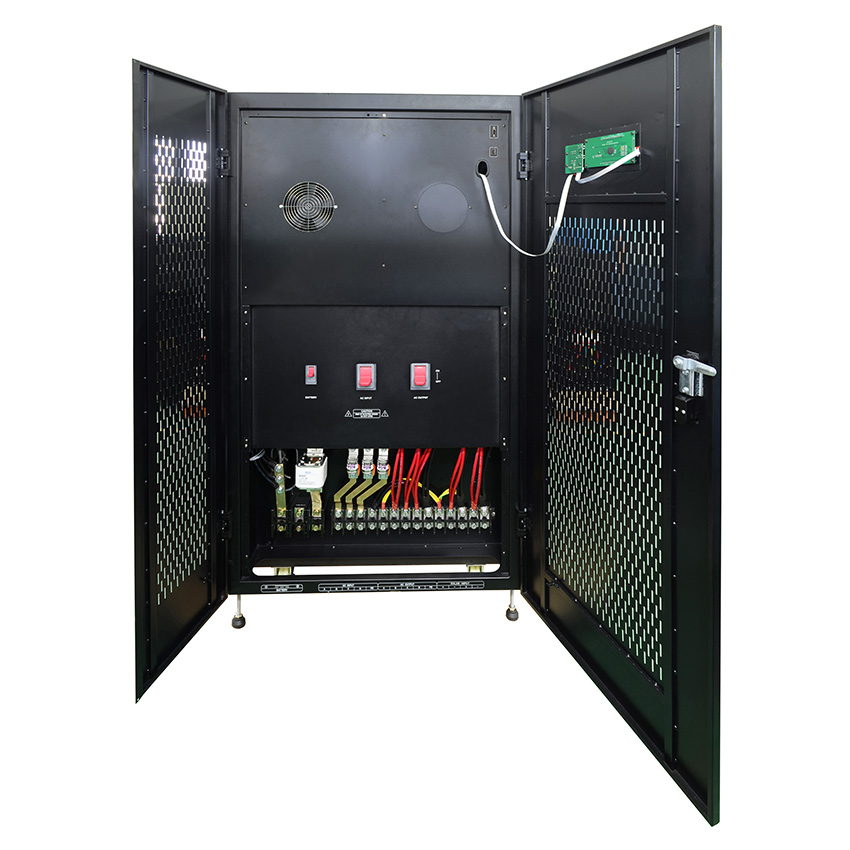

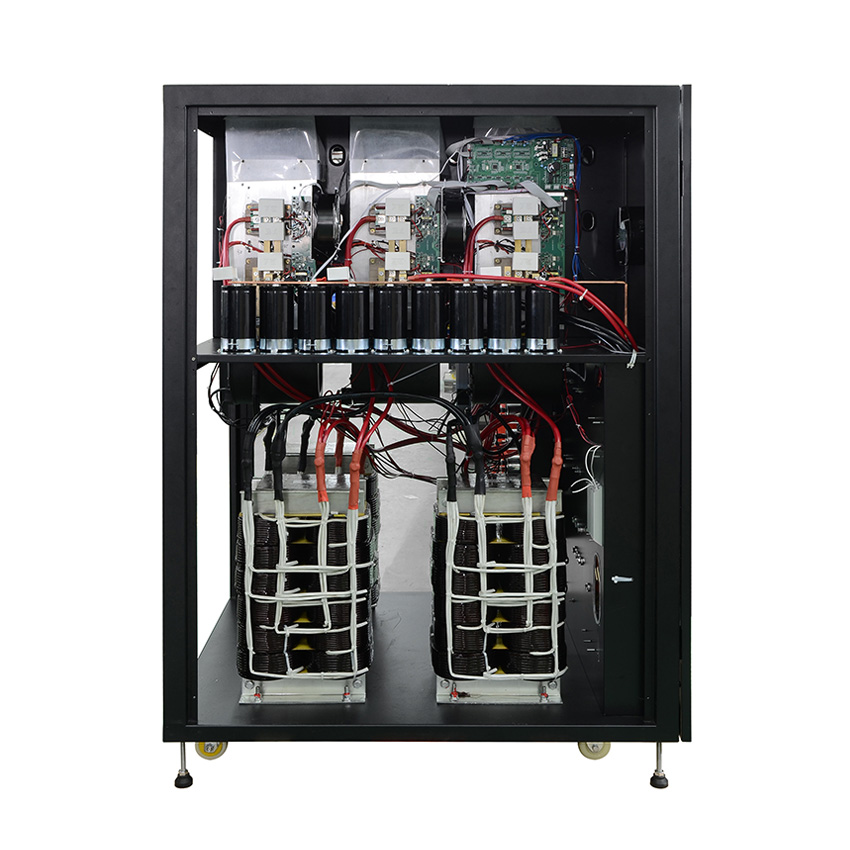

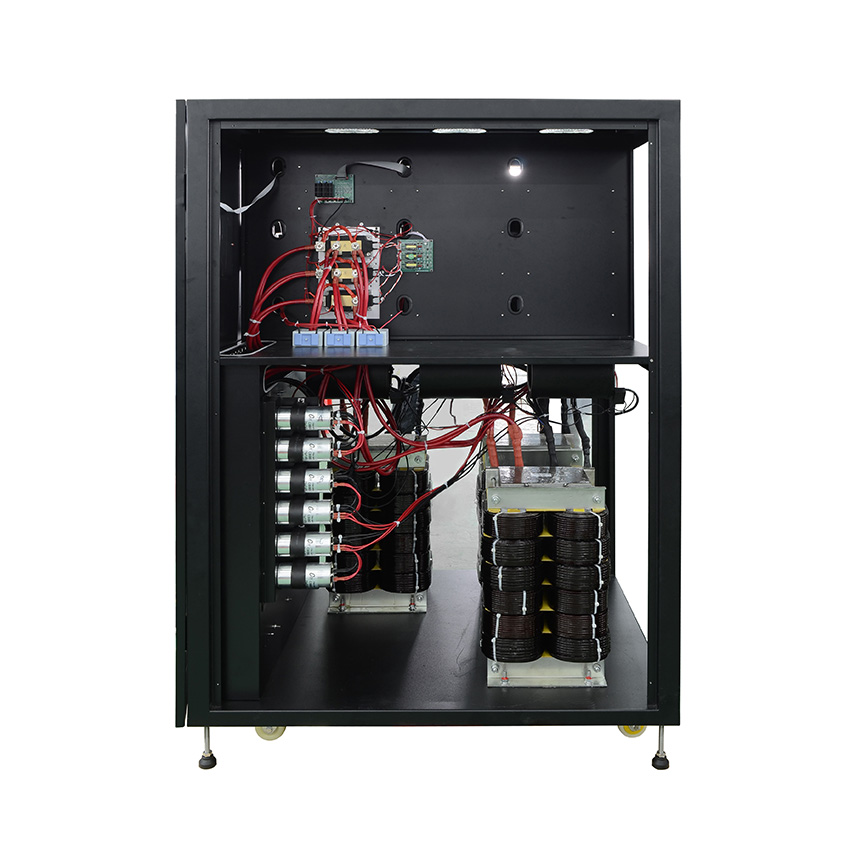

■ Industrial UPS System Details
■ How Does Industrial UPS System Work?

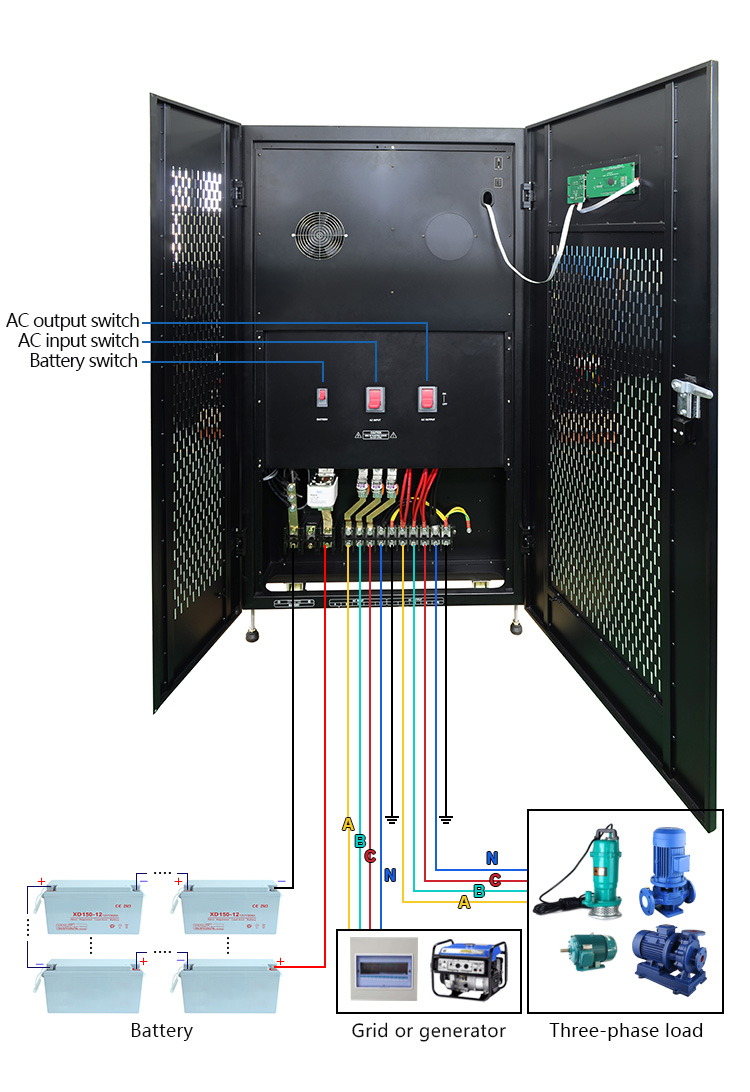

An industrial ups system is mainly composed of UPS host and battery pack. When the utility power is in a normal state, the uninterruptible power supply will convert the AC power of the utility power into DC power, and then charge the battery. Once the utility power is abnormal, the uninterruptible power supply will convert the DC power stored in the battery into AC power. At this moment, the input of the uninterruptible power supply will be supplied by the battery pack, and continue to supply power to industrial equipment.

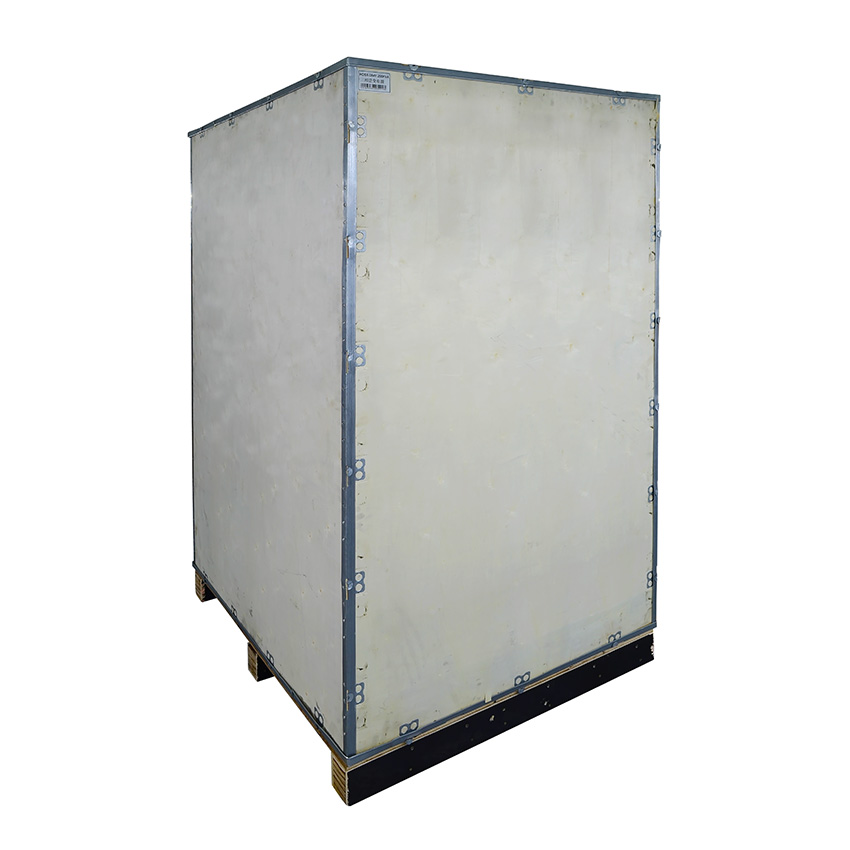

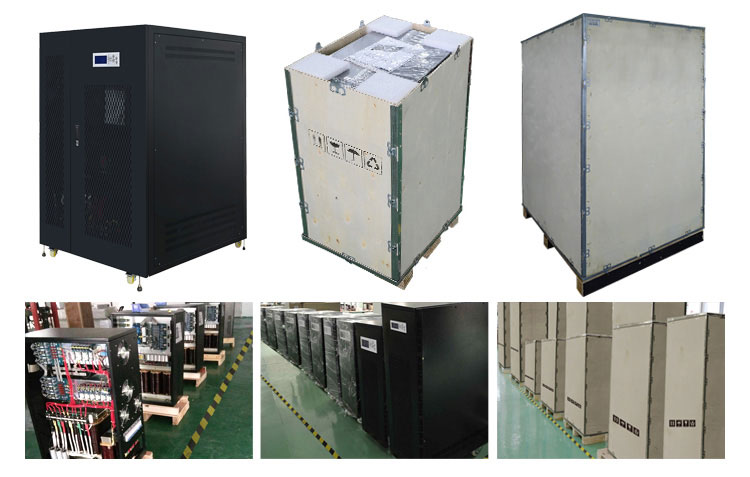

■ Industrial UPS System Package and Shipping
■ Why Choose Us？
1. We are a professional manufacturer of industrial ups system. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 16 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
5. 200,000 pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.
■ About Xindun Power
■ Industrial UPS System Factory in China
■ Qualifications and Certificates
■ Global Power Exhibitions
■ FAQ
Typically, commercial ups system are used in financial centers and information technology (IT) applications, such as computer rooms and data center, while industrial ups system are used in factories, power stations, oil rigs, etc. Both are designed for critical process control, and both is for the stable and orderly operation of electrical equipment.
As a factory focusing on the power supply field for 16 years, Xindun Power has more than 7,000 square meters of production plants, and the biggest highlight of Xindun is that in addition to producing low-power uninterruptible power supplies, we can also produce over 100kw industrial uninterruptible power supplies. There are very few factories on the market that can produce high-power industrial uninterruptible power supply.
The industrial ups price depends on the power of the machine used. But one thing can be guaranteed, Xindun, as the source manufacturer of industrial ups, we absolutely have quality assurance and price advantages.
Through the contact information around the page, get in touch with Xindun's professional sales, we will follow up the whole process of sales and purchase one-on-one, and have after-sales guarantee.
