12V DC To 110V/220V/230V/240V AC 1000W~6000W solar power Inverter

  • Xindun
  • August 08, 2020

W10

Feature:

Pure sine wave output.

Industrial high efficiency I-shape transformer.

AC charge current 0-30A adjustable; AVR output.

Built-in MPPT or PWM charge controller optional.

Integrated LCD display; One-button start with an external display screen( optional).

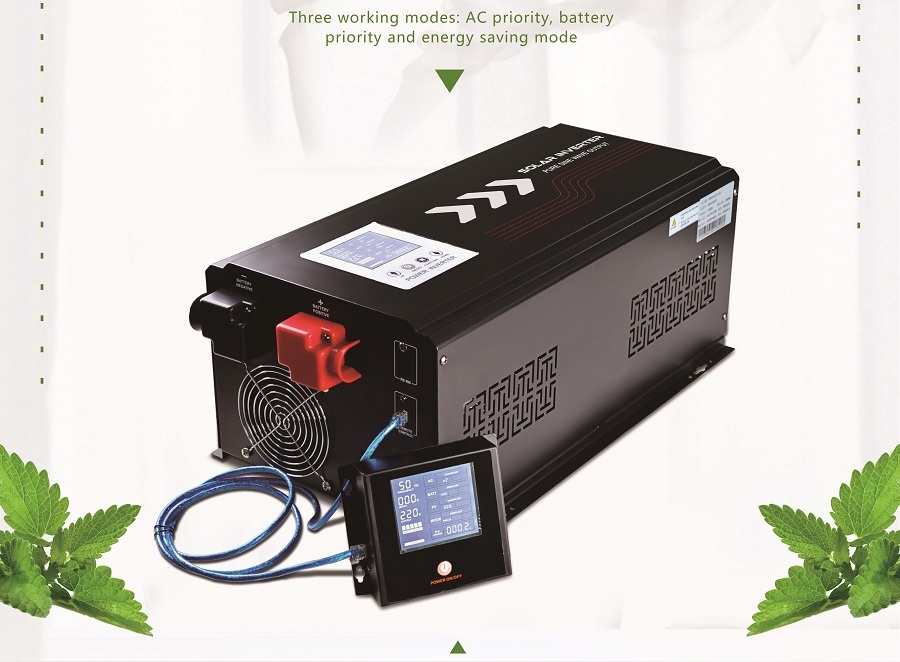

Three types working modes: AC first, DC first, energy-saving mode.

Supports diesel or gasoline generator, adapt any tough electricity situation.

Various communication ports and remote controls (RS232/RS485/APP/SNMP/GSM optional).

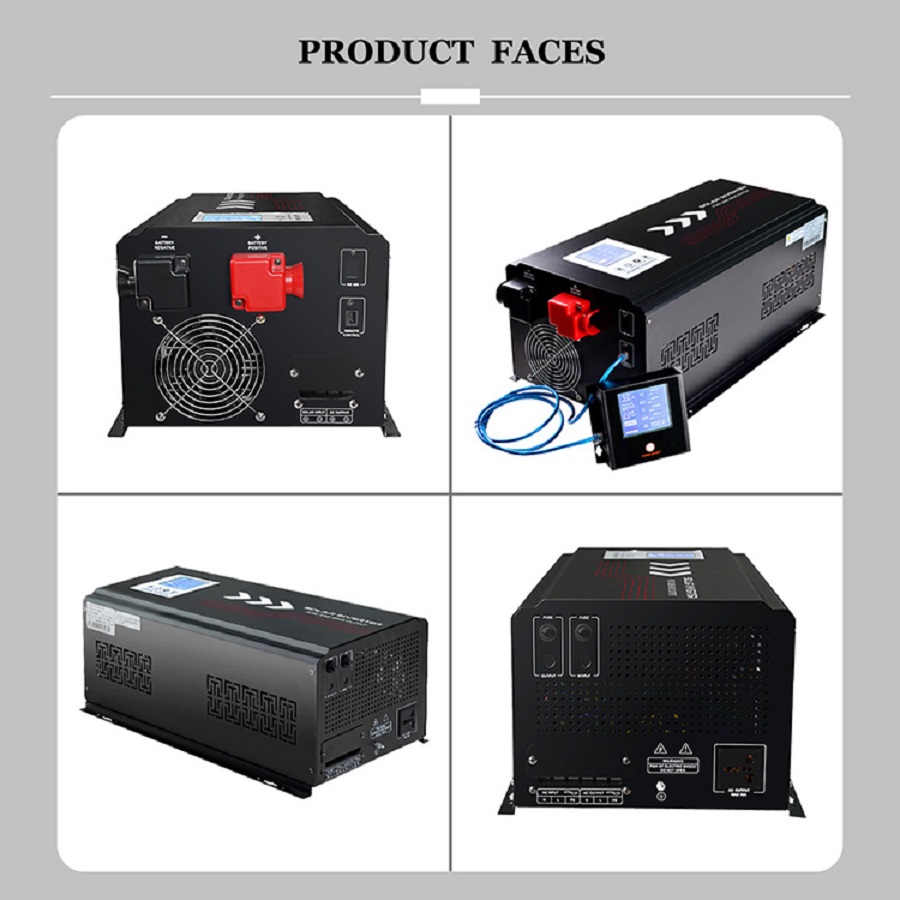

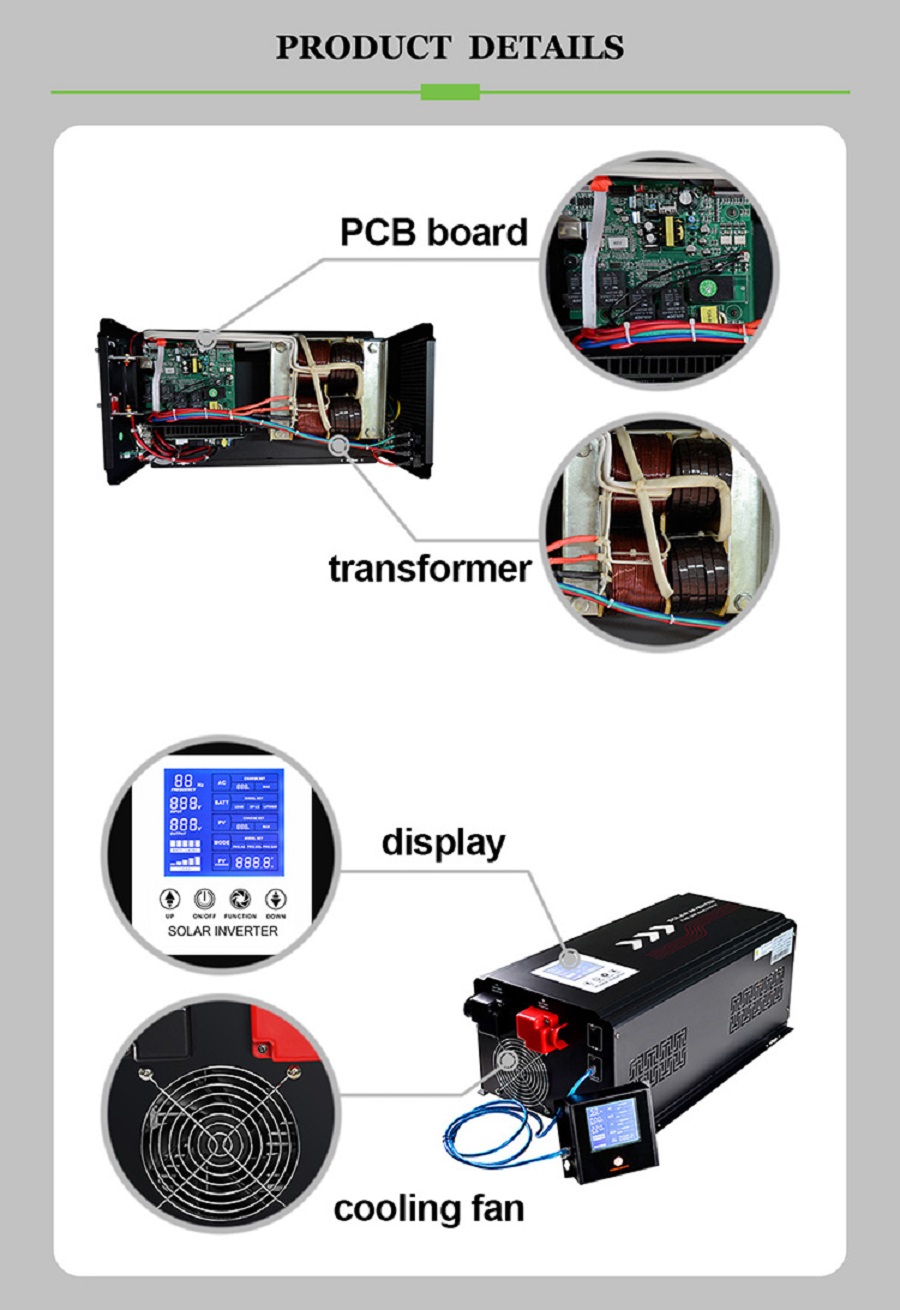

产品外观细节1

specification
rated power 1kw 2kw 3kw 4kw 5kw 6kw
barrery voltage 12/24VDC 12/24/48VDC 12/24/48VDC 24/48VDC 48VDC 48VDC
machine size(L*W*Hmm) 510*205*160 530*335*185
packing size(L*W*Hmm) 605*305*270 625*320*295
N.W(kg) 12 14.5 16.5 19 22 25
G.W(kg) 13.5 16 18.5 21 24 27
parameter
DC input voltage range 10.5~15VDC(single battery voltage)
AC input voltage range 85VAC~138VAC/93VAC~150VAC/170VAC~275VAC/186VAC~300VAC
AC input frequency range 45Hz~65Hz
efficiency(battery mode) ≥85%
out voltage(battery mode) (110VAC~240VAC)±2%
out frequency(battery mode) 56/60Hz±1%
output wave(battery mode) pure sine wave
AC output voltage range (110VAC~240VAC)±10%
AC output frequency range tracking automatically
workking mode AC first, battery first, saving energy mode
AC charging current(selectable) 0~30A
solar charging current(selectable) 10~60A(PMW or MPPT)
transfer time ≤4ms
display LCD
thermal method cooling fan in intelligent comtrol
≤42℃ fan rotates slowly; ≥45℃ fan rotates fast
battery type lead acid, deep cycle battery, gel battery
protection over-load, over-discharge, short circuit, high temperature, reverse polarity
communication Rs232, Rs485, SNMP, APP etc(optional)
temperature -10℃~40℃
noise ≤55db
humidity <95%
note All sbecification are subject to change without prior notice





Packaging&Shipping:

1. We have the carton box and wood package, it depend on the reated power of the inverter

2. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.

3. By air or by sea for batch goods, for CFL, Air port/ Port receiving.

4. Customers specifying freight forwarders or negotiable shipping methords.

5. Delivery time: 7 days for samples; 10 to 25 days for batch goods






Payment:

1. Payment: T/T, Western Union, Paypal, Moneygram. 30% deposits, 70% balance before delivery time.

2. MOQ: 1 PCS

3. Warranty: 1 years for inverter, controller, battery. 10 years for solar panel.
