Xindun hybrid dc to ac inverter can be used in household appliances and other loads with total power not exceeding 1000w 1500w 2000w 3000w.

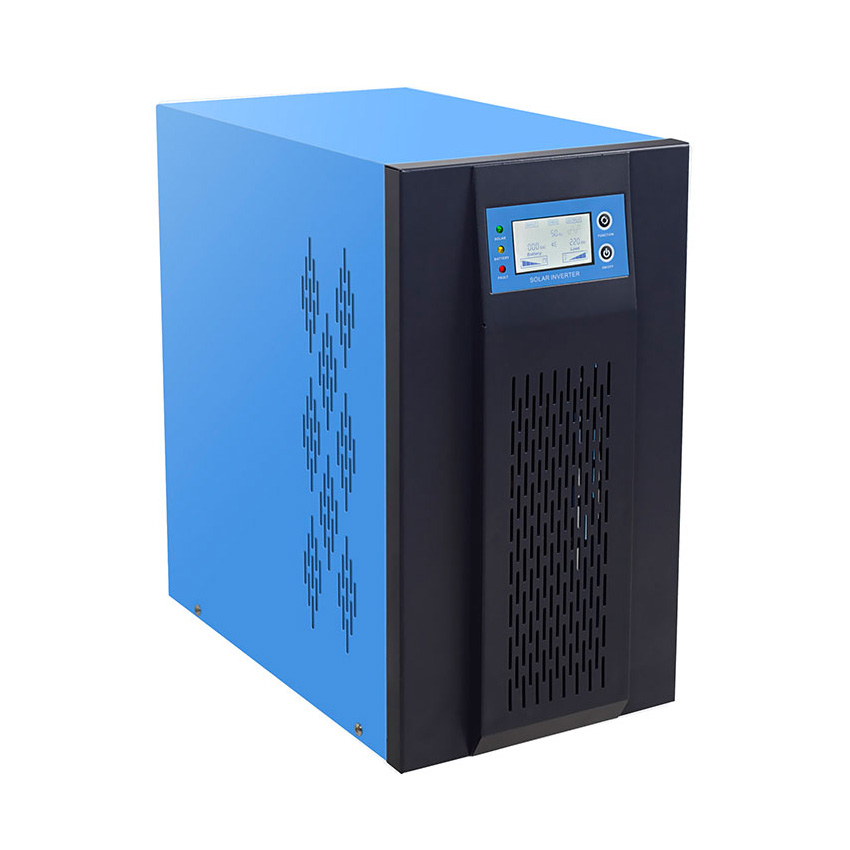

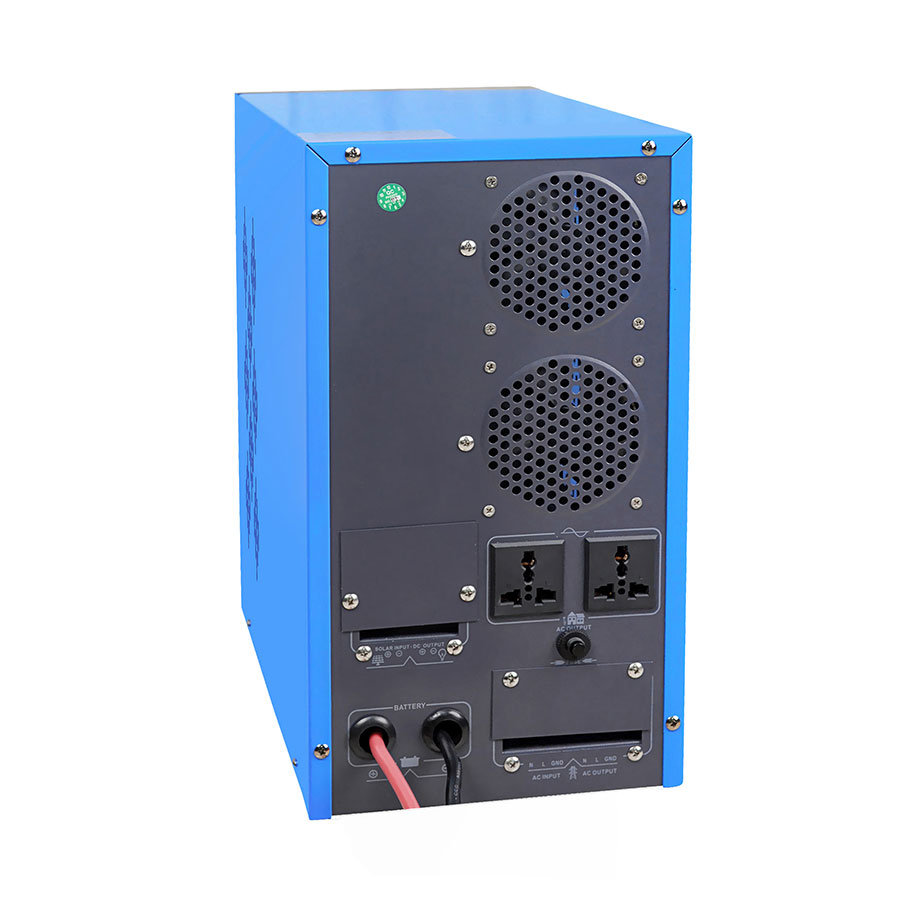

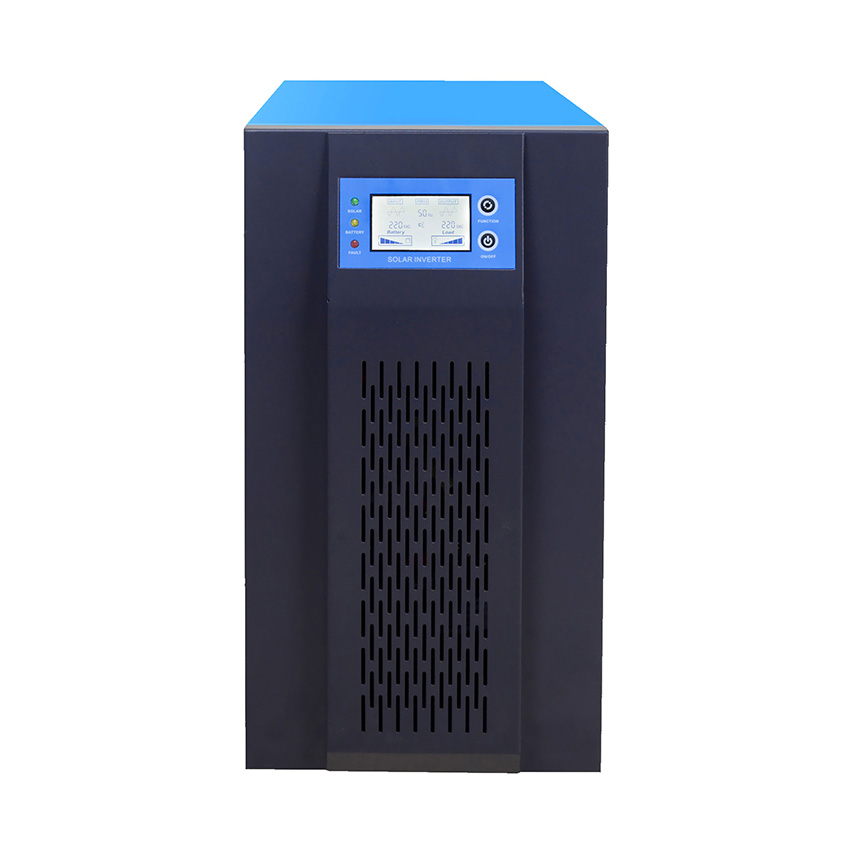

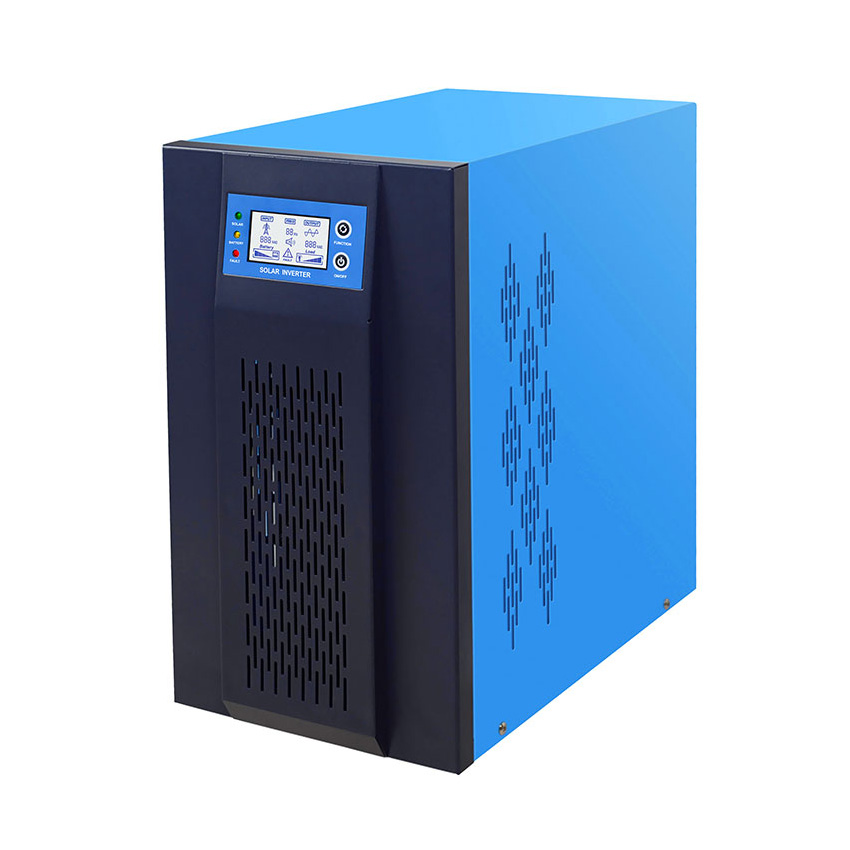

PD Hybrid DC To AC Inverter 1000W 1500W 2000W 3000W
PD Hybrid DC To AC Inverter 1000W 1500W 2000W 3000W
PD Hybrid DC To AC Inverter 1000W 1500W 2000W 3000W
PD Hybrid DC To AC Inverter 1000W 1500W 2000W 3000W
PD Hybrid DC To AC Inverter 1000W 1500W 2000W 3000W
PD Hybrid DC To AC Inverter 1000W 1500W 2000W 3000W
PD Hybrid DC To AC Inverter 1000W 1500W 2000W 3000W

PD Hybrid DC To AC Inverter 1000W 1500W 2000W 3000W

Chinese supplier Xindun power sells 1000w 1500W 2000w 3000w 12v 24v 48V hybrid dc to ac inverter at a low price.

  • Inverter Rated Power : 1000W 1500W 2000W 3000W
  • DC Input Voltage Range : 10.5-15VDC(Single battery voltage)
  • AC Input Voltage Range : 85VAC~138VAC / 170VAC~275VAC
  • Output Voltage(Battery Mode) : 110VAC±2% / 220VAC±2%
  • Output Frequency : 50/60Hz±1%
  • Output Wave : Pure sine wave

Hybrid DC AC Inverter Feature

◆ Pure sine wave output.

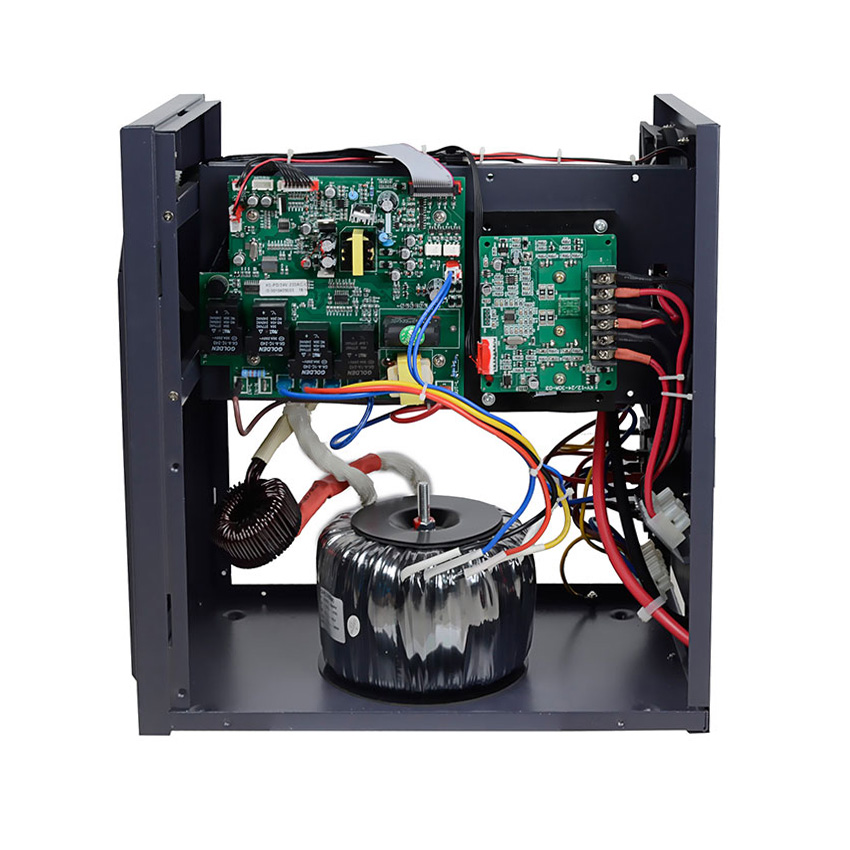

◇ Low frequency toroidal transformer lower loss.

◆ LCD/LED&LCD real-time display working status.

◇ Built-in PWM charge controller optional.

◆ AC charging function, maximum charge current up to 15A, AVR AC output.

◇ Auto select working modes: AC first, battery first and energy-saving mode.

◆ RS232 communication port optional.



Hybrid DC To AC Inverter Parameters


Specification

Model PD

10212

15212/24

20224/48

30224/48

Rated Power

1000W

1500W

2000W

3000W

Peak Power20ms)

3000W

4500W

6000W

9000W

Start Motor

1HP

1.5HP

2HP

3HP

Battery Voltage

12VDC

12/24VDC

24/48VDC

24/48VDC

Size(L*W*Hmm)

360*210*380

Packing Size(L*W*Hmm)

420*280*445

N.W.(kg)

13

14

16

20

G.W.(kg)Carton Packing

14

15

17

21

Installation Method

Tower

Parameter

Input

DC Input Voltage Range

10.5VDC-15VDCSingle battery voltage

AC Input Voltage Range

85~138VAC/170~275VAC

AC Input Frequency Range

45HZ-65HZ

Max AC charging current

15A MAXDepending on the model

AC charging voltage

LEAD batteryCharge Voltage :14V; Float Voltage:13.8VSingle battery voltage

AC charging method

Three-stage (constant current, constant voltage, floating charge)

Output

Efficiency(Battery Mode)

85%

Output Voltage(Battery Mode)

110VAC±2% / 220VAC±2%

Output Frequency(Battery Mode)

50/60HZ±1%

Output Wave(Battery Mode)

Pure Sine Wave

Efficiency(AC Mode)

>99%

Output Voltage(AC Mode)

110VAC±10% / 220VAC±10%

Output Frequency(AC Mode)

Tracking Automatically

Output waveform distortion(Battery Mode)

3%Linear load

No load loss(Battery Mode)

0.8% rated power

No load loss(AC Mode)

2% rated power charger does not work in AC mode

No load loss(Energy saving Mode)

10W

Battery Type

Customize battery

Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.)
can be customized according to user requirements

Protection

Battery undervoltage alarm

11VSingle battery voltage

Battery undervoltage protection

10.5VSingle battery voltage

Battery overvoltage alarm

15VSingle battery voltage

Battery overvoltage protection

17VSingle battery voltage

Battery overvoltage recovery voltage

14.5VSingle battery voltage

Overload power protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Output short circuit protection

Automatic protection (battery mode), circuit breaker or insurance (AC mode)

Temperature protection

>90°CShut down output

Alarm

A

Normal working condition, buzzer has no alarm sound

B

Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection

C

When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal

Inside Solar controller
(Optional)

Charging Mode

PWM

Charging current

10A/20A/30A/40A/50A/60A

PV Input Voltage Range

15V-44V(12V system); 30V-44V(24V system); 60V-88V(48V system)

Max PV Input Voltage(At 25)

50V(12V/24V system); 100V(48V system)

PV Array Maximum Power

12V system: 140W/280W/420W/560W/700W/840W; 24V system: 280W/560W/840W/1120W/1400W/1680W;
48V system: 560W/1120W/1680W/2240W/2800W/3360W

Standby loss

3W

Maximum conversion efficiency

>95%

Working Mode

Battery First/AC First/Saving Energy Mode

Transfer Time

4ms

Display

LCD

Thermal method

Cooling fan in intelligent control

Communication

RS232(Optional)

Environment

Operating temperature

-10~40

Storage temperature

-15~60

Noise

55dB

Elevation

2000mMore than derating

Humidity

0%~95% ,No condensation

Warranty

1 year

Note: All specifications are subject to change without prior notice


How does Hybrid DC To AC inverter work?


1. Home backup system:

When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to household appliances, such as refrigerator, TV. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Power system:
Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.
