Pure sine wave inverter best price - low price inverter
Xindun factory best sell low price pure sine wave inverter. Low frequency toroidal transformer, battery charging function, ups function, fault code query function.

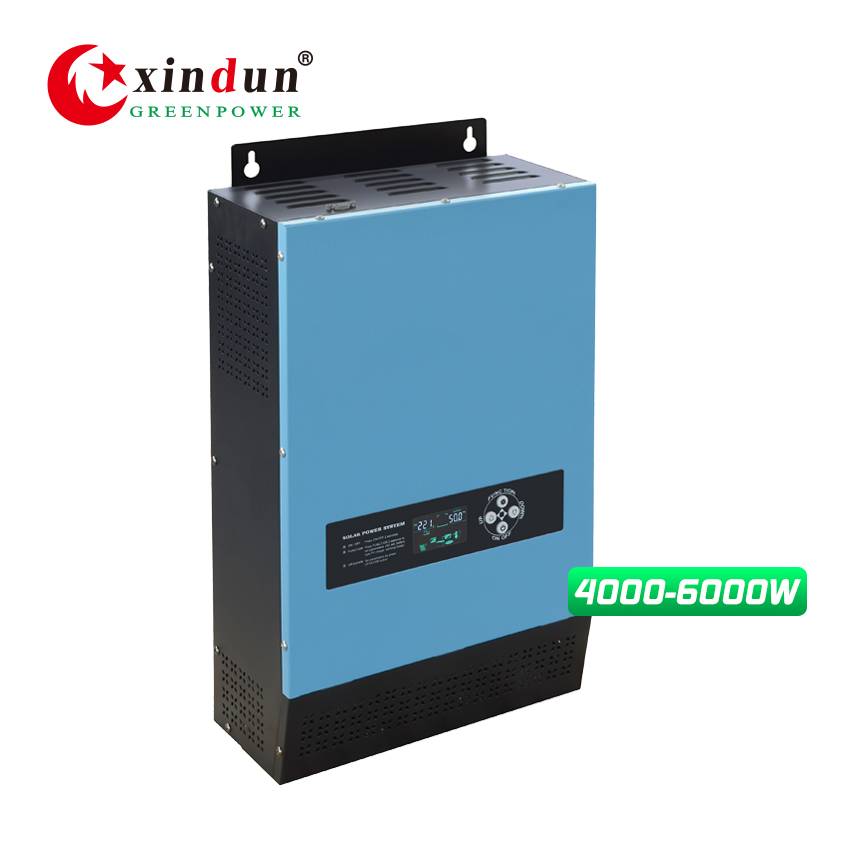

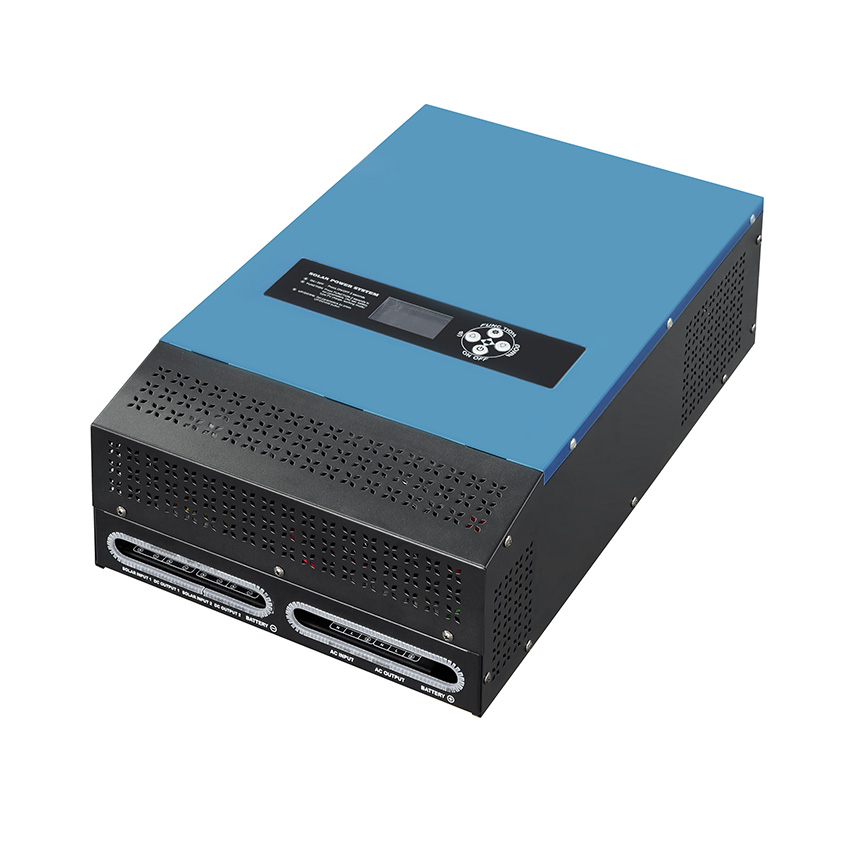

LS Pure Sine Wave Inverter 4000W-6000W 24V/48V

4000W/5000W/6000W DC24V/48V Convert to AC110V/120V/220V/230V/240V | Pure Sine Wave Inverter | Best Low Inverter Price

  • Type : DC to AC Off-Grid Inverter
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 6 pcs
  • OEM : Yes

LS pure sine wave inverter best price - low price inverter



■ Pure Sine Wave Inverter Feature



1 Inverter pure sine wave output;
2 Low frequency toroidal transformer lower loss;
3 Intelligent LCD display;
4 AC charge current 0~30A adjustable, three working modes selectable;
5 Peak power more than 3 times, full-automatic and perfect protection function;
6 LS inverters added fault code query function, easy to monitor the operation in real time;
7 Supports diesel or gasoline generator, adapt any tough electricity situation;
8 Combine industrial and home usage, convenient to install.



■ Pure Sine Wave Inverter Specification



Specification
Model LS
40224/48
(402)
50248
(502)
60248
(602)
Rated Power 4000W 5000W 6000W
Peak Power(20ms) 12000VA 15000VA 18000VA
Start Motor 3HP 4HP 4HP
Battery Voltage 24/48VDC 48VDC
Size(L*W*Hmm) 530*335*150
Packing Size(L*W*Hmm) 605*430*235
N.W.(kg) 22 24 26
G.W.(kg)(Carton Packing) 24 26 28
Installation Method Wall-Mounted
Parameter
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range
85VAC~138VAC(110VAC) / 95VAC~148VAC(120VAC) / 170VAC~275VAC(220VAC) /
180VAC~285VAC(230VAC) / 190VAC~295VAC(240VAC)
AC Input Frequency Range 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
Max AC charging current 0~30A(Depends on model)
AC charging method Three-stage (constant current, constant voltage, floating charge)
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery Mode) 50/60Hz±1%
Output Wave(Battery Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
Output Frequency(AC Mode) Tracking Automatically
Output waveform distortion
(Battery Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤0.8% rated power
No load loss(AC Mode)  ≤2% rated power( charger does not work in AC mode)
No load loss
(Energy saving Mode)
≤10W
Battery Type VRLA Battery Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize battery
Charging and discharging parameters of different types of batteries can be customized according to user requirements
 (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection Battery undervoltage alarm Factory default: 11V(Single battery voltage)
Battery undervoltage protection Factory default: 10.5V(Single battery voltage)
Battery overvoltage alarm Factory default: 15V(Single battery voltage)
Battery overvoltage protection Factory default: 17V(Single battery voltage)
Battery overvoltage recovery voltage Factory default: 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
C When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Communication RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature ≤55dB
Storage temperature -10℃~40℃
Noise -15℃~60℃
Elevation 2000m(More than derating)
Humidity 0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice

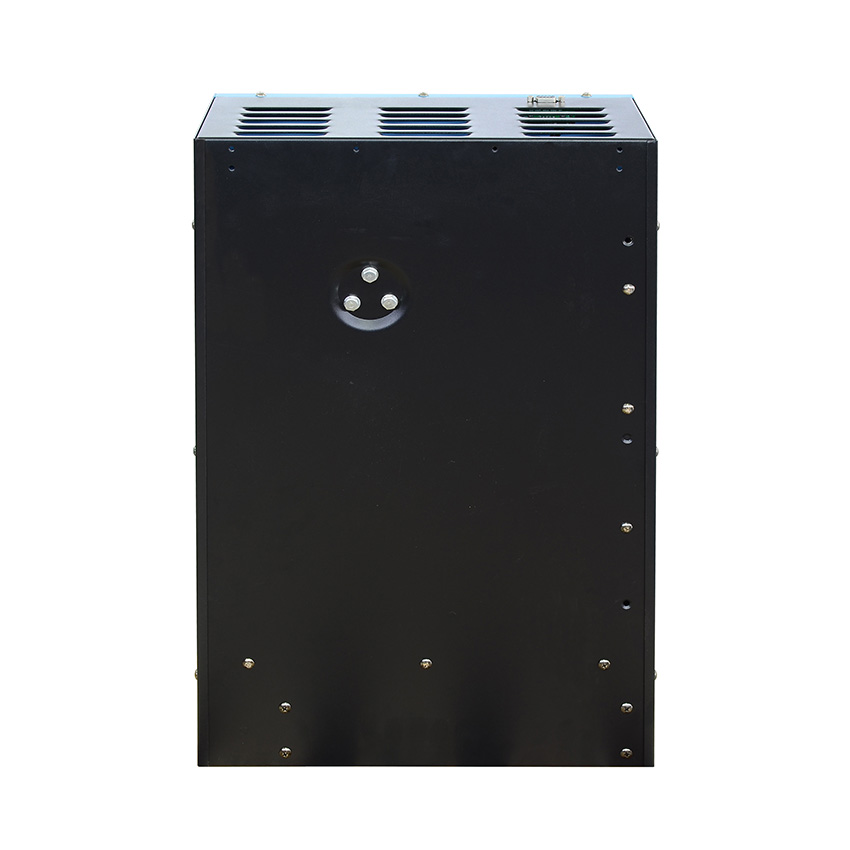

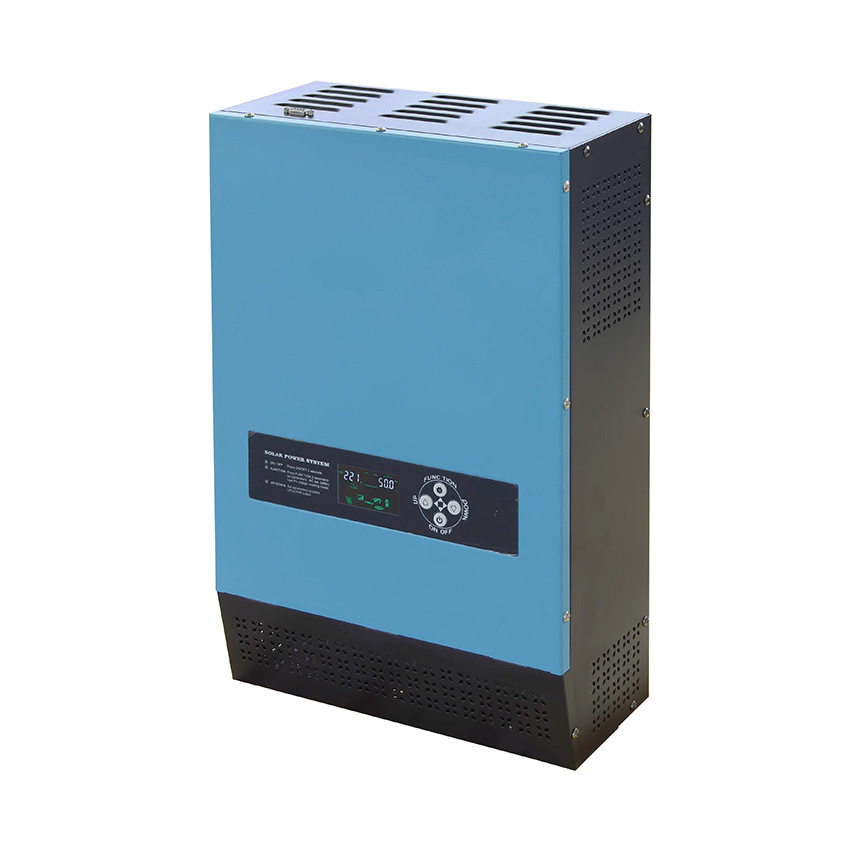

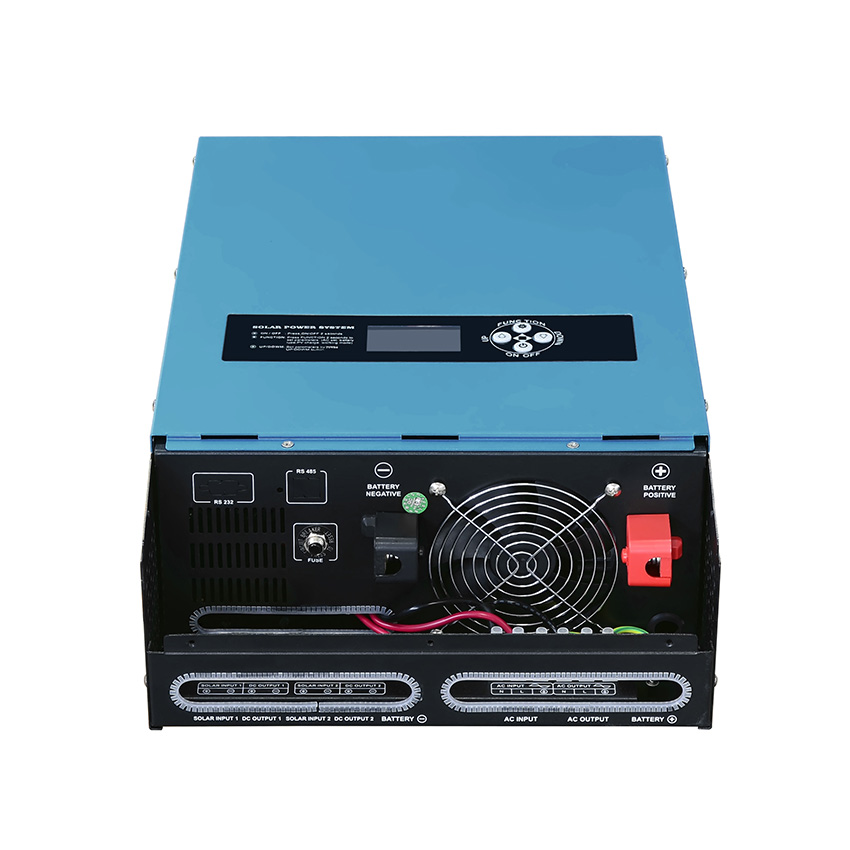

■ Pure Sine Wave Inverter Details



pure sine wave inverter details


pure sine wave inverter circuit board

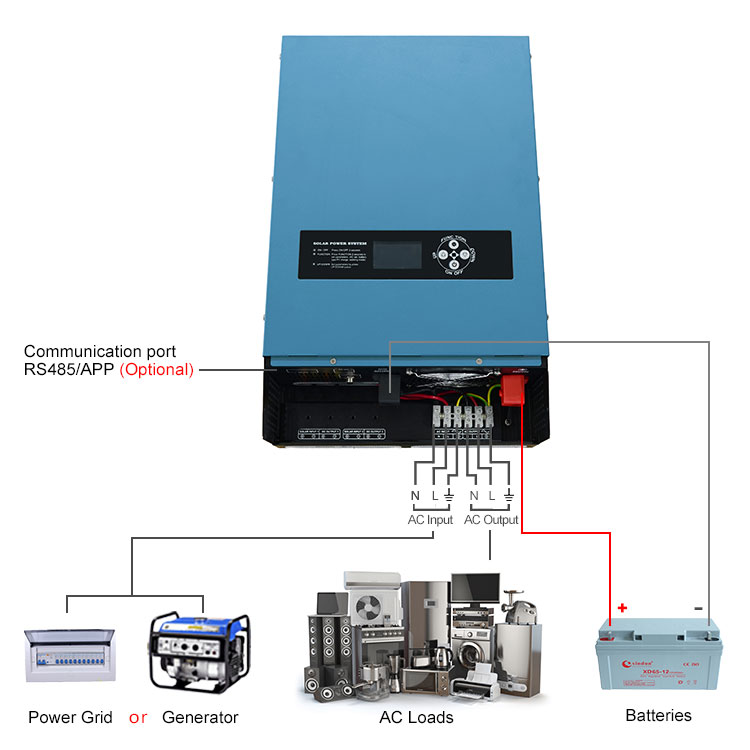

■ Pure Sine Wave Inverter Wiring Diagram


pure sine wave inverter wiring diagram

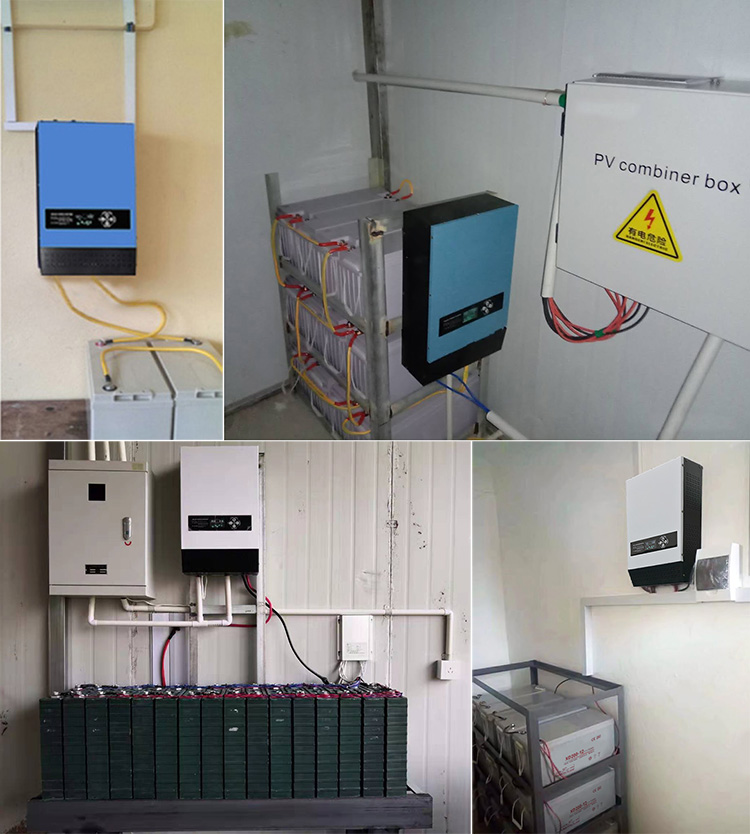

■ Pure Sine Wave Inverter Application



pure sine wave inverter application


Xindun pure sine wave inverter usually has the following two application method:


1. Home Backup System:
When AC grid power is available, inverter charges battery, at the same  time, AC grid power bypass through inverter to home appliances, such as light, rice cooker,  refrigerator, computer. When AC grid power is cut off, inverter will automatic transfer switch to battery  power and convert DC to AC power.


2. Wind or Solar Power System:
The electricity generated by solar or wind energy is DC (direct  current), inverter will convert DC to AC power. When battery power is lacking, it will automatic  transfer to AC grid power for powering continuously.

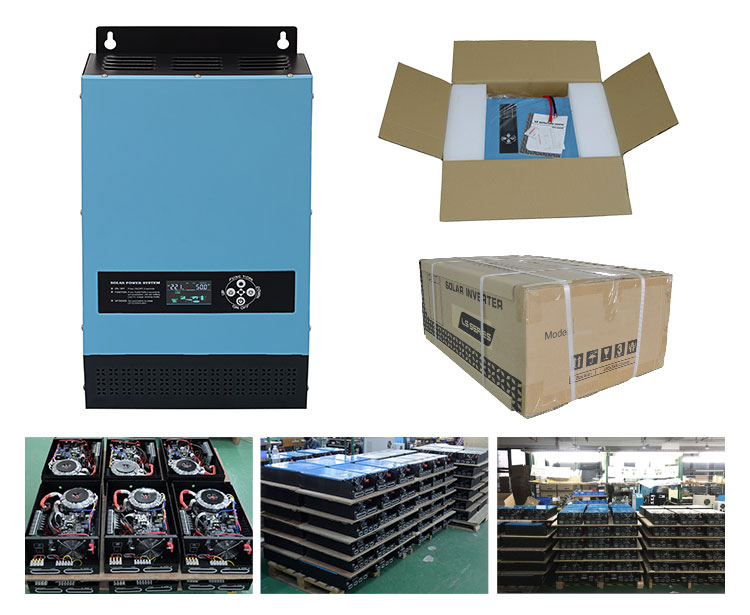

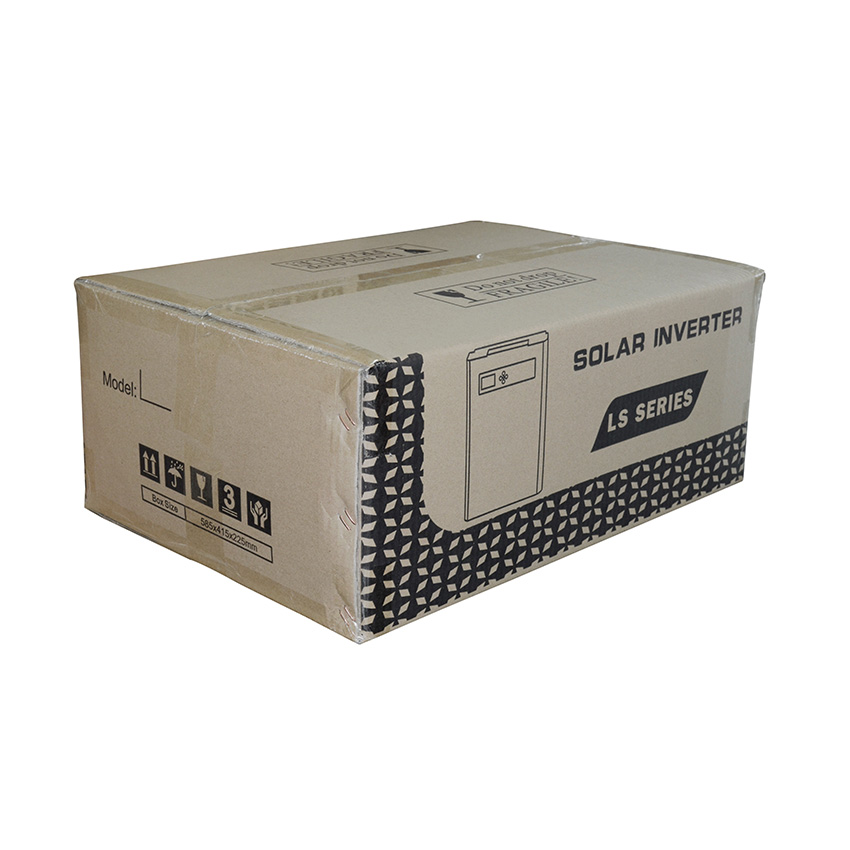

■ Inverter Package and Delivery


pure sine wave inverter package


pure sine wave inverter package



■ Why Choose Us?



why choose xindun - pure sine wave inverter manufacturer


1. Xindun Power is a professional manufacturer of pure sine wave inverter and solar controller with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 14 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
5. 200,000pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.



■ About Xindun Power



about xindun - pure sine wave inverter manufacturer image

about xindun - pure sine wave inverter manufacturer introduction

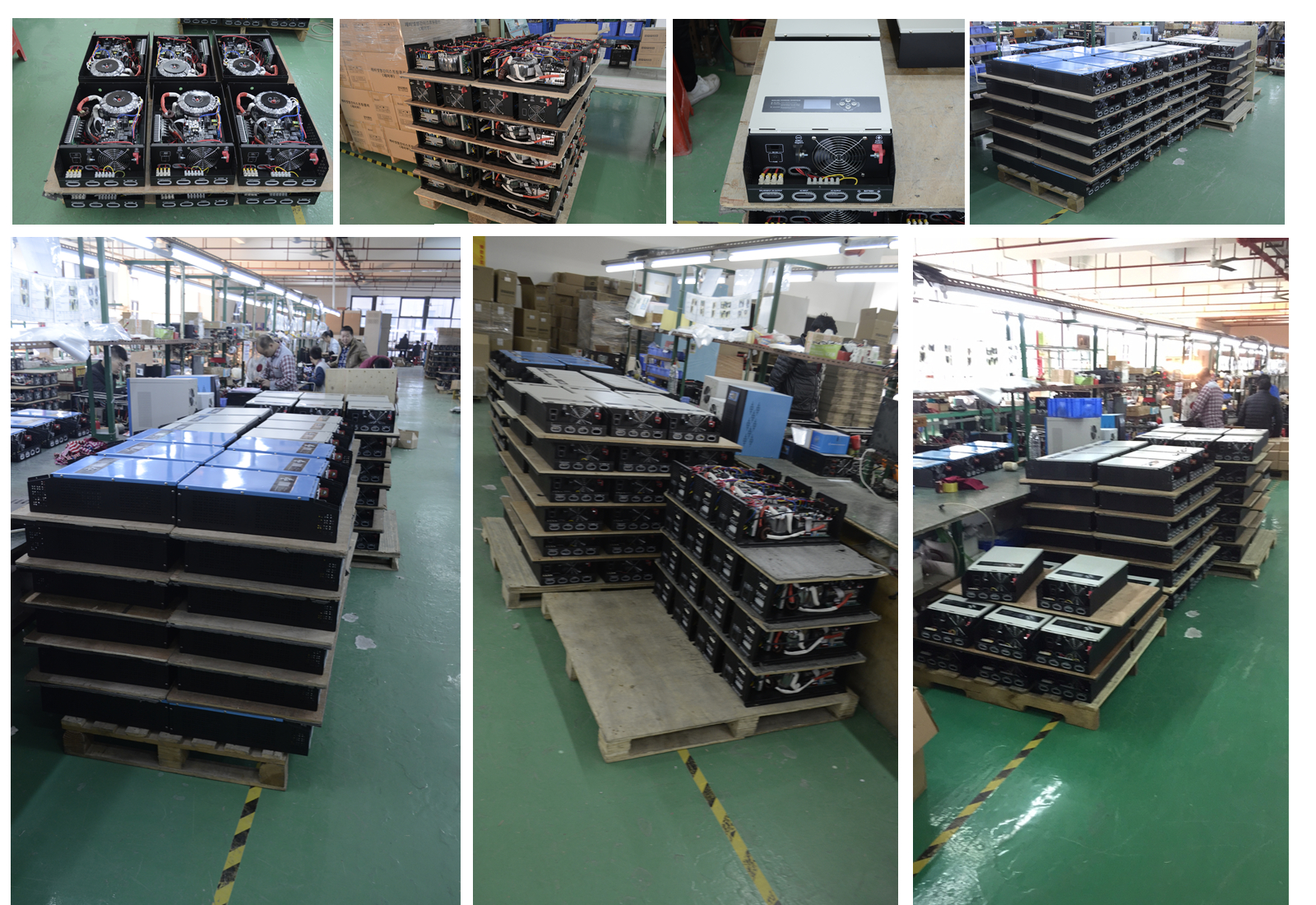

■ Pure Sine Wave Inverter Factory



Xindun pure sine wave inverter factory



■ Qualifications and Certificates



Xindun qualifications and certificates



■ Global Solar Exhibitions



Xindun global solar exhibitons



■ FAQ



Q1: Are you a factory?

A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.

Q2: What is the price of pure sine wave inverter?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Pure sine wave inverter factory direct sales, no middlemen earn price difference.

Q3: What type of inverters do you produce?
A: We produce various types of inverters: pure sine wave inverters, off-grid inverters, on/off grid inverters, solar hybrid inverters, single phase inverters, 3 phase inverters, low frequency inverters, high frequency inverters, etc. Don’t know which type of inverter to choose? Contact XINDUN now!

Q4: What's the difference between pure sine wave inverter and modified sine wave inverter?
A: Pure sine wave output inverter is just as good as the public power grid, even better. Low repaired rate, long lifespan, without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output inverter has a negative impact on appliances and can't load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don't like the modified wave.

Q5: How to solve the pure sine wave inverter technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
