High efficiency pure sine wave rv inverter dc to ac converter
Xindun Power wholesales high voltage dc to ac inverter and converter. Inverter converter can provide stable alternating current for 15kw 20kw 25kw RV electrical appliances.

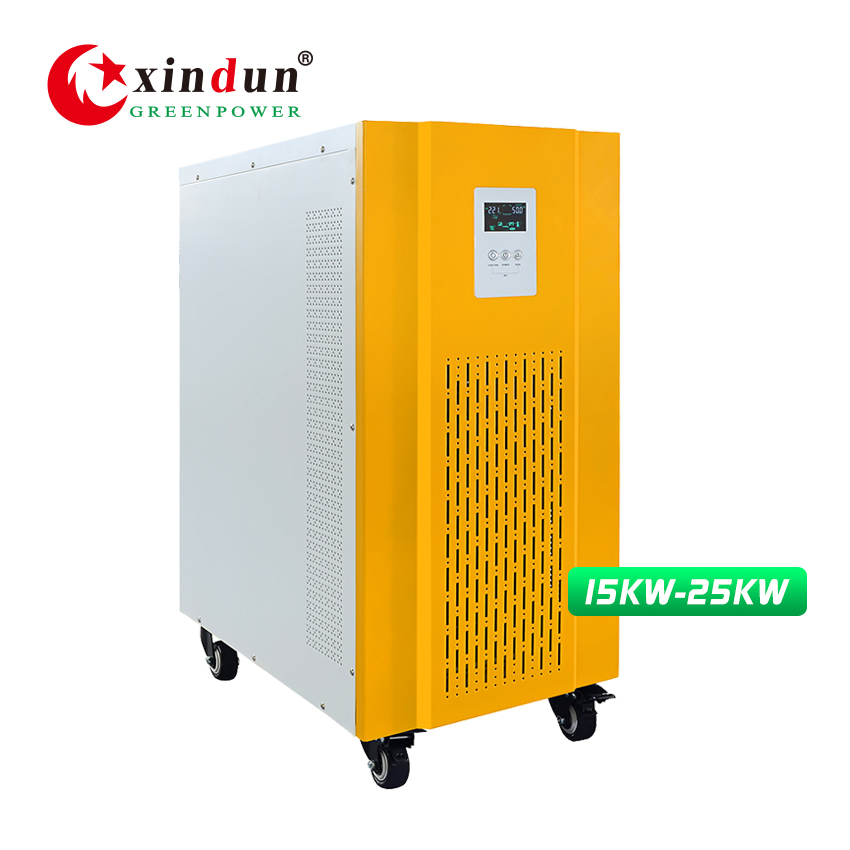

WD Inverter DC to AC Converter 15KW-25KW 192V/240V

15KW/20KW/25KW, DC192V/240V Convert to AC110V/220V/230V/240V | Pure Sine Wave DC to AC Inverter Converter | High Efficiency Inverter for RV

  • Type : DC to AC Off-Grid Inverter
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
  • OEM : Yes

WD high efficiency high voltage pure sine wave rv inverter dc to ac converter



■ Inverter DC to AC Converter Feature



1  Inverter DC to AC converter pure sine wave output;

2  High efficiency toroidal transformer lower loss ;

LCD integration displays inverter various states;

4  AC charge current 0-20A adjustable; battery capacity configuration more flexible;

5  Three types working modes adjustable:AC first, DC first, energy-saving mode;

6  Frequency adaptive function, adapt to different grid environments;

7  Added fault code query function,facilitate user to monitor the operation state in real time;

8  Supports diesel or gasoline generator, adapt any tough electricity situation;

9  RS485  communication port/APP optional.



■ Inverter DC to AC Converter Specification



Specification
Model WD 153192
(153)
203192
(203)
253240
(253)
Rated Power 15KW 20KW 25KW
Peak Power(20ms) 45KVA 60KVA 75KVA
Start Motor 10HP 12HP 15HP
Battery Voltage 192VDC 192VDC 240VDC
Size(L*W*Hmm) 593x370x820
Packing Size(L*W*Hmm) 656*420*937
N.W.(kg) 110 116 123
G.W.(kg) 124 130 137
Installation Method Tower
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 92VAC~128VAC(110VAC) / 102VAC~138VAC(120VAC) /  185VAC~255VAC(220VAC) /
195VAC~265VAC(230VAC) /  205VAC~275VAC( 240VAC) (8KW~40KW)
AC Input Frequency Range 45Hz~55Hz(50Hz)/ 55Hz~65Hz(60Hz)
Max AC charging current 0A~20A(Depending on the model,The maximum charging power is 1/4 of the rated power)
AC charging method Three-stage (constant current, constant voltage, floating charge)
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 110VAC±2%  / 120VAC±2%  / 220VAC±2%  / 230VAC±2%  / 240VAC±2%
Output Frequency(Battery Mode) 50Hz±0.5 or 60Hz±0.5
Output Wave(Battery Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) Follow input
Output Frequency(AC Mode) Tracking Automatically
Output waveform distortion
(Battery Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤1% rated power
No load loss(AC Mode)  ≤2% rated power( charger does not work in AC mode)
No load loss
(Energy saving Mode)
≤10W
Battery Type
(selectable)
VRLA Battery Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize battery Charging and discharging parameters of different types of batteries can be customized according to user requirements
 (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection Battery undervoltage alarm Factory default: 11V(Single battery voltage)
Battery undervoltage protection Factory default: 10.5V(Single battery voltage)
Battery overvoltage alarm Factory default: 15V(Single battery voltage)
Battery overvoltage protection Factory default: 17V(Single battery voltage)
Battery overvoltage recovery voltage Factory default: 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
C When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Communication(Optional) RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature -10℃~40℃
Storage temperature -15℃~60℃
Noise ≤55dB
Elevation 2000m(More than derating)
Humidity 0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice



■ Inverter DC to AC Converter Details

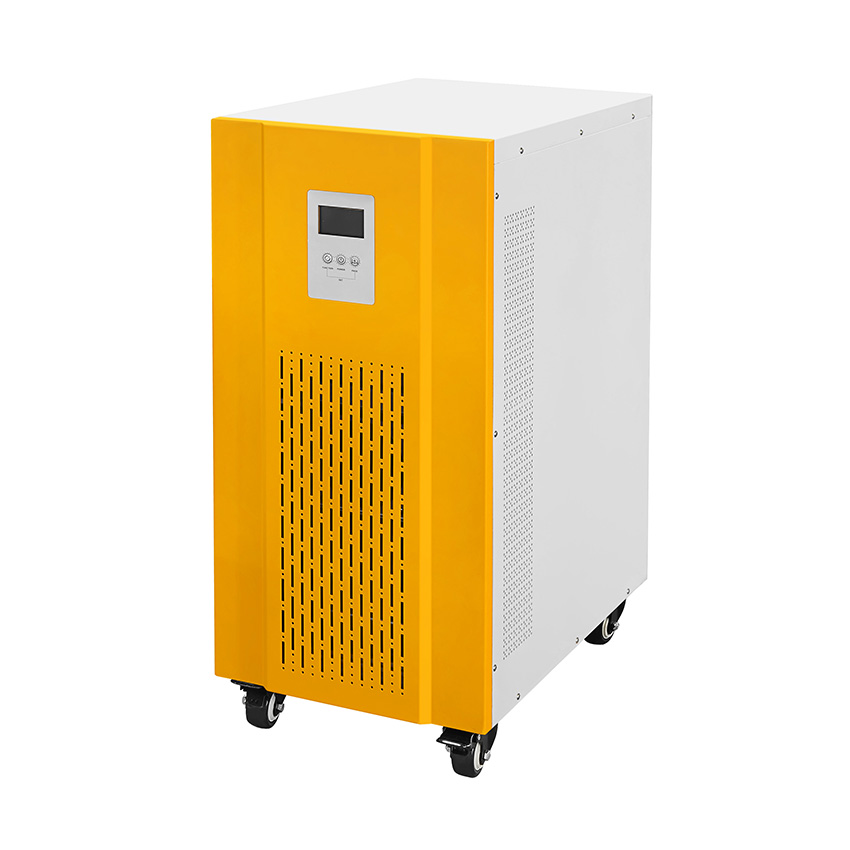

inverter dc to ac converter details_01

inverter dc to ac converter details_02

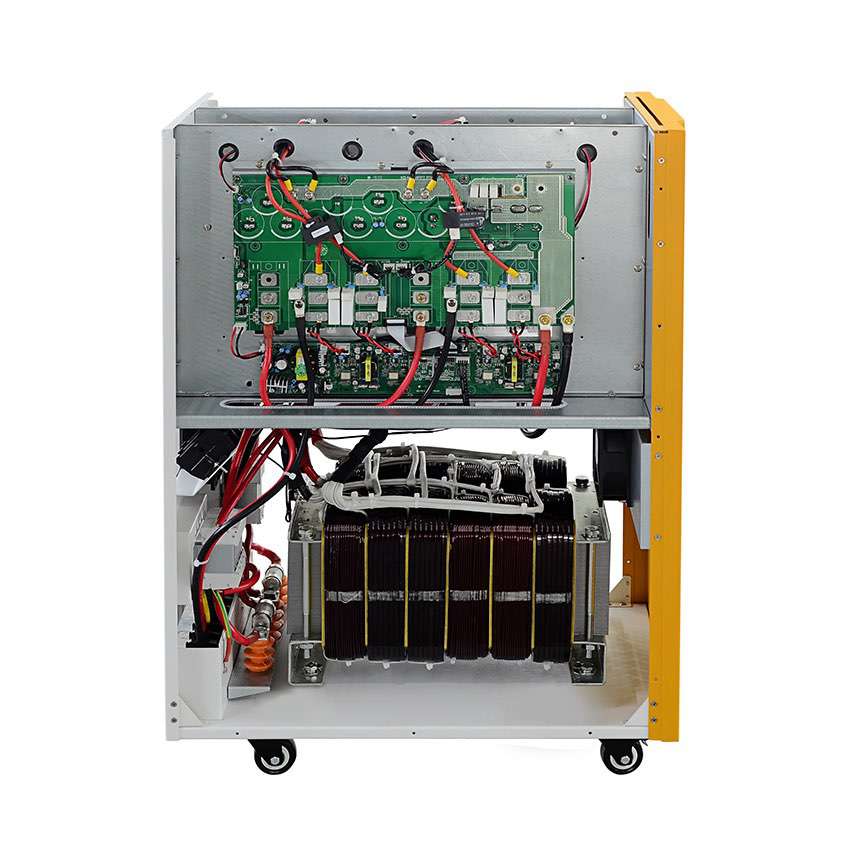

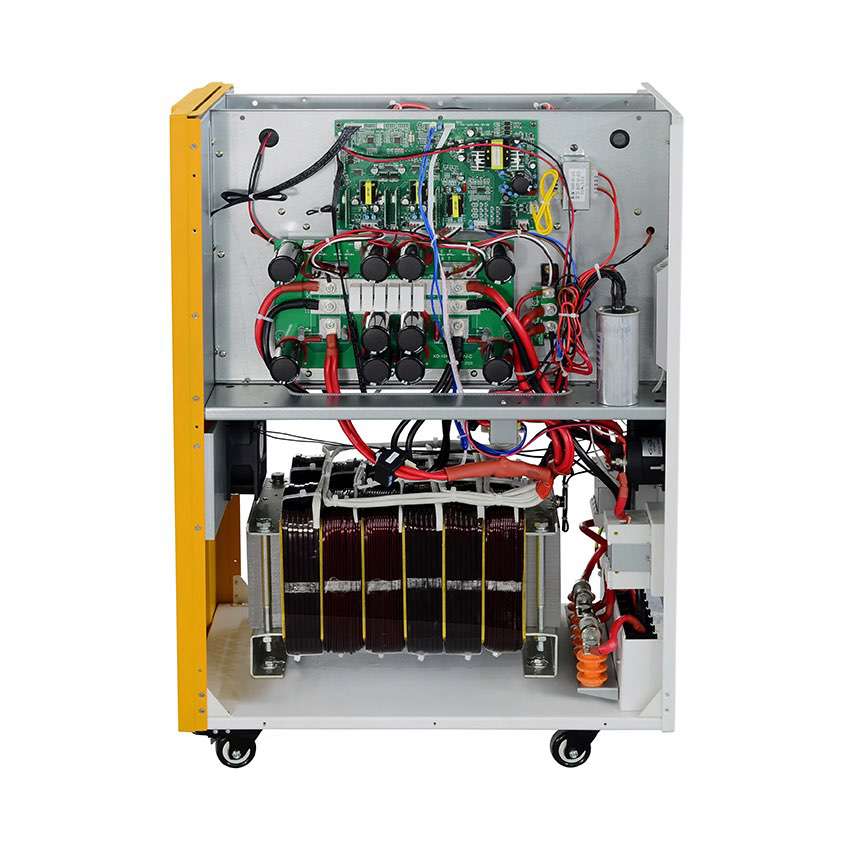

inverter dc to ac converter circuit board details_03

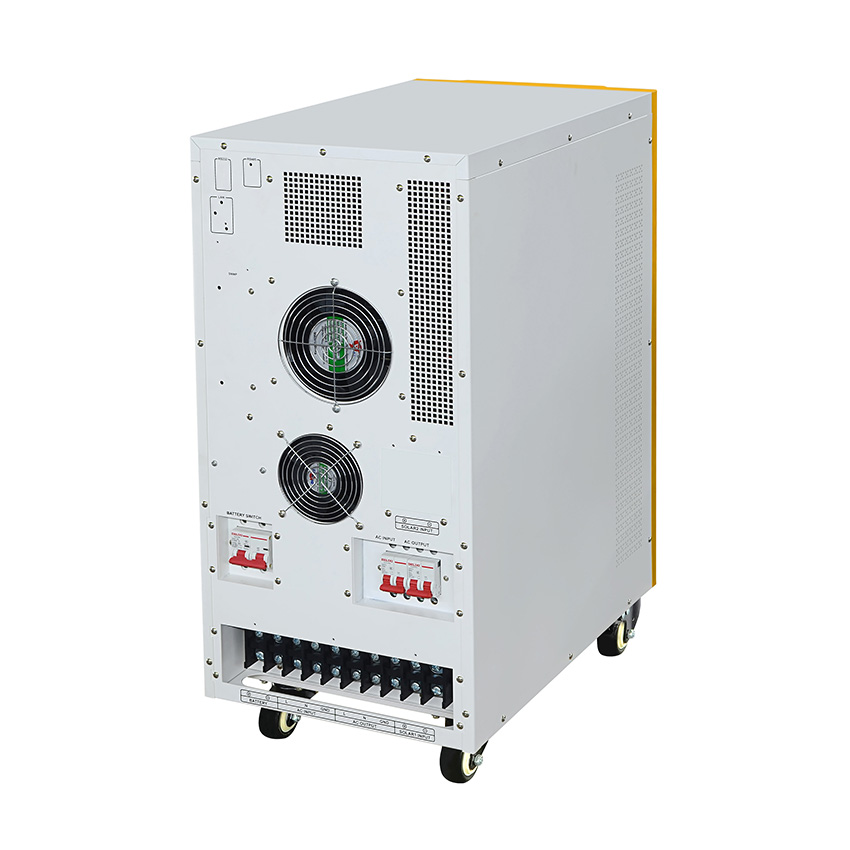

inverter dc to ac converter communication details_04



■ Inverter DC to AC Converter Wiring Diagram

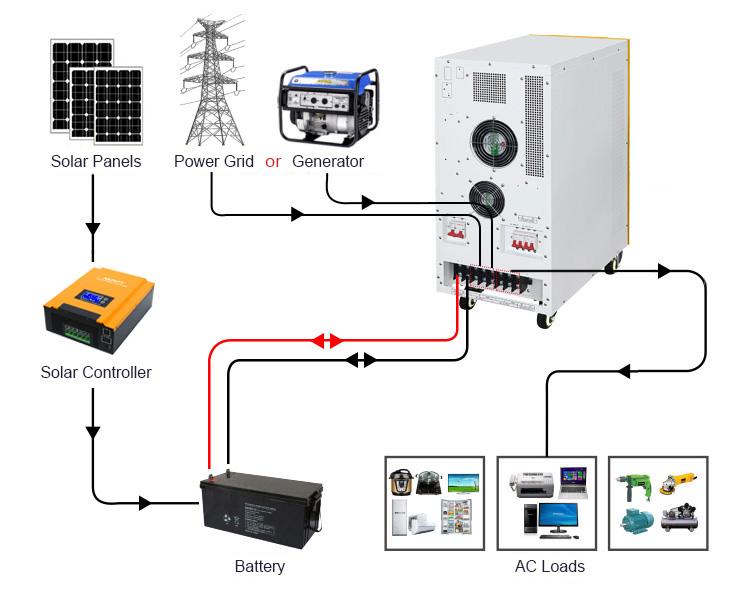

inverter dc to ac converter wiring diagram

We offer 3 optional working modes for inverter dc to ac converter(transfer time≤4ms):


01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.


02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.


03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
