igbt based 3 phase battery inverter charger pwm inverter
Xindun factory supply igbt based 3 phase inverter with battery charger. 40kva-80kva three phase igbt inverter can be built-in pwm controller to charge battery.

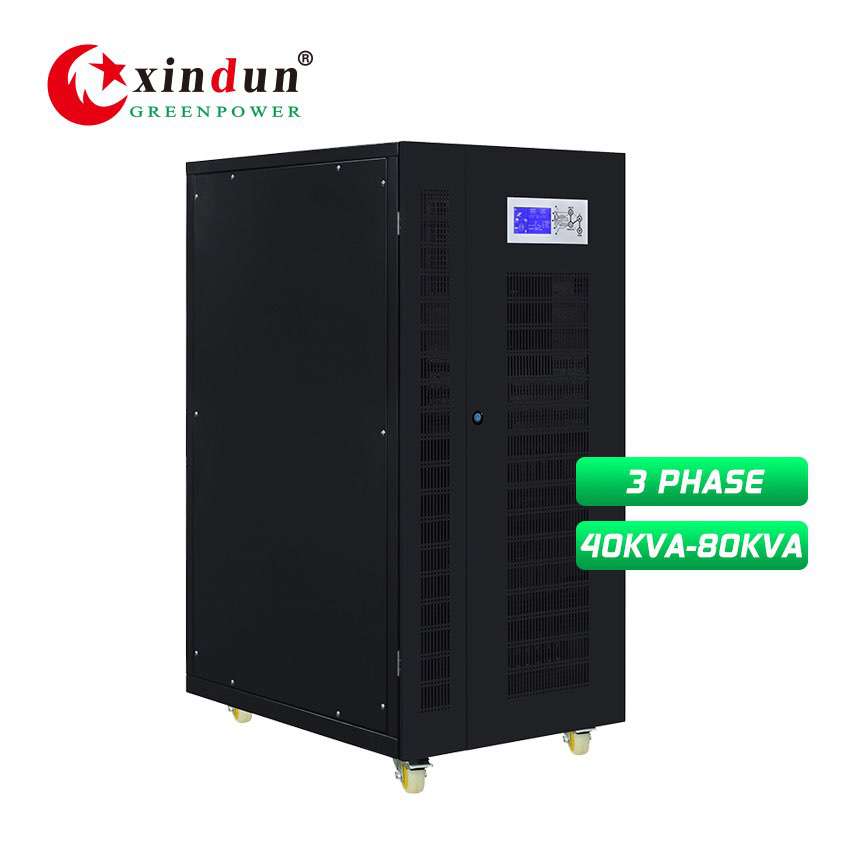

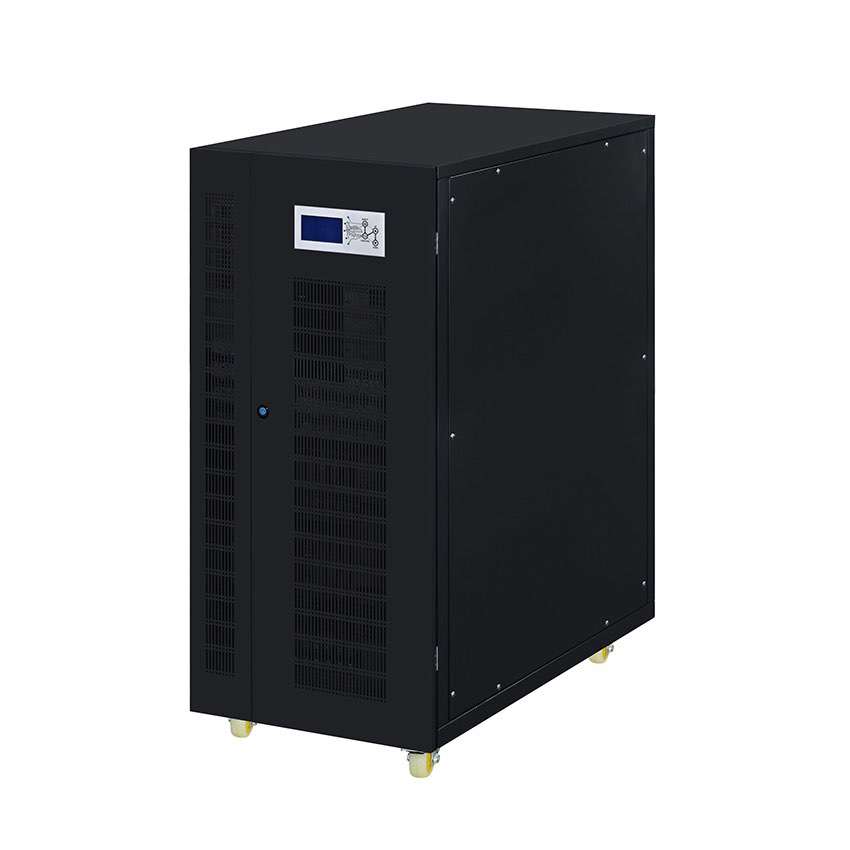

HDSX 3 Phase Battery Inverter Charger 40KVA-80KVA 192V/384V

IGBT Based 3 phase pwm inverter with battery charger can be used in single-phase and three-phase ac load with total power not exceeding 40kva/50kva/60kva/80kva, 192v/384vdc to 380vac.

  • Type : DC to AC Off-Grid Inverter
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
  • OEM : Yes
HDSX Three phase igbt based 3 phase battery inverter charger pwm inverter



■ 3 Phase Battery Inverter Charger Feature



1  Pure sine wave output.
2  Low DC voltage, saving system cost.
3  3 Phase hybrid inverter charger built-in PWM or MPPT charge controller.
4  AC charge current 0-45A adjustable.
5  Wide LCD screen, clearly and precisely shows icon data.
6  100% imbalance loading design, 3 times peak power.
7  Setting different working modes based on variable usage requirements.
8  DC first/AC first optional.
9  Various communication ports and remote controls (RS232/RS485/APP/SNMP/GSM optional).



■ 3 Phase Battery Inverter Charger Specification



Specification
Model: HDSX 40KVA 50KVA 60KVA 80KVA
Rated Power 32KW 40KW 48KW 64KW
Peak Power(20ms) 96KVA 120KVA 144KVA 192KVA
Start Motor 15HP 20HP 25HP 30HP
Battery Voltage 192VDC 384VDC
Size(L*W*Hmm) 720*575*1275
Packing Size(L*W*Hmm) 785*640*1400
N.W.(kg) 287 307 337 355
G.W.(kg)(Wooden Packing) 320 340 370 388
Installation Method Tower
Parameter
Input DC Input Voltage Range 10.5VDC-15VDC(Single battery voltage)
AC Input Voltage Range 380Vac/400Vac±10%(customized 190Vac/200Vac)
AC Input Frequency Range 45Hz-55Hz(50Hz)/ 55Hz-65Hz(60Hz)
Max AC charging current 0-45A(Depending on the model)
AC charging method Three-stage (constant current, constant voltage, floating charge)
Phase 3/N/PE
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 380Vac/400Vac±10%(customized 190Vac/200Vac)
Output Frequency(Battery Mode) 50/60Hz ±1%
Output Wave(Battery Mode) Pure Sine Wave
Output waveform distortion Linear load≤3%
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) Conforming to AC input
Output Frequency(AC Mode) Conforming to AC input
No load loss(Battery Mode) ≤1%  rated power
No load loss(AC Mode) ≤2%rated power( charger does not work in AC mode)
No load loss(Energy saving Mode) ≤10W
Phase 3/N/PE
Battery Type VRLA Battery Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage)
Customize battery
Charging and discharging parameters of different types of batteries can be customized according to user requirements
 (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection Battery undervoltage alarm 11V(Single battery voltage)
Battery undervoltage protection 10.5V(Single battery voltage)
Battery overvoltage alarm 15V(Single battery voltage)
Battery overvoltage protection 17V(Single battery voltage)
Battery overvoltage recovery voltage 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
C When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Inside Solar controller
(Optional)
Charging Mode MPPT or PWM
Charging current PWM:  100A-200A(192V&384V System) / MPPT: 50A/100A(192V&384V System)
PV Input Voltage Range PWM:  240V-352V(192V System); 480V-704V(384V System) / MPPT: 240V-360V(192V System); 480V-640V(384V System)
Max PV Input Voltage(Voc)
(At the lowest temperature)
PWM:  400V(192V System); 750V(384V System) / MPPT: 450V(192V System); 800V(384V System)
PV Array Maximum Power
192V System: (PWM:22.4KW(100A)/16.8KW*2(150A)/22.4KW*2(200A)) / (MPPT: 11.2KW(50A)/11.2KW*2(100A));
384V System: (44.8KW(100A)/33.6KW*2(150A)/44.8KW*2(200A)) / (MPPT: 22.4KW(50A)/22.4KW*2(100A))
Standby loss ≤3W
Maximum conversion efficiency >95%
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
Display LCD
Thermal method Forced air cooling
Communication(Optional) RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature  -10℃~40℃
Storage temperature -15℃~60℃
Noise 2000m(More than derating)
Elevation ≤65dB
Humidity 0%~95% ,No condensation

1. Contact us for 30kw inverter, 50kw inverter, 50kw hybrid inverter or 60kw inverter technical specification.

2. Note: All specifications are subject to charge without prior notice



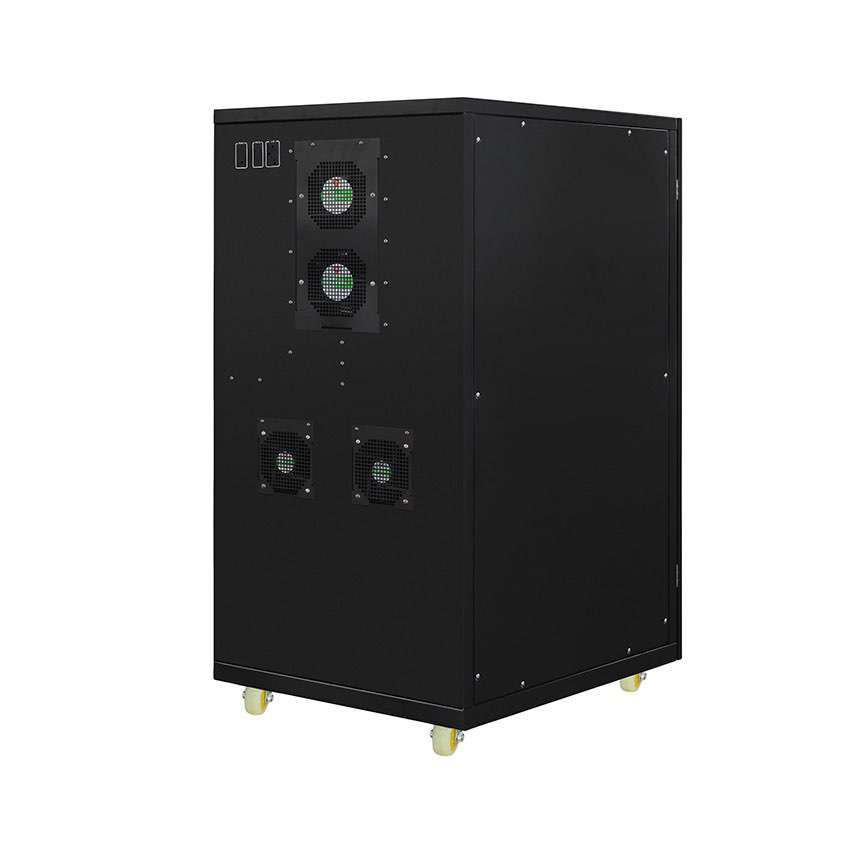

■ 3 Phase Battery Inverter Charger Details

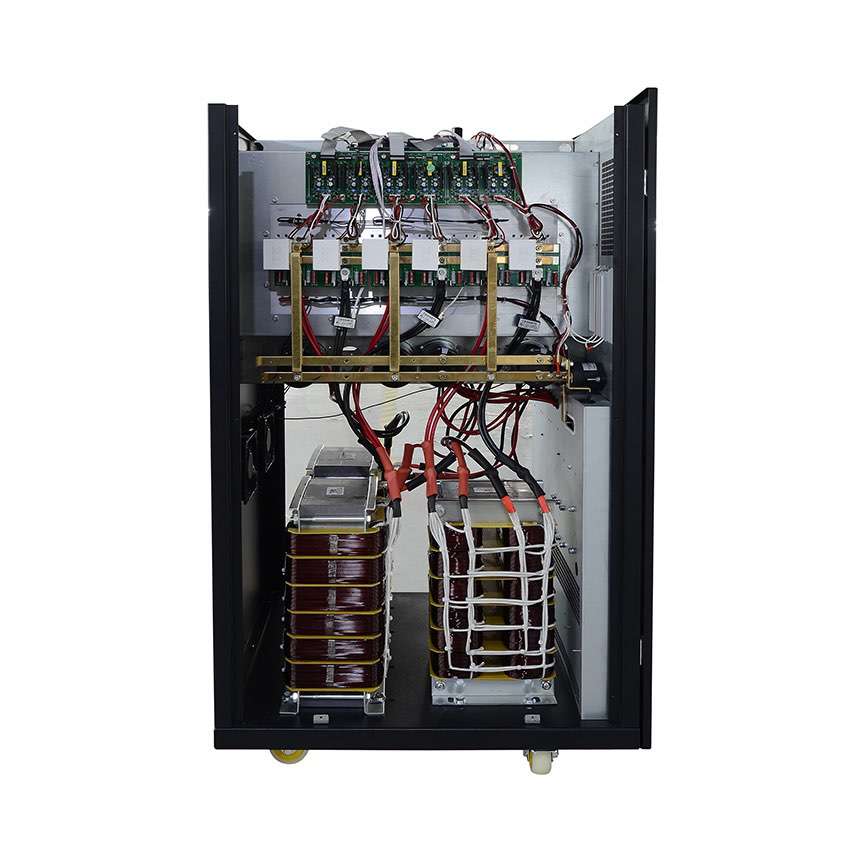

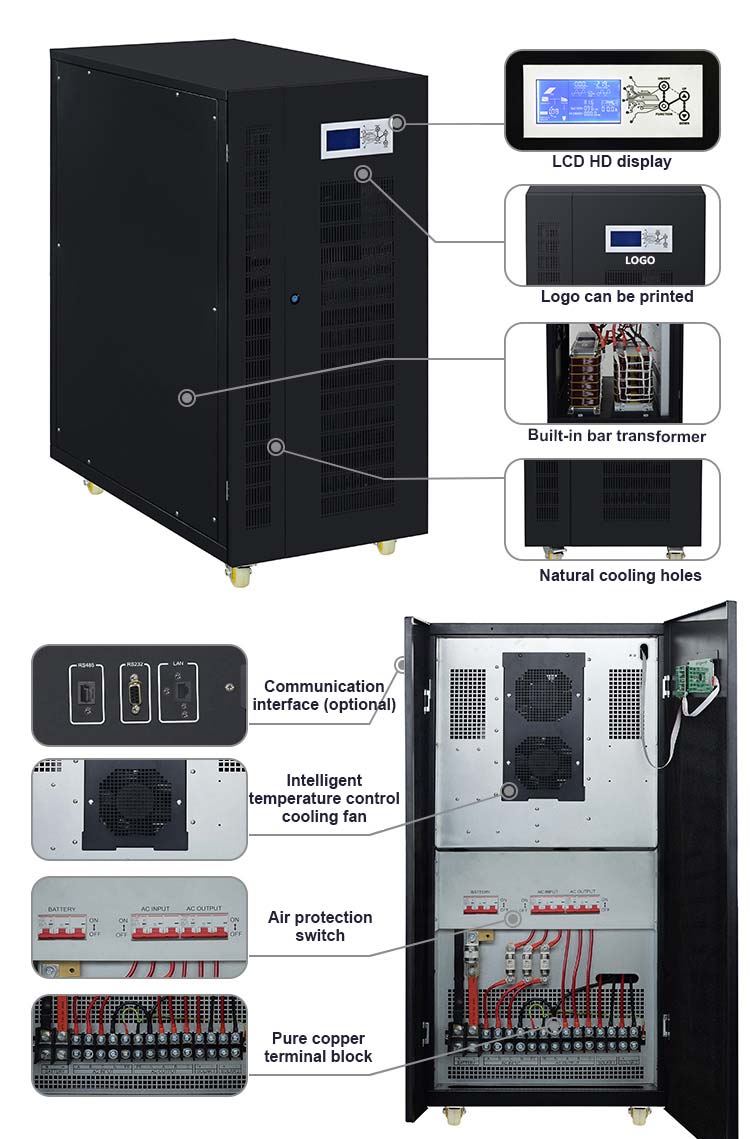

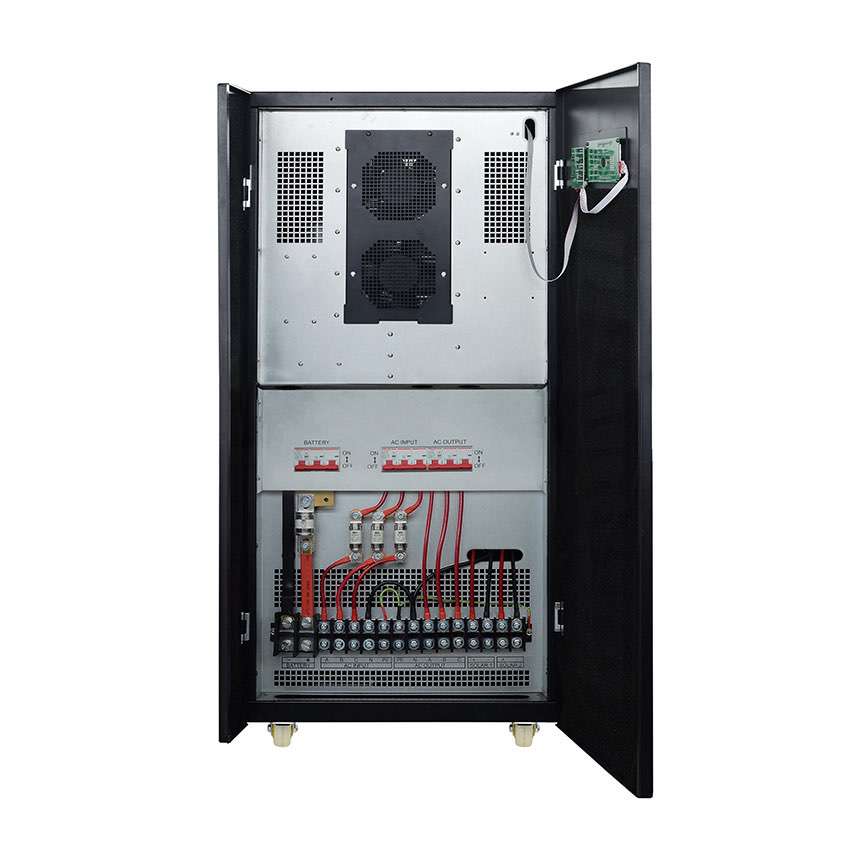

3 phase battery inverter charger details_01

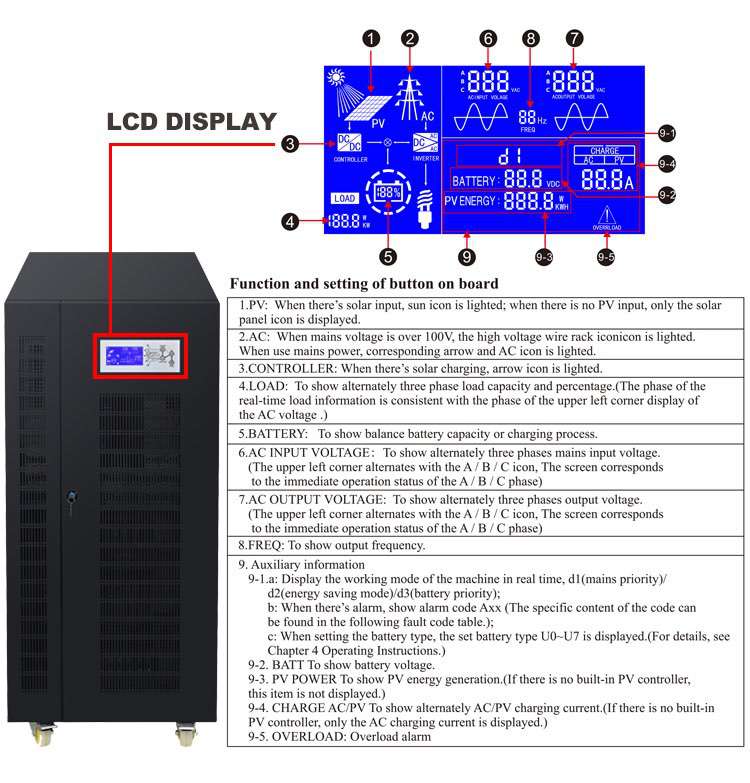

3 phase battery inverter charger lcd details_02



■ 3 Phase Battery Inverter Charger Wiring Diagram

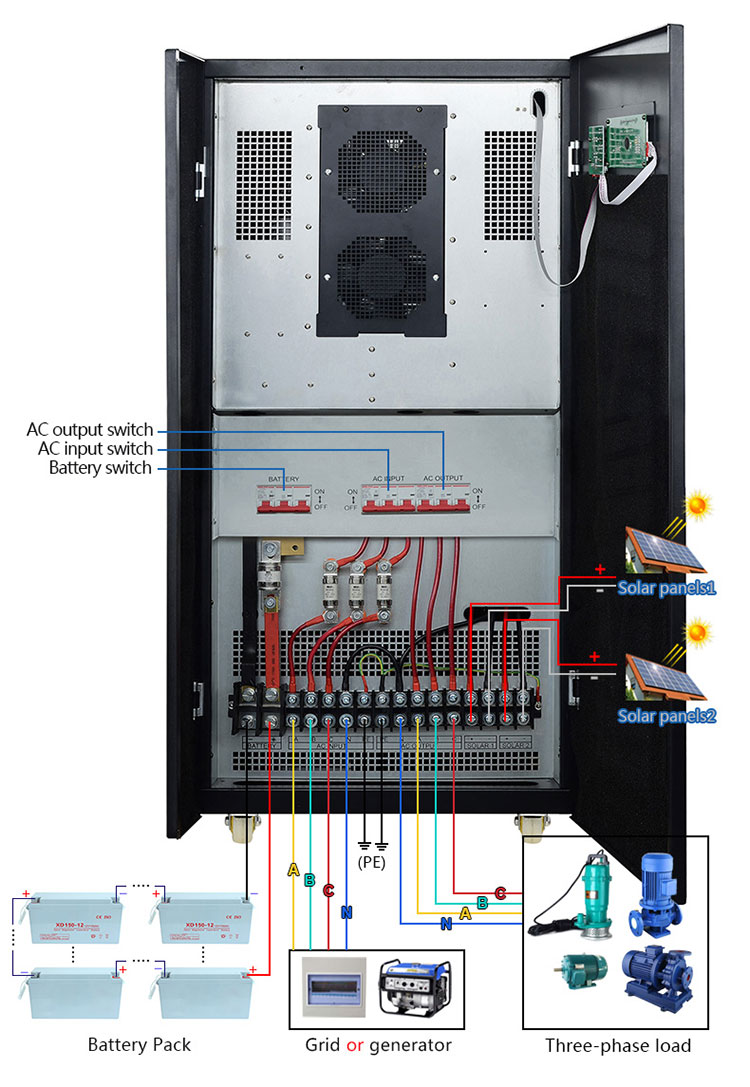

3 phase battery inverter charger wiring diagram


We offer 2 optional working modes for 3 phase inverter charger (transfer time≤4ms):

1. Home or Industry Backup System:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to home or industrial appliances, such as freezer, electric drill, water pump. When AC grid power is off, it will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Power system:
Convert DC to AC power. When battery power is lacking, it will automatic transfer to grid power for powering continuously.



■ 3 Phase Battery Inverter Charger Application



3 phase battery inverter charger application



■ Inverter Package and Delivery

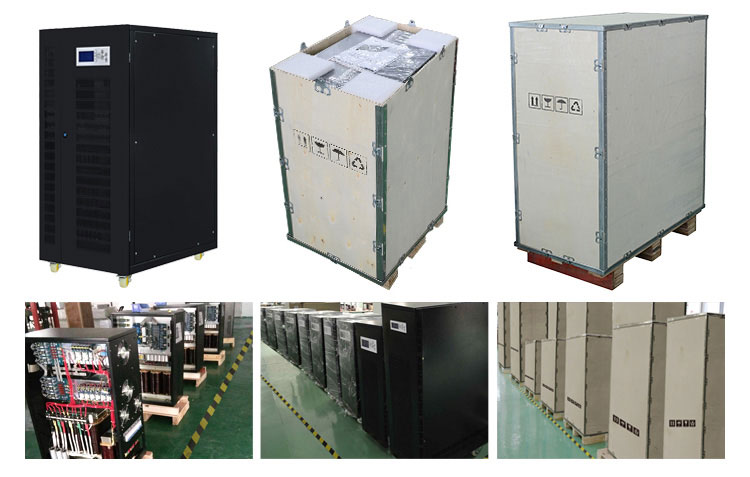

3 phase battery inverter charger package
