Feauture:

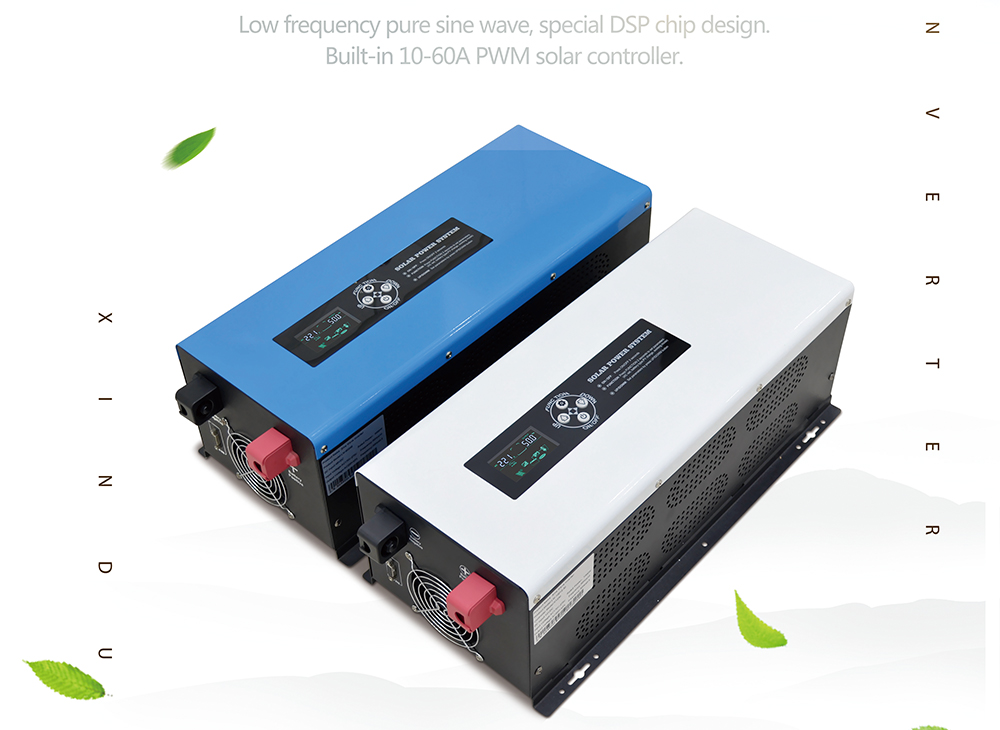

Pure sine wave output.
Built-in PWM charge controller optional.
AC charge current 0-30A adjustable; AVR output.

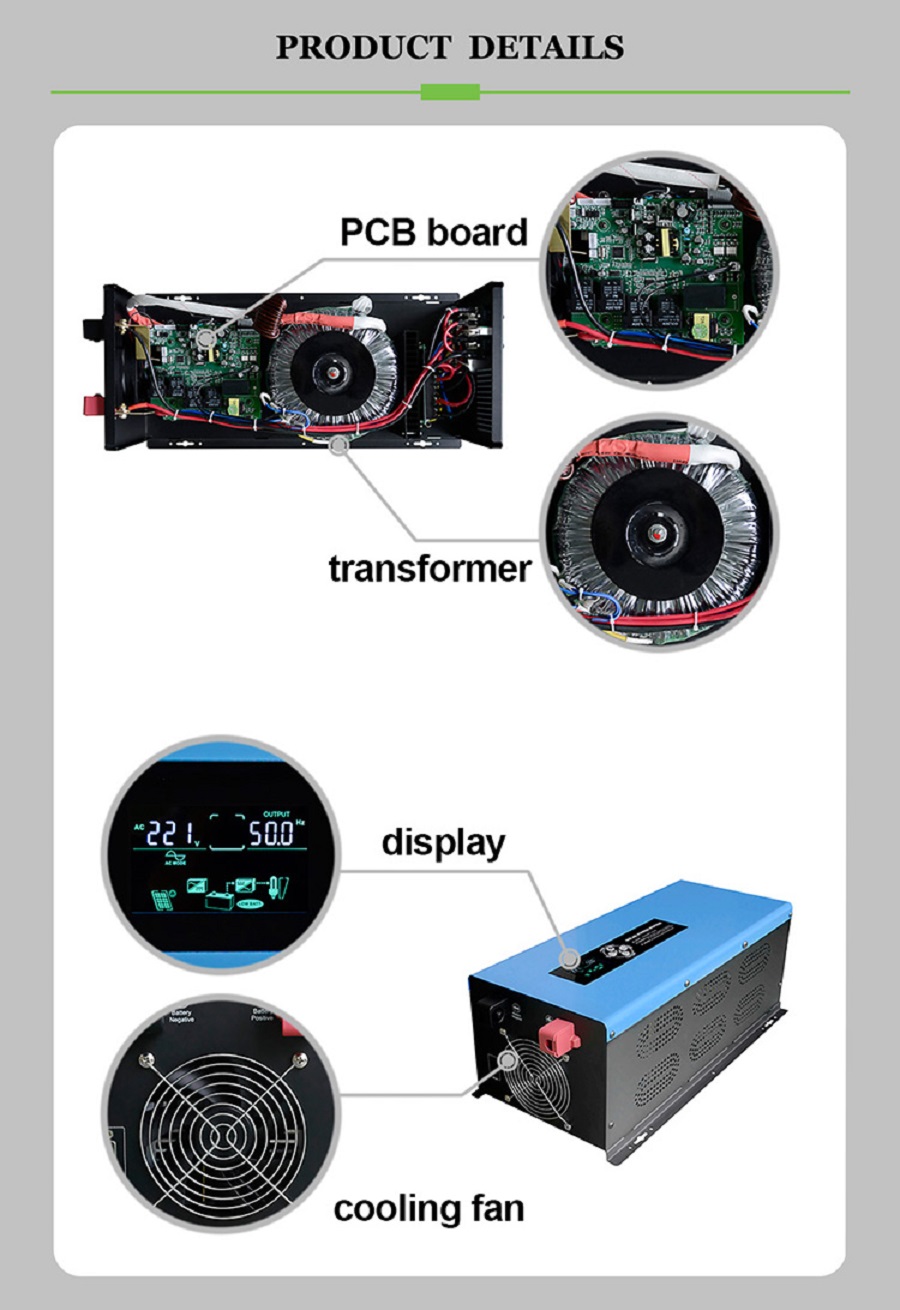

Low frequency toroidal transformer increase efficiency.
Dedicated DCP chip design; stable and high-speed operation.
Added fault code query function, easy to monitor the operation in real time.
Supports diesel or gasoline generator, adapt any tough electricity situation.
RS232 or RS485 communication port optional.
| specification | ||||||
| rated power | 1kw | 2kw | 3kw | 4kw | 5kw | 6kw |
| barrery voltage | 12/24VDC | 12/24/48VDC | 12/24/48VDC | 24/48VDC | 48VDC | 48VDC |
| machine size(L*W*Hmm) | 510*205*160 | 530*225*185 | ||||
| packing size(L*W*Hmm) | 605*305*270 | 625*320*295 | ||||
| N.W(kg) | 12 | 14.5 | 16.5 | 19 | 22 | 25 |
| G.W(kg) | 13.5 | 16 | 18.5 | 21 | 24 | 27 |
| parameter | ||||||
| DC input voltage range | 10.5~15VDC(single battery voltage) | |||||
| AC input voltage range | 85VAC~138VAC/93VAC~150VAC/170VAC~275VAC/186VAC~300VAC | |||||
| AC input frequency range | 45Hz~65Hz | |||||
| efficiency(battery mode) | ≥85% | |||||
| out voltage(battery mode) | (110VAC~240VAC)±2% | |||||
| out frequency(battery mode) | 56/60Hz±1% | |||||
| output wave(battery mode) | pure sine wave | |||||
| AC output voltage range | (110VAC~240VAC)±10% | |||||
| AC output frequency range | tracking automatically | |||||
| workking mode | AC first, battery first, saving energy mode | |||||
| AC charging current(selectable) | 0~30A | |||||
| solar charging current(selectable) | 10~60A(PMW or MPPT) | |||||
| transfer time | ≤4ms | |||||
| display | LCD | |||||
| thermal method | cooling fan in intelligent comtrol | |||||
| ≤42℃ fan rotates slowly; ≥45℃ fan rotates fast | ||||||
| protection | over-load, over-discharge, short circuit, high temperature, reverse polarity | |||||
| communication | Rs232, Rs485, SNMP, APP etc(optional) | |||||
| temperature | -10℃~40℃ | |||||
| noise | ≤55db | |||||
| humidity |
<95% |
|||||
| note | All sbecification are subject to change without prior notice | |||||
Packaging&Shipping:
1. We have the carton box and wood package, it depend on the reated power of the inverter
2. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
3. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
4. Customers specifying freight forwarders or negotiable shipping methords.
5. Delivery time: 7 days for samples; 10 to 25 days for batch goods
Payment:
1. Payment: T/T, Western Union, Paypal, Moneygram. 30% deposits, 70% balance before delivery time.
2. MOQ: 1 PCS
3. Warranty: 1 years for inverter, controller, battery. 10 years for solar panel.
