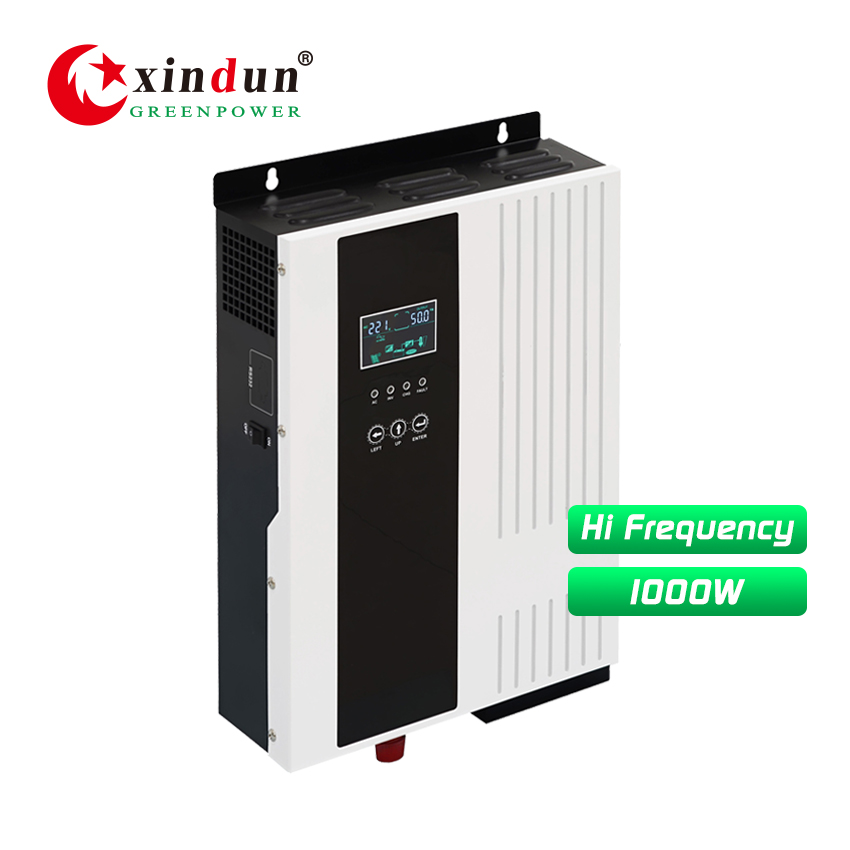

HP DC to AC Power Inverter 1000W 12V Manufacturer

1000W 12VDC to 220V/230V/240VAC | Power Inverter Pure Sine Wave | DC to AC Inverter for Sale at Best Price

  • OEM : OEM for Wholesaler/Distributor/Reseller
  • Type : DC to AC Off-Grid Inverter
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 6 pcs

Xindun dc to ac power inverter agents



In the past 14 years, Xindun has provided solar power products and services to more than 100 countries around the world.
We provide dc to ac power inverter OEM services for thousands of agents. Now we looking for agents globally.



HP 12v dc to 230v 240v 220v ac power inverter 1000w for sale





Power Inverter Feature








1 High frequency design, high power density, small size, high efficiency, low no-load loss.

2 Power inverter pure sine wave output, any types of loads adaptable.
3 Battery charge and discharge voltage parameters adjustable,suitable for different types of batteries,can prolong the life of the battery and improve system performance.
4 AC charge current 0~60A adjustable, battery capacity configuration more flexible.
5 Three working modes adjustable:AC first,Battery first,PV first.
6 Output voltage/frequency adjustable function,adapt to different grid environment.
7 Extra wide voltage and frequency input range, support mains or generator.
8 LED+LCD display, easy operation and data checking,can set each function and data directly.
9 Multi-protection function(overload,over temperature,short circuit protection and so on).
10 RS485 communication port/APP(WIFI or GPRS) optional.







Power Inverter Specification










Specification
Model: HP 10212
Rated Power 1000W
Peak Power(20ms) 3000VA
Battery Voltage 12VDC
Product Size(L*W*Hmm) 411.5x283x88
Package Size(L*W*Hmm) 459X345X147
N.W(Kg) 7
G.W(Kg) 8
Installation Method Wall-Mounted
Input DC Input Voltage Range 10.5VDC-15VDC
Rated AC input voltage 220VAC / 230VAC / 240VAC
AC Input Voltage Range 170VAC~280VAC (UPS mode)/ 120VAC~280VAC(INV mode)
AC Input Frequency Range 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz)
Output Output efficiency(Battery/PV Mode) 94%(Peak value)
Output Voltage(Battery/PV Mode) 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery/PV Mode) 50Hz±0.5 or 60Hz±0.5
Output Wave(Battery/PV Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) Follow input
Output Frequency(AC Mode) Follow input
Output waveform distortion
Battery/PV Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤1% rated power
No load loss(AC Mode) ≤1% rated power(charger does not work in AC mode)
Battery Battery
Type
VRLA Battery Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage)
Customize battery Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
Maximum charging current (Mains or PV or mains + PV)(Built-in MPPT controller model) 40A
Maximum charging current
(Built-in PWM controller model)
Mains40A+PWM controller charging current
Charging method Three-stage (constant current, constant voltage, floating charge)
Protection Battery low voltage alarm Battery undervoltage protection value+0.5V(Single battery voltage)
Battery low voltage protection Factory default: 10.5V(Single battery voltage)
Battery over voltage alarm Constant charge voltage+0.8V(Single battery voltage)
Battery over voltage protection Factory default: 17V(Single battery voltage)
Battery over voltage recovery voltage Battery overvoltage protection value-1V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Working Mode Mains priority/Solar priority/Battery priority(Can be set)
Transfer Time ≤4ms
Display LCD+LED
Thermal method Cooling fan in intelligent control
Communication(Optional) RS485/APP(WIFI monitoring or GPRS monitoring)
Environment Operating temperature -10℃~40℃
Storage temperature -15℃~60℃
Noise ≤55dB
Elevation 2000m(More than derating)
Humidity 0%~95% (No condensation)

Note: All specifications are subject to charge without prior notice.





Power Inverter Details




12v dc to ac power inverter details_0112v dc to ac power inverter circuit board details_02





Power Inverter Wiring Diagram






12v dc to ac power inverter wiring diagram



We offer 3 optional power inverter working modes (transfer time≤4ms):


1) AC priority mode (d0)
A. When the mains power is normal (in line with the inverter power input voltage range), on the one hand, the mains power charges the battery (if built-in solar controller, the mains power and solar energy charge the battery at the same time); on the other hand, only the mains power supplies power to the load (the load does not consume solar and battery energy);
B. When the mains power is abnormal (the mains power is beyond the working range of the inverter or the mains power is interrupted), the inverter will switch to the battery mode, and the battery will supply power to the load (if built-in solar controller, when the solar power is greater than the load power, the load will be completely supplied by the solar energy, and the excess energy will charge the battery; when the solar energy is less than the load power, the insufficient part will be supplemented by the battery. The load is supplied by solar energy and battery together).

2) PV priority mode (d1)
A. When the solar is normal (in line with the solar input voltage range of the inverter), if the solar power is greater than the power of the load, the load is completely powered by solar, and the solar excess enengy charges the battery, when the solar power is less than the power of the load, the insufficient part is supplemented by the battery, and the solar and the battery supply power to the load together. If the battery is low volage due to the load, then the inverter will turn to the AC mode for power supply, and the solar will only charge the battery;
B. When the solar is abormal (the solar volage exceeds the working range of the inverter or the solar is interrupted, the inverter will directly switch to the AC mode for power supply, and the mains power will charge the battery.

3) Battery priority mode (d2)
A. When the inverter has no low-voltage battery alarm, even if the mains power input is normal, the inverter will switch to the battery mode, and the battery will supply power to the load. When the solar power is greater than the load power, the solar power will supply power to the load completely. and the excess enengy will charge the battery. When the solar power is less than the load power, the insufficient part will be supplemented by the battery, and the solar and battery will supply power to the load together;
B. When the battery is low voltage (i.e. the voltage of a conventional single battery is 11vdc) and the mains power input is normal, the inverter will switch to the AC mode and the mains power will supply power to the load completely, while the solar energy will charge the battery but the mains power does not charge the battery.





Inverter Package and Delivery




12v dc to ac power inverter package



Why Choose Us?






why choose xindun - 12v dc to ac power inverter manufacturer



1. We are a professional manufacturer of dc to ac power inverter with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 14 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
5. 200,000 pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.





About Xindun Power






about xindun - 12v dc to ac power inverter manufacturer picture



about xindun - 12v dc to ac power inverter manufacturer introduction





Inverter Factory






Xindun 12v dc to ac power inverter factory





Qualifications and Certificates






Xindun qualifications and certificates





Global Solar Exhibitions






Xindun global solar exhibitons





FAQ






Q1: Are you a factory?

A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.

Q2: What is the price of power inverter dc to ac?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Power inverter dc to ac factory direct sales, no middlemen earn price difference.

Q3: What type of inverters do you produce?
A: We produce various types of inverters: pure sine wave inverters, off-grid inverters, on/off grid inverters, solar hybrid inverters, single phase inverters, 3 phase inverters, low frequency inverters, high frequency inverters, etc. Don’t know which type of inverter to choose? Contact XINDUN now!

Q4: What\'s the difference between pure sine wave inverter and modified sine wave inverter?
A: Pure sine wave output inverter is just as good as the public power grid, even better. Low repaired rate, long lifespan, without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output inverter has a negative impact on appliances and can\'t load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don\'t like the modified wave.

Q5: How to solve the power inverter dc to ac technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
