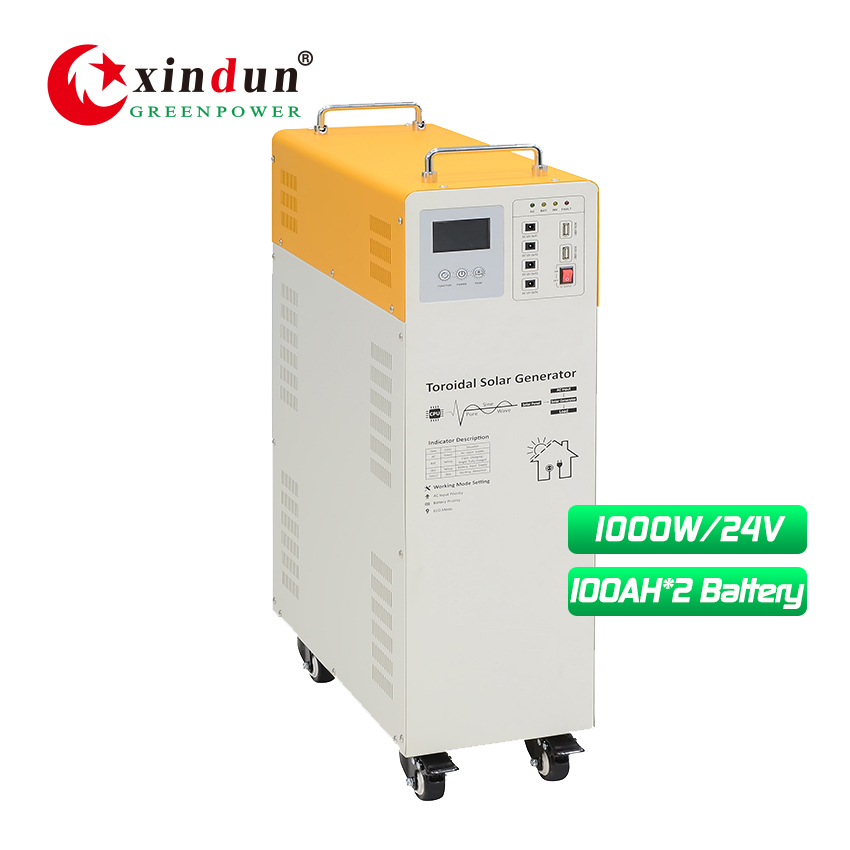

Rated Power: 1000 Watt, Input: DC24 Volt, Ouput: AC110/120/220/230/240 Volt, 2*AC Output Socket, 4*DC12Volt, 2*DC5Volt USB | Solar Battery Generator Combines Inverter, MPPT/PWM Charge Controller, Can Built-in 2*100AH Battery
Product
■ Solar Battery Generator System Feature
1. 3 times peak power, excellent loading capability.
2. Portable solar generator combines inverter/solar controller/battery all in one.
3. Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.
4. Working mode AC prior/ECO mode/Solar prior selectable.
5. AC charging current 0-30A selectable.
6. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7. Adding fault code to monitor real-time work situations.
8. Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9. Digital LCD and LED for visualization of operation status of the equipment.
0. Solar battery generators inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.
■ Solar Battery Generator System Specification
| Specification | ||
| Model : XTG | 102P/W | |
| Capacity | Rated power | 1000 Watt |
| Peak power（20ms） | 3000VA | |
| Input | Stardard battery voltage | 24VDC |
| AC input voltage range | 73~138VAC(110VAC) / 83~148VAC(120VAC) /145~275VAC(220VAC)/155~285VAC(230VAC)/165~295VAC(240VAC) | |
| AC input frequency range | 45Hz~55Hz（50Hz);55Hz~65Hz（60Hz) | |
| Output | Conversion efficiency | ≥85%(Battery mode); >99%(AC mode) |
| AC Output voltage |
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%(AC mode) |
|
| AC Output frequency | 50/60Hz±1%(Battery mode); Tracking Automatically(AC mode) | |
| AC Output waveform | Pure Sine Wave | |
| THD | ≤3%（Linear load) | |
| DC Output voltage | 4*DC 12V; 2*USB（5V） | |
| AC charger | AC charging current | 0~30A(Depends on model) |
| AC charging method | Three-stage(constant current, constant voltage, floating charge) | |
| solar charger （Optional） | Charging mode | PWM/MPPT |
|
Max PV input voltage(Voc) (At the lowest temperature) |
PWM: 50V; MPPT: 150V | |
| PV input voltage range | PWM: 30~44V; MPPT: 30~120V | |
| Charge & discharge current | 40A | |
| Max PV input power | 1120W | |
| Inbuilt battery | Capacity | 2*100AH |
| Battery size(LxWxH)/pcs | 407*174*210（240) | |
| Other | Transfer time | ≤4ms |
| Protection | with over-voltage, low-voltage, overload, short circuit, high tempreature protections | |
| Display | LCD & LED | |
| Cooling way | Cooling fan in intelligent control | |
|
Working mode (selectable) |
d1 | AC priority mode |
| d2 | ECO mode | |
| d3 | Solar priority mode | |
|
Work environment |
Operating temperature | -10℃~40℃ |
| Storage temperature | -15℃~60℃ | |
| Elevation | 2000m（More than derating） | |
| Humidity | 0%~95% ,No condensation | |
| Physical | Dimention L x W x H(mm) | 465*210*775 |
| Net weight(kg)(without battery) | 21 | |
| Packing | Dimention L x W x H(mm) | 535*270*890 |
| Gross weight(kg)(without battery) | 31 | |

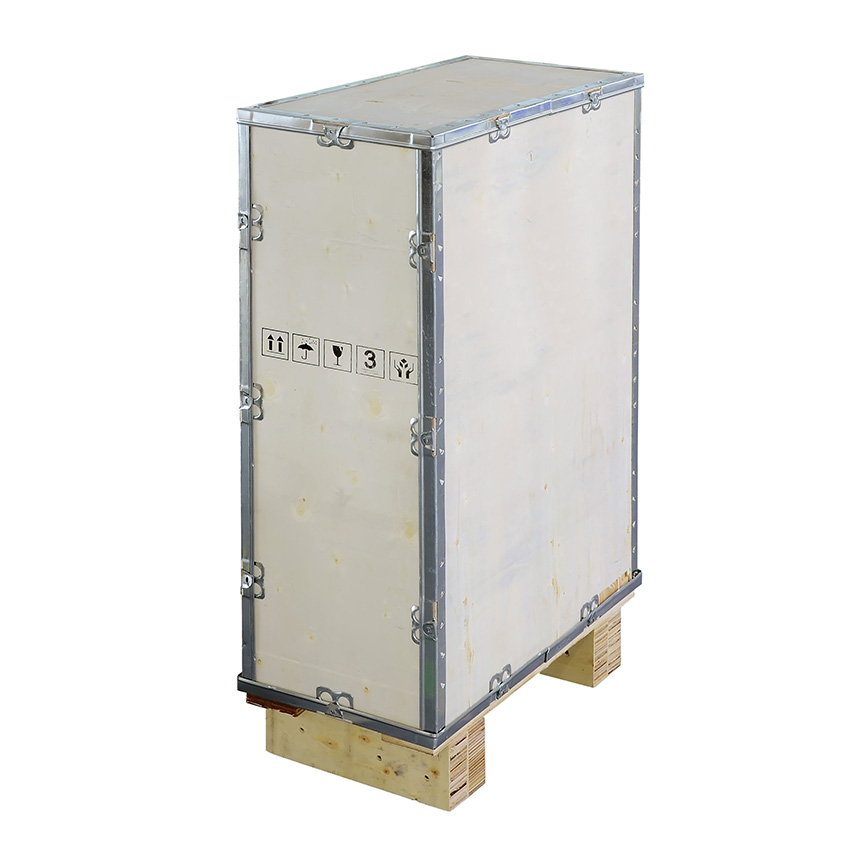

| Quantity/CTN | 1pcs per wooden case | |
| Note: All specifications are subject to charge without prior notice | ||

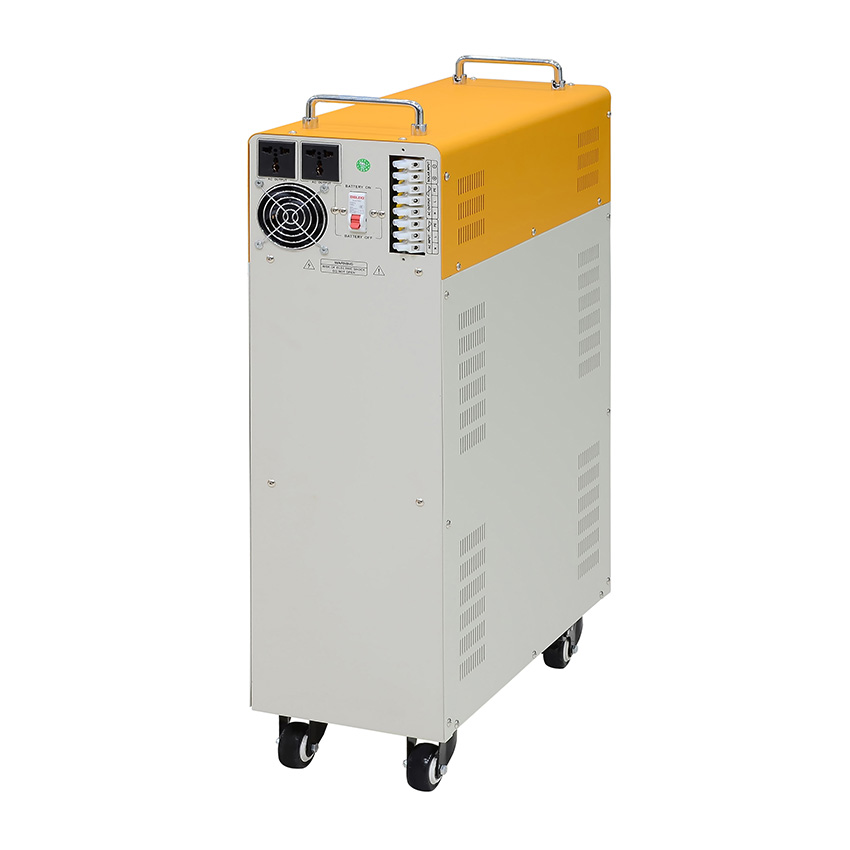

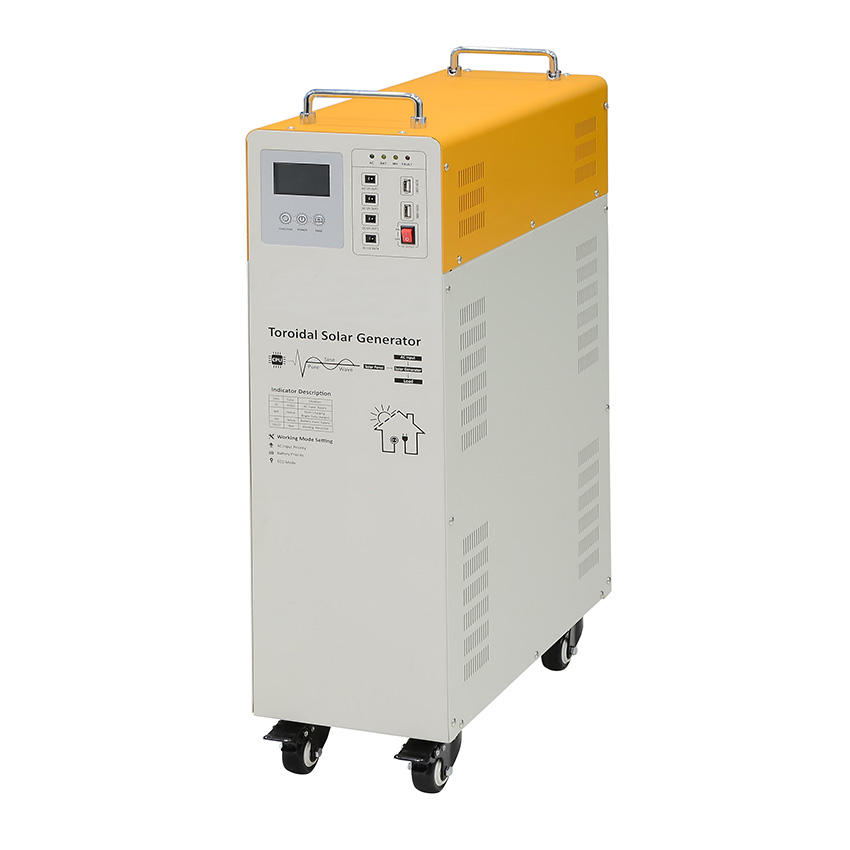

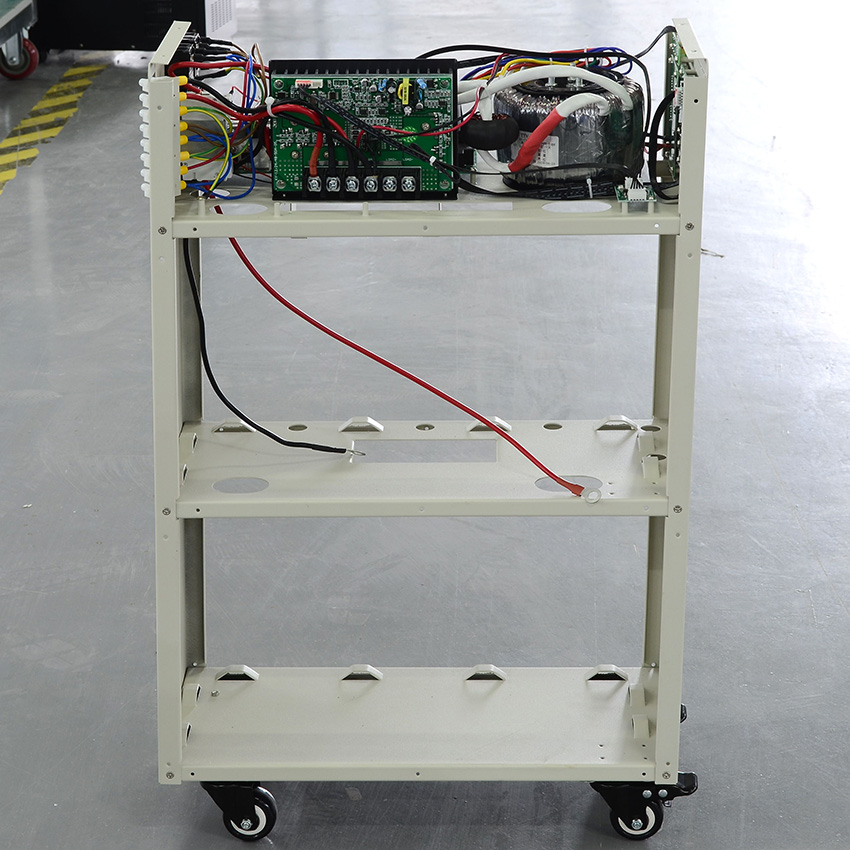

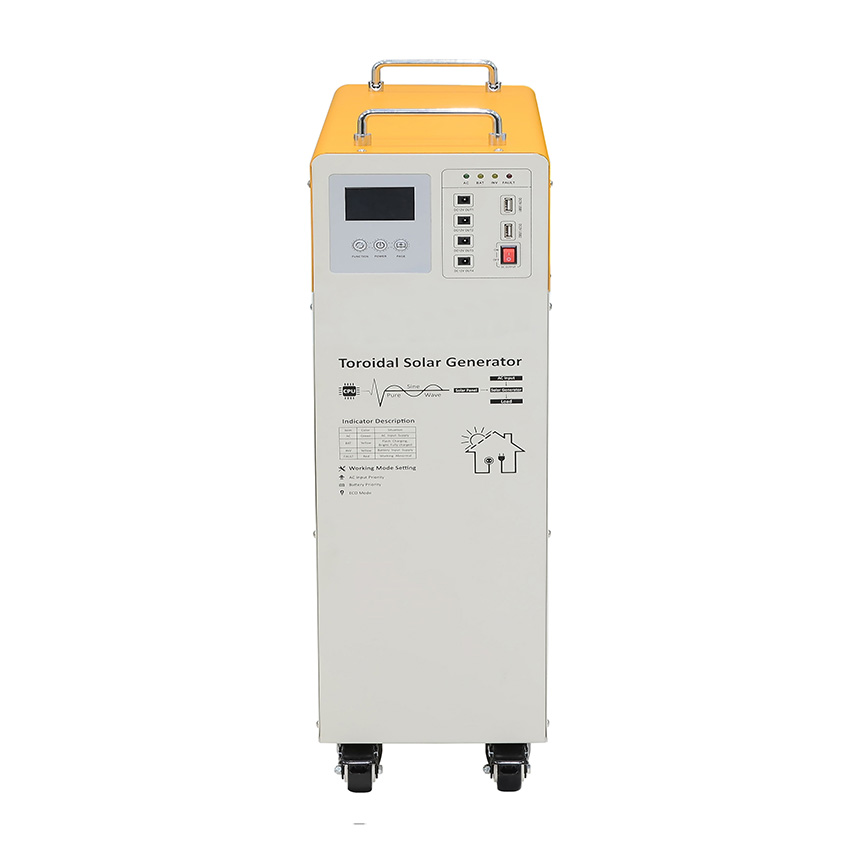

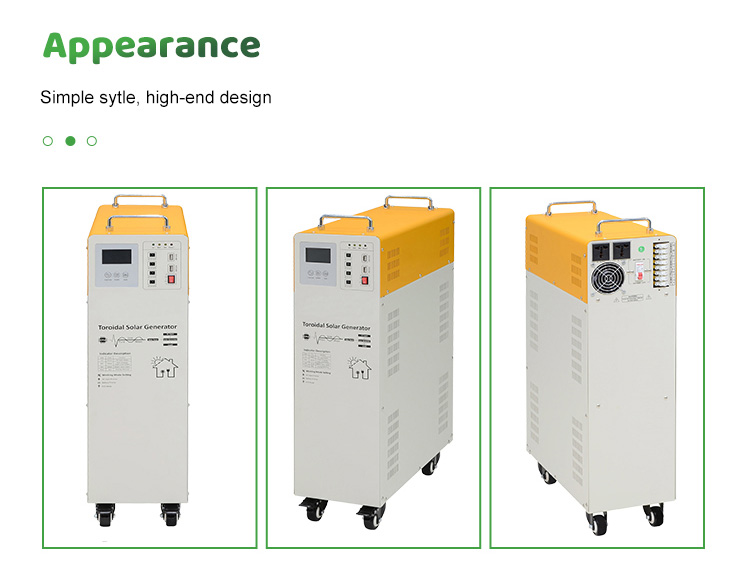

■ Solar Battery Generator System Details
■ Solar Battery Generator System Wiring Diagram
■ Solar Battery Generator System Application
■ Why Choose Us？
■ About Xindun Power
■ Solar Battery Generator Factory
■ Qualifications and Certificates
■ Global Solar Exhibitions
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: How much does solar battery generator cost?
A: Tell me your requirements, such as power, voltage, battery capacity, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Battery generators factory direct sales, no middlemen earn price difference.
Q3: What\'s the difference between solar inverter and solar generator?
A: Both solar inverter and solar generator are widely used in PV solar energy into electric energy, and design to convert DC (Direct Current) into AC (Alternating Current). Solar generator combines solar inverter/solar charge controller/battery all in one kit. Generally solar generator has multiple output: AC output socket and DC 12V, USB 5V. Compared with solar inverter, solar battery generator is more convenient to use.
Q4: How to solve the solar portable battery generator technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
