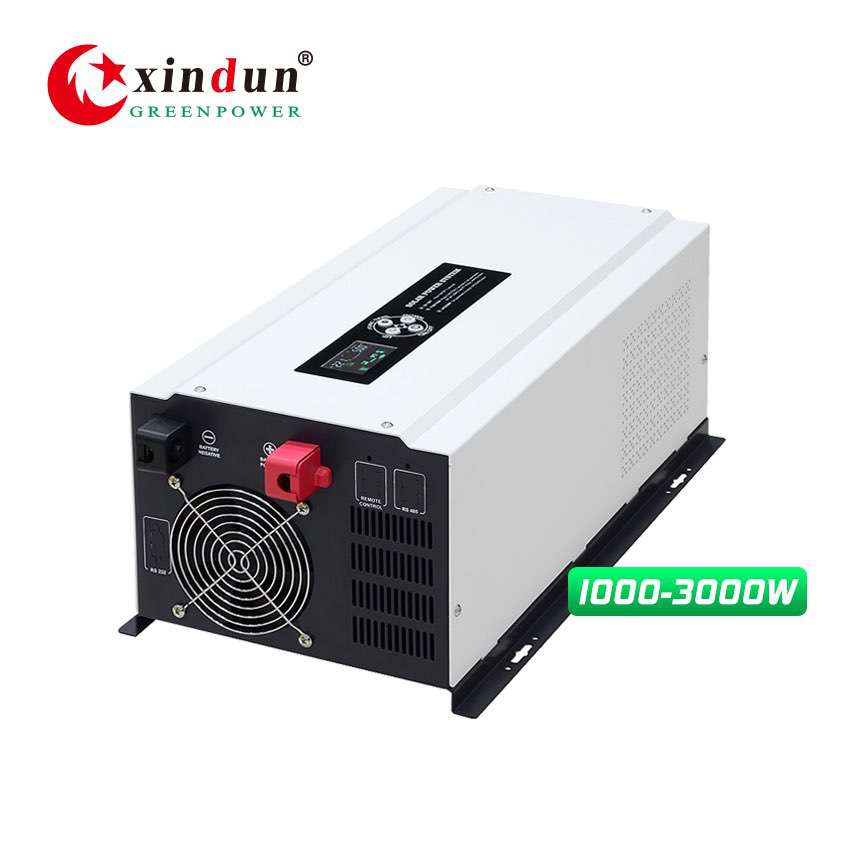

1KW/1500W/2KW/3KW DC12V/24Volt/48V Convert to AC110V/120V/220V/230V/240V | Pure Sine Wave Inverter | Best Power Inverter for Trucks
Product
Xindun has rich experience in serving below customers:
Solar Installation Companies
Power Supply and Electrical Service Companies
Building Materials Companies
Agricultural and Commercial and Industrial Companies
Shipping Companies
RV Companies
Project Contractors
We are now looking for agents globally.
■ Truck Inverter Feature

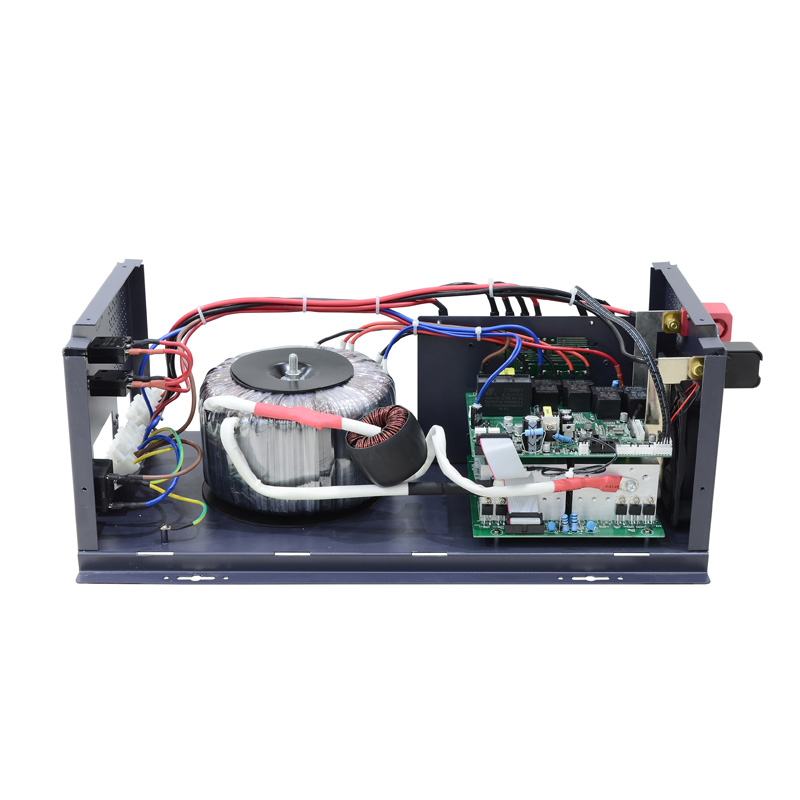

1 Low frequency toroidal transformer increase efficiency, Pure sine wave inverter output；

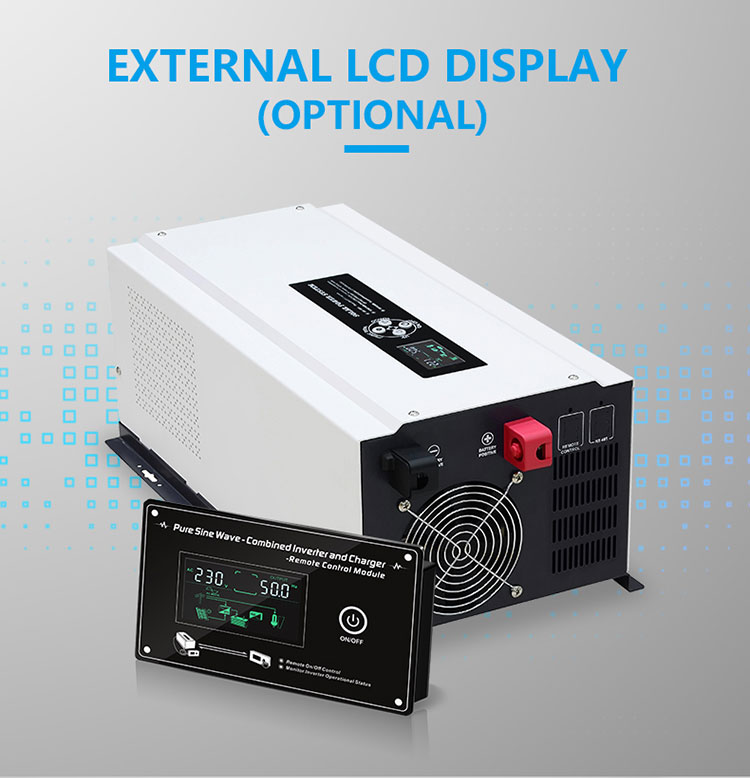

2 Integrated LCD display; One-button start with an external display screen(optional)；
3 Dedicated DCP chip design; stable and high-speed operation；
4 AC charge current 0-30A adjustable; battery capacity configuration more flexible；
5 Three types working modes adjustable:AC first, DC first, energy-saving mode；
6 AVR output, all-around automatic protection function；
7 Frequency adaptive function, adapt to different grid environments；
8 Added fault codes query function,facilitate user to monitor the operation state in real time；
9 Supports diesel or gasoline generator, adapt any tough electricity situation；
0 Power inverter with RS485 communication port/APP(WIFI or GPRS) optional.
■ Truck Inverter Specification
| Specification | ||||||
| Model DP | 10212/24 | 15212/24/48 | 20212/24/48 | 30224/48 | 35224/48 | |
| Rated Power | 1KW | 1500W | 2KW | 3KW | 3500W | |
| Peak Power（20ms) | 3KVA | 4500VA | 6KVA | 9KVA | 10500VA | |
| Start Motor | 1HP | 1.5HP | 2HP | 3HP | 3HP | |
| Battery Voltage | 12/24/48VDC | 24/48VDC | ||||
| Size(L*W*Hmm) | 555*297*184 | |||||
| Packing Size(L*W*Hmm) | 620*345*255 | |||||
| N.W.(kg) | 12 | 13 | 15.5 | 18 | 19 | |
| G.W.(kg)（Carton Packing） | 14 | 15 | 17.5 | 20 | 21 | |
| Installation Method | Wall-Mounted | |||||
| Parameter | ||||||
| Input | DC Input Voltage Range | 10.5-15VDC（Single battery voltage） | ||||
| AC Input Voltage Range | 85VAC~138VAC（110VAC） / 95VAC~148VAC（120VAC） / 170VAC~275VAC（220VAC） / 180VAC~285VAC（230VAC） / 190VAC~295VAC（240VAC） | |||||
| AC Input Frequency Range | 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) | |||||
| Max AC charging current | 0~30A (Depending on the model） | |||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | |||||
| Output | Efficiency(Battery Mode) | ≥85% | ||||
| Output Voltage(Battery Mode) | 110VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% | |||||
| Output Frequency(Battery Mode) | 50/60Hz±1% | |||||
| Output Wave(Battery Mode) | Pure Sine Wave | |||||
| Efficiency(AC Mode) | >99% | |||||
| Output Voltage(AC Mode) | 110VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10% | |||||
| Output Frequency(AC Mode) | Tracking Automatically | |||||
| Output waveform distortion (Battery Mode) |
≤3%（Linear load） | |||||
| No load loss(Battery Mode) | ≤0.8% rated power | |||||
| No load loss(AC Mode) | ≤2% rated power（ charger does not work in AC mode） | |||||
| No load loss(Energy saving Mode) | ≤10W | |||||
| Battery Type | VRLA Battery | Charge Voltage :14V; Float Voltage:13.8V( 12V system; 24V system x2 ; 48V system x4) | ||||
| Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) |
|||||
| Protection | Battery undervoltage alarm | Factory default: 11V（12V system; 24V system x2; 48V system x4） | ||||
| Battery undervoltage protection | Factory default: 10.5V（12V system; 24V system x2; 48V system x4） | |||||
| Battery overvoltage alarm | Factory default: 15V(12V system; 24V system x2; 48V system x4) | |||||
| Battery overvoltage protection | Factory default: 17V(12V system; 24V system x2; 48V system x4) | |||||
| Battery overvoltage recovery voltage | Factory default: 14.5V(12V system; 24V system x2; 48V system x4) | |||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||
| Temperature protection | >90°C（Shut down output） | |||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | ||||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | |||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | |||||
| Working Mode | Battery First/AC First/Saving Energy Mode | |||||
| Transfer Time | ≤4ms | |||||
| Display | LCD（External LCD Display(Optional)） | |||||
| Thermal method | Cooling fan in intelligent control | |||||
| Communication(Optional) | RS485/APP（WIFI monitoring or GPRS monitoring） | |||||
| Environment | Operating temperature | -10℃~40℃ | ||||
| Storage temperature | -15℃~60℃ | |||||
| Noise | ≤55dB | |||||
| Elevation | 2000m（More than derating） | |||||
| Humidity | 0%~95% ,No condensation | |||||
| Note: All specifications are subject to charge without prior notice | ||||||

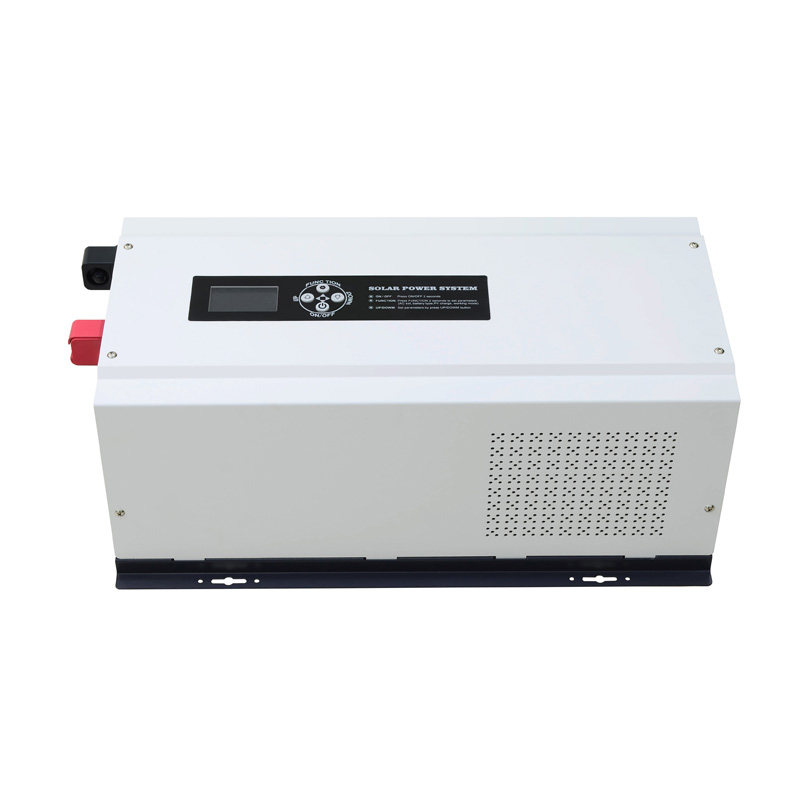

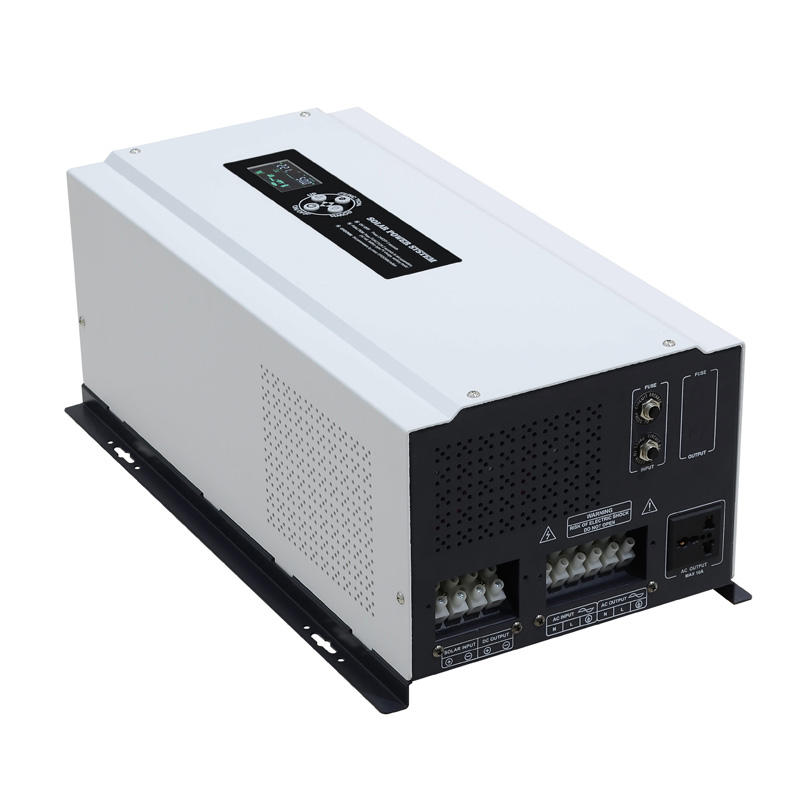

■ Truck Inverter Details

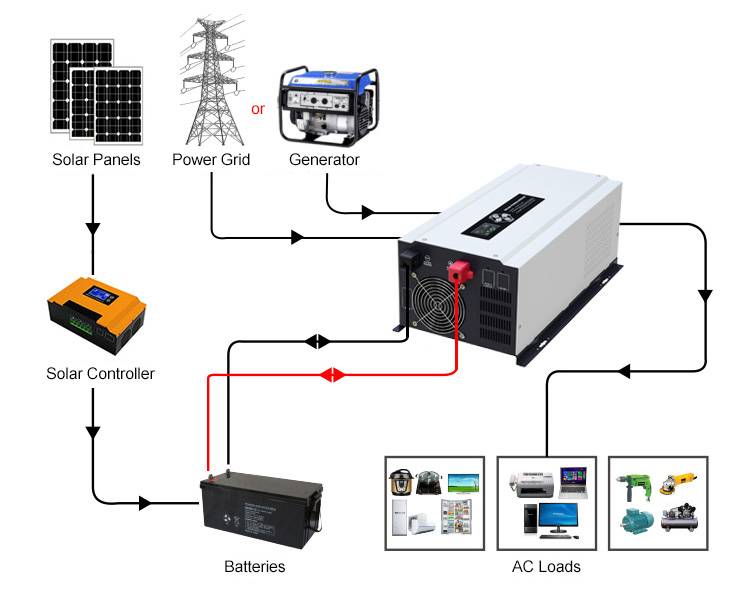

■ Truck Inverter Wiring Diagram
Xindun best power inverter usually has the following two method of application:
1. Home or Truck Backup System:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to home/truck appliances, such as light, rice cooker, refrigerator, TV. When AC grid power is cut off, inverter will automatic transfer switch to battery power and convert DC to AC power.
2. Wind or Solar Power System:
The electricity generated by solar or wind energy is DC (direct current), inverter will convert DC to AC power. When battery power is lacking, it will automatic transfer to AC grid power for powering continuously.

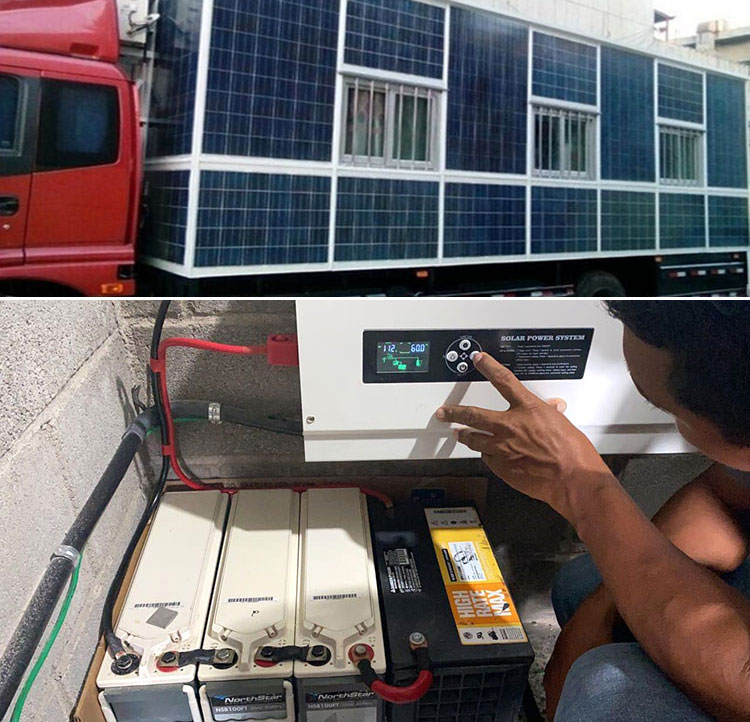

■ Truck Inverter Application

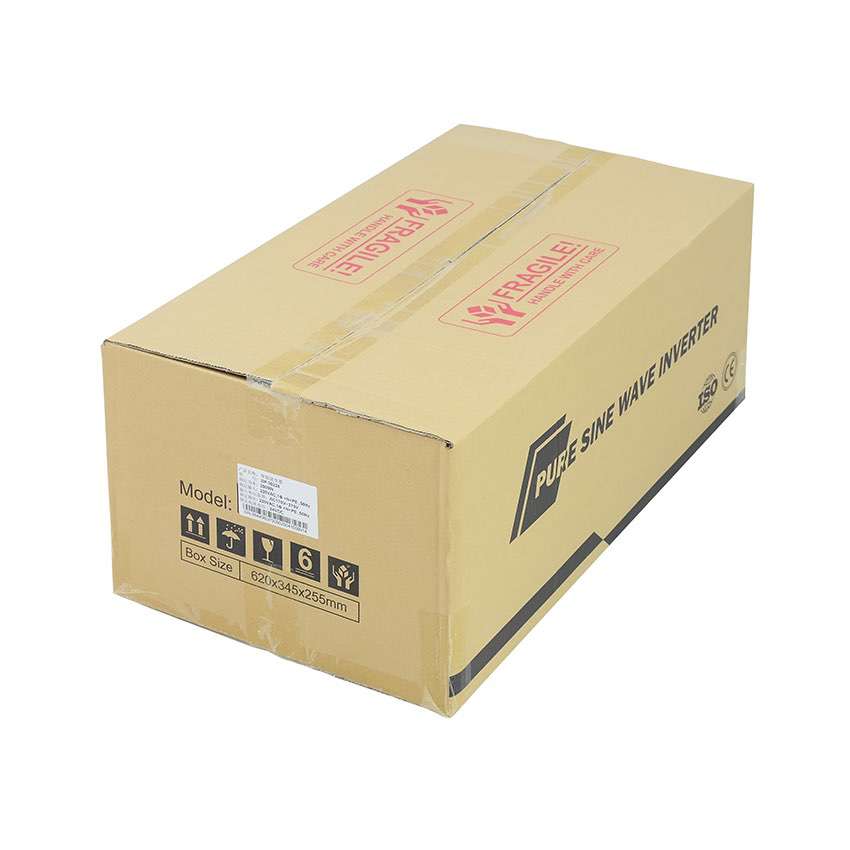

■ Inverter Package and Delivery
■ Why Choose Us？
■ About Xindun Power
■ Truck Inverter Factory
■ Qualifications and Certificates
■ Global Solar Exhibitions
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: What is the price of power inverter?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Power inverter factory direct sales, no middlemen earn price difference.
Q3: What type of inverters do you produce?
A: We produce various types of inverters: pure sine wave inverters, off-grid inverters, on/off grid inverters, solar hybrid inverters, single phase inverters, 3 phase inverters, low frequency inverters, high frequency inverters, etc. Don’t know which type of inverter to choose? Contact XINDUN now!
Q4: What\'s the difference between pure sine wave inverter and modified sine wave inverter?
A: Pure sine wave output inverter is just as good as the public power grid, even better. Low repaired rate, long lifespan, without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output inverter has a negative impact on appliances and can\'t load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don\'t like the modified wave.
Q5: How to solve the power inverter technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
