Home power station 300W 600W 1200W 2200W 3000W 5000W 6000W 7000W, built-in LiFePO4 Battery 50Ah 100Ah 150Ah or 200Ah, Ouput: AC110V/220V with AC Outlet / terminal, and DC12V / 5V USB plug & play design | Portable solar power station combines pure sine wave inverter, MPPT solar controller and lifepo4 in one box
Product
■ LiFePO4 Solar Power Station Feature

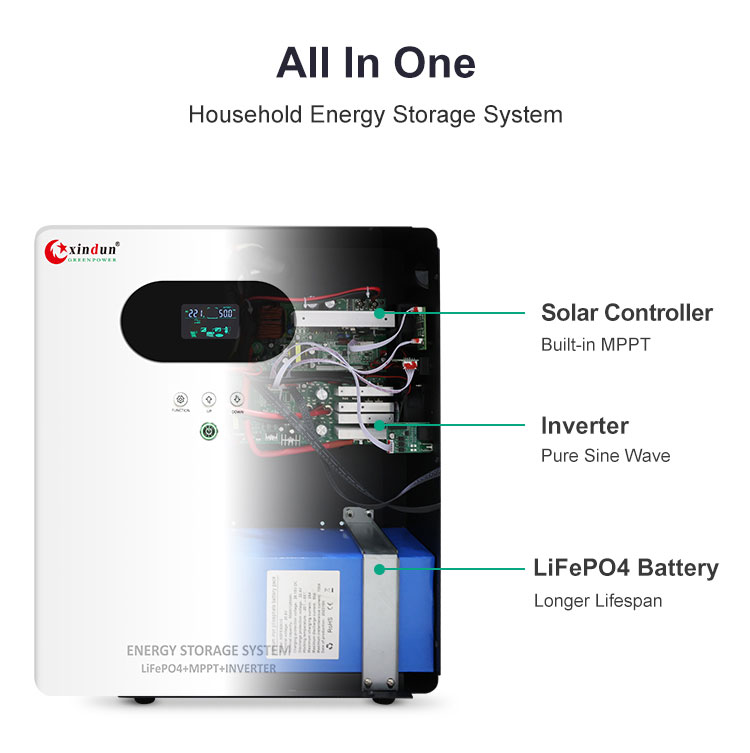

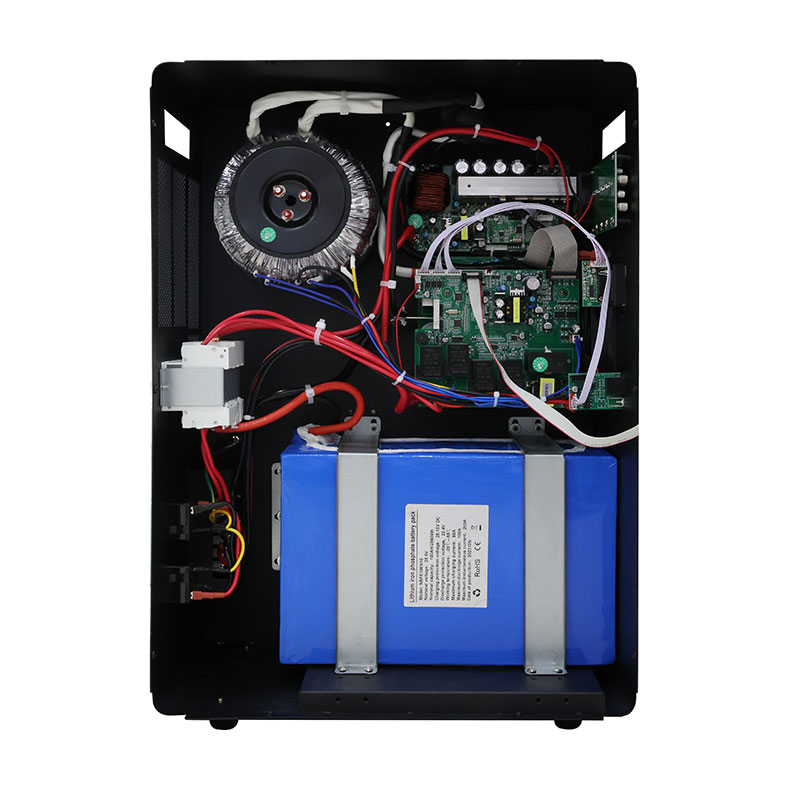

- Convenient installation, integrating mppt solar controller, pure sine wave inverter and lifepo4 battery all in one machine.
- Compact and elegant design, unique art design and convenient output connection port.

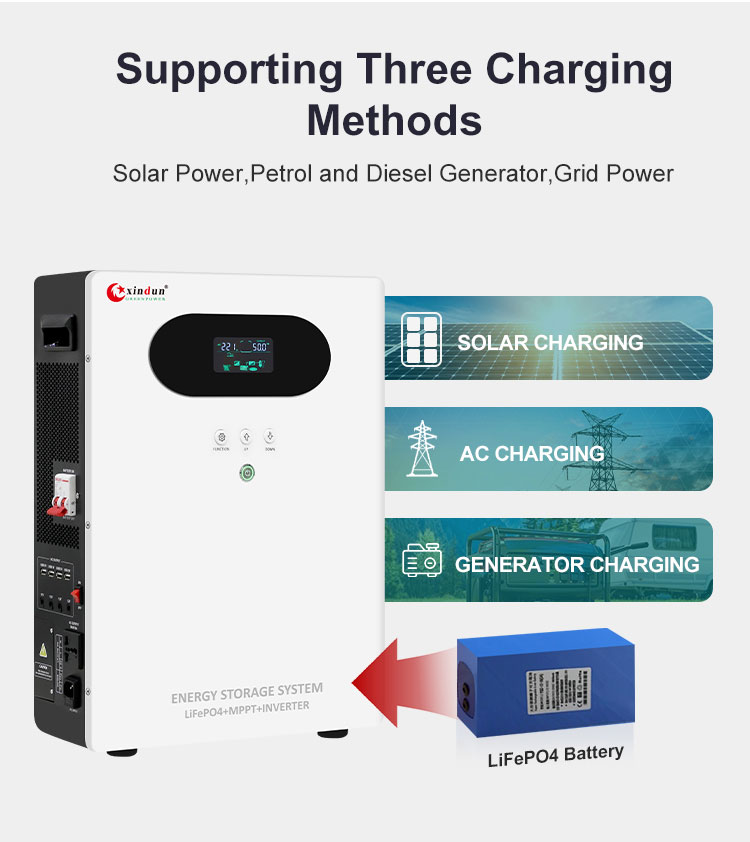

- Flexible energy storage capacity, supporting three charging methods: solar power, petrol and diesel generator, and grid power.
- Support wifi or app monitoring.
- With overvoltage, overtemperature, overload, battery BMS report and comprehensive protection.
■ LiFePO4 Solar Power Station Specification
| Model ESS-Li | 301H/A | 601H/A | 122H | 222H | 302H | 502H | 502H/150 | 502H/200 | 602H | 702H |
| Power | ||||||||||
| Rated Power | 300W | 600W | 1200W | 2200W | 3000W | 5000W | 5000W | 5000W | 6000W | 7000W |
| Battery | ||||||||||
| Standard Battery Voltage | 12.8VDC | 25.6VDC | 51.2VDC | |||||||
| Battery Type | LiFePO4 Battery | |||||||||
| Battery Capacity | 50AH | 100AH | 150AH | 200AH | ||||||
| Max Charge Current (utility grid+solar) | 25A | 30A | 30A | 60A | 55A | 90A | 90A | 90A | 110A | 110A |
| Max utility grid/solar charge current | 20A/5A | 20A/10A | 20A/10A | 40A/20A | 40A/15A | 60A/30A | 60A/30A | 60A/30A | 80A/30A | 80A/30A |
| AC Input | ||||||||||
| AC Input Voltage | 110VAC/120VAC/220VAC/230VAC/240VAC | |||||||||
| AC Input Frequency | 45Hz~55Hz（50Hz），55Hz~65Hz（60Hz） | |||||||||
| AC Output | ||||||||||
| Output Wave | Pure sine wave | |||||||||
| Conversion efficiency(INV mode) | >85% | |||||||||
| Output Voltage/Frequency (INV mode) | 110VAC/120VAC/220VAC/230VAC/240VAC / 50Hz±1%,60Hz±1% (Can be set) | |||||||||
| MPPT Solar Charge Controller | ||||||||||
|
Max PV Input Voltage（Voc) (At The Lowest Temperature) |
120VDC | 120VDC | 120VDC | 180VDC | 180VDC | 180VDC | 180VDC | 180VDC | 180VDC | |
| PV Array Maximum Power | 280W | 560W | 1120W | 2240W | 3360W | 3360W | 3360W | 4480W | 4480W | |
| MPPT Tracking Voltage Range | 15V-80CDV | 30VDC-100VDC | 30VDC-100VDC | 60VDC-140VDC | ||||||
| Other | ||||||||||
| Protection | Battery undervoltage protection/Battery overvoltage protection/Battery overvoltage recovery voltage/Overload power protection/Short circuit protection/Overtemperature protection | |||||||||
| Protection Degree | IP20 | |||||||||
| Display | LCD | |||||||||
| Cooling method | Cooling fan in intelligent control | |||||||||
| Communication | RS485, Mobile APP（WIFI or GPRS monitor）（optional） | |||||||||
| Working Mode | Mains priority/PV priority | |||||||||
| Operating Temperature | -15 ℃ ~40 ℃ | |||||||||
| Relative Humidity | 0%-95% (No condensation) | |||||||||
| Size | ||||||||||
| Product Size(L*W*Hmm) | 560*380*150 | 630*430*219 | 525*245*938 | 540*325*1157 | ||||||
| Package Size(L*W*Hmm) | 610*435*225 | 680*485*295 | 585*305*1100 | 600*385*1285 | ||||||
| N.W.(kg)(excluding battery) | 7 | 10 | 15 | 20.5 | 37 | 40 | 52.5 | 52.5 | 54.5 | 57.5 |
| G.W.(kg)(excluding battery) | 8.5 | 11.5 | 16.5 | 22.5 | 45 | 48 | 62.5 | 62.5 | 64.5 | 67.5 |

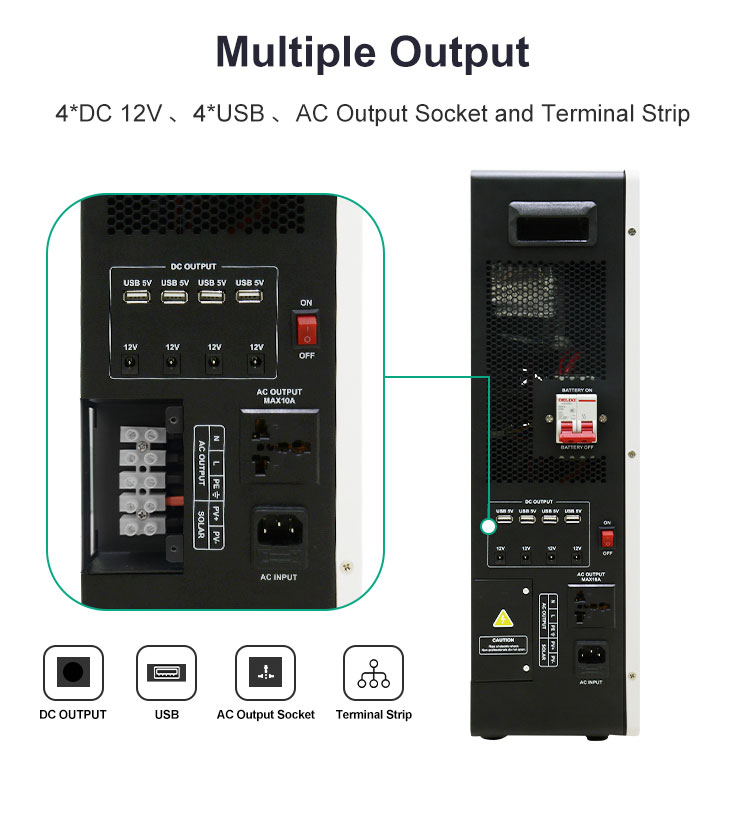

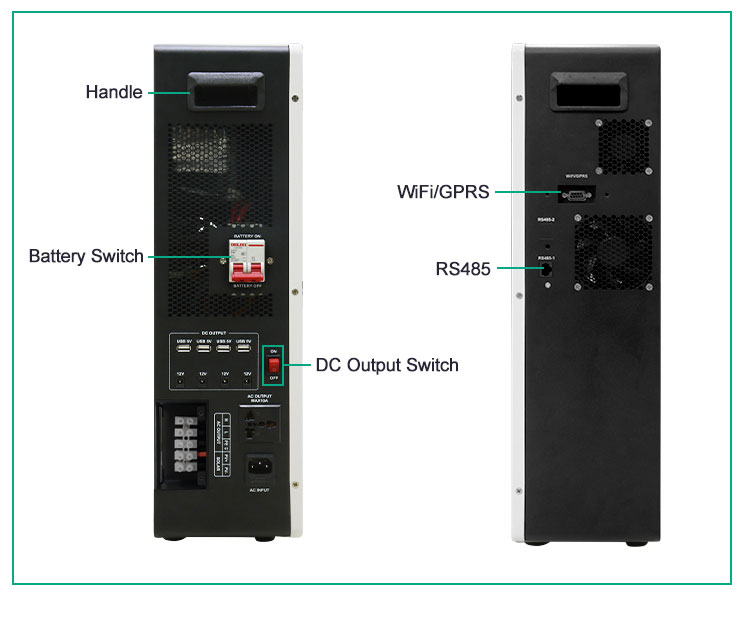

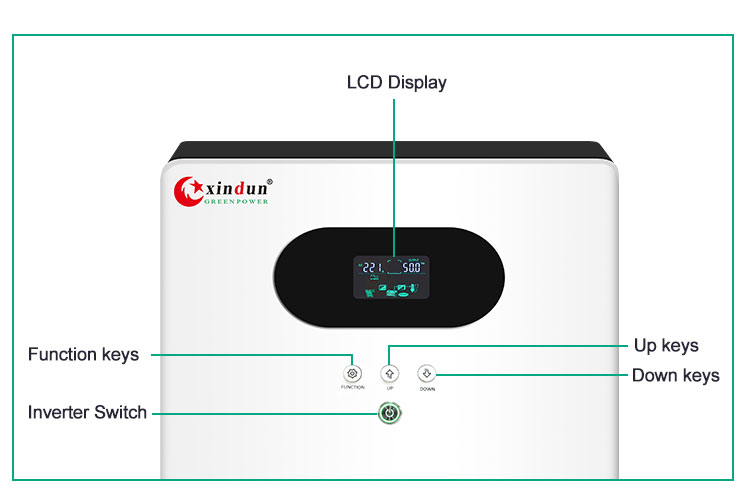

■ LiFePO4 Solar Power Station Highlight

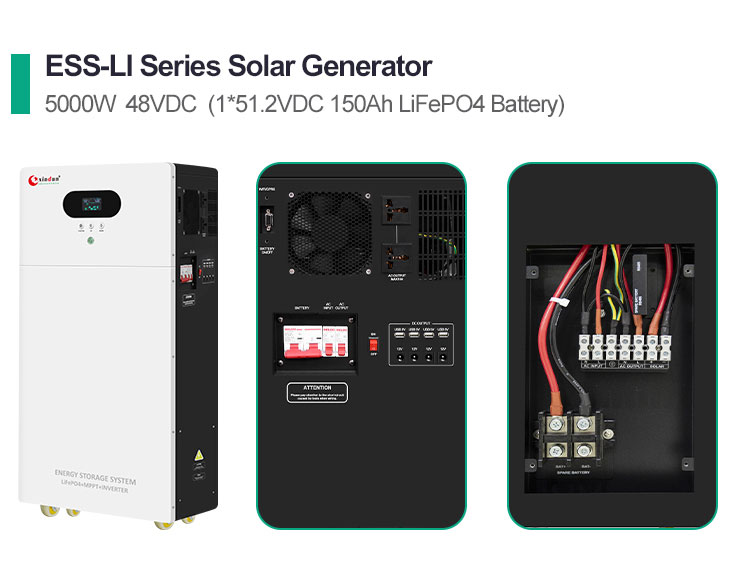

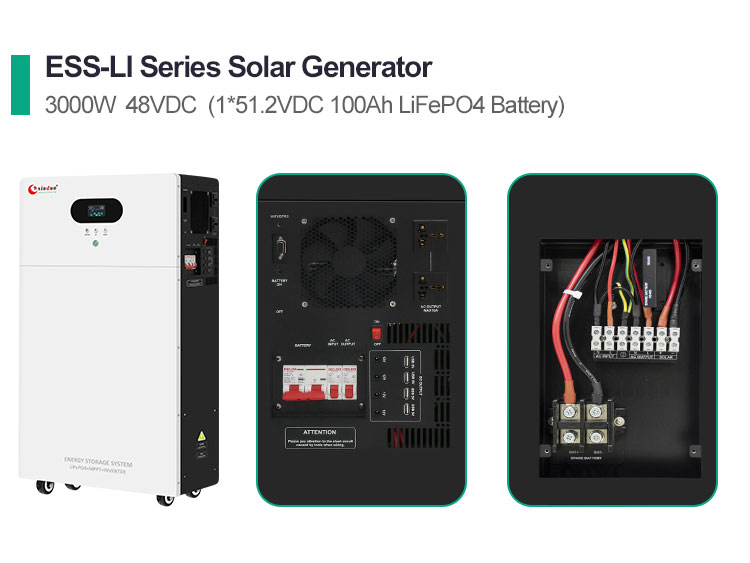

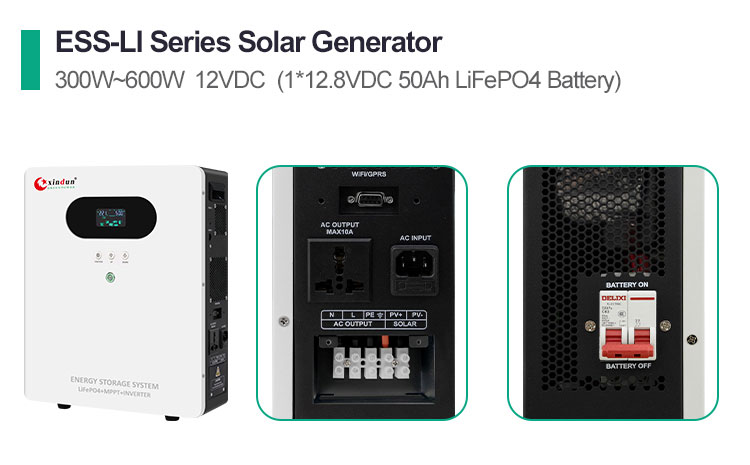

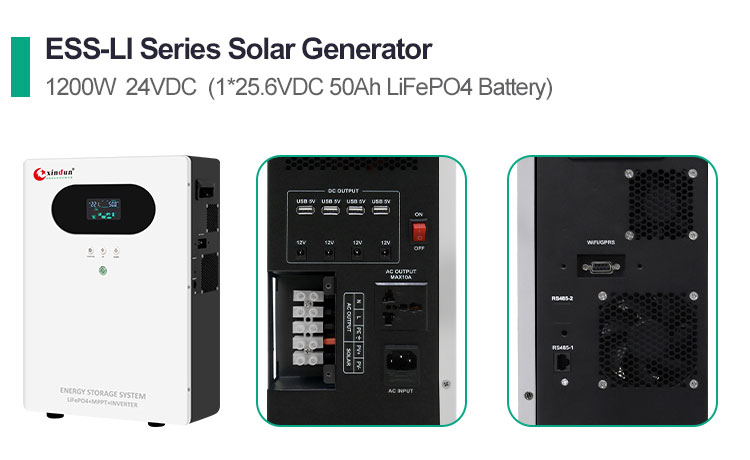

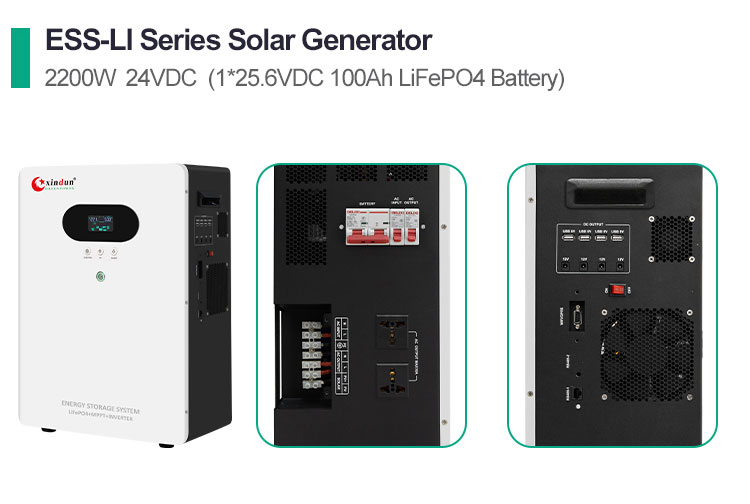

■ LiFePO4 Solar Power Station Model

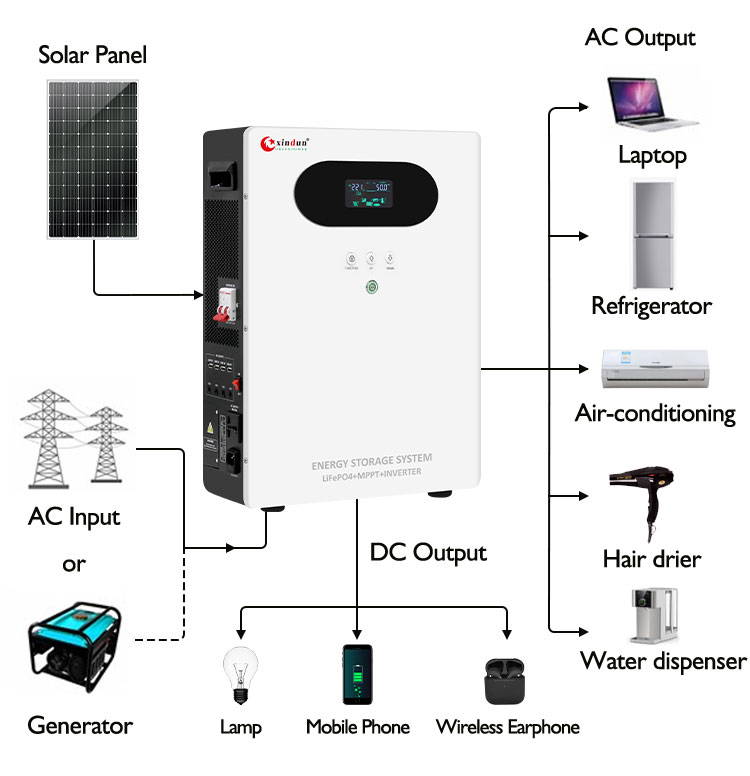

■ LiFePO4 Solar Power Station Wiring Diagram
Users only need to connect solar panels or power grids or diesel and gasoline generators to use the portable solar power station anytime and anywhere.

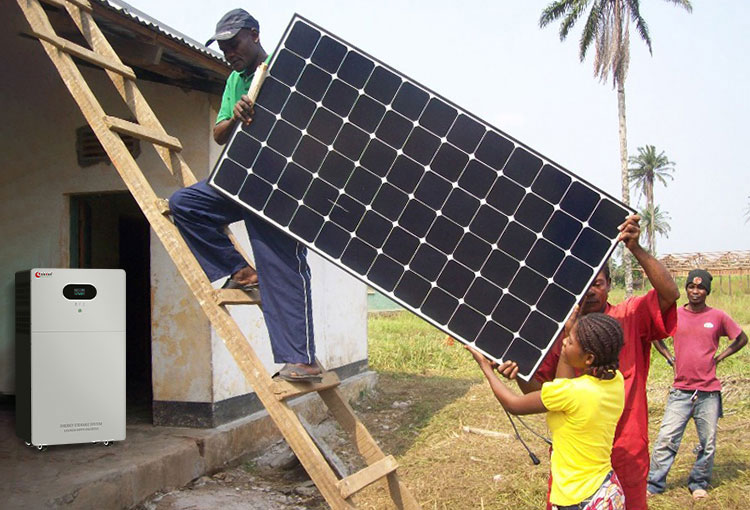

■ LiFePO4 Solar Power Station Application
Here are some common applications of LiFePO4 solar power stations:
Off-grid living: LiFePO4 power stations are ideal for providing reliable energy in off-grid homes, cabins, or remote locations where access to the electrical grid is limited or unavailable. They can power lights, appliances, communication devices, and other essential electronics.
Outdoor activities: LiFePO4 power stations are popular among outdoor enthusiasts for camping, hiking, boating, and RVing. They provide a portable and convenient source of power for charging smartphones, tablets, cameras, and other gadgets, as well as running small appliances like portable fridges or fans.
Emergency preparedness: LiFePO4 power stations serve as essential backup power solutions during emergencies such as power outages, natural disasters, or grid failures. They can keep critical devices operational, such as medical equipment, communication devices, and emergency lights, ensuring safety and connectivity during challenging situations.
Construction and worksites: LiFePO4 power stations are useful for providing temporary power at construction sites, remote worksites, or events where access to traditional power sources may be limited. They can power tools, lighting, and other equipment, increasing productivity and efficiency on-site.
■ LiFePO4 Solar Power Station Supplier & Manufacturer
Xindun stands as a premier supplier and manufacturer of LiFePO4 solar power stations, we understand that every market and customer is unique. That's why we offer customization options to meet specific requirements and preferences. Whether it's adjusting the capacity, adding features, or branding, we can tailor our products to your specifications.
■ FAQ
A portable solar power station is a compact and lightweight energy solution that combines solar panels, a battery storage system, and an inverter into a single unit. It allows users to harness solar energy to power various electronic devices and appliances, making it ideal for outdoor activities, camping, emergencies, and remote locations.
A portable solar power station utilizes solar panels to convert sunlight into electricity, which is stored in an onboard battery pack. The stored energy can then be used to power devices directly through built-in outlets or USB ports, or it can be converted into alternating current (AC) power using an integrated inverter for larger appliances.
A lifepo4 solar power station offers several advantages over traditional lead-acid battery systems, including higher energy density, longer lifespan, faster charging times, and improved safety. Lifepo4 batteries are known for their stability, reliability, and ability to withstand a wide range of environmental conditions, making them ideal for solar energy storage applications.
When selecting a home solar power station, consider factors such as power output, battery capacity, number of outlets, charging options, and portability. Determine your energy requirements and intended use to ensure the power station can meet your needs effectively. Additionally, look for features such as built-in solar charging capability, surge protection, and user-friendly controls for added convenience.
Yes, many home power stations offer the option to expand their capacity by connecting additional battery packs or solar panels. This allows users to customize their system to meet changing energy demands or to scale up their solar power generation over time. Be sure to check the compatibility and specifications of the power station to ensure seamless integration of additional components.
Sure. Helping customers with solar power station OEM/ODM R&D, design and production is one of our main businesses. We carry out appearance design and parameter customization for different traders around the world every year.
