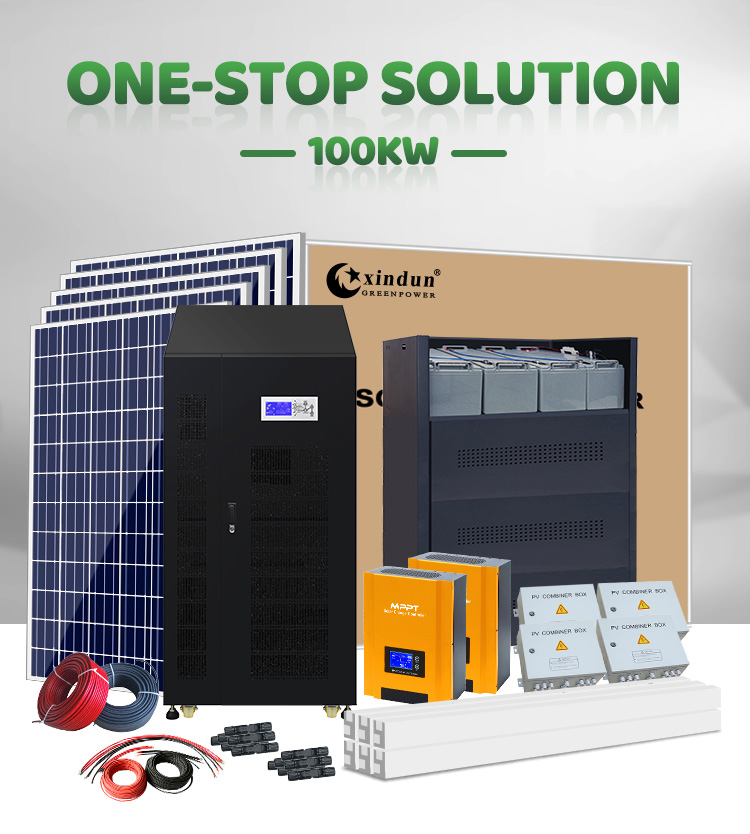

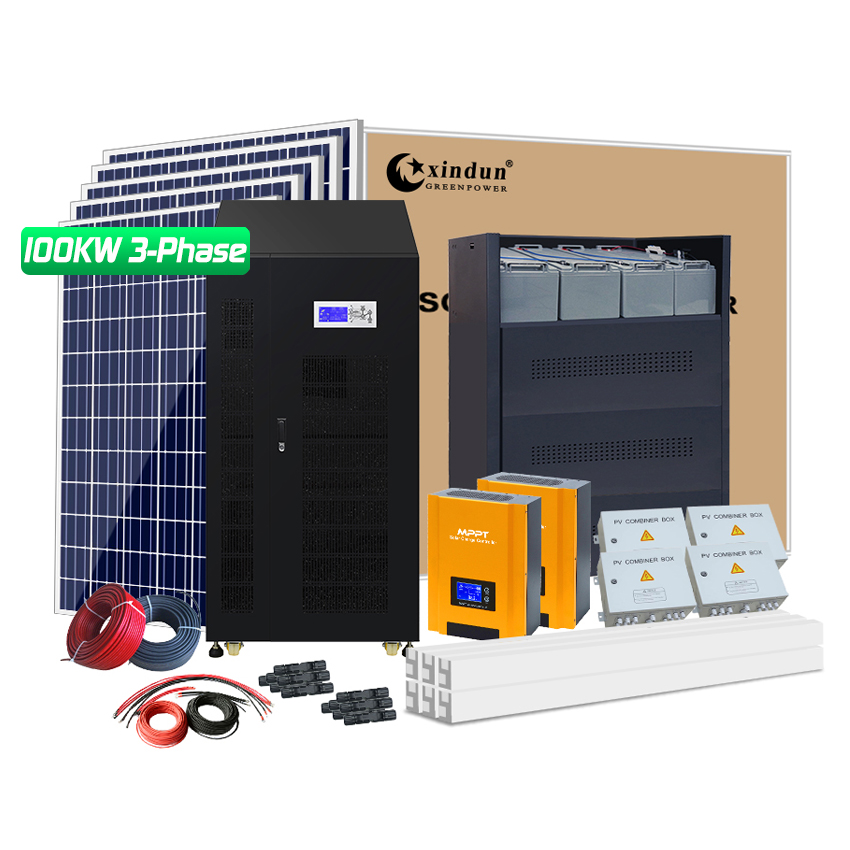

Off grid solar system includes everything for a complete installation: solar panel, solar bracket, solar battery, three phase solar inverter, solar charge controller, cables and other terminals. 100KW solar system with battery DC384V to AC380V/400V optional, and has 610560Wh energy storage every day.
Product
Choose XINDUN off grid solar system with battery, you can get the following convenience:
· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, three phase hybrid solar inverter, all duties to one company.
· Factory wholesales 100kw off grid solar system at cheapest price and cost.
■ 100KW Solar System with Battery Description
Xindun off grid solar system is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, PV combiner box, solar battery, three phase solar inverter, solar charge controller, pv cables, battery cables and other terminals. After the simple installation is complete, it can be directly used for residential appliances.
Each set off grid solar system with battery has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.
Xindun off grid solar system with battery range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. This page introduces the 100kw solar system with battery, which can be used for industries with total power not exeed 100kw.
■ 100KW Solar System with Battery Configuration
| SESS33-104W 100KW Off Grid Solar System Configuration | |||||
| Brand | Xindun | Model No. | SESS33-104W | Inverter Rated Power（KW) | 100 |
| Maximum Load(KW) | 100 | Batter Capacity(AH) | 19200 | Solar Panel Power(W) | 63360 |
| Product No. | SESS33-104W | Certification | CE | Sunshine Duration | 6 |
|
Output Voltage (Optional) |
Three phase380V |
Frequency (Optional) |
50Hz/60Hz | PV daily generating capacity（Wh） | 380160 |
| Actual Load（KW) | 100 | Actual Load day(s) | 1 | Actual Load time(hours) | 3.8 |
| G.W. | Contact Xindun | Volume | Contact Xindun | 20GP Loading Quantity | Contact Xindun |
| N.W. | Contact Xindun | DC Voltage(VDC) | 384 | Customized or not | YES |
| Configuration Details | |||
| Product Name | Specifications | Quantity | Remark |
| Solar Panel | Polycrystalline 330W | 192 | 16pcs in series，12 groups in parallel |
| Three Phase Solar inverter | 384VDC 100KW | 1 | HDSX-104384 |
| Solar Charge Controller | 384VDC 100A | 2 | MPPT solar charge controller |
| Lead acid battery | 12V200AH | 96 | 32in series，3 groups in parallel |
| Battery connecting cable | 70mm² 60CM | 95 | connection between batteries |
| solar panel mounting bracket | Aluminum | 16 | Simple type |
| PV combiner | 3in1out | 4 | Specifications：1000VDC |
| Lightning protection distribution box | without | 0 | |
| battery collecting box | 200AH*32 | 3 | |
| M4 plug (male and female) | 180 | 180 pairs 1 in 1 out | |
| PV Cable | 4mm² | 400 | PV Panel to PV combiner |
| PV Cable | 10mm² | 200 | PV combiner to Solar inverter |
| Battery cable | 70mm² 10m/pcs | 42 | Solar Charge Controller to battery and PV combiner to Solar Charge Controller |
| Package | wooden case | 1 | |
| Electrical Load Reference List | ||||
| Electrical Appliance | Rated Power(pcs) | Quantity(pcs) | Working Hours | Total |
| LED bulbs | 13 | 10 | 6Hours | 780W |
| Mobile phone charger | 10W | 4 | 2Hours | 80W |
| Fan | 60W | 4 | 6Hours | 1440W |
| TV | 150W | 1 | 4Hours | 600W |
| Satellite dish receiver | 150W | 1 | 4Hours | 600W |
| Computer | 200W | 2 | 8Hours | 3200W |
| Water pump | 600W | 1 | 1Hours | 600W |
| Washing machine | 300W | 1 | 1Hours | 300W |
| AC | 2P/1600W | 4 | 12Hours | 76800W |
| Microwave oven | 1000W | 1 | 2Hours | 2000W |
| Printer | 30W | 1 | 1Hours | 30W |
| A4 copier (printing and copying combined) | 1500W | 1 | 1Hours | 1500W |
| Fax | 150W | 1 | 1Hours | 150W |
| Induction cooker | 2500W | 1 | 2Hours | 5000W |
| Refrigerator | 200W | 1 | 24Hours | 4800W |
| Water heater | 2000W | 1 | 2Hours | 4000W |
| Total | 101880W | |||

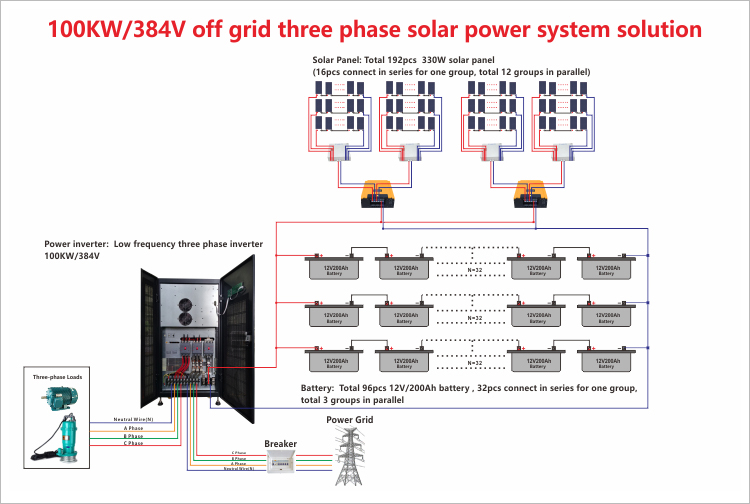

■ 100KW Solar System with Battery Wiring Diagram
Contact XINDUN for more high-definition wiring diagram.
■ 100KW Solar System with Battery Parts List
|

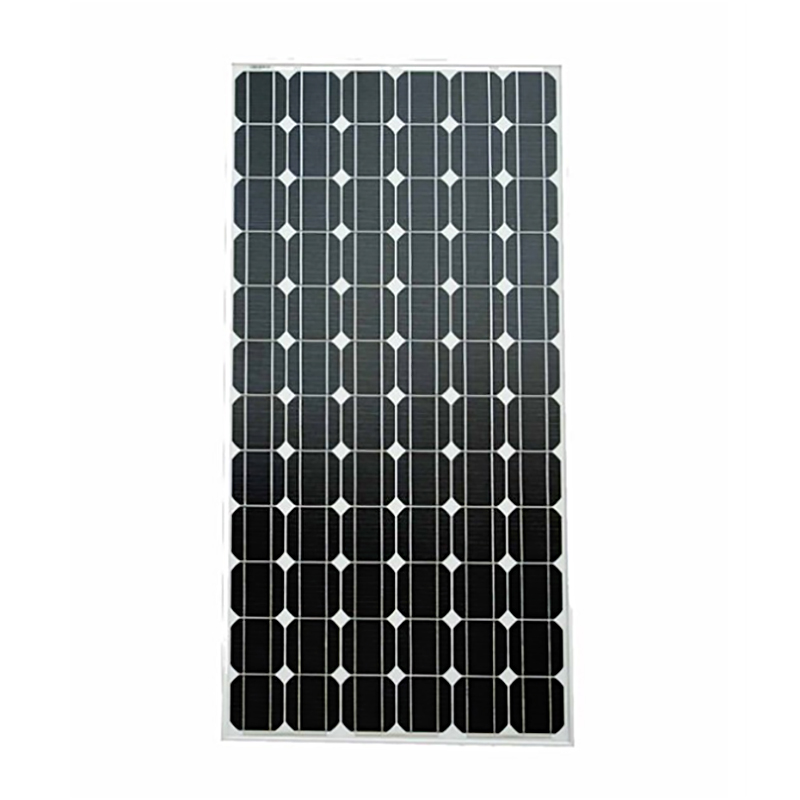

Solar panel: 1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass. 2. Frame: Anodized Aluminium Alloy. 3. Warranty: 25-years performance warranty. 12-years warranty on materials and workmanship. |
|
 |

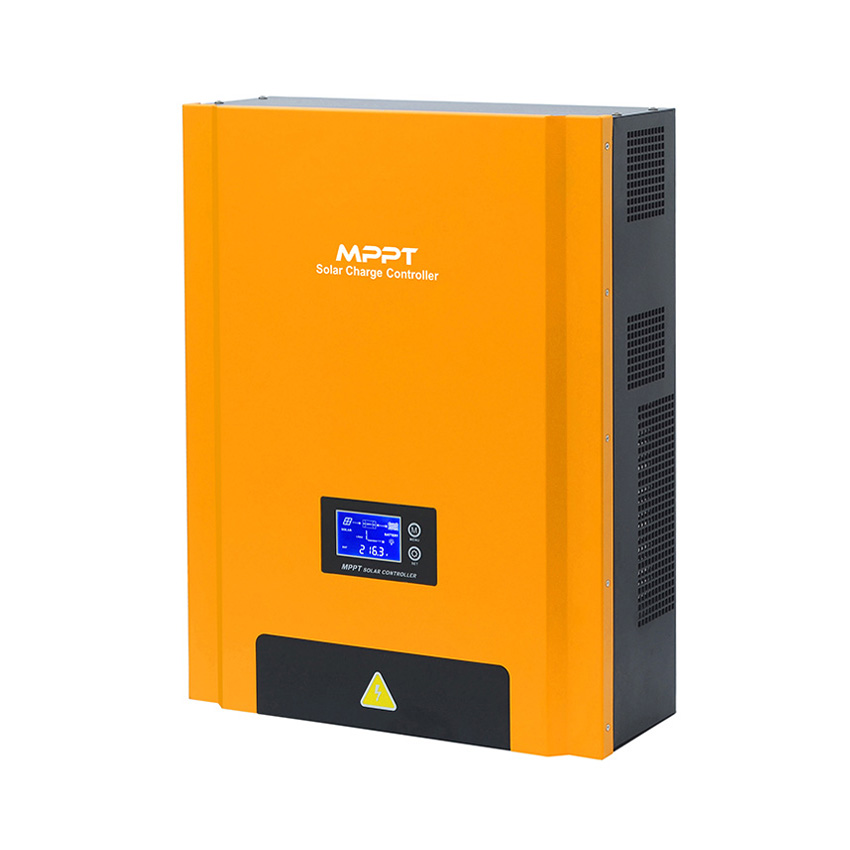

MPPT Solar Charge Controller: 1. 384V/100A MPPT solar charge controller. 2. Advanced MPPT tracking, 99% tracking efficiency. Compared with PWM, the generating efficiency increase near 20%. 3. LCD display PV data and chart simulates power generation process. |
|

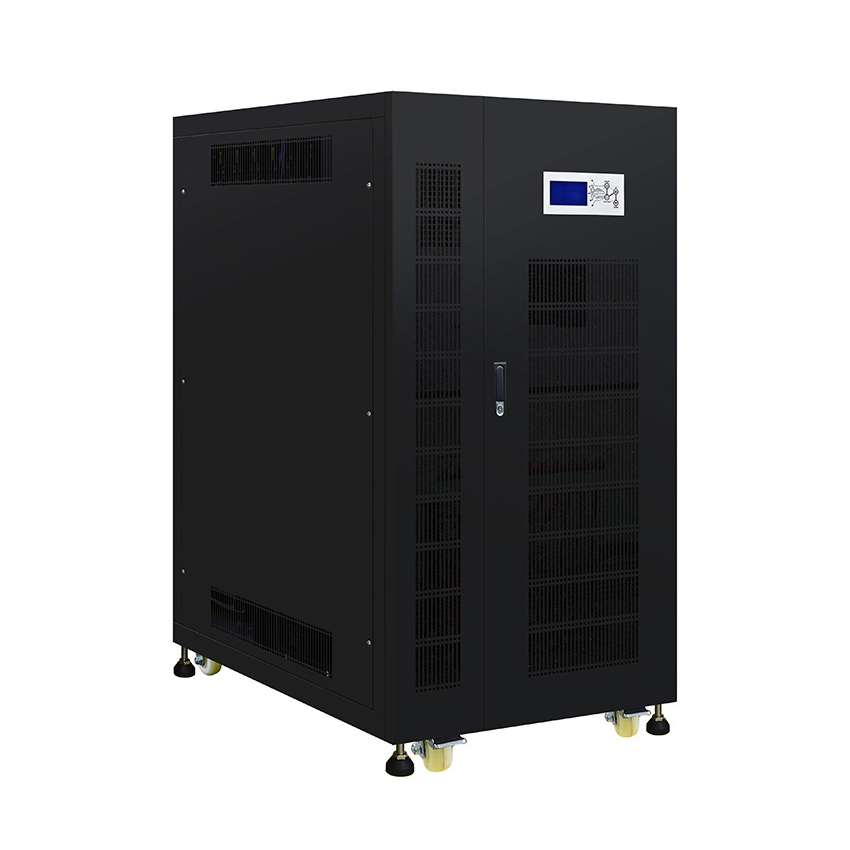

Hybrid solar inverter: 1. Three phase 100KW solar inverter. 2. Low frequency pure sine wave output . 3. 3 times peak power, excellent loading capability. 4. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery.5. Automatic AC charger and AC mains switcher, switch time ≤ 4ms. 6. AC charging current 0-45A selectable. |
 |
 |

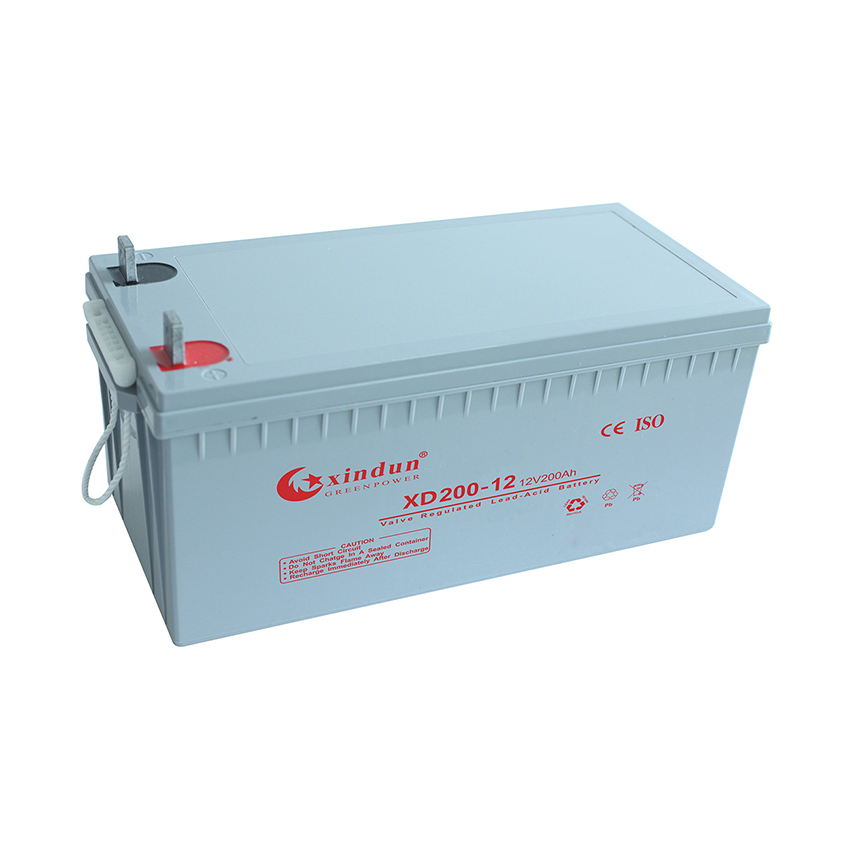

Battery and battery collecting box: 1. GEL series battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery. 2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range.3. The deep discharge cycle life is increased 50% compared with the GP series battery. 4. Battery collecting box(Built-in 12V/200Ah*96pcs batteries) not only makes the batteries collection and sorting more neat, but also plays a protective role |
|
Solar bracket: Description of Mounting 1. Aluminum Alloy 6005-T5. 2. Fasteners Material SUS304. 3. Easy Installation. 4. Can Be used in different forms，Tin Roofs，Flat Roofs. 5. The installation angle can be adjusted according to the demand. 6. 10 Years Warranty, Over 25 Years Service Life. |
 |
 |

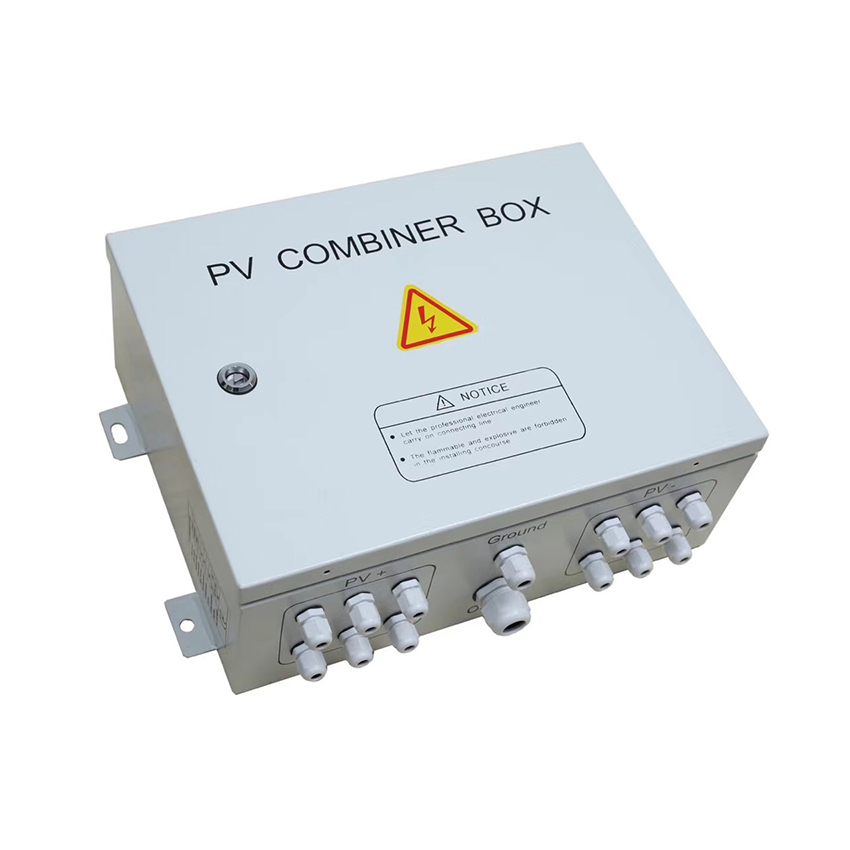

PV combiner box: 1. Multiple PV strings inputs. 2. Simplify wiring between solar panel and solar charge controller, protections to solar controller.3. Wide range of DC input voltage. 4. Reliable thunderstorm & surge protection. |
|
Cables and parts: 1. 4mm2 PV cable 400m, 10mm2 PV cable 200m. PV cable is a special type of cable used in solar power system. It has the characteristics of high temperature resistance and friction resistance, and has a long service life. 2. 70mm2 60cm Battery cable 95pcs (connection between batteries).
3. 70mm2 10m Battery cable 42pcs (connection "PV combiner box to solar charge controller" and "solar charge controller to batteries").
4. Terminals and 180 pairs MC4 plug. |
|
■ Solar System with Battery in Real Production
10kw off grid solar system with battery in China:
24kw off grid solar system with battery in Thailand:

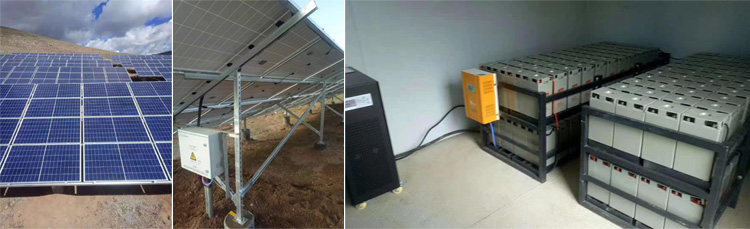

25kw off grid solar system with battery in Egypt:

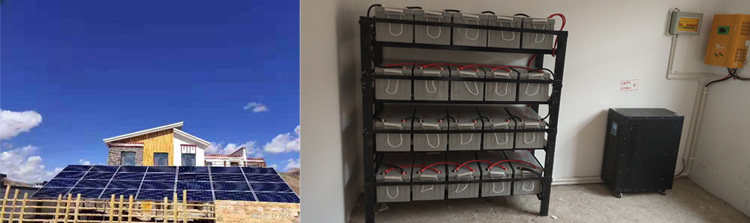

40kw off grid solar system with battery in Morocco:

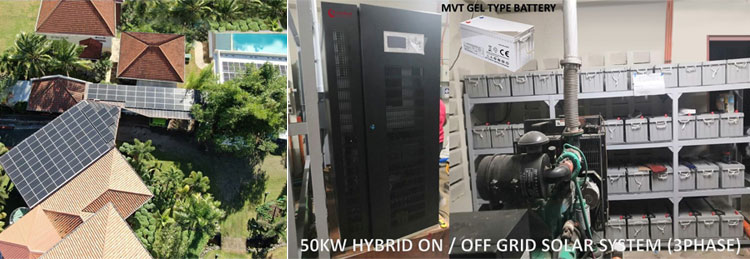

50kw off grid solar system with battery in Philippines:
Xindun off grid solar systems with batteries have been sold to more than 100 countries, such as America, Nigeria, Ghana, Egypt, Zimbabwe, South Africa, Dubai, United Arab Emirates, Lebanon, Korea, Japan, Indonesia, Malaysia, Philippines, Columbia, Mexico etc. 100kw solar systems have been widely used for high power solar industry, solar data center, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project, hilltop, ship, etc.
