SESS 32KW Three Phase PV Solar System

Three phase solar pv system includes everything for a complete installation: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, cables and other terminals. 32KW three phase solar system DC384V to AC380V/400V optional, and has 224640Wh energy storage every day.

  • Type : Three Phase Solar PV System
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
  • OEM : Yes

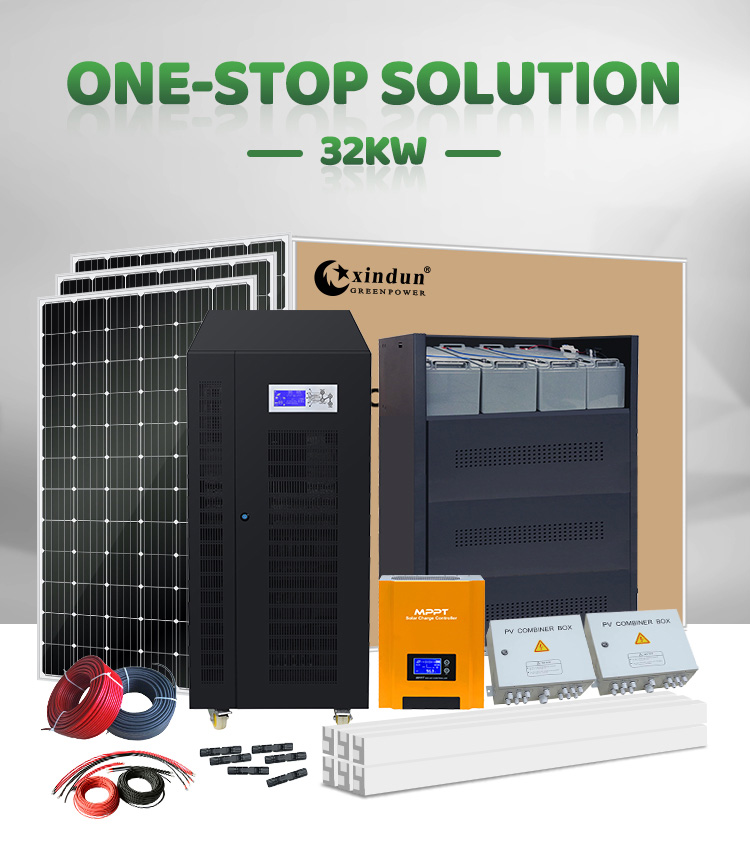

choose XINDUN solar photovoltaic system, get one-stop solar solution

Choose XINDUN three phase solar pv system, you can get the following convenience:

· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, three phase hybrid solar inverter, all duties to one company.



Solar photovoltaic system - Power your home 24hx7days



■ Three Phase Solar PV System Description



Xindun three phase solar pv system is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, PV combiner box, solar battery, three phase solar inverter, solar charge controller, pv cables, battery cables and other terminals. After the simple installation is complete, it can be directly used for residential appliances.

Each set three phase solar pv system has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.

Xindun solar pv system range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. This page introduces the 32kw three phase solar pv system, which can be used for industries with total power not exeed 32kw.



■ Three Phase Solar PV System Configuration

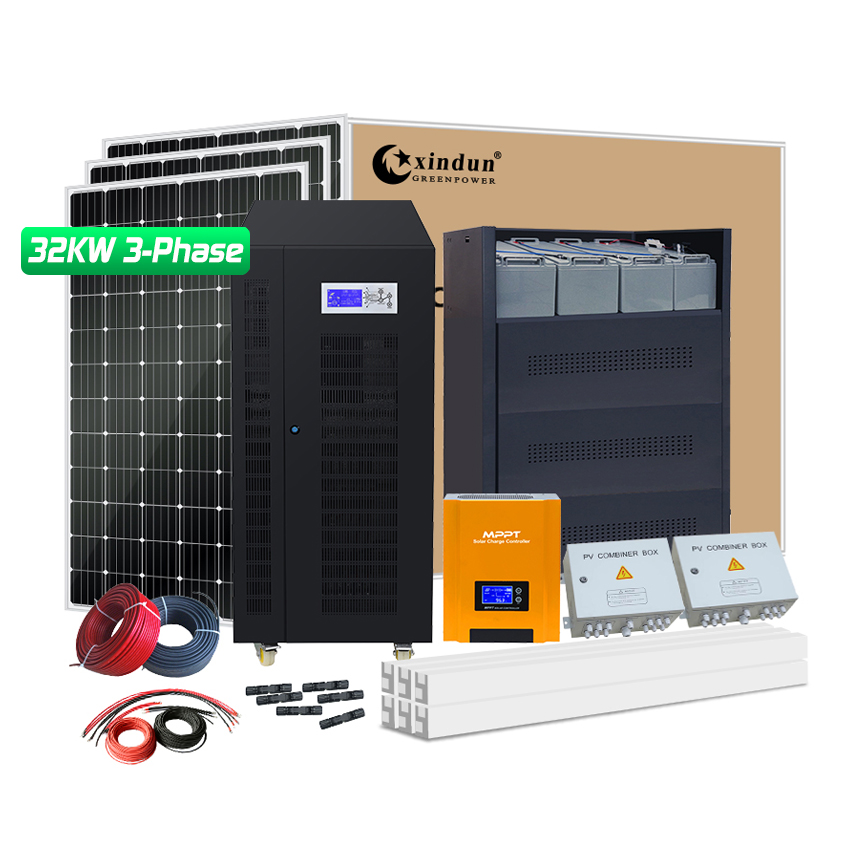

SESS33-323W 32KW Three Phase PV Solar System Configuration
Brand Xindun Model No. SESS33-323W Inverter Rated PowerKW) 32
Maximum Load(KW) 32 Batter Capacity(AH) 12800 Solar Panel Power(W) 18720
Product No. SESS33-323W Certification CE Sunshine Duration 6
Output Voltage
(Optional)
Three phase 380V Frequency
(Optional)
50Hz/60Hz PV daily generating capacityWh 112320
Actual LoadKW) 32 Actual Load day(s) 1 Actual Load time(hours) 3.5
G.W. 6082 Volume 10.15 20GP Loading Quantity Contact Xindun
N.W. Contact Xindun DC Voltage(VDC) 384 Customized or not YES

Configuration Details
Product Name Specifications  Quantity Remark
Solar Panel Monocrystalline 390W 48 8pcs in series6 groups in parallel
Three Phase Solar inverter 192VDC 32KW 1 HDSX-323192
Solar Charge Controller 192VDC 100A 1 MPPT Solar Charge Controller
Lead acid battery 12V200AH 48 16pcs in series3 groups in parallel
Battery connecting  cable  25mm² 60CM 47 connection between batteries
solar panel mounting  bracket  Aluminum 4 Simple type
PV combiner 3in1out 2 500VDC
Lightning protection distribution box without 0
battery collecting box 200AH*16 3 Three batteries in a box
M4 plug (male and female) 42 42 pairs in 1 out
PV Cable 4mm² 200 PV Panel to PV combiner
PV Cable 10mm² 200 PV combiner to Solar inverter
Battery cable 25mm² 10m/pcs 62 Solar Charge Controller to battery and PV combiner to Solar Charge Controller
Package wooden case 1

Electrical Load Reference List
Electrical Appliance Rated Power(pcs) Quantity(pcs) Working Hours Total
LED bulbs 13 10 6Hours 780W
Mobile phone charger 10W 4 2Hours 80W
Fan 60W 4 6Hours 1440W
TV 150W 1 4Hours 600W
Satellite dish receiver 150W 1 4Hours 600W
Computer 200W 2 8Hours 3200W
Water pump 600W 1 1Hours 600W
Washing machine 300W 1 1Hours 300W
AC 2P/1600W 4 12Hours 76800W
Microwave oven 1000W 1 2Hours 2000W
Printer 30W 1 1Hours 30W
A4 copier (printing and copying combined) 1500W 1 1Hours 1500W
Fax 150W 1 1Hours 150W
Induction cooker 2500W 1 2Hours 5000W
Refrigerator 200W 1 24Hours 4800W
Water heater 2000W 1 2Hours 4000W
Total 101880W



■ Three Phase Solar PV System Wiring Diagram

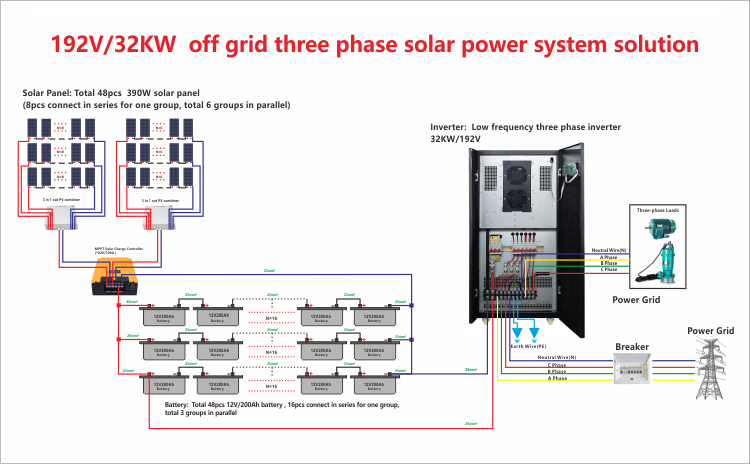

solar photovoltaic system wiring diagram


solar photovoltaic system wiring diagram


Contact XINDUN for more high-definition wiring diagram.



■ Three Phase Solar PV System Parts List



Mono Solar panel:
1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass.
2. Frame: Anodized Aluminium Alloy.
3. Warranty:
25-years performance warranty.

12-years warranty on materials and workmanship.

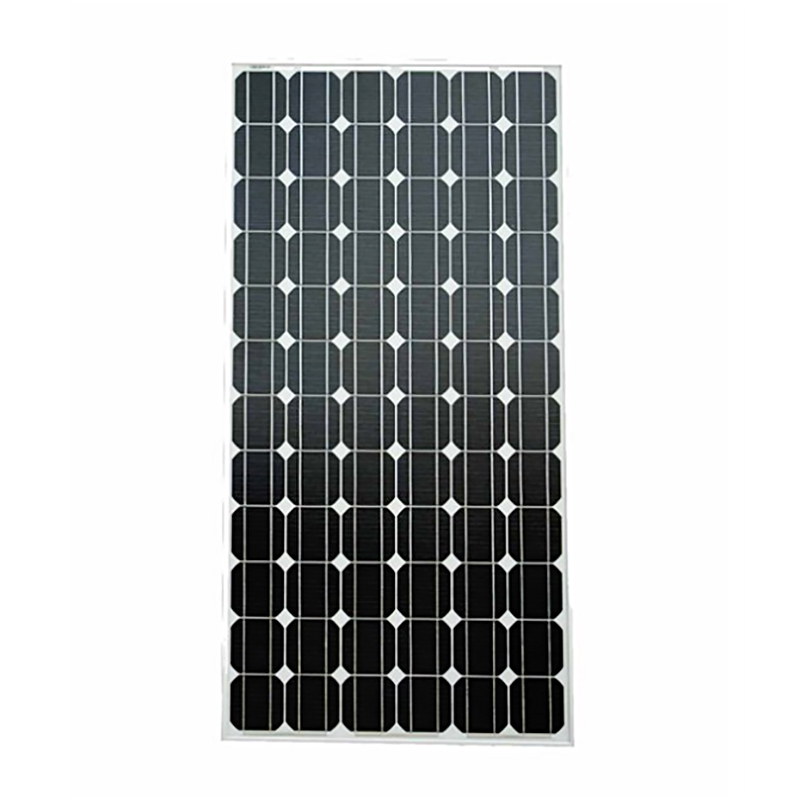

mono solar panel for solar photovoltaic system

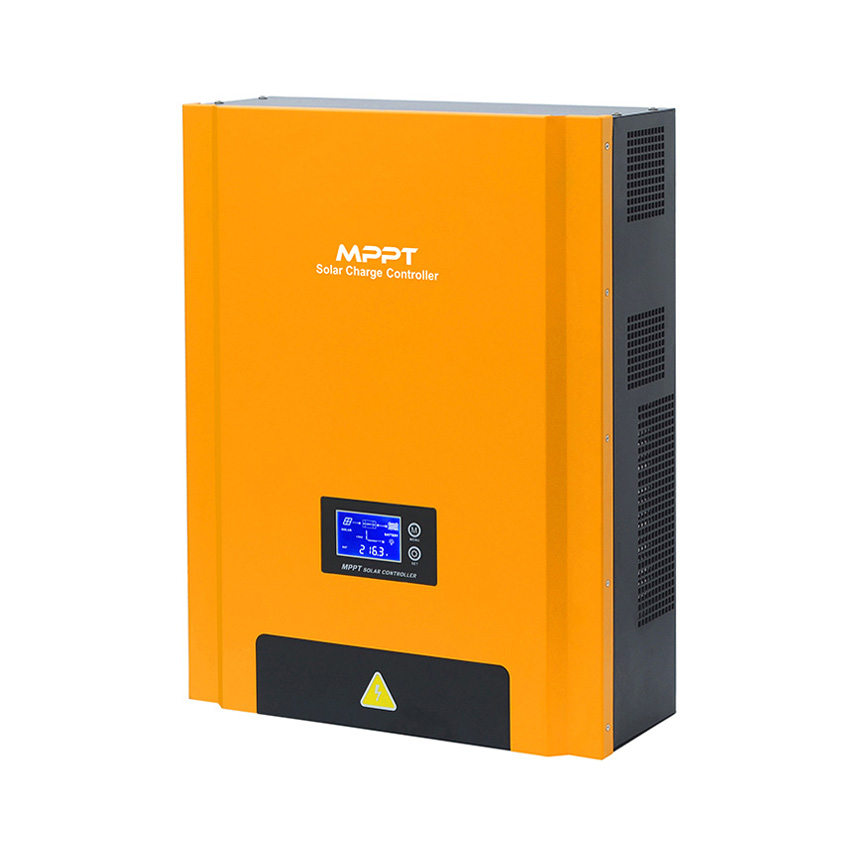

384V/100A MPPT solar controller for solar photovoltaic system
MPPT Solar Charge Controller:
1. 192V/100A MPPT solar charge controller.
2. Advanced MPPT tracking, 99% tracking efficiency. Compared with PWM, the generating  efficiency increase near 20%.
3. LCD display PV data and chart simulates power generation process.
Hybrid solar inverter:
1. 32KW three phase solar inverter.
2. Low frequency pure sine wave output .

3. 3 times peak power, excellent loading capability.

4. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery.

5. Automatic AC charger and AC mains switcher, switch time ≤ 4ms.

6. AC charging current 0-45A selectable.

three phase hybrid solar inverter for solar photovoltaic system

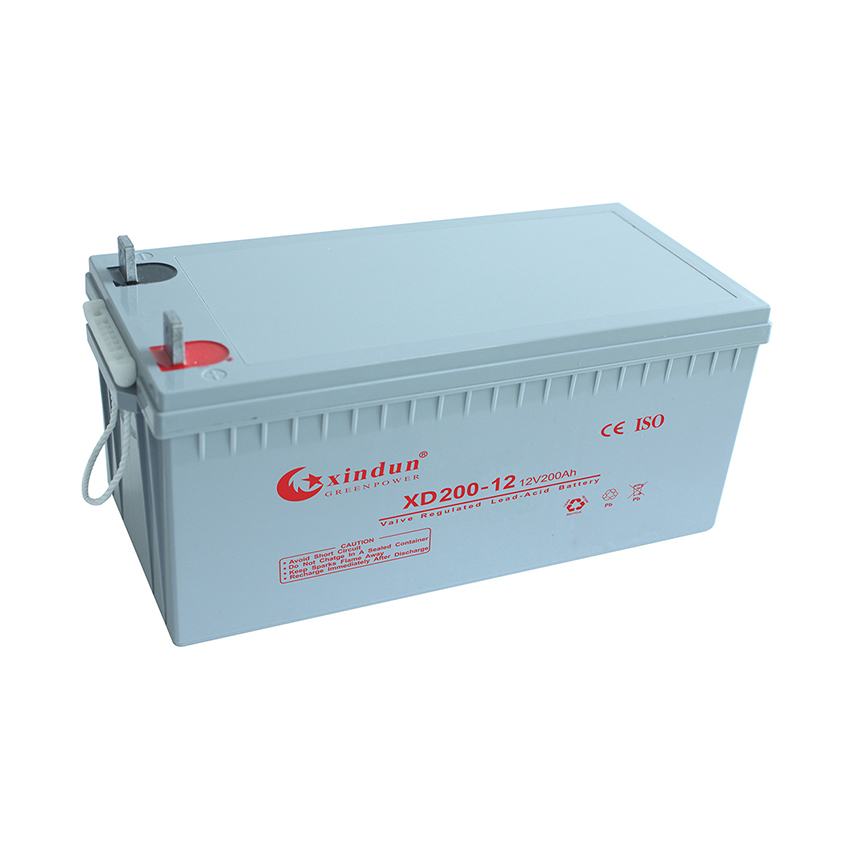

Battery for solar photovoltaic system
Battery and battery collecting box:

1. GEL series battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery.

2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range.

3. The deep discharge cycle life is increased 50% compared with the GP series battery.

4. Battery collecting box(Built-in 12V/200Ah*64pcs batteries) not only makes the batteries collection and sorting more neat, but also plays a protective role

Solar bracket:
Description of Mounting
1. Aluminum Alloy 6005-T5.
2. Fasteners Material SUS304.
3. Easy Installation.
4. Can Be used in different forms,Tin Roofs,Flat Roofs.
5. The installation angle can be adjusted according to the demand.
6. 10 Years Warranty, Over 25 Years Service Life.
solar bracket for solar photovoltaic system

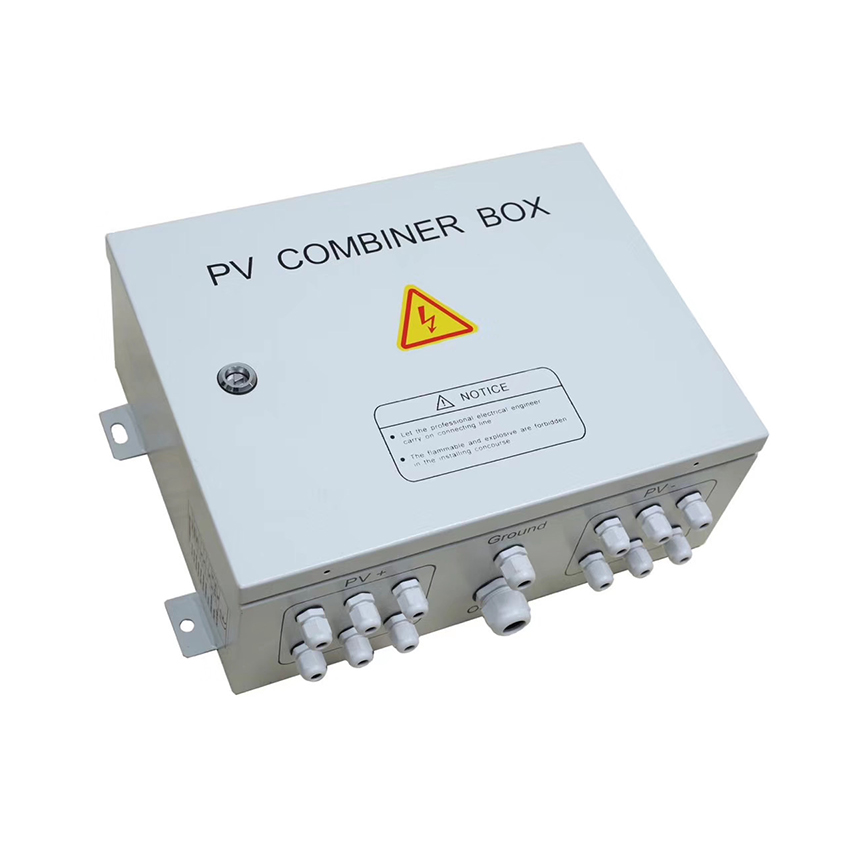

PV combiner box for solar photovoltaic system

PV combiner box:

1. Multiple PV strings inputs.

2. Simplify wiring between solar panel and solar charge controller, protections to solar controller.
3. Wide range of DC input voltage.
4. Reliable thunderstorm & surge protection.

Cables and parts:

1. 4mm2 PV cable 200m, 10mm2 PV cable 200m. PV cable is a special type of cable used in solar power system. It has the characteristics of high temperature resistance and friction resistance, and has a long service life.

2. 25mm2 60cm Battery cable 47pcs (connection between batteries).

3. 25mm2 10m Battery cable 62pcs (connection "PV combiner box to solar charge controller" and "solar charge controller to batteries").

4. Terminals and 42 pairs MC4 plug.

Cables and parts for solar photovoltaic system



■ Three Phase Solar PV System in Real Production



solar photovoltaic system in real production



■ Three Phase Solar PV System Application



10kw three phase solar pv system in China:

10kw three phase solar pv system in China


24kw three phase solar pv system in Thailand:

24kw three phase solar pv system in Thailand


25kw three phase solar pv system in Egypt:

25kw three phase solar pv system in Egypt


40kw three phase solar pv system in Morocco:

40kw three phase solar pv system in Morocco


50kw three phase solar pv system in Philippines:

50kw three phase solar pv system in Philippines


Xindun three phase solar pv systems have been sold to more than 100 countries, such as America, Nigeria, Ghana, Egypt, Zimbabwe, South Africa, Dubai, United Arab Emirates, Lebanon, Korea, Japan, Indonesia, Malaysia, Philippines, Columbia, Mexico etc. Three phase solar systems have been widely used for solar industry, solar data center, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project, hilltop, ship, etc.
