Xindun wholesales best solar generator for house which is suitable for the areas without electricity. We also provide users with customized solar generator solutions for tiny house.
SESS Best 500 Watt Solar Generator for House
SESS Best 500 Watt Solar Generator for House
SESS Best 500 Watt Solar Generator for House
SESS Best 500 Watt Solar Generator for House
SESS Best 500 Watt Solar Generator for House

SESS Best 500 Watt Solar Generator for House

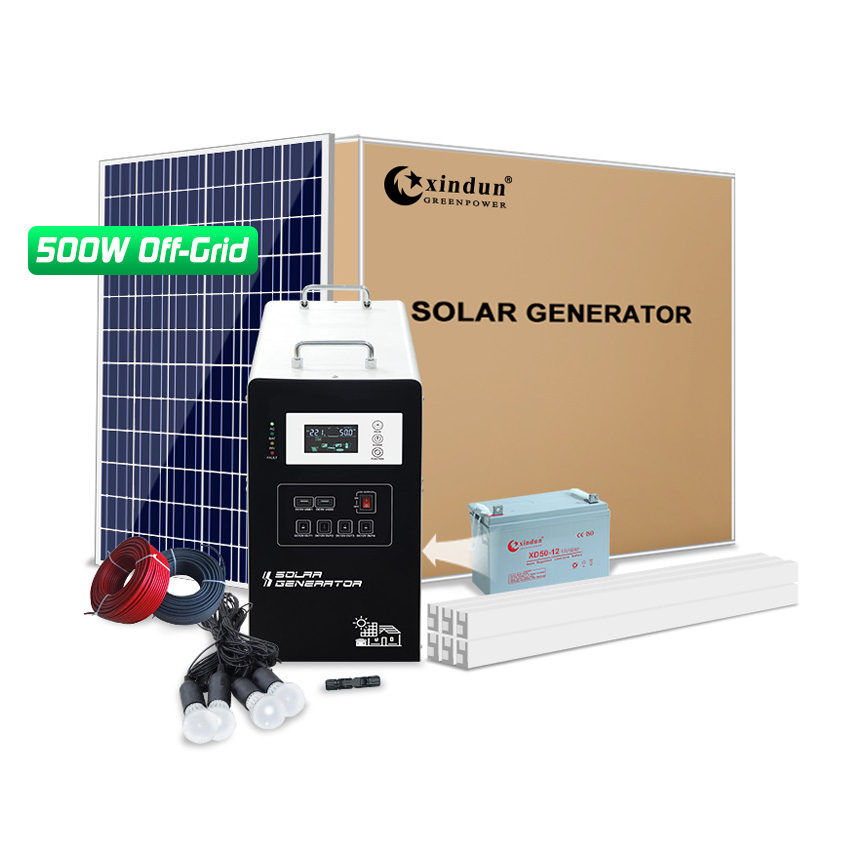

Solar generator system includes everything for a complete installation: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, cables and other terminals. Best 500 watt solar generator for tiny house, DC12V to AC110V/220V, 4*DC12V, 2*USB5V, and has 1560Wh energy storage every day.

  • Type : Solar Generator System
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
  • OEM : Yes

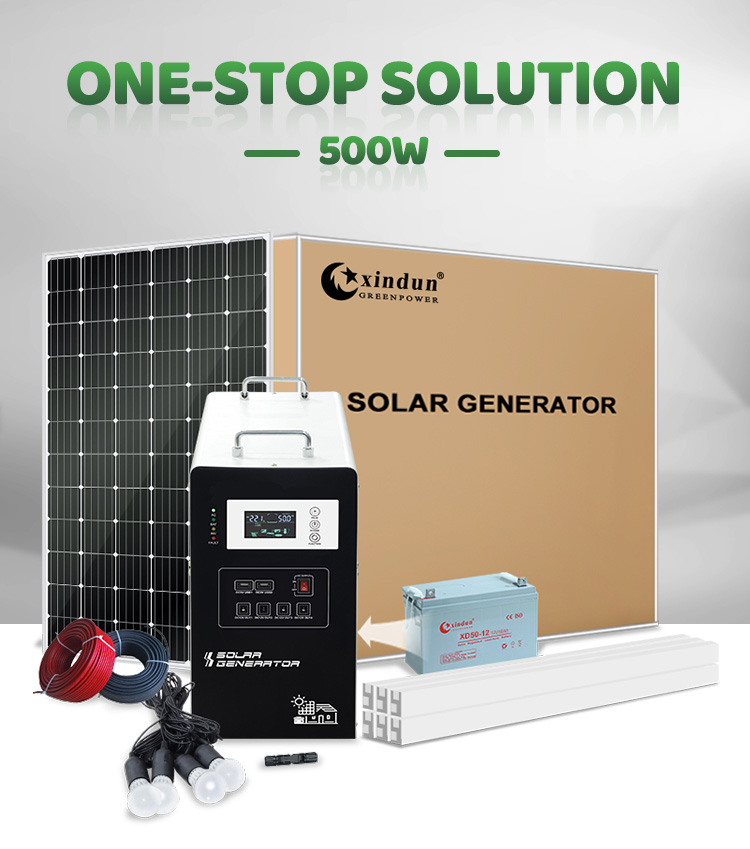

choose XINDUN best 500 watt solar generator for house, get one-stop solar solution

Choose XINDUN solar generator for house, you can get the following convenience:

· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, solar inverter generator, all duties to one company.





Best solar generator - power your house 24hx7days





500 Watt Solar Generator Description






Xindun solar generator system is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, pv cables, battery cables and other terminals. Significantly, solar battery, solar inverter and solar charge controller are all in one solar generator cabinet. After the simple installation is complete, it can be directly used for tiny house appliances.

Each set solar generator for house has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.

Xindun solar generator range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. This page introduces the best 500 watt solar generator, which can be used for AC and DC loads with total power not exeed 500w.





500 Watt Solar Generator Configuration








SESS501P 500W Solar Generator System Configuration
Brand Xindun Model No. SESS501P Inverter Rated Power(W) 500
Maximum Load(W) 500 Batter Capacity(AH) 50 Solar Panel Power(W) 160
Product No. SESS501P Certification CE Sunshine Duration 6
Output Voltage
(Optional)
220V Frequency
(Optional)
50Hz/60Hz PV daily generating capacityWh 960
Actual LoadW) 500 Actual Load day(s) 1 Actual Load time(hours) 1.9
DC Output Port 12V 4pcs USB Port 5V 2pcs DC Lines 4pcs3W bulbs 4pcs5m wires with switch
G.W. 86 Volume 0.39 20GP Loading Quantity Contact Xindun
N.W. Contact Xindun DC Voltage(VDC) 12 Customized or not YES





Configuration Details
Product Name Specifications Quantity Remark
Solar Panel Polycrystalline 160W 1
Solar inverter 12VDC 500W 1 ESS501P inverter built-in solar generator
Solar Charge Controller
(built-in)
12VDC 20A 1 PWM built-in solar generator
Lead acid battery
(built-in)
12V50AH 1 Battery built-in solar generator
Battery connecting cable standard 1 Built-in solar generator, connection between batteries
DC Output Port 12V 4 4pcs 3W bulbs 4pcs 5m wires with switch
Solar panel mounting bracket Aluminum 1
PV combiner without 0
Lightning protection distribution box without 0
Battery collecting box without 0
M4 plug
(male and female)
without 0
PV Cable 2.5mm² 100m Connection between solar panel and PV combiner
Battery cable standard 1 Built-in solar generator, connection between batteries and solar hybrid inverter
Package wooden case 1





Electrical Load Reference List
Electrical Appliance Rated PowerW Quantity(pcs) Working Hours Total
LED bulbs 10W 4 6Hours 240Wh
Mobile phone charger 10W 2 2Hours 40Wh
Fan 60W 1 2Hours 120Wh
TV 50W 1 2Hours 100Wh
Satellite dish receiver 50W 1 2Hours 100Wh
Computer 200W without
Water pump 600W without
Washing machine 300W without
AC 2P/1600W without
Microwave oven 1000W without
Printer 30W without
A4 copier (printing and copying combined) 1500W without
Fax 150W without
Induction cooker 2500W without
Refrigerator 200W without
Water heater 2000W without
      Total 600Wh

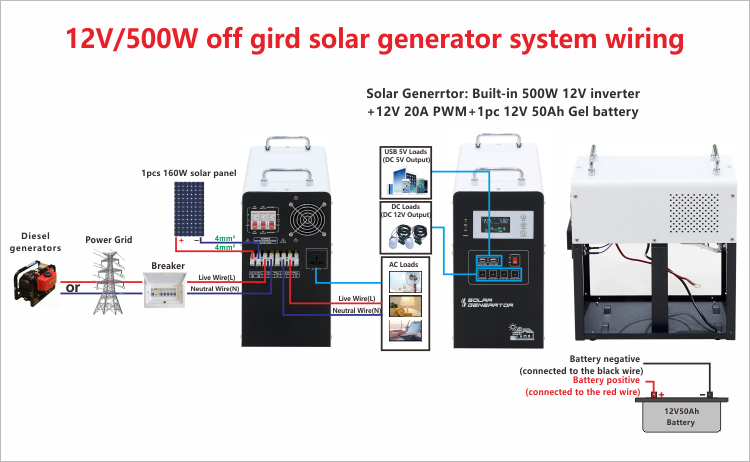

500 Watt Solar Generator Wiring Diagram




500 watt solar generator wiring diagram



500 watt solar generator wiring diagram



Contact XINDUN for more high-definition wiring diagram.





500 Watt Solar Generator Parts List

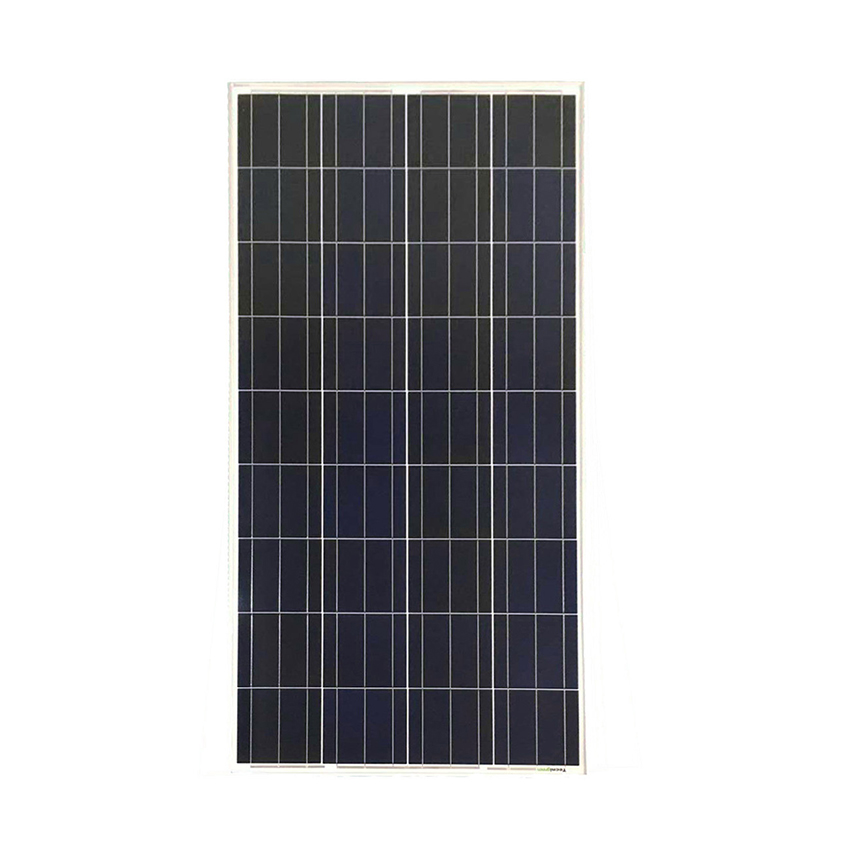

solar panel for 500 watt solar generator system Solar panel:
1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass.
2. Frame: Anodized Aluminium Alloy.
3. Warranty:
25-years performance warranty.
12-years warranty on materials and workmanship.

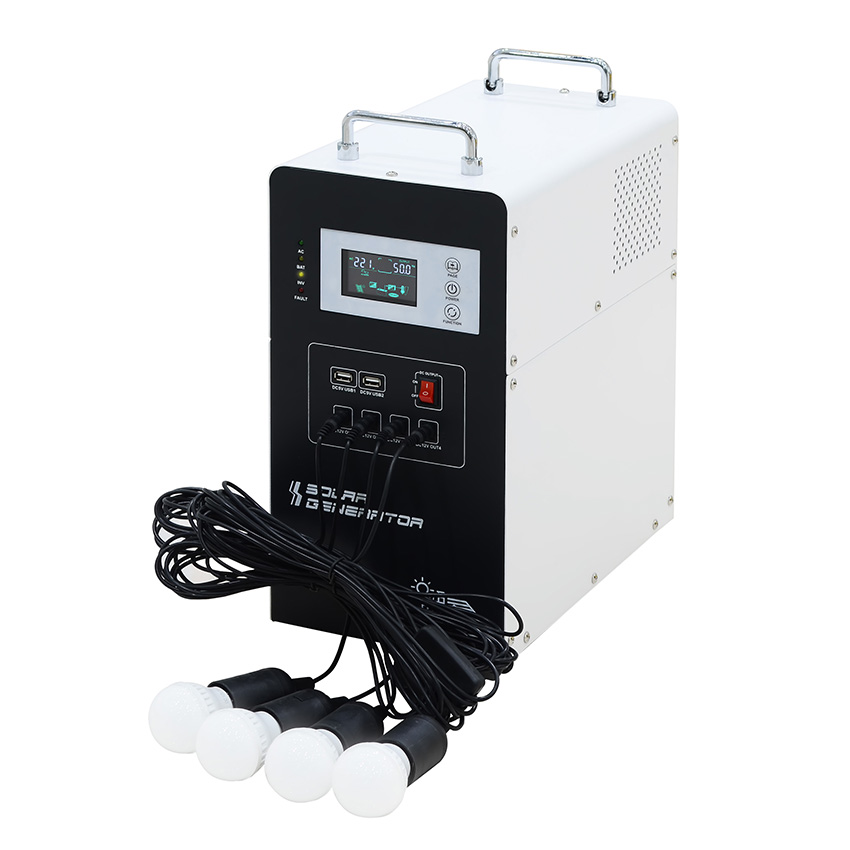

Solar generator:
1. Combine inverter/solar controller/battery all in one cabinet.
2. Built-in 12V/20A PWM solar controller.
3. Built-in 12 Volt / 500 watt solar inverter.

4. Built-in 1pc 12V/50Ah battery.

5. Low frequency pure sine wave output .

6. Multiple output: 1*AC output socket, 4*DC 12V, 2*USB.

7. With 4pcs 3W bulbs, 4pcs 5m wires with switch.

8. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery.

9. Automatic AC charger and AC mains switcher, switch time ≤ 4ms.

0. AC charging current 0-30A selectable.

solar generator for 500 watt solar generator system

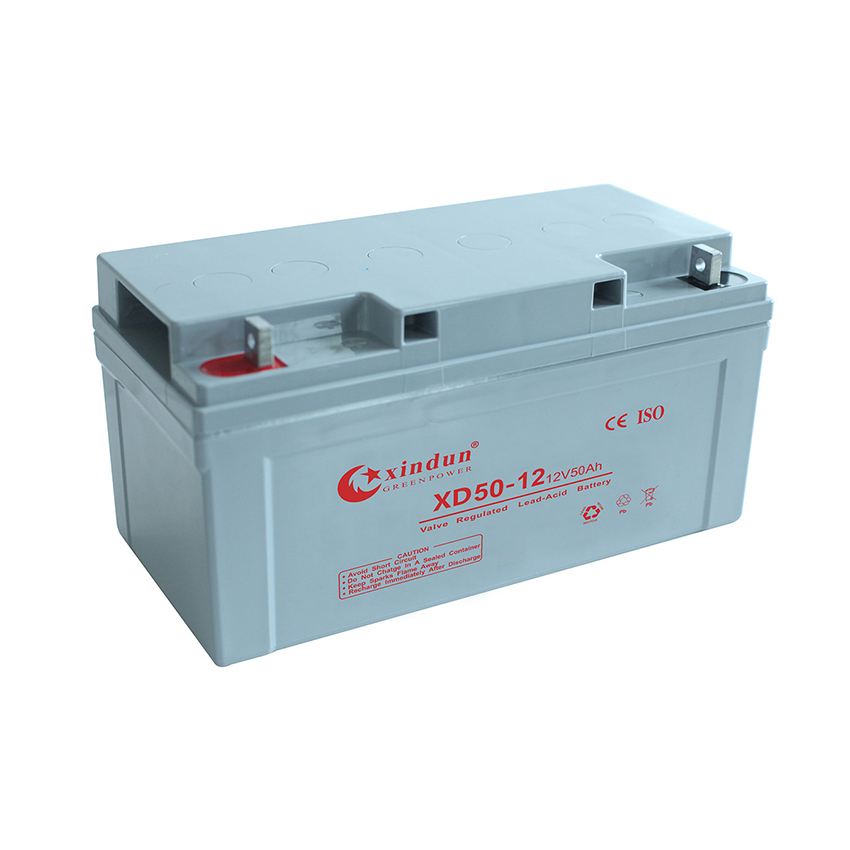

Battery for 500 watt solar generator system Gel battery (Built-in solar generator):
1. GEL series battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery.
2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range.
Solar bracket:
Description of Mounting
1. Aluminum Alloy 6005-T5.
2. Fasteners Material SUS304.
3. Easy Installation.
4. Can Be used in different forms,Tin Roofs,Flat Roofs.
5. The installation angle can be adjusted according to the demand.
6. 10 Years Warranty, Over 25 Years Service Life.
solar bracket for 500 watt solar generator system
Cables and parts for 500 watt solar generator system

Cables and parts:

1. 2.5mm2 PV cable 100m. PV cable is a special type of cable used in solar generator system. It has the characteristics of high temperature resistance and friction resistance, and has a long service life.

2. Battery cable (connection between batteries) 1 set.
3. Battery cable (connection between batteries and solar hybrid inverter) 1 set.
4. Terminals and 1 pairs MC4 plug.







500 Watt Solar Generator in Real Production






best 500w solar generator in real production





Solar Generator Application






best 500w solar generator for house applicationbest 500w solar generator for house application



best 500w solar generator application



Xindun best solar generators have been sold to more than 100 countries, such as Nigeria, Ghana, Egypt, Botswana, Zimbabwe, South Africa, Egypt, Dubai, United Arab Emirates, Lebanon, Indonesia, Malaysia, Philippines, Columbia, Mexico etc. Solar generators have been widely used in: RV, camping, solar house, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project etc.





About Xindun Power






About XINDUN - Best 500w solar generator company

About XINDUN - Best 500w solar generator company introduction







Solar Generator Factory






XINDUN - Best 500w solar generator factory





Qualifications and Certificates






Xindun qualifications and certificates





Global Solar Exhibitions






Xindun global solar exhibitons





FAQ






Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 10k square meters production area. We focus on solar system solution, inverters, solar charge controllers, solar generators and UPS power supply. We cooperate with some famous brands all over the world, can provide OEM/ODM production.

Q2: Is the house solar generator solution always the same? Can I customize one?
A: We have professional teams making solar solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So each set house solar generator may have different configuration. We\'d be happy to customize for you, contact XINDUN to know more details.

Q3: What is the price of house solar generator?
A: Tell me your requirements, such as power generation demand, configuration, and whether there are other functional requirements. We will give you the most favorable ex factory price. house solar generator factory direct sales, no middlemen earn price difference.

Q4: What is the lifetime of the house solar generator?
A: Solar panel’s lifetime are 20 years, solar inverters 3~5 years, solar charge controllers 3~5 years, batteries 1~3 years.

Q5: What services can XINDUN provide?
A: We will provide house solar generator free site survey, design, production, installation guide, maintenance of one-stop service, value added services: market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
