Solar System Solution
Manufacturer wholesales complete RV solar system with batteries and solar panels. RV solar kits and RV solar power systems are the same thing. Contact XINDUN to get a small RV solar system or high power RV solar system.
SESS Complete RV Solar Power System With Batteries
SESS Complete RV Solar Power System With Batteries
SESS Complete RV Solar Power System With Batteries
SESS Complete RV Solar Power System With Batteries
SESS Complete RV Solar Power System With Batteries
SESS Complete RV Solar Power System With Batteries

SESS Complete RV Solar Power System With Batteries

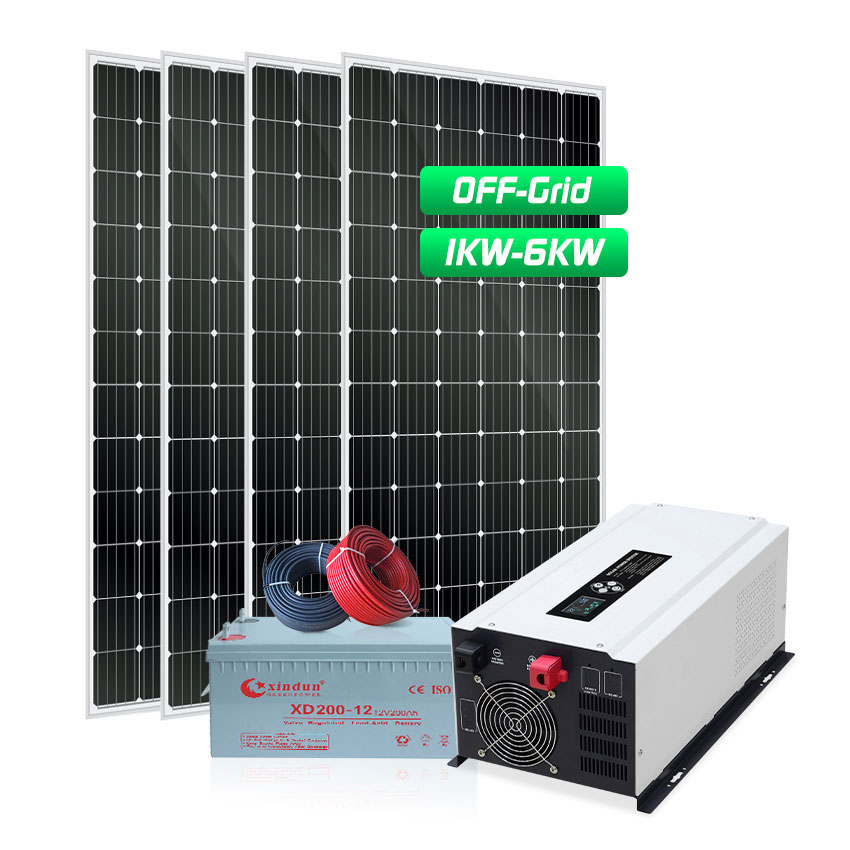

Complete RV solar power system includes everything for a solar installation: solar panels, solar brackets, solar batteries, solar inverter with inbuilt mppt solar controller, cables, MC4 connector. Small RV solar system: 1KW to 6KW, DC24V/48V to AC110V/220V/230V/240V, can be customized according to the needs of users.

  • Type : Off Grid Solar Power System
  • Place of Origin : China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
  • OEM : Yes

complete rv solar system with batteries



Choose XINDUN complete rv solar system with batteries, you can get the following convenience:

· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, solar inverter with inbuilt mppt solar controller, all duties to one company.



RV Solar System Description






Xindun rv solar system is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, solar battery, solar inverter with inbuilt mppt solar charge controller, pv cables, battery cables and MC4 connector. After the simple installation is complete, it can be directly used for RV appliances.

Each set rv solar power system has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.

Xindun complete rv solar system power range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. Buy a complete rv solar system with batteries, enjoy your tour.



RV Solar System Configuration








Off Grid RV Solar System Equipment List
Model SESS1KW 24v-DP SESS2KW 24v-DP SESS3KW 48v-DP SESS5KW 48v-DP SESS6KW 48v-DP
330W Solar Panel 2 Pieces 4 Pieces 6 Pieces 9 Pieces 12 Pieces
Combiner Box Without Without Without Without 4 in 1 out
Off Grid Solar Inverter 1kw 24v with 30A mppt 2kw 24v with 50A mppt 3kw 48v with 60A mppt 5kw 48v with 80A mppt 6kw 48V with 80A mppt
12V 200AH lead acid Battery
(Lithium battery acceptable)
2 Pieces 2 Pieces 4 Pieces 4 Pieces 4 Pieces
PV Cable 100 Meters 100 Meters 200 Meters 300 Meters 300 Meters
Battery Cable 1 paris (16mm2) 1 paris (16mm2) 3 paris (16mm2) 3 paris (25mm2) 3 paris (25mm2)
MC4 Connector 2 Pairs 2 Pairs 4 Pairs 5 Pairs 5 Pairs
Mounting System 1 set 2 sets 3 sets 6 sets 8 sets

rv solar kits configuration

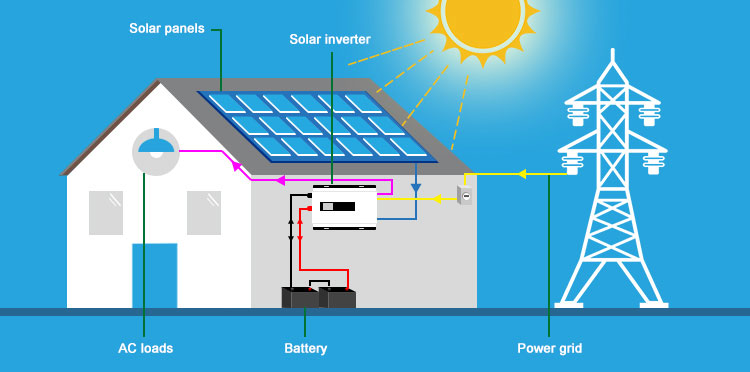

RV Solar System Wiring Diagram




rv solar kits wiring diagram



rv solar kits wiring diagram



RV Solar System Parts List

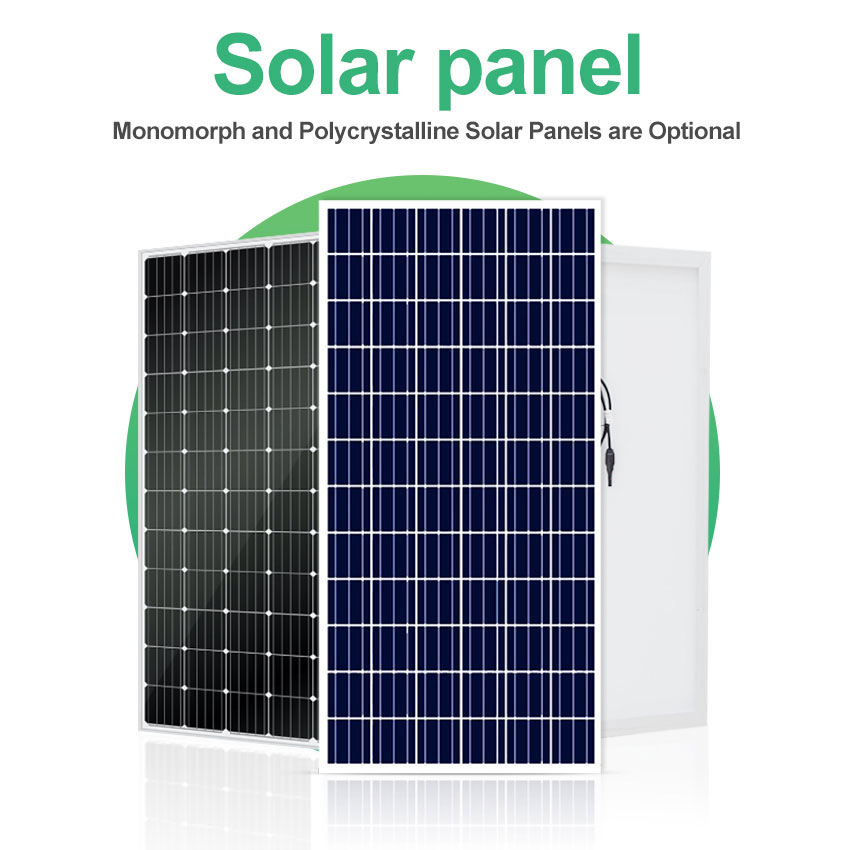

solar panels for rv solar kits Solar Panels:
1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass.
2. Frame: Anodized Aluminium Alloy.
3. Warranty:
25-years performance warranty.
12-years warranty on materials and workmanship.

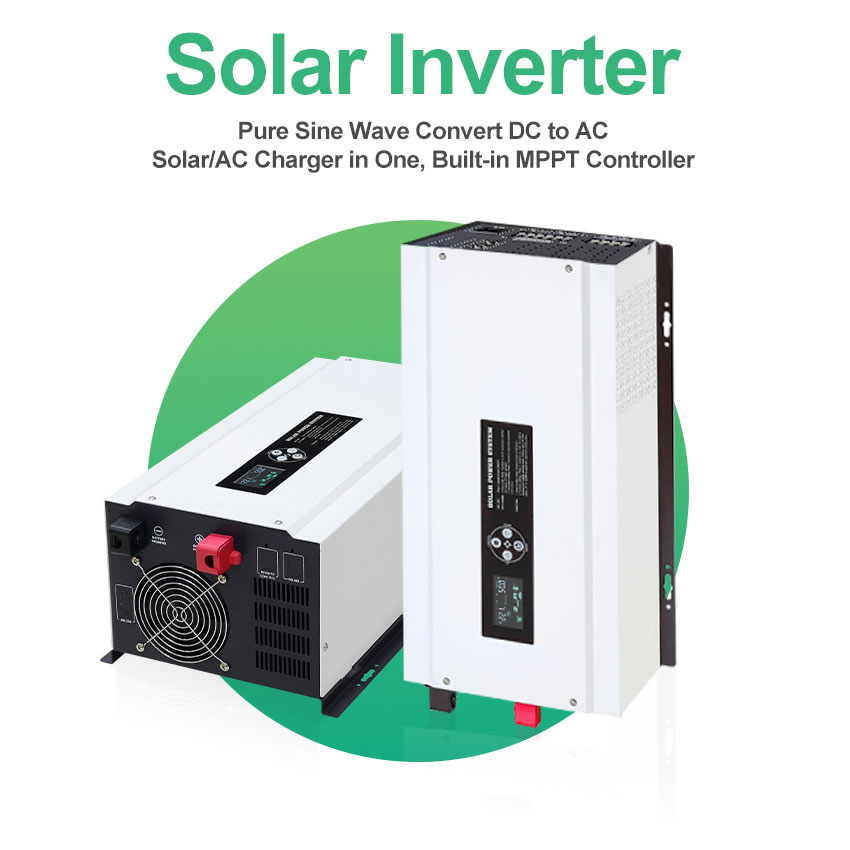

Hybrid Solar Inverter:
1. Low frequency pure sine wave
2. Solar/AC charger in one, built-in mppt solar controller and 0-30A AC charger
3. Compatible with lead acid batteries and lithium batteries
4. WIFI / GPRS remote monitoring optional
5. AVR stabilizer output
6. DC-AC switcher, switch time s 4ms


hybrid solar inverter for rv solar kits
solar battery for rv solar kits

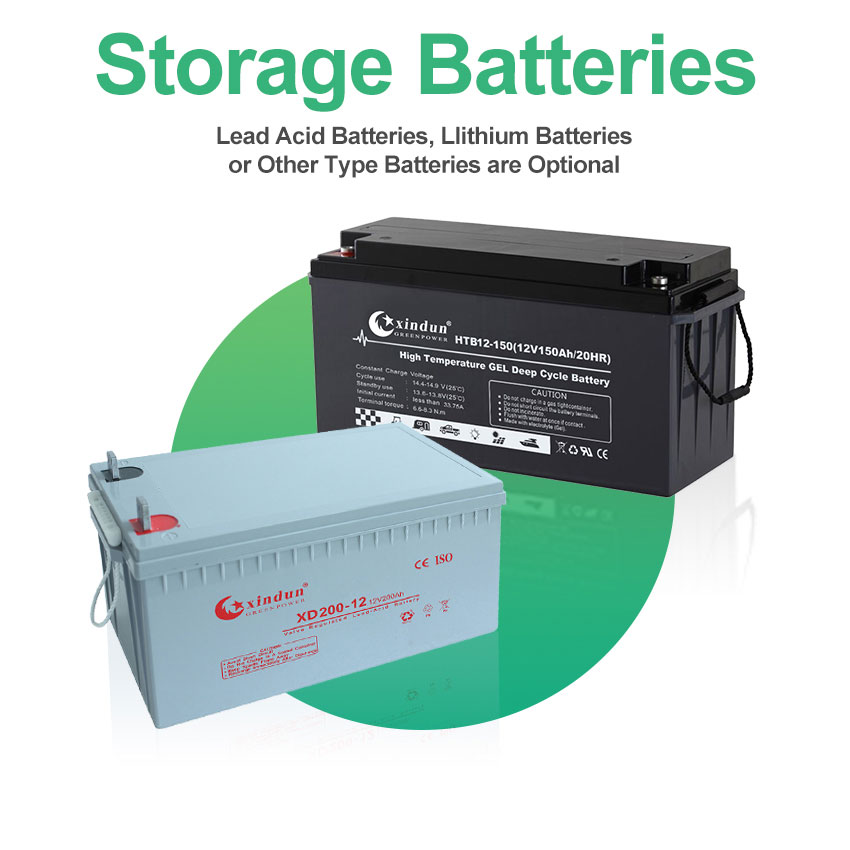

Lead Acid Battery:
1. Battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery.
2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range.
3. The deep discharge cycle life is increased 50%.
4. LiFeP04 battery is acceptable

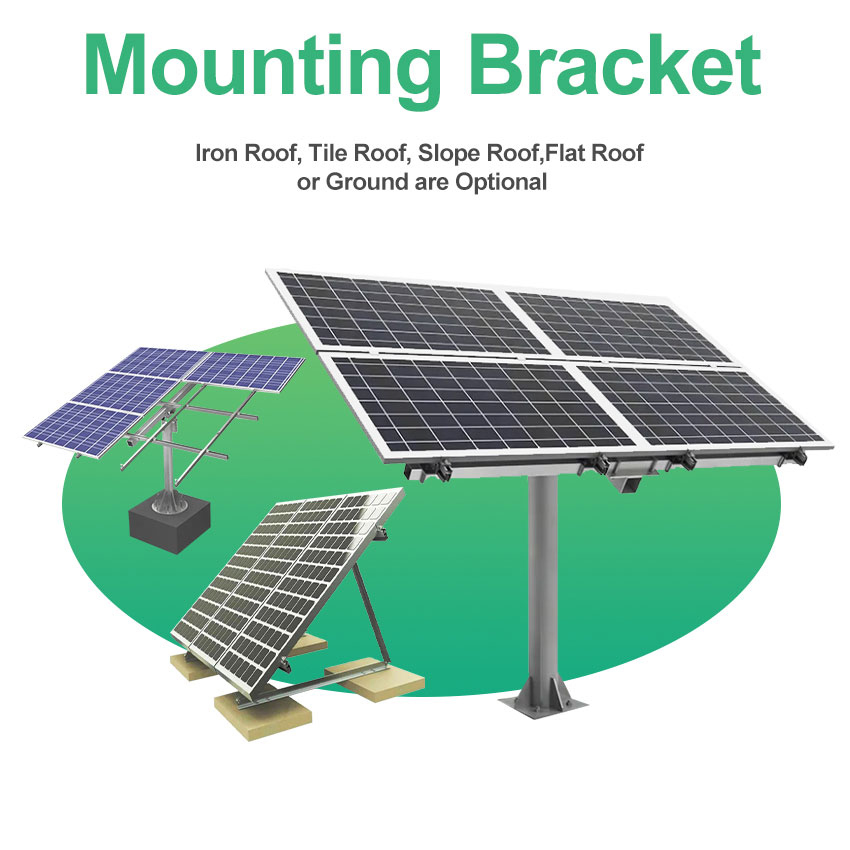

Solar Bracket:
1. Aluminum Alloy 6005-T5.
2. Fasteners Material SUS304.
3. Easy Installation.
4. Can Be used in different forms,Tin Roofs,Flat Roofs.
5. The installation angle can be adjusted according to the demand.
6. 10 Years Warranty, Over 25 Years Service Life.
solar bracket for rv solar kits
solar accessories for rv solar kits

Solar Accessories:

1. PV combiner Box: 500/1000v DC optional.
2. PV high voltage arrester protection, Circuit breaker protection, Lightning protection.
3. MC4 Connector.
4. Solar system installation tools optional.







RV Solar System in Real Production






produce rv solar kits

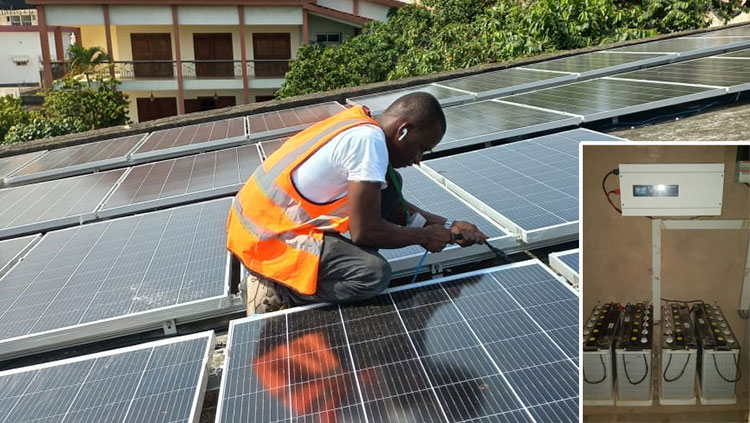

RV Solar System Installation






rv solar power system installation



rv solar power system installation



rv solar power system installation



Xindun rv solar systems have been sold to more than 100 countries, such as United States, Philippines, South Africa, Italy, Germany, Sri Lanka, Nigeria, United Kingdom, Pakistan, Lebanon, etc. Solar power systems have been widely used in: RV, home, truck, camper van, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project etc.



How to Connect Complete RV Solar System With Batteries




How to Connect Complete RV Solar System With Batteries

Contact XINDUN to obtain more professional connection and use methods of complete rv solar system with batteries.

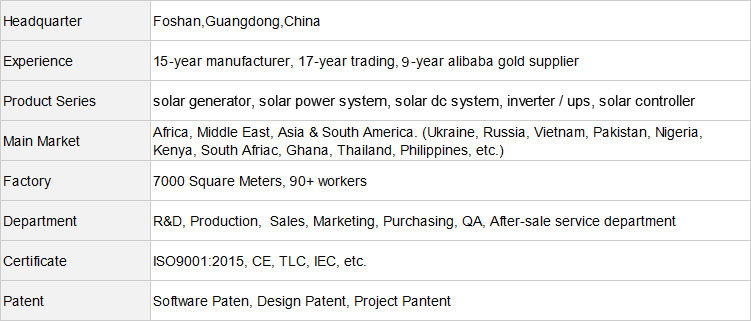

About Xindun Power




small rv solar system manufacturersmall rv solar system china manufacturer



Solar System Manufacturer




chinese small rv solar system manufacturer



Qualifications and Certificates




small rv solar system manufacturer qualification



Global Solar Expo




small rv solar system manufacturer in china



FAQ






Q1: Are you a factory?

A: Yes, we are the top 10 solar supply manufacturers in China, with over 10,000 square meters production area. We focus on off grid solar power system solution, solar inverters, solar charge controllers, solar generators and UPS power supply. We cooperate with some famous brands all over the world, can provide OEM/ODM production.

Q2: Is the off grid solar kits solution always the same? Can I customize one?
A: We have professional teams making solar solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So each set off grid solar kits may have different configuration. We\'d be happy to customize for you, contact XINDUN to know more details.

Q3: What is the price of complete RV solar system with batteries?
A: Tell me your requirements, such as power generation demand, configuration, and whether there are other functional requirements. We will give you the most favorable ex factory price. Complete RV solar system factory direct sales, no middlemen earn price difference.

Q4: What is the lifetime of the small RV solar system?
A: Solar panel’s lifetime are 20 years, solar inverters 3~5 years, solar charge controllers 3~5 years, batteries 1~3 years.

Q5: What services can XINDUN provide?
A: We will provide complete off grid solar power system free site survey, design, production, installation guide, maintenance of one-stop service, value added services: market and product training services, 24 hours after-service consultancy just for you and to make your problem to solve easily.
