Xindun off grid solar system generator is popular over the world, especially in areas without electricity. Accept customed home solar generator systems solution for different users.
SESS 1000W Off Grid Home Solar Generator System
SESS 1000W Off Grid Home Solar Generator System
SESS 1000W Off Grid Home Solar Generator System
SESS 1000W Off Grid Home Solar Generator System
SESS 1000W Off Grid Home Solar Generator System

SESS 1000W Off Grid Home Solar Generator System

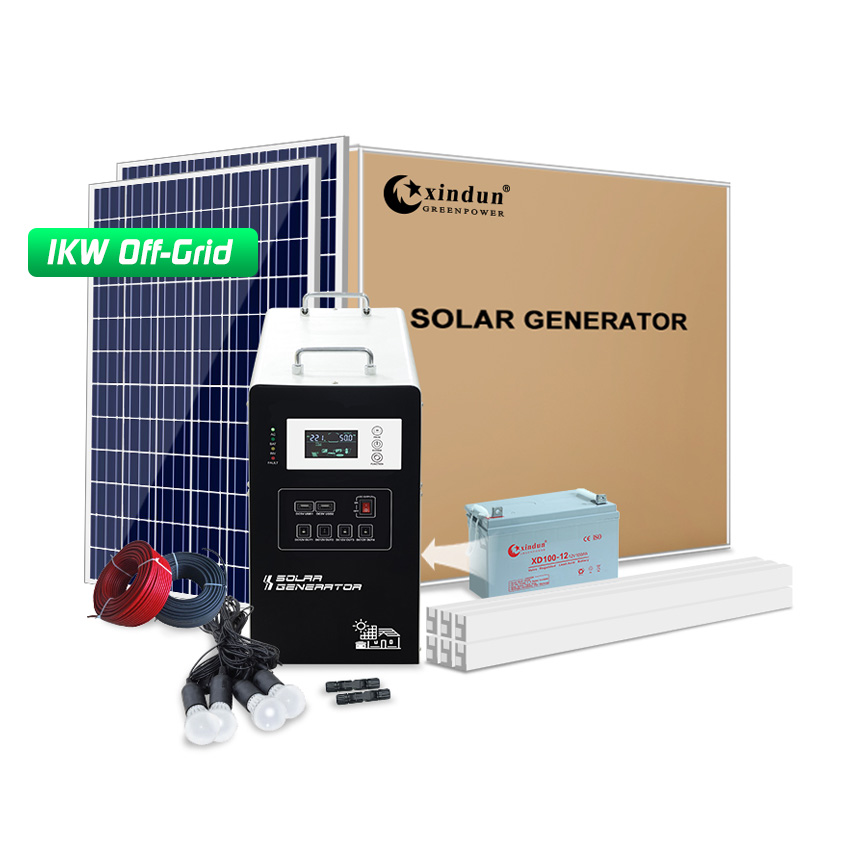

Solar generator system includes everything for a complete installation: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, cables and other terminals. 1000W Off grid solar generator system DC12V to AC110V/220V, 4*DC12V, 2*USB5V, and has 3120Wh energy storage every day.

  • Type : Solar Generator System
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
  • OEM : Yes

choose XINDUN 1000 watt solar system generator, get one-stop solar solution

Choose XINDUN home solar generator systems, you can get the following convenience:

· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, solar inverter generator, all duties to one company.





Off grid solar system generator - power your home 24hx7days





1000W Solar Generator System Description






Xindun solar generator system is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, pv cables, battery cables and other terminals. Significantly, solar battery, solar inverter and solar charge controller are all in one solar generator cabinet. After the simple installation is complete, it can be directly used for home appliances.

Each set home solar generator system has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.

Xindun solar generator system range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. This page introduces the 1000w off grid solar generator system, which can be used for AC and DC loads with total power not exeed 1kw.





1000W Solar Generator System Configuration








SESS102P 1000W Off Grid Solar Generator System Configuration
Brand Xindun Model No. SESS102P Inverter Rated Power(W) 1000
Maximum Load(W) 1000 Batter CapacityAH 100 Solar Panel Power(W) 320W
Product No. SESS102P Certification CE Sunshine Duration 6
Output Voltage
(Optional)
220V Frequency
(Optional)
50Hz/60Hz PV daily generating capacityWh 1920
Actual LoadKW) 1 Actual Load day(s) 1 Actual Load time(hours) 1.92
DC Output Port 12V 4pcs USB Port 5V 2pcs DC Lines 4pcs3W bulbs 4pcs5m wires with switch
G.W. 118 Volume 0.71 20GP Loading Quantity Contact Xindun
N.W. Contact Xindun DC Voltage(VDC) 12 Customized or not YES





Configuration Details
Product Name Specifications Quantity Remark
Solar Panel Polycrystalline 160W 2 2pcs in parallel
Solar inverter 1000W 1 ESS102P inverter built-in solar generator
Solar Charge Controller 12VDC 40A 1 PWM built-in solar generator
Lead acid battery 12V100AH 1 Battery built-in solar generator
Battery connecting cable standard 1 Built-in solar generator, connection between batteries
DC Output Port 12V 4 4pcs 3W bulbs 4pcs 5m wires with switch
Solar panel mounting bracket Aluminum 1 Simple type
PV combiner without 0
Lightning protection distribution box without 0
Battery collecting box without 0
M4 plug (male and female) standard 2 2 pairs 2 in 1 out
PV Cable 4mm² 60m Connection between solar panel and PV combiner
Battery cable standard 1 Built-in solar generator, connection between batteries and solar hybrid inverter
Package wooden case 1





Electrical Load Reference List
Electrical Appliance Rated PowerW Quantity(pcs) Working Hours Total
LED bulbs 10W 5 6Hours 300Wh
Mobile phone charger 10W 2 2Hours 40Wh
Fan 60W 2 6Hours 360Wh
TV 50W 1 4Hours 200Wh
Satellite dish receiver 50W 1 4Hours 200Wh
Computer 200W 1 1Hours 100Wh
Water pump 600W without
Washing machine 300W without
AC 2P/1600W without
Microwave oven 1000W without
Printer 30W without
A4 copier (printing and copying combined) 1500W without
Fax 150W without
Induction cooker 2500W without
Refrigerator 200W without
Water heater 2000W without
      Total 1200Wh

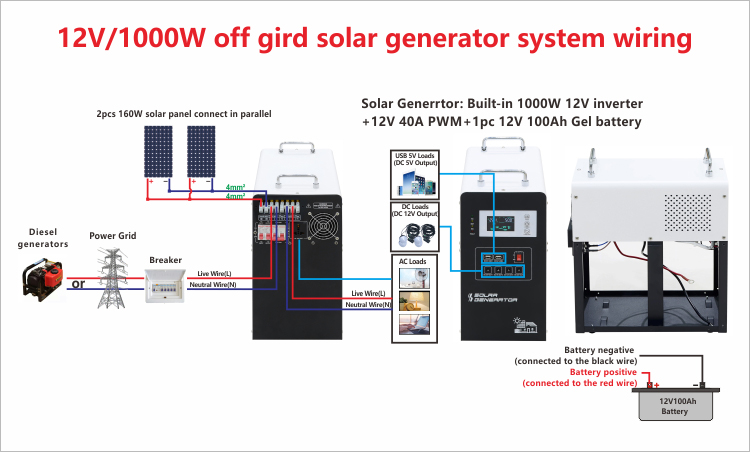

1000W Solar Generator System Wiring Diagram




1000 watt solar system generator wiring diagram



1000 watt solar system generator wiring diagram



Contact XINDUN for more high-definition wiring diagram.





1000W Solar Generator System Parts List

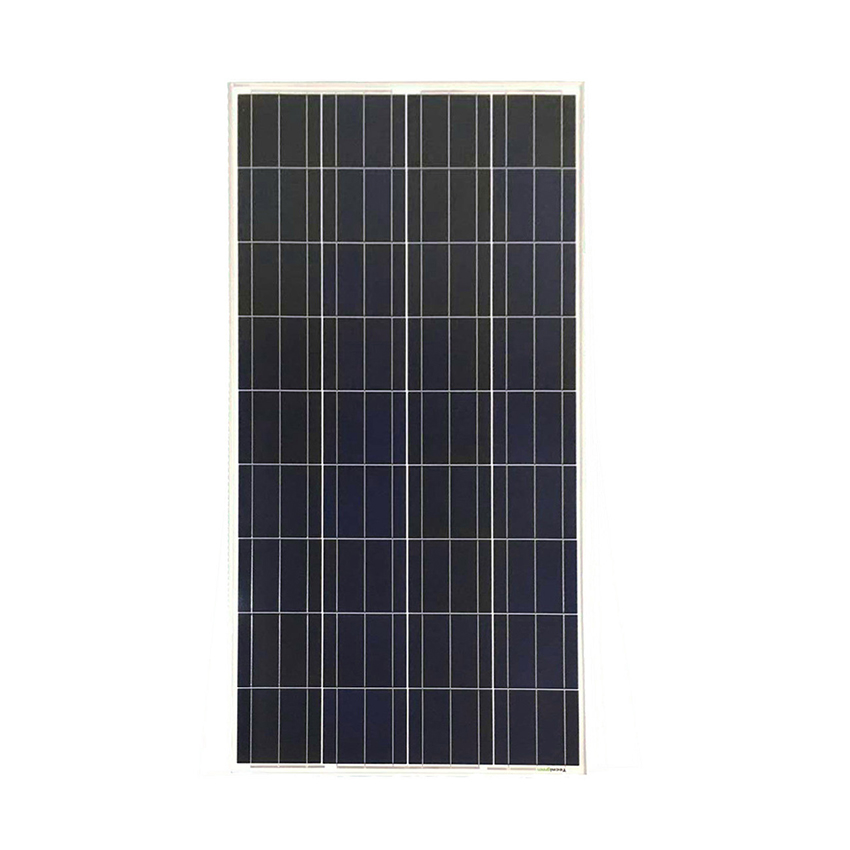

Polycrystalline solar panel for 1000 watt solar system generator Solar panel:
1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass.
2. Frame: Anodized Aluminium Alloy.
3. Warranty:
25-years performance warranty.
12-years warranty on materials and workmanship.

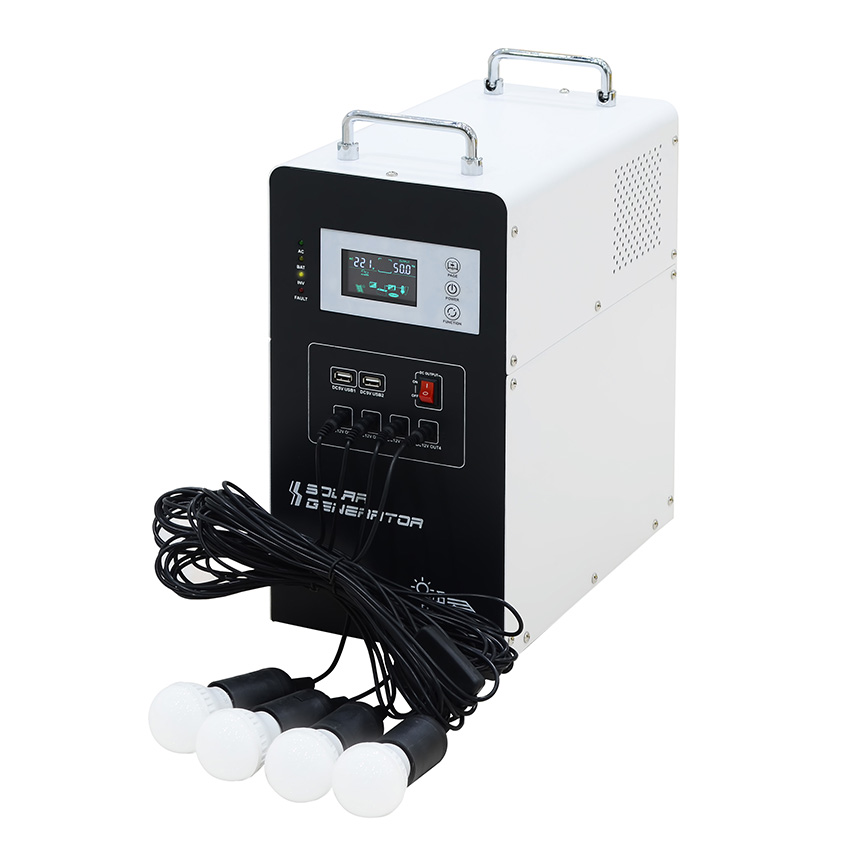

Solar generator:
1. Combine inverter/solar controller/battery all in one cabinet.
2. Built-in 12V/40A PWM solar controller.
3. Built-in 12V/1000W solar inverter.

4. Built-in 1pc 12V/100Ah battery.

5. Low frequency pure sine wave output .

6. Multiple output: 1*AC output socket, 4*DC 12V, 2*USB.

7. With 4pcs 3W bulbs, 4pcs 5m wires with switch.

8. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery.

9. Automatic AC charger and AC mains switcher, switch time ≤ 4ms.

0. AC charging current 0-30A selectable.

solar generator for 1000 watt solar system generator
Battery for 1000 watt solar system generator Gel battery (Built-in solar generator):
1. GEL series battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery.
2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range.
Solar bracket:
Description of Mounting
1. Aluminum Alloy 6005-T5.
2. Fasteners Material SUS304.
3. Easy Installation.
4. Can Be used in different forms,Tin Roofs,Flat Roofs.
5. The installation angle can be adjusted according to the demand.
6. 10 Years Warranty, Over 25 Years Service Life.
solar bracket for 1000 watt solar system generator
Cables and parts for 1000 watt solar system generator

Cables and parts:

1. 4mm2 PV cable 60m. PV cable is a special type of cable used in solar generator system. It has the characteristics of high temperature resistance and friction resistance, and has a long service life.

2. Battery cable (connection between batteries) 1 set.
3. Battery cable (connection between batteries and solar hybrid inverter) 1 set.
4. Terminals and 2 pairs MC4 plug.







1000W Solar Generator System in Real Production






1000 watt solar system generator in real production





Solar Generator System Application






1kw off grid solar system application1kw off grid solar system application



off grid solar generator system application



Xindun off grid solar generator systems have been sold to more than 100 countries, such as Nigeria, Ghana, Egypt, Botswana, Zimbabwe, South Africa, Egypt, Dubai, United Arab Emirates, Lebanon, Indonesia, Malaysia, Philippines, Columbia, Mexico etc. Solar generators have been widely used in: RV, camping, solar home, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project etc.





About Xindun Power






About XINDUN - 1kw off grid solar system company

About XINDUN - 1kw off grid solar system company introduction







Solar Generator System Factory






XINDUN - 1000w off grid solar system factory





Qualifications and Certificates






Xindun qualifications and certificates





Global Solar Exhibitions






Xindun global solar exhibitons





FAQ






Q1: Are you a factory?

A: Yes, we are the top 10 power supply manufacturers in China, with over 10k square meters production area. We focus on off grid solar system solution, inverters, solar charge controllers, solar generators and UPS power supply. We cooperate with some famous brands all over the world, can provide OEM/ODM production.

Q2: Is the off grid solar generator system solution always the same? Can I customize one?
A: We have professional teams making solar solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So each set off grid solar generator system may have different configuration. We\'d be happy to customize for you, contact XINDUN to know more details.

Q3: What is the price of off grid solar generator system?
A: Tell me your requirements, such as power generation demand, configuration, and whether there are other functional requirements. We will give you the most favorable ex factory price. off grid solar generator system factory direct sales, no middlemen earn price difference.

Q4: What is the lifetime of the off grid solar generator system?
A: Solar panel’s lifetime are 20 years, solar inverters 3~5 years, solar charge controllers 3~5 years, batteries 1~3 years.

Q5: What services can XINDUN provide?
A: We will provide off grid solar generator system free site survey, design, production, installation guide, maintenance of one-stop service, value added services: market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
