Solar System Solution
Off grid whole house solar system with battery backup, use for backup power supply when there is no grid. Full house solar system can also sell excess solar power to the grid to make a profit. Contact to get whole house solar system cost and details.
SESS Off Grid Whole House Solar System With Battery Backup
SESS Off Grid Whole House Solar System With Battery Backup
SESS Off Grid Whole House Solar System With Battery Backup
SESS Off Grid Whole House Solar System With Battery Backup
SESS Off Grid Whole House Solar System With Battery Backup
SESS Off Grid Whole House Solar System With Battery Backup

SESS Off Grid Whole House Solar System With Battery Backup

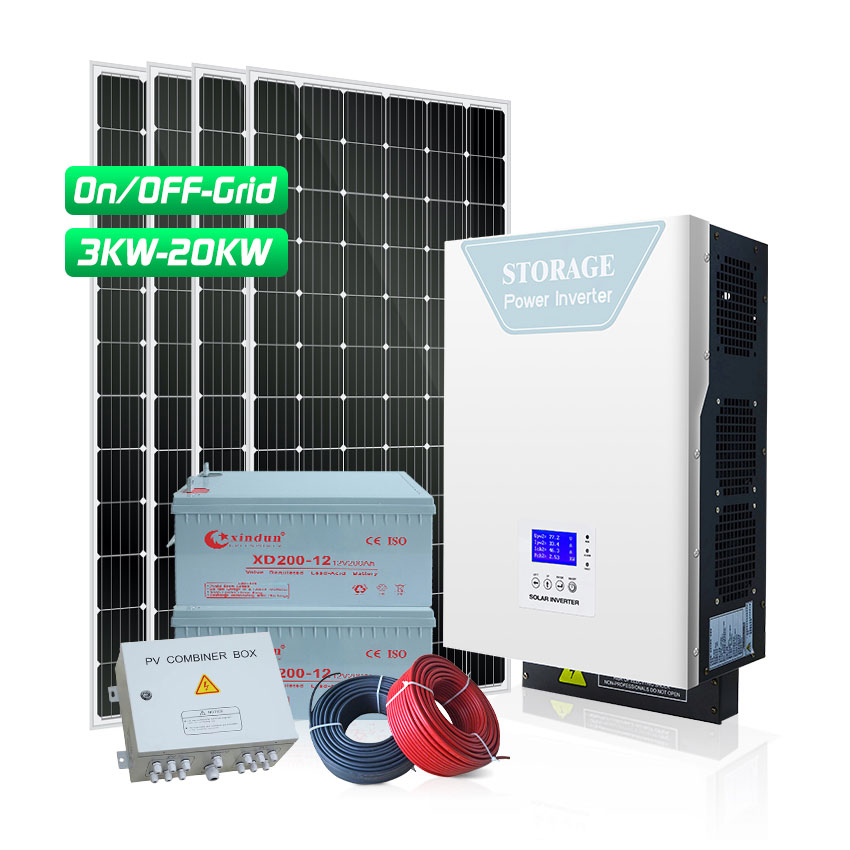

Whole house solar system includes everything for a solar installation. Off grid whole house solar system: 3KW to 20KW, DC48V/96V/192V to AC110V/220V/230V/240V, can be customized according to the needs of users. This full solar system also has the functions of on grid and off grid, which can use battery for backup power supply when there is no grid. On the other hand, surplus electricity can be sold to earn income.

  • Type : Off Grid Solar System
  • Place of Origin : China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
  • OEM : Yes

whole house solar system cost

full house solar system cost

Choose XINDUN whole house solar system with battery backup, you can get the following convenience:

· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, solar inverter with mppt charge controller, all duties to one company.

· Factory wholesale, whole house solar system cost is reasonable, All solar accessories are primary sources.


Whole House Solar System Description



Xindun whole house solar system is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, solar battery backup, solar inverter with mppt charge controller, pv cables, battery cables and MC4 connector. After the simple installation is complete, it can be directly used for full house appliances.

Each set off grid house solar system has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.

Xindun full solar system power range is from 300W to 150KW. We provide customers with free solar solution design and can accept customization.


This whole house solar system also has the functions of on grid and off grid, which can use battery for backup power supply when there is no grid. Surplus electricity can be sold to earn income.


Whole House Solar System Configuration



Off Grid House Solar System Equipment List
Model SESS3KW-ES SESS5KW-ES SESS10KW-ES SESS15KW-ES SESS20KW-ES
330W Solar Panel 8 Pieces 12 Pieces 24 Pieces 32 Pieces 36 Pieces
Combiner Box 2 in 1 out*2 3 in 1 out*2 2 in 1 out*2 2 in 1 out*2 2 in 1 out*2
On/Off Grid Inverter 3kw 48v with 70A mppt 5kw 48v with 120A mppt 10kw 96v with 110A mppt 15kw 192v with 80A mppt 20kw 192v with 110A mppt
12V 200AH lead acid Battery
(Lithium battery acceptable)
4 pieces 4 pieces 8 pieces 16 pieces 16 pieces
PV Cable 300 Meters 300 Meters 400 Meters 600 Meters 700 Meters
Battery Cable 3 pairs (16mm2) 3 pairs 7 pairs 15 pairs 15 pairs
MC4 Connector 5 Pairs 5 Pairs 6 Pairs 6 Pairs 6 Pairs
Mounting System 4 set 6 sets 12 sets 16 sets 18 sets
full house solar system configuration

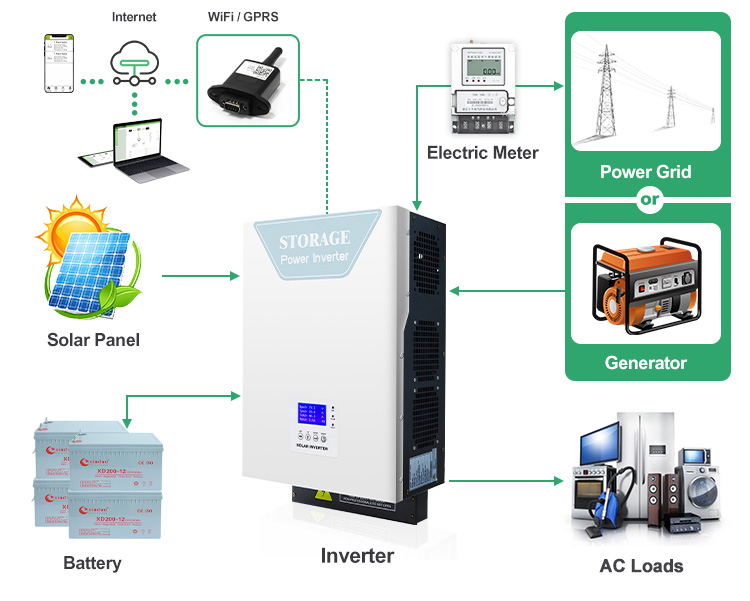

Whole House Solar System Wiring Diagram



whole house solar system wiring diagram


whole house solar system wiring diagram

full house solar system wiring

Whole House Solar System Parts List

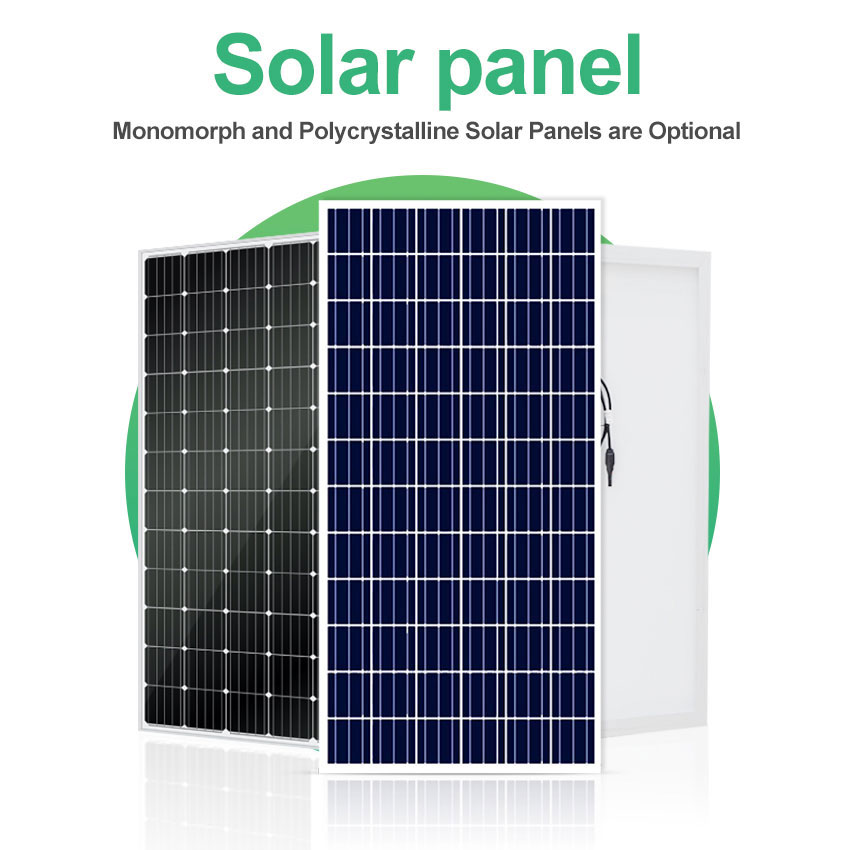

full house solar system - solar panel
Solar Panels:
1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass.
2. Frame: Anodized Aluminium Alloy.
3. Warranty:
25-years performance warranty.
12-years warranty on materials and workmanship.

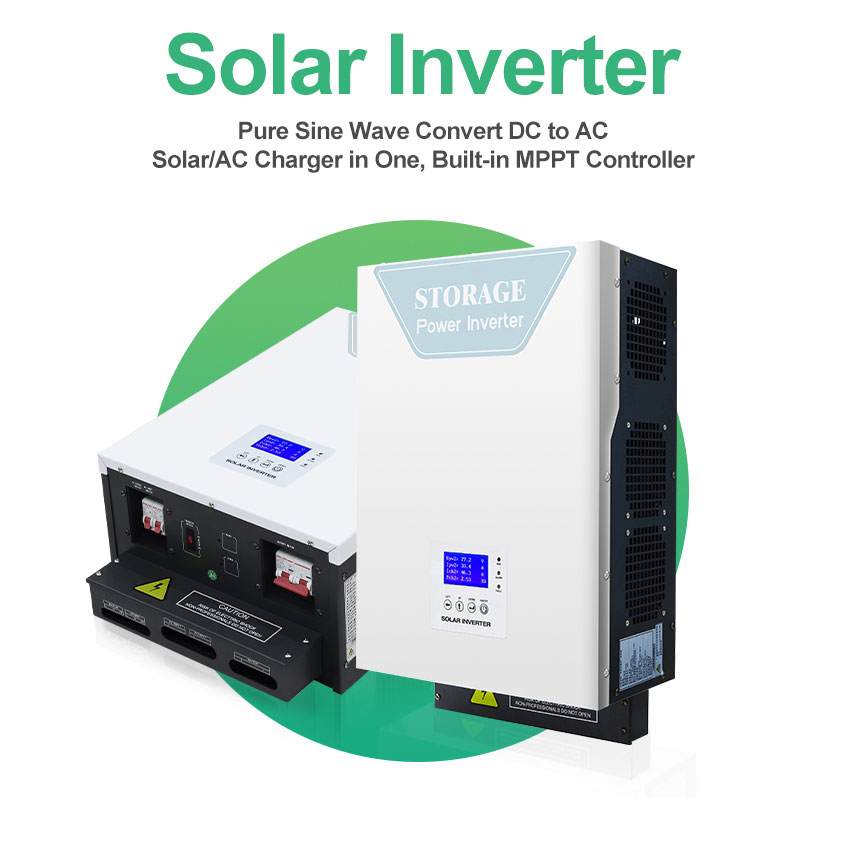

Hybrid Solar Inverter:
1. On/off grid in one inverter, use and sell solar energy.
2. Built-in dual MPPT charge controller.
3. Compatible with lead acid batteriesand lithium batteries.
4. Low frequency pure sine wave, more stable.
5. WIFI and GPRS monitoring optional.
6. DC-AC switcher, switch times 4ms.

full house solar system - on off grid hybrid solar inverter

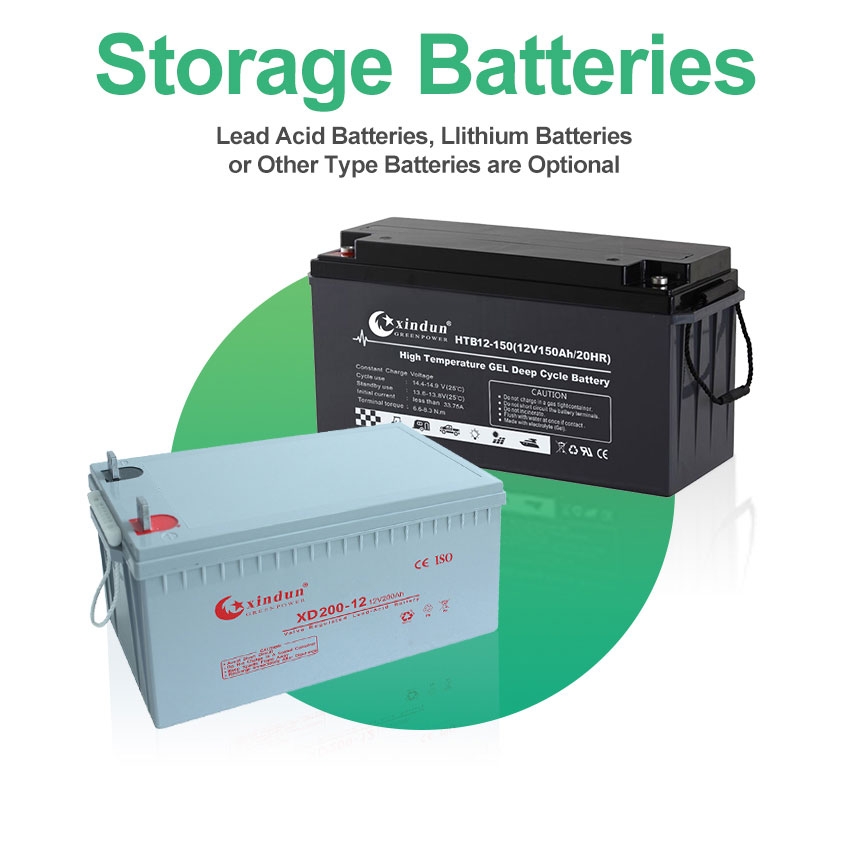

full house solar system - solar batteries
Lead Acid Battery:
1. Battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery.
2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range.
3. The deep discharge cycle life is increased 50%.
4. Lithium battery is acceptable.

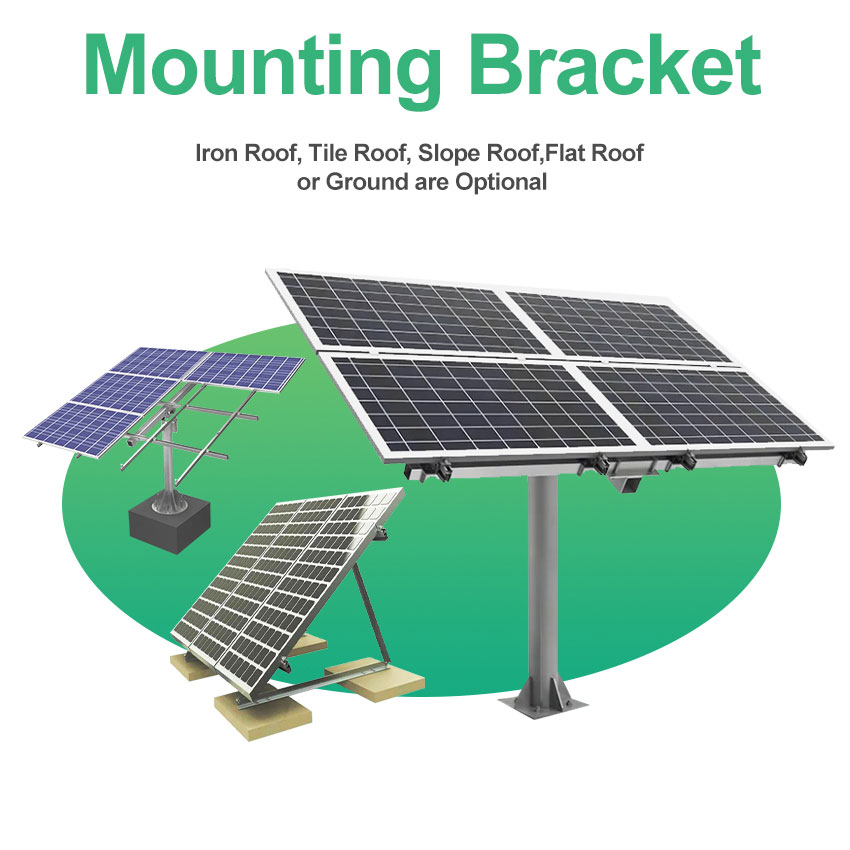

Solar Bracket:
1. Aluminum Alloy 6005-T5.
2. Fasteners Material SUS304.
3. Easy Installation.
4. Can Be used in different forms,Tin Roofs,Flat Roofs.
5. The installation angle can be adjusted according to the demand.
6. 10 Years Warranty, Over 25 Years Service Life.
full house solar system - solar bracket
full house solar system - solar accessories

Solar Accessories:

1. PV combiner Box: 500/1000v DC optional.
2. PV high voltage arrester protection, Circuit breaker protection, Lightning protection.
3. MC4 Connector.
4. Solar system installation tools optional.

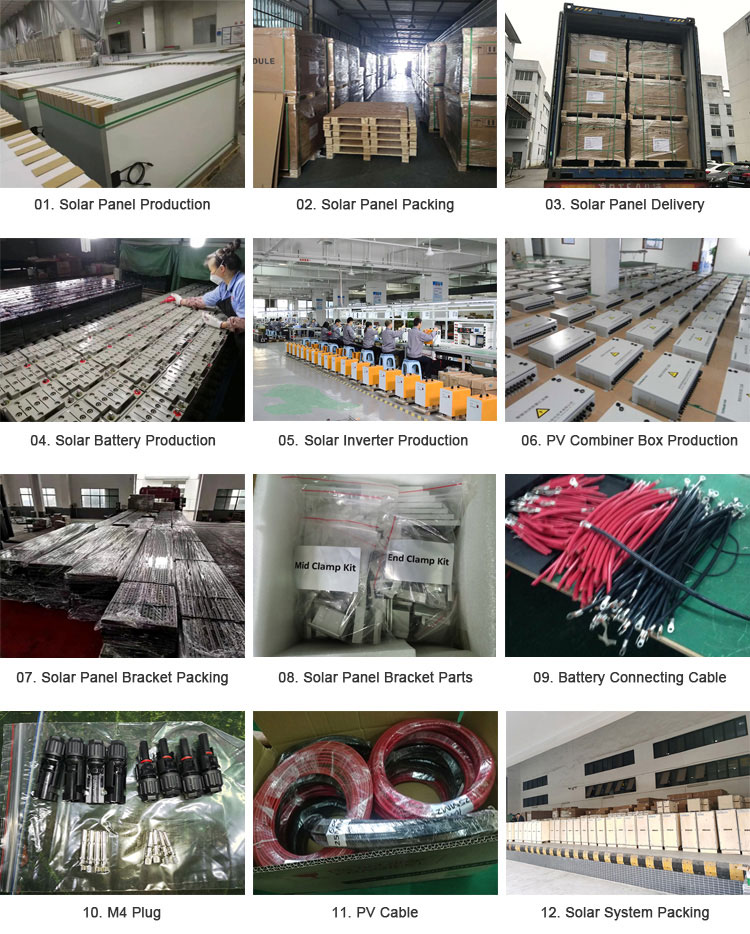

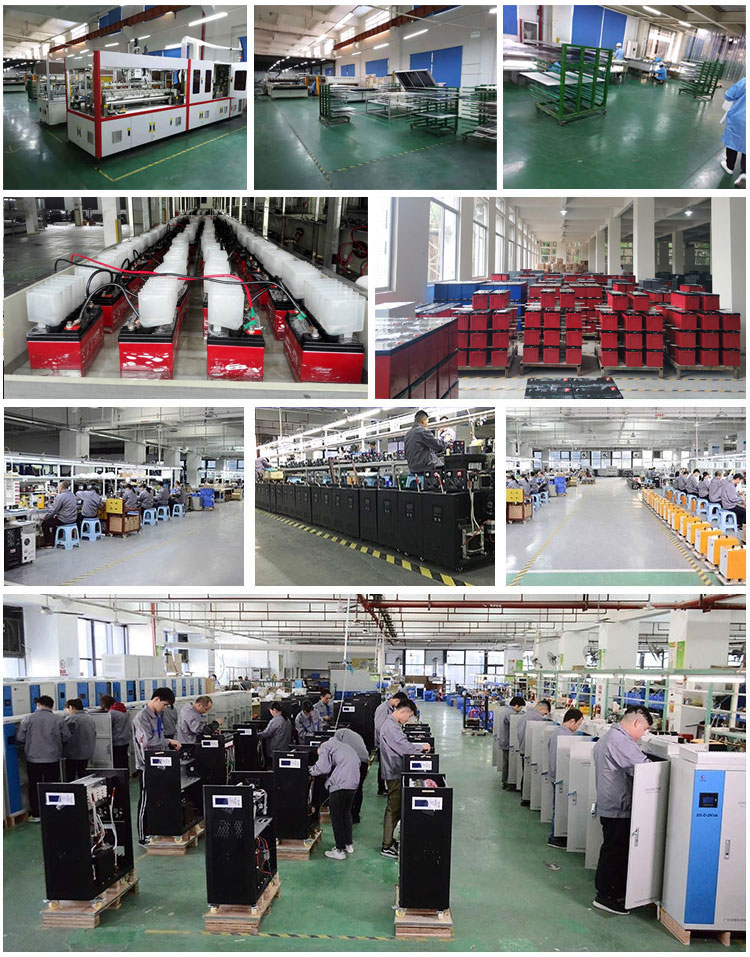

Whole House Solar System Production



factory produce whole house solar system with battery backup

full house solar system production process

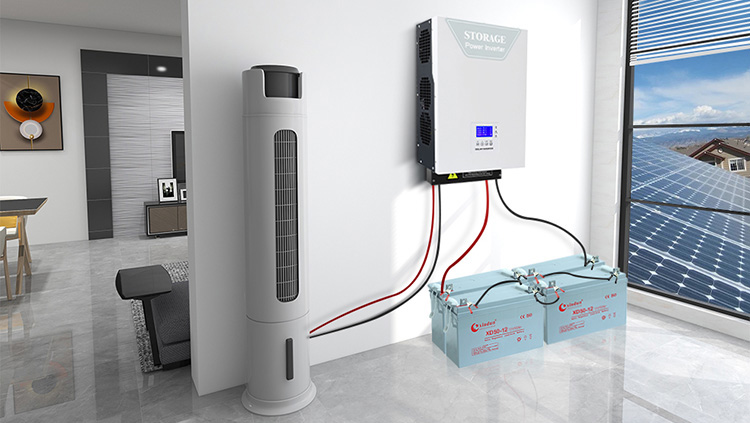

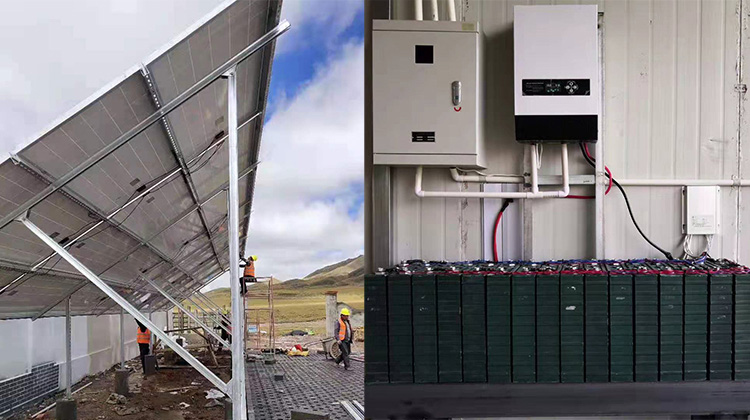

Whole House Solar System Installation



whole house solar system with battery backup installation


whole house solar system with battery backup application


whole house solar system with battery backup applications


Xindun off grid whole solar systems have been sold to more than 100 countries, such as Lebanon, Saudi Arabia, United Arab Emirates, Bahrain, Egypt, Brazil, Chile, Mexico, Philippines, Myanmar, Singapore, Vietnam, South Korea, Japan, United States, Canada, etc. Full solar system widely used in whole house, motorhome, camper van, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project etc.


How to Connect Off Grid Whole House Solar System


how to connect off grid house solar system


Contact XINDUN to obtain more professional connection and use methods of whole house solar system with battery backup.

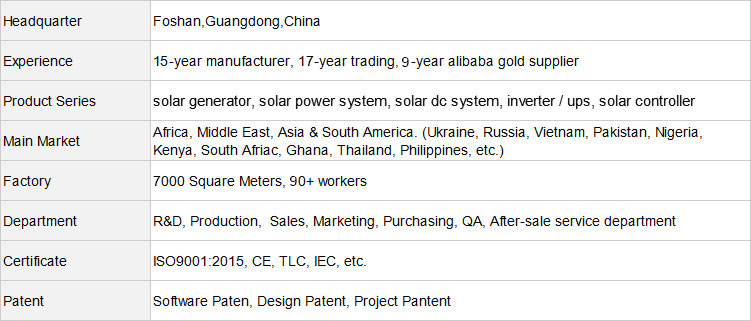

About Xindun Power



off grid house solar system factory in chinachinese off grid house solar system factory


Off Grid Solar System Factory



off grid whole house solar system factory - xindun power


Qualifications and Certificates



off grid whole house solar system ce rohs tuv iec certificate


Global Solar Expo



off grid full house solar system factory in solar exhibition


FAQ



Q1: Are you a factory?

A: Yes, we are the top 10 solar supply manufacturers in China, with over 10,000 square meters production area. We focus on off grid solar system solution, solar inverters, solar charge controllers, solar generators and UPS power supply. We cooperate with some famous brands all over the world, can provide OEM/ODM production.

Q2: Is the full house solar system always the same? Can I customize one?
A: We have professional teams making solar solutions for our clients. Solar solutions are mainly customized based on different sunshine time and power consumption. So each set solar system may have different configuration. We\'d be happy to customize for you, contact XINDUN to know more details.

Q3: What is the cost of whole house solar system?
A: Tell me your requirements, such as power generation demand, configuration, and whether there are other functional requirements. We will give you the most favorable ex factory price. Whole house solar system factory direct sales, no middlemen earn price difference.

Q4: What is the lifetime of whole house solar system with battery backup?
A: Solar panel’s lifetime are 20 years, solar inverters 3~5 years, solar charge controllers 3~5 years, batteries 1~3 years.

Q5: What services can XINDUN provide?
A: We will provide full solar system free site survey, design, production, installation guide, maintenance of one-stop service, value added services: market and product training services, 24 hours after-service consultancy just for you and to make your problem to solve easily.
