How to choose the right solar solutions for homes? How to select photovoltaic solar cell system brand? Xindun 15 years focus on solar cell system energy, can customize solar cell system for homes.

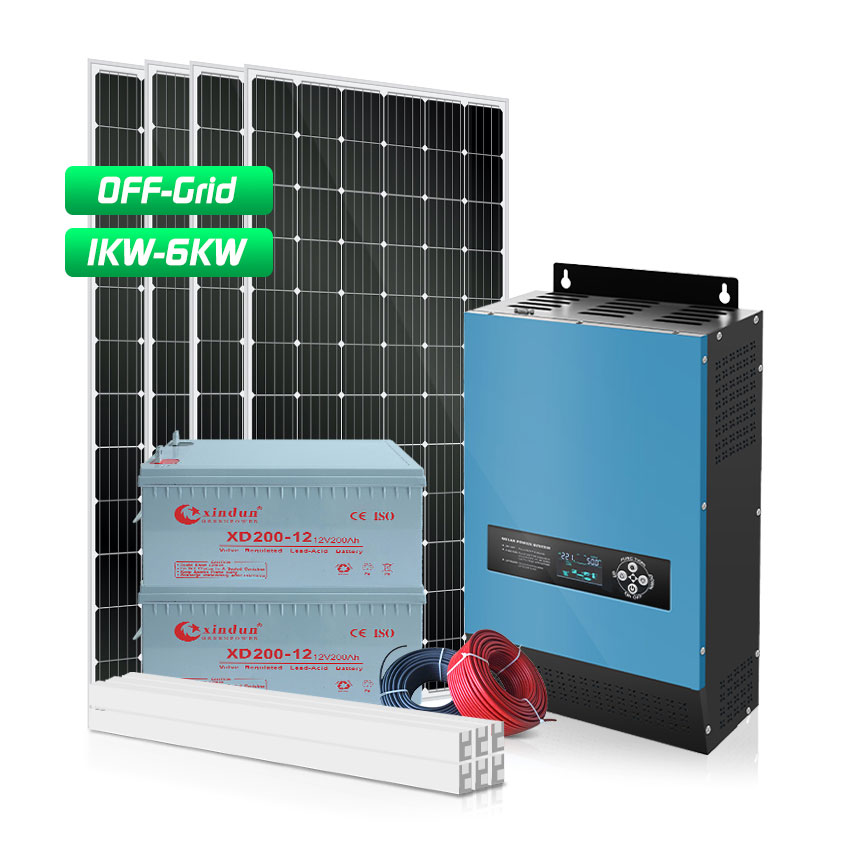

SESS Photovoltaic Solar Cell System For Homes
SESS Photovoltaic Solar Cell System For Homes
SESS Photovoltaic Solar Cell System For Homes
SESS Photovoltaic Solar Cell System For Homes
SESS Photovoltaic Solar Cell System For Homes
SESS Photovoltaic Solar Cell System For Homes

SESS Photovoltaic Solar Cell System For Homes

Complete photovoltaic solar cell system includes everything for a solar installation: solar panels, solar brackets, solar batteries, solar inverter with built-in mppt solar charge controller, cables, MC4 connector. Solar cell system energy: 1KW to 6KW, DC24V/48V to AC110V/220V/230V/240V, can be customized according to the needs of users.

  • Type : Off Grid Solar Cell System
  • Place of Origin : China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
  • OEM : Yes

solar solutions for homes


Choose XINDUN photovoltaic solar cell system for homes, you can get the following convenience:

· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, solar inverter with built-in mppt solar charge controller, all duties to one company.


Solar Cell System Description



Xindun solar cell system is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, solar battery, solar inverter with built-in mppt solar charge controller, pv cables, battery cables and MC4 connector. After the simple installation is complete, it can be directly used for homes appliances.

Each set photovoltaic solar cell system has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.

Xindun complete solar cell system energy range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. Buy a complete solar cell system for homes, enjoy your life.


Solar Cell System Configuration



Off Grid Solar Cell System Equipment List
Model SESS1KW 24v-LS SESS2KW 24v-LS SESS3KW 48v-LS SESS5KW 48v-LS SESS6KW 48v-LS
330W Solar Panel 2 Pieces 4 Pieces 6 Pieces 9 Pieces 12 Pieces
Combiner Box Without Without Without Without 4 in 1 out
Off Grid Inverter 1kw 24v with 30A mppt 2kw 24v with 50A mppt 3kw 48v with 60A mppt 5kw 48v with 80A mppt 6kw 48v with 80A mppt
12V 200AH lead acid Battery
(Lithium battery acceptable)
2 Pieces 2 Pieces 4 Pieces 4 Pieces 4 Pieces
PV Cable 100 Meters 100 Meters 200 Meters 300 Meters 300 Meters
Battery Cable 1 paris (16mm2) 1 paris (16mm2) 3 paris (16mm2) 3 paris (25mm2) 3 paris (25mm2)
MC4 Connector 2 Pairs 2 Pairs 4 Pairs 5 Pairs 5 Pairs
Mounting System 1 set 2 sets 3 sets 6 sets 8 sets
solar solutions for homes configuration

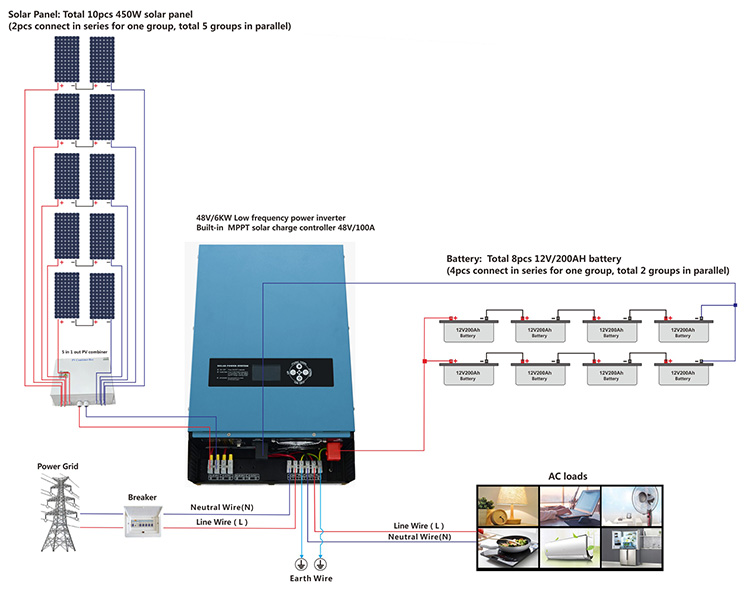

Solar Cell System Wiring Diagram



solar cell system for homes wiring diagram


solar cell system for homes wiring diagram


Solar Cell System Parts List

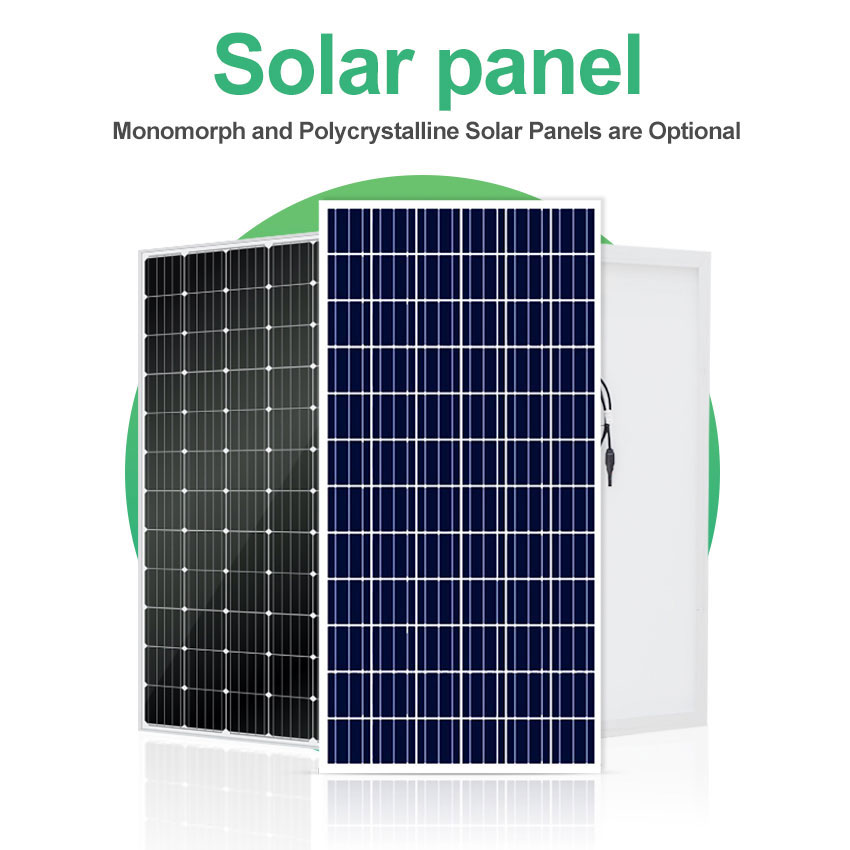

solar panels of solar cell system for homes
Solar Panels:
1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass.
2. Frame: Anodized Aluminium Alloy.
3. Warranty:
25-years performance warranty.
12-years warranty on materials and workmanship.

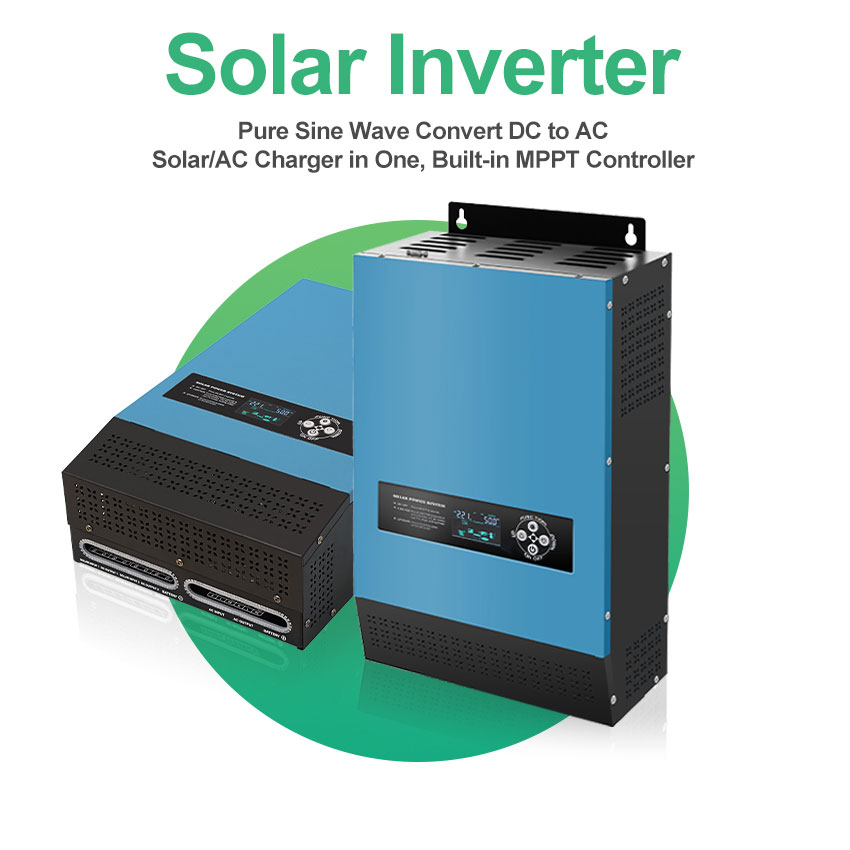

Hybrid Solar Inverter:
1. Low frequency pure sine wave
2. Solar/AC charger in one, built-in mppt solar charge controller and 0-30A AC charger
3. Compatible with lead acid batteries and lithium batteries
4. WIFI / GPRS remote monitoring optional
5. AVR stabilizer output
6. DC-AC switcher, switch time s 4ms

hybrid solar inverter of solar cell system for homes
solar batteries of solar cell system for homes

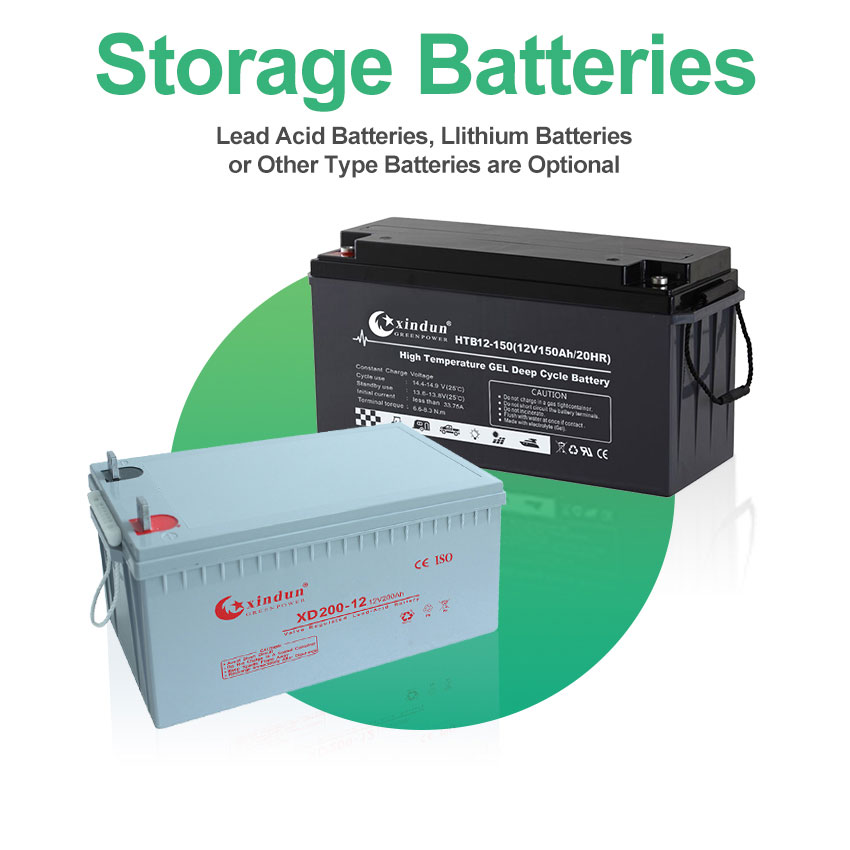

Lead Acid Battery:
1. Battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery.
2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range.
3. The deep discharge cycle life is increased 50%.
4. Lithium battery is acceptable.

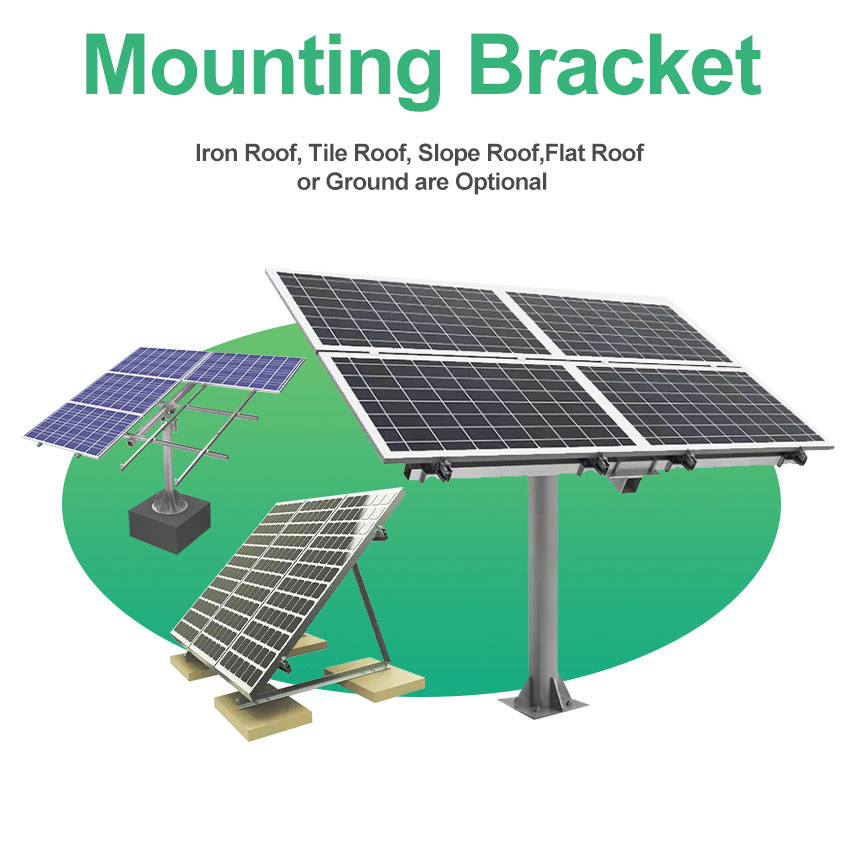

Solar Bracket:
1. Aluminum Alloy 6005-T5.
2. Fasteners Material SUS304.
3. Easy Installation.
4. Can Be used in different forms,Tin Roofs,Flat Roofs.
5. The installation angle can be adjusted according to the demand.
6. 10 Years Warranty, Over 25 Years Service Life.
solar bracket of solar cell system for homes
solar accessories of solar cell system for homes

Solar Accessories:

1. PV combiner Box: 500/1000v DC optional.
2. PV high voltage arrester protection, Circuit breaker protection, Lightning protection.
3. MC4 Connector.
4. Solar cell system installation tools optional.

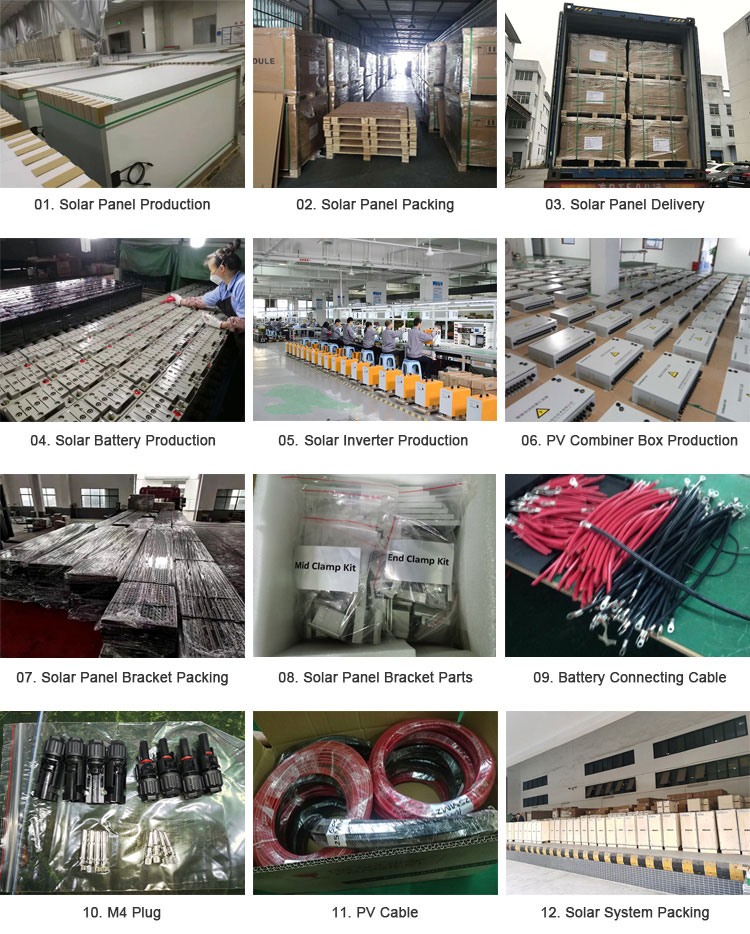

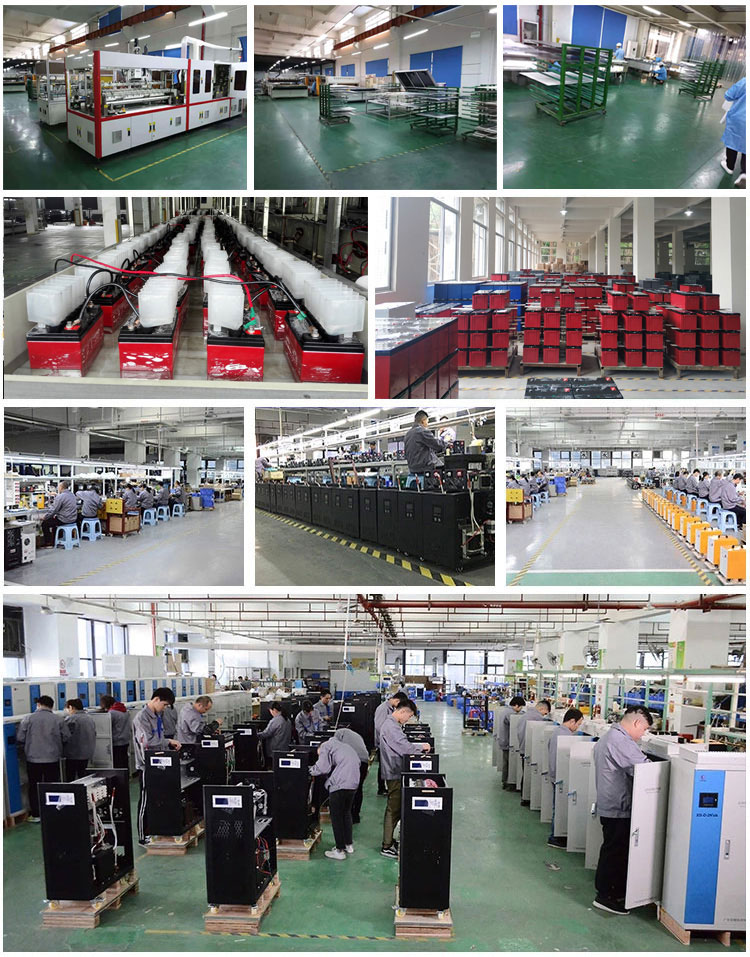

Solar Cell System in Real Production



solar cell system energy production

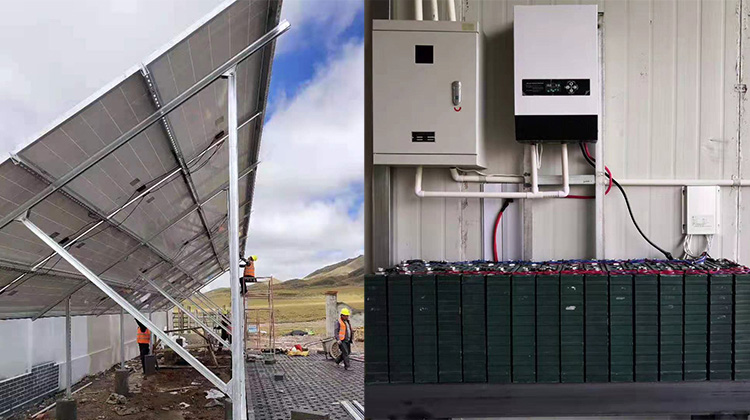

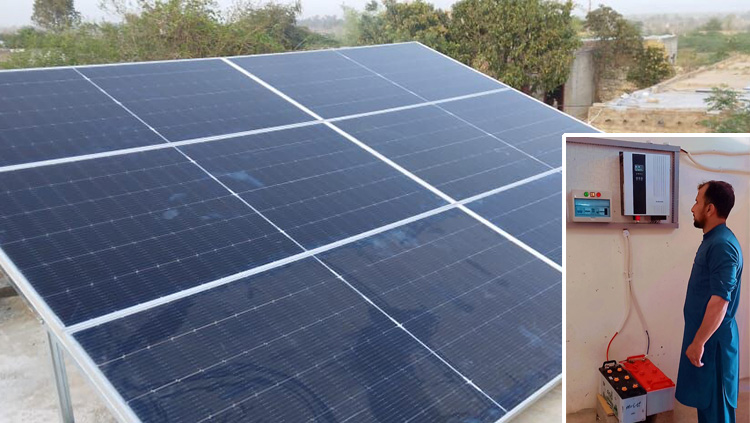

Solar Cell System Installation



solar cell system energy installation


solar cell system energy installation


solar cell system energy installation


Xindun solar cell systems have been sold to more than 100 countries, such as France, Italy, India, Brazil, Romania, Kenya, Canada, Saudi Arabia, Turkey, United Arab Emirates, Iraq, etc. Photovoltaic solar cell systems have been widely used for homes, truck, camper van, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project etc.


How to Connect Photovoltaic Solar Cell System



how to connect solar cell system energy for homes

Contact XINDUN to obtain more professional connection and use methods of photovoltaic solar cell system for homes.


About Xindun Power



photovoltaic solar cell system brandphotovoltaic solar cell system chinese brand

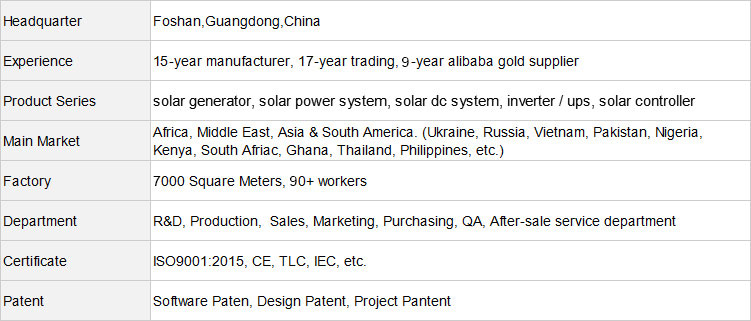

Solar Cell System Brand



photovoltaic solar cell system brand in china


Qualifications and Certificates



china photovoltaic solar cell system brand


Global Solar Expo



chinese photovoltaic solar cell system brand


FAQ



Q1: Are you a factory?

A: Yes, we are the top 10 solar supply manufacturers in China, with over 10,000 square meters production area. We focus on off grid photovoltaic solar cell system solution, solar inverters, solar charge controllers, solar generators and UPS power supply. We cooperate with some famous brands all over the world, can provide OEM/ODM production.

Q2: Is the solar solutions for homes always the same? Can I customize one?
A: We have professional teams making solar solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So each set solar solution may have different configuration. We\'d be happy to customize for you, contact XINDUN to know more details.

Q3: What is the price of solar cell system energy?
A: Tell me your requirements, such as power generation demand, configuration, and whether there are other functional requirements. We will give you the most favorable ex factory price. Complete solar cell system factory direct sales, no middlemen earn price difference.

Q4: What is the lifetime of the solar cell system for homes?
A: Solar panel’s lifetime are 20 years, solar inverters 3~5 years, solar charge controllers 3~5 years, batteries 1~3 years.

Q5: What services can XINDUN provide?
A: We will provide complete solar cell system free site survey, design, production, installation guide, maintenance of one-stop service, value added services: market and product training services, 24 hours after-service consultancy just for you and to make your problem to solve easily.
