Solar System Solution
XINDUN has factory outlet store and online shopping center with portable solar generator kits. 5000 watt solar generator or customized solar generator solution is accepted.
portable solar generator kits
portable solar generator kits
5000w solar generator kit - solar panel
5000 watt solar generator
solar generator kit 5kw - battery

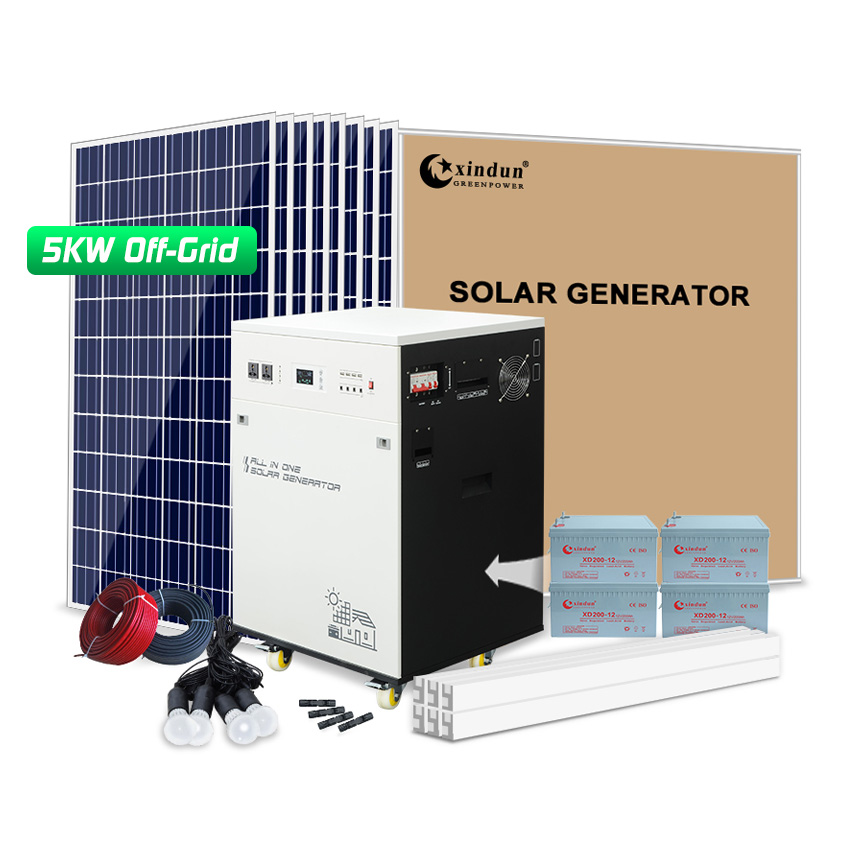

SESS 5000 Watt Portable Solar Generator Kit

Portable solar generator kits includes everything for a complete installation: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, cables and other terminals. 5000 watt solar generator kit DC48V to AC110V/220V, 4*DC12V, 4*USB5V, and has 25440Wh energy storage every day.

  • Type : Solar Generator Kits
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
  • OEM : Yes

choose XINDUN 5000w solar generator kits 5kw, get one-stop solar solution

Choose XINDUN portable solar generator kits, you can get the following convenience:

· Complete solar solutions including all components.
· Professional configuration.
· Time-saving on the selection.
· Convenient after-sales maintenance: solar panels, batteries, solar inverter generator, all duties to one company.





5000w solar generator kits 5kw - power your house 24hx7days





Portable Solar Generator Kit Description






Xindun portable solar generator kit is the most complete configuration on the market, which includes all necessary components: solar panel, solar bracket, solar battery, solar inverter, solar charge controller, pv cables, battery cables and other terminals. Significantly, solar battery, solar inverter and solar charge controller are all in one solar generator cabinet. After the simple installation is complete, it can be directly used for house appliances.

Each set portable solar generator kit has power on&off test 100 times per hour. Each step of production is under strict quality control. Perfect protection: short circuit, over-voltage, low-voltage, overload, insulation resistance, high temperature protection.

Xindun portable solar generator kit range is from 300W to 100KW. We provide customers with free solar solution design and can accept customization. This page introduces the 5000 watt solar generator kit, which can be used for dc and ac loads with total power not exeed 5kw.





Portable Solar Generator Kit Configuration








SESS502W 5000W Solar Generator System Configuration
Brand Xindun Model No. SESS502W Inverter Rated Power(W) 5000
Maximum Load(W) 5000 Batter Capacity(AH) 800 Solar Panel Power(W) 2640
Product No. SESS502W Certification CE Sunshine Duration 6
Output Voltage
(Optional)
220V Frequency
(Optional)
50Hz/60Hz PV daily generating capacityWh 15840
Actual LoadKW) 5 Actual Load day(s) 1 Actual Load time(hours) 3
DC Output Port 12V 4pcs USB Port 5V 4pcs DC Lines 4pcs3W bulbs 4pcs5m wires with switch
G.W. 794 Volume 1.78 20GP Loading Quantity Contact Xindun
N.W. Contact Xindun DC Voltage(VDC) 48 Customized or not YES





Configuration Details
Product Name Specifications Quantity Remark
Solar Panel Polycrystalline 330W 8 2pcs in series4groups in parallel
Solar inverter 48VDC 5KW 1 ESS502W inverter built-in solar generator
Solar Charge Controller 48VDC 60A 1 MPPT built-in solar generator
Lead acid battery 12V200AH 4 Battery built-in solar geneartor
Battery connecting cable standard 1 Built-in solar generator, connection between batteries
DC Output Port 12V 4 4pcs 3W bulbs 4pcs 5m wires with switch
solar panel mounting bracket Aluminum 1 Simple type
PV combiner without 0
Lightning protection distribution box without 0
battery collecting box without 0
M4 plug (male and female) standard 7 4 pairs 1 in 1 out,
3 pairs 2 in 1 out
PV Cable 4mm² 100 Connection between solar panel and PV combiner
Battery cable standard 1 Built-in solar generator, connection between batteries and solar hybrid inverter
Package wooden case 1





Electrical Load Reference List
Electrical Appliance Rated Power(pcs) Quantity(pcs) Working Hours Total
LED bulbs 20W 10 8Hours 1600Wh
Mobile phone charger 10W 5 4Hours 200Wh
Fan 60W 5 8Hours 2400Wh
TV 50W 1 8Hours 400Wh
Satellite dish receiver 50W 1 8Hours 400Wh
Computer 200W 1 8Hours 1600Wh
Water pump 600W 1 1Hours 600Wh
Washing machine 300W 1 1Hours 300Wh
AC 2P/1600W without
Microwave oven 1000W 1 1Hours 1000Wh
Printer 30W without
Printer 30W without 1Hours 40Wh
A4 copier (printing and copying combined) 1500W without
Fax 150W without 1Hours 150Wh
Refrigerator 200W 1 24Hours 1500Wh
Water heater 2000W without
      Total 10190Wh

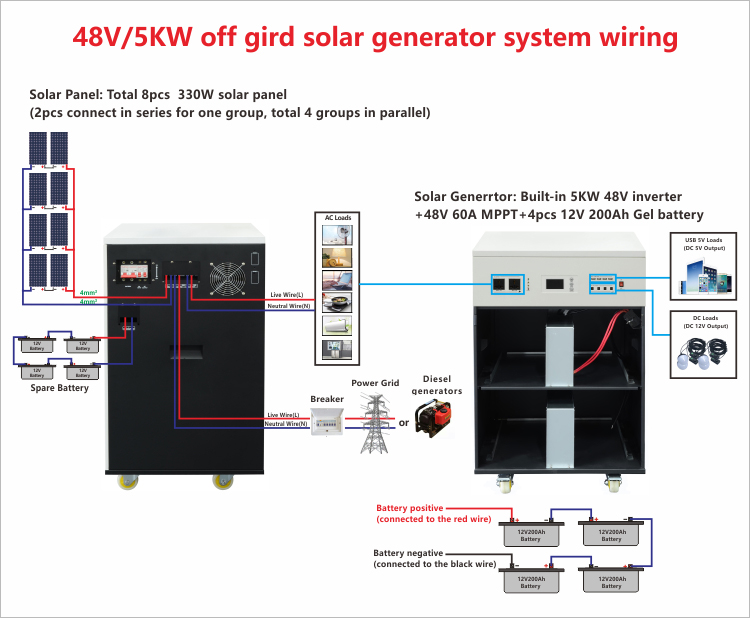

Portable Solar Generator Kit Wiring Diagram




5000w solar generator kits 5kw wiring diagram



5000w solar generator kits 5kw wiring diagram



Contact XINDUN for more high-definition wiring diagram.





Portable Solar Generator Kit Parts List

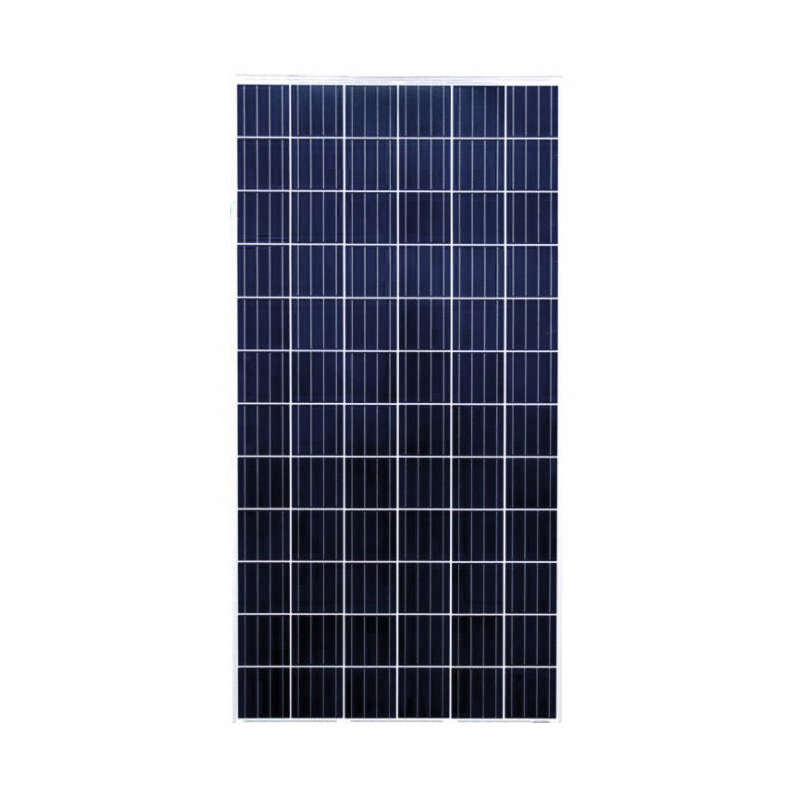

Polycrystalline solar panel for 5000w solar generator kits 5kw Solar panel:
1. Front Glass: 3.2mm, Anti Reflection Coaring, High Transmission, Low Iron, Tempered Glass.
2. Frame: Anodized Aluminium Alloy.
3. Warranty:
25-years performance warranty.
12-years warranty on materials and workmanship.

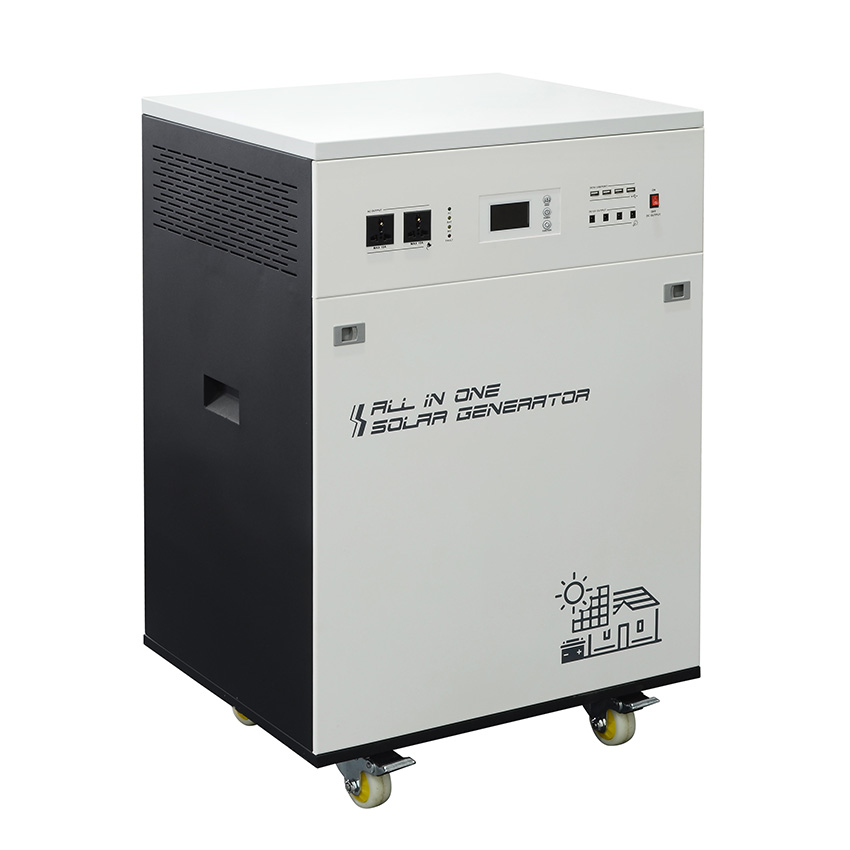

Solar generator:
1. Combine inverter/solar controller/battery all in one cabinet.
2. Built-in 48V/60A MPPT solar controller.
3. Built-in 48V/5000W solar inverter.

4. Built-in 4pcs 12V/200Ah battery.

5. Low frequency pure sine wave output .

6. Multiple output: 2*AC output socket, 4*DC 12V, 4*USB.

7. With 4pcs 3W bulbs, 4pcs 5m wires with switch.

8. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery.

9. Automatic AC charger and AC mains switcher, switch time ≤ 4ms.

0. AC charging current 0-30A selectable.

solar generator for 5000w solar generator kits 5kw

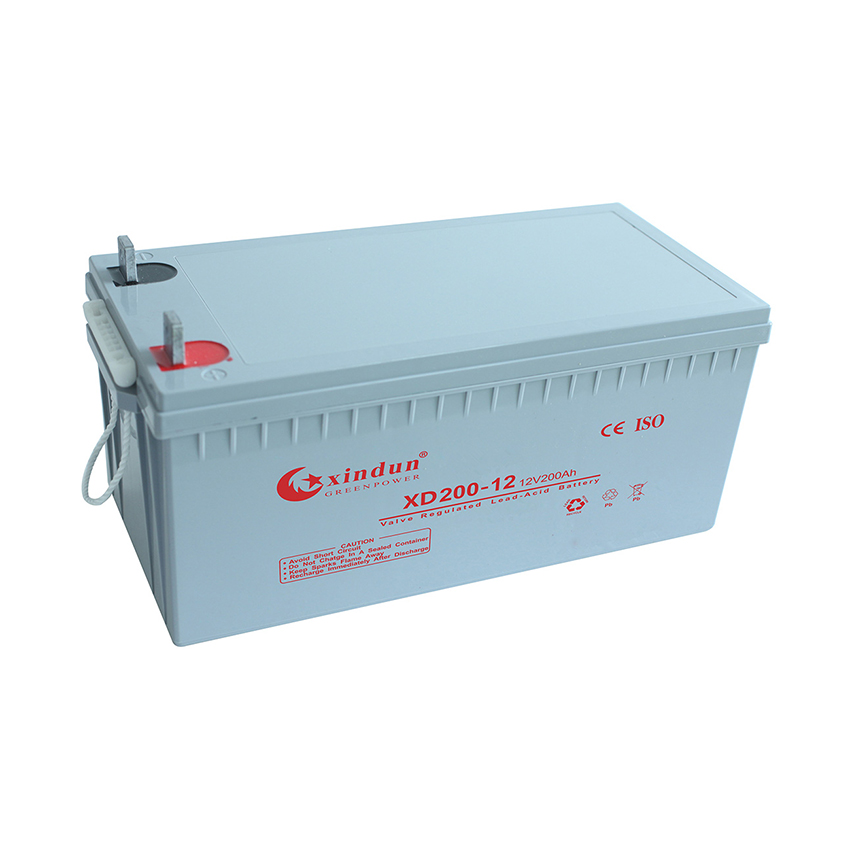

Battery for 5000w solar generator kits 5kw Gel battery (Built-in solar generator):
1. GEL series battery is manufactured with special separators and silica gel immobilizing the electrolyte inside the battery.
2. The proven silica gel technology can improve battery cycle life and performance at wider temperature range.
Solar bracket:
Description of Mounting
1. Aluminum Alloy 6005-T5.
2. Fasteners Material SUS304.
3. Easy Installation.
4. Can Be used in different forms,Tin Roofs,Flat Roofs.
5. The installation angle can be adjusted according to the demand.
6. 10 Years Warranty, Over 25 Years Service Life.
solar bracket for 5000w solar generator kits 5kw
Cables and parts for 5000w solar generator kits 5kw

Cables and parts:

1. 4mm2 PV cable 100m. PV cable is a special type of cable used in solar generator kits. It has the characteristics of high temperature resistance and friction resistance, and has a long service life.

2. Battery cable (connection between batteries) 1 set.
3. Battery cable (connection between batteries and solar generator) 1 set.
4. Terminals and 7 pairs MC4 plug.







Portable Solar Generator Kit in Real Production






5000w solar generator kits 5kw in real production





Portable Solar Generator Kit Application






5000w solar generator kits 5kw application5000w solar generator kits 5kw application



solar generator kits application



Xindun portable solar generator kits have been sold to more than 100 countries, such as Nigeria, Ghana, Egypt, Botswana, Zimbabwe, South Africa, Egypt, Dubai, United Arab Emirates, Lebanon, Indonesia, Malaysia, Philippines, Columbia, Mexico etc. Solar generator kits have been widely used in: solar home, solar school project, solar hospital project, solar farm project, solar hotel project, solar millitary project, solar energy water treatment equipment project, solar goverment project, hilltop, ship, etc.





About Xindun Power






About XINDUN - 5000w solar generator kits 5kw company

About XINDUN - 5000w solar generator kits 5kw company introduction







Solar Generator Kits Factory






XINDUN - 5000w solar generator kits 5kw factory





Qualifications and Certificates






Xindun qualifications and certificates





Global Solar Exhibitions






Xindun global solar exhibitons





FAQ






Q1: Are you a factory?

A: Yes, we are the top 10 power supply manufacturers in China, with over 10k square meters production area. We focus on solar system solution, inverters, solar charge controllers, solar generators and UPS power supply. We cooperate with some famous brands all over the world, can provide OEM/ODM production.

Q2: Is the solar generator kits solution always the same? Can I customize one?
A: We have professional teams making solar solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption. So each set solar generator kits may have different configuration. We\'d be happy to customize for you, contact XINDUN to know more details.

Q3: What is the price of solar generator kits?
A: Tell me your requirements, such as power generation demand, configuration, and whether there are other functional requirements. We will give you the most favorable ex factory price. solar generator kits factory direct sales, no middlemen earn price difference.

Q4: What is the lifetime of the solar generator kits?
A: Solar panel’s lifetime are 20 years, solar inverters 3~5 years, solar charge controllers 3~5 years, batteries 1~3 years.

Q5: What services can XINDUN provide?
A: We will provide solar generator kits free site survey, design, production, installation guide, maintenance of one-stop service, value added services: market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
