The hybrid inverter with US standard single phase input and output, DC 24V/48V to AC 105V/110V/115V/120V, and supports off grid, on grid, hybrid, and batteryless operating modes. Xindun offers factory pricing.

HFU 24V to 110V Inverter 48Vdc to 120Vac Inverter

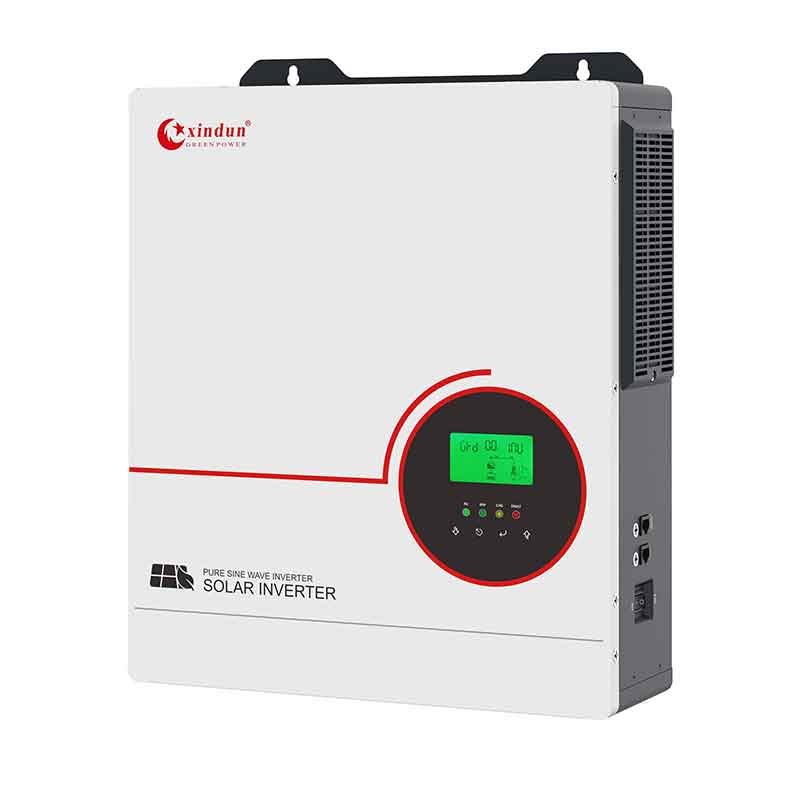

HFU series inverter 3.3KW-6.3KW, 24V/48V DC to 105V/110V/115V/120V AC, support US standard single phase input and single phase output, freely configurable off grid, on grid, and hybrid modes, built in MPPT solar controller, solar tracking range 40-500Vdc.

Place of Origin : Foshan, Guangdong, China
Type : Solar Hybrid Inverter
Brand : XINDUN POWER
MOQ : 6 pcs
OEM : Yes

Inquiry Now

Product

Inverter With Charge Controller

Three Phase Inverter

Pure Sine Wave Inverter

Solar Generator

Solar Controller

Solar System Solution

Battery

Solar Panel

Solar kits

UPS

Others

Product Details

■ Inverter Key Feature

1.Stylish appearance, high frequency design, high inverter efficiency, small size, pure sine wave output.

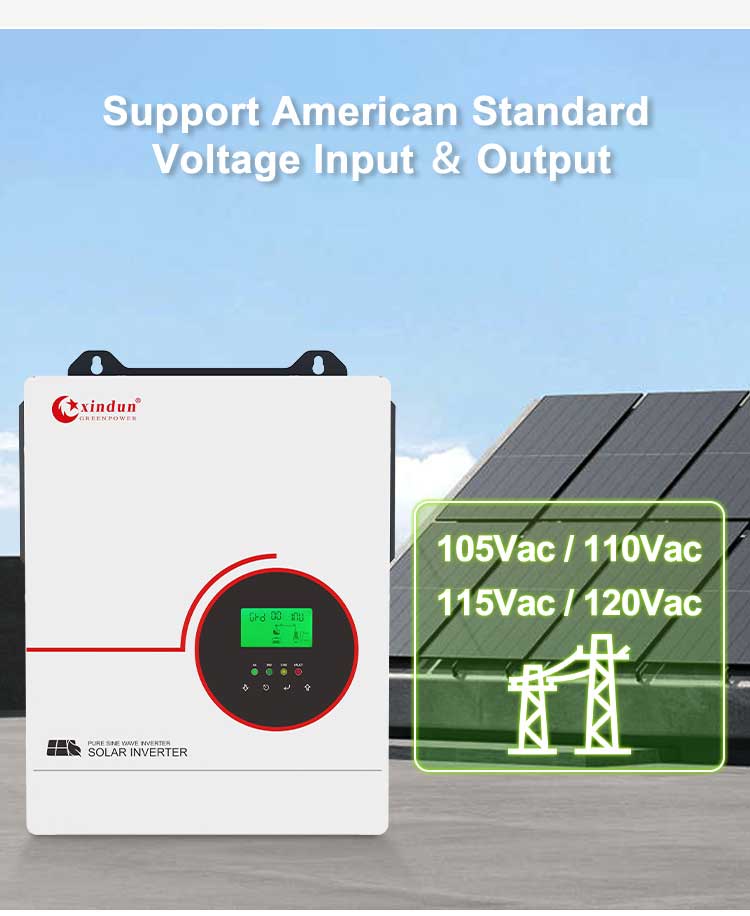

2.Supports US standard single phase output and single phase input, meeting voltage standards in regions such as Latin America.

3.It supports three flexible operating modes: off grid, on grid, and hybrid.

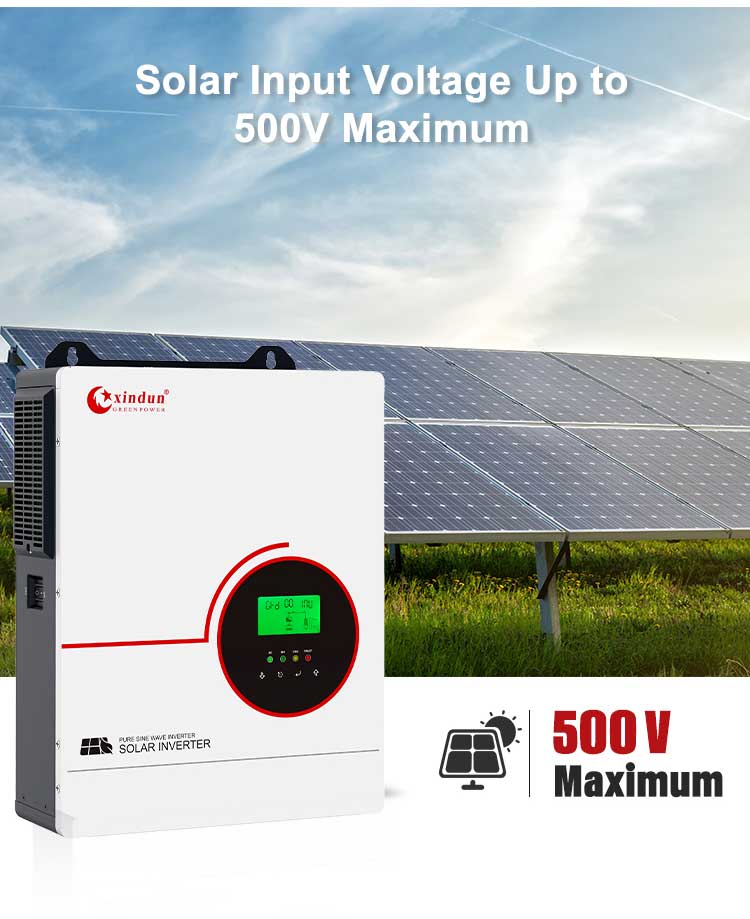

4.It built in MPPT solar controller, photovoltaic voltage range 40V-500Vdc.

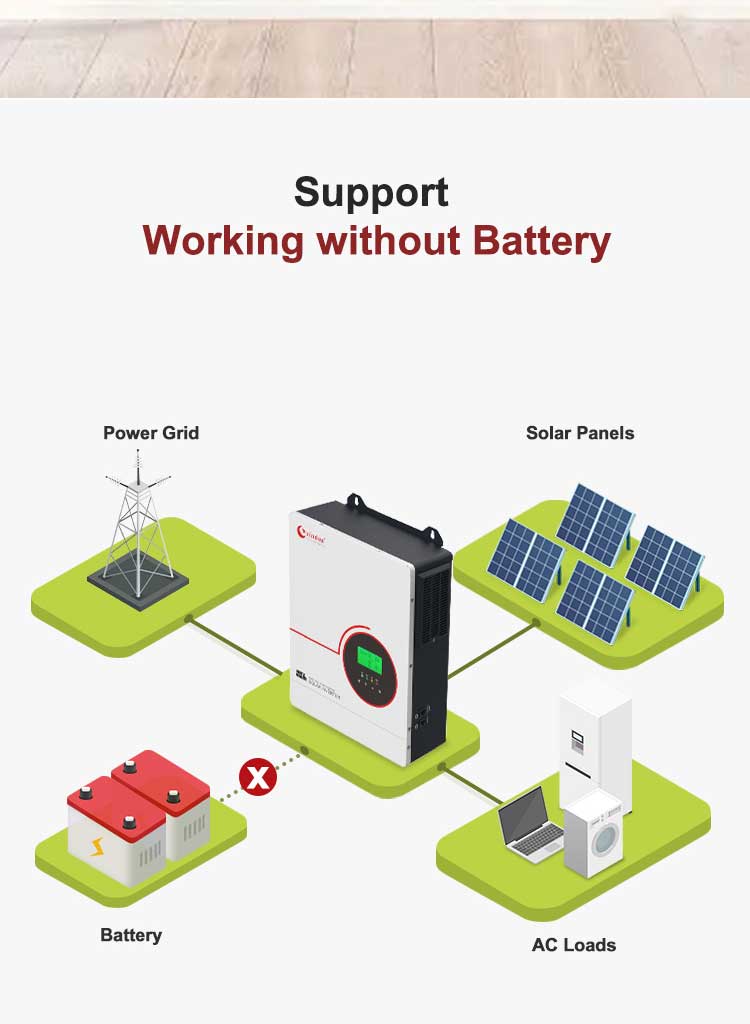

5.Supports operation without battery, configuration can be tailored to your budget.

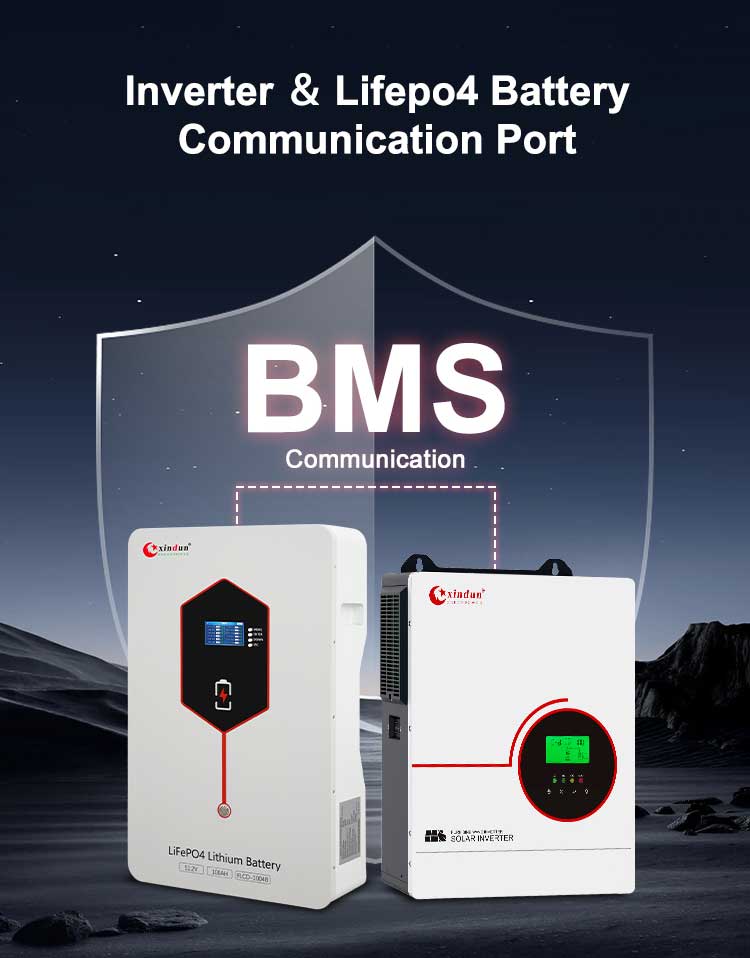

6. Equipped with lithium battery BMS management function to ensure battery system safety.

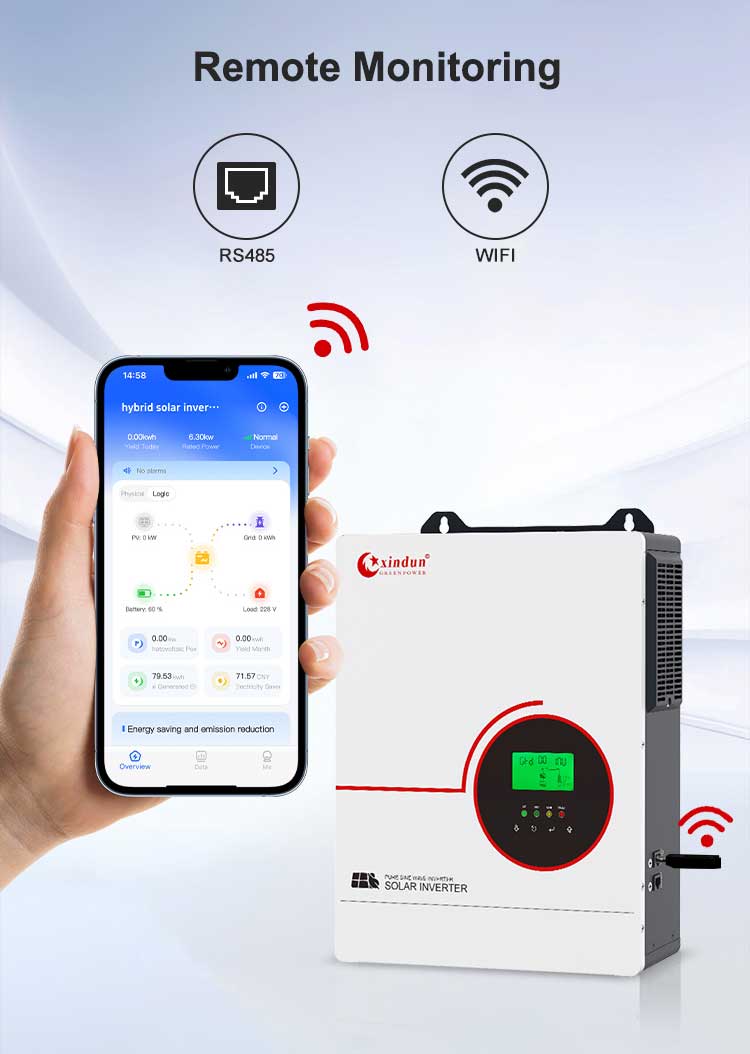

7. Equipped with RS485 communication interface, it allows for remote real time monitoring of the inverter system's status and data via WiFi, enabling intelligent management.

■ Inverter Technical Specifications

Specification
Model ： HFU		33224	63248
PV	Max PV Input Power	5000W	5000W*2
	MPPT Tracking Voltage Range	40VDC-450VDC	80VDC-450VDC
	Rated Voltage	280VDC
	Max PV Input Voltage voc (at the lowest temperature)	500VDC
	Max PV Input Current	18A	18A*2
	MPPT Tracking Channels (Input Routed )	1 Routed	2 Routed
Battery& Charging	Battery Type	Lead-acid Battery/Lithium Battery
		Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board)
	Rated Battery Voltage	24VDC	48VDC
	Battery voltage Range	21~30VDC(default)	42~60VDC(default)
	Max PV Charging Current	120A
	Max AC Charging Current	80A
	Max Charging Current	120A
On-Grid Operation
On-Grid Output (AC)	Rated Output Power	3300W	6300W
	Rated Output Voltage	105Vac/110Vac/115Vac/120Vac
	Grid Voltage Range	93Vac~132Vac
	Rated Output Frequency	50Hz/60Hz
	Frequency Range	47Hz~52Hz(50Hz),57Hz~62Hz(60Hz)
	Rated Output Current	31.4A/30A/28.7A/27.5A	60A/57.3A/54.8A/52.5A
	Power Factor	＞0.98(Rated Power)
Off-Grid Operation
AC Input	Rated Input voltage	105Vac/110Vac/115Vac/120Vac
	Mains input voltage range	85Vac~140Vac
	Rated Input Frequency	50Hz/60Hz
	Input Frequency Range	45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz)
AC Output	Rated Output Power	3300W	6300W
	Rated Output Voltage	105Vac/110Vac/115Vac/120Vac
	Output Voltage Accuracy	±2%
	Rated Input Frequency	50Hz/60Hz
	Output Frequency Accuracy	±1%
	Output Wave	Pure Sine Wave
Hybrid Operation (Complementary Mode)
AC Input	Rated Input voltage	105Vac/110Vac/115Vac/120Vac
	Mains input voltage range	93Vac~132Vac
	Rated Input Frequency	50Hz/60Hz
	Input Frequency Range	47Hz~52Hz(50Hz)，57Hz-62Hz(60Hz)
AC Output	Rated Output Power	3300W	6300W
	Rated Voltage Rated	105Vac/110Vac/115Vac/120Vac
	Output Current	31.4A/30A/28.7A/27.5A	60A/57.3A/54.8A/52.5A
Regular Parameters
Maximum Conversion Efficiency (Battery Discharge)		92% (peak value)
MPPT Tracking Efficiency		≥99.9
Transfer Time		10ms(Typical value)
Display		LCD+LED
Cooling Method		Cooling fan in intelligent control
Communication		RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional)
Protection Degree		IP20
Installation		Wall-Mounted
Protection Degree	Battery low voltage alarm	22VDC (default value）	44VDC (default value）
	Battery low voltage protection	21VDC (default value）	44VDC (default value）
	Anti-islanding protection	≤2S
	overload power protection	Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	Inverter output short circuit protection	Automatic Protection (battery mode),Circuit Breaker or Insurance (AC mode)
	Temperature protection	＞90 ℃(Turn off inverter and charging)
Environment	Operating temperature	-10℃~50℃
	Storage temperature	-15℃~60℃
	Noise	≤55dB
	Elevation	2000m（More than derating）
	Humidity	0%~95% ,No condensation
Dimension and Weight
Product Size(LWHmm)		375297102	431378.5123
Package Size(LWHmm)		450352167	730635225
N.W.(kg)
G.W.(kg)
Note: All specifications are subject to change without prior notice

■ Inverter Highlight

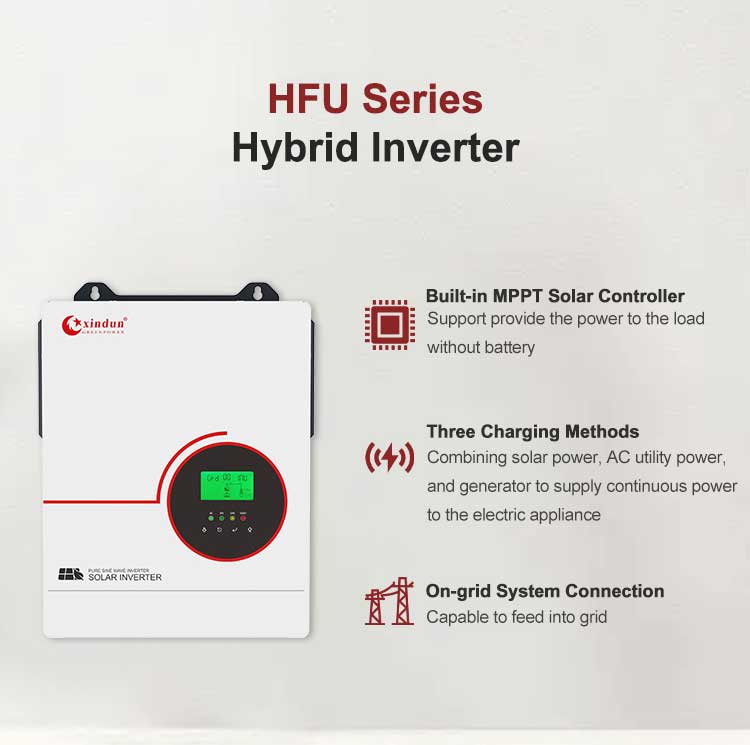

The HFU series inverter is a hybrid solar inverter featuring a newly upgraded design. It offers power options of 3.3KW and 6.3KW, and supports voltages from 24V/48VDC to 105V/110V/115V/120VAC, meeting the power needs of various residential and commercial solar system. The inverter incorporates an MPPT solar charge controller, allowing for maximum solar input voltage of 500VDC, enabling the connection of more solar modules, improving power generation efficiency, and reducing system losses. It supports off grid, on grid, and hybrid operating modes, allowing for flexible switching according to different application scenarios.

The HFU series inverter adopts bidirectional energy storage design, allowing both solar and AC power to charge the battery. It also features lithium battery BMS communication capabilities, enabling battery status monitoring and intelligent charge/discharge management, thereby extending battery life and improving system stability. Furthermore, it has an RS485 communication interface, allowing remote monitoring of system status and data via mobile App and WiFi, achieving unified intelligent management, preventing malfunctions, and reducing maintenance costs.

More notably, the Xindun HFU series inverter adopts US standard voltage design, supporting US standard single phase input and single phase output of 105V/110V or 115V/120V, 50Hz/60Hz. It is suitable for use in Japan, Mexico, Panama, Cuba, Lebanon, Venezuela, Ecuador and other regions, and is a solar inverter solution that combines efficiency, stability and flexibility.

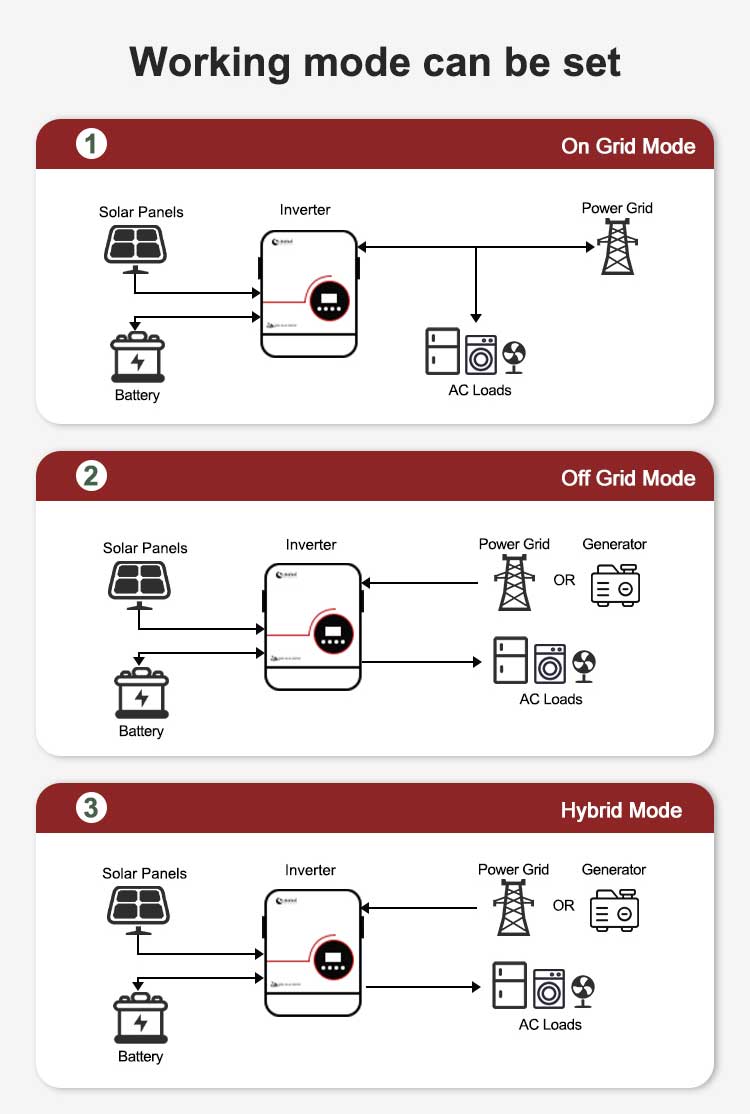

■ Inverter Working Mode and Wiring Diagram

The wiring diagram clearly shows the inverter's operation in off grid, on grid, and hybrid modes, demonstrating the connection and collaborative work between solar panels, batteries, the grid, and AC loads, helping customers quickly understand the entire system structure.
