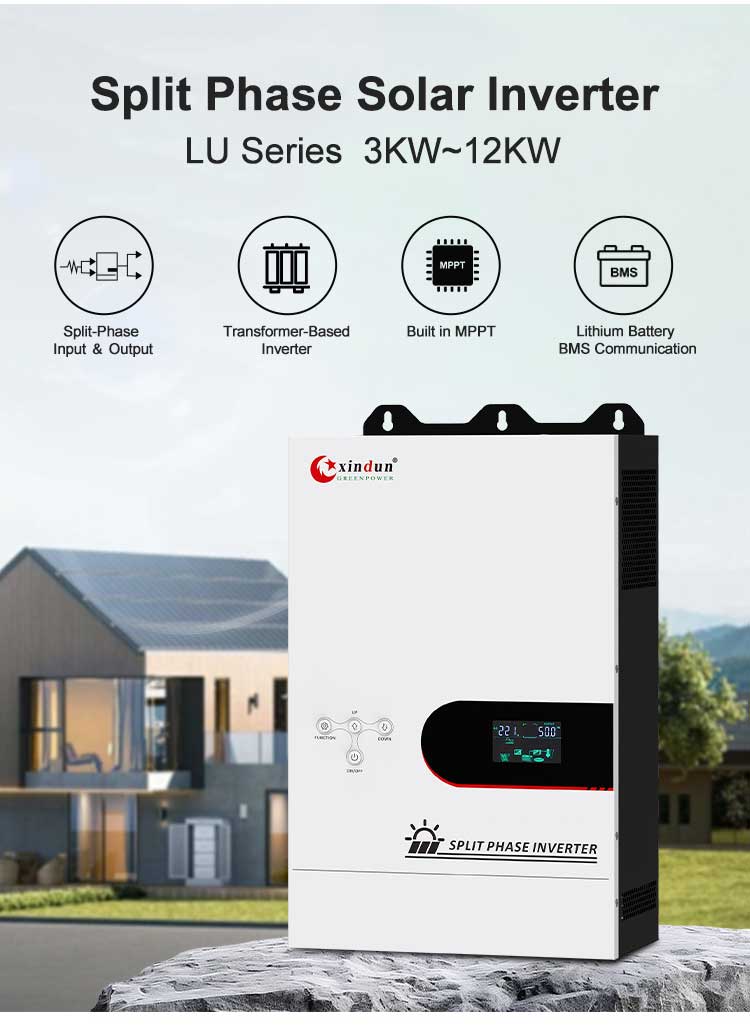

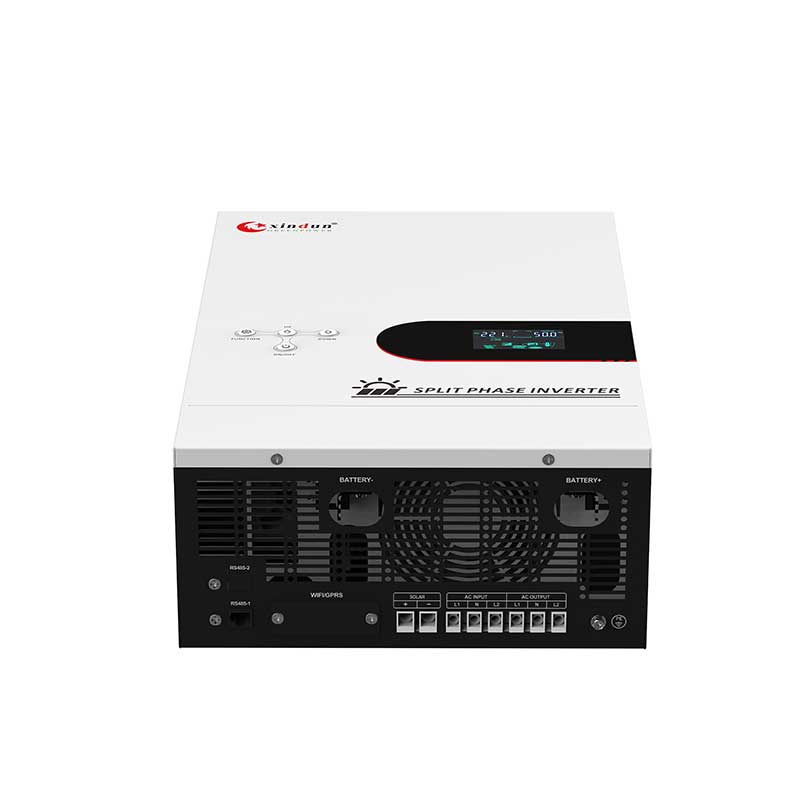

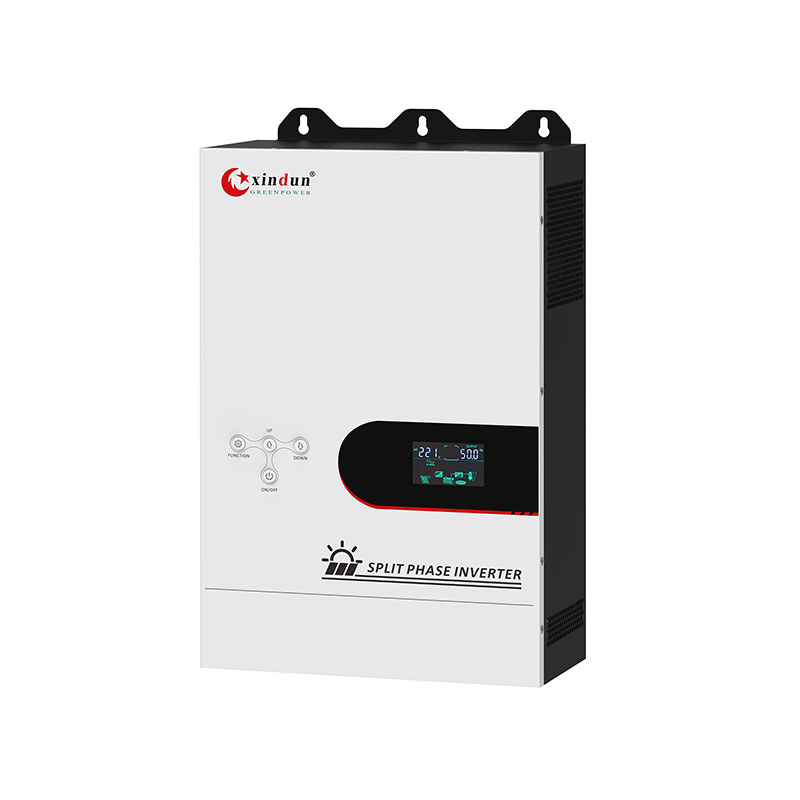

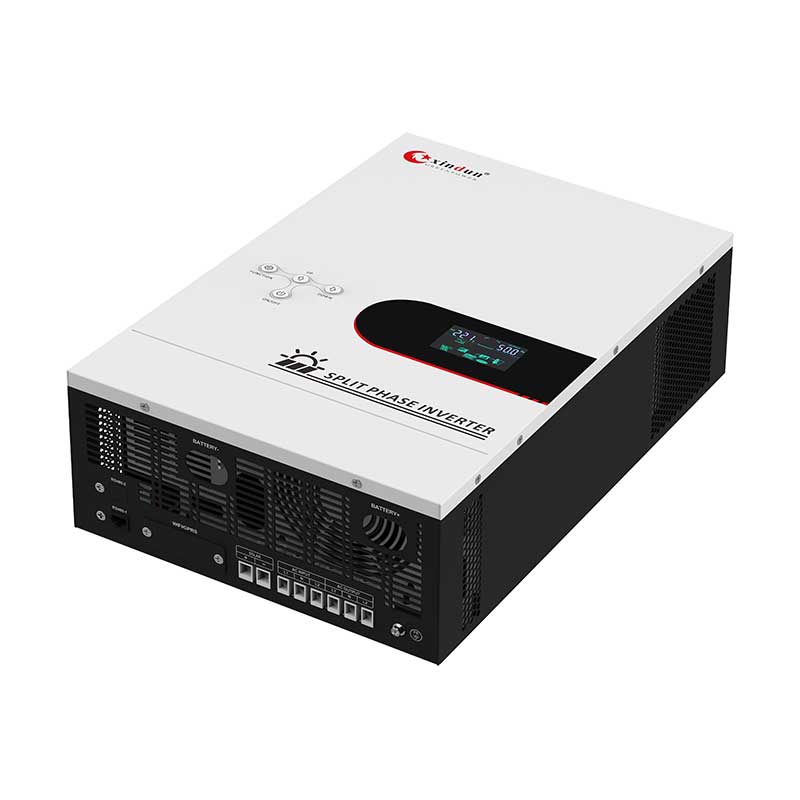

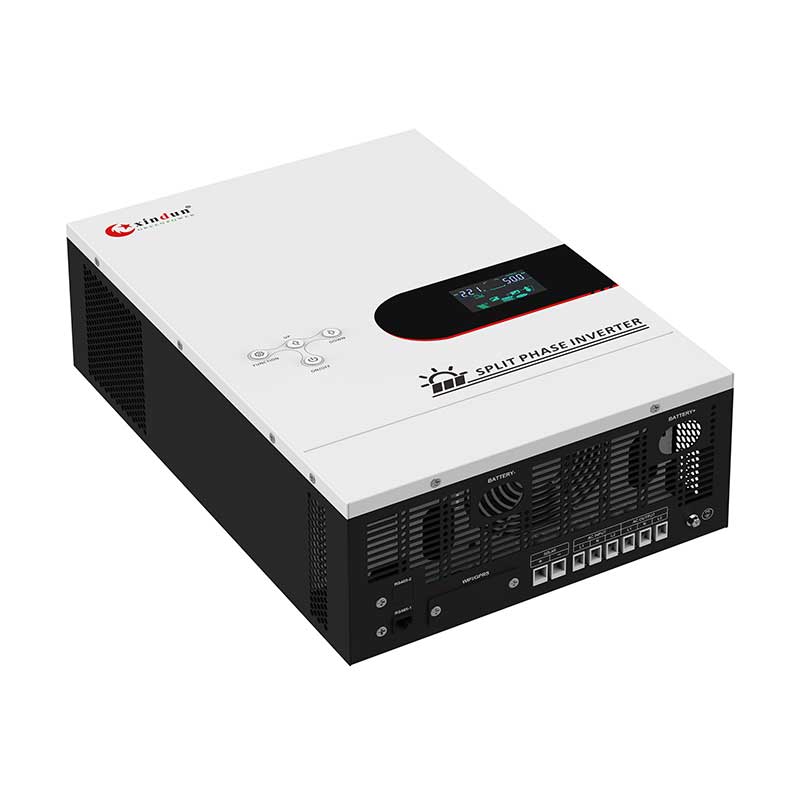

Xindun LU series off grid split phase inverter 3000w-12Kw, DC 48V to 120 240 V or 110 220 V, wall mounted design, suitable for installation in home and industrial scenarios.
Product
1. Support split phase output and input, compatible with a variety of power structures

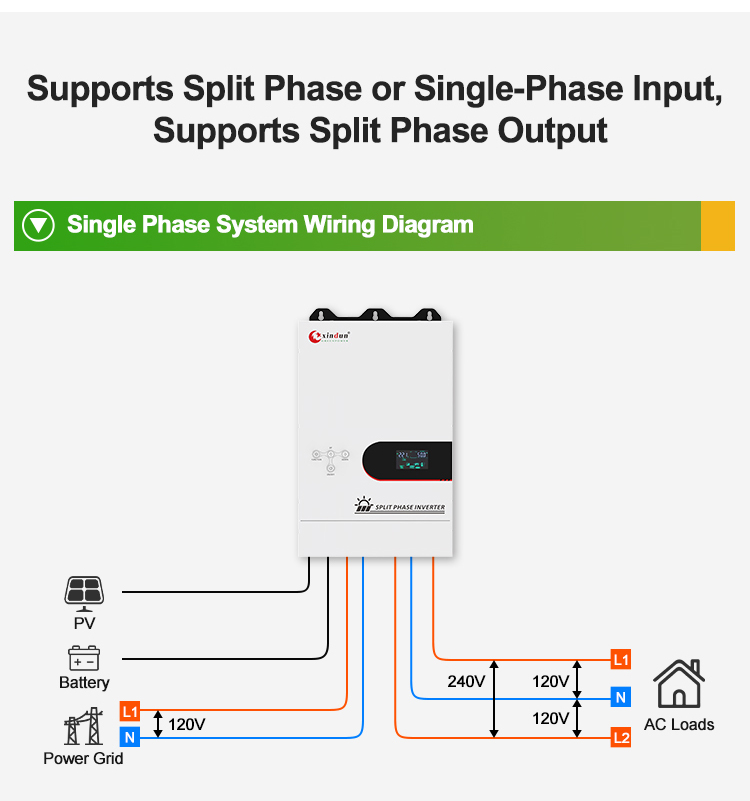

2. Can be connected to single phase or split phase input to adapt to different power grid requirements

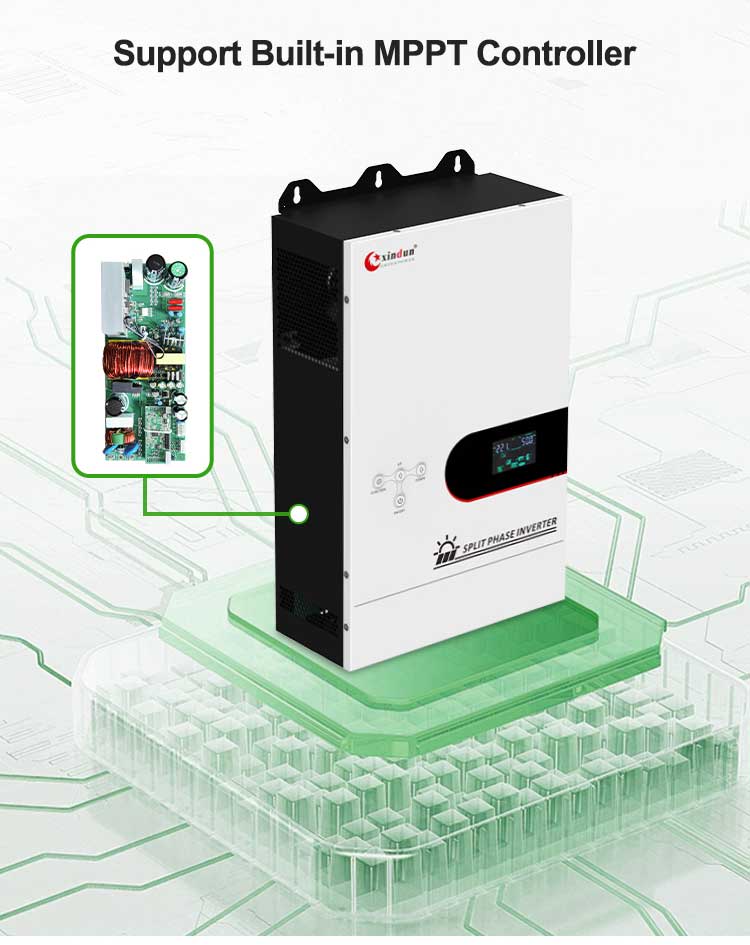

3. Support built in MPPT solar controller to improve charging efficiency

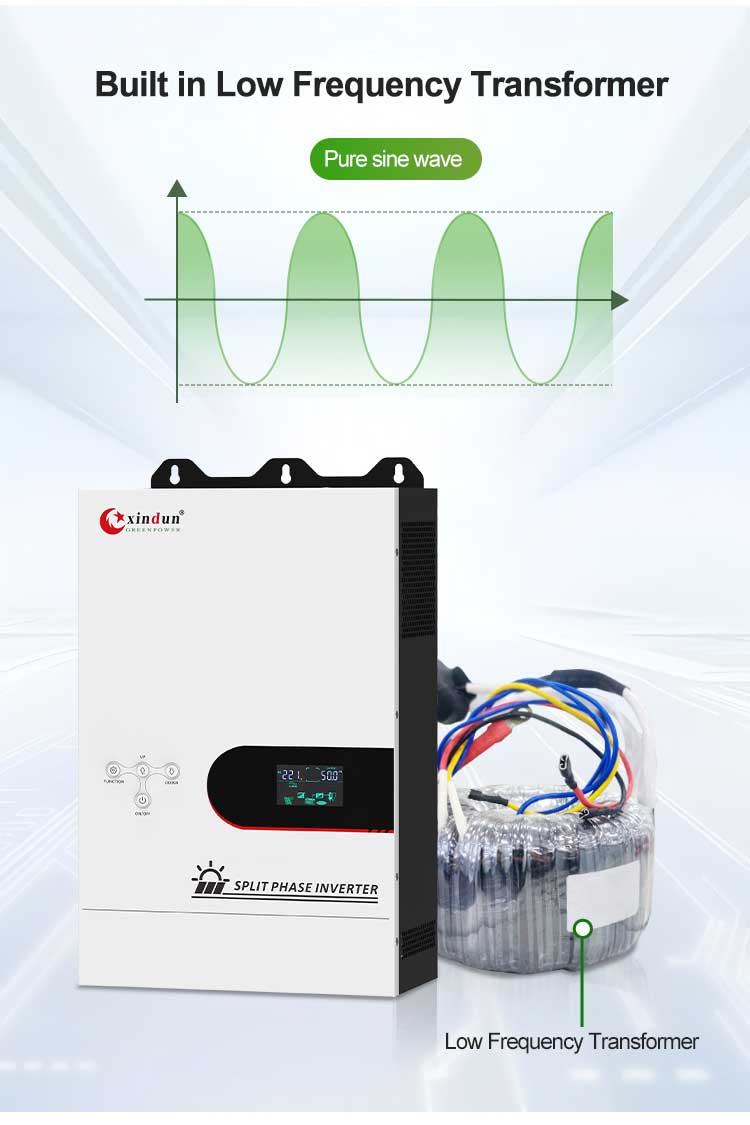

4. Low frequency transformer, high inverter efficiency, pure sine wave output, stable and reliable

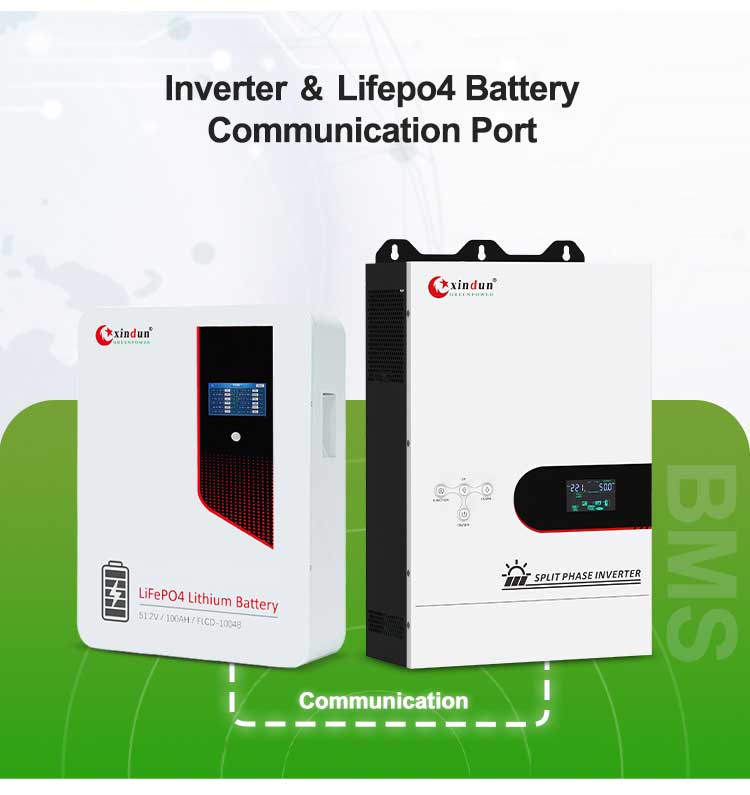

5. Support lithium battery BMS communication function, real time monitoring of battery and inverter status, effectively extending battery life

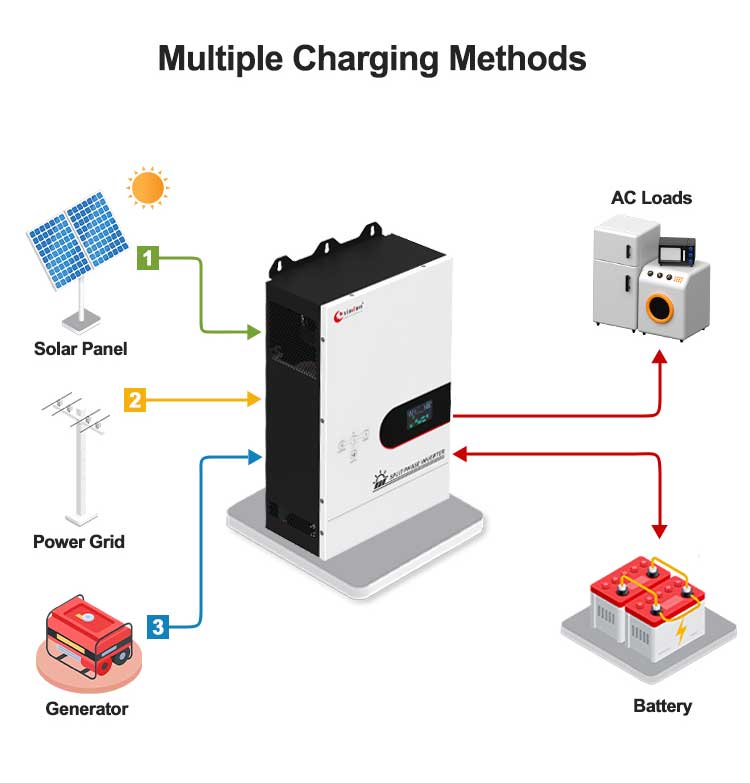

6. Provide a variety of charging methods: solar, grid, generator can be charged, flexible to use

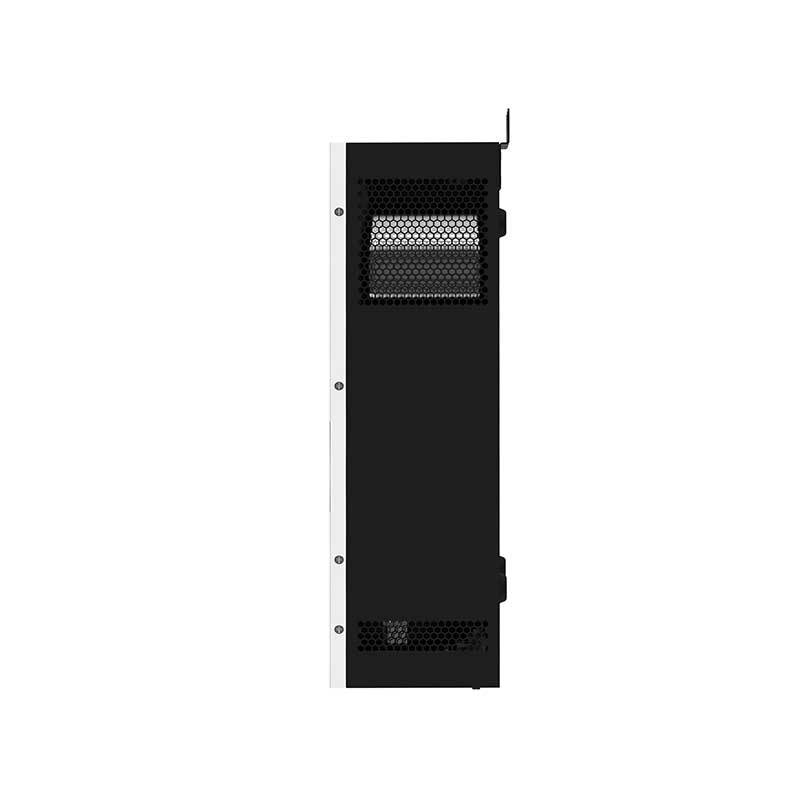

7. Wall mounted design, easy to install
|
Specification |
|||||
|
Model： LU/LUT |
30248 |
40248 |
50248 |
60248 |
|
|
Rated Power |
3000W |
4000W |
5000W |
6000W |
|
|
Peak Power（20ms) |
9000VA |
12000VA |
15000VA |
18000VA |
|
|
Start Motor |
3HP |
3HP |
4HP |
4HP |
|
|
Battery Voltage |
48VDC |
||||
|
Max AC charging current |
15A |
20A |
25A |
30A |
|
|
Size(L*W*Hmm) |
462*300*148 |
522*335*158 |
|||
|
Packing Size(L*W*Hmm) |
545**385*223 |
605*420*233 |
|||
|
N.W.(kg) |
|
|
|
|
|
|
G.W.(kg) |
|
|
|
|
|
|
Installation Method |
Wall-Mounted |
||||
|
Parameter |
|||||
|
Input |
DC Input Voltage Range |
42-60VDC |
|||
|
AC Input Voltage |
220VAC/240AC (split phase L1-N-L2) or 110V/120AC (single-phase L1-N) |
||||
|
AC Input Voltage Range |
Split phase: 170VAC~275VAC (220VAC)/190VAC~295VAC (240VAC) or single-phase: 85VAC~138VAC (110VAC)/95VAC~148VAC (120VAC) |
||||
|
AC Input Frequency Range |
45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz) |
||||
|
AC charging method |
Three-stage (constant current, constant voltage, floating charge) |
||||
|
Output |
Efficiency(Battery Mode) |
≥85% |
|||
|
Output Voltage(Battery Mode) |
L1-N/L2-N：110VAC or 120VAC ; L1-L2: 220VAC or 240AC |
||||
|
Output Frequency(Battery Mode) |
50/60Hz±1% |
||||
|
Output Wave(Battery Mode) |
Pure Sine Wave |
||||
|
Efficiency(AC Mode) |
>99% |
||||
|
Output Voltage(AC Mode) |
L1-N/L2-N：110VAC or 120VAC ; L1-L2: 220VAC or 240AC |
||||
|
Output Frequency(AC Mode) |
Follow input |
||||
|
Output waveform distortion |
≤3% (Linear load) |
||||
|
No load loss(Battery Mode) |
≤0.8% rated power |
||||
|
No load loss(AC Mode) |
≤2% rated power(charger does not work in AC mode) |
||||
|
No load loss |
≤10W |
||||
|
Battery Type |
VRLA Battery |
Charge Voltage :56.8V; Float Voltage:55.2V |
|||
|
Customize battery |
Charging and discharging parameters of different types of batteries can be customized according to user requirements |
||||
|
Protection |
Battery undervoltage alarm |
Factory default: 44V |
|||
|
Battery undervoltage protection |
Factory default: 42V |
||||
|
Battery overvoltage alarm |
Factory default: 60V |
||||
|
Battery overvoltage protection |
Factory default: 64V |
||||
|
Battery overvoltage recovery voltage |
Factory default: 58V |
||||
|
Overload power protection |
Automatic protection (battery mode), circuit breaker or insurance (AC mode) |
||||
|
Inverter output short circuit protection |
Automatic protection (battery mode), circuit breaker or insurance (AC mode) |
||||
|
Temperature protection |
>90°C（Shut down output） |
||||
|
Inside Solar controller |
Charging Mode |
MPPT |
|||
|
Charging Current |
60A |
100A |
|||
|
PV Input Voltage Range |
60V-140Vdc |
||||
|
Max PV Input Voltage(Voc) |
180V |
||||
|
PV Array Maximum Power |
3360W |
5600W |
|||
|
|
MPPT Tracking Channels/Input Channels |
1 |
|||
|
Working Mode |
Battery First/AC First/Saving Energy Mode(can be set) |
||||
|
Transfer Time |
≤4ms |
||||
|
Display |
LCD |
||||
|
Thermal method |
Cooling fan in intelligent control |
||||
|
Communication(Optional) |
RS485/APP（WIFI monitoring or GPRS monitoring） |
||||
|
Environment |
Operating temperature |
≤55dB |
|||
|
Storage temperature |
-10℃~40℃ |
||||
|
Noise |
-15℃~60℃ |
||||
|
Elevation |
2000m（More than derating） |
||||
|
Humidity |
0%~95% ,No condensation |
||||
|
Note: All specifications are subject to charge without prior notice |
|||||

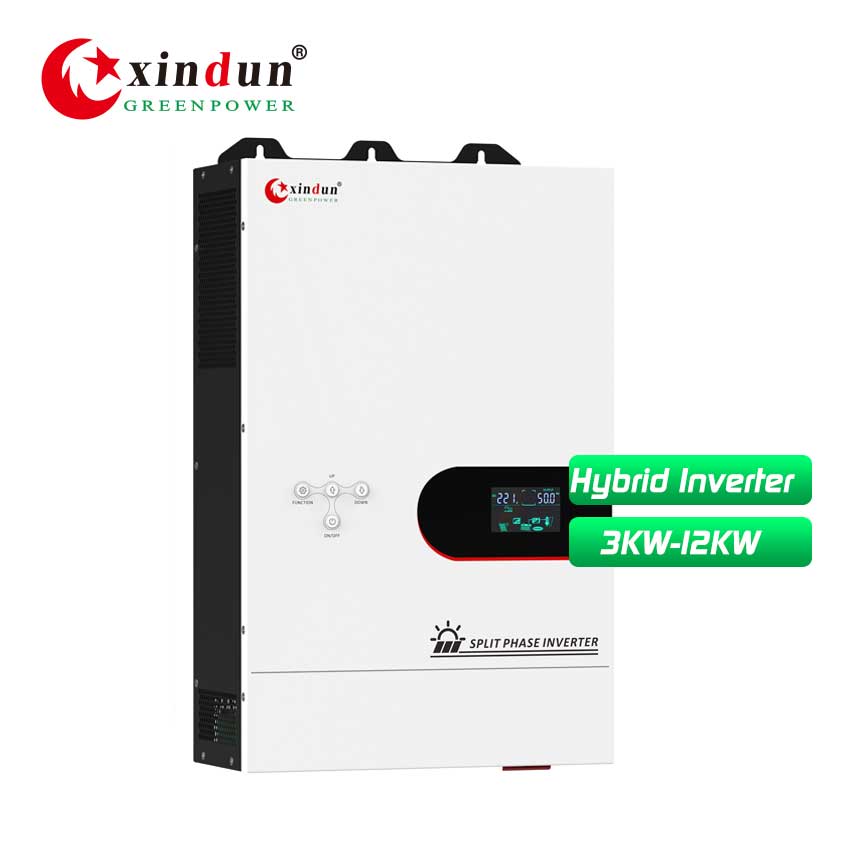

LU series is an off grid split phase inverter designed with low frequency, with a power range of 3000w - 12kw, DC 48V to AC 120 240 V or 110 220 V, supporting split phase output, as well as single phase and split phase input, which can meet the needs of countries with two voltage standards, such as Brazil, Peru, Mexico, Colombia, etc. Built in MPPT solar controller is optional, which intelligently tracks the maximum power point and effectively improves the efficiency of solar power generation. With inverter and lithium battery BMS communication interface, it can realize real time information interaction between inverter and lithium iron battery, intelligently manage battery status, and further improve the overall safety and service life of the system. It also supports three charging methods: solar energy, power grid, and generator, to ensure continuous power supply in different environments. It adopts wall mounted design, saves space, is easy to install, and is suitable for home, industry and other scenarios. Whether it is an off grid environment or backup energy, LU series off grid split phase inverter can provide stable power support.

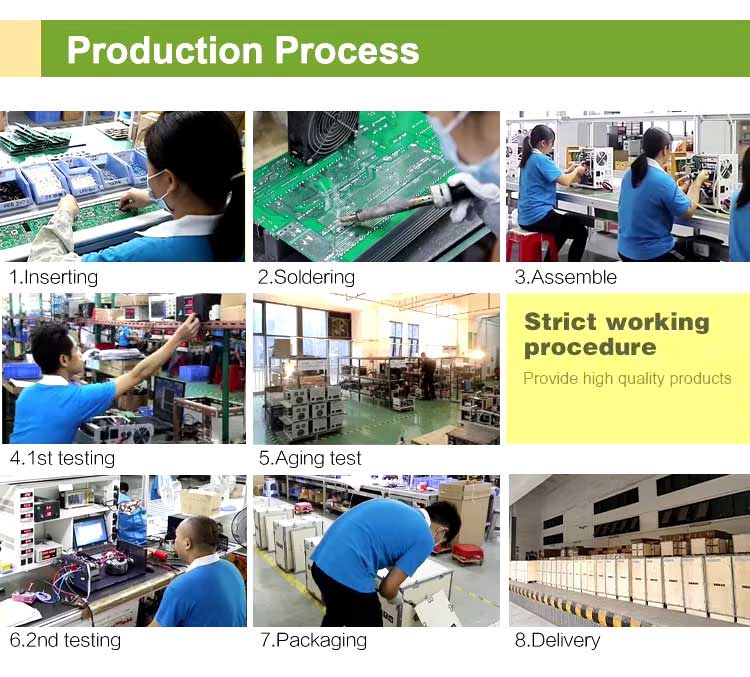

As the world's leading off grid solar inverter manufacturer, Xindun Power has 20 years of rich production experience and a modern production plant of more than 10,000 square meters. The off grid solar inverters we produce include single phase inverters, split phase inverters, and three phase inverters, ranging from 300W-160KW, which can meet the needs of various sizes of power loads. Our inverters are exported to more than 100 countries around the world, Africa, Latin America, etc. All products have undergone rigorous testing and obtained international standard certifications such as CE, TUV, and CCC, ensuring the safety and quality of the products. The stable performance has been unanimously recognized by customers. Our inverter products are widely used in power shortages, unstable power supply, remote areas far away from the power grid, etc., providing power supply guarantees for power operations in off grid environments and getting rid of dependence on the power grid.

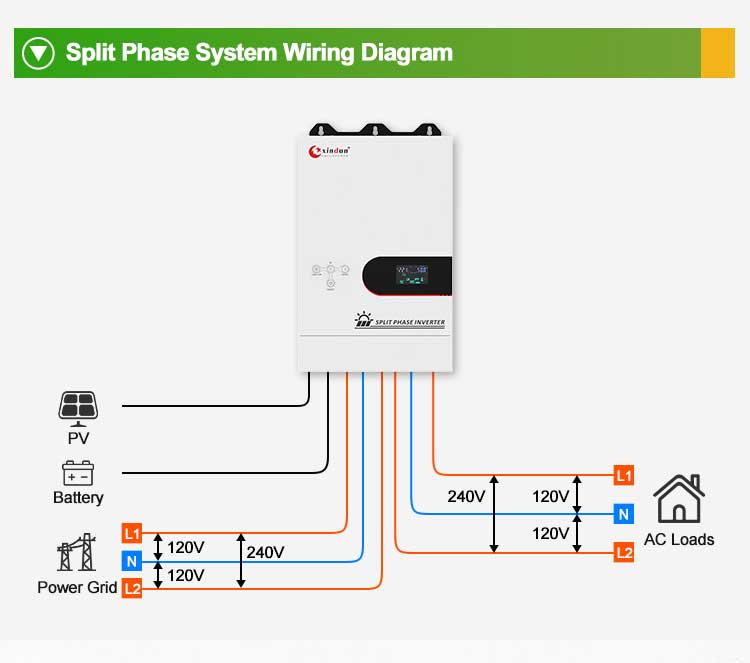

The split phase inverter converts DC voltage to 2 phase power. It forms a dual voltage output structure of 110V/220V or 120V/240V.
Yes, Xindun LU series split phase inverter supports single phase or split phase input, which can flexibly meet the needs of different power grids.

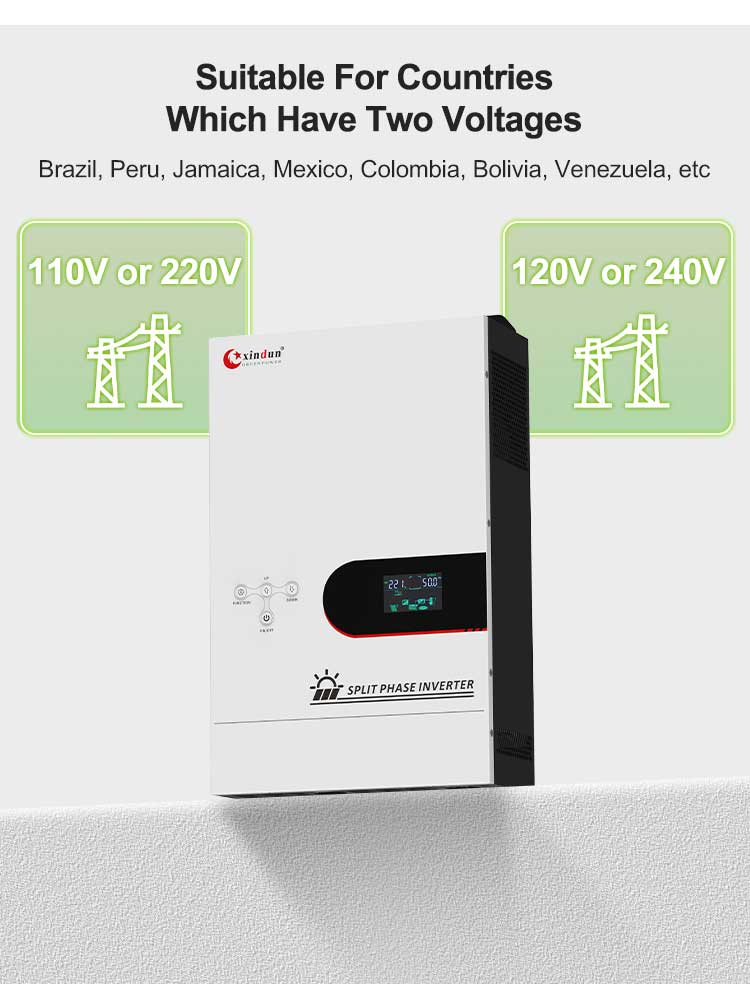

Split phase inverters are suitable for countries with two voltage standards: Brazil, Peru, Jamaica, Mexico, Colombia, Bolivia, Venezuela, etc.
Split phase inverters can output two voltages (such as 110V and 220V), which is suitable for countries such as South America that use dual voltages; while single phase inverters usually only output one voltage (such as 220V), which is suitable for Asia, Africa and other regions. Split phase inverters are more suitable for applications where low voltage and high voltage devices coexist in homes or places.
Xindun's split phase inverters have a warranty period of 3 years.
