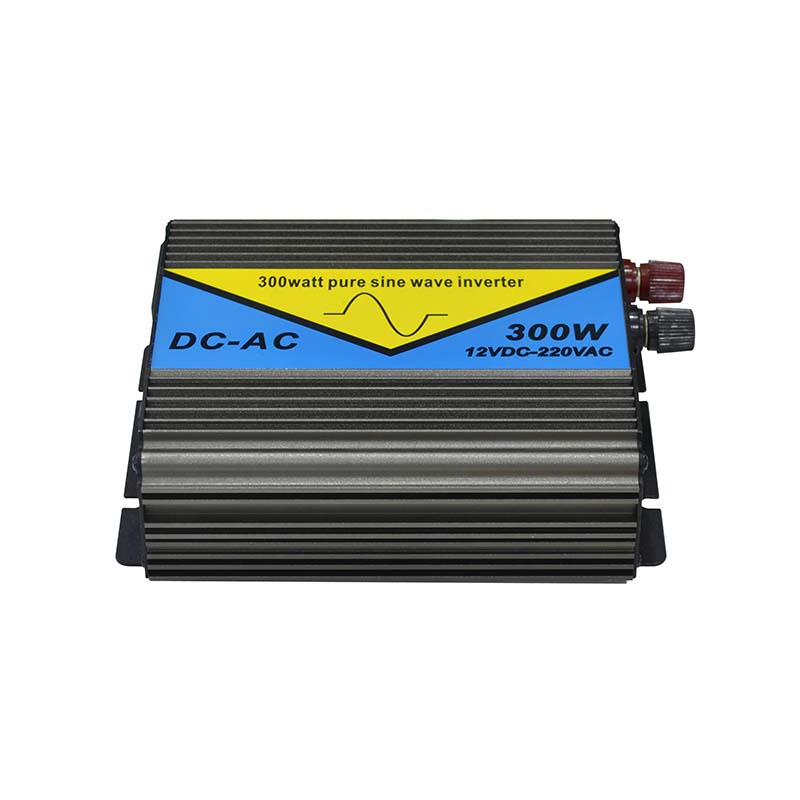

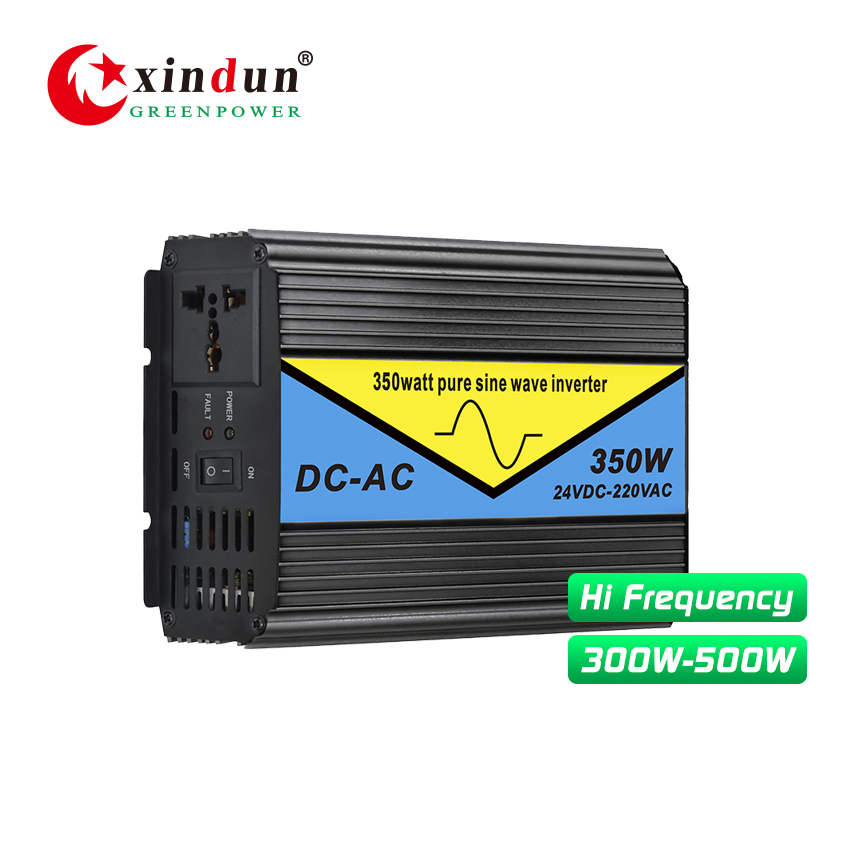

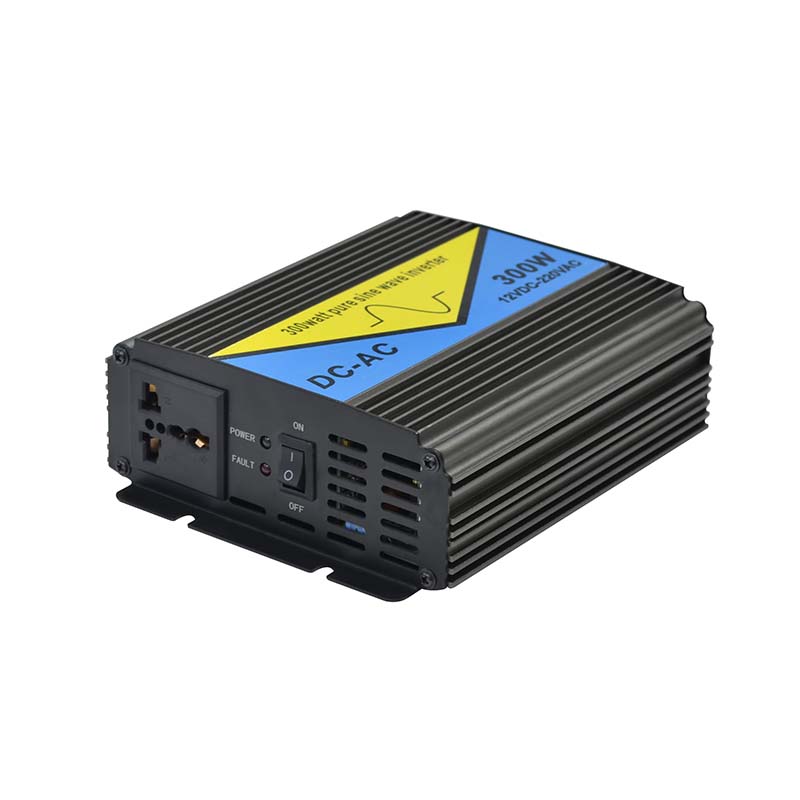

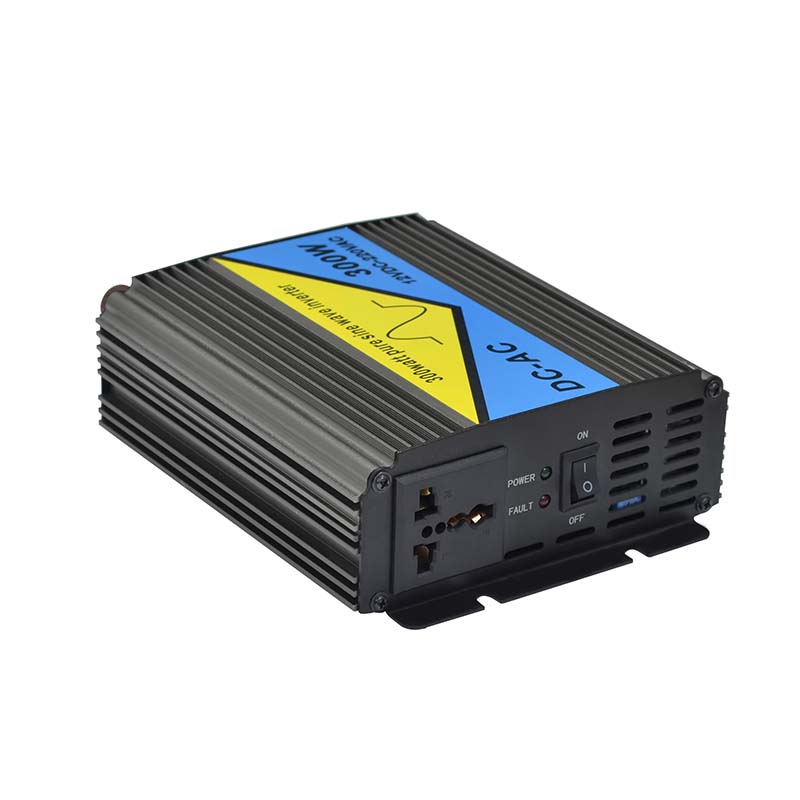

300W/500W DC12V/24V to AC220V | High Freuquency Inverter | Pure Sine Wave Inverter | Micro Car Power Inverter
Product
■ Car Power Inverter Feature
1. Soft-start function
2. DC/AC isolation
3. Power inverter high frequency pure sine wave output
4. Excellent load adaptability and stability
5. Strong startup ability, high efficiency conversion
6. Industrial universal socket designed for wide applicability
7. Small volume, light, safe to use, portable
8. Protection against over-heating,over-voltage,under-voltage,over load and short-circuits
■ Car Power Inverter Specification
| Specification | |||
| Model : GP-C | 30112/24 | 50112/24 | |
| Rated Power | 300W | 500W | |
| Battery Voltage | DC 12V/24V | ||
| Size（L*W*Hmm） | 197*55*150 | ||
| Package Size（L*W*Hmm） | 210*80*175 | ||
| N.W.(kg) | 1 | 1 | |
| G.W.(kg)（Carton Packing） | 1.5 | 1.5 | |
| Input | DC input voltage range | 10.5-15VDC (single battery voltage) | |
|
Voltage of the battery
switched on automatically
|
≥11V (single battery voltage) | ||
| Ouput | Output voltage (battery mode) | 220VAC±2% | |
| Output frequency (battery mode) | 50/60HZ±1% | ||
| Efficiency | ≥85% | ||
| Output wave form | Pure Sine Wave | ||
| Protection | Battery low voltage alarm | 9.5VDC±0.5V (single battery voltage) | |
| Battery over voltage protection | 15VDC±0.5V (single battery voltage) | ||
|
Ouput undervoltage protection
(Battery mode)
|
≤187VAC Turn off the output | ||
|
Output short circuit protection
(Battery mode)
|
machine shut off，battery cut off | ||
| Over power protection | 110% more than rated capacity | ||
| Temperature protection | ≥90℃ machine shut off | ||
| Protection instructions: Turn off the machine during protection and the machine will automatically return to normal after troubleshooting | |||
| Display | LED. Red light:battery fault, Green light: Normal electricity | ||

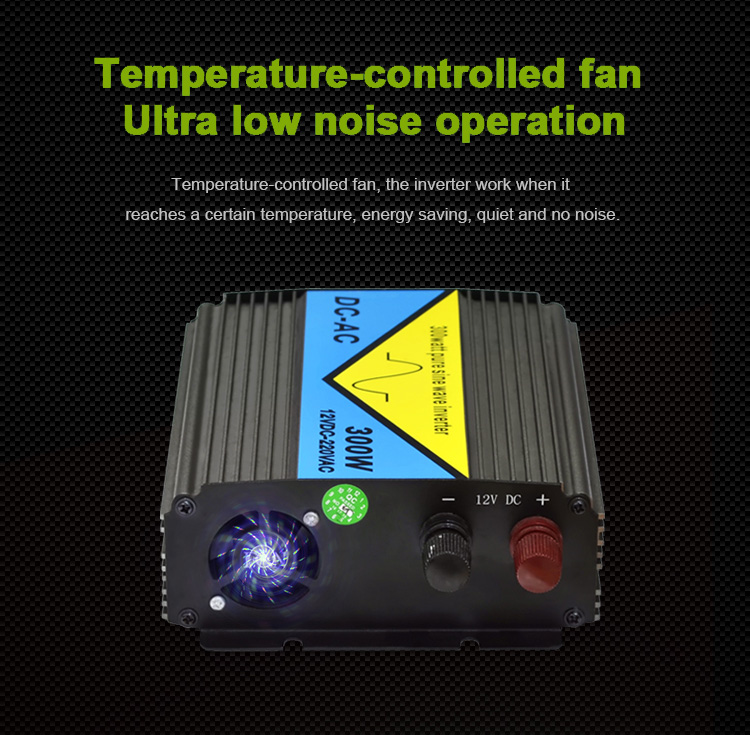

| Thermal method | Cooling fan in intelligent control | ||
| On-off | locking-type | ||
| Environment | Operating temperature | -10℃~+40℃ | |
| Storage temperature | -15℃~60℃ | ||
| Noise | ≤60dB | ||
| Highest altitude | 2000m（More than derating） | ||
| Relative humidity | 0%~95%(No condensation) | ||
| Note: All specifications are subject to change without prior notice | |||

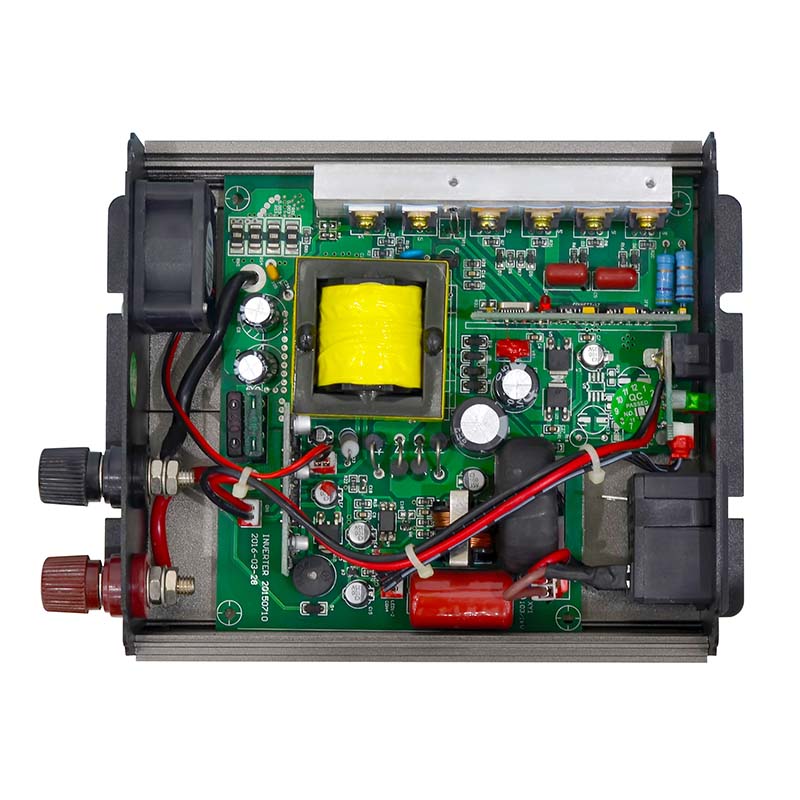

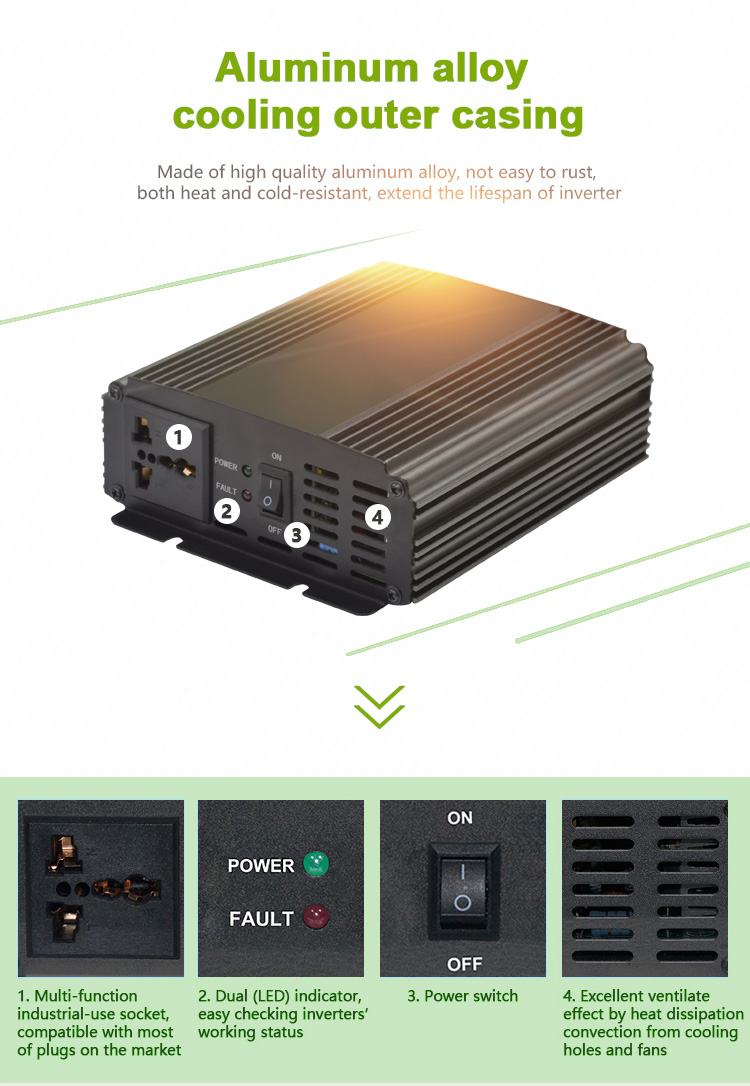

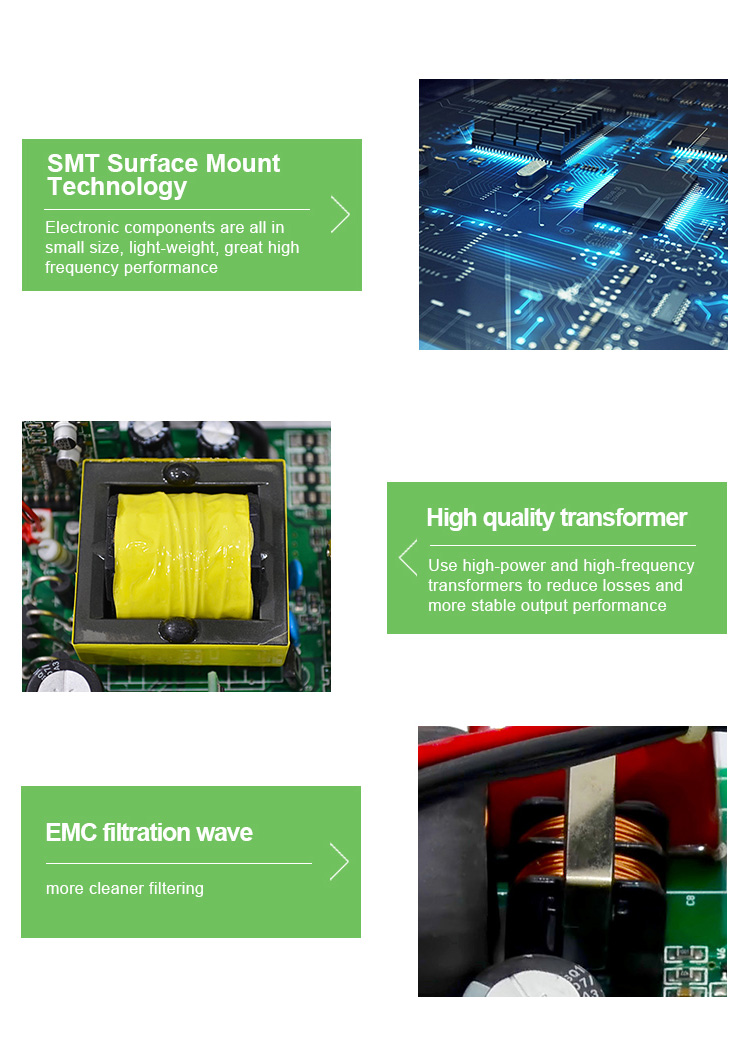

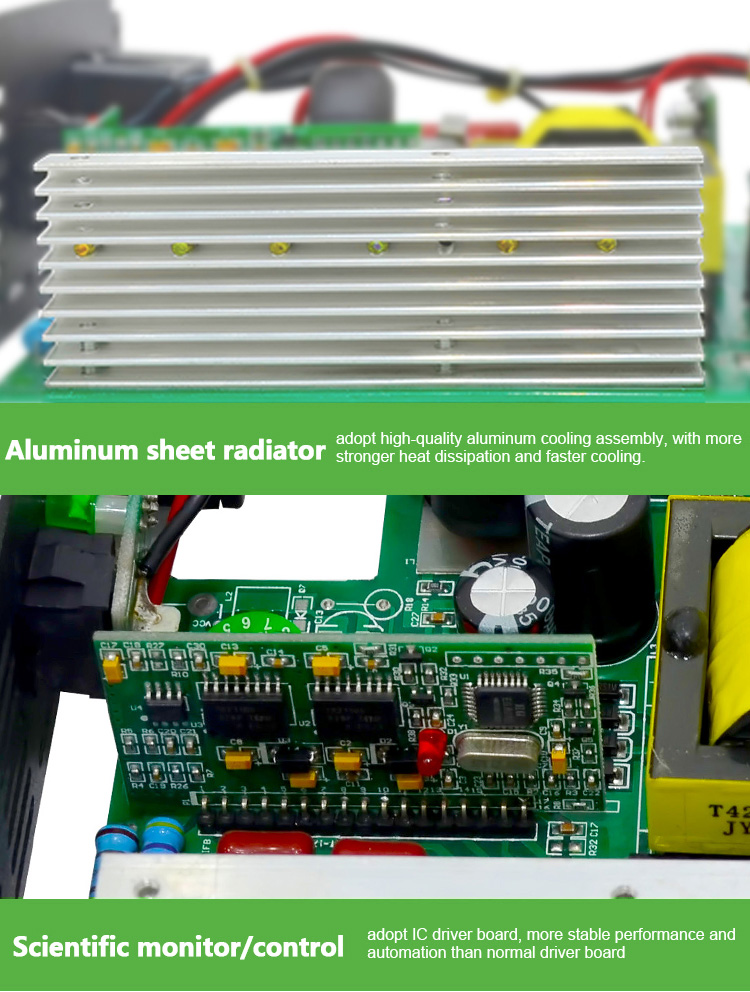

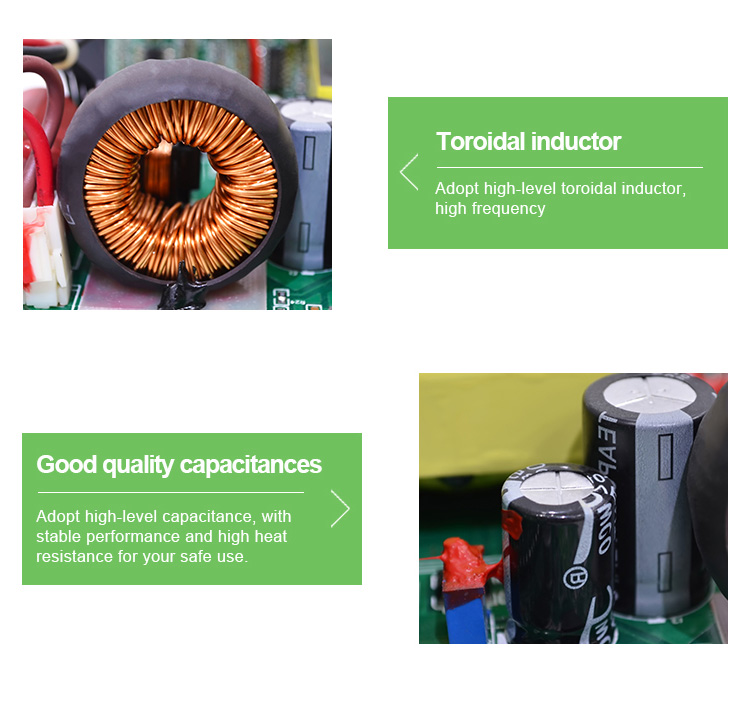

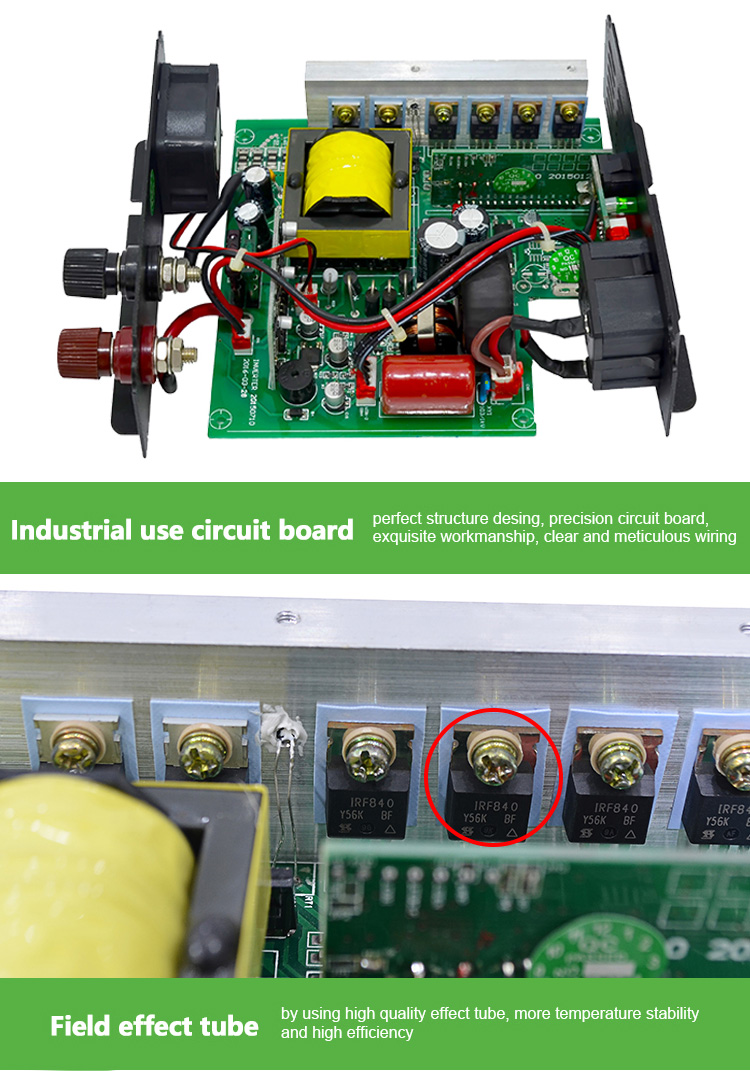

■ Car Power Inverter Details

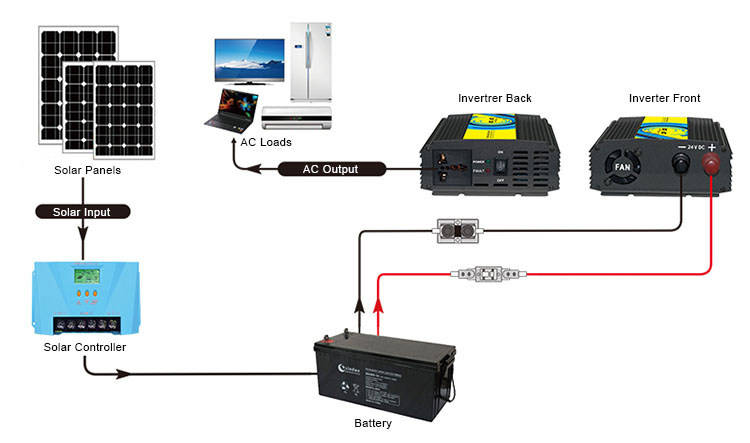

■ Car Power Inverter Wiring Diagram
■ Car Power Inverter Application

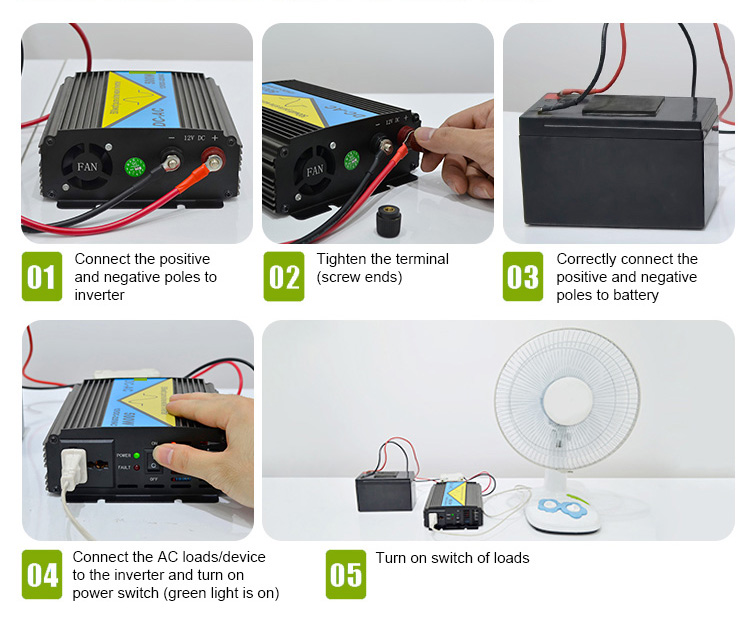

Home Use Method
*Friendly reminder:
inverter voltage must be equal to the battery voltage

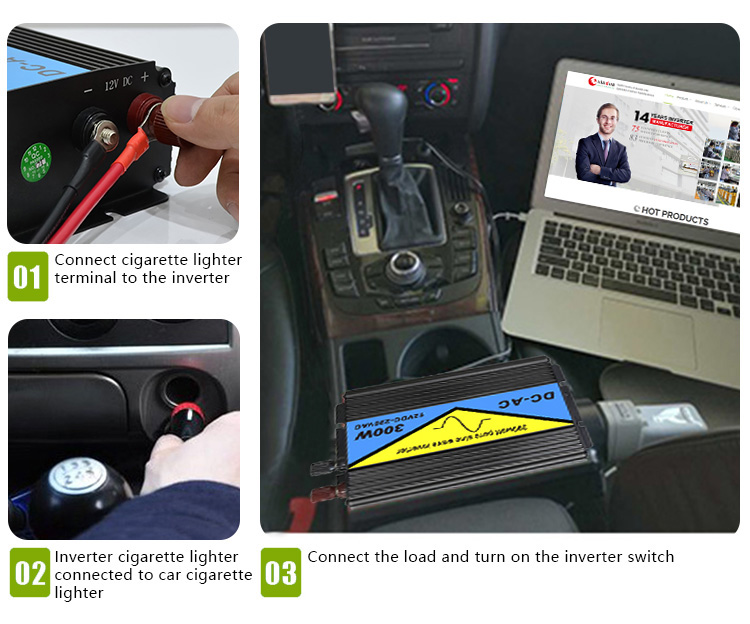

Vehicle / Car Use Method
Note:
The load cannot exceed 200 watts in car, otherwise, car insurance will takes risk to be burned out.

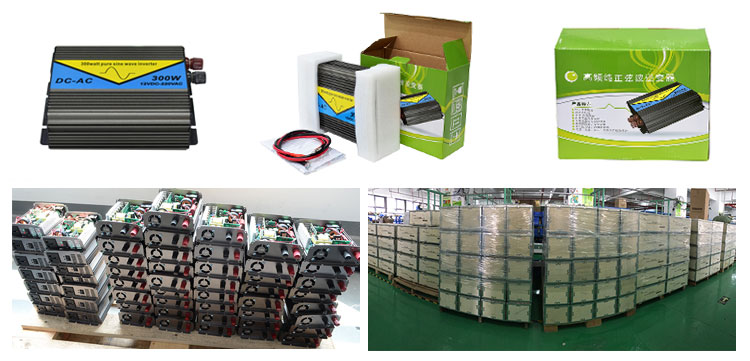

■ Inverter Package and Delivery
■ Why Choose Us？
1. We are a professional manufacturer of car power inverter with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 14 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
5. 200,000 pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.
■ About Xindun Power
■ Inverter Factory
■ Qualifications and Certificates
■ Global Solar Exhibitions
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: What is the price of car power inverter?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Power inverter factory direct sales, no middlemen earn price difference.
Q3: What type of inverters do you produce?
A: We produce various types of inverters: pure sine wave inverters, off-grid inverters, on/off grid inverters, solar hybrid inverters, single phase inverters, 3 phase inverters, low frequency inverters, high frequency inverters, etc. Don’t know which type of inverter to choose? Contact XINDUN now!
Q4: What\'s the difference between pure sine wave inverter and modified sine wave inverter?
A: Pure sine wave output inverter is just as good as the public power grid, even better. Low repaired rate, long lifespan, without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output inverter has a negative impact on appliances and can\'t load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don\'t like the modified wave.
Q5: How to solve the car power inverter technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
