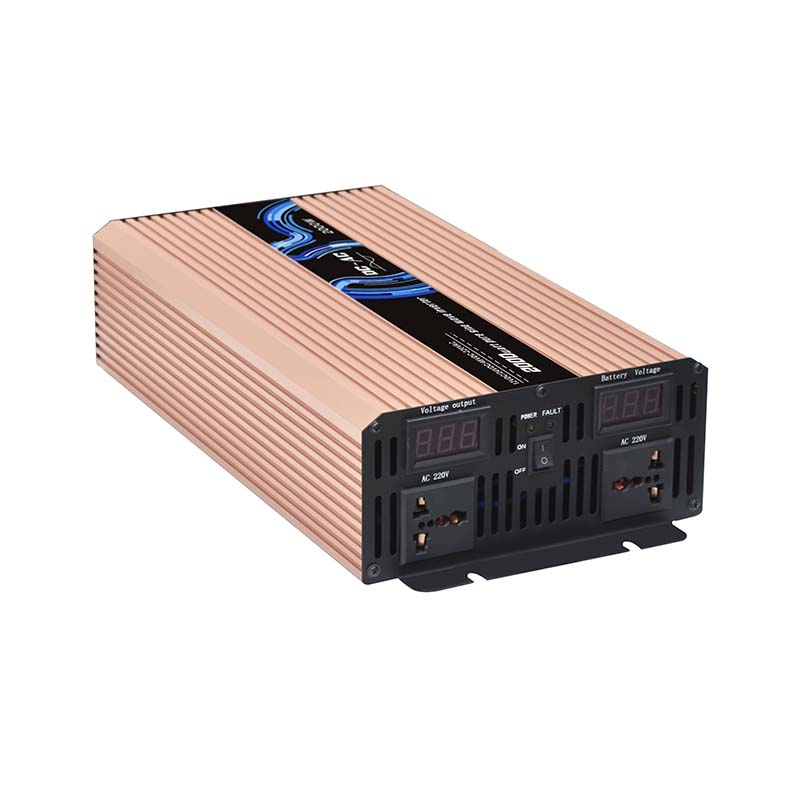

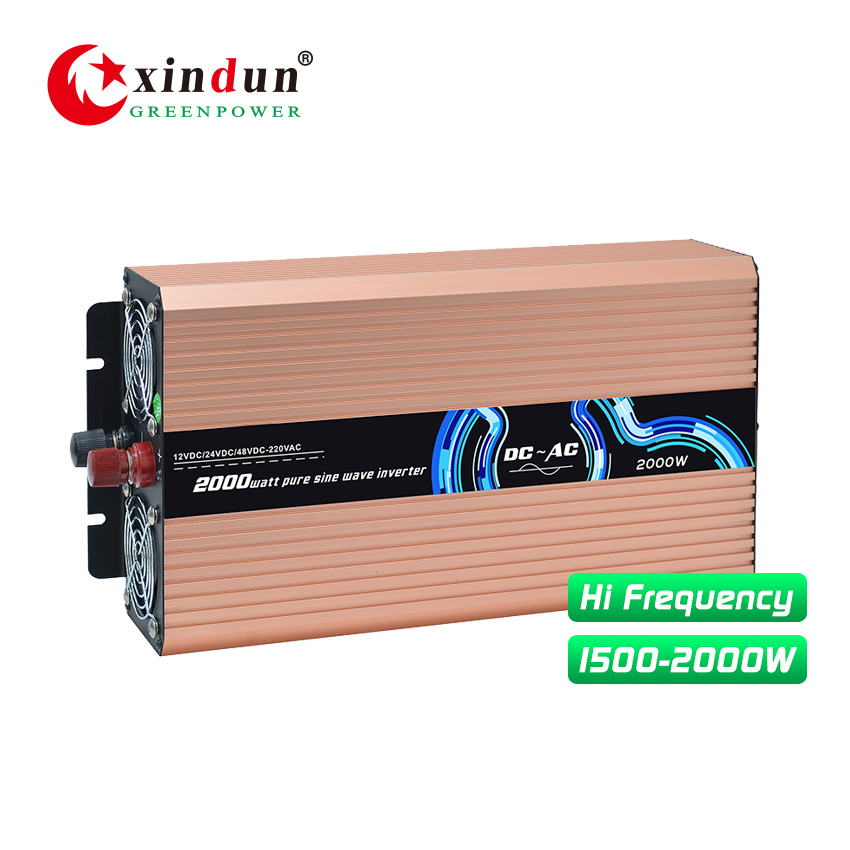

1500W/2000W DC12V/24V to AC220V | High Freuquency Converter | Pure Sine Wave Converter | Auto Conversion Inverter & Converter
Product
■ DC to High Frequency AC Converter Feature
1. Soft-start function
2. DC/AC isolation
3. High frequency converter pure sine wave output
4. Excellent load adaptability and stability
5. Strong startup ability, high efficiency conversion
6. Industrial universal socket designed for wide applicability
7. Small volume, light, safe to use, portable
8. Protection against over-heating,over-voltage,under-voltage,over load and short-circuits
■ DC to High Frequency AC Converter Specification
| Specification | |||
| Model : GP-C | 15212/24 | 20212/24 | |
| Rated Power | 1500W | 2000W | |
| Battery Voltage | DC 12V/24V | ||
| Size（L*W*Hmm） | 407*198*90 | ||
| Package Size（L*W*Hmm） | 432*125*233 | ||
| N.W.(kg) | 4.2 | 4.5 | |
| G.W.(kg)（Carton Packing） | 4.8 | 5 | |
| Input | DC input voltage range | 10.5-15VDC (single battery voltage) | |
|
Voltage of the battery
switched on automatically
|
≥11V (single battery voltage) | ||
| Ouput | Output voltage (battery mode) | 220VAC±2% | |
| Output frequency (battery mode) | 50/60HZ±1% | ||
| Efficiency | ≥85% | ||
| Output wave form | Pure Sine Wave | ||
| Protection | Battery low voltage alarm | 9.5VDC±0.5V (single battery voltage) | |
| Battery over voltage protection | 15VDC±0.5V (single battery voltage) | ||
|
Ouput undervoltage protection
(Battery mode)
|
≤187VAC Turn off the output | ||
|
Output short circuit protection
(Battery mode)
|
machine shut off，battery cut off | ||
| Over power protection | 110% more than rated capacity | ||
| Temperature protection | ≥90℃ machine shut off | ||
| Protection instructions: Turn off the machine during protection and the machine will automatically return to normal after troubleshooting | |||
| Display | LED. Red light:battery fault, Green light: Normal electricity+Digital tube voltmeter | ||
| Thermal method | Cooling fan in intelligent control | ||
| On-off | locking-type | ||
| Environment | Operating temperature | -10℃~+40℃ | |
| Storage temperature | -15℃~60℃ | ||
| Noise | ≤60dB | ||
| Highest altitude | 2000m（More than derating） | ||
| Relative humidity | 0%~95%(No condensation) | ||
| Note: All specifications are subject to change without prior notice | |||

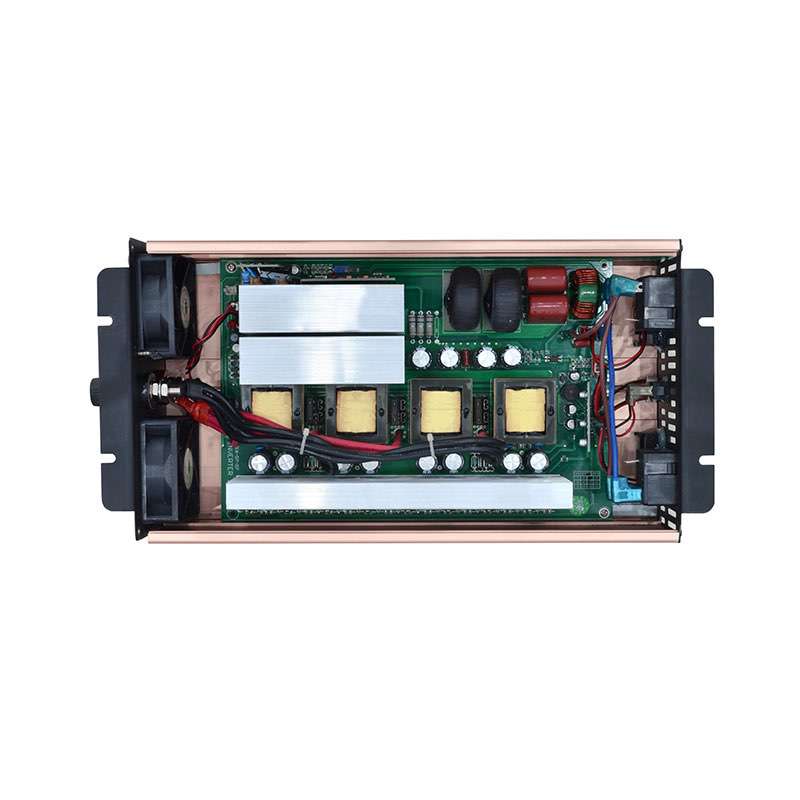

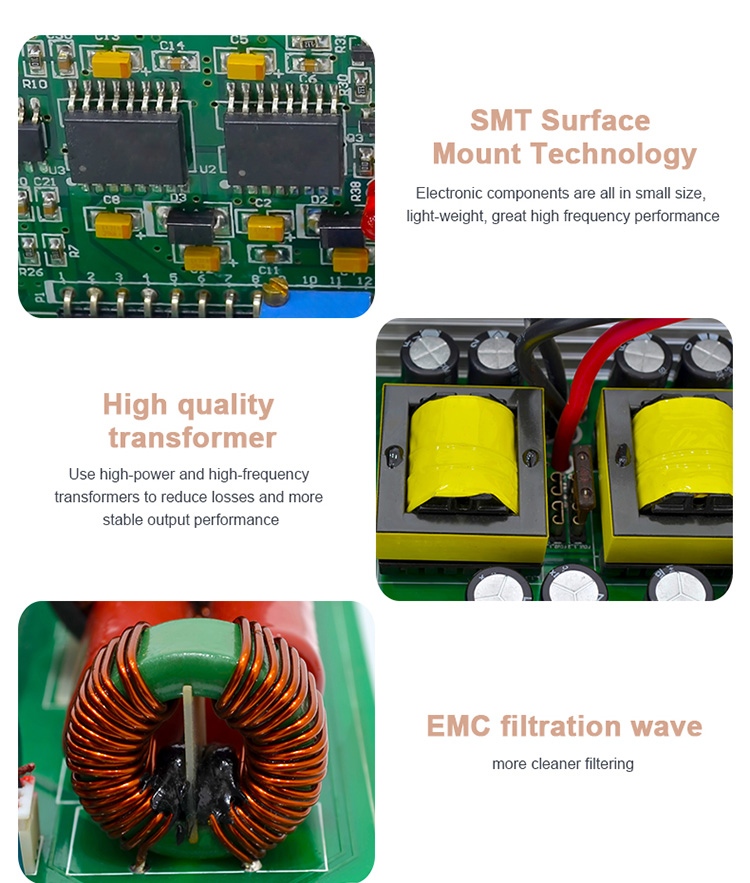

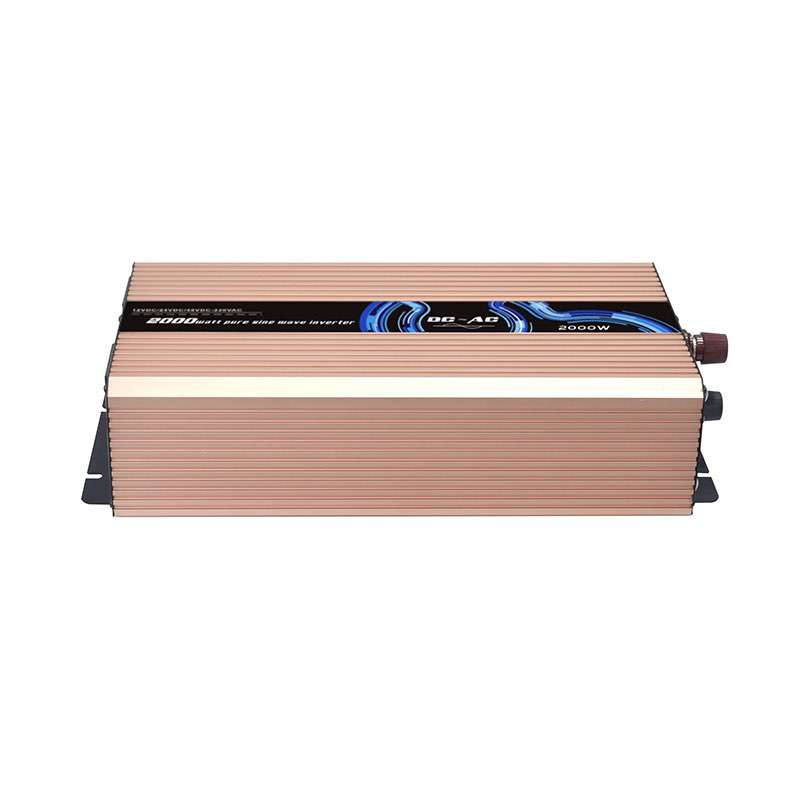

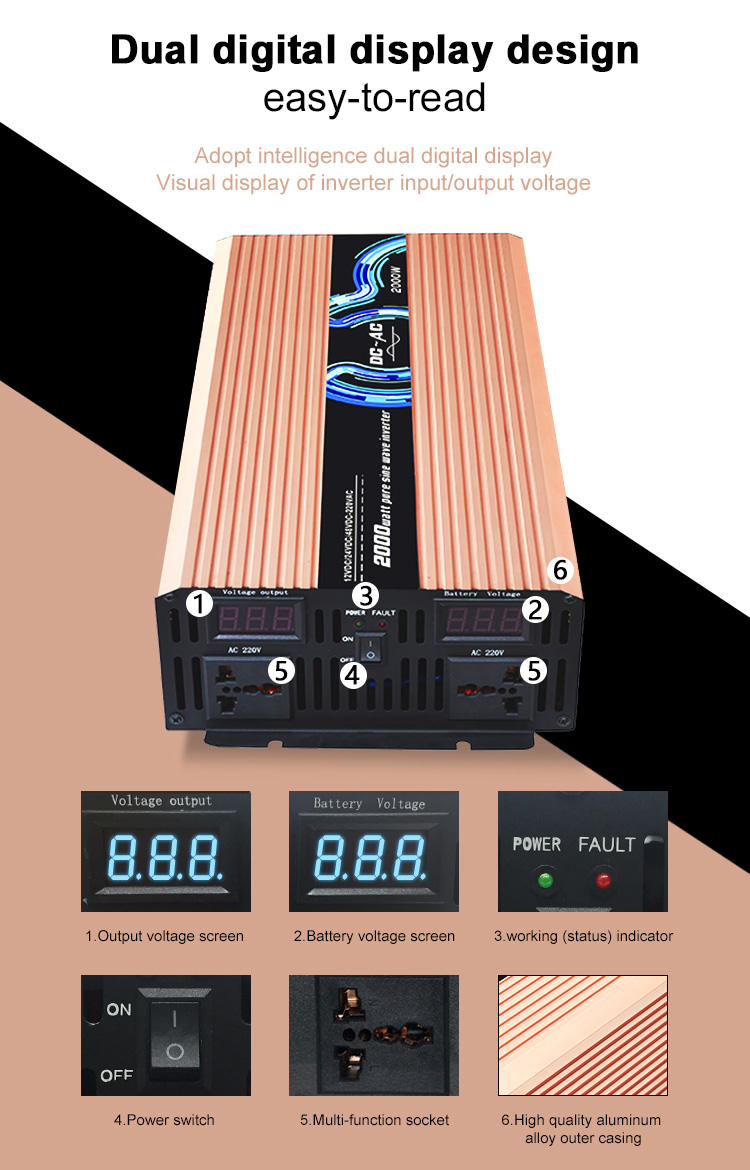

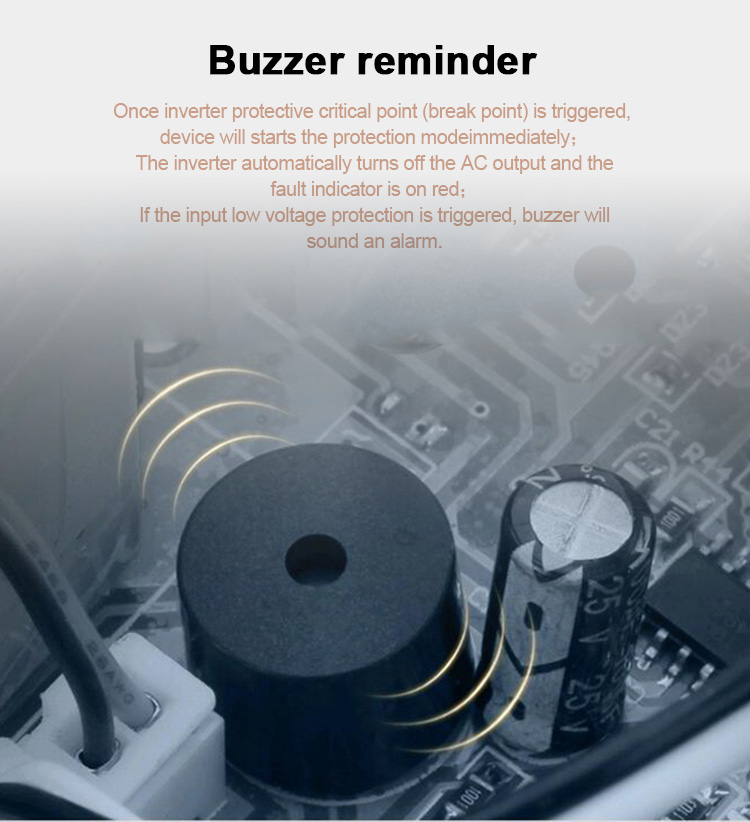

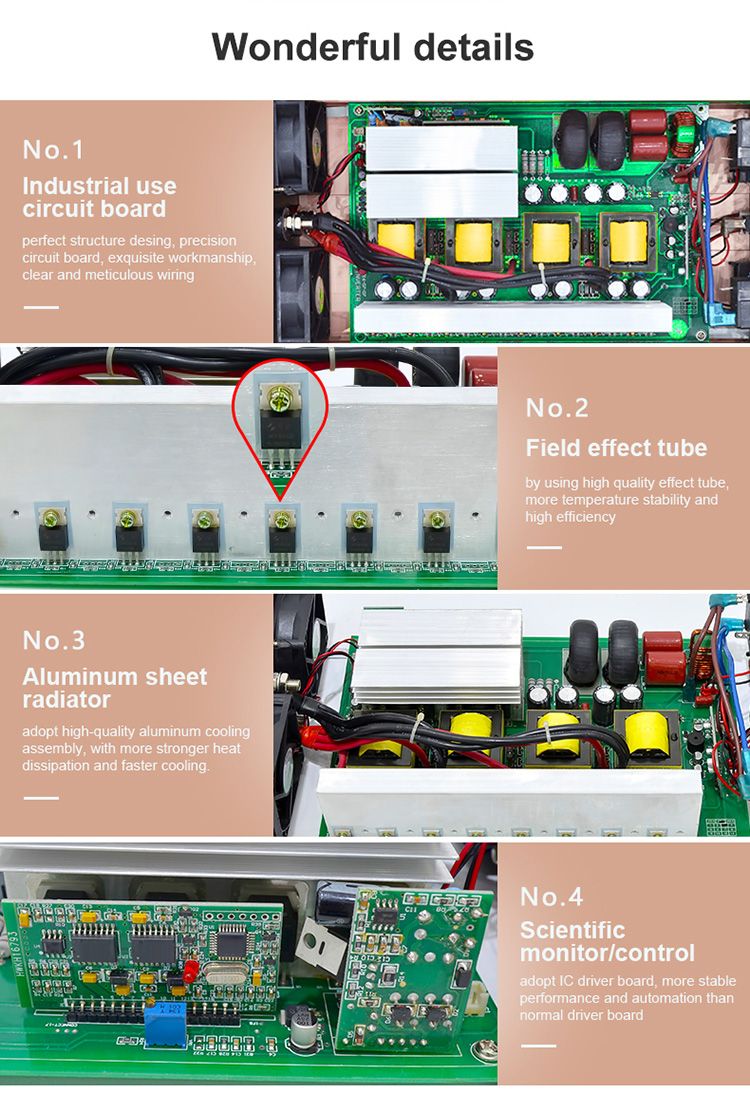

■ DC to High Frequency AC Converter Details

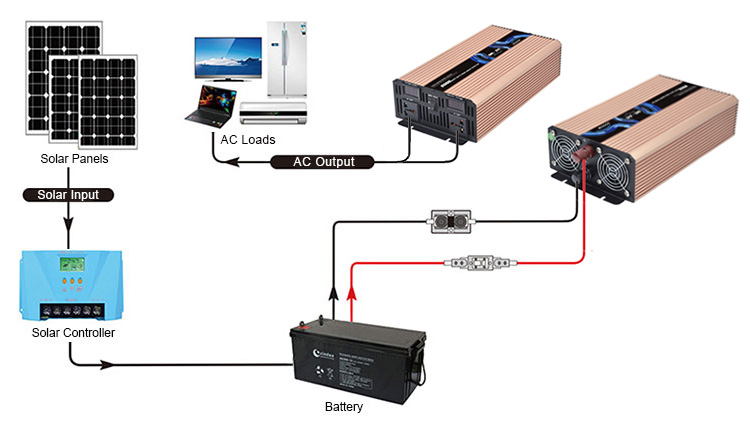

■ DC to High Frequency AC Converter Wiring Diagram
■ DC to High Frequency AC Converter Application

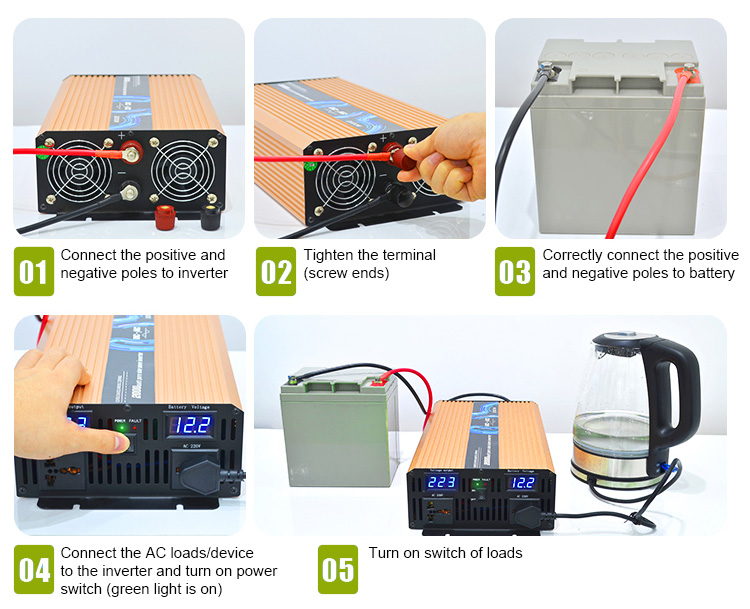

Home Use Method
*Friendly reminder:
inverter voltage must be equal to the battery voltage
■ DC to AC Converter Package and Delivery
■ Why Choose Us？
1. We are a professional manufacturer of dc to ac pure sine wave converter with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 14 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
5. 200,000 pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.
■ About Xindun Power
■ DC to AC Converter Factory
■ Qualifications and Certificates
■ Global Solar Exhibitions
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on dc to ac converters & inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: What is the price of dc to ac pure sine wave converter?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Auto dc to ac converter factory direct sales, no middlemen earn price difference.
Q3: What type of converters & inverters do you produce?
A: We produce various types of converters & inverters: pure sine wave converters, off-grid converters, on/off grid converters, solar hybrid converters, single phase converters, 3 phase converters, low frequency converters, high frequency converters, etc. Don’t know which type of converter to choose? Contact XINDUN now!
Q4: What\'s the difference between pure sine wave converter and modified sine wave converter?
A: Pure sine wave output converter is just as good as the public power grid, even better. Low repaired rate, long lifespan, without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output converter has a negative impact on appliances and can\'t load inductive load, such as air contitioner, refrigerator and etc. Certain motor control circuits don\'t like the modified wave.
Q5: How to solve the dc to ac pure sine wave converter technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
