Pure Sine Wave Inverter
Xindun factory best selling 700w/1000w car inverter dc 12v to ac 220v. Car inverter pure sine wave output, suitable for home appliances with motor loads on cars.
car inverter
car inverter
car inverter dc 12v to ac 220v
car inverter 12v to 220v
pure sine wave car inverter
1000w car inverter
700w pure sine wave inverter
1200w pure sine wave inverter

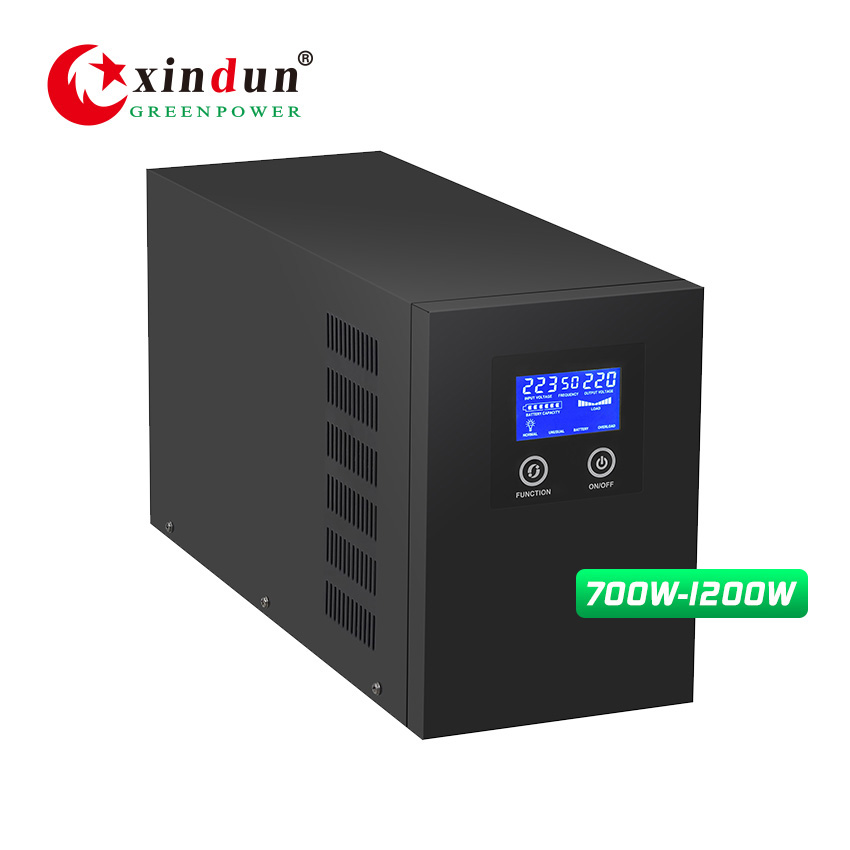

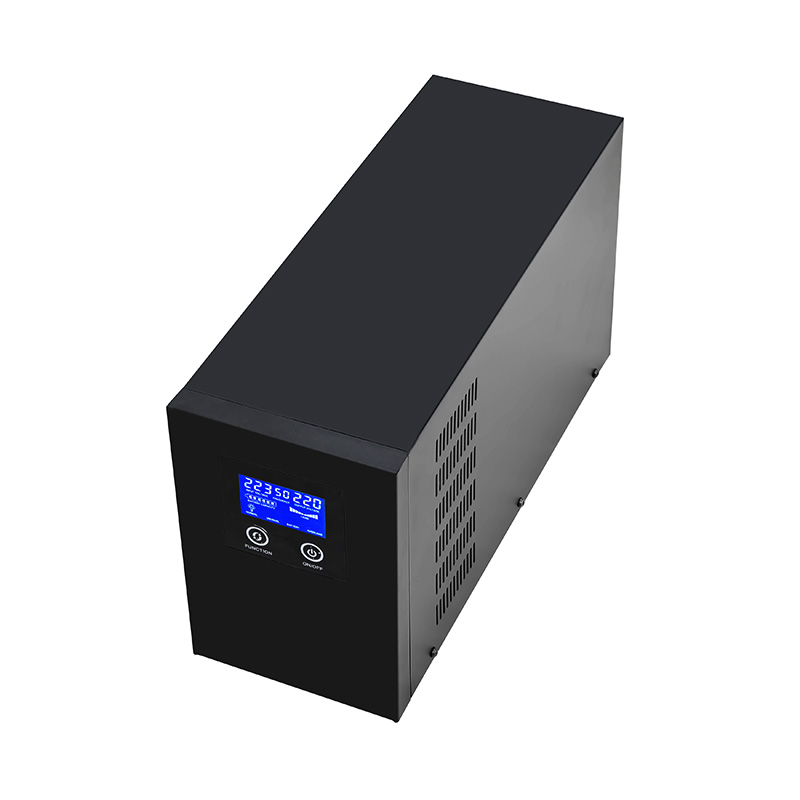

NB Pure Sine Wave Car Inverter DC to AC 700W-1200W 12V/24V/48V

700W/1000W DC12V/24V Convert to AC110V/220V/230V/240V | Car Inverter | Pure Sine Wave Inverter

  • Type : DC to AC Off-Grid Inverter
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 6 pcs
  • OEM : Yes

NB 1000w pure sine wave car inverter dc 12v to ac 220v





Car Inverter Feature






1 DC to AC inverter pure sine wave output.
2 Wide AC voltage input range, AVR output.
3 Adopt traditional EI transformer , stable performance.
4 LCD/LED&LCD real-time display, concise and straightforward.
5 Working modes: AC first or battery first optional, intelligent charging.
6 RS232 communication port optional.





Car Inverter Specification








Specification
Model NB 70112 10212/24/48 12224
Rated Power 700W 1000W 1200W
Peak Power(20ms) 2100VA 3000VA 3600VA
Start Motor 0.5HP 1HP 1HP
Battery Voltage 12VDC 12/24/48VDC 24VDC
Size(L*W*Hmm) 410*143*210
Packing Size(L*W*Hmm) 460*200*270(1台) / 475*425*285(2台)
N.W.(kg) 11 13 14
G.W.(kg)(Carton Packing) 12 14 15
Installation Method Tower
Parameter
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 73VAC~138VAC(110VAC) / 83VAC~148VAC(120VAC) / 145VAC~275VAC(220VAC) /
155VAC~285VAC(230VAC) / 165VAC~295VAC( 240VAC)
AC Input Frequency Range 45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
Max AC charging current 6A~15A(Depending on the model)
AC charging voltage LEAD battery:Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
AC charging method Three-stage (constant current, constant voltage, floating charge)
Output Efficiency(Battery Mode) ≥85%
Output Voltage(Battery Mode) 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
Output Frequency(Battery Mode) 50Hz±0.5 or 60Hz±0.5
Output Wave(Battery Mode) Pure Sine Wave
Efficiency(AC Mode) >99%
Output Voltage(AC Mode) Follow input
Output Frequency(AC Mode) Tracking Automatically
Output waveform distortion
(Battery Mode)
≤3%(Linear load)
No load loss(Battery Mode) ≤2.5% rated power
No load loss(AC Mode) ≤2% rated power( charger does not work in AC mode)
No load loss(Energy saving Mode) ≤10W
Battery Type VRLA Battery Charge Voltage :14.2V; Float Voltage:13.8V(Single battery voltage)
Customize battery Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.) can be customized according to user requirements
Protection Battery undervoltage alarm Factory default: 11V(Single battery voltage)
Battery undervoltage protection Factory default: 10.5V(Single battery voltage)
Battery overvoltage alarm Factory default: 15V(Single battery voltage)
Battery overvoltage protection Factory default: :17V(Single battery voltage)
Battery overvoltage recovery voltage Factory default: 14.5V(Single battery voltage)
Overload power protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Inverter output short circuit protection Automatic protection (battery mode), circuit breaker or insurance (AC mode)
Temperature protection >90°C(Shut down output)
Alarm A Normal working condition, buzzer has no alarm sound
B Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
C When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Working Mode Battery First/AC First/Saving Energy Mode
Transfer Time ≤4ms
Display LCD
Thermal method Cooling fan in intelligent control
Communication RS232(Optional)
Environment Operating temperature -10℃~40℃
Storage temperature -15℃~60℃
Noise ≤55dB
Elevation 2000m(More than derating)
Humidity 0%~95% ,No condensation
Note: All specifications are subject to charge without prior notice

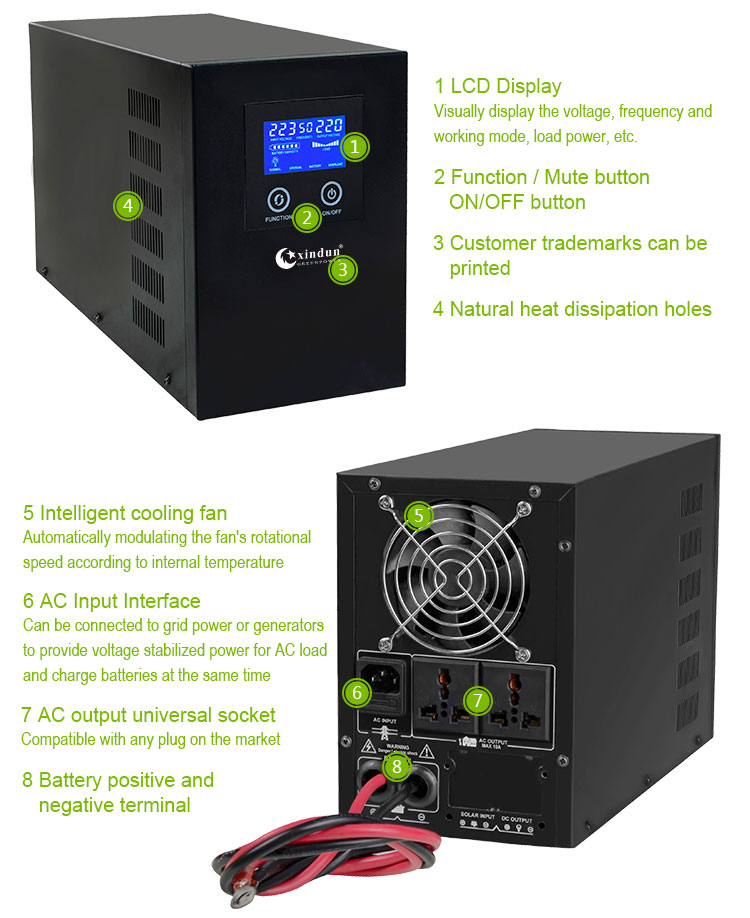

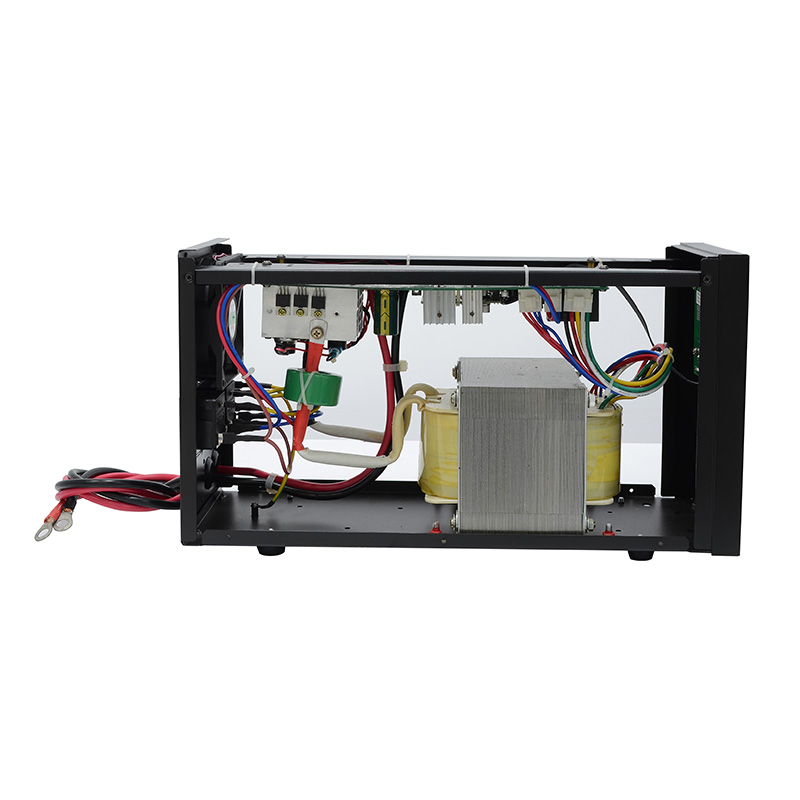

Car Inverter Details






pure sine wave car inverter dc to ac details

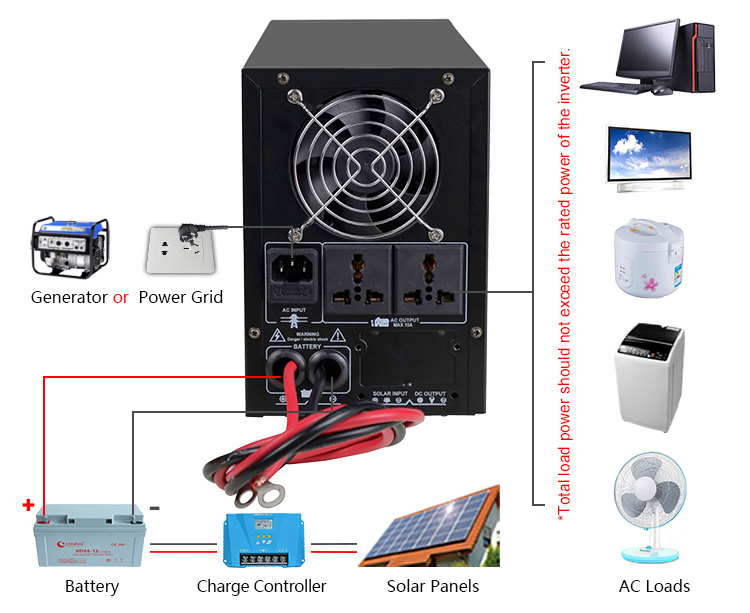

Car Inverter Wiring Diagram






pure sine wave car inverter dc to ac wiring diagram





Xindun pure sine wave inverter usually has the following two method of application:

1. Home or Car Backup System:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to home/car appliances, such as light, rice cooker, fan, computer. When AC grid power is cut off, inverter will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Power System:
The electricity generated by solar or wind energy is DC (direct current), inverter will convert DC to AC power. When battery power is lacking, it will automatic transfer to AC grid power for powering continuously.







Car Inverter Application






pure sine wave car inverter dc to ac application

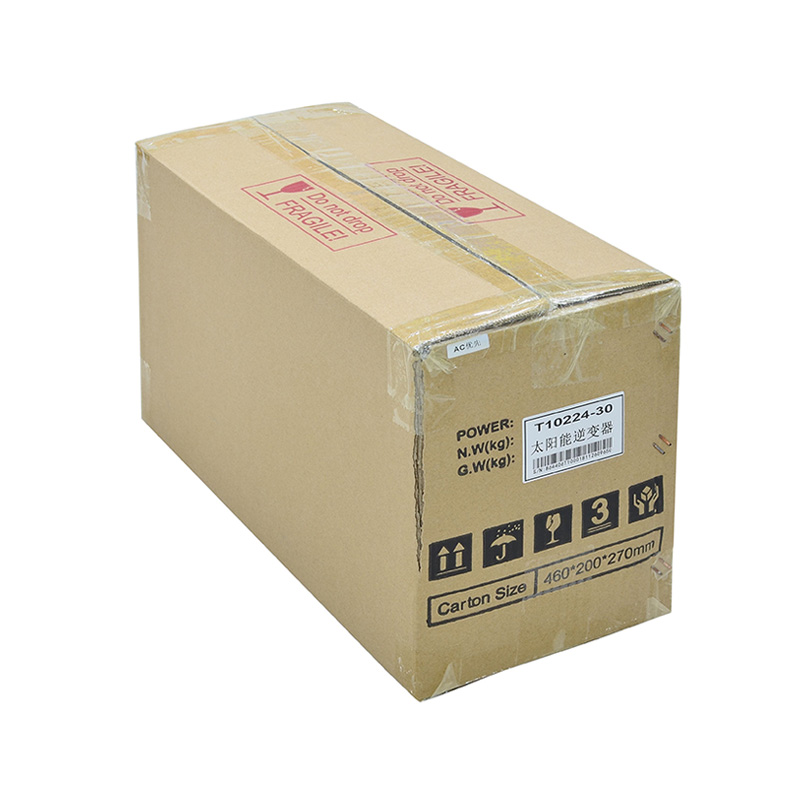

Inverter Package and Delivery






pure sine wave car inverter dc to ac package





Xindun is looking for agents in Pure Sine Wave Car Inverter DC to AC





Why Choose Us?






why choose xindun - pure sine wave car inverter dc to ac manufacturer





1. We are a professional manufacturer of pure sine wave dc to ac inverter with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 14 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
5. 200,000 pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.





About Xindun Power






about xindun - pure sine wave car inverter dc to ac manufacturer image



about xindun - pure sine wave car inverter dc to ac manufacturer introduction





Car Inverter Factory






Xindun pure sine wave car inverter dc to ac factory





Qualifications and Certificates






Xindun qualifications and certificates





Global Solar Exhibitons






Xindun global solar exhibitons





FAQ






Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.

Q2: What is the price of car inverter?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Car inverter factory direct sales, no middlemen earn price difference.

Q3: What type of inverters do you produce?
A: We produce various types of inverters: pure sine wave inverters, off-grid inverters, on/off grid inverters, solar hybrid inverters, single phase inverters, 3 phase inverters, low frequency inverters, high frequency inverters, etc. Don’t know which type of inverter to choose? Contact XINDUN now!

Q4: What\'s the difference between pure sine wave inverter and modified sine wave inverter?
A: Pure sine wave output inverter is just as good as the public power grid, even better. Low repaired rate, long lifespan, without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output inverter has a negative impact on appliances and can\'t load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don\'t like the modified wave.

Q5: How to solve the car inverter technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
