It is equally important to choose a best full sine wave inverter and a trusted pure sine wave inverter company. Xindun pure sine wave inverter output 220v, 240v, 230v, 110v, Compatible with different national power grids.

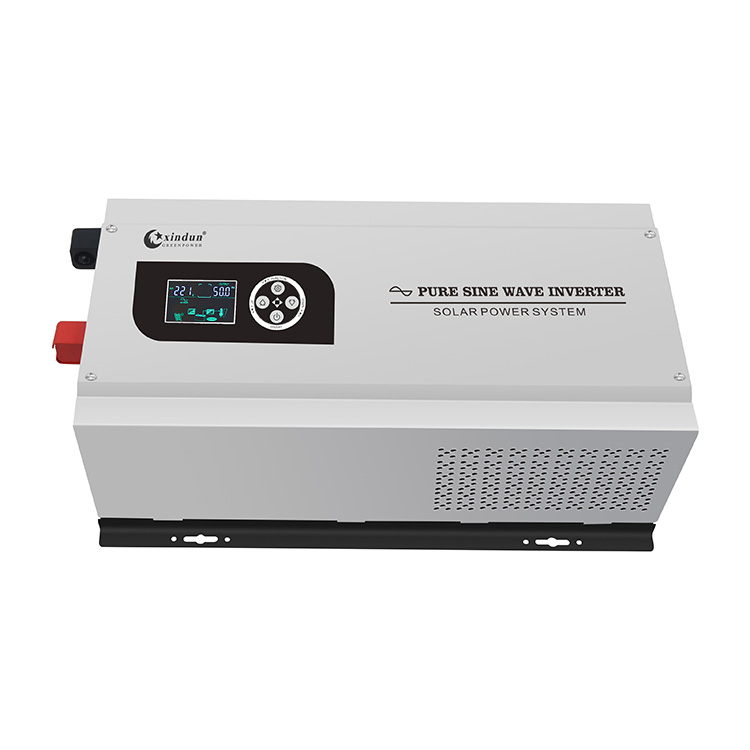

DP Full Sine Wave Inverter 1KW-7KW 12V/24V/48V Company

1000W 1500W 2000W 3000W 4000W 5000W 6000W 7000W DC12V/24V/48V to AC110V/120V/220V/230V/24V Pure Sine Wave Inverter (Full Sine Wave Inverter) | Pure Sine Wave Inverter Manufacturing Comapny From China | Necessary for power failure=UPS Power Supply

OEM : OEM for Wholesaler/Distributor/Reseller
Type : DC to AC Pure Sine Wave Inverter
Place of Origin : Foshan, Guangdong, China
Brand : XINDUN POWER
MOQ : 6 pcs

Inquiry Now

Product

Inverter With Charge Controller

Three Phase Inverter

Pure Sine Wave Inverter

Solar Generator

Solar Controller

Solar System Solution

Battery

Solar Panel

Solar kits

UPS

Others

Product Details

pure sine wave inverter company 12v 24v 48v to 110v 220v 230v 240v

■ Full Sine Wave Inverter Feature

1, Low frequency inverter with toroidal transformer, full sine wave inverter;
2, AC charger/diesel or gasoline generator charger/solar charger in one;
3, Integrated LCD display. One-button start with an external display screen( optional);
4, Inverter applicable to various battery types: lithium battery, lead acid battery, gel battery, etc;
5, With voltage stabilizing function (AVR output);
6, Telecommunication: RS485/APP(WIFI or GPRS);
7, Necessary for power failure, can be used as UPS power supply.

■ Full Sine Wave Inverter Specification

pure sine wave inverter 220v 240v 230v 110v specification

Specification
Model: DP		10212/24/48	15212/24/48	20212/24/48	30224/48	40224/48	50248	60248	70248
Rated Power		1000W	1500W	2000W	3000W	4000W	5000W	6000W	7000W
Peak Power（20ms)		3000VA	4500VA	6000VA	9000VA	12000VA	15000VA	18000VA	21000VA
Start Motor		1HP	1.5HP	2HP	3HP	3HP	4HP	4HP	5HP
Battery Voltage		12/24/48VDC			24/48VDC	24/48VDC	48VDC
Size(LWHmm)		555297184				615315209
Packing Size(LWHmm)		620345255				680365280
N.W.(kg)		12	13	15.5	18	23	24.5	26	27.5
G.W.(kg)（Carton Packing）		14	15	17.5	20	25.5	27	28.5	30
Installation Method		Wall-Mounted
Parameter
Input	DC Input Voltage Range	10.5-15VDC（Single battery voltage）
	AC Input Voltage Range	85VAC~138VAC（110VAC）/ 95VAC~148VAC（120VAC / 170VAC~275VAC（220VAC / 180VAC~285VAC（230VAC） / 190VAC~295VAC（240VAC）
	AC Input Frequency Range	45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)
	Max AC charging current	0~30A(Depending on the model）
	AC charging method	Three-stage (constant current, constant voltage, floating charge)
Output	Efficiency(Battery Mode)	≥85%
	Output Voltage(Battery Mode)	110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
	Output Frequency(Battery Mode)	50/60Hz±1%
	Output Wave(Battery Mode)	Pure Sine Wave
	Efficiency(AC Mode)	>99%
	Output Voltage(AC Mode)	110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
	Output Frequency(AC Mode)	Follow input
	Output waveform distortion (Battery Mode)	≤3%（Linear load）
	No load loss(Battery Mode)	≤0.8% rated power
	No load loss(AC Mode)	≤2% rated power（ charger does not work in AC mode）
	No load loss(Energy saving Mode)	≤10W
Battery Type	VRLA Battery	Charge Voltage :14V; Float Voltage:13.8V( 12V system; 24V system x2 ; 48V system x4)
	Customize battery	Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel)
Protection	Battery undervoltage alarm	Factory default: 11V(12V system; 24V system x2; 48V system x4)
	Battery undervoltage protection	Factory default: 10.5V(12V system; 24V system x2; 48V system x4)
	Battery overvoltage alarm	Factory default: 15V(12V system; 24V system x2; 48V system x4)
	Battery overvoltage protection	Factory default: 17V(12V system; 24V system x2; 48V system x4)
	Battery overvoltage recovery voltage	Factory default: 14.5V(12V system; 24V system x2; 48V system x4)
	Overload power protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection	Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection	>90°C（Shut down output）
Alarm	A	Normal working condition, buzzer has no alarm sound
	B	Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection
	C	When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal
Working Mode		Battery First/AC First/Saving Energy Mode
Transfer Time		≤4ms
Display		LCD（External LCD Display(Optional)）
Thermal method		Cooling fan in intelligent control
Communication(Optional)		RS485/APP（WIFI monitoring or GPRS monitoring）
Environment	Operating temperature	-10℃~40℃
	Storage temperature	-15℃~60℃
	Noise	≤55dB
	Elevation	2000m（More than derating）
	Humidity	0%~95% ,No condensation

■ Full Sine Wave Inverter Details

pure sine wave inverter 220v 240v 230v 110v details

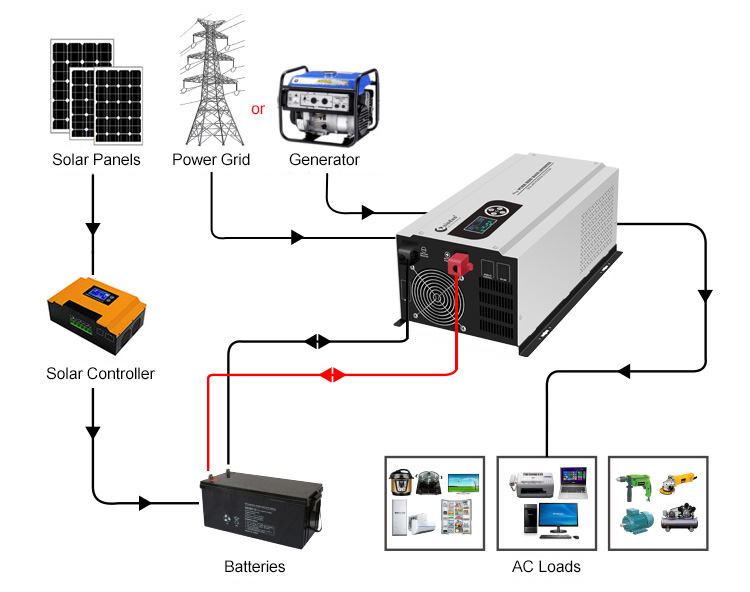

■ Full Sine Wave Inverter Wiring Diagram

pure sine wave inverter 220v 240v 230v 110v wiring diagram

Xindun full sine wave inverter usually has the following three working mode:

1. UPS Backup System:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to househould appliances, such as light, rice cooker, refrigerator, air conditioner, TV, computer. When AC grid power is cut off, inverter will automatic transfer switch to battery power and convert DC to AC power.

2. Wind or Solar Power System:
The electricity generated by solar or wind energy is DC (direct current), inverter will convert DC to AC power. When battery power is lacking, it will automatic transfer to AC grid power for powering continuously.

3. Energy Saving System:
Under battery mode, when the load is 5% lower than the rated load, the inverter will intermittently interrupt the inverter output to save electric energy. When the load is greater than 5% of the rated load, the inverter will always be in your convenient state.

■ Full Sine Wave Inverter Application

pure sine wave inverter 220v 240v 230v 110v application

■ Full Sine Wave Inverter Package and Delivery

pure sine wave inverter 220v 240v 230v 110v package and delivery

■ Why Choose Us？

pure sine wave inverter company

For many years, we are awarded as: The trusted pure sine wave inverter manufacturing company in China!

■ About Xindun Power - Pure Sine Wave Inverter Company From China

pure sine wave inverter company from china

■ FAQ

1, What is full sine wave inverter?

Inverter is a device that converts direct current (DC) to usable alternating current (AC) that most appliances use. A full sine wave inverter is equal to pure sine wave inverter, is the most stable continuous wave, providing smooth periodic oscillations. A pure sine wave inverter can run any resistive or inductive load and output power better than the mains.

2, Which is better square wave inverter or full sine inverter?

Full sine inverter is more efficient than square wave inverter in the conversion of DC to AC. This ensures that power losses are minimized due to higher efficiency. So your electricity bill won't skyrocket. This is an immediate benefit of using a full sine inverter.

3, What voltage can your pure sine wave inverter do?

XINDUN pure sine wave inverter can convert 12v, 24v, 48v to 220v, 230v, 240v, 110.
Pure sine wave inverter 220v: Thailand, Vietnam, Philippines, South Korea, Argentina, etc;
Pure sine wave inverter 240v: Australia, New Zealand, India, Nigeria, etc;
Pure sine wave inverter 230v: Malaysia, Singapore, Pakistan, Indonesia, Lithuania, Ukraine, Russia, etc;
Pure sine wave inverter 110v: Japan, the United States, Canada, etc;

4, Are you a pure sine wave inverter manufacturing company?

We are a manufacturing company located in China. 10,000 Sqm, 8 production lines and independent inspection department. Over the past 16 years, XINDUN focused on inverter all the time.
