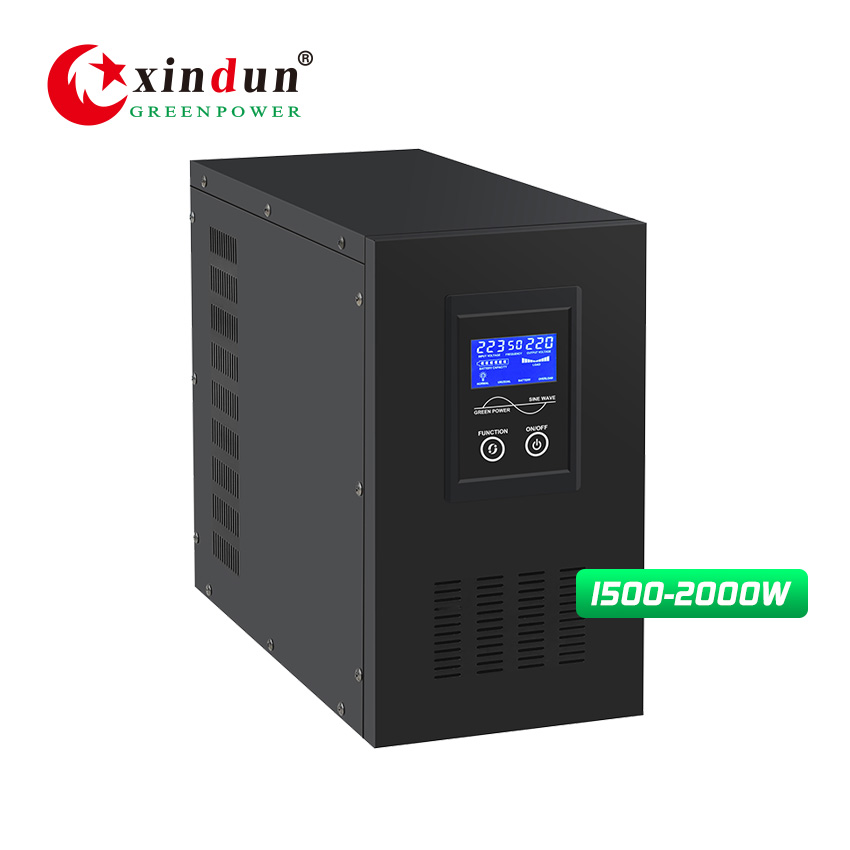

1500W/2000W DC24V/48V Convert to AC110V/220V/230V/240V | Pure Sine Wave Inverter | Solar Power Inverter for Car, Truck, RV, Home
■ Solar Power Inverter Feature
1 Solar power inverter pure sine wave output.
2 Wide AC voltage input range, AVR output.
3 Adopt traditional EI transformer , stable performance.
4 LCD/LED&LCD real-time display, concise and straightforward.
5 Working modes: AC first or battery first optional, intelligent charging.
6 RS232 communication port optional.
■ Solar Power Inverter Specification
|Input||DC Input Voltage Range||10.5-15VDC（Single battery voltage）|
|AC Input Voltage Range||73VAC~138VAC(110VAC） / 83VAC~148VAC（120VAC） / 145VAC~275VAC（220VAC） /
155VAC~285VAC（230VAC） / 165VAC~295VAC（ 240VAC）
|AC Input Frequency Range||45Hz~55Hz(50Hz) / 55Hz~65Hz(60Hz)|
|Max AC charging current||6A~15A(Depending on the model）|
|AC charging voltage||LEAD battery：Charge Voltage :14.2V; Float Voltage:13.8V（Single battery voltage）|
|AC charging method||Three-stage (constant current, constant voltage, floating charge)|
|Output Voltage(Battery Mode)||110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%|
|Output Frequency(Battery Mode)||50Hz±0.5 or 60Hz±0.5|
|Output Wave(Battery Mode)||Pure Sine Wave|
|Output Voltage(AC Mode)||Follow input|
|Output Frequency(AC Mode)||Tracking Automatically|
|Output waveform distortion
|No load loss(Battery Mode)||≤2.5% rated power|
|No load loss(AC Mode)||≤2% rated power（ charger does not work in AC mode）|
|No load loss(Energy saving Mode)||≤10W|
|Battery Type||VRLA Battery||Charge Voltage :14.2V; Float Voltage:13.8V（Single battery voltage）|
|Customize battery||Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.) can be customized according to user requirements|
|Protection||Battery undervoltage alarm||Factory default: 11V（Single battery voltage）|
|Battery undervoltage protection||Factory default: 10.5V（Single battery voltage）|
|Battery overvoltage alarm||Factory default: 15V（Single battery voltage）|
|Battery overvoltage protection||Factory default: ：17V（Single battery voltage）|
|Battery overvoltage recovery voltage||Factory default: 14.5V（Single battery voltage）|
|Overload power protection||Automatic protection (battery mode), circuit breaker or insurance (AC mode)|
|Inverter output short circuit protection||Automatic protection (battery mode), circuit breaker or insurance (AC mode)|
|Temperature protection||>90°C（Shut down output）|
|Alarm||A||Normal working condition, buzzer has no alarm sound|
|B||Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection|
|C||When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal|
|Working Mode||Battery First/AC First/Saving Energy Mode|
|Thermal method||Cooling fan in intelligent control|
|Elevation||2000m（More than derating）|
|Humidity||0%~95% ,No condensation|
|Note: All specifications are subject to charge without prior notice|

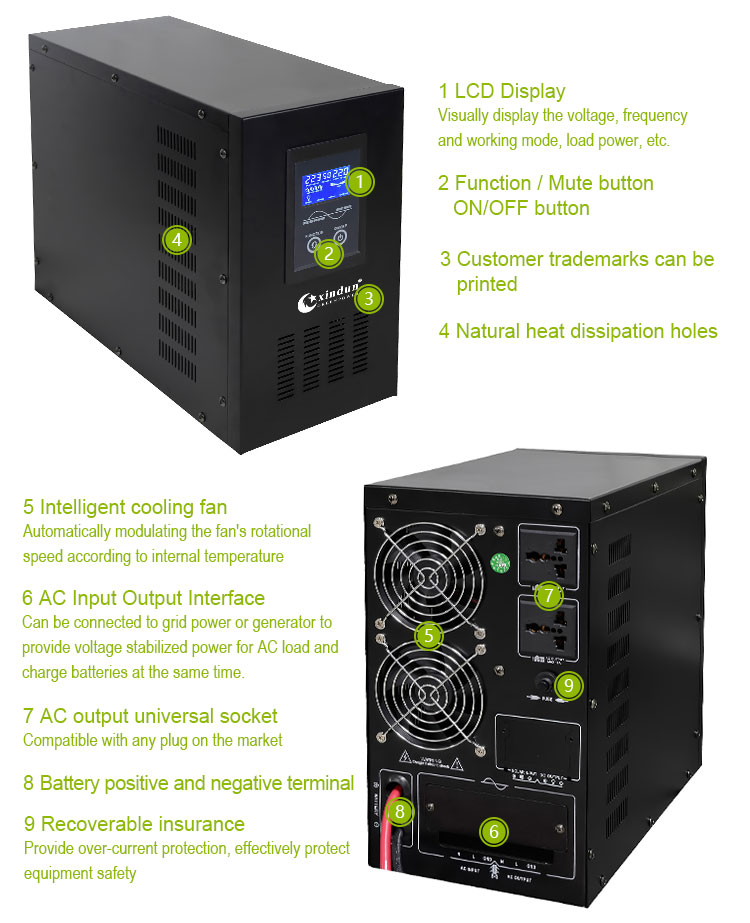

■ Solar Power Inverter Details

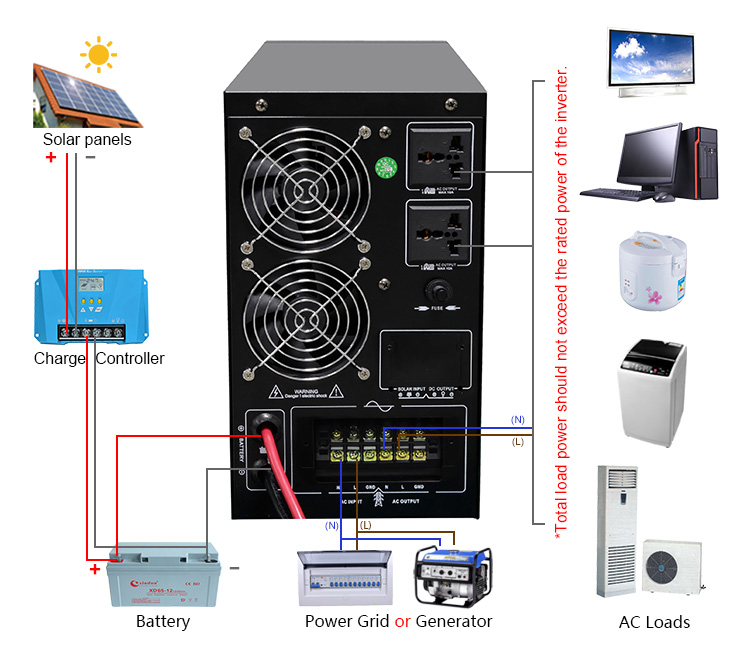

■ Solar Power Inverter Wiring Diagram
Xindun solar power inverter usually has the following two method of application:
1. Home or Car or Truck or RV Backup System:
When AC grid power is available, inverter charges battery, at the same time, AC grid power bypass through inverter to home appliances, such as light, rice cooker, refrigerator, computer. When AC grid power is cut off, inverter will automatic transfer switch to battery power and convert DC to AC power.
2. Wind or Solar Power System:
The electricity generated by solar or wind energy is DC (direct current), inverter will convert DC to AC power. When battery power is lacking, it will automatic transfer to AC grid power for powering continuously.
■ Solar Power Inverter Application
■ Inverter Package and Delivery
■ Why Choose Us？
1. We are a professional manufacturer of solar power inverter with over 14 years experience. Best production capability, best quality control, best service.
2. 100% QC inspection and testing before shipment.
3. CE listed, competitive price.
4. 14 years of high-level OEM experience
5. 7,000 square meters factory size (Sq.meters)
5. 200,000 pcs monthly capacity
7. Export percentage: 80%
8. Hi-tech advanced R&D team.
■ About Xindun Power
■ Solar Power Inverter Factory
■ Qualifications and Certificates
■ Global Solar Exhibitons
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: What is the price of solar power inverter for car/home/truck/rv?
A: Tell me your requirements, such as power, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Solar power inverter factory direct sales, no middlemen earn price difference.
Q3: What type of inverters do you produce?
A: We produce various types of inverters: pure sine wave inverters, off-grid inverters, on/off grid inverters, solar hybrid inverters, single phase inverters, 3 phase inverters, low frequency inverters, high frequency inverters, etc. Don’t know which type of inverter to choose? Contact XINDUN now!
Q4: What\'s the difference between pure sine wave inverter and modified sine wave inverter?
A: Pure sine wave output inverter is just as good as the public power grid, even better. Low repaired rate, long lifespan, without harmonic pollution, enviromental-friendly and appliances protected.
Modified sine wave output inverter has a negative impact on appliances and can\'t load inductive load, such as air contition, refrigerator and etc. Certain motor control circuits don\'t like the modified wave.
Q5: How to solve the solar power inverter technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
