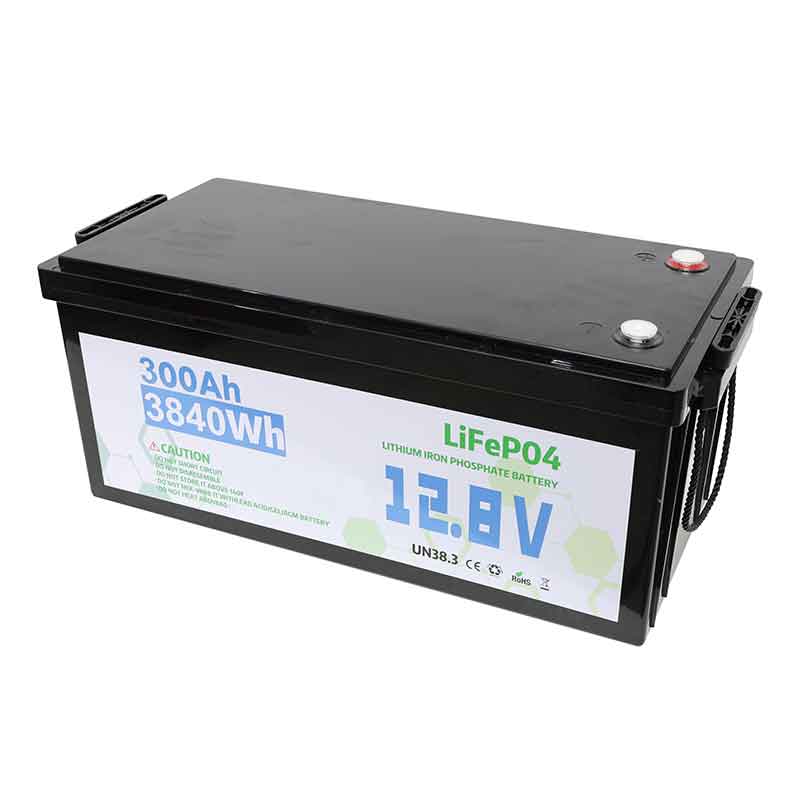

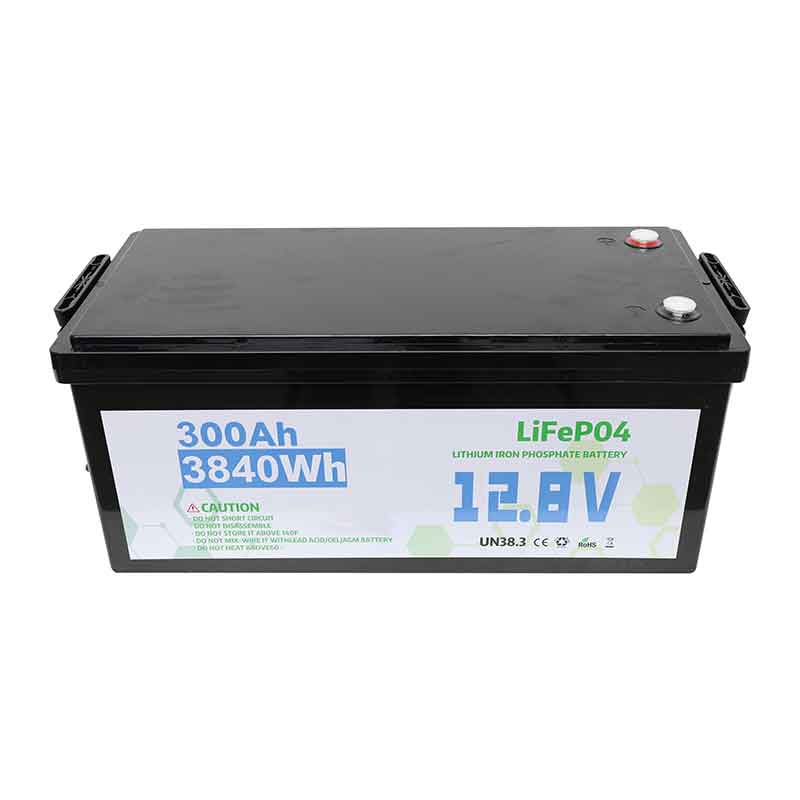

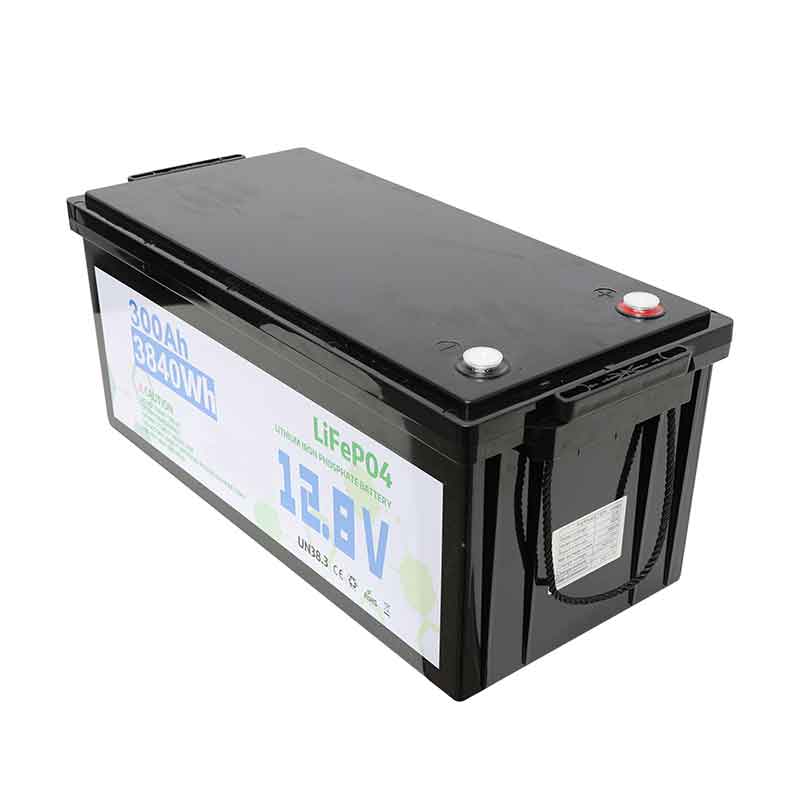

The LiFePO4 battery uses Grade A lithium iron phosphate battery, offering voltages of 12.8V/25.6V and multiple capacity options of 100Ah, 150Ah, 200Ah, and 300Ah. It boasts a cycle life of over 6000 cycles and is offered at a competitive price.
Product
1. Lightweight and compact lifepo4 battery design with high energy storage efficiency.
2. Extended lifespan with over 6000 cycle times, making it more durable.
3. Equipped with intelligent BMS Battery Management System for real time monitoring of battery system status.
4. Comprehensive protection features reduce maintenance costs.
5.Suitable for various applications including RVs, homes, outdoor use, and communication base stations.
|
Model : |
12.8V-100AH |
12.8V-150AH |
12.8V-200AH |
12.8V-300AH |
25.6V-100AH |
25.6V-200AH |
|
|
Typical Capacity |
100Ah |
150Ah |
200Ah |
300Ah |
100Ah |
200Ah |
|
|
Minimum Capacity |
100Ah |
150Ah |
200Ah |
300Ah |
100Ah |
200Ah |
|
|
Combination method |
4S1P |
4S1P |
4S2P |
4S1P |
8S1P |
8S1P |
|
|
Nominal Voltage |
12.8V |
12.8V |
12.8V |
12.8V |
25.6V |
25.6V |
|
|
Internal Impedance |
≤200mΩ |
≤200mΩ |
≤200mΩ |
≤200mΩ |
≤200mΩ |
≤200mΩ |
|
|
Charge voltage |
14.6V |
14.6V |
14.6V |
14.6V |
29.2V |
29.2V |
|
|
Standard charge current |
50A |
75A |
100A |
100A |
50A |
100A |
|
|
Max. charge current |
100A |
150A |
200A |
200A |
100A |
200A |
|
|
Standard dis-charge current |
50A |
75A |
100A |
100A |
50A |
100A |
|
|
Max. discharge current |
100A |
150A |
200A |
200A |
100A |
200A |
|
|
Shipping voltage requirements |
≥12.0V |
≥24.0V |
|||||
|
Operating Temperature |
Charging |
0℃~+50℃ |
|||||
|
Discharging |
-20℃~+65℃ |
||||||
|
Storage Temperature |
Less than 1 month |
-20℃～+45℃ |
|||||
|
Less than 6 months |
-20℃～+35℃ |
||||||
|
Dimension |
|||||||
|
Product Size(L*W*Hmm) |
330*173*221 |
502*186*243 |
522*238*222 |
522*268*222 |
522*238*222 |
522*268*222 |
|
Xindun LiFePO4 battery utilize high quality lithium iron phosphate battery, boasting a cycle life exceeding 6000 cycles, approximately 8-10 times that of traditional lead-acid battery. This ensures stable performance even in application with frequent charge and discharge cycles, effectively reducing replacement frequency and lowering long term maintenance cost. We offer both 12.8V and 25.6V voltages and support various capacity specifications of 100Ah, 150Ah, 200Ah, and 300Ah, allowing for flexible configuration to meet the needs of different energy storage system, from small mobile energy storage to medium to large scale application.
As a lifepo4 battery manufacturer, we provide our customers with high quality lifepo4 battery, which have undergone multiple optimizations in product quality and safety design. The batteries feature a built in intelligent BMS that monitors battery operating status in real time and provide overcharge, over discharge, overcurrent, and short circuit protection, effectively improving system safety and stability. The products also support operating temperatures from -20°C to 65°C, maintaining stable output even in high or low temperature environments to meet the needs of different regions. The battery are constructed with high strength structural casing and environmentally friendly materials, enhancing durability and ensuring safety and reliability in long term energy storage applications, providing stable power for home energy storage and backup power system.
Why are more and more customers choosing to buy our lifepo4 battery? Compared to lead-acid battery, lifepo4 battery offer advantages such as lighter weight, longer lifespan, higher charging efficiency, and lower maintenance costs. Furthermore, Xindun lifepo4 battery boast higher energy utilization, with efficiencies reaching up to 96%. In applications, this not only reduces energy loss but also lowers long term operating costs. Compared to traditional lead-acid battery, lifepo4 battery is less polluting and more environmentally friendly.
LiFePO4 battery is typically integrated with inverter, solar controller, and solar panel to form complete solar system. During system operation, the battery primarily stores the electrical energy generated by solar energy and provides stable power to the load when needed.
Our lifepo4 battery can be used in various scenarios, such as home energy storage system, camping outdoor power supply, RVs, off grid solar systems, communication base stations, and fishing boat power supply. Their stable energy storage performance and reliable power output provide continuous and stable power support for various devices in different environments.
1.How long do lifepo4 battery last?
LiFePO4 battery typically have a cycle life of 6000+, which is much longer than that of traditional lead-acid battery.
2.Can lifepo4 battery be used normally in low temperature environments?
Xindun lifepo4 battery can operate in a temperature range of -20°C to +65°C.
3. How fast do lifepo4 battery charge?
LiFePO4 battery support fast charging in 2-3 hours, allowing them to be fully charged and put into use in a shorter time, improving overall power efficiency.
4.Is lifepo4 battery safe to use?
LiFePo4 battery have high thermal stability and are equipped with BMS battery management system, which can effectively improve safety and stability during use.
5.Why are lifepo4 battery lighter than lead-acid battery?
Because lifepo4 battery have a higher energy density, they typically weigh only about 40% of lead-acid battery for the same capacity, making them lighter and easier to transport and install.
