Hybrid digital pwm 24v solar battery charger controller
Battery charge controllers (also called solar panel battery charger controller, hybrid digital pwm solar charger controller) 5a/10a/15a/20a/30a 12v/24v/48v with usb output.

PWM Solar Battery Charger Controller 10A/15A/20A/30A 12V/24V/48V

5A/10A/15A/20A/30A 12V/24V/48V PWM Solar Battery Charger Controllers | 5V USB Output | 12V/24V Auto Adaptation

  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs

■ PWM Solar Battery Charger Controller Feature



1  Build-in industrial micro controller.
2  Big LCD display,all adjustable parameter.
3  Fully 3-stage pwm charge management.
4  Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.
5  Dual mosfet reverse current protection, low heat production.

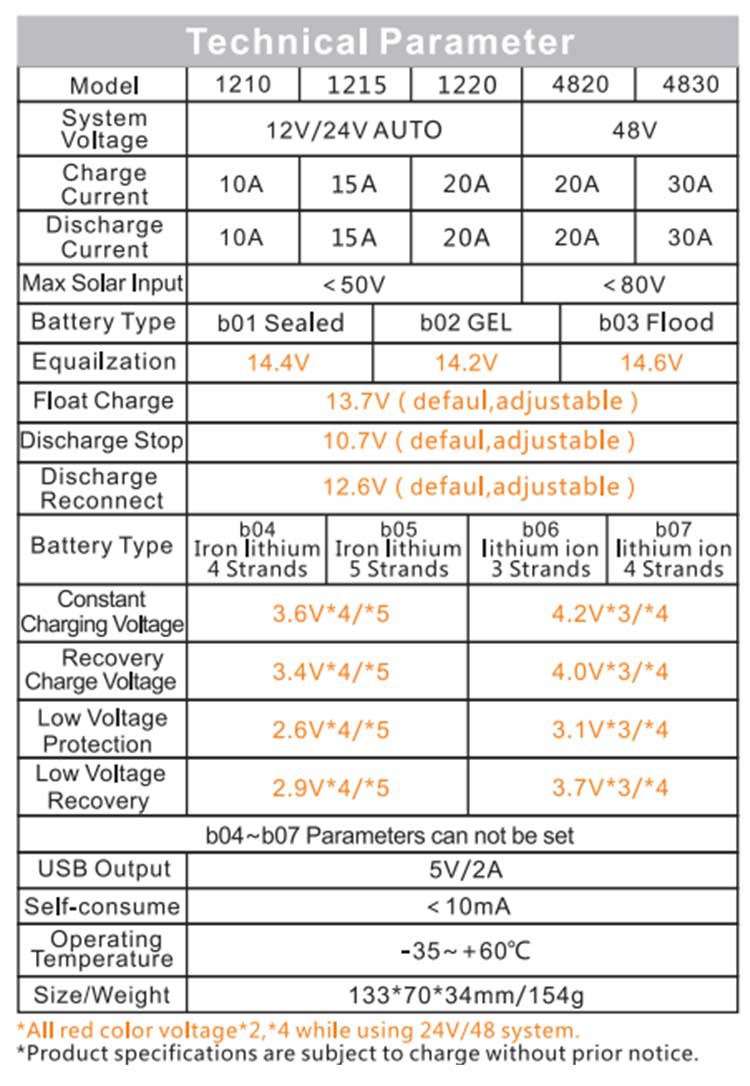

■ PWM Solar Battery Charger Controller Specification



pwm solar battery charger controller specification

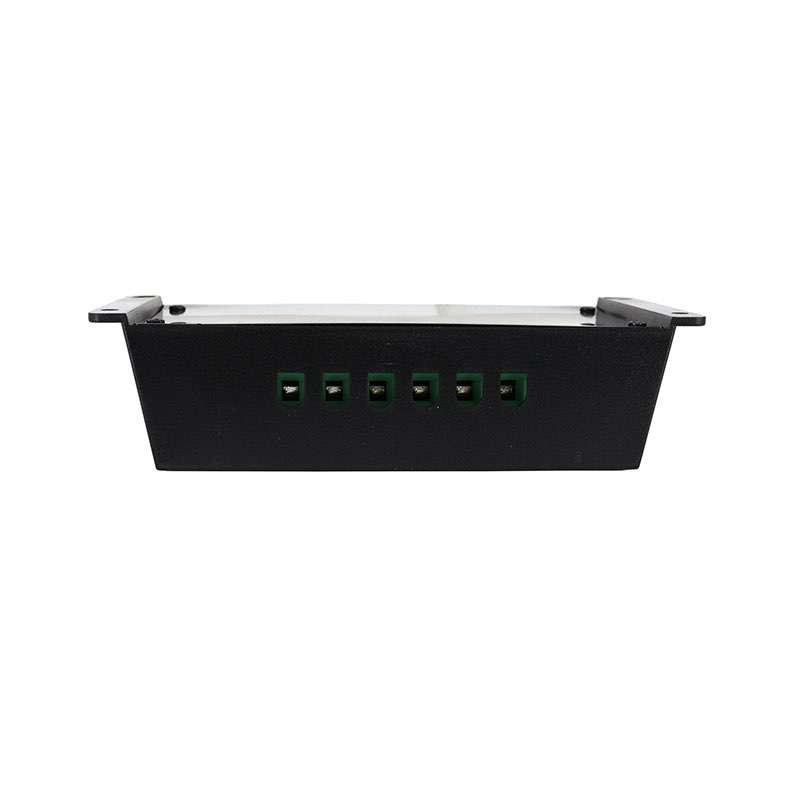

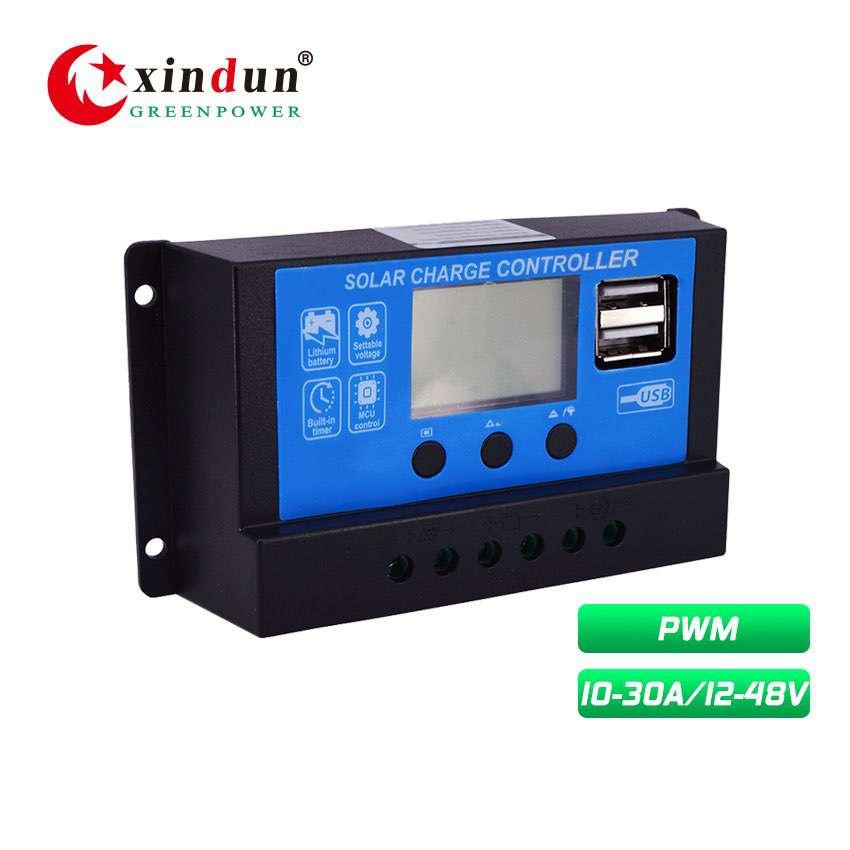

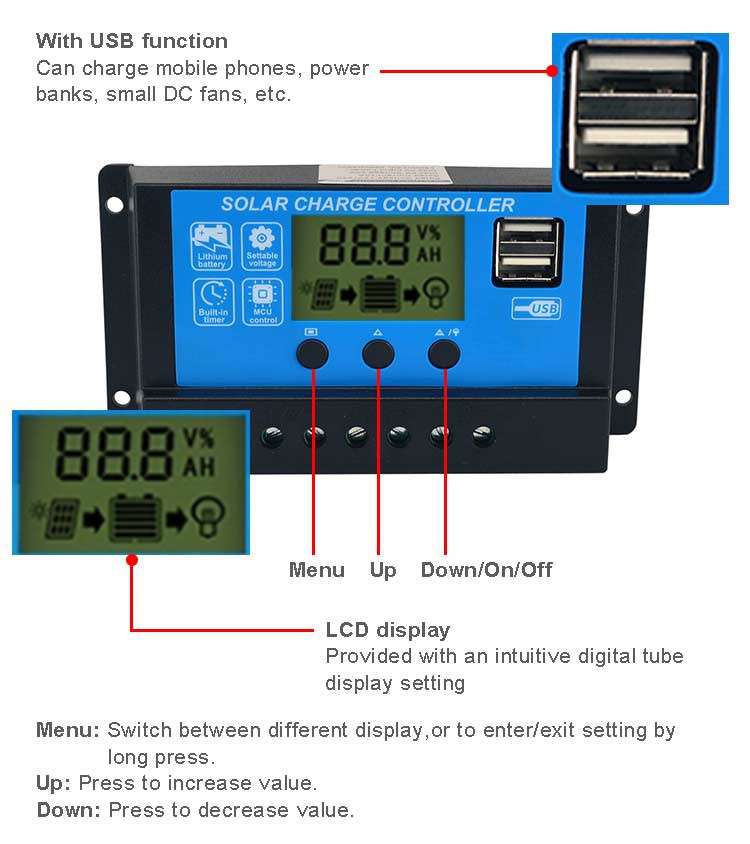

■ PWM Solar Battery Charger Controller Image



pwm solar battery charger controller image

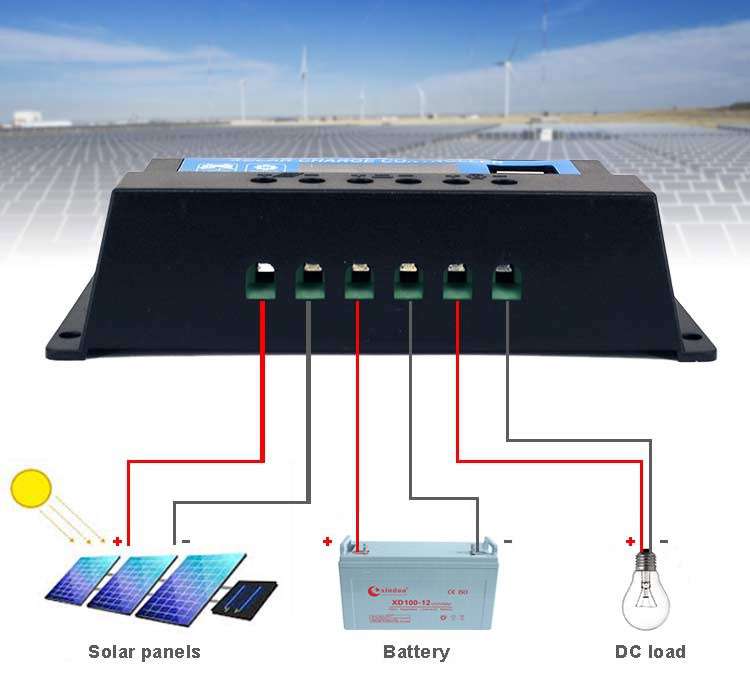

■ How Does PWM Solar Battery Charger Controller Work?



how does pwm solar battery charger controller work?



■ Why Choose Us?



why choose xindun - pwm solar battery charger controller manufacturer



■ About Xindun Power



about xindun - pwm solar battery charger controller manufacturer image

about xindun - pwm solar battery charger controller manufacturer introduction



■ PWM Solar Battery Charger Controller Manufacturer



Xindun pwm solar battery charger controller manufacturer



■ Global Solar Exhibitions



Xindun global solar exhibitons



■ Qualifications and Certificates



Xindun qualifications and certificates



■ FAQ



Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charger controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.

Q2: What is the function of solar battery charger controller?
A: solar battery charger controller is the core control part of solar energy system. It is an automatic control equipment that controls the multi-channel solar panels to charge the batteries and the batteries to supply power to the load by solar inverter.

Q3: How much is solar battery charger controller?
A: Tell me your requirements, such as controller types mppt or pwm, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. solar battery charger controller factory direct sales, no middlemen earn price difference.

Q4: MPPT or PWM, Which solar battery charger controller is better?
A: There are two main types of solar battery charger controllers on the market: MPPT and PWM. MPPT solar battery charger controller is suitable for solar energy system greater than 2kW. Because of its powerful function, it can save you whole set solar system costs by reducing other costs. PWM solar battery charger controller is suitable for small-scale solar energy system which does not need many functions and has a small budget, PWM is very cost-effective. Don't know how to choose PWM or MPPT, contact XINDUN.

Q5: How to solve the solar battery charger controller technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
