MPPT solar panel controller to charge 12v battery price
Xindun manufacturer sale best solar panel charge controller at cheap price. 100a 96v solar panel controller mppt can charge 12v lithium lead acid battery efficiently.

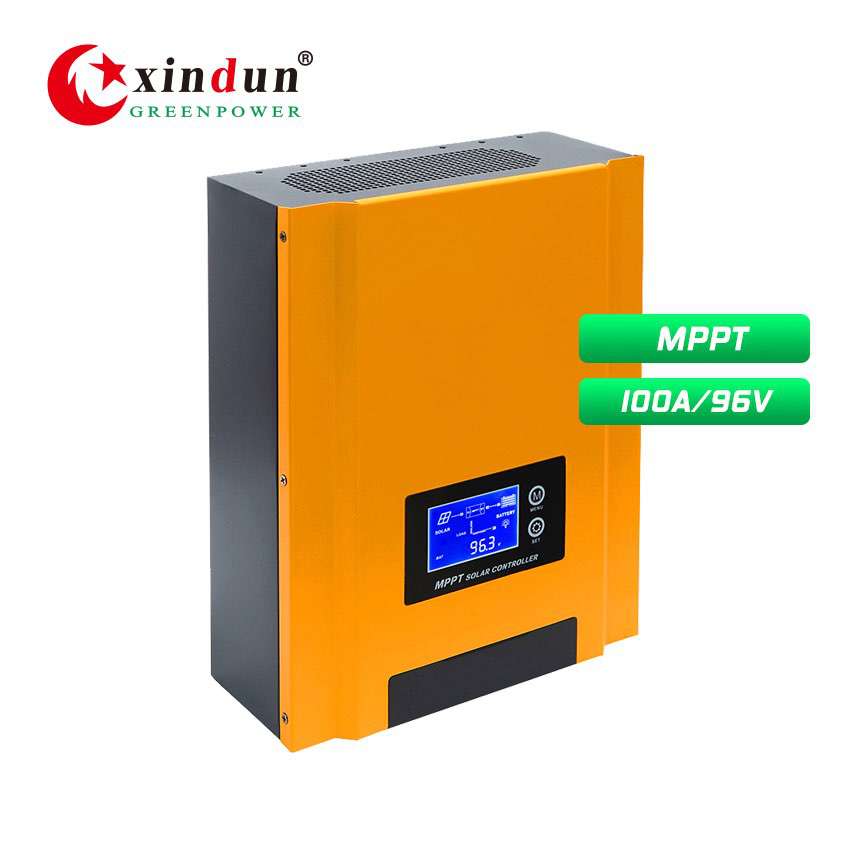

MPPT Solar Panel Controller 100A 96V

100A 96V MPPT Solar Panel Charge Controller | Best Price | 2 Route MPPT Input

  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
MPPT Best solar panel controller to charge 12v battery price



■ MPPT Solar Panel Controller Feature



1 Advanced MPPT tracking, 99% tracking efficiency.  Compared  with PWM,  the  generating  efficiency increase near 20%
2 LCD display PV data and chart simulates power generation process
3 Wide PV input voltage range, convenient for system configuration
4 Intelligent battery management function, extend battery life
5 RS485 communication port optional, convenient for user integration management



■ MPPT Solar Panel Controller Specifications



Model: Wonder 96/100
Rated Current 100A
Rated System Voltage 96V
Max PV Input Voltage
(At the lowest ambient temperature)
300V
PV array Max power 5.6KW*2
MPPT Tracking Voltage Range 120V~240V
MPPT route number 2
Recommended operating voltage range 120V-160V
Battery Type Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification)
Floating Voltage 110.4V/220.8V/248.4V/276V/441.6V
Charge Voltage 113.6V/227.2V/255.6V/284V/454.4V
Charging Protection Voltage 120V/240V/270V/300V/480V
Promote recovery voltage 105.6V/211.2V/237.6V/264V/422.4V
Temperature Compensation -3mV / ℃ / 2V (25℃ is base line) (Optional)
Charging Mode MPPT maximum power point tracking
Charging Method Three stages: constant current(MPPT); constant voltage; floating charge
Protection Over-voltage/under-voltage/over-temperature/PV&Battery anti-reverse protection
Conversion Efficiency >98%
MPPT Tracking Efficiency >99%
Machine Size(L*W*Hmm) 315*250*108

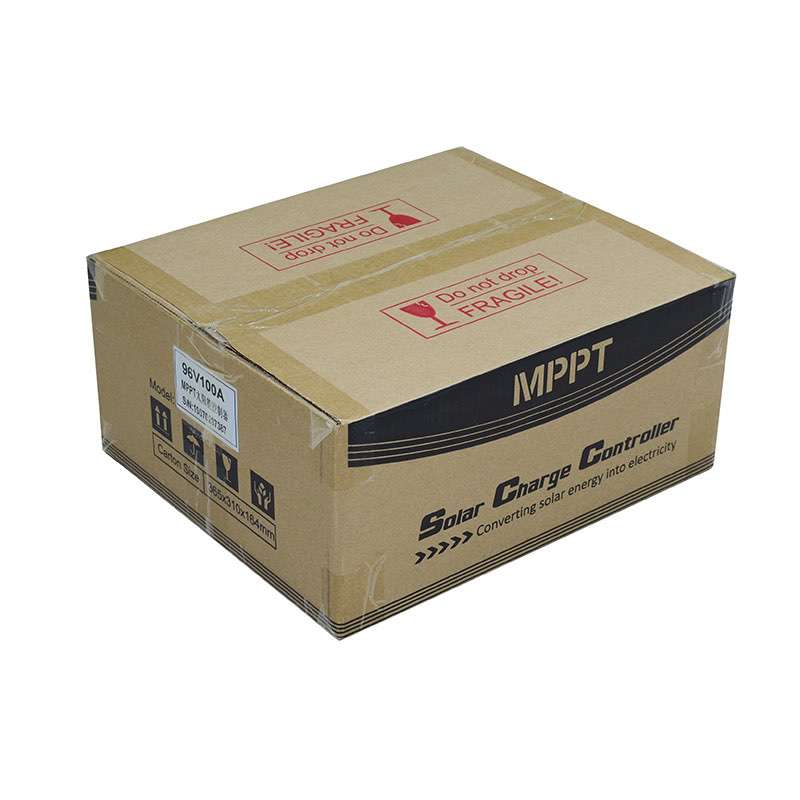

Package Size(L*W*Hmm) 365*310*164(1PC) / 376*321*343(2PCS)
N.W(kg) 5.6(1PC)
G.W.(kg) 6.3(1PC)
Display LCD
Thermal Method Cooling fan in intelligent control
Type Of Mechanical Protection IP20
Operating Temperature -15℃~+50℃
Storage  Temperature -20℃~+60℃
Elevation <5000m(Dreating above 2000m)
Humidity 5%~95%(No condensation)
Communication RS232/RS485(Optional)
Note: All specifications are subject to change without prior notice

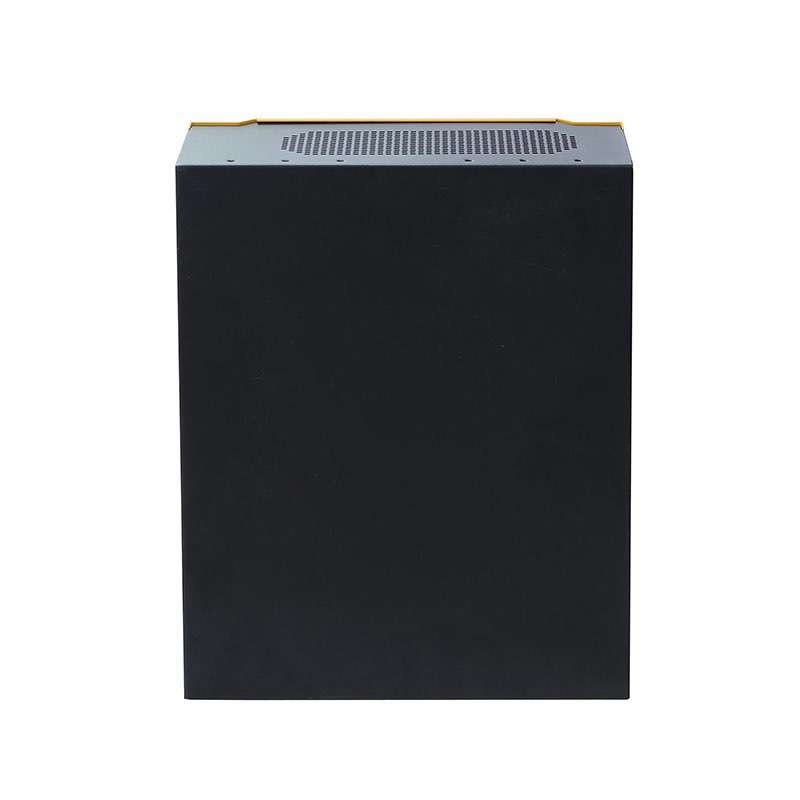

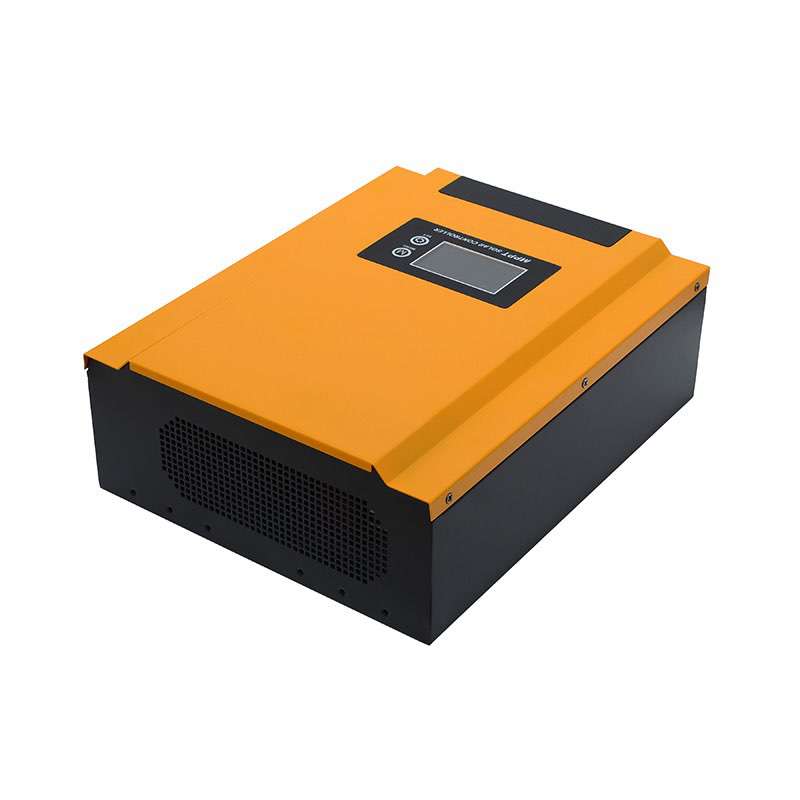

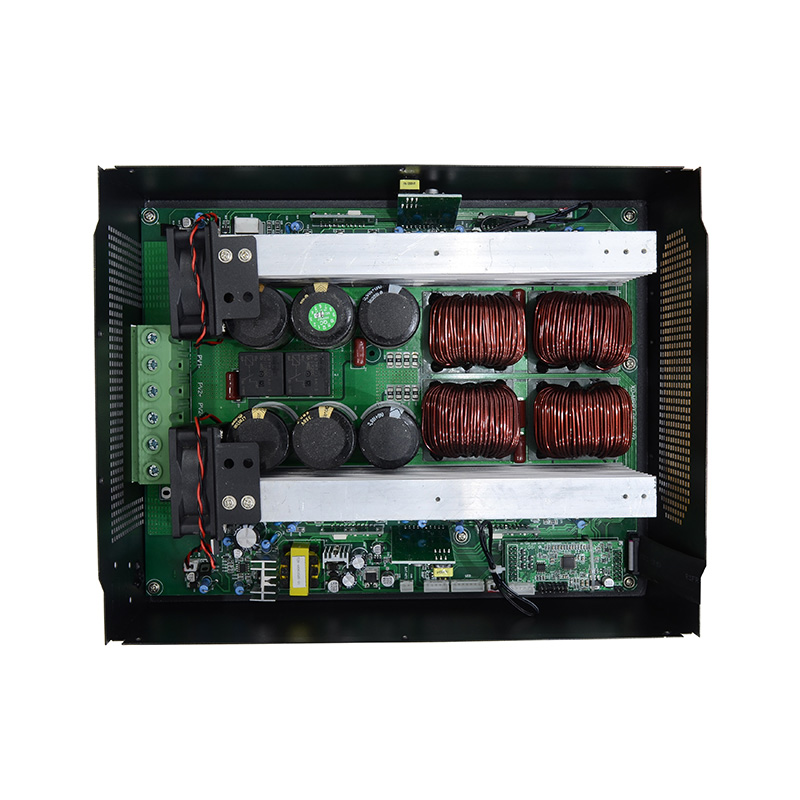

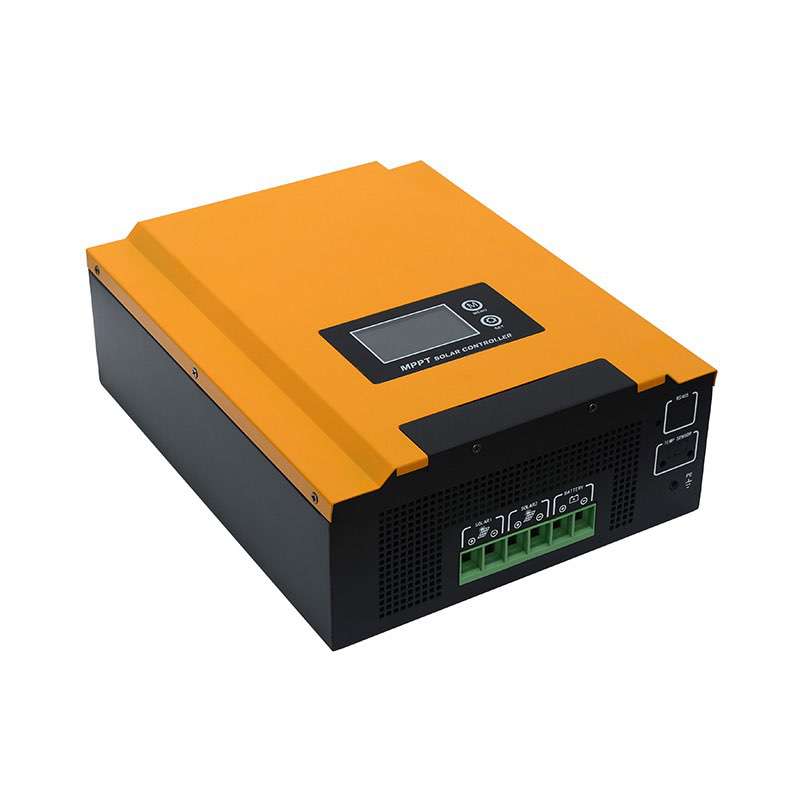

■ MPPT Solar Panel Controller Image



mppt solar panel controller image



■ How Does MPPT Solar Panel Controller Work?



how does mppt solar panel controller work?


how does mppt solar panel controller work?



■ MPPT Solar Panel Controller Installation



mppt solar panel controller installation



■ Why Choose Us?



why choose xindun - mppt solar panel controller manufacturer



■ About Xindun Power



about xindun - mppt solar panel controller manufacturer image

about xindun - mppt solar panel controller manufacturer introduction



■ MPPT Solar Panel Controller Manufacturer



Xindun mppt solar panel controller manufacturer



■ Global Solar Exhibitions



Xindun global solar exhibitons



■ Qualifications and Certificates



Xindun qualifications and certificates



■ FAQ



Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar panel controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.

Q2: What is the function of solar panel controller?
A: Solar panel controller is the core control part of solar panel system. It is an automatic control equipment that controls the multi-channel solar panels to charge the batteries and the batteries to supply power to the load by solar inverter.

Q3: How much is solar panel controller?
A: Tell me your requirements, such as controller types mppt or pwm, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Solar panel controller factory direct sales, no middlemen earn price difference.

Q4: MPPT or PWM, Which solar panel controller is better?
A: There are two main types of solar panel controllers on the market: MPPT and PWM. MPPT solar panel controller is suitable for solar panel system greater than 2kW. Because of its powerful function, it can save you whole set solar system costs by reducing other costs. PWM solar panel controller is suitable for small-scale solar panel system which does not need many functions and has a small budget, PWM is very cost-effective. Don't know how to choose PWM or MPPT, contact XINDUN.

Q5: How to solve the solar panel controller technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
