Solar Controller
Xindun manufacturer wholesales 50a 96v mppt solar charge controller (also called solar battery controller) for lithium ion batteries, li ion, agm and lifepo4 battery.
lithium solar charge controller
lithium solar charge controller
lithium battery solar charge controller
lithium ion solar charge controller
solar charge controller for lithium ion battery
lithium ion charge controller
best charge controller for lithium ion battery

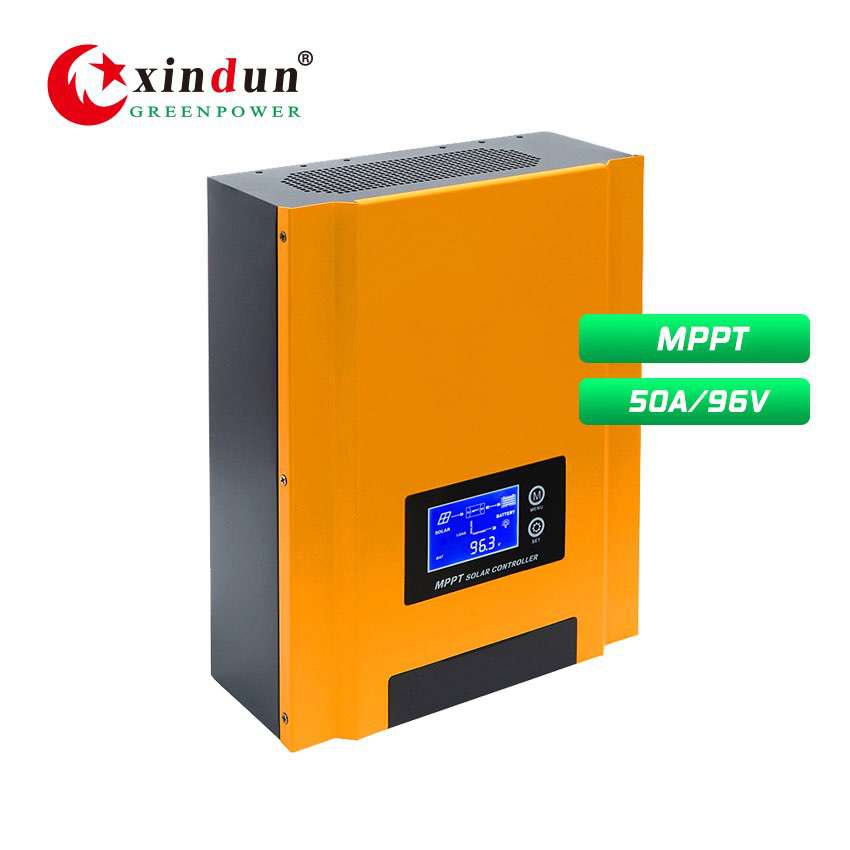

MPPT Solar Charge Controller 50A 96V

50A 96V MPPT Solar Charge Controller | Multiple Battery Types (Lead Acid, lithium, agm, lifepo4, etc.) | 1 Route MPPT Input

  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs
MPPT lifepo4 charge controller - 96v best mppt solar charge controller for lithium ion battery





MPPT Solar Charge Controller Feature






1 Advanced MPPT tracking, 99% tracking efficiency. Compared with PWM, the generating efficiency increase near 20%
2 LCD display PV data and chart simulates power generation process
3 Wide PV input voltage range, convenient for system configuration
4 Intelligent battery management function, extend battery life
5 RS485 communication port optional, convenient for user integration management







MPPT Solar Charge Controller Specification








Model: Wonder 96/50
Rated Current 50A
Rated System Voltage 96V
Max PV Input Voltage
(At the lowest ambient temperature)
300V
PV array Max power 5.6KW
MPPT Tracking Voltage Range 120V~240V
MPPT route number 1
Recommended operating voltage range 120V-160V
Battery Type Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification)
Floating Voltage 110.4V/220.8V/248.4V/276V/441.6V
Charge Voltage 113.6V/227.2V/255.6V/284V/454.4V
Charging Protection Voltage 120V/240V/270V/300V/480V
Promote recovery voltage 105.6V/211.2V/237.6V/264V/422.4V
Temperature Compensation -3mV / ℃ / 2V (25℃ is base line) (Optional)
Charging Mode MPPT maximum power point tracking
Charging Method Three stages: constant current(MPPT); constant voltage; floating charge
Protection Over-voltage/under-voltage/over-temperature/PV&Battery anti-reverse protection
Conversion Efficiency >98%
MPPT Tracking Efficiency >99%
Machine Size(L*W*Hmm) 315*250*108
Package Size(L*W*Hmm) 365*310*164(1PC) / 376*321*343(2PCS)
N.W(kg) 4.5(1PC)
G.W.(kg) 5.2(1PC)
Display LCD
Thermal Method Cooling fan in intelligent control
Type Of Mechanical Protection IP20
Operating Temperature -15℃~+50℃
Storage Temperature -20℃~+60℃
Elevation <5000m(Dreating above 2000m)
Humidity 5%~95%(No condensation)
Communication RS232/RS485(Optional)
Note: All specifications are subject to change without prior notice

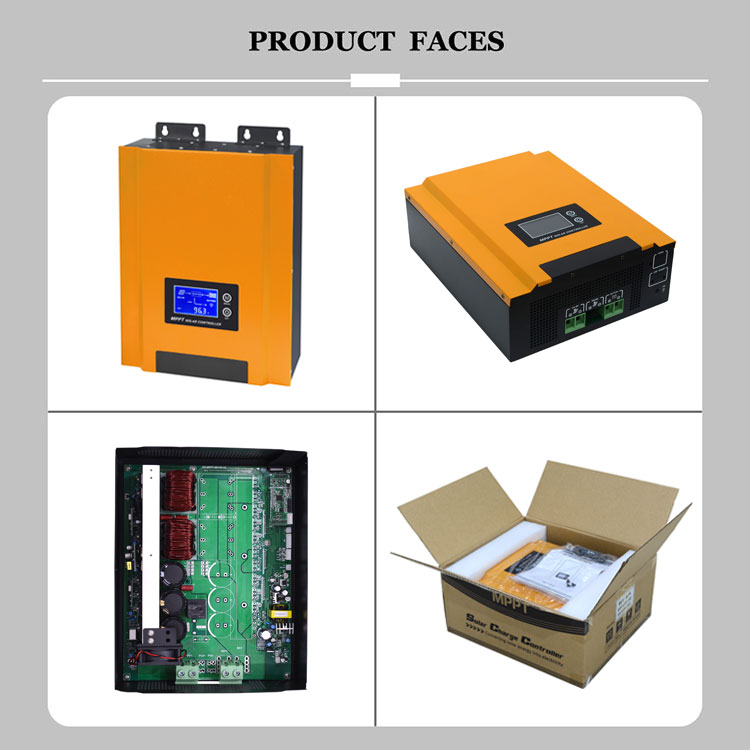

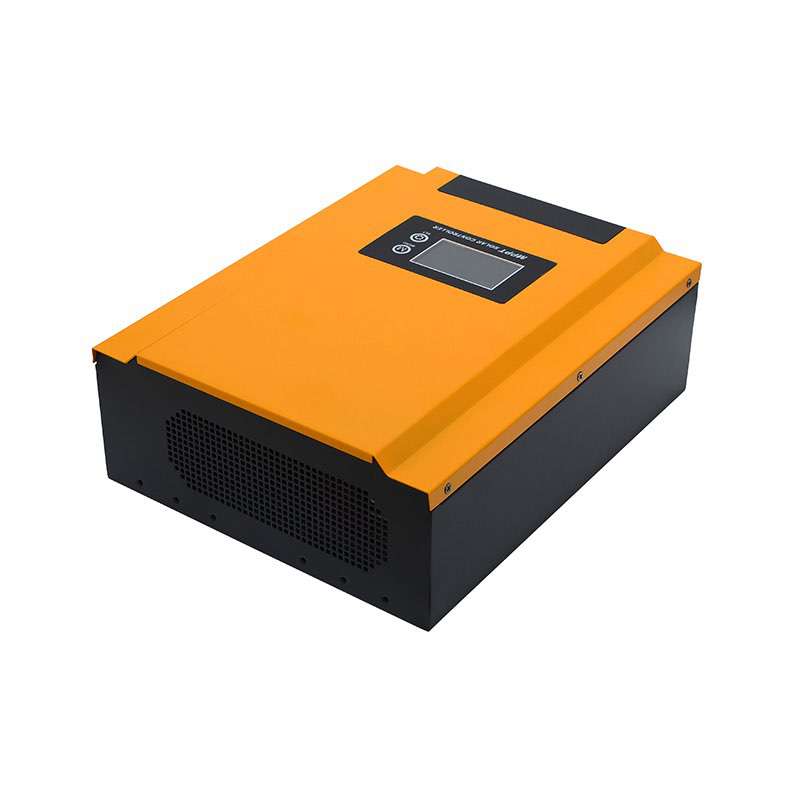

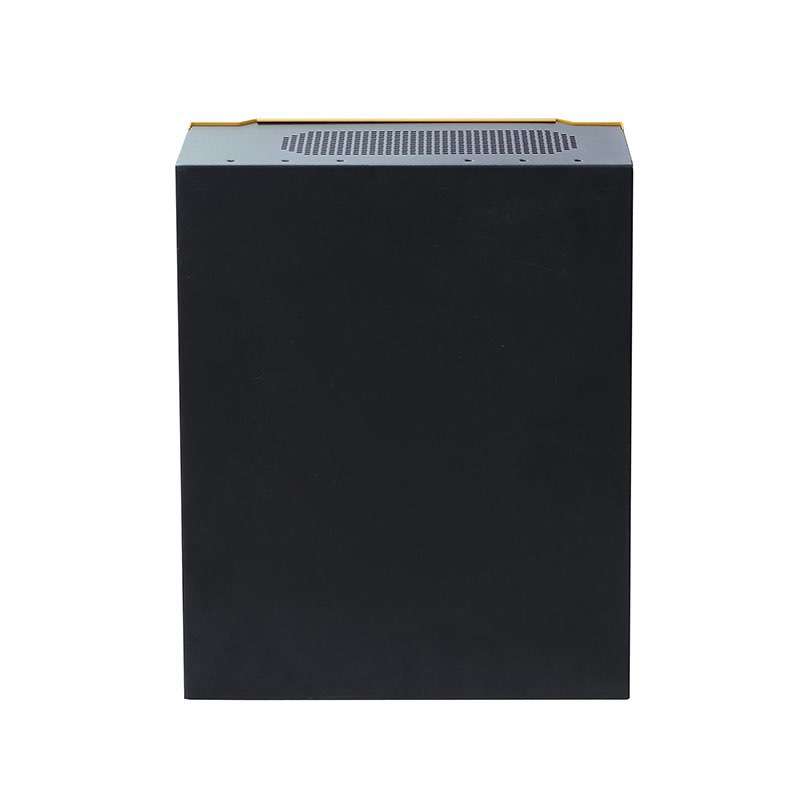

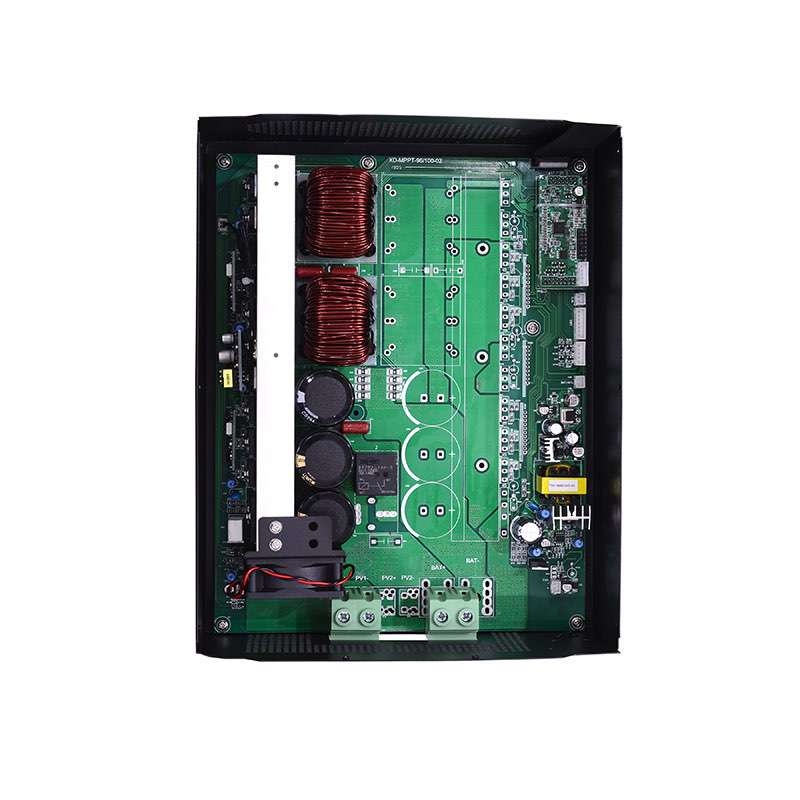

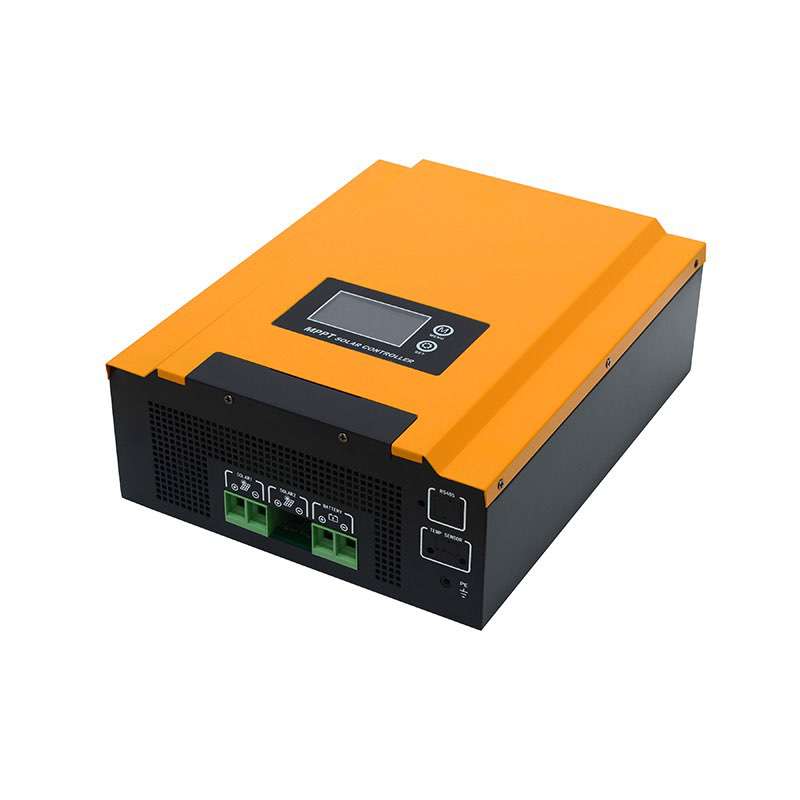

MPPT Solar Charge Controller Image




96v mppt solar charge controller image





How Does MPPT Solar Charge Controller Work?




how does 96v mppt solar charge controller work?



how does 96v mppt solar charge controller work?

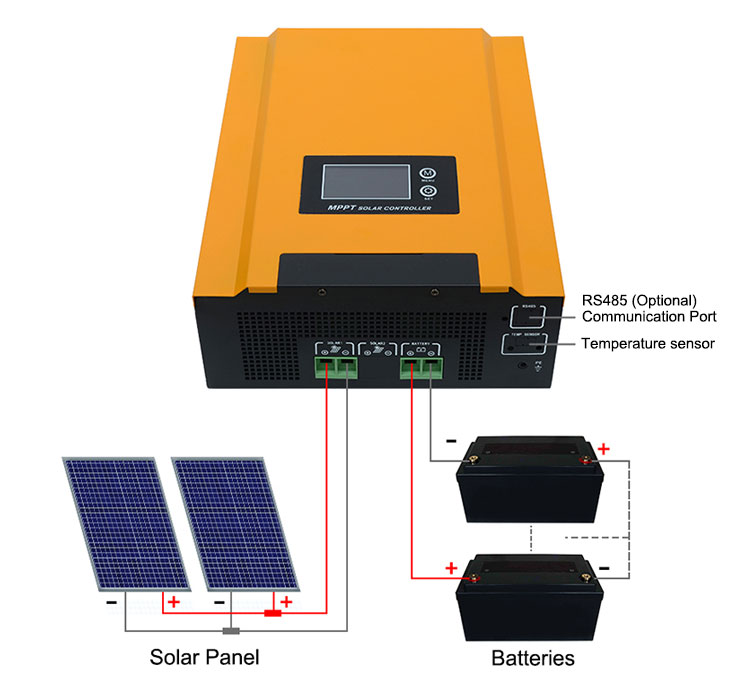

MPPT Solar Charge Controller Installation






96v mppt solar charge controller installation





Why Choose Us?






why choose xindun - 96v mppt solar charge controller manufacturer







About Xindun Power






about xindun - 96v mppt solar charge controller manufacturer image



about xindun - 96v mppt solar charge controller manufacturer introduction





MPPT Solar Charge Controller Manufacturer






Xindun 96v mppt solar charge controller manufacturer





Global Solar Exhibitions






Xindun global solar exhibitons





Qualifications and Certificates






Xindun qualifications and certificates





FAQ






Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.

Q2: What is the function of solar charge controller?
A: Solar charge controller is the core control part of solar energy system. It is an automatic control equipment that controls the multi-channel solar panels to charge the batteries and the batteries to supply power to the load by solar inverter.

Q3: How much is lithium solar charge controller?
A: Tell me your requirements, such as controller types mppt or pwm, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Solar charge controller factory direct sales, no middlemen earn price difference.

Q4: MPPT or PWM, Which solar charge controller is better?
A: There are two main types of solar charge controllers on the market: MPPT and PWM. MPPT solar charge controller is suitable for solar energy system greater than 2kW. Because of its powerful function, it can save you whole set solar system costs by reducing other costs. PWM solar charge controller is suitable for small-scale solar energy system which does not need many functions and has a small budget, PWM is very cost-effective. Don\'t know how to choose PWM or MPPT, contact XINDUN.

Q5: How to solve the solar charge controller technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
