80A/100A 12V/24V/48V MPPT Solar Charge Controller | 12 Volt/24 Volt/48 Volt Auto Recognition
Product
■ MPPT Solar Charge Controller Feature
1 Advanced MPPT tracking, 99% tracking efficiency. Compared with PWM, the generating efficiency increase near 20%
2 LCD display PV data and chart simulates power generation process
3 Multiple working modes to adapt different working occasion
4 Wide PV input voltage range, convenient for system configuration
5 Intelligent battery management function, extend battery life
6 12V/24V/48V automatic recognition, users are more flexible and convenient to use
7 RS485 communication port optional
■ MPPT Solar Charge Controller Specification
| Model: Wonder1 | 150/80, 150/100 |
| Rated Current | 80A/100A |
| Rated System Voltage | 12V/24V/48 auto recognition |
|
Max PV Input Voltage (At the lowest ambient temperature) |
150V |
| MPPT Tracking Voltage Range | 12V system：15V-120V；24V system：30V-120V；48V system：60V-120V |
| Recommended operating voltage range | 12V system：15V-20V；24V system：30V-40V；48V system：60V-80V |
| PV array Max power |
12V system: 140W(10A)/280W(20A)/420W(30A)/560W(40A)/700W(50A)/840W(60A)/1120W(80A)/1400W(100A); 24V system: 280W(10A)/560W(20A)/840W(30A)/1120W(40A)/1400W(50A)/1680W(60A)/2240W(80A)/2800W(100A); 48V system: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/4480W(80A)/5600W(100A). |
| Battery Type | Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification) |
| Floating Voltage | 13.8V/Single battery |
| Charge Voltage | 14.2V/Single battery |
| Charging Protection Voltage | 15V/Single battery |
| Promote recovery voltage | 13.8V/Single battery |
| Recovery voltage after low voltage disconnect | 12.5V/Single battery |
| Discharge Limited voltage | 10.5V/Single battery |
| Temperature Compensation Coefficient | -3mV / ℃ / 2V (25℃ is base line) (Optional) |
| Charging Mode | MPPT maximum power point tracking |
| Charging Method | Three stages: constant current(MPPT); constant voltage; floating charge |
| Protection | Over-voltage/under-voltage/over-temperature/PV anti-reverse protection |
| Conversion Efficiency | >98% |
| MPPT Tracking Efficiency | >99% |
| Machine Size(L*W*Hmm) | 280*180*100 |
| Package Size(L*W*Hmm) |

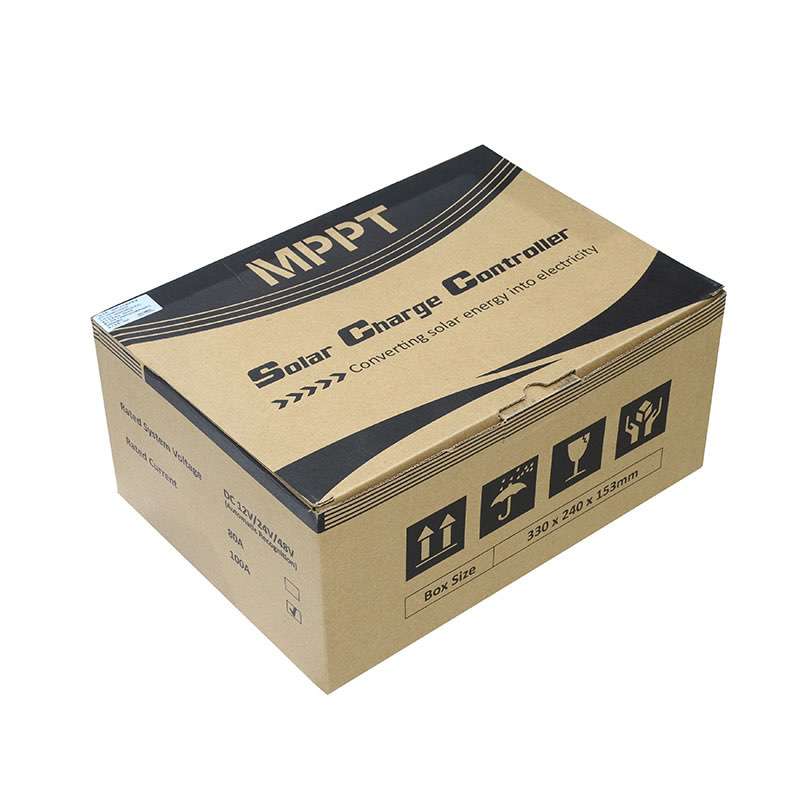

330*240*153（1pc） 487*345*166 (2pcs) |
| N.W(kg) | 3.7（1pc） |
| G.W.(kg) | 4（1pc） |
| Display | LCD |
| Thermal Method | Cooling fan in intelligent control |
| Type Of Mechanical Protection | IP20 |
| Operating Temperature | -15℃~+50℃ |
| Storage Temperature | -20℃~+60℃ |
| Elevation | 5000m(Dreating above 2000m) |
| Humidity | 5%~95%(No condensation) |
| Communication | RS232/RS485(Optional) |
| Note: All specifications are subject to change without prior notice | |

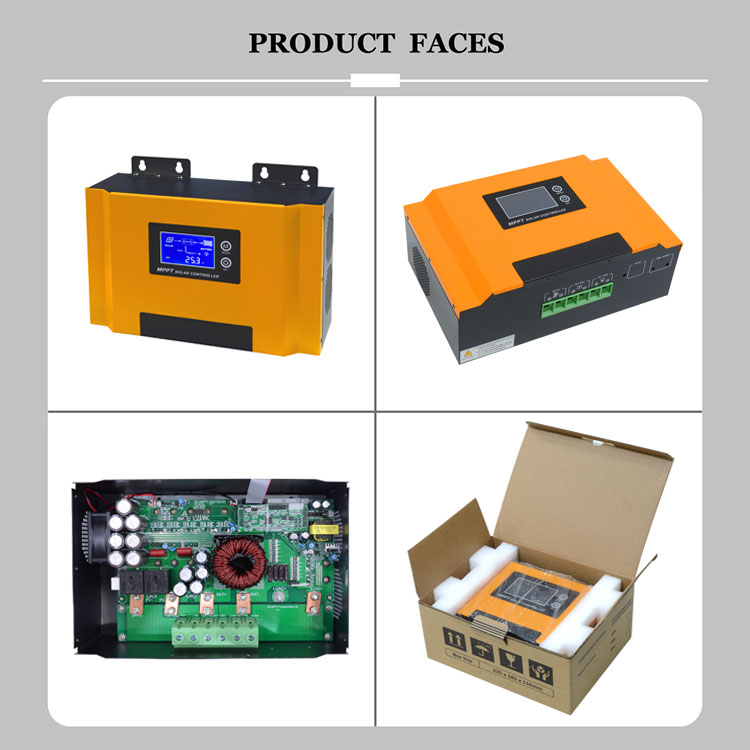

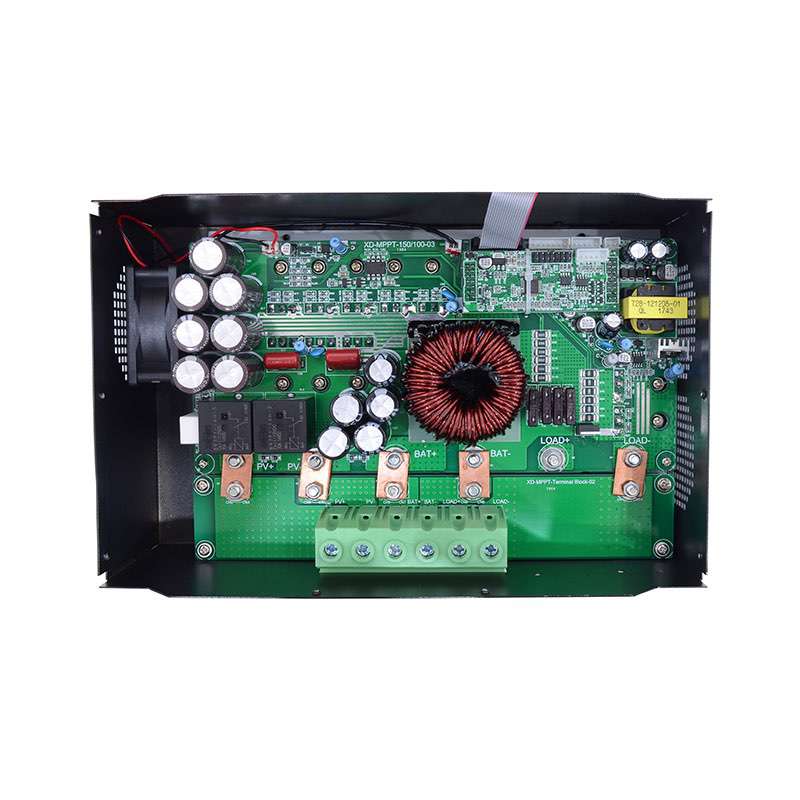

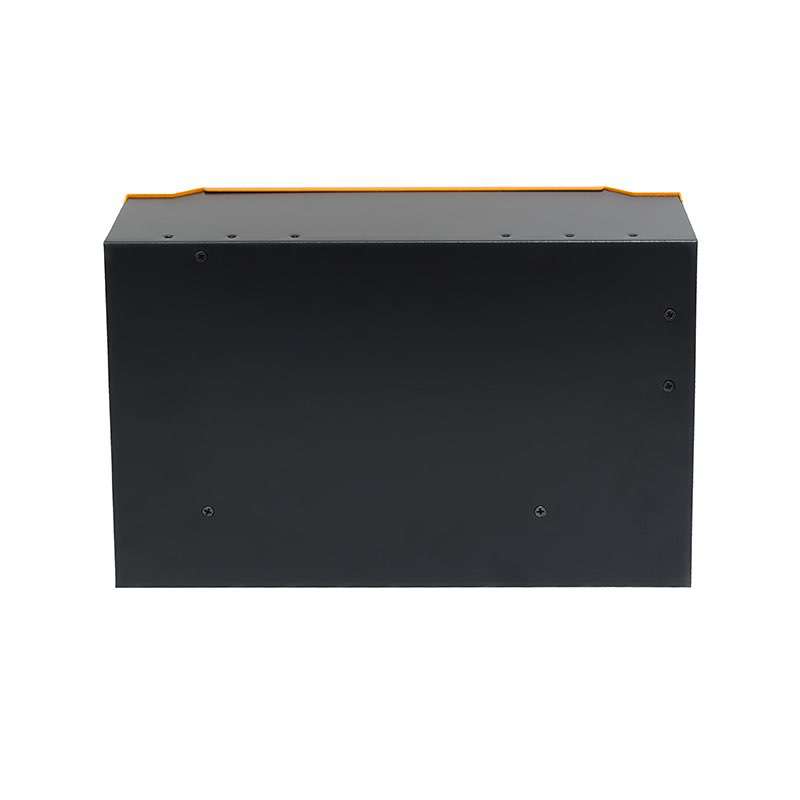

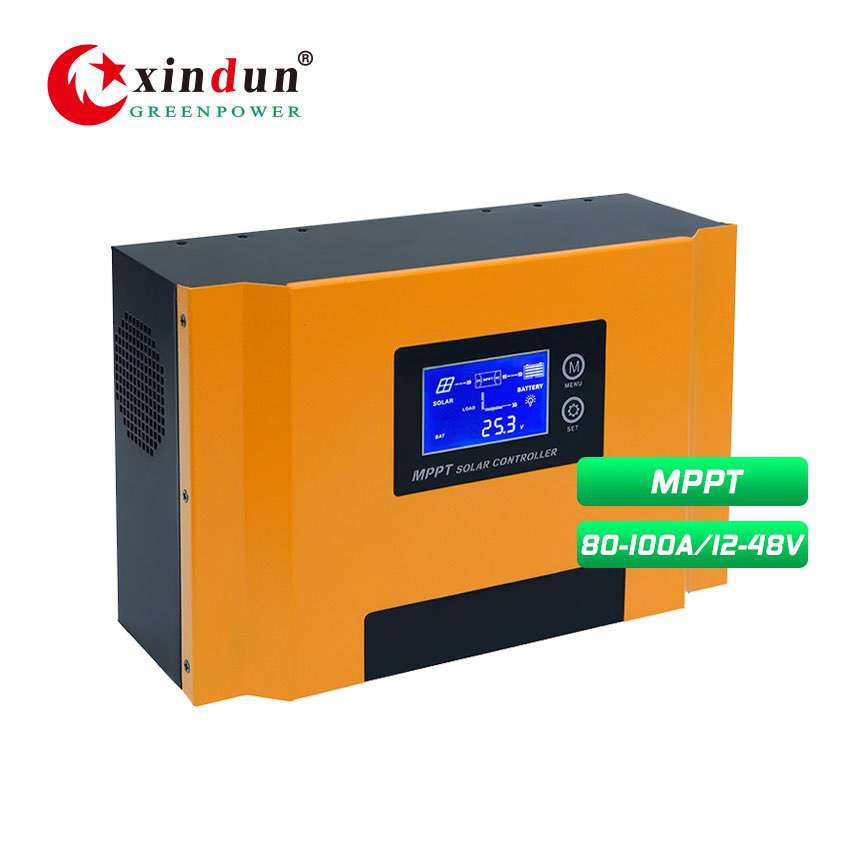

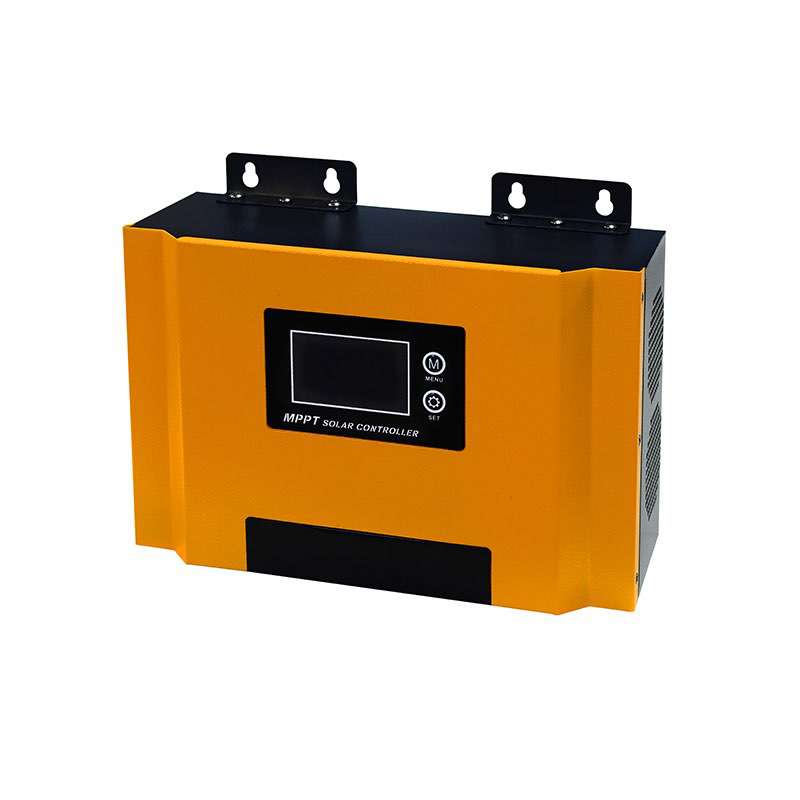

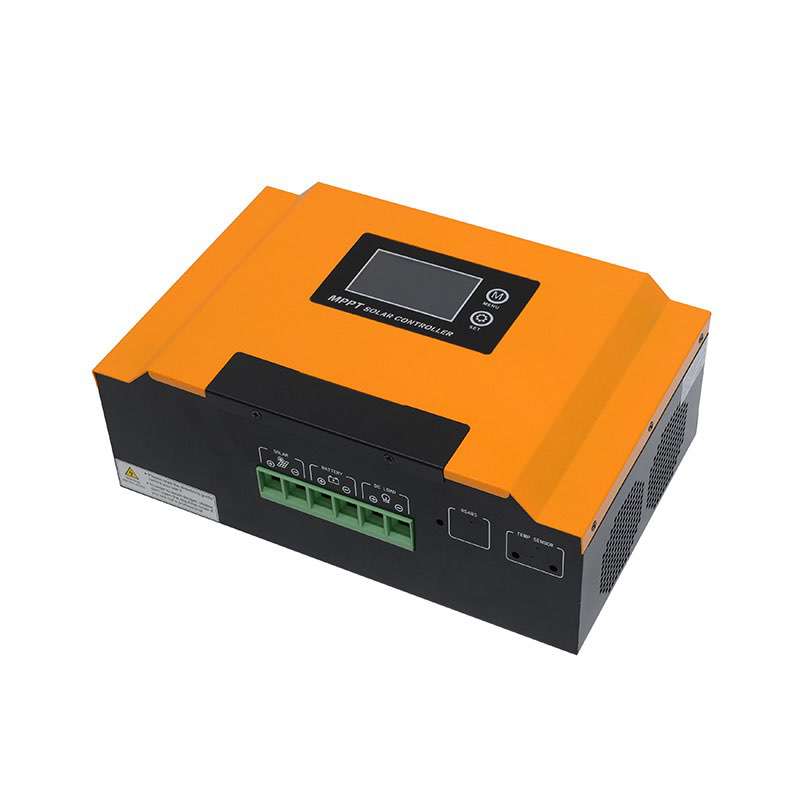

■ MPPT Solar Charge Controller Image

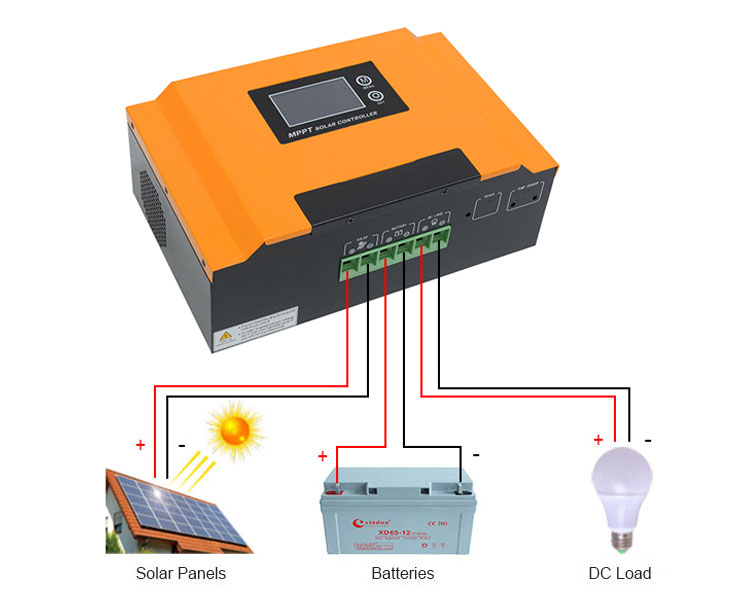

■ How Does MPPT Solar Charge Controller Work?
■ Why Choose Us？
■ About Xindun Power
■ MPPT Solar Charge Controller Manufacturer
■ Global Solar Exhibitions
■ Qualifications and Certificates
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charge controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: What is the function of solar charge controller?
A: Solar charge controller is the core control part of solar energy system. It is an automatic control equipment that controls the multi-channel solar panels to charge the batteries and the batteries to supply power to the load by solar inverter.
Q3: How much is solar charge controller?
A: Tell me your requirements, such as controller types mppt or pwm, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Solar charge controller factory direct sales, no middlemen earn price difference.
Q4: MPPT or PWM, Which solar charge controller is better?
A: There are two main types of solar charge controllers on the market: MPPT and PWM. MPPT solar charge controller is suitable for solar energy system greater than 2kW. Because of its powerful function, it can save you whole set solar system costs by reducing other costs. PWM solar charge controller is suitable for small-scale solar energy system which does not need many functions and has a small budget, PWM is very cost-effective. Don\'t know how to choose PWM or MPPT, contact XINDUN.
Q5: How to solve the mppt solar charge controller technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
