50A 192V/216V/240V/384V MPPT DC Solar Charger Control | Maximum Power Point Tracking | 1 Route MPPT Input
Product
■ MPPT Solar Charger Feature
1 Advanced MPPT tracking, 99% tracking efficiency. Compared with PWM, the generating efficiency increase near 20%
2 LCD display PV data and chart simulates power generation process
3 Wide PV input voltage range, convenient for system configuration
4 Intelligent battery management function, extend battery life
5 RS485 communication port optional, convenient for user integration management
■ MPPT Solar Charger Specification
| Model: Wonder | 192/50, 216/50, 240/50, 384/50 | |
| Rated Current | 50A | |
| Rated System Voltage | 192V/216V/240V | 384V |
|
Max PV Input Voltage
(At the lowest ambient temperature)
|
450V(192V/216V system）/500V(240V system) / 800V(384V system) | |
| PV array Max power | 11.2KW/12.6KW/14KW/22.4KW | |
| MPPT Tracking Voltage Range | 240V/270V~360V(192V/216V system）/ 300V~400V（240V system) /480V~640V(384V system) | |
| MPPT route number | 1 | |
| Recommended operating voltage range | 240V-320V(192V system); 270V-320V(216V system); 300V-350V(240V system); 480V-560V(384V system) | |
| Battery Type | Lead acid battery, deep cycle battery, gel battery etc(Battery type base on user charge specification) | |
| Floating Voltage | 110.4V/220.8V/248.4V/276V/441.6V | |
| Charge Voltage | 113.6V/227.2V/255.6V/284V/454.4V | |
| Charging Protection Voltage | 120V/240V/270V/300V/480V | |
| Promote recovery voltage | 105.6V/211.2V/237.6V/264V/422.4V | |
| Temperature Compensation | -3mV / ℃ / 2V (25℃ is base line) (Optional) | |
| Charging Mode | MPPT maximum power point tracking | |
| Charging Method | Three stages: constant current(MPPT); constant voltage; floating charge | |
| Protection | Over-voltage/under-voltage/over-temperature/PV&Battery anti-reverse protection | |
| Conversion Efficiency | >98% | |
| MPPT Tracking Efficiency | >99% | |
| Machine Size(L*W*Hmm) | 460*330*140 | |
| Package Size(L*W*Hmm) | 509*405*215 | |
| N.W(kg) | 13.5 | 15 |
| G.W.(kg) | 15 | 16.5 |
| Display | LCD | |
| Thermal Method | Cooling fan in intelligent control | |
| Type Of Mechanical Protection | IP20 | |
| Operating Temperature | -15℃~+50℃ | |
| Storage Temperature | -20℃~+60℃ | |
| Elevation | <5000m(Dreating above 2000m) | |
| Humidity | 5%~95%(No condensation) | |
| Communication | RS232/RS485(Optional) | |
| Note: All specifications are subject to change without prior notice | ||

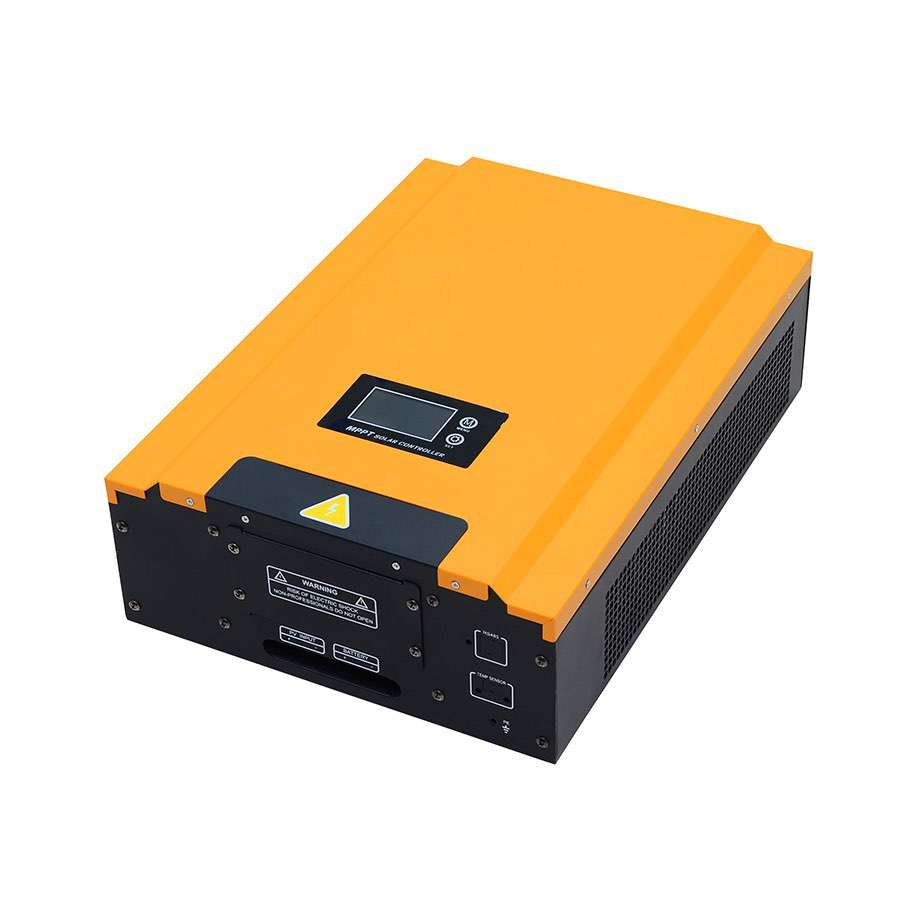

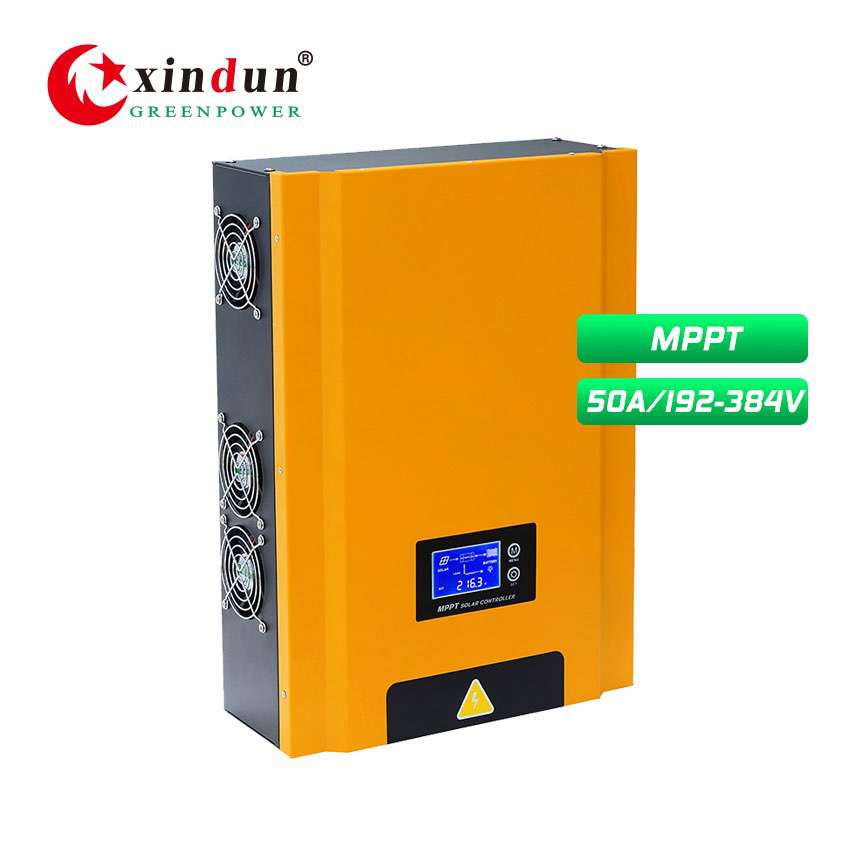

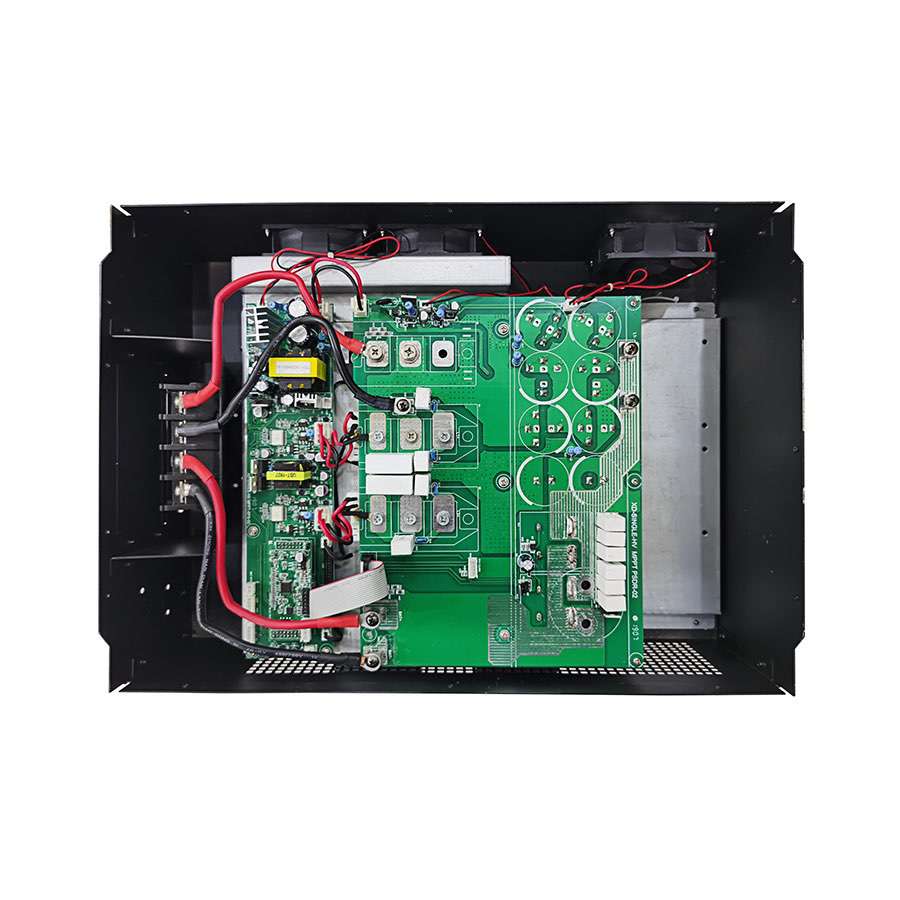

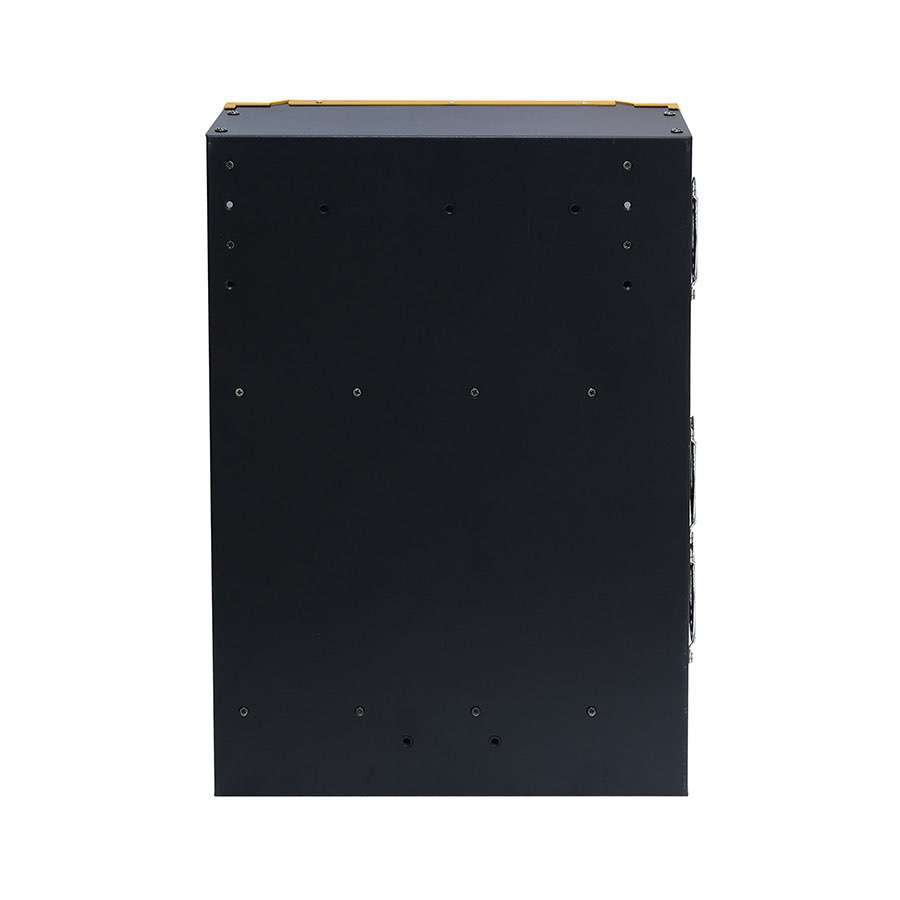

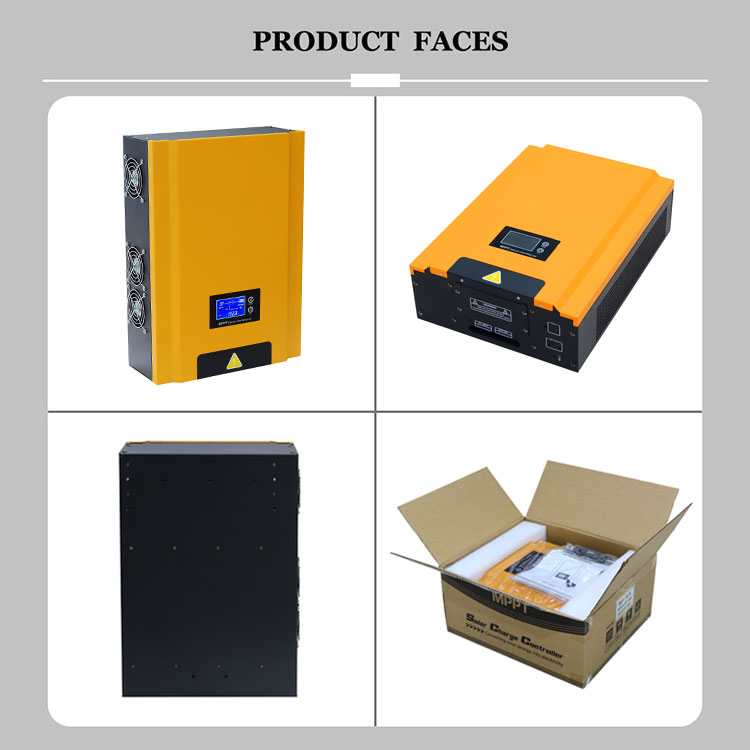

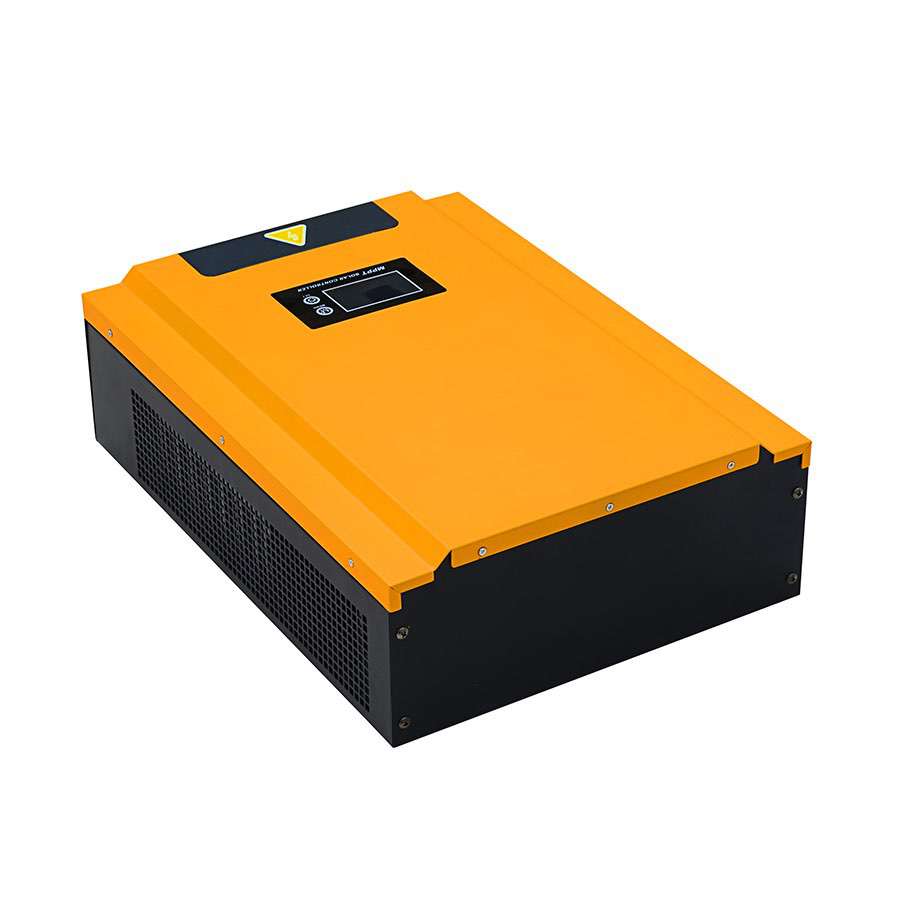

■ MPPT Solar Charger Image

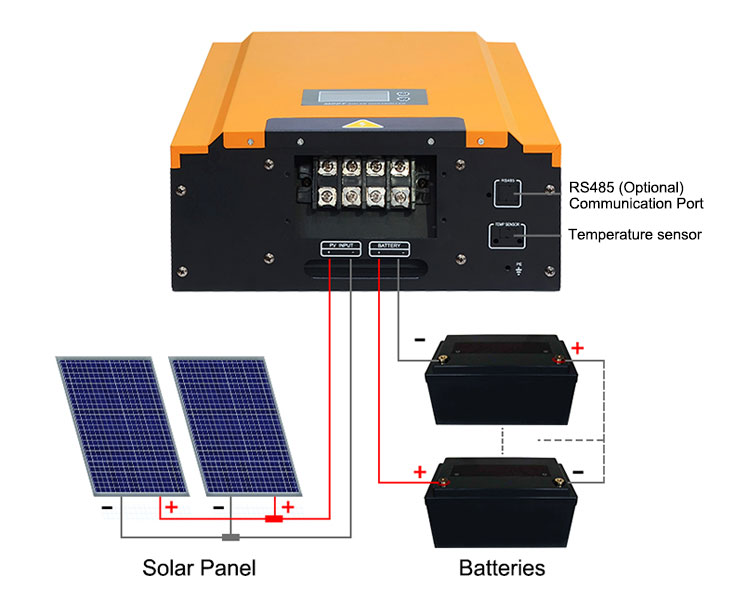

■ How Does MPPT Solar Charger Work?
■ Why Choose Us？
■ About Xindun Power
■ MPPT Solar Charger Manufacturer
■ Global Solar Exhibitions
■ Qualifications and Certificates
■ FAQ
Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar charger controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.
Q2: What is the function of solar charger controller?
A: Solar charger is the core control part of solar energy system. It is an automatic control equipment that controls the multi-channel solar panels to charge the batteries and the batteries to supply power to the load by solar inverter.
Q3: How much is solar charger controller?
A: Tell me your requirements, such as charger types mppt or pwm, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Solar charger factory direct sales, no middlemen earn price difference.
Q4: MPPT or PWM, Which solar charger is better?
A: There are two main types of solar chargers on the market: MPPT and PWM. MPPT solar charger is suitable for solar energy system greater than 2kW. Because of its powerful function, it can save you whole set solar system costs by reducing other costs. PWM solar charger is suitable for small-scale solar energy system which does not need many functions and has a small budget, PWM is very cost-effective. Don\'t know how to choose PWM or MPPT, contact XINDUN.
Q5: How to solve the solar charger technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.
