Solar array controller, solar cell controller, pwm 30a 10a 20a
Xindun factory wholesale solar array controller (also known as solar cell controller). PWM current design 5a/10a/15a/20a/30a 12v/24v/48v with usb output.

PWM Solar Array Controller 5A/10A/20A 12V/24V

5A/10A/15A/20A 12V/24V/48V PWM Solar Array Controller | 5V USB Output | 12V/24V Auto Adaptation

  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN POWER
  • MOQ : 1 pcs

■ PWM Solar Array Controller Feature



1 Image of LCD graphic symbol
2 Simple button operation
3 Automatic identification of system voltage level
4 Intelligent PWM charging mode
5 Automatic Temperature Compensation (custom)
6 Adjustable charge-discharge control parameters
7 Settable Operating mode of Load
8 Battery reverse- discharge protection, Battery Low Voltage Disconnection (LVD), Battery reverse connection protection, Overcurrent protection.

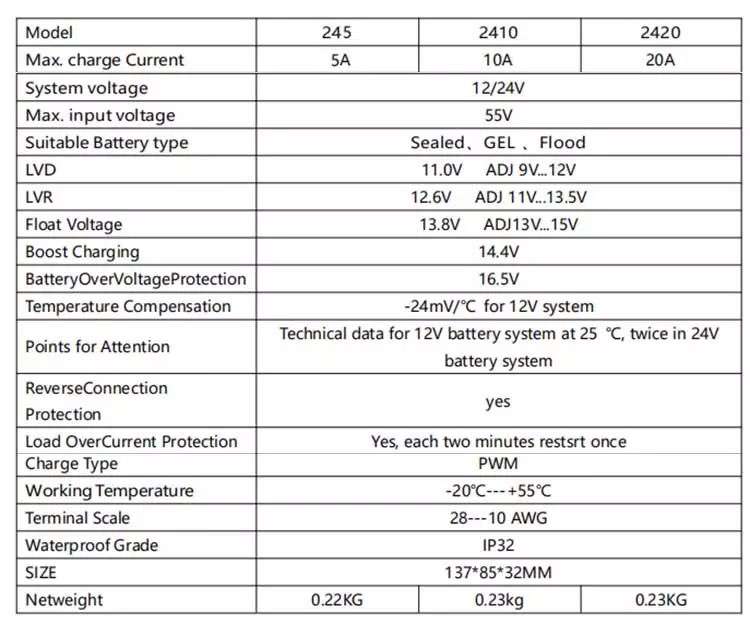

■ PWM Solar Array Controller Specification



pwm solar cell controller specification

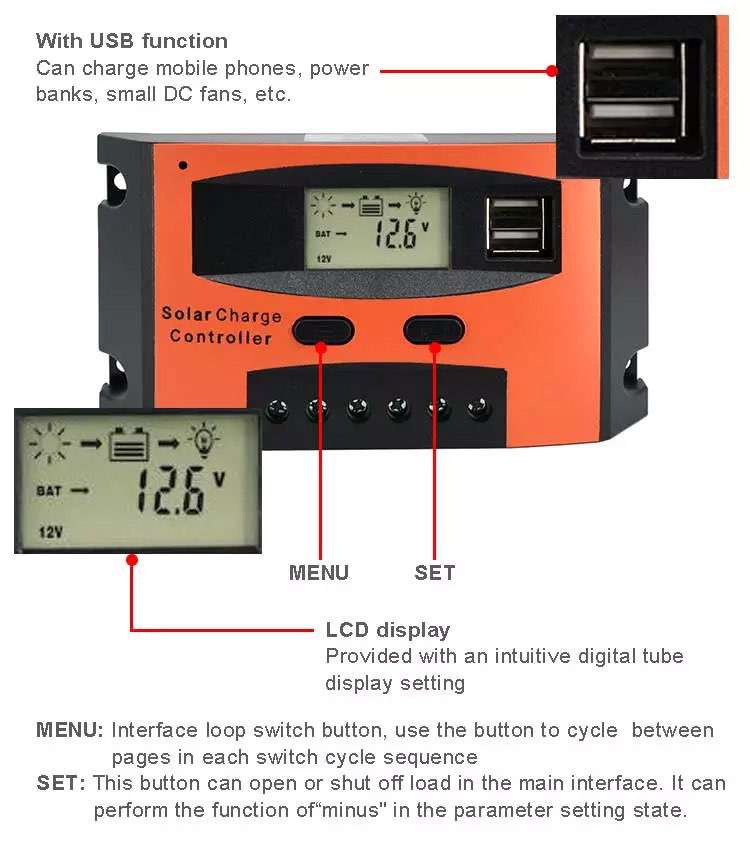

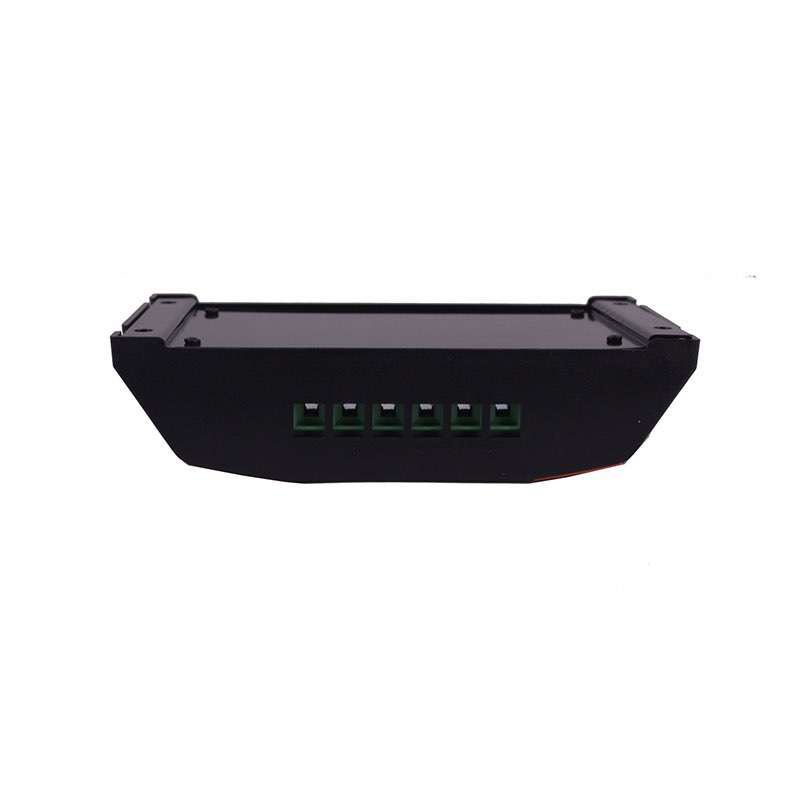

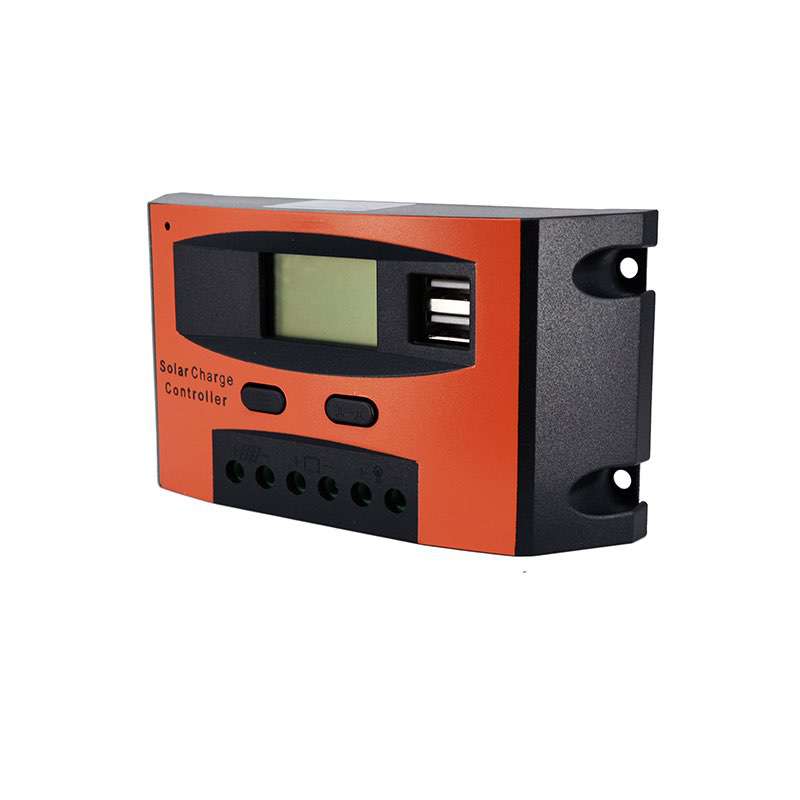

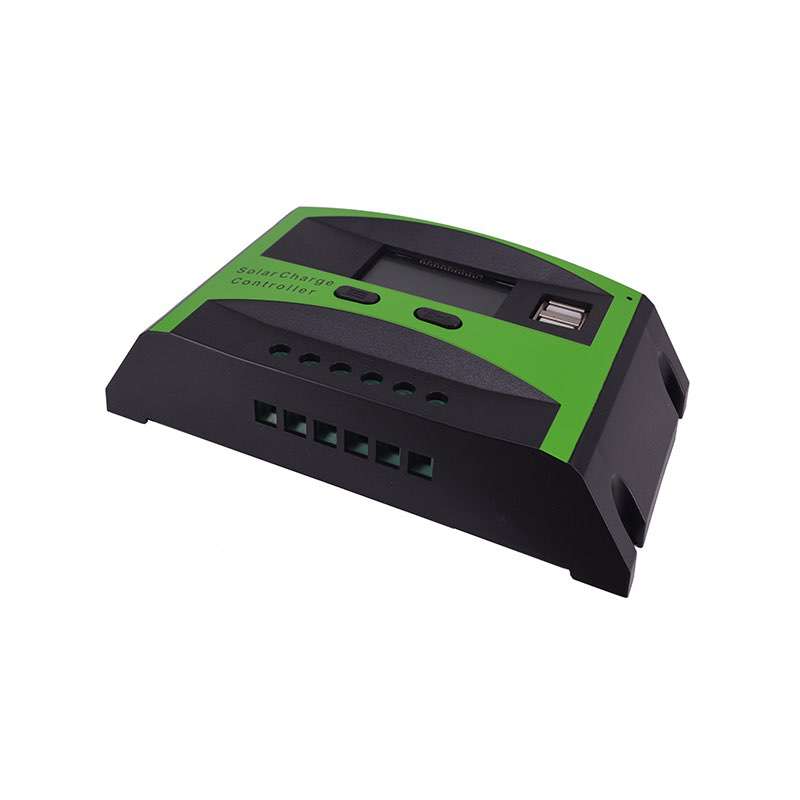

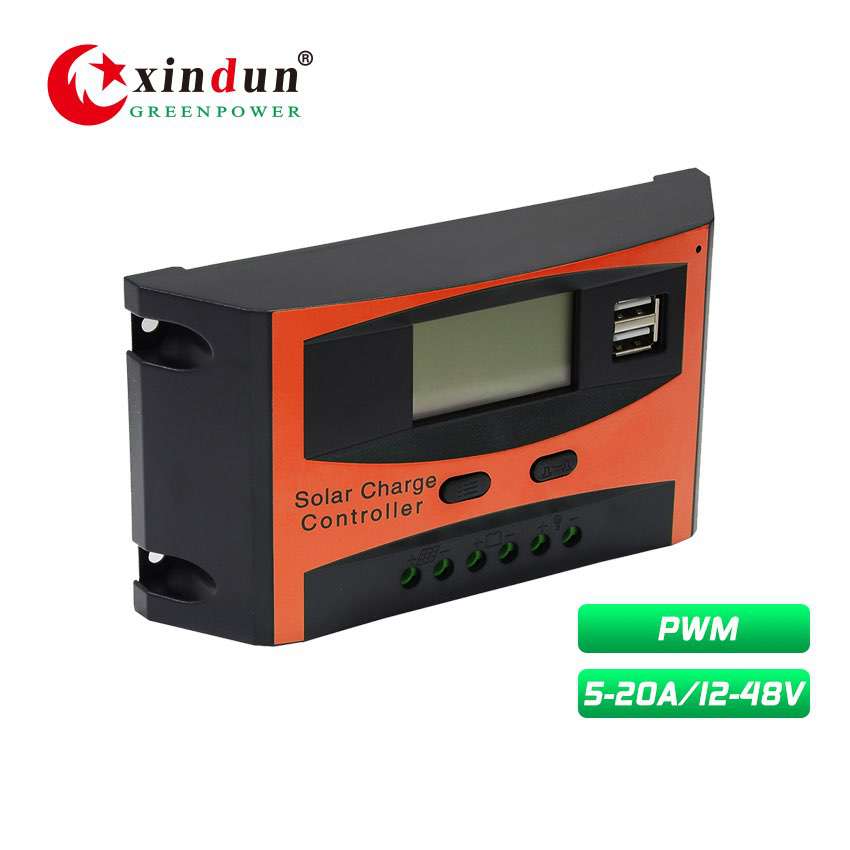

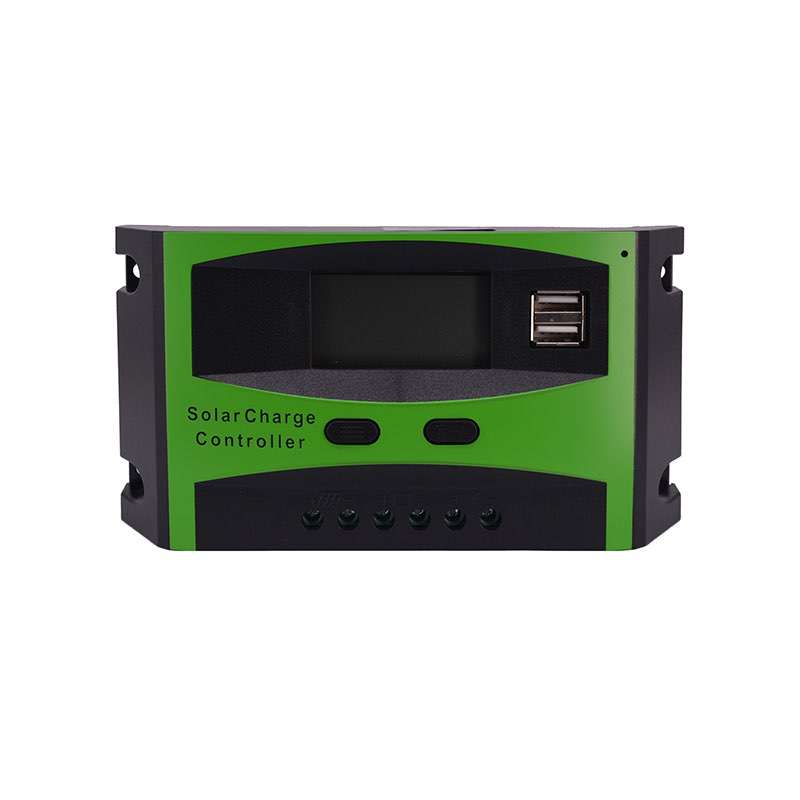

■ PWM Solar Array Controller Image



pwm solar cell controller image



■ How Does PWM Solar Array Controller Work?



how does pwm solar cell controller work?



■ Why Choose Us?



why choose xindun - pwm solar cell controller manufacturer



■ About Xindun Power



about xindun - pwm solar cell controller manufacturer image

about xindun - pwm solar cell controller manufacturer introduction



■ PWM Solar Array Controller Manufacturer



Xindun pwm solar cell controller manufacturer



■ Qualifications and Certificates



Xindun qualifications and certificates



■ Global Solar Exhibitions



Xindun global solar exhibitons



■ FAQ



Q1: Are you a factory?
A: Yes, we are the top 10 power supply manufacturers in China, with over 7000 square meters production area. We focus on inverters, solar controllers, solar generators and solar power system solution. We cooperate with some famous brands all over the world, can provide customized production or add your logo on products.

Q2: What is the function of solar array controller?
A: Solar array controller is the core control part of solar energy system. It is an automatic control equipment that controls the multi-channel solar panels to charge the batteries and the batteries to supply power to the load by solar inverter.

Q3: How much is solar array controller?
A: Tell me your requirements, such as controller types mppt or pwm, voltage, charging current, quantity, and whether there are other functional requirements. We will give you the most favorable ex factory price. Solar array controller factory direct sales, no middlemen earn price difference.

Q4: MPPT or PWM, Which solar array controller is better?
A: There are two main types of solar array controllers on the market: MPPT and PWM. MPPT solar array controller is suitable for solar energy system greater than 2kW. Because of its powerful function, it can save you whole set solar system costs by reducing other costs. PWM solar array controller is suitable for small-scale solar energy system which does not need many functions and has a small budget, PWM is very cost-effective. Don't know how to choose PWM or MPPT, contact XINDUN.

Q5: How to solve the pwm solar array controller technical problem?
A: We will provide market and product training services, 24 hours after-service consultancy just for you and to make your problem to solveeasily.


Sorry,Here is the product description, there is no data!
Sorry,Here is the product notes, there is no data!
Sorry,Here is the product download, there is no data!
