What is the best inverter battery for home? ZAMDON recommends you use sealed lead acid battery 12V. The best solar battery is economical and practical. ZAMDON - Best inverter battery supplier in China.
12V Best Solar Inverter Battery For Home
12V Best Solar Inverter Battery For Home
12V Best Solar Inverter Battery For Home
12V Best Solar Inverter Battery For Home
12V Best Solar Inverter Battery For Home
12V Best Solar Inverter Battery For Home

12V Best Solar Inverter Battery For Home

Sealed lead acid battery 12V is the best inverter battery for home. As the electric energy stored by the storage battery is DC, DC needs to be converted into AC output through the inverter to supply power for living and production. Best solar battery 65Ah 100Ah 150Ah 200Ah is economical and practical.

  • Type : Sealed Lead Acid Battery
  • Place of Origin : Foshan, Guangdong, China
  • Brand : XINDUN | ZAMDON
  • MOQ : 1 pc
  • OEM : Yes

best inverter battery for home

ZAMDON best inverter battery for home

Best Solar Inverter Battery Feature



1. Cost-effective, Maintaince simple
2. sealed lead acid batteryMature technology,high reliability, Stable output voltage,
3. Wide capacity range: Can be made as small as 1Ah to several thousand Ah of various sizes and structures
4. High rate discharge performance is good, Can be used for engine starting

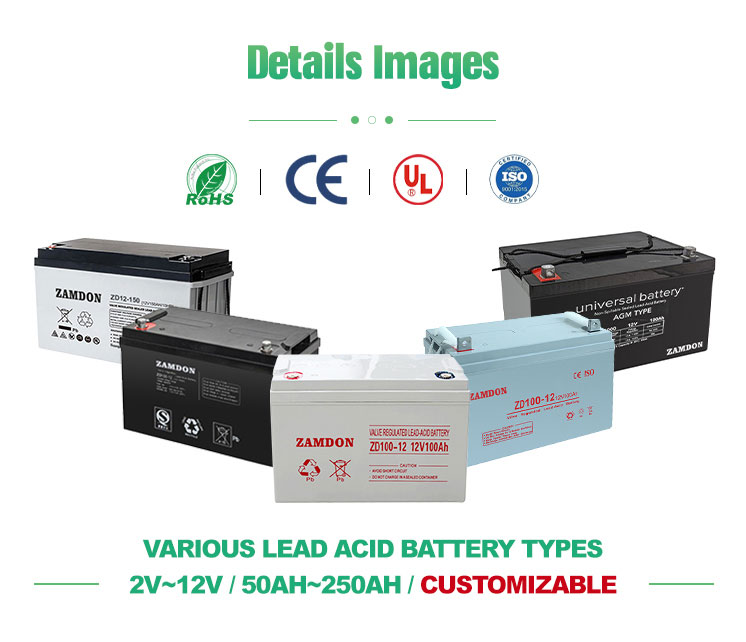

Best Solar Inverter Battery Details


sealed lead acid battery 12v detailssealed lead acid battery 12v styles


Best Solar Inverter Battery Specification

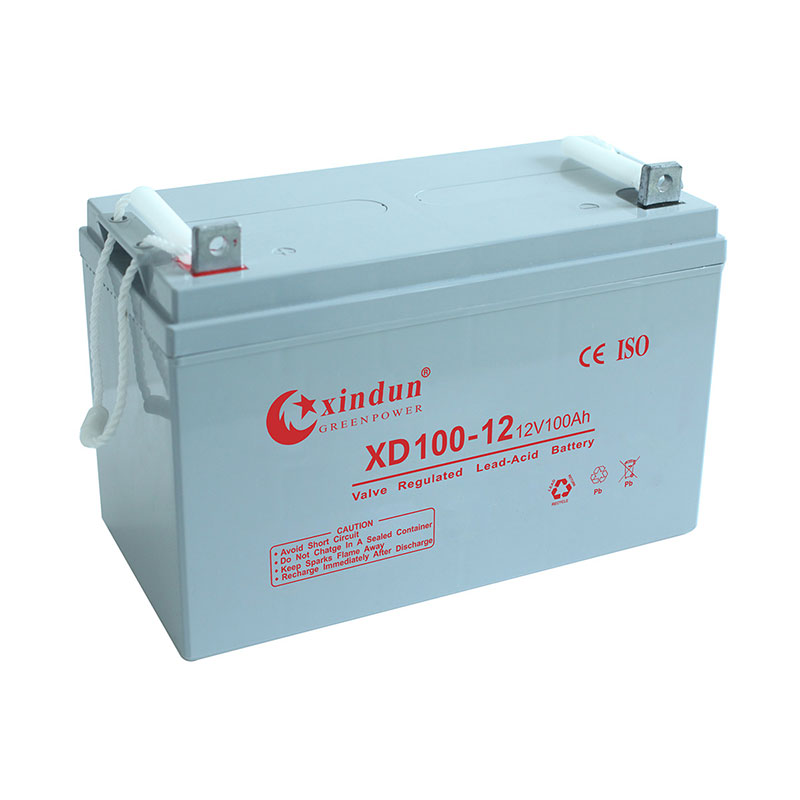

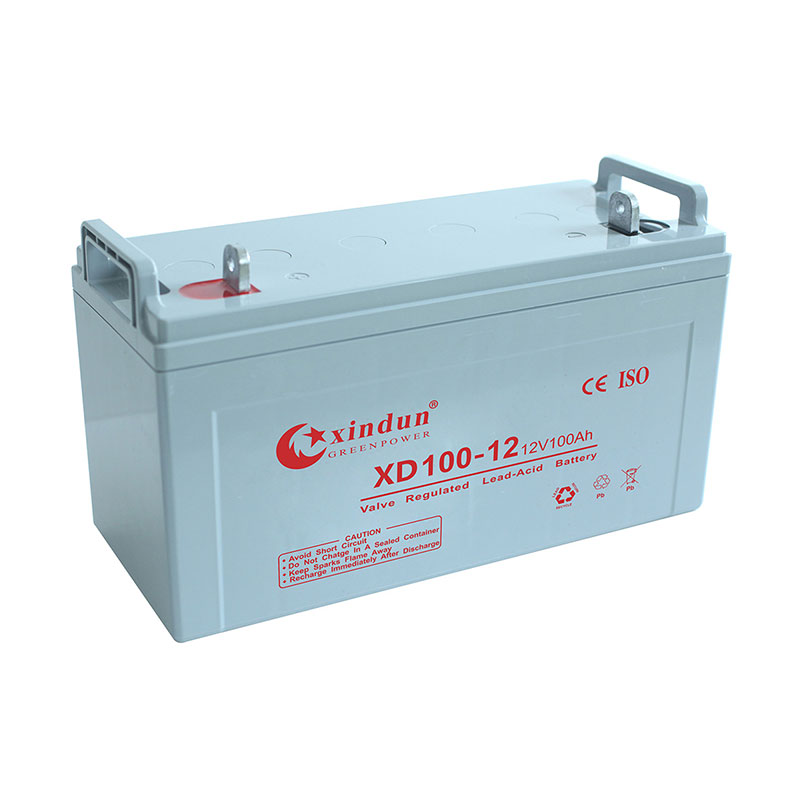

sealed lead acid battery 12v 100ah specification
Nominal Voltage 12V
Nominal Capacity (10HR) 100AH
Battery size Length 330±3mm (12.99 inches)
Width 173±2mm (6.81inches)
Height 212±2mm (8.35 inches)
Total Height (including terminal) 220±2mm (8.66 inches)
Weight 25 kg (62.8 lbs)
Terminal type T11/T10
Housing material ABS
Rated Capacity 104.0 AH/5.20A (20hr ,1.80V/Cell,25℃/77℉)
100.0 AH/10.0A (10hr,1.80V/Cell,25℃/77℉)
86.0 AH/17.2A (5hr,1.75V/Cell,25℃/77℉)
78.0 AH/26.0A (3hr,1.75V/Cell,25℃/77℉)
61.0 AH/61.0A (1hr,1.60V/Cell,25℃/77℉)
Maximum Discharge Current 1200A (5s)
Battery Internal Resistance 4.8mΩ
Operating
Temperature Range
Discharging -15 ~ 50℃ (5 ~ 122℉)
Charging 0 ~ 40℃ (32 ~ 104℉)
Storage -15 ~ 40℃ (5~ 104℉)
Rated Operating Temperature 25±3℃ (77±5℉ )
Recycle At a temperature of 25 °C and a voltage of 14.4 V to 15.0 V, the initial charge current is
less than 30.0 A. The correction factor is -30mV/°C
Floating Charge At a temperature of 25℃ and a voltage of 13.5 V to 13.8 V, the initial charging current
is not limited. The correction factor is -20mV/°C
Capacity affected
by temperature
40℃(104 ℉) 103%
25℃( 77 ℉ ) 100%
0℃( 32 ℉ ) 86%
Self-discharge At a temperature of 25℃, the battery can store up to 6 months and then need to be recharged once. If the battery is stored
at a higher temperature, the storage interval will be shortened
sealed lead acid battery 12v 100ah specification

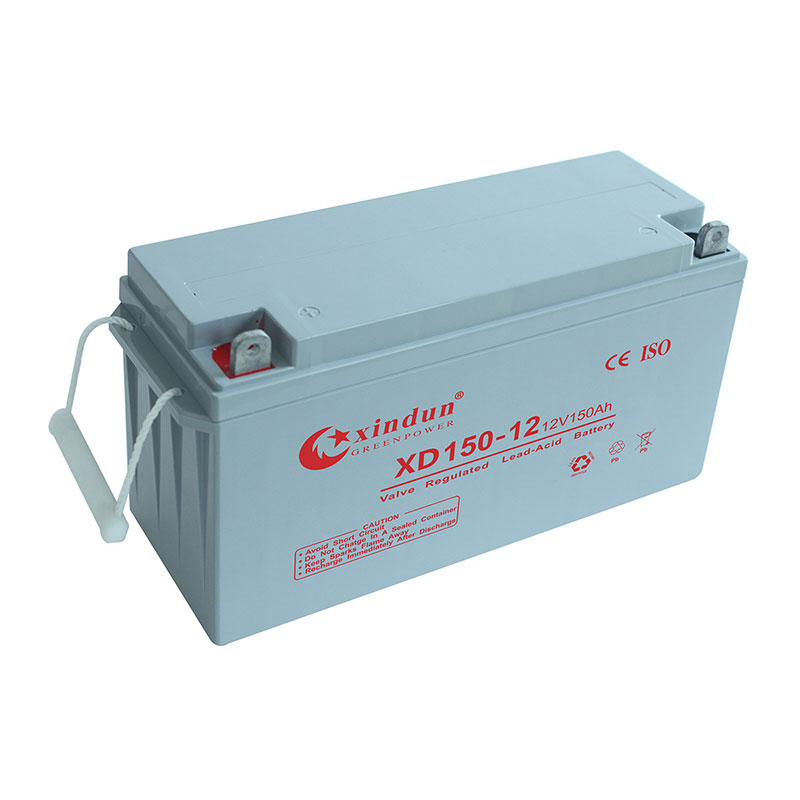

sealed lead acid battery 12v 150ah specification
Nominal Voltage 12V
Nominal Capacity (10HR) 150AH
Battery size Length 485±3mm (19.09 inches)
Width 170±2mm (6.69 inches)
Height 240±2mm (9.45 inches)
Total Height (including terminal) 240±2mm (9.45 inches)
Weight 41.1 kg (90.61 lbs)
Terminal type T11
Housing material ABS
Rated Capacity 156.0 AH/7.80A (20hr ,1.80V/Cell,25℃/77℉)
150.0 AH/15.0A (10hr,1.80V/Cell,25℃/77℉)
129.0 AH/25.8A (5hr,1.75V/Cell,25℃/77℉)
117.0 AH/39.0A (3hr,1.75V/Cell,25℃/77℉)
91.5 AH/91.5A (1hr,1.60V/Cell,25℃/77℉)
Maximum Discharge Current 1500A (5s)
Battery Internal Resistance 3.5 mΩ
Operating
Temperature Range
Discharging -15 ~ 50℃ (5 ~ 122℉)
Charging 0 ~ 40℃ (32 ~ 104℉)
Storage -15 ~ 40℃ (5~ 104℉)
Rated Operating Temperature 25±3℃ (77±5℉ )
Recycle At a temperature of 25 °C and a voltage of 14.4 V to 15.0 V, the initial charge current is
less than 45.0 A. The correction factor is -30mV/°C
Floating Charge At a temperature of 25℃ and a voltage of 13.5 V to 13.8 V, the initial charging current
is not limited. The correction factor is -20mV/°C
Capacity affected
by temperature
40℃(104 ℉) 103%
25℃( 77 ℉ ) 100%
0℃( 32 ℉ ) 86%
Self-discharge At a temperature of 25℃, the battery can store up to 6 months and then need to be recharged once. If the battery is stored
at a higher temperature, the storage interval will be shortened
sealed lead acid battery 12v 150ah specification

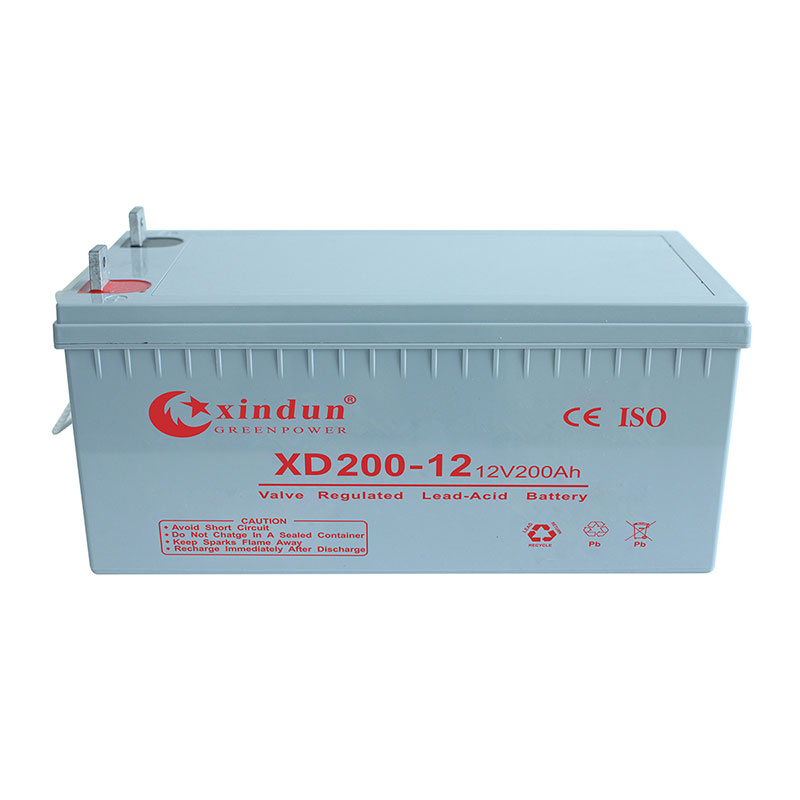

sealed lead acid battery 12v 200ah specification
Nominal Voltage 12V
Nominal Capacity (10HR) 200AH
Battery size Length 522±3mm (20.55 inches)
Width 240±2mm (9.45 inches)
Height 218±2mm (8.58 inches)
Total Height (including terminal) 224±2mm (8.81 inches)
Weight 55.0 kg (121.25 lbs)
Terminal type T11
Housing material ABS
Rated Capacity 208.0 AH/10.4A (20hr ,1.80V/Cell,25℃/77℉)
200.0 AH/20.0A (10hr,1.80V/Cell,25℃/77℉)
172.0 AH/34.4A (5hr,1.75V/Cell,25℃/77℉)
156.0 AH/52.0A (3hr,1.75V/Cell,25℃/77℉)
122.0 AH/122.0A (1hr,1.60V/Cell,25℃/77℉)
Maximum Discharge Current 2000A (5s)
Battery Internal Resistance 2.7mΩ
Operating
Temperature Range
Discharging -15 ~ 50℃ (5 ~ 122℉)
Charging 0 ~ 40℃ (32 ~ 104℉)
Storage -15 ~ 40℃ (5~ 104℉)
Rated Operating Temperature 25±3℃ (77±5℉ )
Recycle At a temperature of 25 °C and a voltage of 14.4 V to 15.0 V, the initial charge current is
less than 60.0 A. The correction factor is -30mV/°C
Floating Charge At a temperature of 25℃ and a voltage of 13.5 V to 13.8 V, the initial charging current
is not limited. The correction factor is -20mV/°C
Capacity affected
by temperature
40℃(104 ℉) 103%
25℃( 77 ℉ ) 100%
0℃( 32 ℉ ) 86%
Self-discharge At a temperature of 25℃, the battery can store up to 6 months and then need to be recharged once. If the battery is stored
at a higher temperature, the storage interval will be shortened
sealed lead acid battery 12v 200ah specification

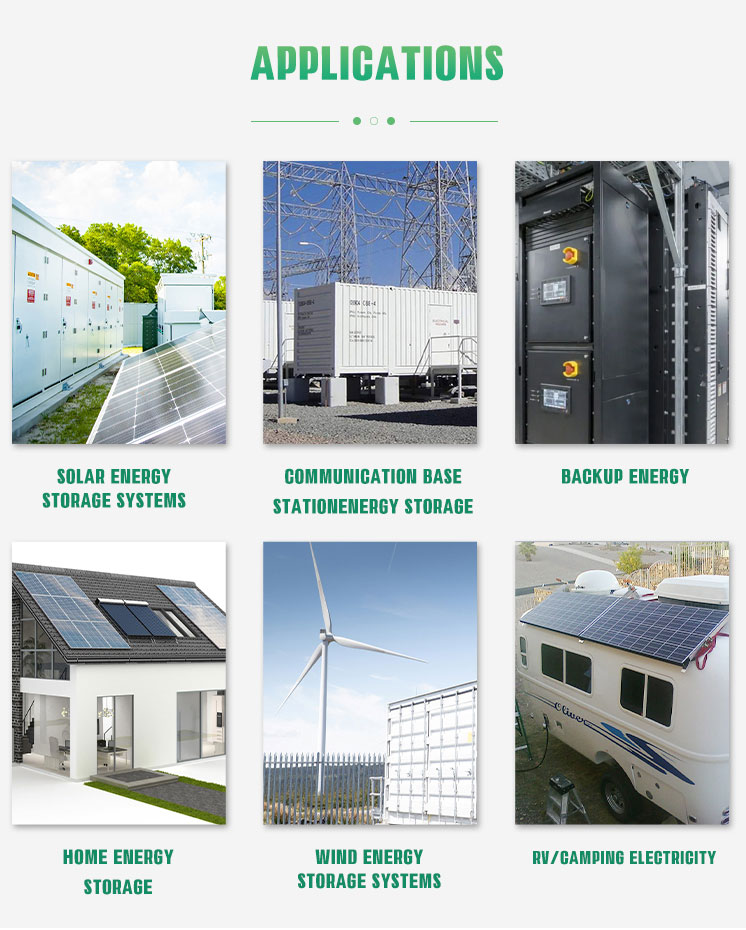

Best Solar Inverter Battery Application

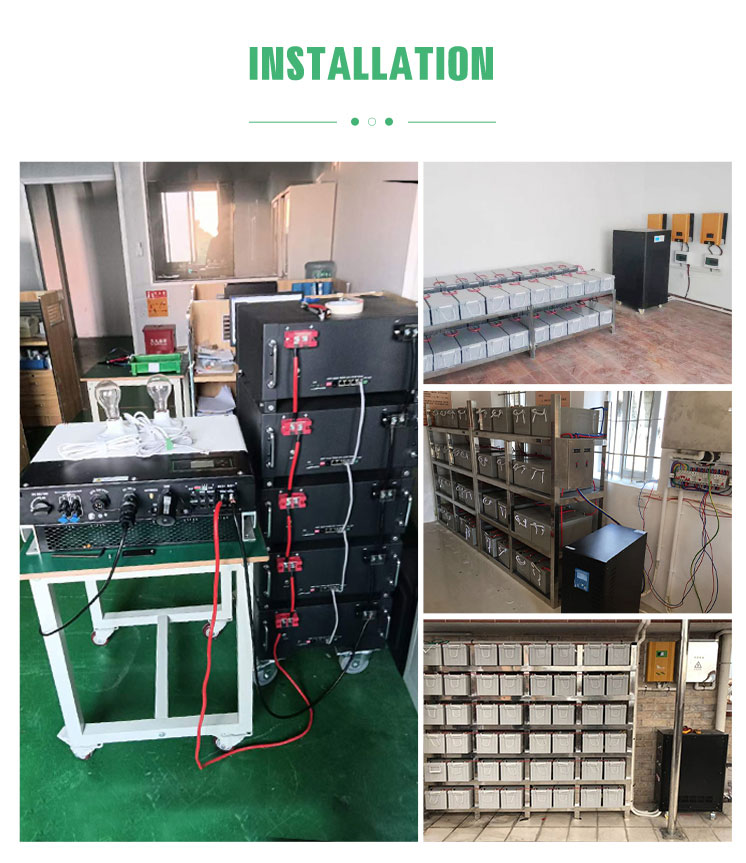

sealed lead acid battery 12v applicationsealed lead acid battery 12v installation

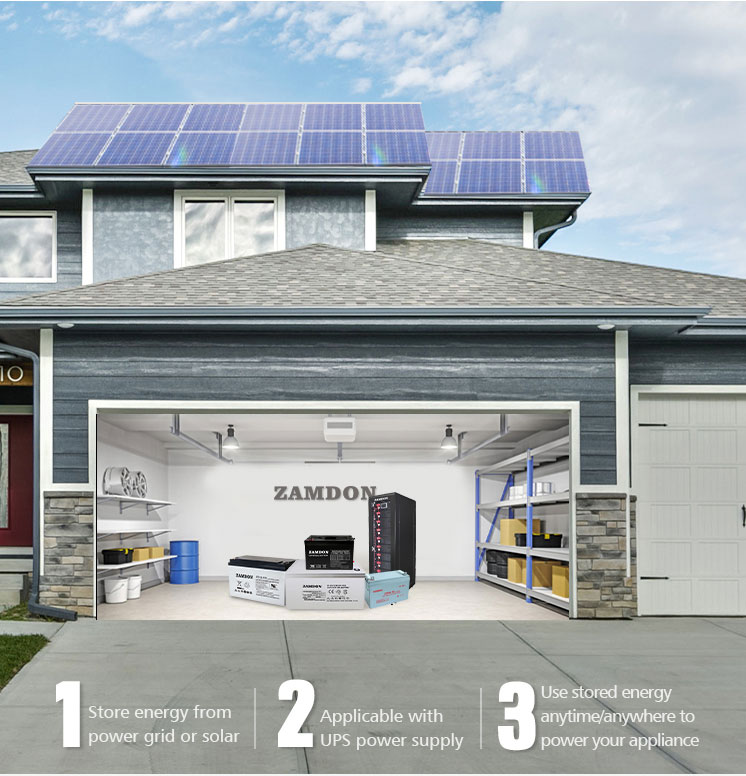

best inverter battery application: best inverter battery for home

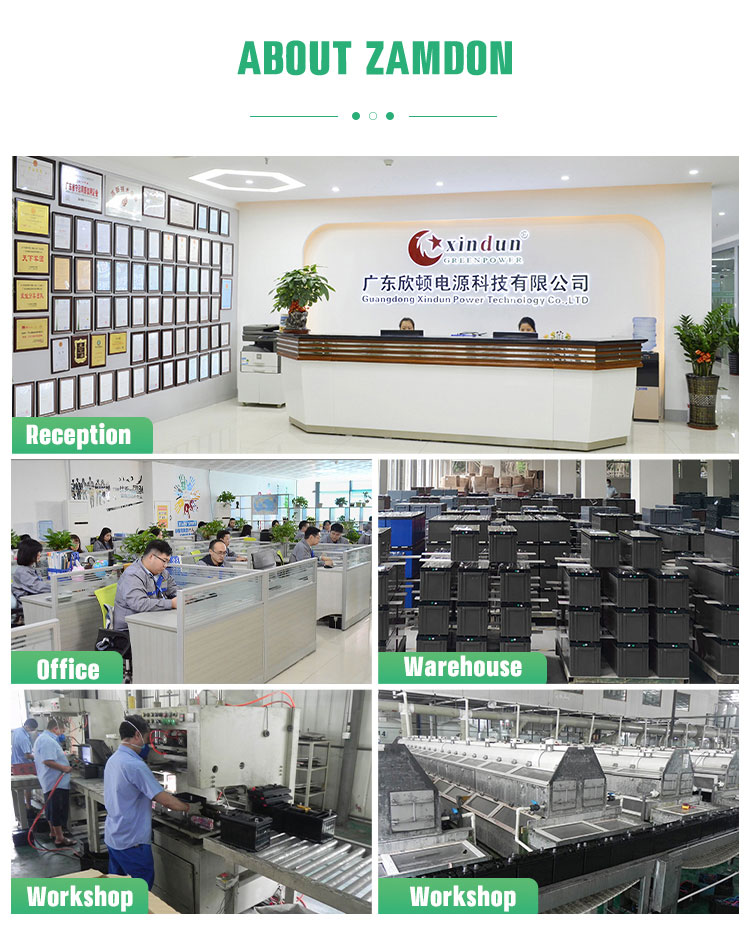

About Zamdon - Battery Supplier in China


sealed lead acid battery supplier in chinachinese sealed lead acid battery supplierchina sealed lead acid battery supplier


FAQ



Q1. What is sealed lead acid battery mean?

A: SLA (sealed lead acid battery) and VRLA (valve regulated lead acid battery) are different acronyms for the same battery. The battery has the following characteristics: maintenance free, leak proof and position insensitive. The battery has a safety vent to release gas when the internal pressure is too high.


Q2. Which is better, lead acid battery or gel battery?
A: High quality gel battery has much lower internal resistance than standard lead acid battery, which means they are more suitable for rapid charging and can provide higher burst power. While Lead acid battery is certainly cost-effective battery solutions.


Q3. Which is better, lead acid battery or lithium ion battery?

A: Typically for lithium ion battery they are at least 95% efficient, whereas lead acid battery offer efficiencies around 80-85%. This is important as it allows the battery to charge faster and have a more effective battery capacity, which relates to how much energy can be stored by the battery. But lead acid battery is certainly cost-effective battery solutions, and ideal for small or inexpensive solar storage solutions.


Q4. What is the function of inverter battery for home?
A: The electricity in the battery is direct current (DC), while the electricity used in home appliances is alternating current (AC). Therefore, it is necessary to use a DC to AC inverter to convert the electricity in the battery into AC. ZAMDON wholesales all kinds of best solar batteries, such as lead acid battery, gel battery, agm battery, li ion battery, lithium batter.


Q5. Is it OK to print my logo on the solar battery?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
